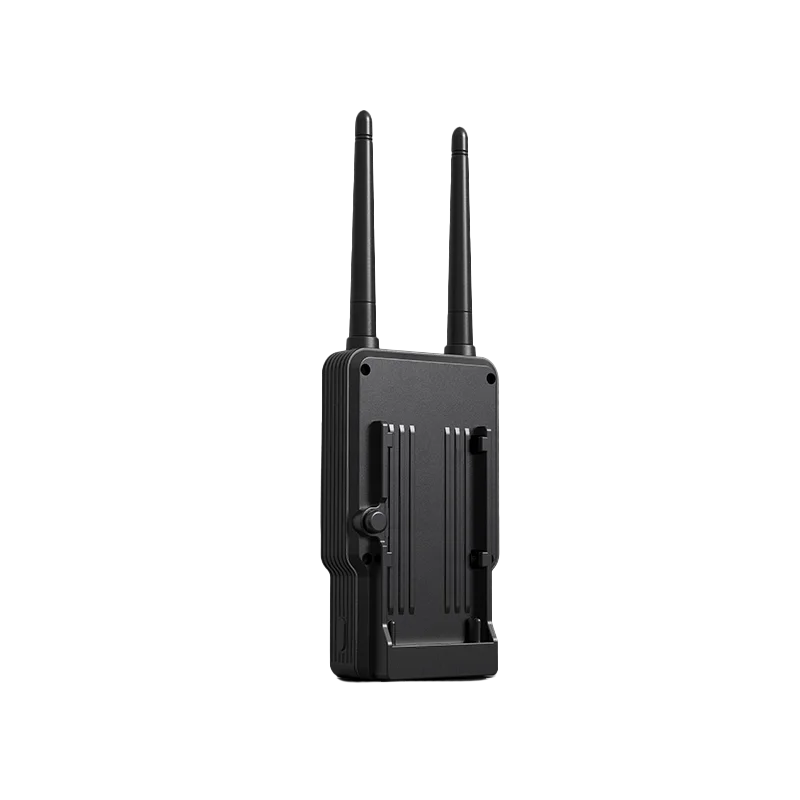

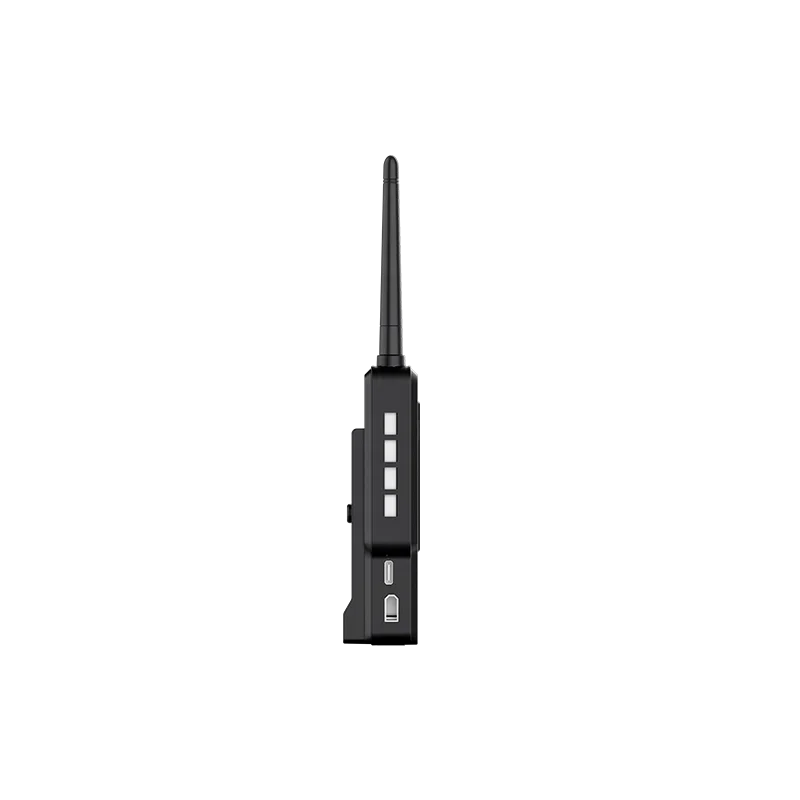

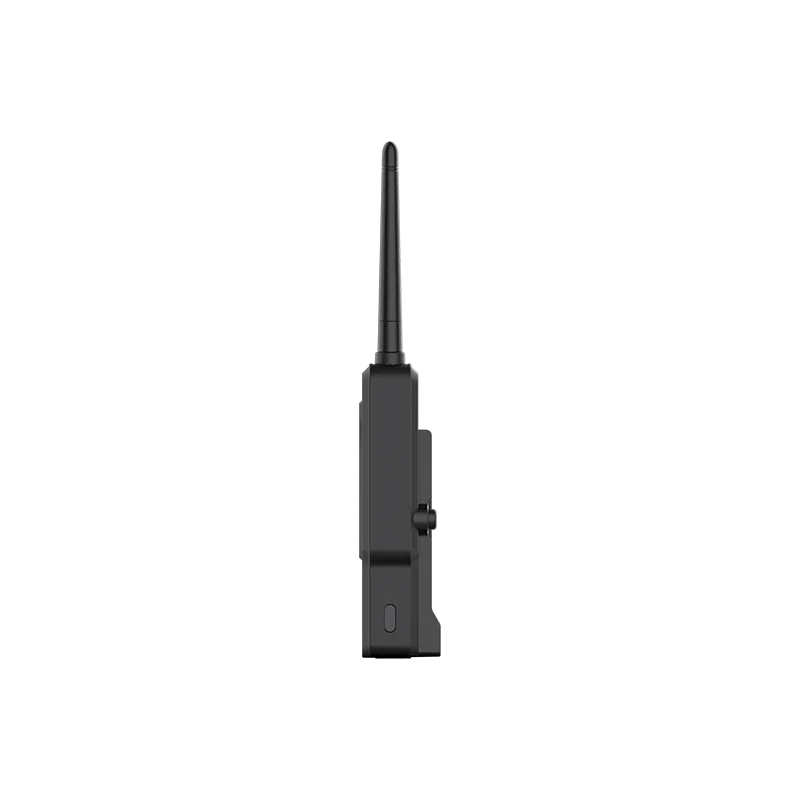

SIYI HM30 Long Range Full HD Digital Image Transmission FPV System 1080p 60fps 150ms SBUS PWM Mavlink Telemetry OSD 30KM CE FCC
- Category: >>>
- Supplier: Dongying Youjia Industry & Trade Co. Ltd.
Share on (1600940384642):
Product Overview
Description
Product Description
Specifications:
HM30 FAQ
1. What is HM30?
A long-range full HD FPV system with remote control, telemetry, and OSD built-in.
2. What frequency bands do HM30 use?
5100 to 5825 MHz, centering at 5550 MHz.
3. Can I replace the antennas on HM30?
Yes, of course.
Both the ground unit and the air unit are using SMA connectors for antenna installation.
SIYI original antennas are:
4 x Omni Antennas (2 for ground, 2 for air)
2 x Directional Antennas (for ground)
SIYI sold-alone antenna choices are:
17 dB High Gain Antenna
Lollipop Antenna
4. How much transmitting power in HM30?
Around 25 dBm / 320 mW
5. What is the effective range?
The latest record is 50 km.
With different antenna setup and in different wireless mode, the range limit is different.
6. What flight controllers are compatible with HM30?

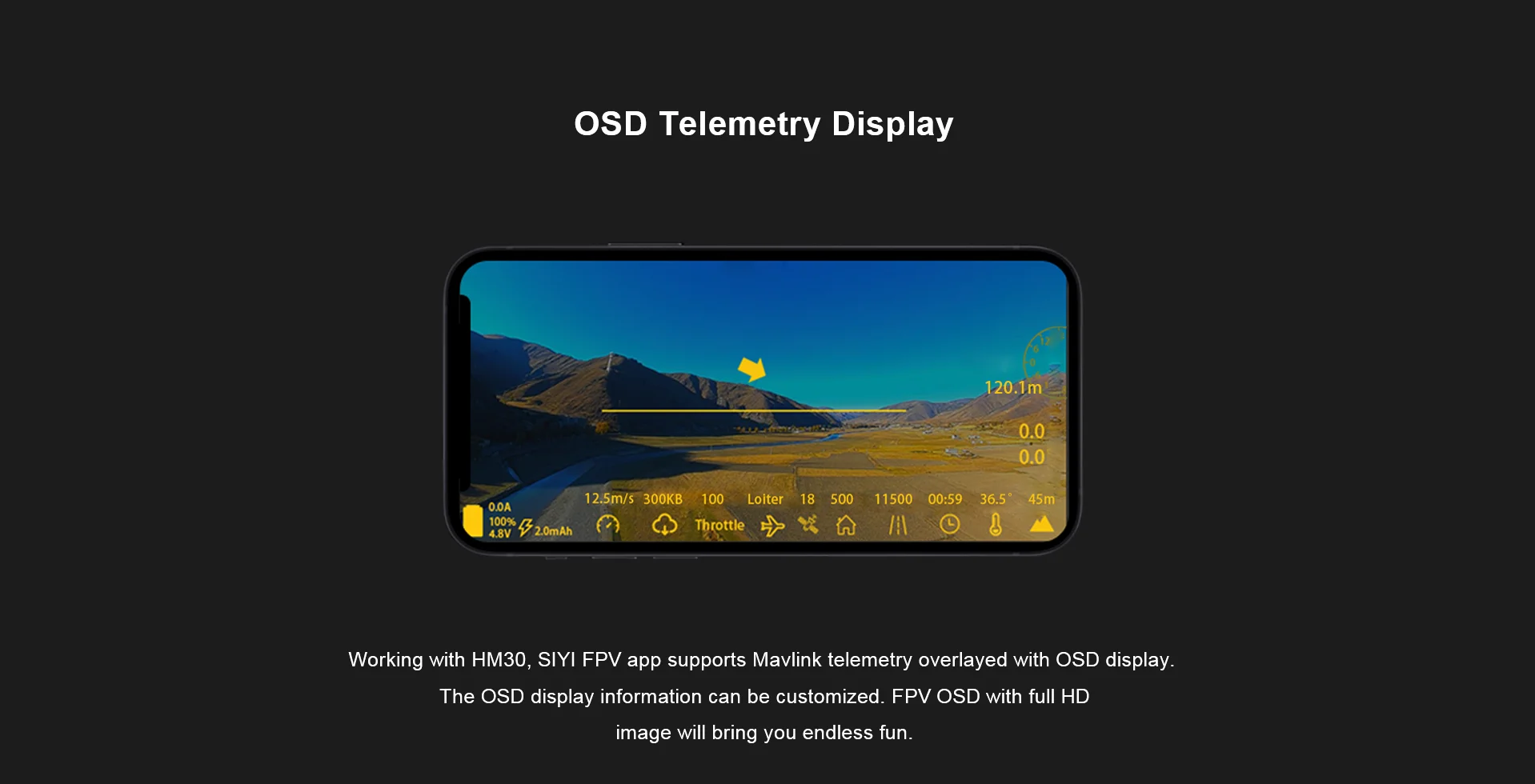

To use the OSD overlay, the flight controllers should support Mavlink output, such as
Ardupilot, PX4, INAV, etc.
If the OSD overlay is not necessary, then any flight controllers are compatible.
7. What remote controllers are compatible with HM30?
Any remote controllers which support S.Bus or PPM output.
8. What interfaces to output video stream on HM30 ground unit?
USB-C
LAN (UDP telemetry simultaneously)
Internal WiFi (UDP telemetry simultaneously)
USB WiFi (UDP telemetry simultaneously)
9. Does HM30 ground unit support HDMI output?
Yes but with a sold-alone LAN-HDMI Output Converter Module.
10. Does HM30 air unit support HDMI input?
Yes but with a sold-alone HDMI-Ethernet Input Converter Module.
11. What kind of models are the most suitable for HM30?
FPV wings and multirotors

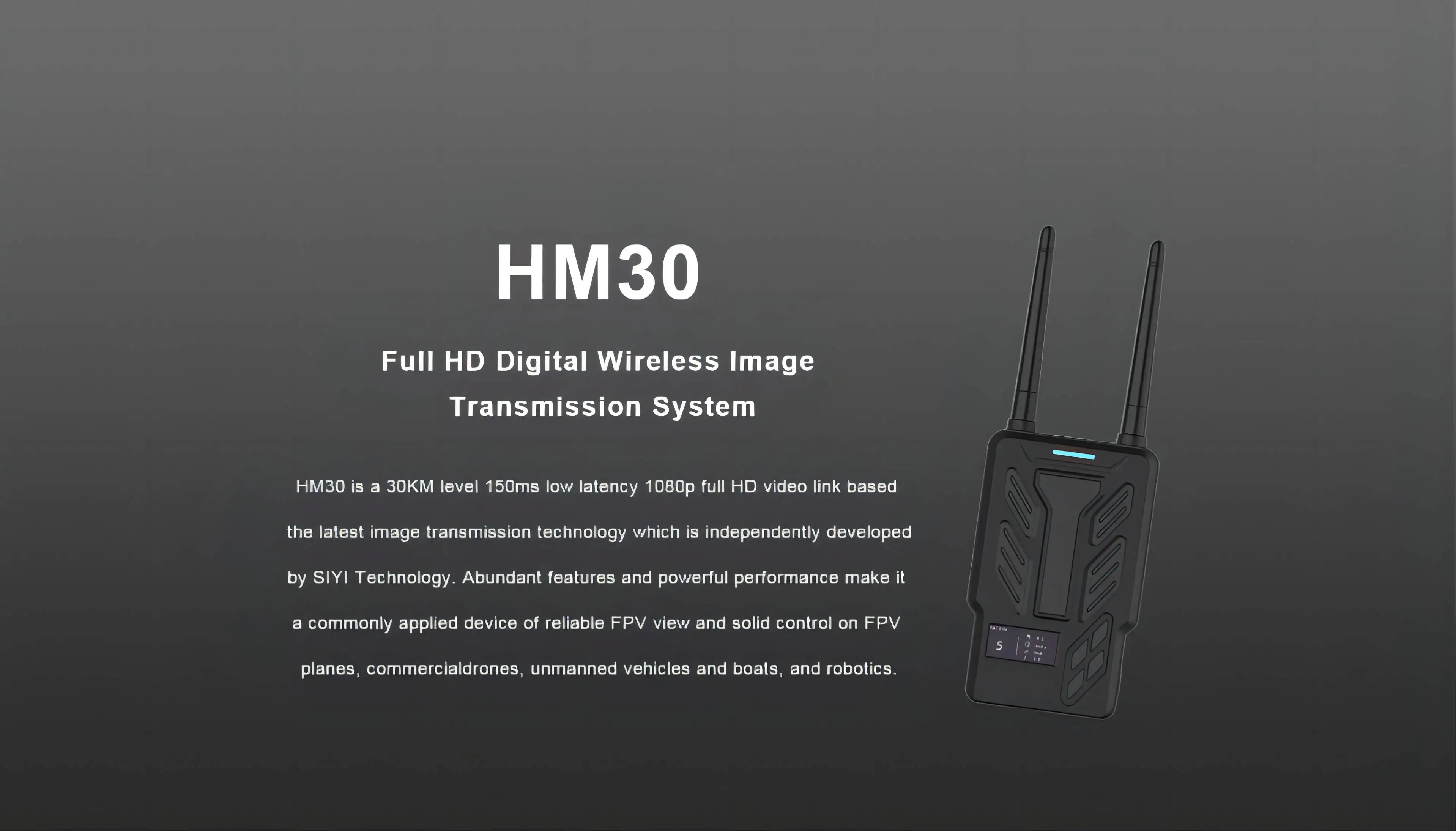

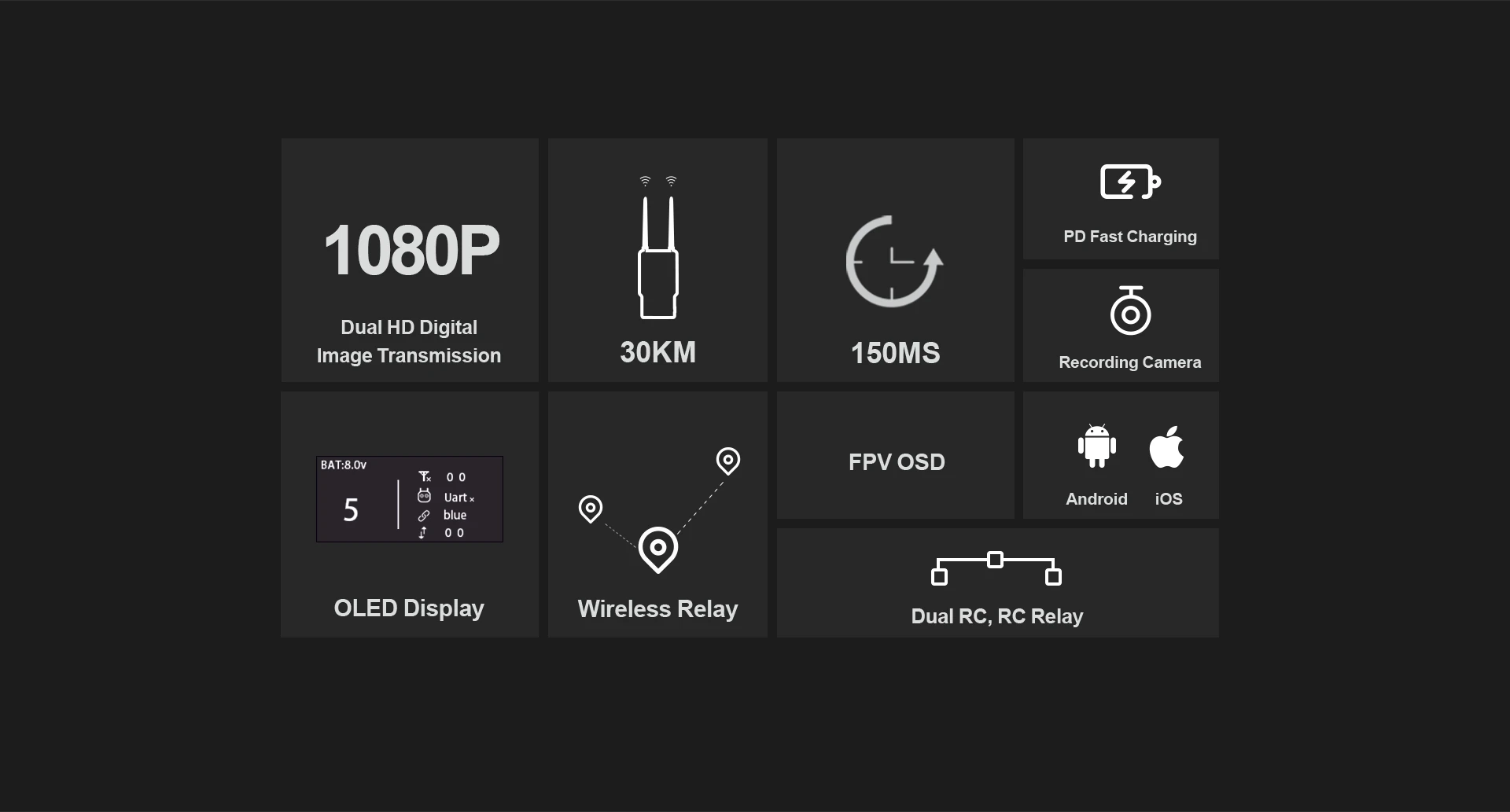

HM30
Full HD Digital Wireless ImageTransmission System

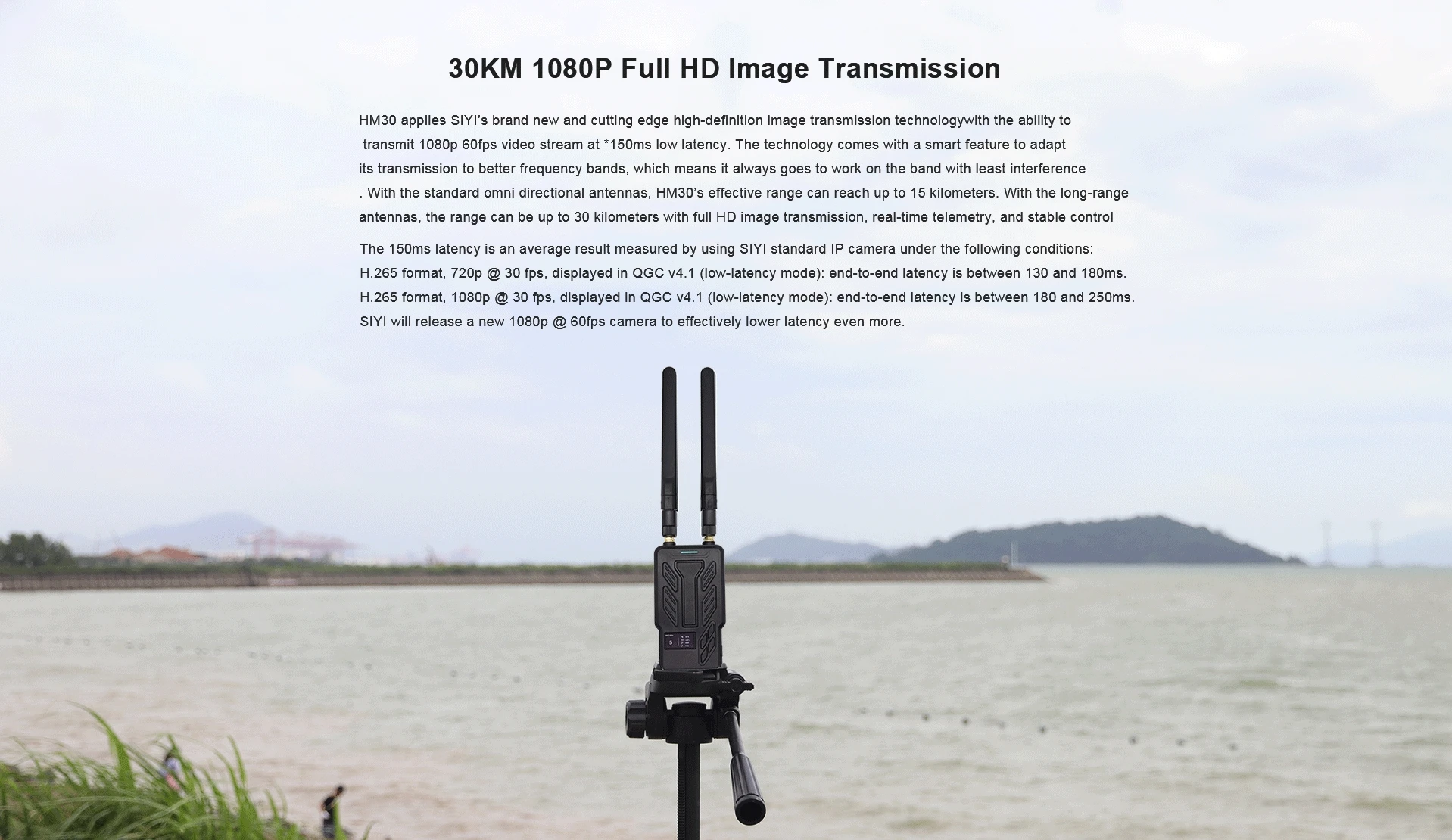

HM30 is a 30KM level 150ms low latency 1080p full HD video link basedthe latest image transmission technology which is independently developedby SIYI Technology. Abundant features and powerful performance make ita commonly applied device of reliable FPV view and solid control on FPplanes, commercialdrones, unmanned vehicles and boats, and robotics.
Full HD Digital Wireless ImageTransmission System
HM30 is a 30KM level 150ms low latency 1080p full HD video link basedthe latest image transmission technology which is independently developedby SIYI Technology. Abundant features and powerful performance make ita commonly applied device of reliable FPV view and solid control on FPplanes, commercialdrones, unmanned vehicles and boats, and robotics.
| Overall | |
| Max Transmission Range | 30 km |
| (Unobstructed, free of interference) | |
| Channels | 16 communication channels |
| Datalink Compatible Flight Controllers | PX4 / Ardupilot Flight Controllers or any flight controllers with UART port for transparent communication |
| Video Stream Compatible Android App | QgroundControl |
| Mission Planner | |
| SIYI FPV | |
| Video Stream Compatible Windows GCS | QGroundControl |
| Mission Planner (H264 only) | |

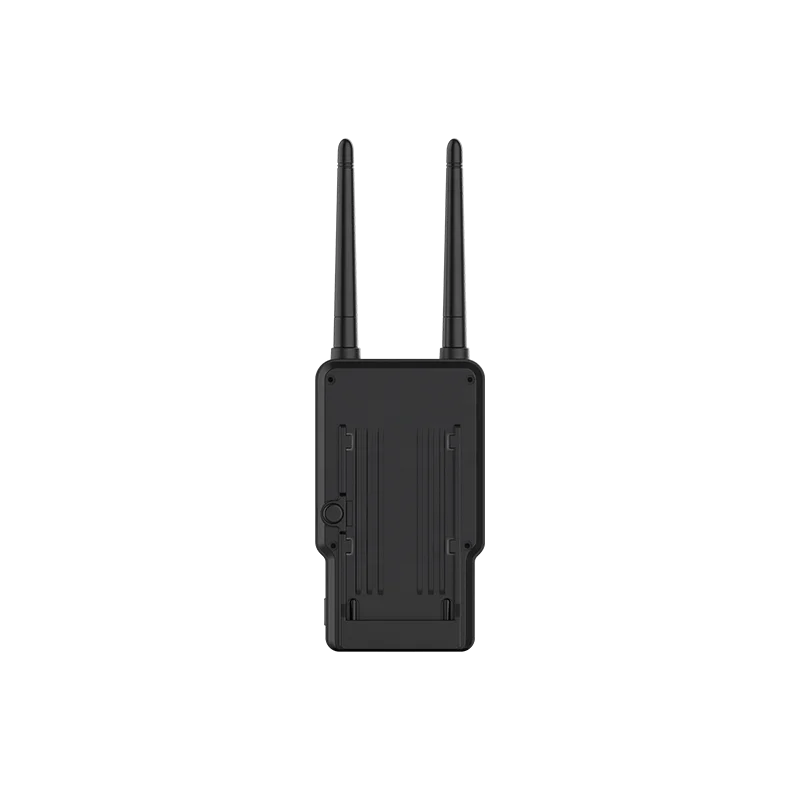

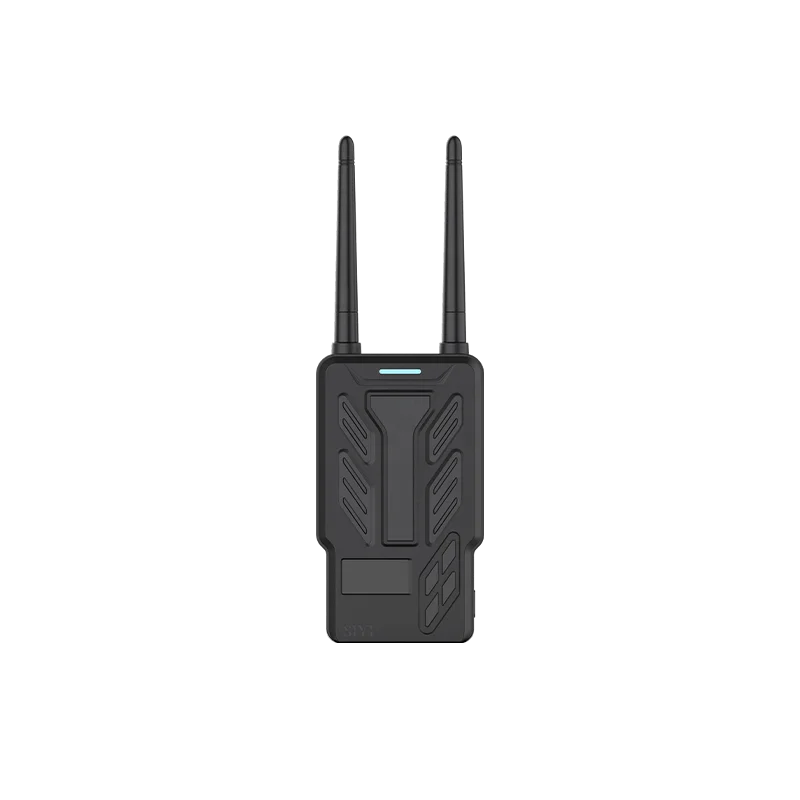

| Ground Unit | |

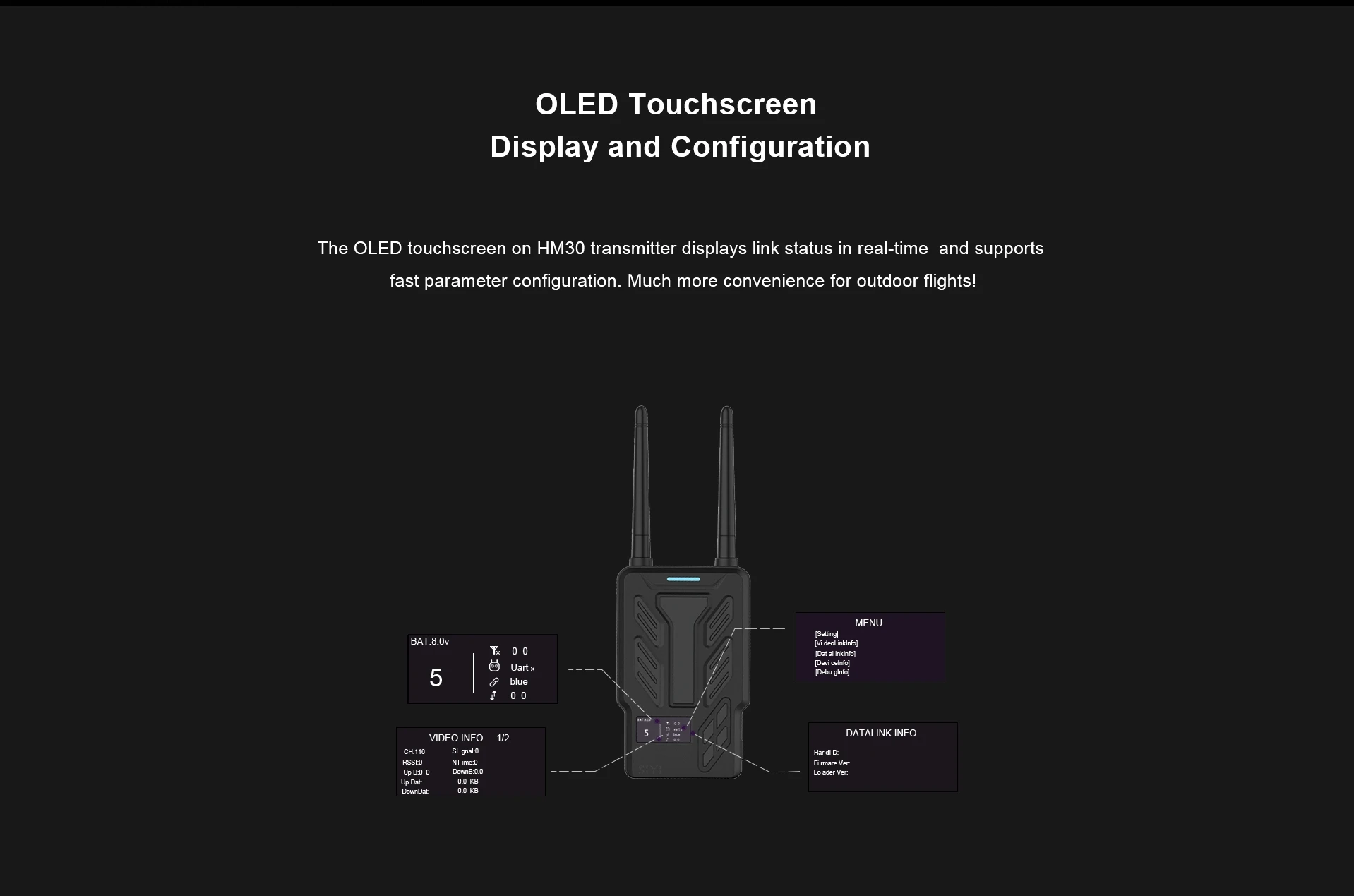

| Monitor | 0.96-inch OLED Display |
| Dimensions | 109 x 61 x 28 mm (Antenna and battery excluded) |
| Weight | 132 g (Antenna and battery excluded) |

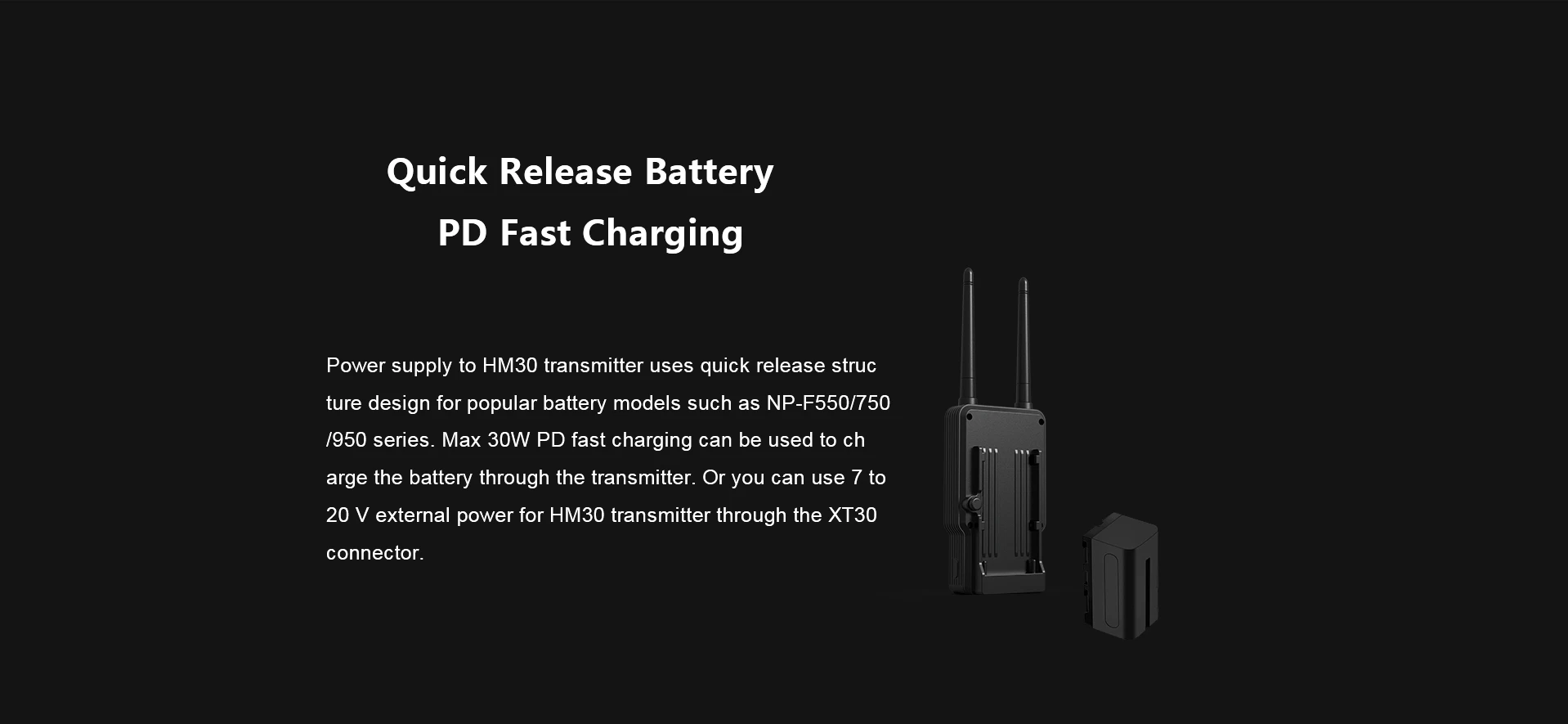

| Compatible Battery Type | NP-F550 / F750 / F950 quick release battery |
| (HM30 Fly More Combo comes with NP-F750 battery) | |
| Fast Charging Protocol | PD 30 W |
| Antenna Gain | Standard Omni Antenna: 5 dBi |
| Standard Long Range Antenna: 11 dBi | |
| Power Consumption | 5 W |
| Interface & Ports | S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin) |
| Datalink Output: UART (GH1.25 4-pin) | |
| Ethernet Port: LAN (GH1.25 4-pin) | |
| Power Output: VCC (GH1.25 4-pin) | |
| USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C | |
| Power Input: PWR (XT30) | |
| Tripod Connector: 1/4-inch Screw Hole | |
| Waterproof Level | IP53 |
| Working Temperature | -10℃ ~ 50℃ |
| Air Unit | |
| Signal Output | 16 channels of SBUS |
| 5 channels of PWM | |
| Interface & Ports | Remote Control: S.BUS (GH1.25 3-Pin) |
| Datalink (to FC): UART (GH1.25 4-Pin) | |
| PWM Channel 1 to 5: GH1.25 6-Pin | |
| Video Input / Network Communication: Ethernet (GH1.25 8-Pin) | |
| Firmware Upgrade: Type-C | |
| Dimensions | 70*55*16 mm (antenna excluded, fan included) |
| Weight | 74 g (antenna excluded) |
| Antenna Gain | Standard Omni Antenna: 5 dBi |
| Working Temperature | 11 ~ 25.2 V |
| (Early manufacturing lots before June, 2023 were 11 ~ 16.5 V, please carefully confirm if you need 25.2 V) | |
| (Expandable to 16.5 ~ 58.8 V with optional power module) | |
| Working Temperature | -10℃ ~ 50℃ |
| R1M Recording FPV Camera (Optional, packed with both HM30 combos) | |
| Video Output Port | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Working Temperature | -10°C ~ 50°C |
| Dimensions | 42*42*25 mm |
| Weight | 39 g |
| Image Sensor | 1/2.9 Inch |
| FOV | Diagonal: 90°, Horizontal: 80° |
| Video Recording Resolution | 1080p (1920 x 1080) @ 30 fps |
| 720p (1280 x 720) @ 30 fps | |
| Video Storage Bitrate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Format | H265 |
| Supported MicroSD Cards | MicroSD Class10, Max 32 GB |
| Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo) | |
| Video Input Port | Mini HDMI |
| Video Output Port | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution | 1080p (1920 × 1080) @ 30 fps |
| 720p (1080 × 720) @ 30 fps | |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Format | H265 |
| Supported MicroSD Cards | MicroSD Class10, Max 32GB |
| Working Temperature | -10°C ~ 50°C |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
