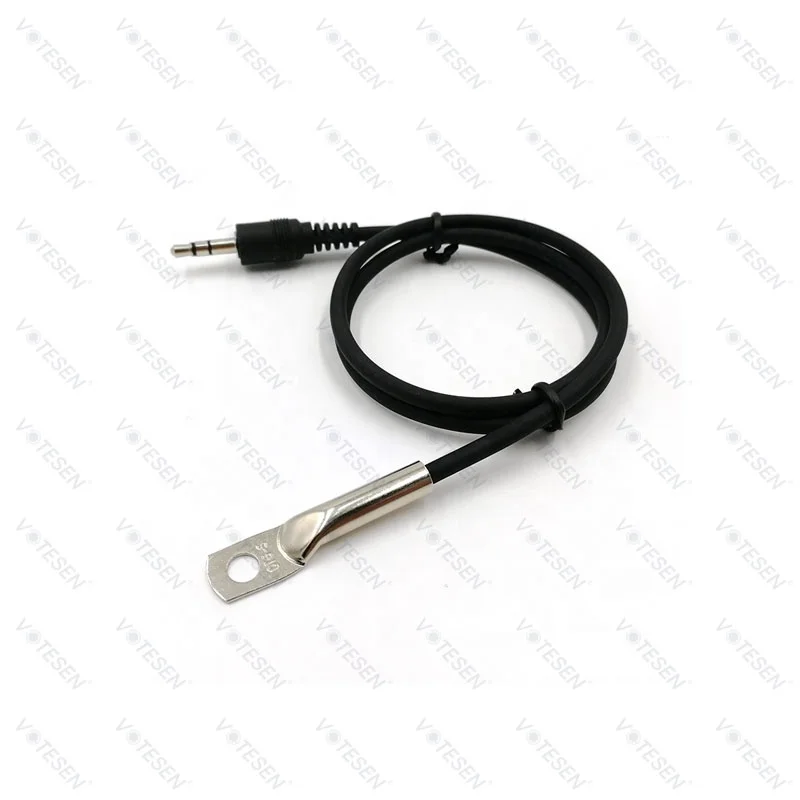

Customized 1 Wire Bus DS18B20 Digital Temperature Sensor with Origin Chip
- Category: >>>
- Supplier: Xian Votesen Electronic Technology Co. Ltd.
Share on (1600940433912):
Product Overview
Description
Product Description
DS18B20
Instead of reading a voltage with an analog pin, we read a serial stream of bits from the sensor on one of our digital pins. One such sensor is the Dallas Semiconductor DS18B20. It uses what Dallas Semiconductor calls the OneWire protocol to communicate back and forth between the sensor and the tiny computer. It has three pins, one for power, one for ground, and one for the data link (it is this single data link line that gives the protocol its name).
DS18B20 is a commonly used digital temperature sensor, and its output is digital signal. It has the characteristics of small size, low hardware overhead, strong anti-interference ability and high precision.

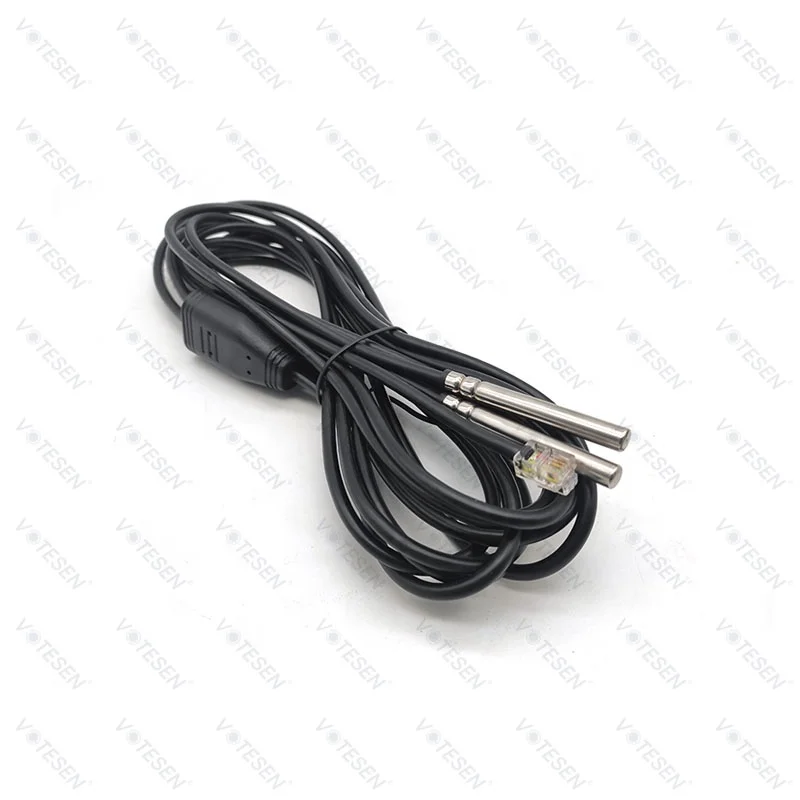

VTS200

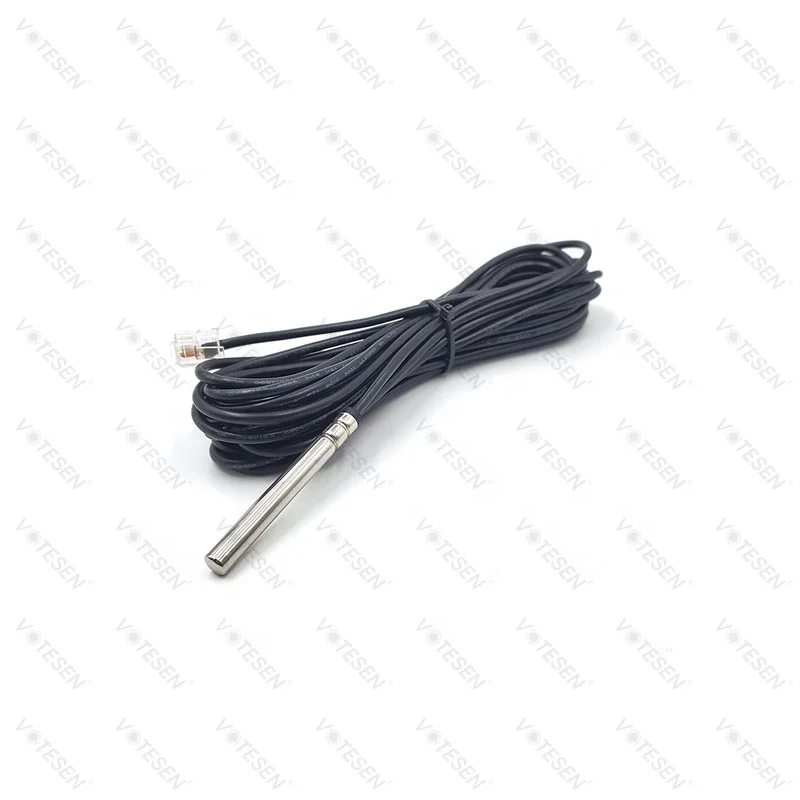

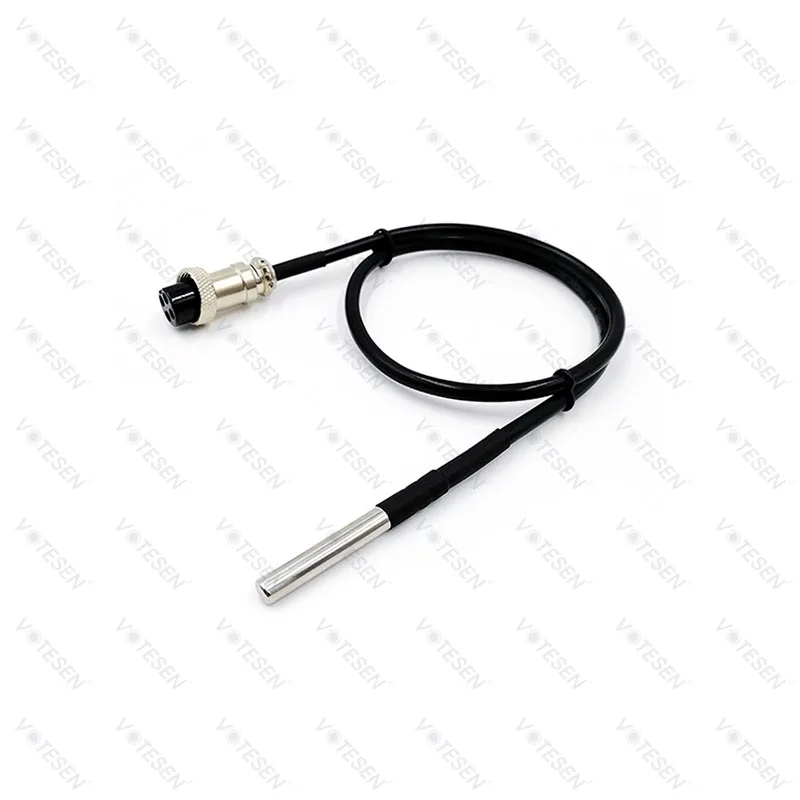

Votesen VTS200 – is a DS18B20 digital temperature sensor which composed of original DALLAS chip, stainless steel probe, cable and connector.
Product Feature
1. Digital Signal Output
One Wire interface requires only one port pin for communication. Requires no external components.
2. High Accuracy
Operating temperature range: -55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C.
3. Data Line Power Supply
Can be powered from data line. Power supply range is 3.0V to 5.5V.
4. Fast Response
Thermometer resolution is programmable from 9 to 12 bits.

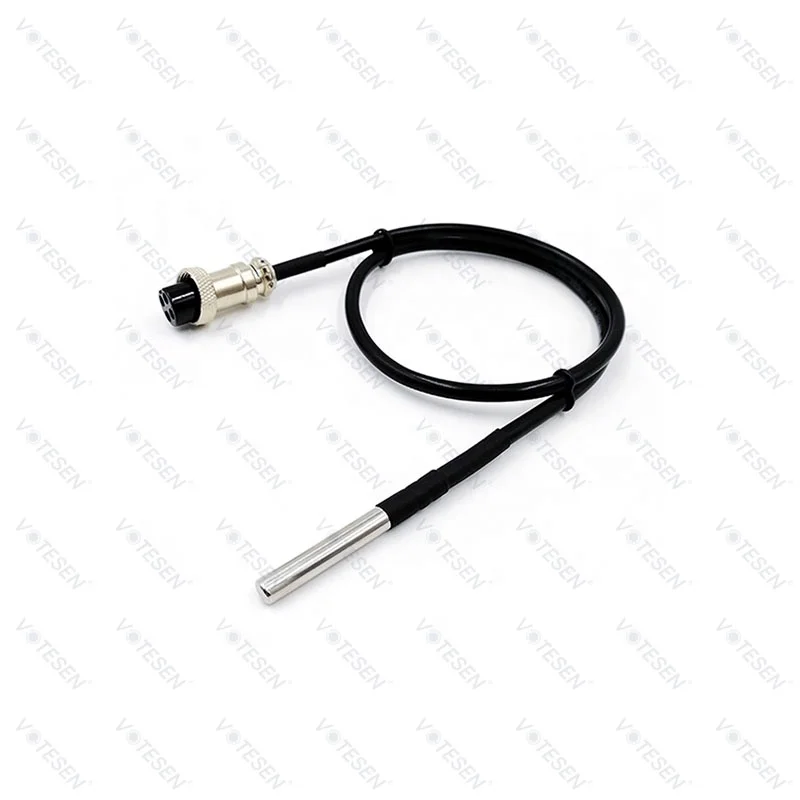

5.Various Probe Design
Probe dimension :6*30mm or customized
One Wire interface requires only one port pin for communication. Requires no external components.
2. High Accuracy
Operating temperature range: -55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C.
3. Data Line Power Supply
Can be powered from data line. Power supply range is 3.0V to 5.5V.
4. Fast Response
Thermometer resolution is programmable from 9 to 12 bits.
5.Various Probe Design
Probe dimension :6*30mm or customized
Application:
Water Temperature Monitoring, HVAC, Medical Instrument, GPS Oil Tank Temperature Monitoring etc.
Dallas Pin Configuration | ||
Pin Name | Description | |
Ground | Connect to the ground of the circuit | |
Vdd | Power the Sensor, can be 3.3V or 5V | |
Data | This pin gives output the temperature value which can be read using 1-wire method | |
Product Parameters

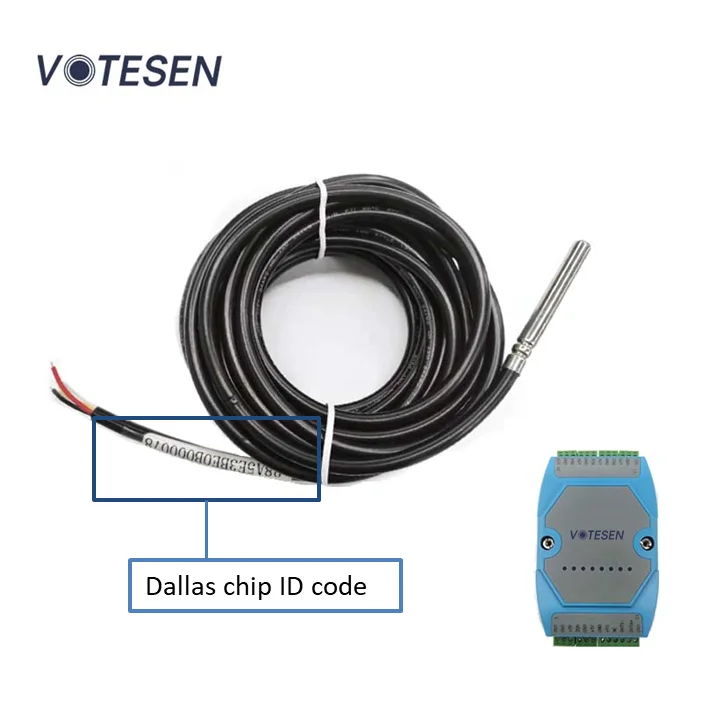

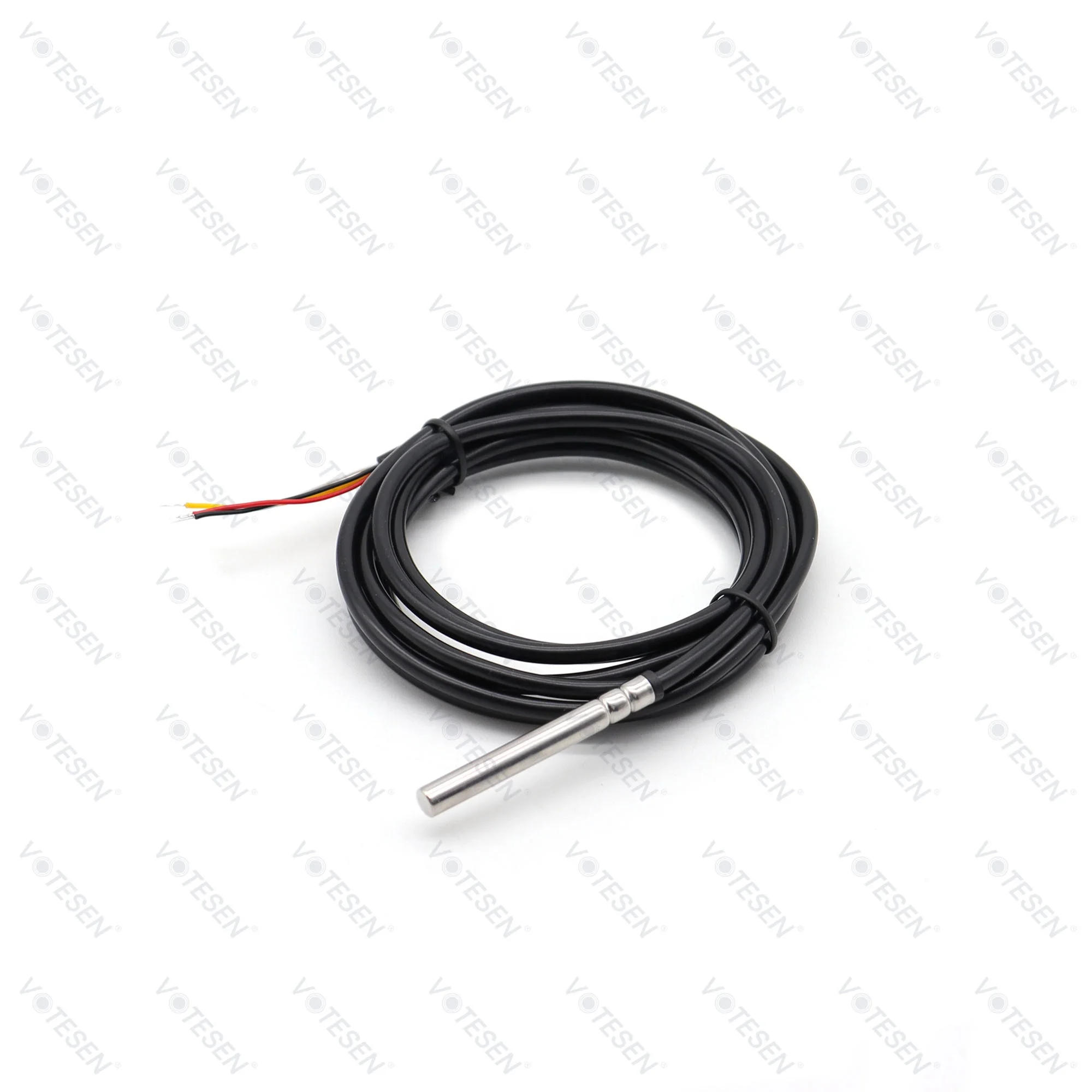

Digital Chip | 100% Original Dallas |
Power Supply | 3.0 - 5.5VDC |
Temperature Range | -50°C ~ +125°C |
Probe Dimension | Diameter:¢6~¢9mm, length:10mm~1000mm |
Cable Length | 0.5M, 1M, 2M etc. Customization available. |
Accuracy | -10~+85℃, the accuracy is±0.5℃ |
Resolution Ratio | 9~12 bit, Corresponding distinguish temperature are 0.5℃,0.25℃,0.125℃ and 0.0625℃ |
Probe Material | Stainless Steel |
Cable Material | PVC, Silicone, PTFE |
Connector | MOLEX, JST, DuPont, CJT, U type etc. Customization available. |
Connection Mode | Black: GND, Yellow: DATA, Red: VDD+ |
Customer Feedback
How to order?
Send us the below details and we will be able to assist you based on your requirements.
1. Operation Temperature range
2. Application
3. Probe Dimension
2. Application
3. Probe Dimension
4. Types of Probe
5. Cable Length
5. Cable Connector
5. Cable Length
5. Cable Connector
6. Any other specific request
Product FAQ
Q: Where physically on the device does the temperature measurement take place?
A: The DS18B20 does not sense temperature directly through the package. For all package types, the DS18B20 senses temperature primarily through the GND pin. Ensuring a good thermal connection between the GND pin of the device and the heat source you wish to measure will provide the best results.
Q: Is there a way to extend the temperature range of the DS18B20?
A: No, there is not a way to increase the range it reads. The DS18B20 reads with an accuracy of ±0.5°C from -10°C to +85°C and ±2°C accuracy from -55°C to +125°C.
Q: Will a conformal coating affect the thermal response of the DS18B20?
A: A thin conformal coating will not affect the thermal response of the device.
Q: Using OneWireViewer, can more than one DS18B20 be logged?
A: Yes, every DS18B20 will have a file where you can store the data. Data will be received from one DS18B20 at a time.
Q: Can you power the DS18B20 from a 3V battery?
A: The DS18B20 can be powered from any source. Since batteries will dip in voltage, a nominal 3V battery may not always supply the minimum 3.0V the DS18B20 requires. We suggest a step-up voltage regulator is used to ensure the device is supplied within its rated voltage range of 3.0V to 5.5V.
