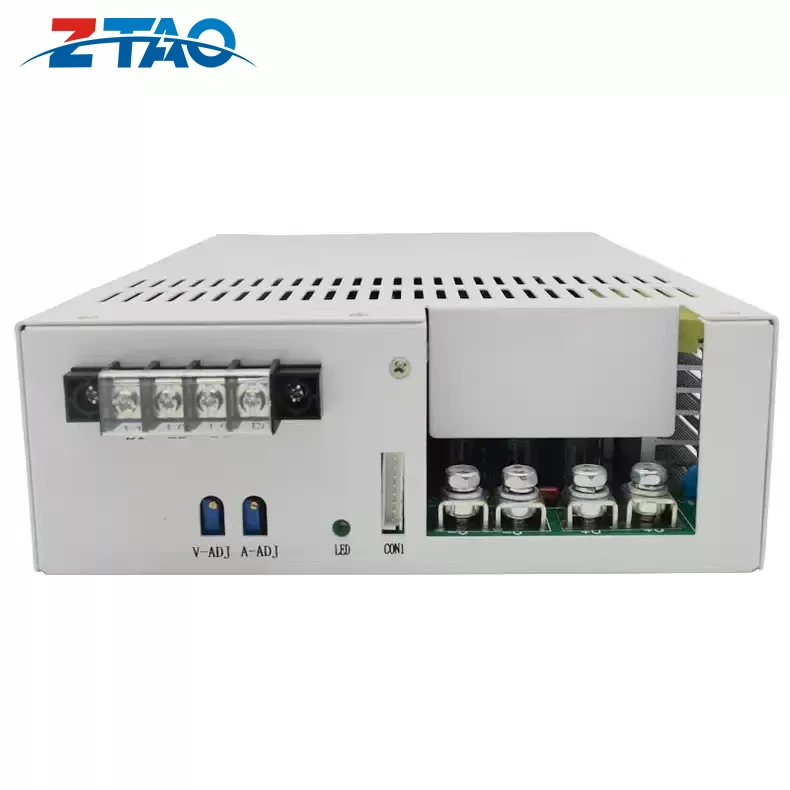

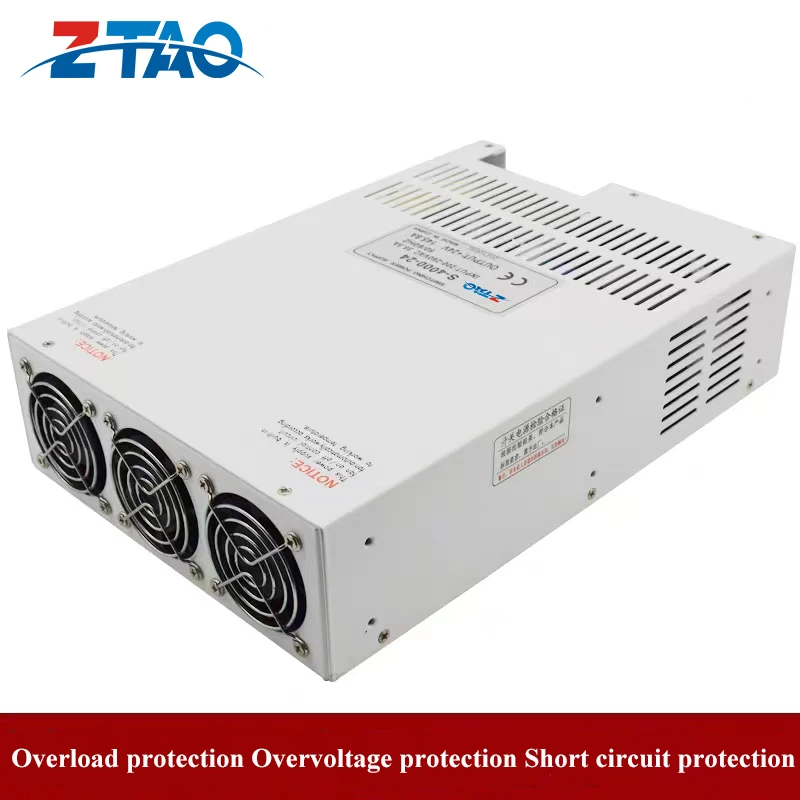

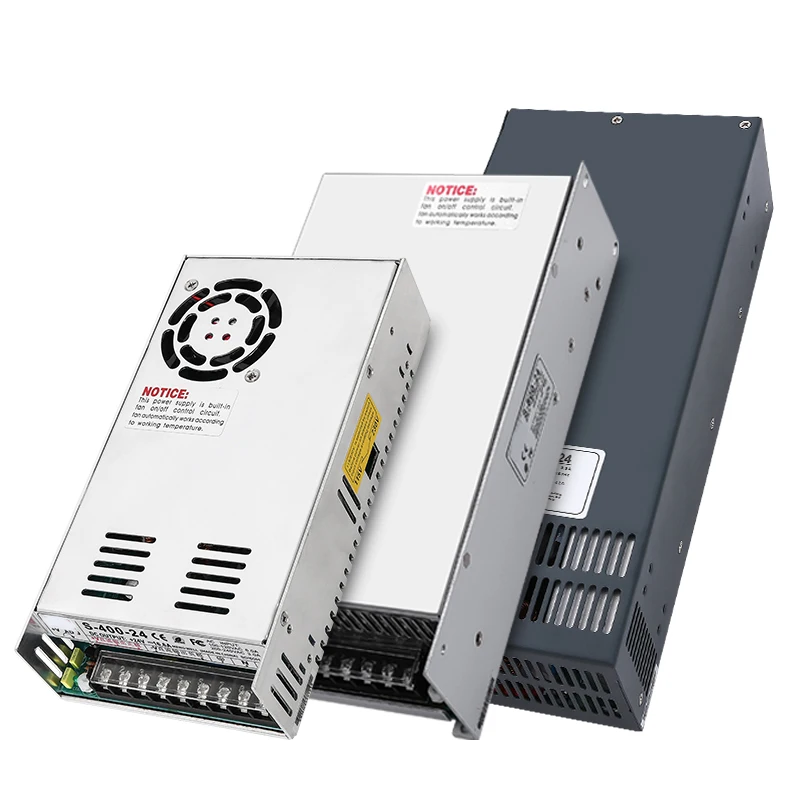

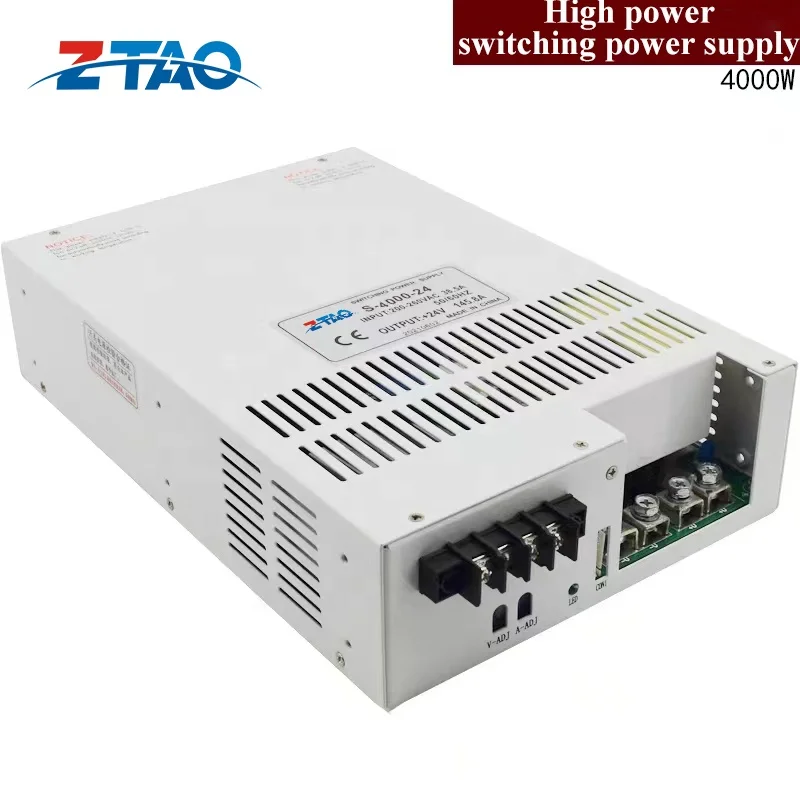

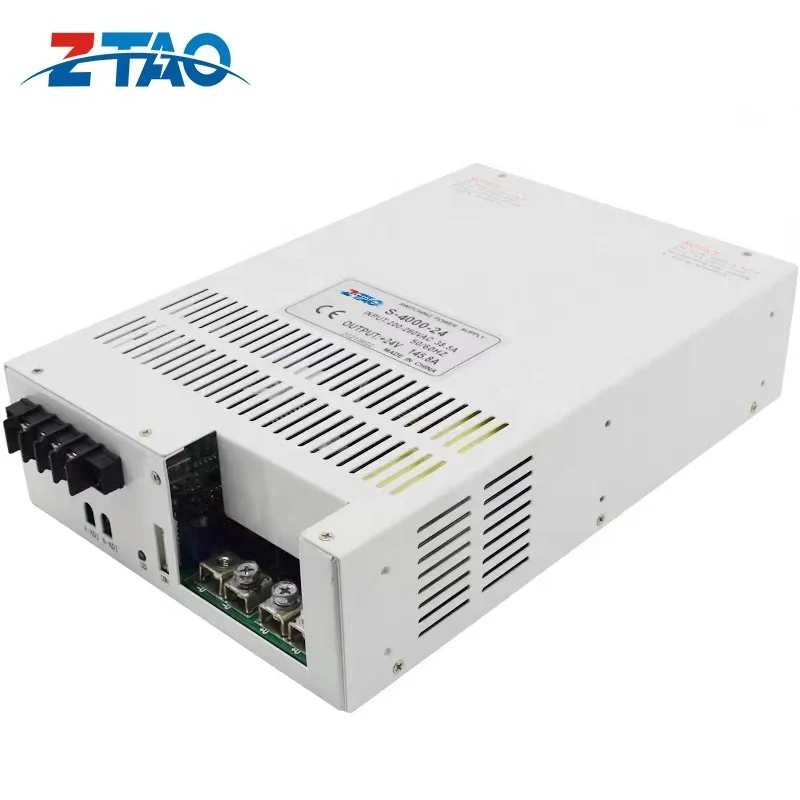

4000W Switching Power Supply AC to DC 0 48v 250a 20v 24v 25v 36v 40v 48v 50v voltage current adjustable outdoor power supply
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600940452473):
Product Overview
Description
PRODUCT SPECIFICATIONS
MODEL | S-4000-12 | S-4000-36 | S-4000-48 | |||||||
DC Voltage | 0-15V | 0-24V | 0-36V | 0-48V | ||||||
Rated Current | 0-260A | 0-166.6A | 0-111A | 0-83.3A | ||||||
Rated power | 4000W | 4000W | 4000W | 4000W | ||||||
Ripple&noise | 150mVp-p | 150mVp-p | 240mVp-p | 240mVp-p | ||||||
Voltage ADJ. | 12~14V | 24~28V | 36~38V | 48~53V | ||||||
Setup,Rise,Time | 2000ms, 50ms/230VAC (full load) | |||||||||
Hold up time | 20ms/230VAC (full load) | |||||||||
INPUT | Voltage range | 195～240VAC 273～340VDC | ||||||||
Frequency range | 50~60Hz | |||||||||
Efficiency | 85% | 85% | 85% | 85% | ||||||
AC current | 60A 230VAC | |||||||||
MODEL | S-2000-12 | S-2000-24 | S-2000-36 | S-2000-48 | ||||||
OUTPUT | DC Voltage | 12V | 24V | 36V | 48V | |||||
Rated Current | 141A | 83.3A | 55.5A | 41.6A | ||||||
Current range | 0~141A | 0~83.3A | 0~55.5A | 0~41.6A | ||||||
Rated power | 2000W | 2000W | 2000W | 2000W | ||||||
Ripple&noise | 300mVp-p | 260mVp-p | 260mVp-p | 240mVp-p | ||||||
Voltage ADJ. | 12~14V | 24~28V | 36~38V | 48~53V | ||||||
Setup,Rise,Time | 200ms, 50ms/230VAC (full load) | 200ms, 50ms/230VAC (full load) | 200ms, 50ms/230VAC (full load) | 200ms, 50ms/230VAC (full load) | ||||||
Hold up time | 20ms/230VAC (full load) | 20ms/230VAC (full load) | 20ms/230VAC (full load) | 20ms/230VAC (full load) | ||||||
INPUT | Voltage range | 195～240VAC 273～340VDC | ||||||||
Frequency range | 50~60Hz | |||||||||
Efficiency | 80% | 84% | 84% | 84% | ||||||
AC current | 60A 230VAC | |||||||||
Product Description
Details Images
Related Products
Product Usage
2.Direct Manufacturer
3.Provide sample service
4.Supplier Owned Inventory
5.Had awarded CE，FCC，ROHS&ISO9001 certification
