Product Overview
Description
MEDICAL AIR COMPRESSING SYSTEM
Medical air plant system consists of air compressor, PLC controller, filter, dryer, monitor, receiver tank, interconnecting pipework and wiring, which is fully meet with NFPA 99 and also manufactured in ISO9001, ISO14001, ISO13485, ISO45001 system.
The air plant is available in oil free scroll type, and can be equipped with different power, several systems according to hospitals' need.
The system has skid mounted with compact component layout, easy for use, installation and maintenance, and also has split type.
The air plant is available in oil free scroll type, and can be equipped with different power, several systems according to hospitals' need.
Hospital Medical Air compressing System Scroll type
Oil- free Hospital Medical scroll air plant System
Recommend Products
Details Images

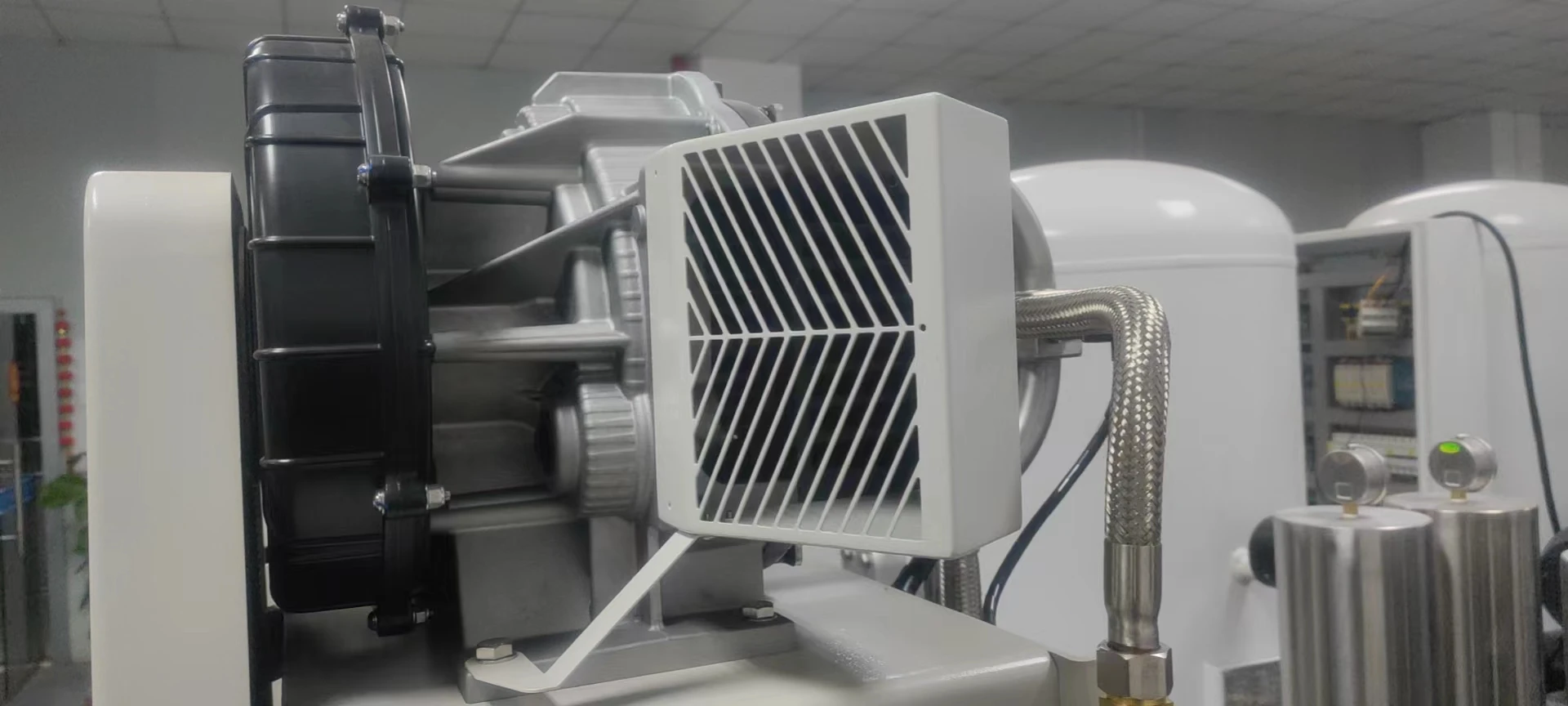

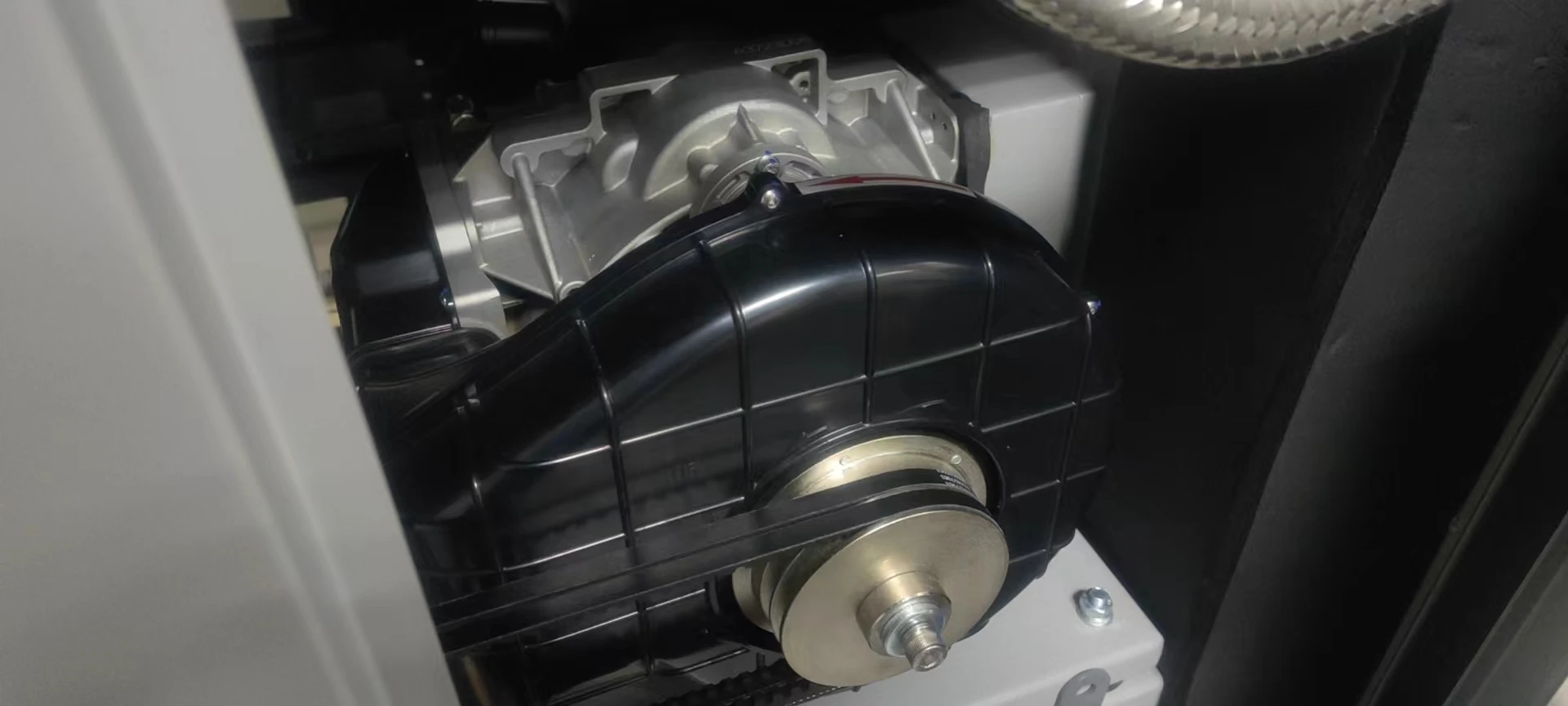

Oil free scroll air compressor

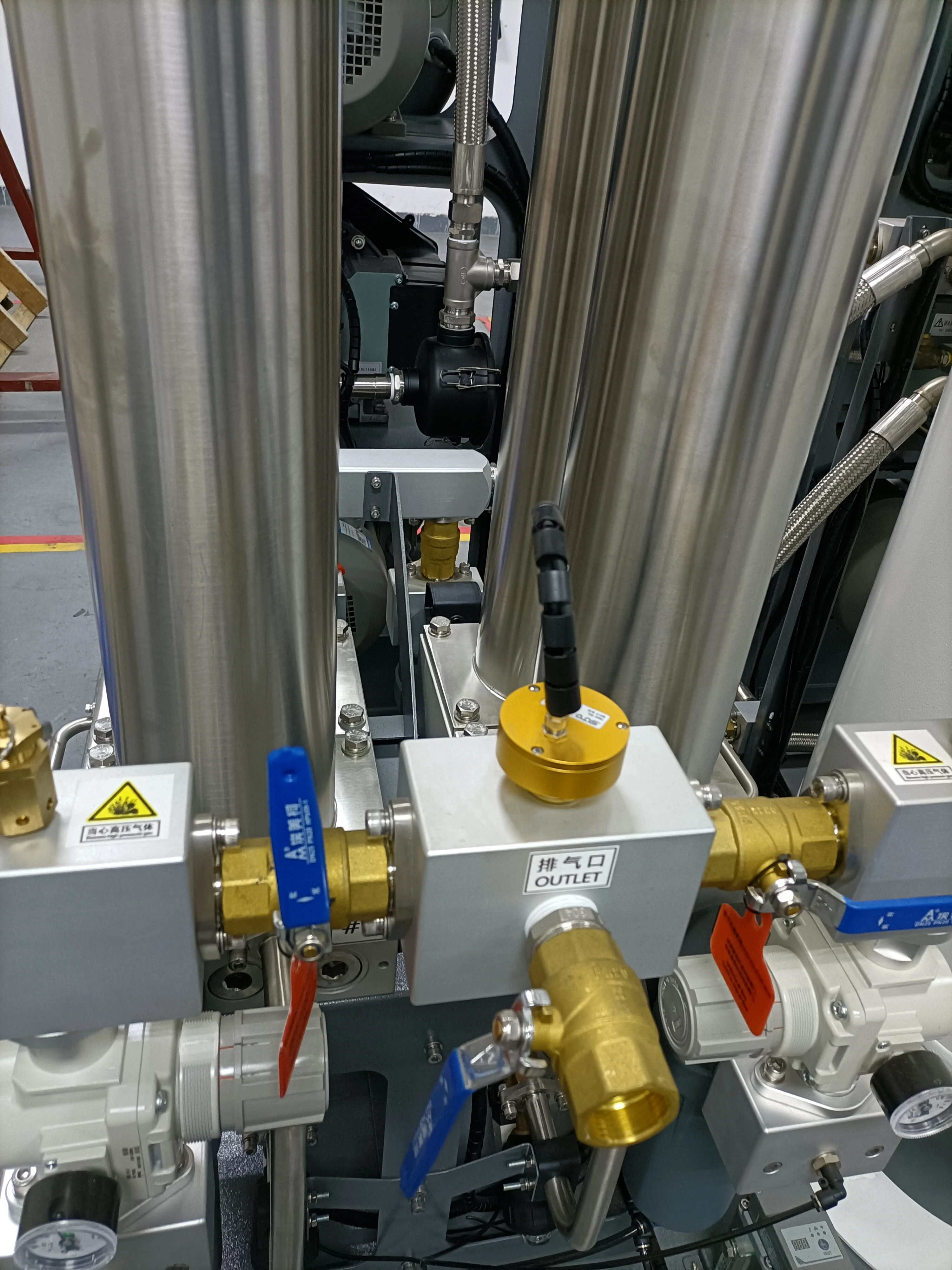

Carbon monoxide CO Sensor
Dew point sensor

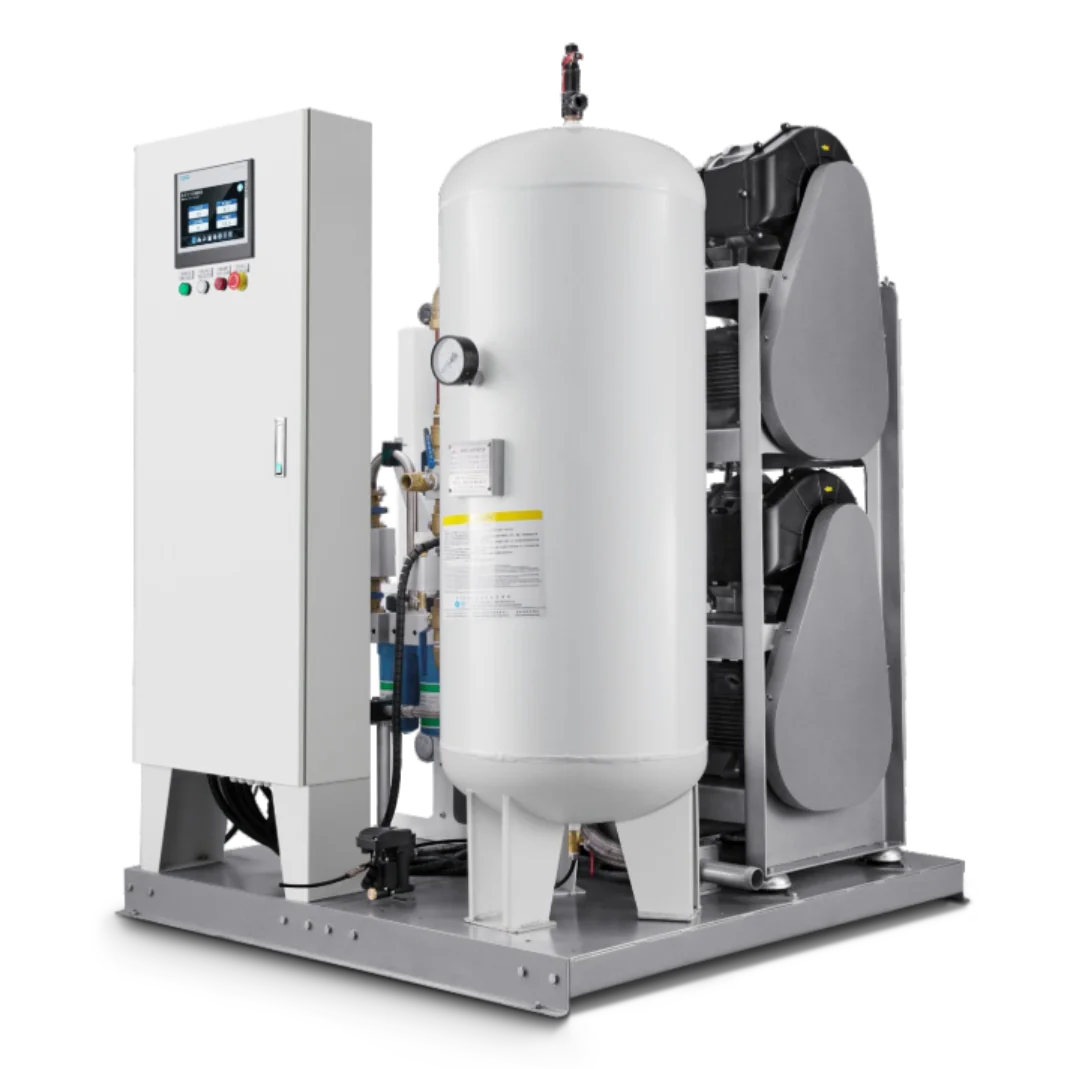

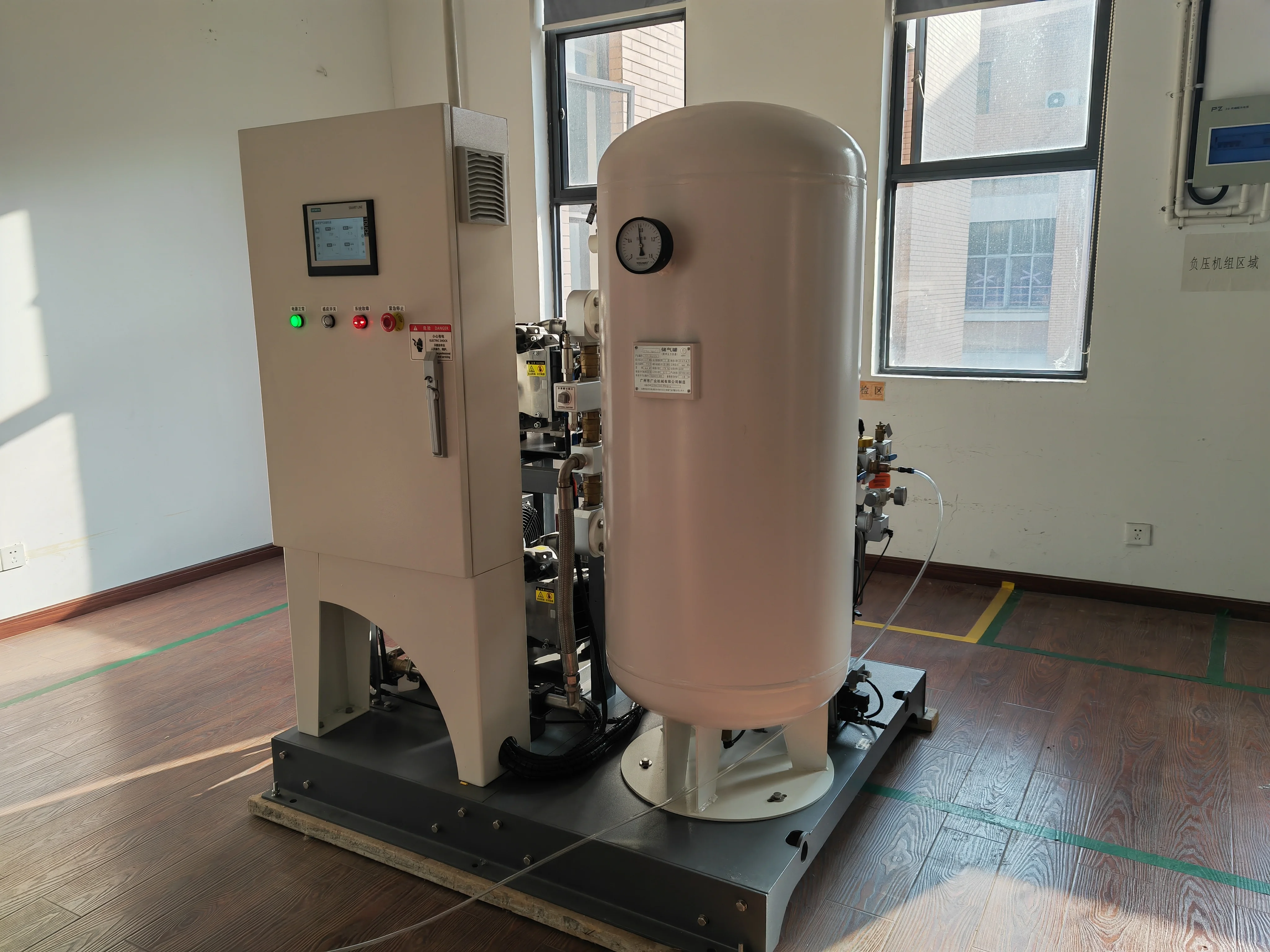

Intergrated skid-mounted air plant

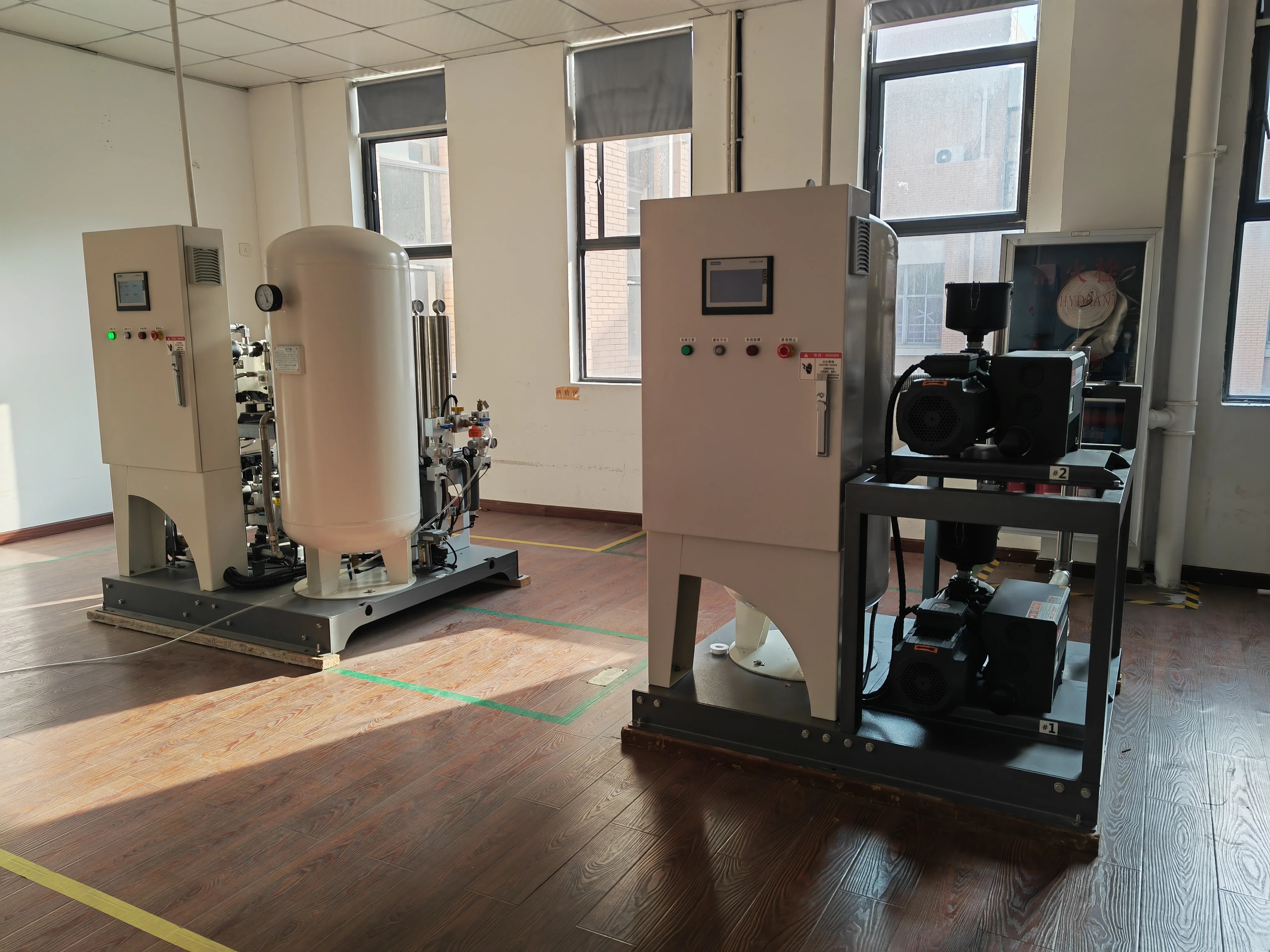

Split type air plant
Oil-Free Scroll Air Compressor Medical Compressing system in the hospital project
Medical Level Medical Air Generator for Gas Plants in hospital project
Meidcla air plant refrigerant with heatless combo Hospital Air Plant in hospital project
Medical Air Compressing System - MEDAIR Series
System | Model No. | Power | System Capacity | Screen Size | Tank Capacity | Noise Level | Dimensions |
KW | M3/min | inch | L | dB(A) | CM | ||
Duplex | MEDAIR SCR-3.7D | 3.7 x 2 | 0.52 | 7 | 300 | 70 | 160*150*230 |
MEDAIR SCR-5.5D | 5.5 x 2 | 0.78 | 7 | 300 | 72 | 160*150*230 | |
MEDAIR SCR-7.5D | 7.5 x 2 | 1.10 | 7 | 300 | 73 | 160*150*230 | |
Triplex | MEDAIR SCR-3.7T | 3.7 x 3 | 1.04 | 7 | 300 | 71 | 160*225*230 |
MEDAIR SCR-5.5T | 5.5 x 3 | 1.56 | 7 | 600 | 76 | 160*225*230 | |
MEDAIR SCR-7.5T | 7.5 x 3 | 2.20 | 7 | 600 | 76 | 160*225*230 | |
MEDAIR SCR-11T | 11 x 3 | 3.12 | 7 | 600 | 77 | 160*300*230 | |
Quadruplex | MEDAIR SCR-3.7Q | 3.7 | 1.56 | 10 | 600 | 72 | 160*225*230 |
MEDAIR SCR-5.5Q | 5.5 | 2.34 | 10 | 600 | 77 | 160*225*230 | |
MEDAIR SCR-7.5Q | 7.5 | 3.30 | 10 | 600 | 78 | 160*225*230 | |
MEDAIR SCR-11Q | 11 | 4.68 | 10 | 600 | 79.78 | 160*300*230 | |
Pentaplex | MEDAIR SCR-5.5P | 5.5 | 3.12 | 10 | 600 | 79 | 160*300*230 |
MEDAIR SCR-7.5P | 7.5 | 4.40 | 10 | 600 | 79 | 160*300*230 | |
MEDAIR SCR-11P | 11 | 6.24 | 10 | 600 | 79 | 160*525*230 | |
Hexaplex | MEDAIR SCR-5.5H | 5.5 | 3.90 | 10 | 600 | 80 | 160*300*230 |
MEDAIR SCR-7.5H | 7.5 | 5.50 | 10 | 600 | 79 | 160*300*230 | |
MEDAIR SCR-11H | 11 | 7.80 | 10 | 600 | 80 | 160*525*230 |
Remark:
1. The air plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements. \t\t\t\t\t\t\t\t
2. System flows shown are measured at pressure 0.5mPa.\t\t\t\t\t\t\t\t
3. System flows shown are for serving compressors,. reserve vacum pump on standby.\t\t\t\t\t\t\t\t
4. For dimensions, Length refers to measurement of monitor display side.\t\t\t\t\t\t\t\t
5. Noise level measured at a distance of 1 meter.\t
1. The air plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements. \t\t\t\t\t\t\t\t
2. System flows shown are measured at pressure 0.5mPa.\t\t\t\t\t\t\t\t
3. System flows shown are for serving compressors,. reserve vacum pump on standby.\t\t\t\t\t\t\t\t
4. For dimensions, Length refers to measurement of monitor display side.\t\t\t\t\t\t\t\t
5. Noise level measured at a distance of 1 meter.\t
Medical Air Plant based on oil-free scroll compressors
100% oil free medical pure compressed air
Three-stage filtration system
Alarm function and automatic start after power failure is restored
PLC controller ensures each compressor running time sequence and turn around working according pressure value
CO sensor optional
Three-stage filtration system
Alarm function and automatic start after power failure is restored
PLC controller ensures each compressor running time sequence and turn around working according pressure value
CO sensor optional
Medical Dry Oil Free Air Compressor Oilless Direct Drive Scroll Air Compressor
1. Can you do OEM or ODM service for the vacuum pump system?
Yes. Please send us the detail requirements, we can do according to your request. Like the capacity, working pressure, electric power voltage and hz, tank, etc.
2. What is the MOQ of Medical Rotary Vane Vacuum Pump?
1 set is also OK.
3. What is the delivery time of Medical Oil-lubricated Rotary Vane Vacuum Pump for Hospital？
Generally one month.
Please check delivery time before ordering.
4. What is the package of the medic gas manifold?
Wooden box which can protect the manifold medical from cratches, etc.
