Product Overview
Description

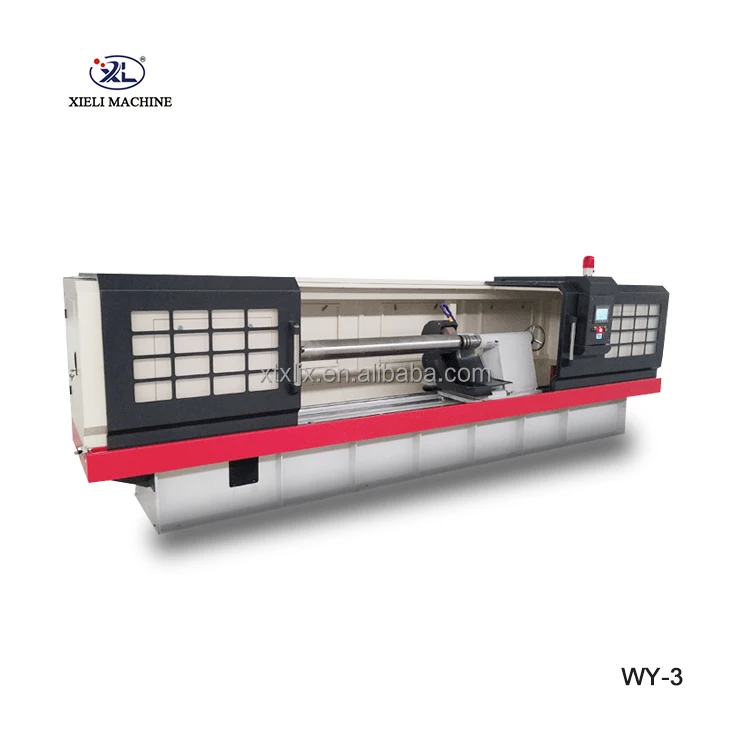

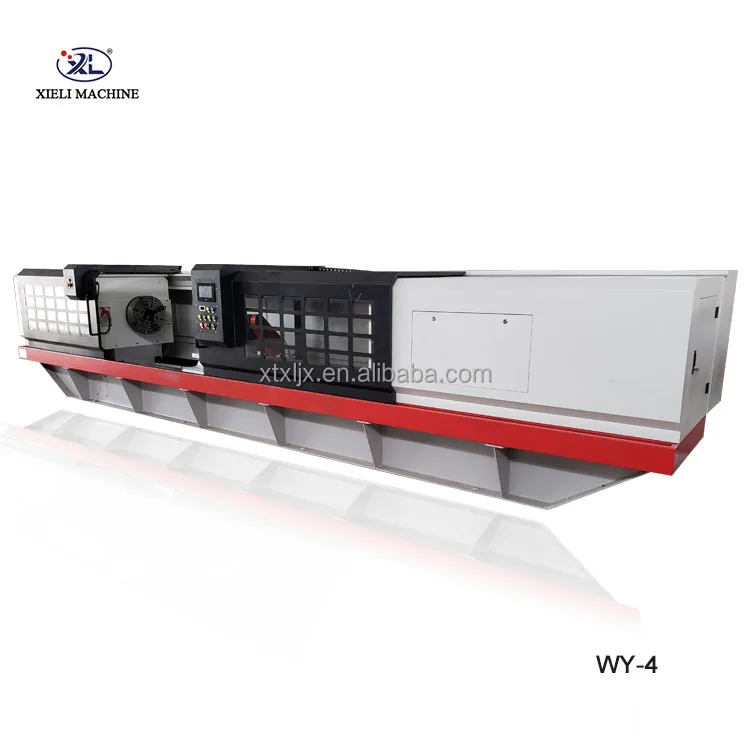

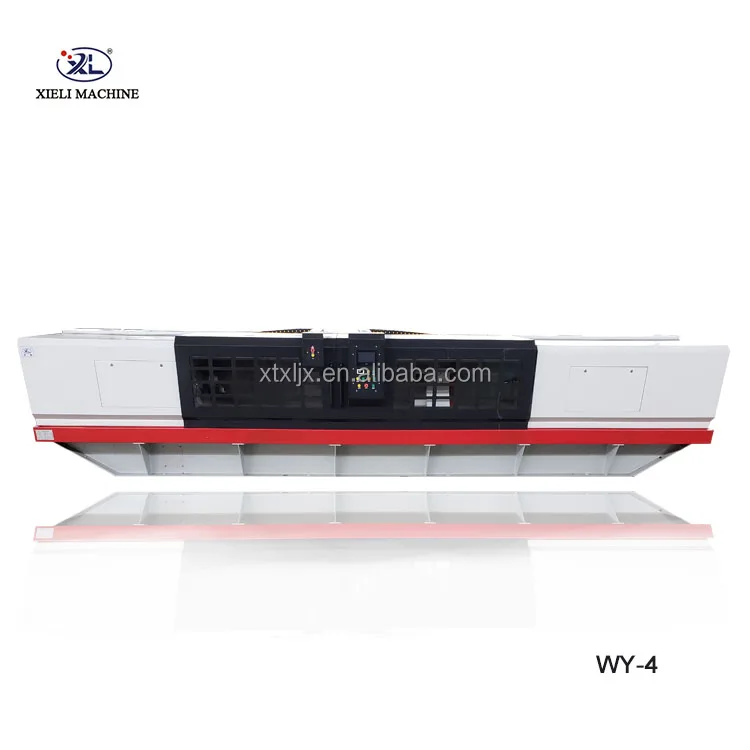

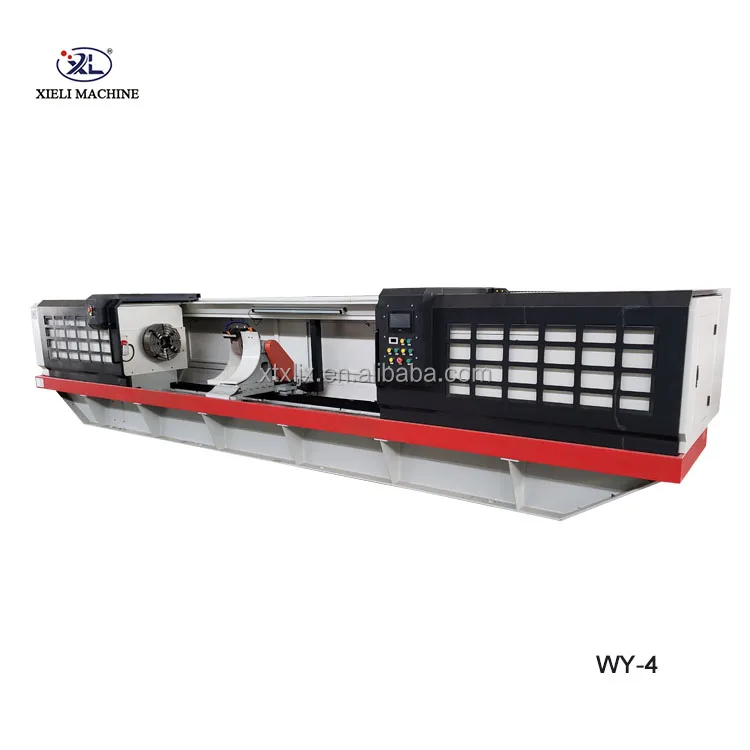

Project/Model | WY-2 | WY-3 | WY-4 | WY-5 | |||
Input voltage(v) | 380V(three-phase four-wire) | ||||||
Input power（kw) | 13 | ||||||
Polishing wheel specification（mm) | 250/300*40/50*32（Width can be assembled） | ||||||
Chuck diameter(mm) | 400 | ||||||
Polishing wheel speed(r/min) | 3000 | ||||||
Spindle speed（r/min) | 0-200 | ||||||
Machining diameter(mm) | 50-600（Customizable） | ||||||
X direction speed（m/min） | 0-8 | ||||||
Surface roughness (um) | Ra 0.02 | ||||||
Machining length（m） | 2 | 3 | 4 | 5 | |||
Dry fan dust removal | have | ||||||
Feeding mode of grinding head | Electric control for digital display | ||||||
Load weight（KG） | 1000(Customizable） | ||||||
Machine tool Total weight about（kg) | 2000 | 2800 | 3600 | 4400 | |||
Equipment Overall dimension（m) | 5*1.6*1.5 | 6*1.6*1.5 | 7*1.6*1.5 | 8*1.6*1.5 | |||
Main purpose and scope of application:

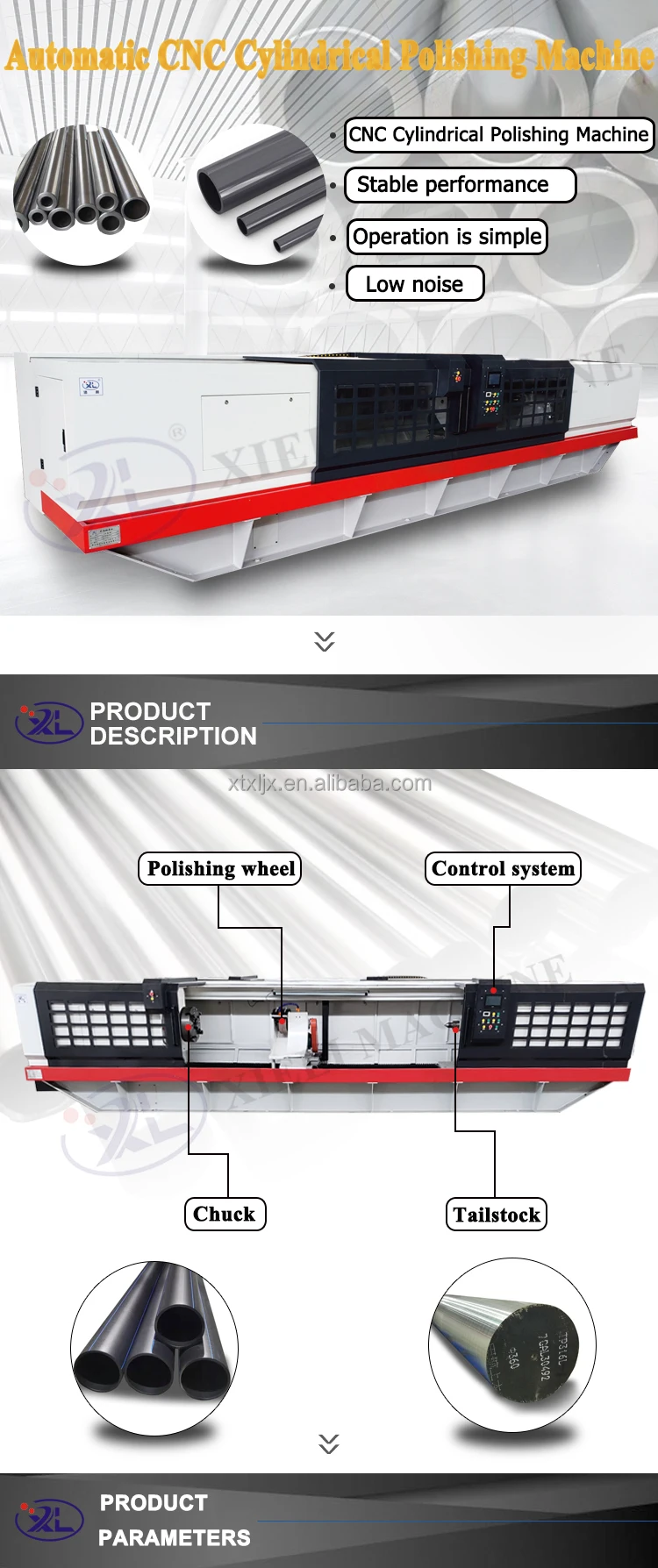

Cylindrical polishing machine is mainly used for the polishing of hydraulic pneumatic piston rod and roller shaft industry workpiece before and after electroplating. Cylindrical polishing machine can be installed with a variety of polishing wheels, such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA, etc., and PLC controls the one key operation of human-machine interface.
