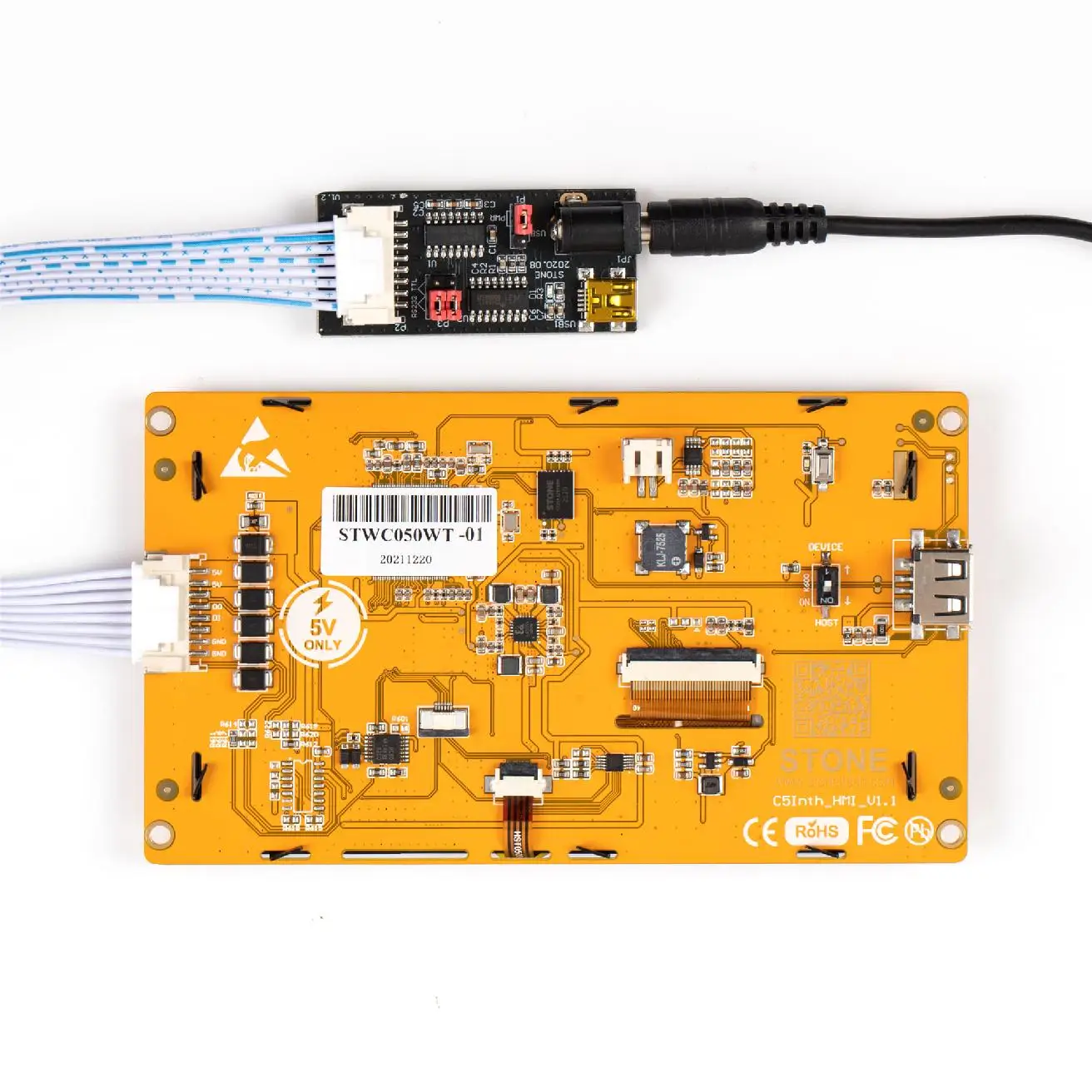

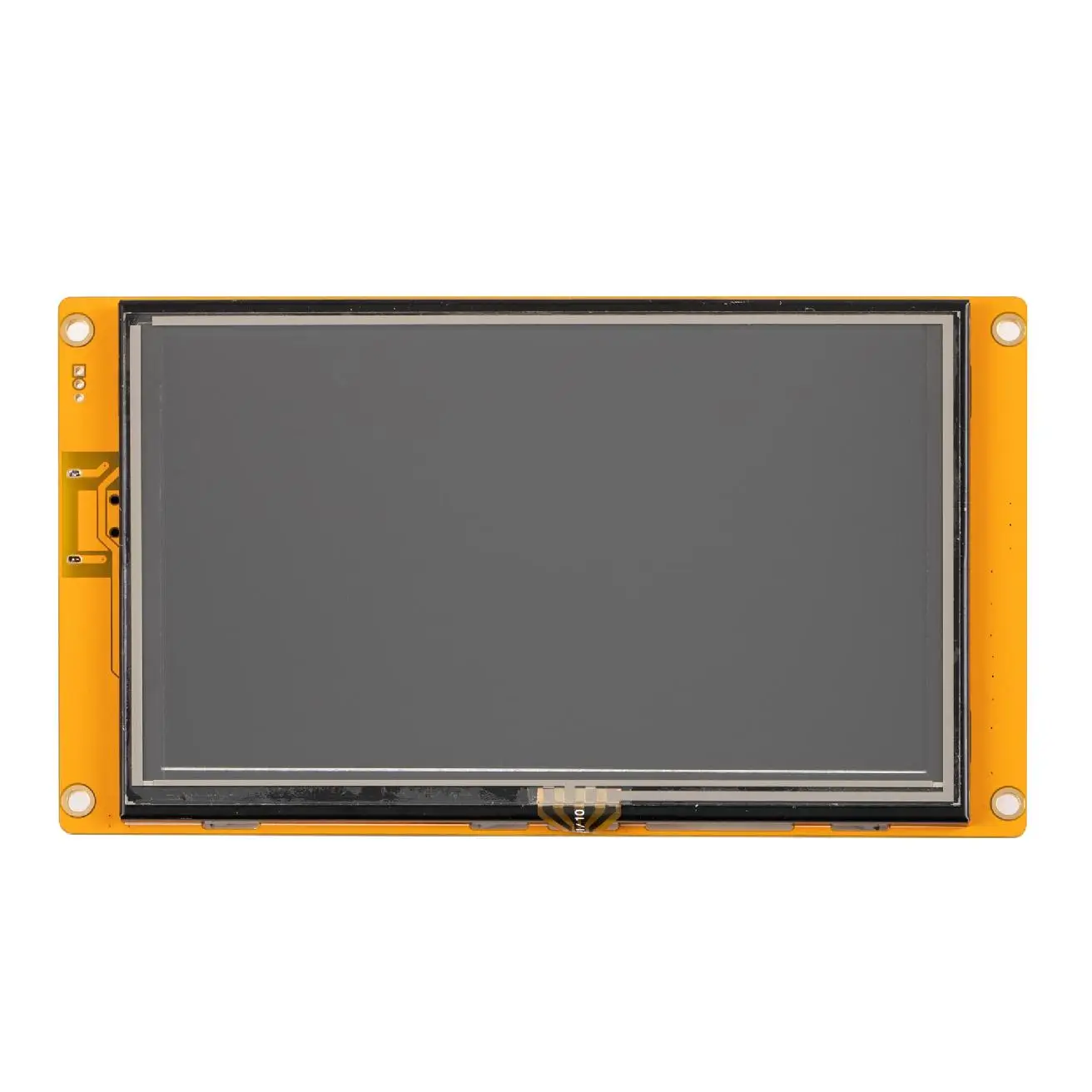

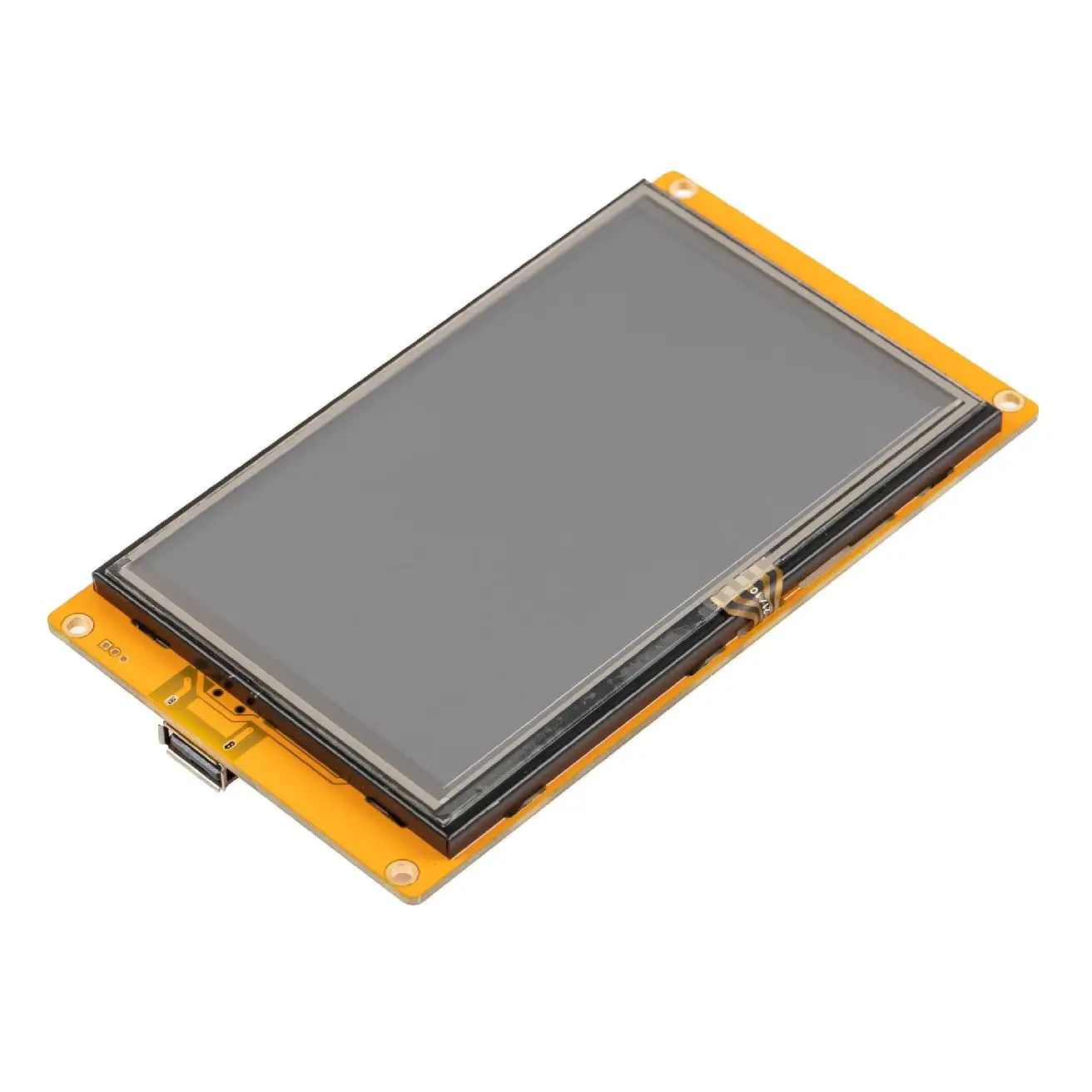

STONE 5 Inch 800*480 TFT LCD Resistance Touch Screen RS232 Interface
- Category: >>>
- Supplier: Beijing Stone Technology Co. Ltd.
Share on (1600940608479):
Product Overview
Description
Product Characteristics
- With Cortex A8 CPU & Driving device
- Controlled by any MCU
- Display Picture / Text / Curve / Video
- 262K (18bit) colour TFT display
- With / without Touch Screen
- RS232 / TTL UART Interface & USB port
- Easy to use! Powerful function! Saving Much Development cost and time!
- Controlled by any MCU
- Display Picture / Text / Curve / Video
- 262K (18bit) colour TFT display
- With / without Touch Screen
- RS232 / TTL UART Interface & USB port
- Easy to use! Powerful function! Saving Much Development cost and time!
More powerful CPU (Cortex A8)
means faster processing speed, more fluent animation display,To handle larger, more complex data and More Room for improvement.
Technical Parameters
Physical Parameter | |
Size | 5 inch |
Resolution | 800×RGB×480 |
Pixel Spacing | 0.045(W) × 0.135(H) mm |
Color | 262,144 colors (18 bit) |
Viewing Area | 108.0(W) × 64.8(H) mm |
Display Dimension | 121.34mm × 77.6mm |
Net Weight | 200g(T) |
Display Parameters | |
Backlight Type | LED |
Brightness | 300cd/m2 |
Contrast | 500:1 |
Backlight life | 20,000 hours |
Viewing Angle | 70°/70°/50°/70°(L/R/U/D) |
TFT Panel | A Class Industry Panel |
Touch Screen | 4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen |
Interface | |
Serial Interface | RS232 / TTL level |
Ethernet interface | NONE |
Wireless interface | NONE |
Project file downloading | USB2.0 port or U storage Disk |
Support Device | |
UART Port | Support TTL |
Flash Memory | Support Standard 128MB |
Buzzer | Support |
USB port | Support Online Download By USB Cable |
U Storage Disk Interface | Support. Offline Download or Copy User Data |
Touch Screen | 4 Wire Resistance |
Vector Font | Standard TTF Format |
Image | Support JPG/ BMP/ PNG/SVG/GIF Format |
Audio Interface | Support AVI / mp4 Support encode H264 720p |
Command Set | Unified Simplified Command Sets |
C - Series Product | ||||||||||||||
Size (inch) | Model | Resolution | Voltage(V) | Network | Interface | Brightness | Power (W) | |||||||
3.5'' | STWC035LT-01 | 320*480 (16:9) | DC 4.5-6 | None | RS232/TTL | 300cd/m² | 0.8 | |||||||
4.3'' | STWC043LT-01 | 480*272 (16:9) | DC 4.5-6 | None | RS232/TTL | 300cd/m² | 1.0 | |||||||
5'' | STWC050LT-01 | 800*480(16:9) | DC 4.5-6 | None | RS232/TTL | 300cd/m² | 1.3 | |||||||
7'' | STWC070LT-01 | 800*480 (16:9) | DC 4.5-6 | None | RS232/TTL | 300cd/m² | 2.6 | |||||||
10.1'' | STWC101LT-01 | 1024*600 (16:9) | DC 4.5-6 | None | RS232/TTL | 400cd/m² | 3.0 | |||||||
