FORWARD Stud Aluminium Corner Bead Making Machine Profiles C Drywall Metal Marketing Steel Key Motor Frame Power Building
- Category: >>>
- Supplier: Hebei Forward Construction Machinery Co. Ltd.
Share on (1600940634847):
Product Overview
Description
Our advantage
◆Product quality is good, long warranty time;
◆We will complete on time and in quantity according to the delivery date;
◆Provide installation videos and instructions;
◆For details, please refer to the following details
Products Description
Decoiler | a. Coil inner diameter: 450-550mm b. Coil max width: 300mm c. Max carrying capacity: 3T |
perforation machine | a.Material of mold: Cr12 quenched b.Power: 3kw c.Punch speed:12m/min d.Thickness: 0.8-1.0mm |

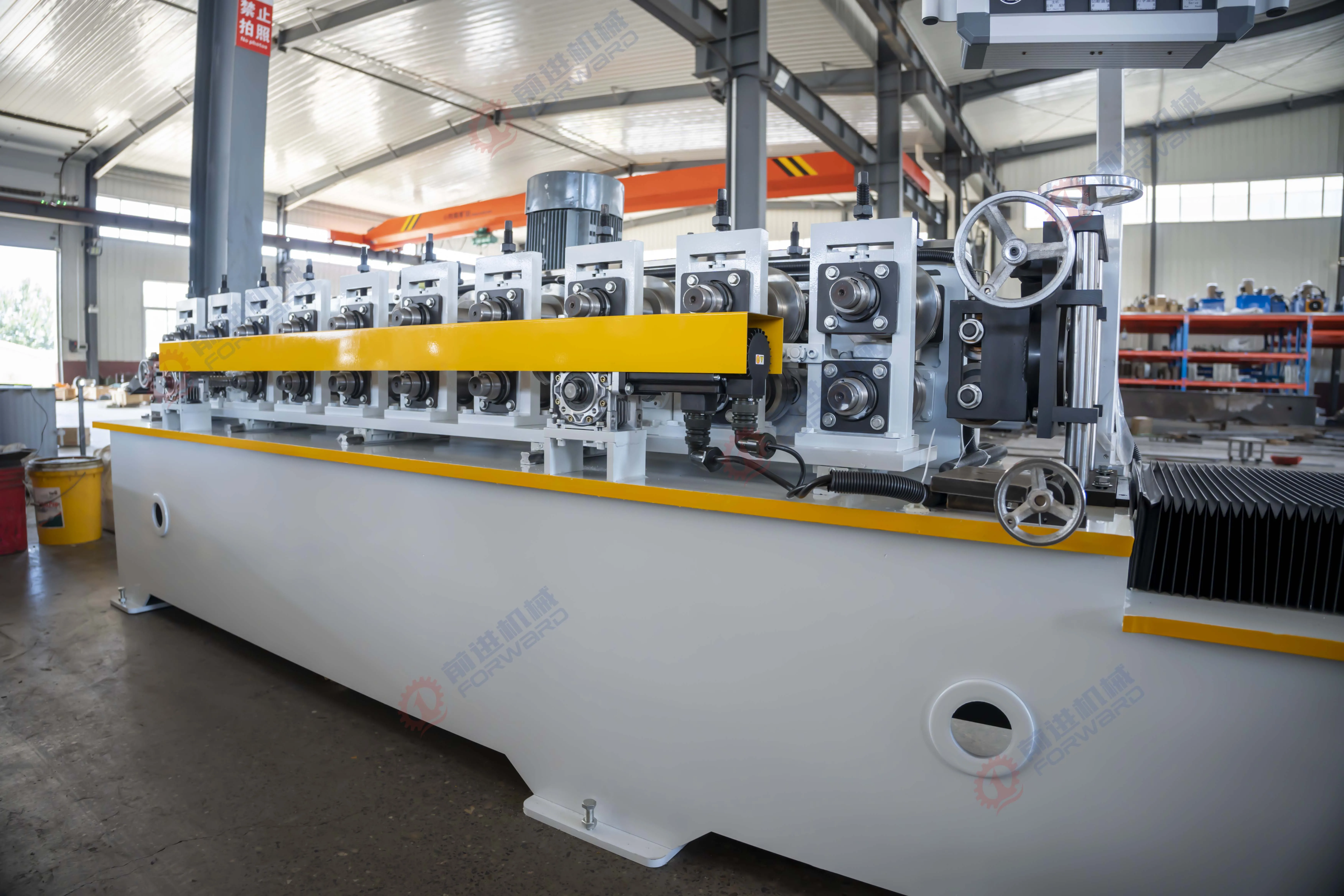

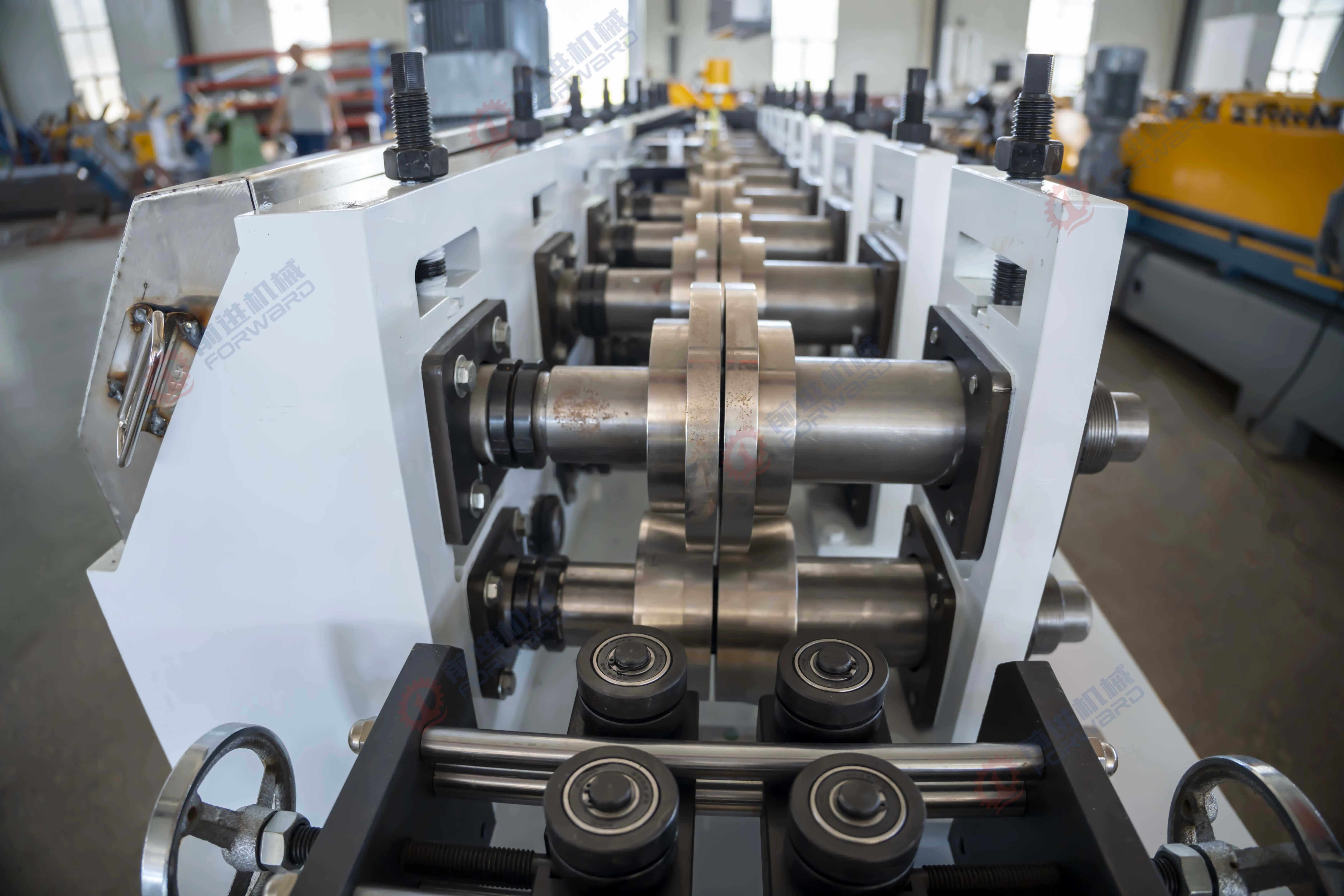

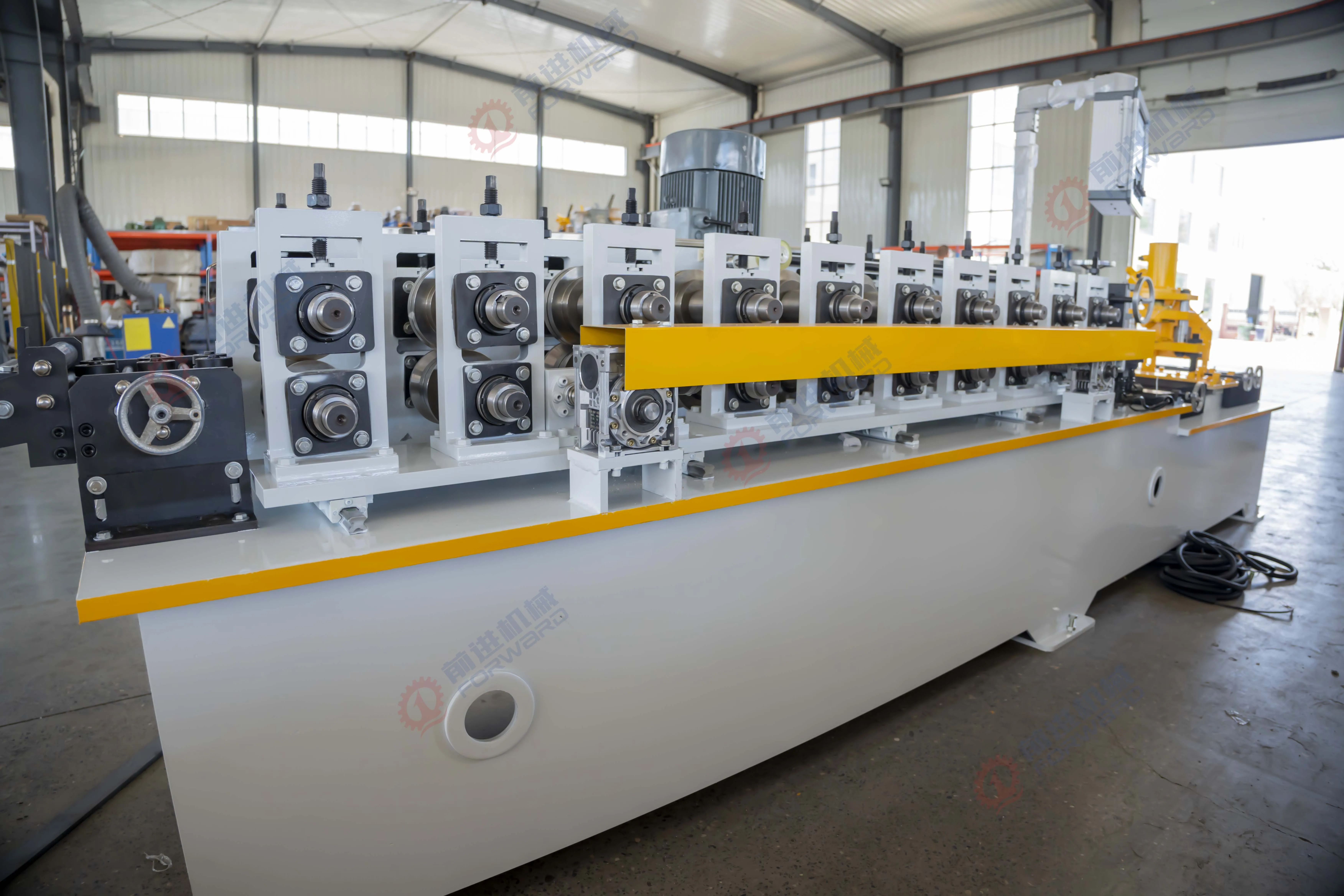

Roll forming machine | a. Number of forming steps: 12 stations b. Shaft material: 45# steel with quenched treatment, precision machined, c. Roller material: bearing steel with quenched treatment d. Transmission: by gear e. Forming speed: 25-30m/min f. Motor:5.5kw |
Shearing system | a.The material of blade: Cr12Mov,Hardening HRC 58-62℃ b.Length Tolerance:10m±1.0mm C. Power supply: Hydraulic station |
Hydraulic station | a. Hydraulic motor Power:4kw b.Hydraulic oil: 40# c.Hydraulic pressure : 12Mpa |
PLC station | PLC control system, Delta . You can set the cutting length in the PLC. |
Recommend Products
Company Profile
Certifications
Product packaging
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
