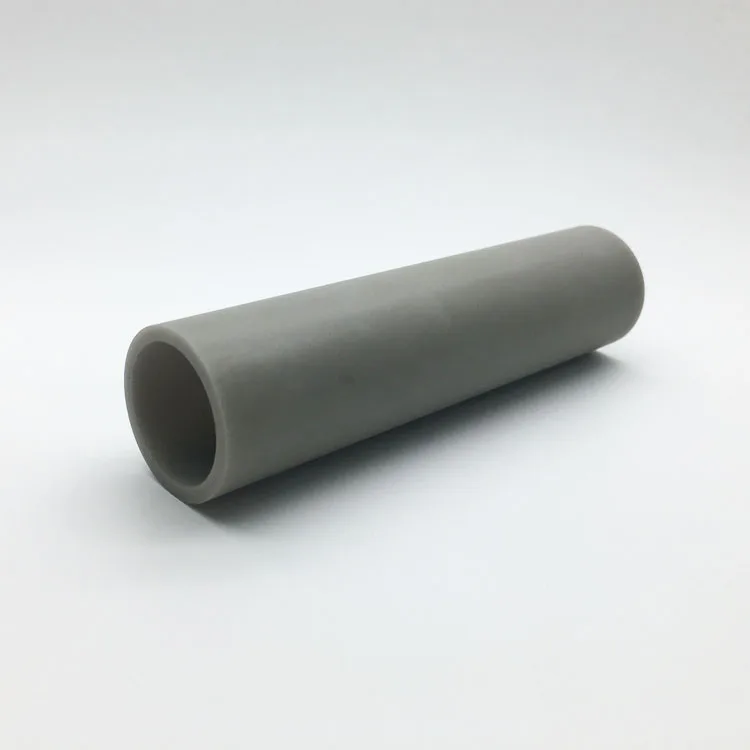

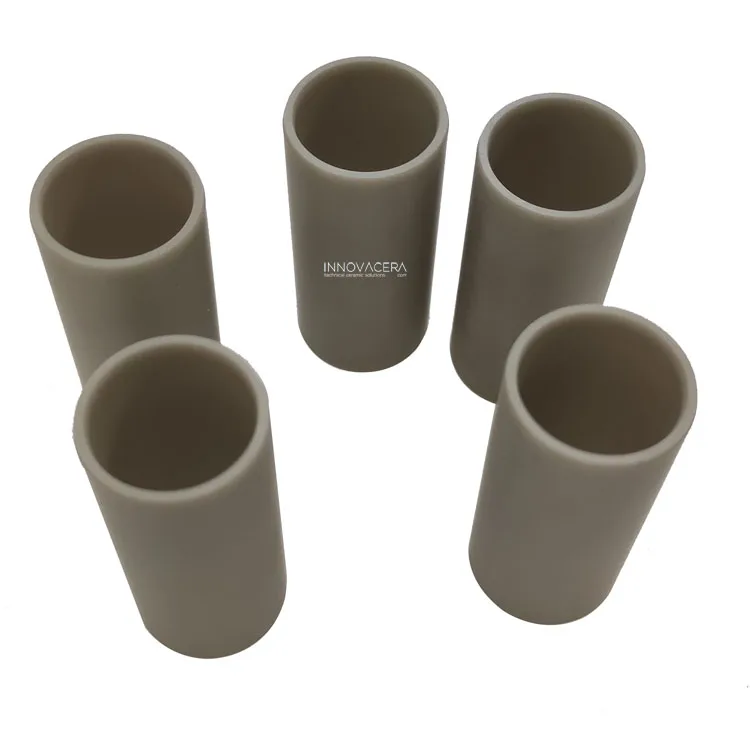

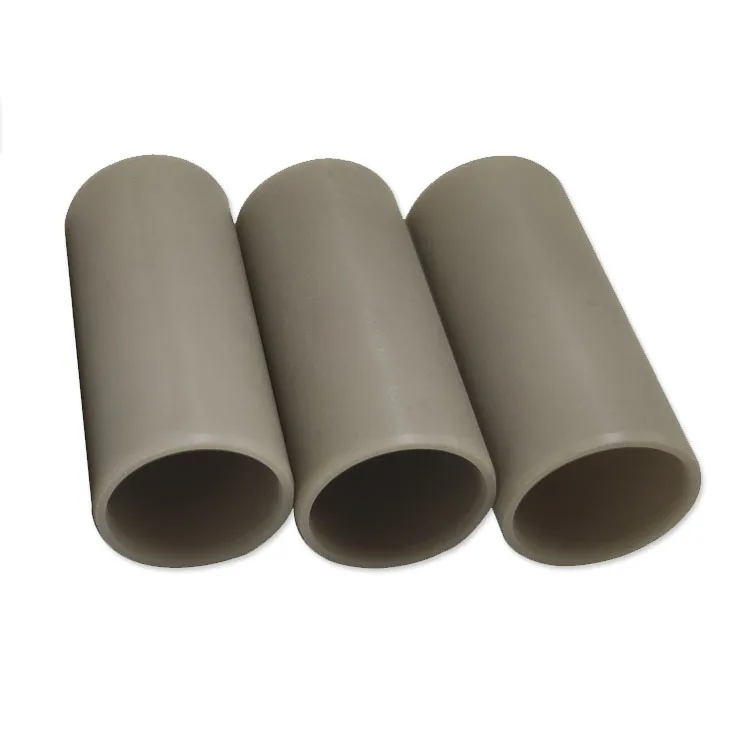

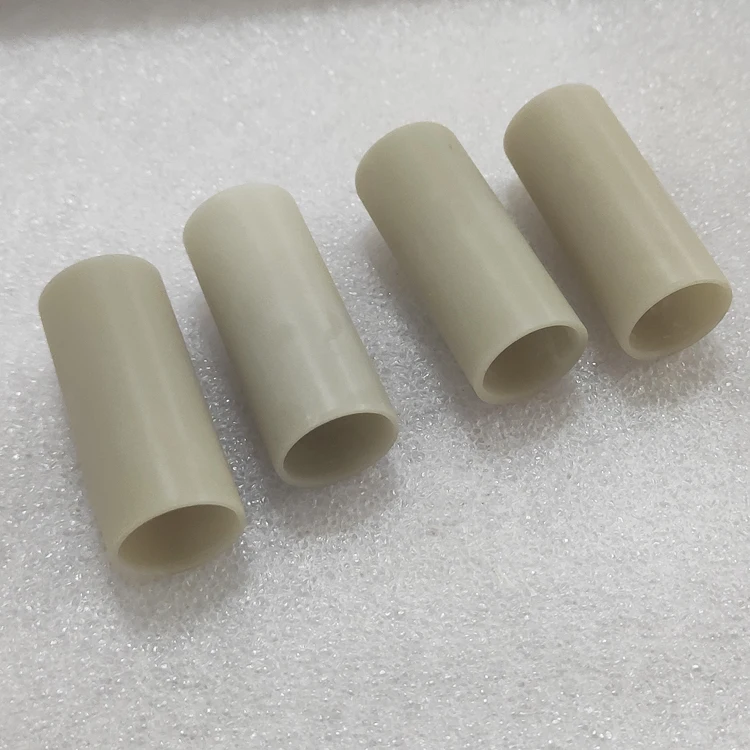

High Thermal Conductivity Dry Press ALN Aluminum Nitride Bush
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (1600940650774):
Product Overview
Description
Aluminum Nitride (ALN) Ceramic
The aluminum nitride (AlN) ceramic has high thermal conductivity(5-10 times as the alumina ceramic), low
dielectric constant and dissipation factor, good insulation and excellent mechanical properties, non-toxic,
high thermal resistance, chemical resistance ,and the linear expansion coefficient is similar with Si,which is
widely used in communication components, high power led, power electronic devices and other
fields.Special spec products can be produced upon requests.
PRODUCT PERFORMANCE
1.Uniform microstructure
2.High thermal conductivity* (70-180 Wm-1K-1), tailored via processing conditions and additives
3.High electrical resistivity
4.Thermal expansion coefficient close to that of Silicon
5.Resistance to corrosion and erosion
6.Excellent thermal shock resistance
7.Chemically stable up to 980°C in H2 and CO2 atmospheres, and in air up to 1380°C (surface oxidation
occurs around 780°C; the surface layer protects the bulk up to 1380°C).
2.High thermal conductivity* (70-180 Wm-1K-1), tailored via processing conditions and additives
3.High electrical resistivity
4.Thermal expansion coefficient close to that of Silicon
5.Resistance to corrosion and erosion
6.Excellent thermal shock resistance
7.Chemically stable up to 980°C in H2 and CO2 atmospheres, and in air up to 1380°C (surface oxidation
occurs around 780°C; the surface layer protects the bulk up to 1380°C).

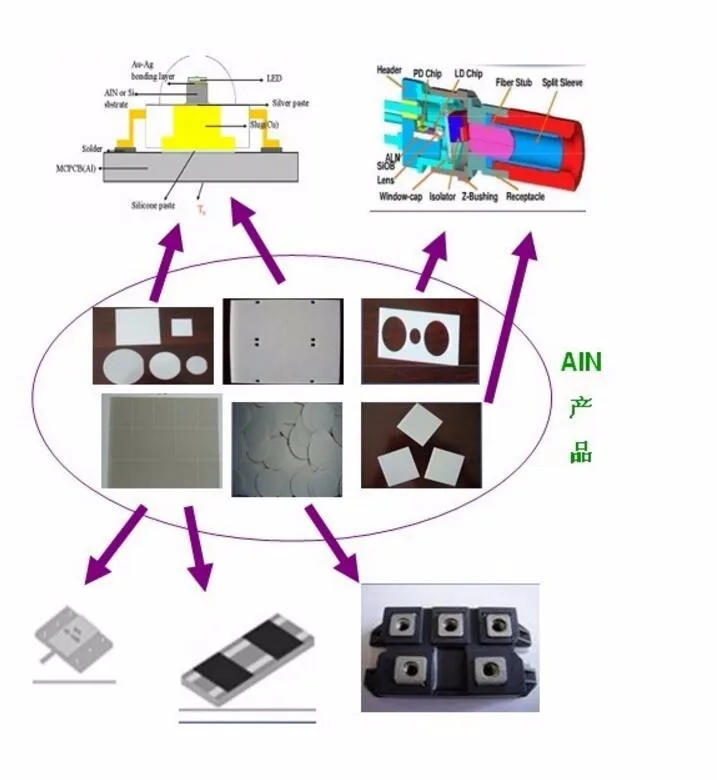

Application
- RF / Microwave Components - Power Modulus

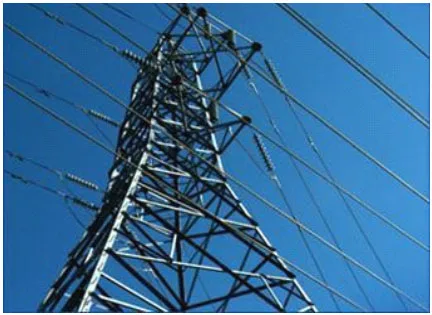

- Power Transformers
- High Power LED Package
- Microelectronic Packages
- Transistors
- High Thermal Conductivity Substrates for LED & Power Electronics
- Substrates for Power Electronics
- Substrates for Power Electronics
Material Properties of Aluminum Nitride Substrate/Wafer | ||
Property Content | Property Index | |
Density(g/cm³) | 3.335 | |
Resistance to Thermal Shock | No Cracks | |
Thermal conductivity(30℃, W/m.k) | ≥170 | |
Linear expansion coefficient (/℃, 5℃/min, 20-300℃) | 2.805×106 | |
Flexural strength (MPa) | 382.7 | |
Volume Resistivity (Ω.cm) | 1.4×1014 | |
Dielectric constant(1MHz) | 8.56 | |
Chemical Durability (mg/cm²) | 0.97 | |
Dielectric strength (KV/mm) | 18.45 | |
Surface roughness Ra(μm) | 0.3~0.5 | |
Camber (length‰) | ≤2‰ | |
Appearance/ Color | Dense/ Dark Gray | |
Note: The general characteristics of the materials described above were derived from laboratory test performed by Innovacera from time on sample quantities. Actual characteristics of production lots may vary. | ||

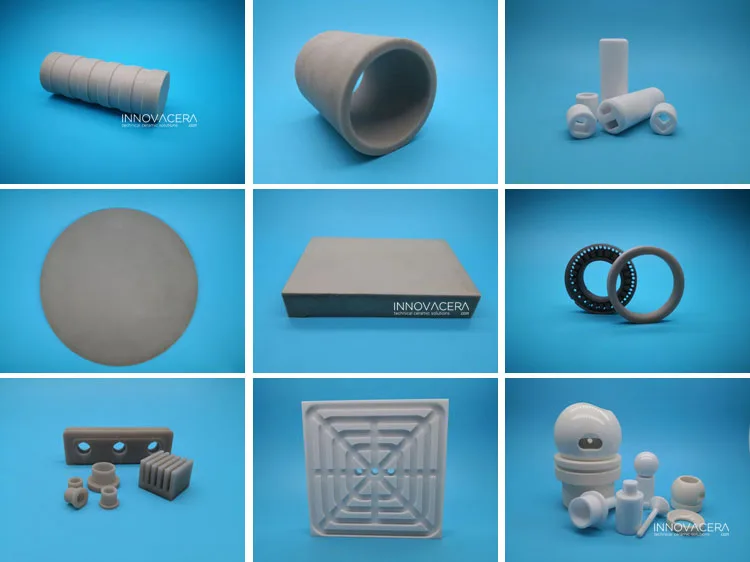

About Us
FAQ
Q1: How to send an inquiry
You can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hour
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
Q5:How to contact us ?
You can send the email to sales@innovacera.com
Call to +86 0592-5589730
Q6:More detail company information ?
www.innovacera.com
You can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hour
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
Q5:How to contact us ?
You can send the email to sales@innovacera.com
Call to +86 0592-5589730
Q6:More detail company information ?
www.innovacera.com
If you are interested in our products, please click here to send me an inquiry, and I will reply you within 8 hours
