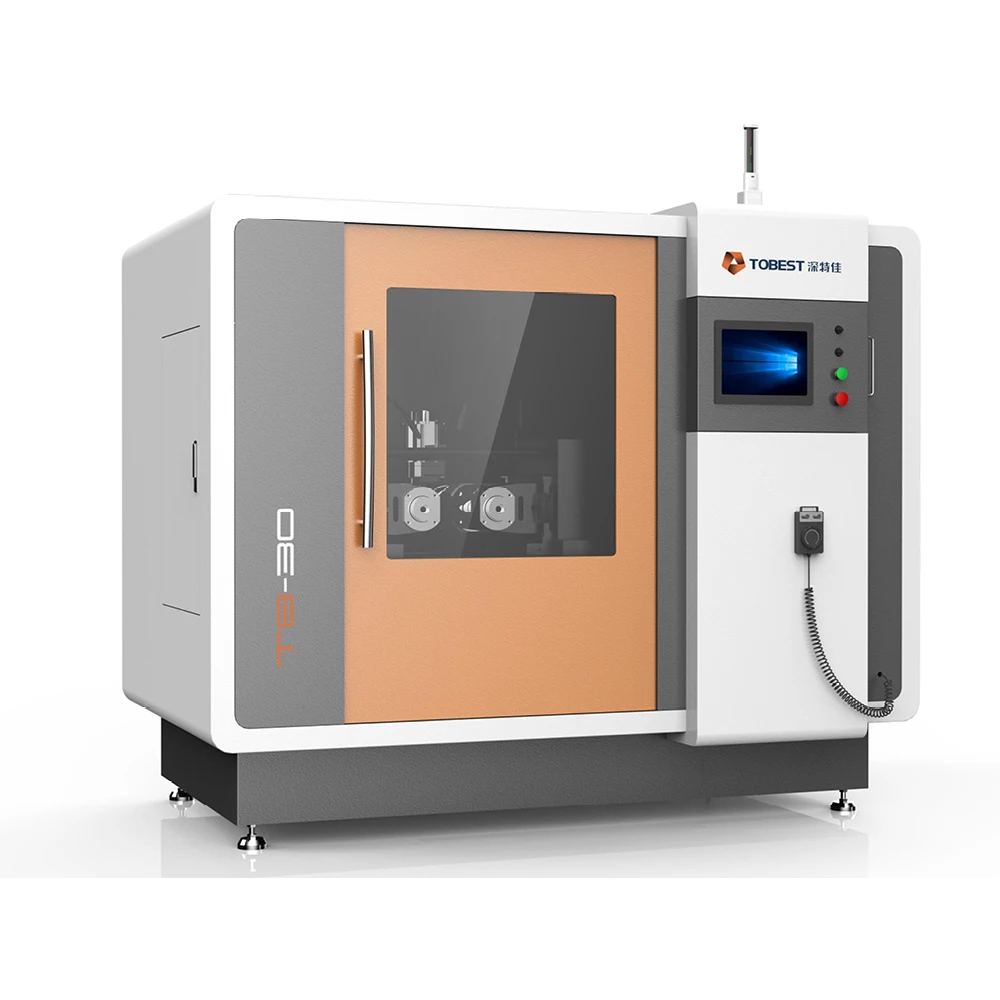

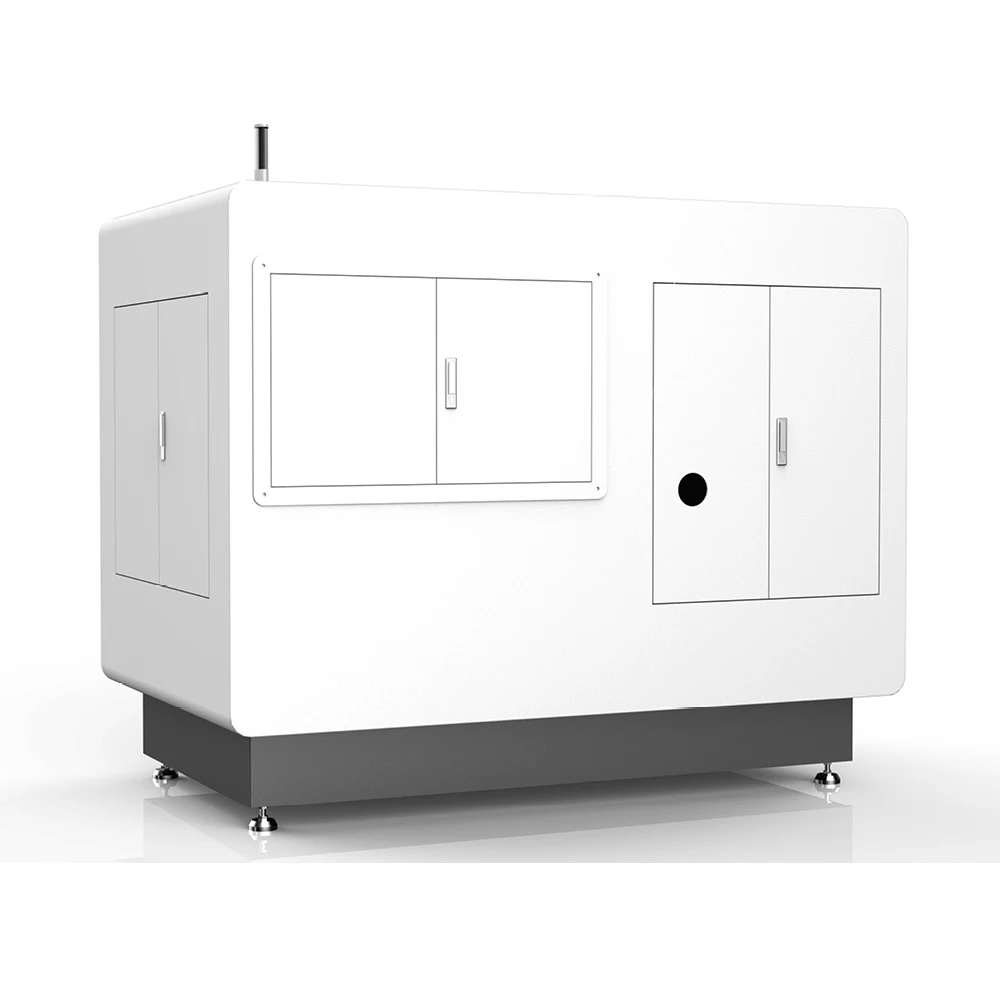

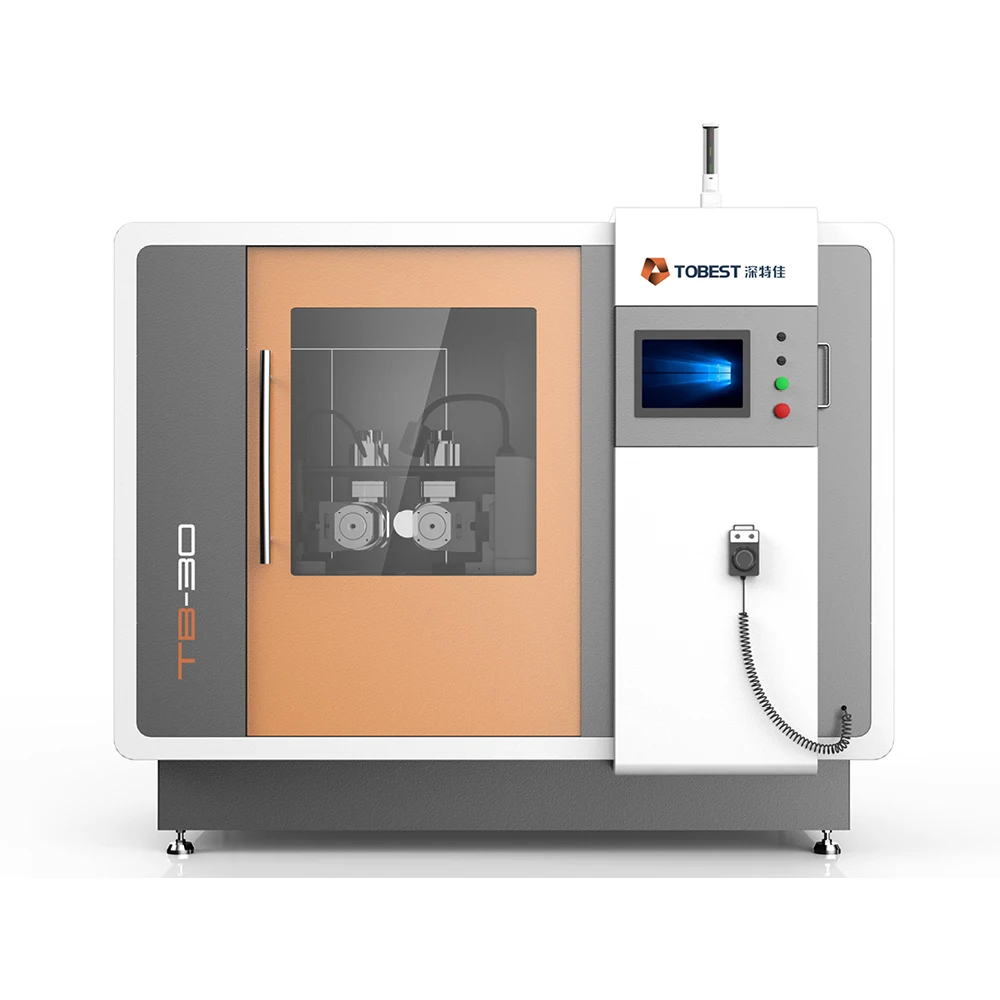

2 30mm 18 tons rolling pressure high precision high strength bolts Tobest CNC thread rolling machines Guangdong
- Category: >>>
- Supplier: Shenzhen Tobest Industry Co. Ltd.
Share on (1600940683471):
Product Overview
Description
Product Overview
Advantages
1. Spindle is powered by two servo motors, can be infinitely adjustable-speed, to realize the forward reverse when rolling products.
2.Precision feeding by servo motor with ball screw structure.
2.Precision feeding by servo motor with ball screw structure.
3.HMI Intelligent Control System
4.Overloading ball guide rail, to ensure accurate reciprocation.
5.Center frame structure can be moved along, can be installed servo feed.

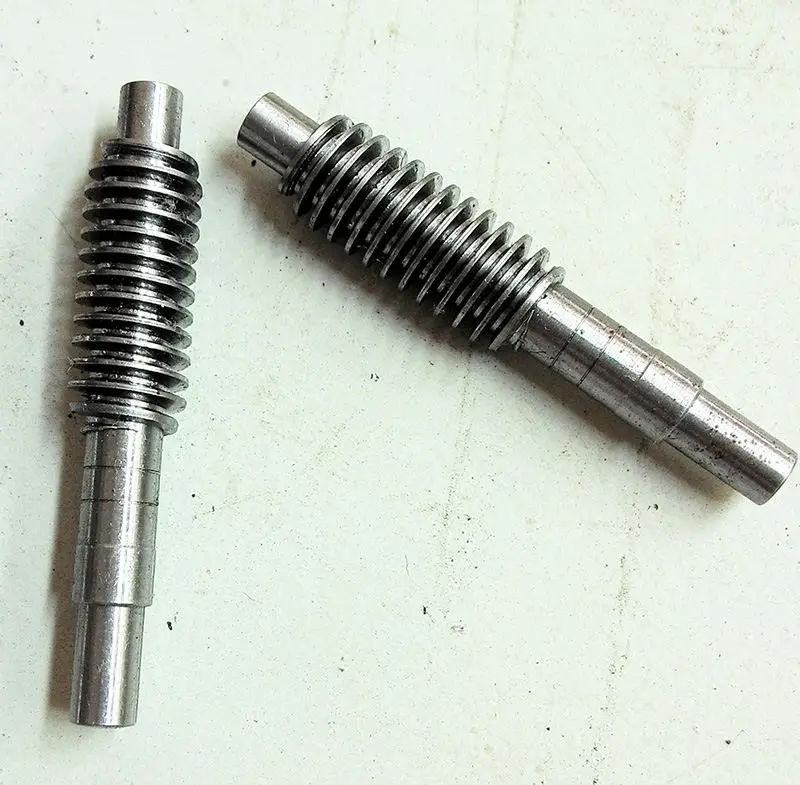

6. Can be rolled high precision worm，realize a one-time armored and multistage processing.
FEATURES AT A GLANCE
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
Application
PRODUCT SPECIFICATIONS
Diameter rang | 2-30 mm | Outside diameter of rolling dies | 140-175mm |
Pitch rang | 0.5-4.0p | Inside diameter of rolling dies | 54 mm |
Max length of the threads | 120mm | Max thickness of rolling die | 120 mm |
Slider servo motor | 5 kw | Control device | PLC and touch screen computer |
Main power motor | 2*3kw | Hydraulic motor | 125w |
Max rolling pressure | 15 tons | Machine weight | 3600kg |
Machine size | 1850*1910*1380mm | Packing size | 1950*2100*1500mm |
Max center distance between die spindles | 320mm | Min center distance between die spindles | 140mm |
