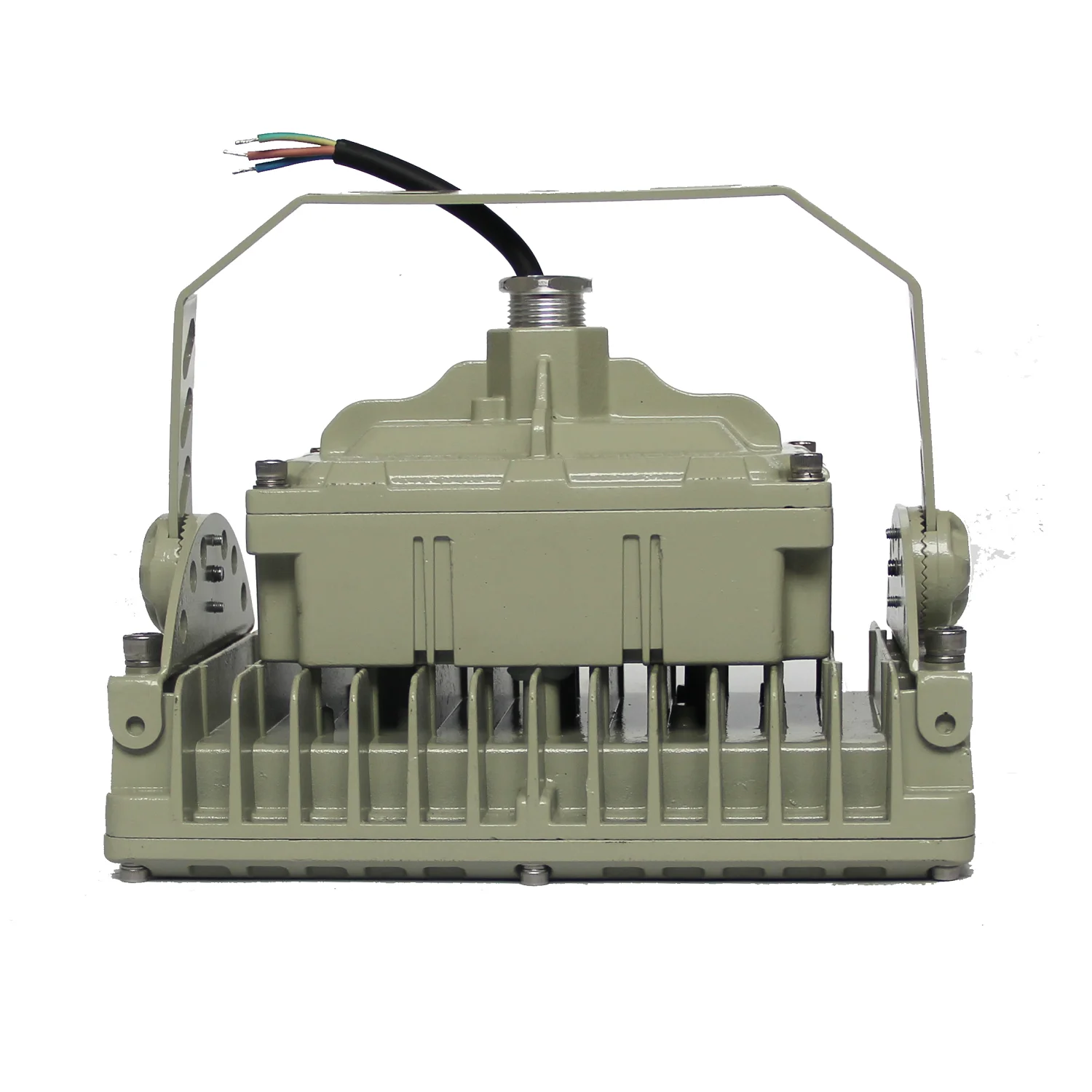

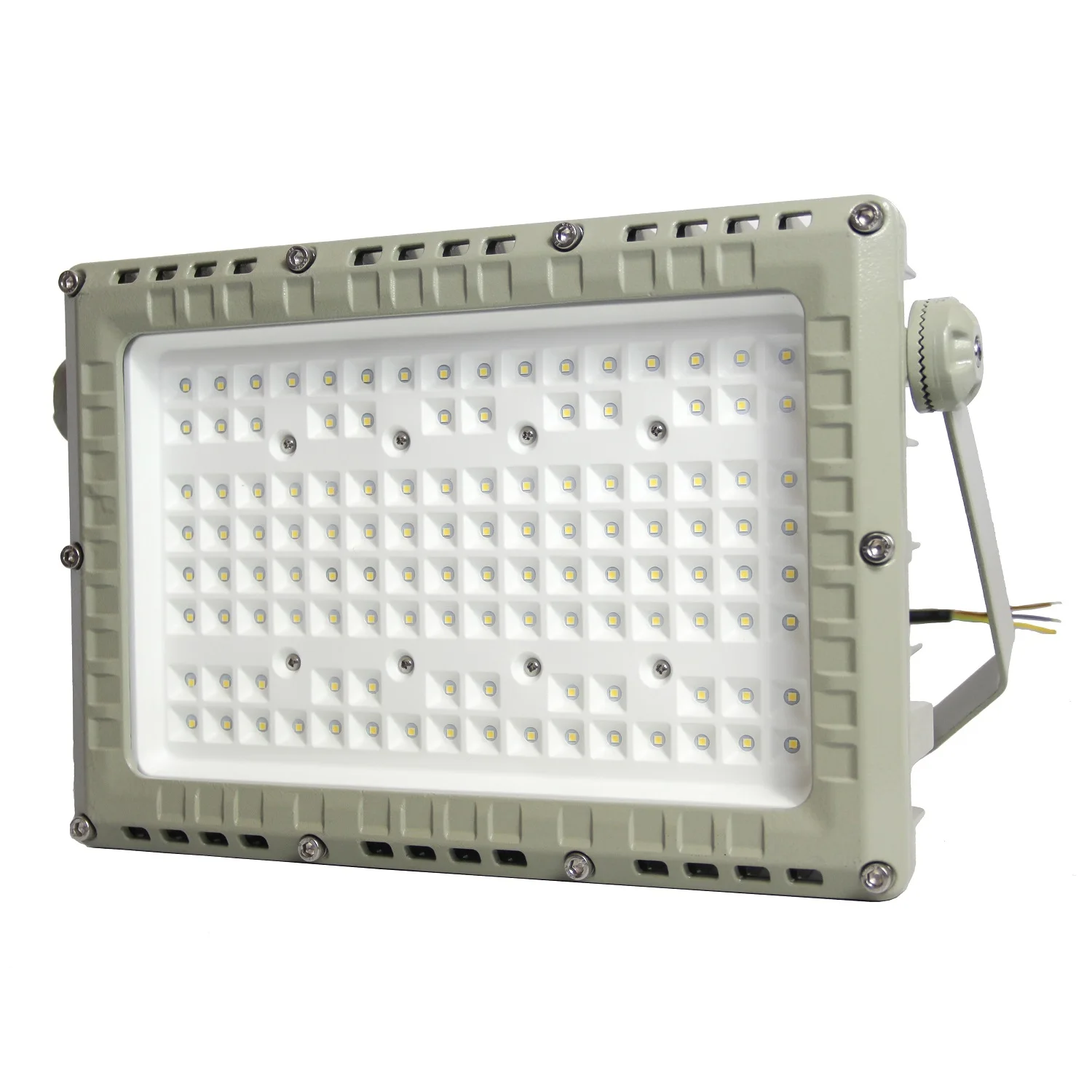

ATEX High lumen waterproof led explosion proof light outdoor zone 1 2 21 22 hazardous area flood IP66
- Category: >>>
- Supplier: Shanghai Yidi Electronic Technology Co. Ltd.
Share on (1600940687729):
Product Overview
Description
Product Description
Our Advantages:
• High quality SMT LED and Meanwell Driver.
• Light-weight design by aircraft aluminum.
• Heavy-duty and high impact resistance.
• Integrated junction box for driver with emergency back up.
• Marine rating powder coated appearance treatment.
• Up to 5 years limited warranty option.
• Light-weight design by aircraft aluminum.
• Heavy-duty and high impact resistance.
• Integrated junction box for driver with emergency back up.
• Marine rating powder coated appearance treatment.
• Up to 5 years limited warranty option.
Specification
item | value |
Color Temperature(CCT) | 5000K (Daylight) |
Input Voltage(V) | 100-277v |
Lamp Luminous Efficiency(lm/w) | 130 |
Warranty(Year) | 5-Year |
Color Rendering Index(Ra) | 80 |
Lighting solutions service | Lighting and circuitry design, DIALux evo layout |
Product Weight（kg） | 8 |
CRI (Ra>) | 80 |
Lamp Luminous Flux(lm) | 6500-31200lumen |
IP Rating | IP66 |
Place of Origin | China |
Brand Name | OEM |
Light Source | LED |
Power | 50w 75w 100w 120w 150w 200w 240w |
Certificate | Atex |
Features
*IP66 Certified
*10KV Surge Protection
* High Temperature Resistance
*Work Well in Hazardous Locations
* High Temperature Resistance
*Work Well in Hazardous Locations
Model No | Wattage | CCT | Voltage | Lumens | Warranty | Remark |
EX-50W | 50W | 2700-7000K | 100-277V | 6500 | 5 years | |
EX-75w | 75W | 2700-7000K | 100-277V | 9750 | 5 years | |
EX-100W | 100W | 2700-7000K | 100-277V | 13000 | 5 years | |
EX-120W | 120W | 2700-7000K | 100-277V | 15600 | 5 years | |
EX-150W | 150W | 2700-7000K | 100-277V | 19500 | 5 years | |
EX-200W | 200W | 2700-7000K | 100-277V | 26000 | 5 years | |
EX-240W | 240W | 2700-7000k | 100-277v | 31200 | 5 years |
Production Line
Pls click above to get explosion proof lights family brochure
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(70.00%),Domestic Market(5.00%),Europe (15%）
We are based in Shanghai, China, start from 2014,sell to North America(70.00%),Domestic Market(5.00%),Europe (15%）
Other region (10%)
2. Can we buy the sample?
Yes, sample can be arranged.
3.How do you ship the lights?
We can ship by air or by sea.
4. why should you buy from us not from other suppliers?
We are LED lighting factory, the explosion proof lights are certified by ETL, DLC, IEC,TUV...
2. Can we buy the sample?
Yes, sample can be arranged.
3.How do you ship the lights?
We can ship by air or by sea.
4. why should you buy from us not from other suppliers?
We are LED lighting factory, the explosion proof lights are certified by ETL, DLC, IEC,TUV...
We have put stock in United states for fast shipping.
5. what services can we provide?
5 years warranty after sales.
5. what services can we provide?
5 years warranty after sales.
