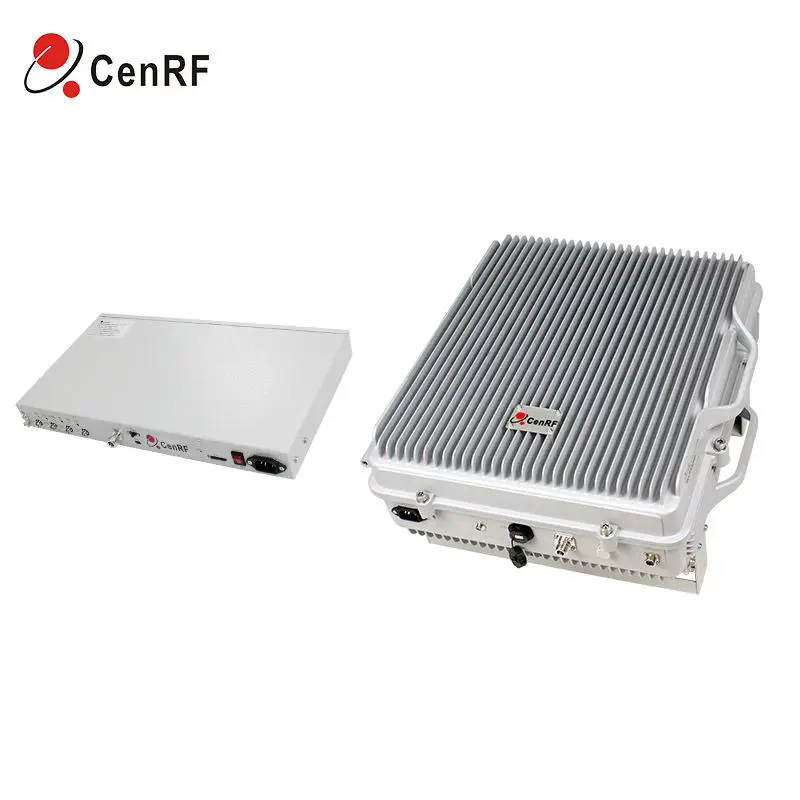

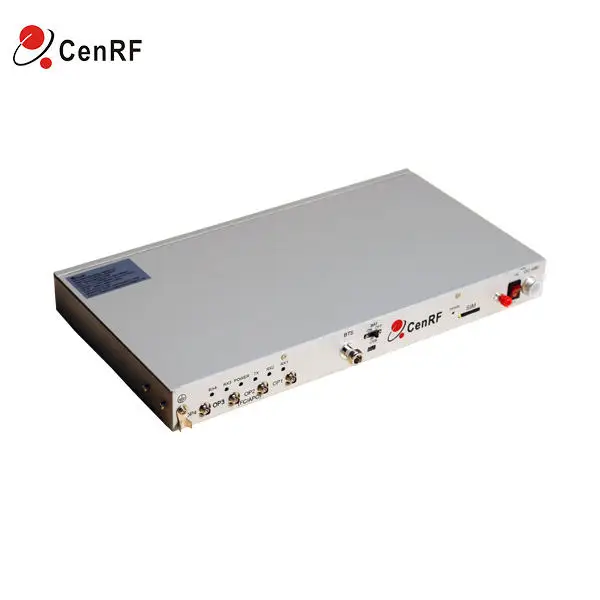

GSM Lte 4G 5G 850 900 1800 2100 2300 2600MHz 40dBm(SISO) 6 Band Direct Coupling Fiber Optical Amplifier Repeater Remote Unit
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (1600940697682):
Product Overview
Description
Product Features
Features：
1. Support Muti-Carriers, Ideal for Muti-operators In-building solution.
2.Use of wideband high linearity and low intermodulation amplifier, to ensure strong signal input of the linear
output.

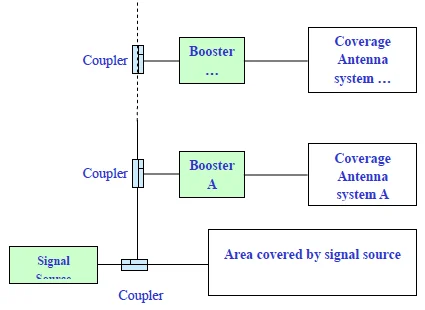

3. Very low system noise can be connected multiple inline boosters in parallel.
4. Digital intelligent automatic synchronization with donor BTS.
5. Integrated FDD-LTE 1800/WCDMA (UMTS2100) modem with OMT software. Support optional OMC
remote management system (NMS).
2.Use of wideband high linearity and low intermodulation amplifier, to ensure strong signal input of the linear
output.
3. Very low system noise can be connected multiple inline boosters in parallel.
4. Digital intelligent automatic synchronization with donor BTS.
5. Integrated FDD-LTE 1800/WCDMA (UMTS2100) modem with OMT software. Support optional OMC
remote management system (NMS).
6. Optional backup battery and multiple power supply choices available (AC/DC/Solar Power).
Item | Specification | ||||
Uplink | Downlink | ||||
Frequency Range (MHz) | GSM/LTE FDD Band | 880 ~ 915 | 925 ~ 960 | ||
GSM/LTE FDD1800 Band | 1710 ~ 1785 | 1805 ~ 1880 | |||
Bandwidth(MHz) | GSM/LTE FDD Band | 0.2-20 | |||
GSM/LTE FDD1800 Band | 0.2-20 | ||||
Sub band number | GSM/LTE FDD Band | 3 | |||
GSM/LTE FDD1800 Band | 3 | ||||
Max. Total Output Power(dBm)Center Frequency | 23±2 | 40±2 | |||
Max.Gain (dB) Center Frequency at 25℃ | 85±3 | 90±3 | |||
ALC (dB) | 0~25 | ||||
Noise Figure (dB) (Max. Gain) | ≤ 8.0 | ||||
Input VSWR(Power up, Min Gain, Pin=-30dBm) | ≤ 2.0 | ||||
3rd Inter-modulation (dBc)(Max Gain) | ≤ -40 (dual-tone interval 600kHz) | ||||
ACPR (dBc)(Max output) | ≤ -36 | ||||
EVM (%) | ≤ 8.0 | ||||
Time Delay (us) | ≤ 7.0 | ||||

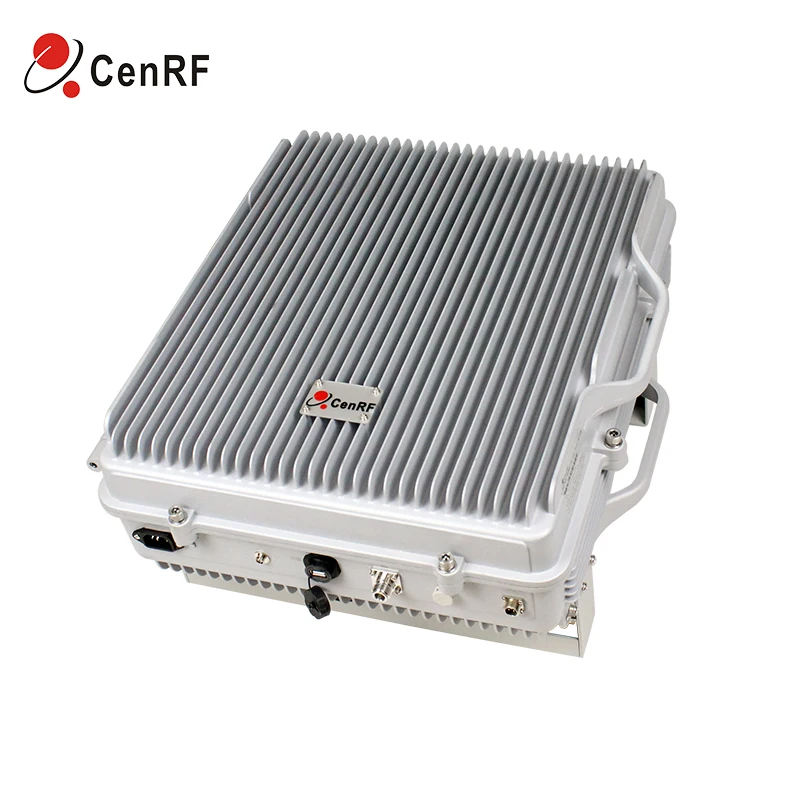

900&1800 Dual Band Digital Repeater

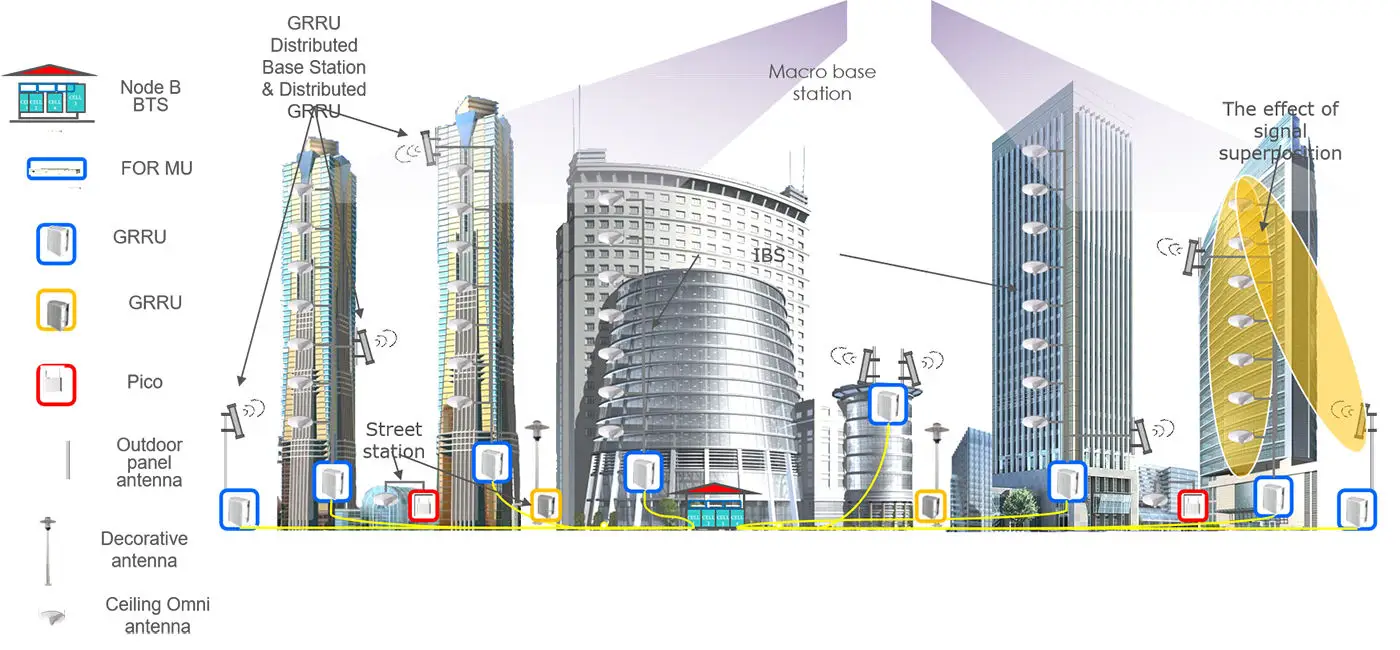

Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate.
Main Features:
1. High linearity PA; High system gain;
Intelligent ALC technology;
2. Full duplex and high isolation from uplink to downlink;
3. Automatic Operation convenient operation;
Integrated technique with reliable performance;
Intelligent ALC technology;
2. Full duplex and high isolation from uplink to downlink;
3. Automatic Operation convenient operation;
Integrated technique with reliable performance;

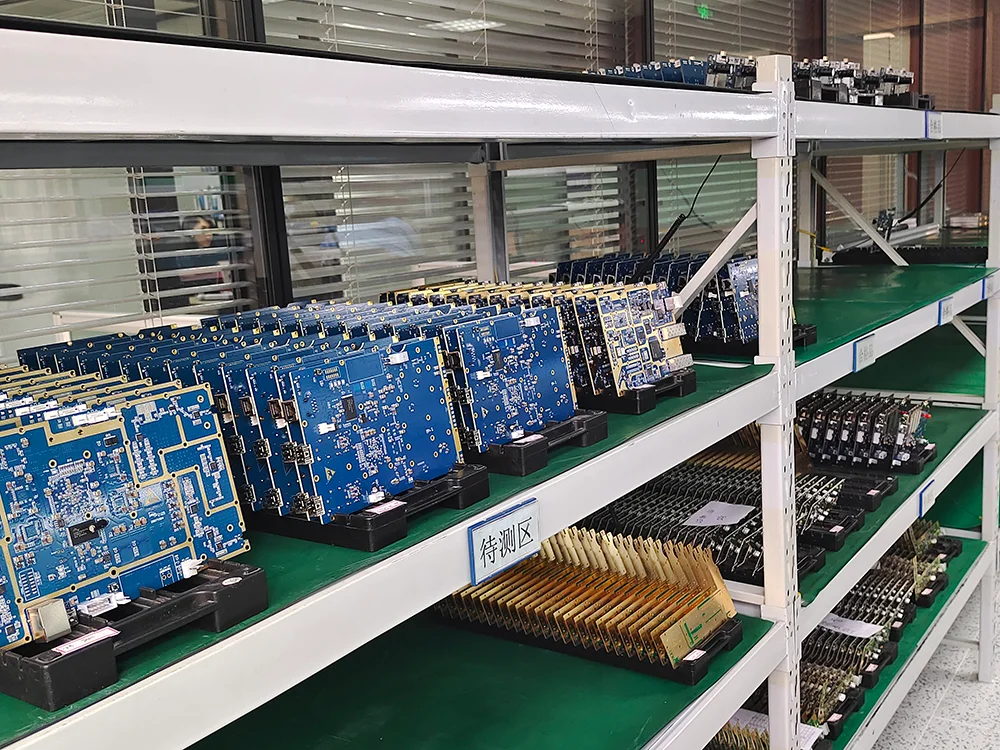

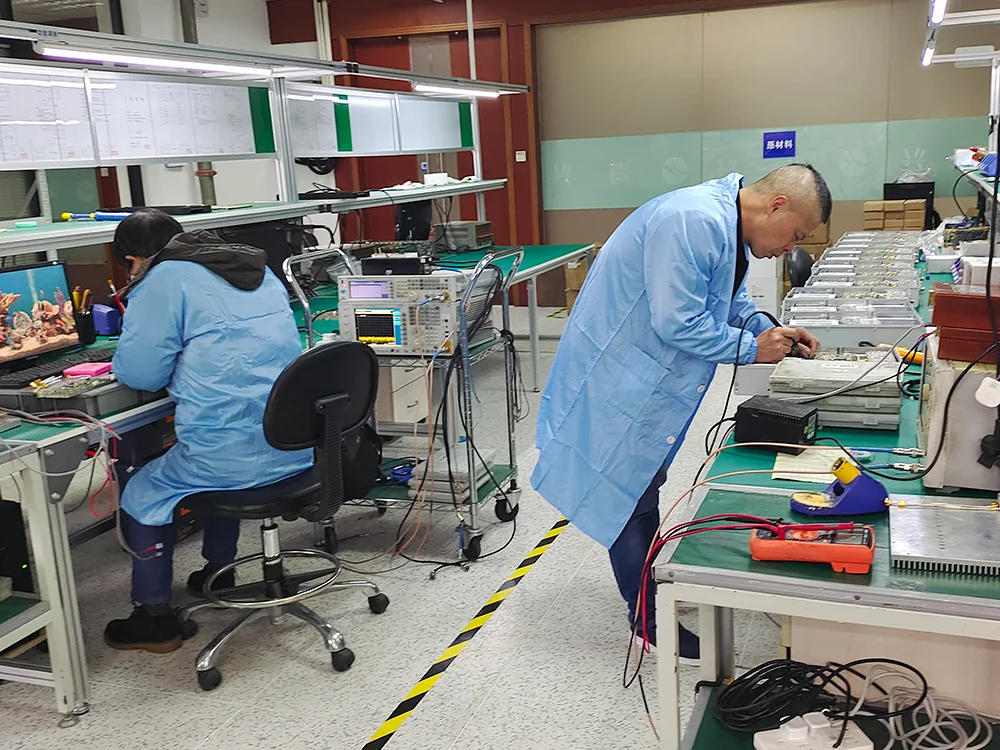

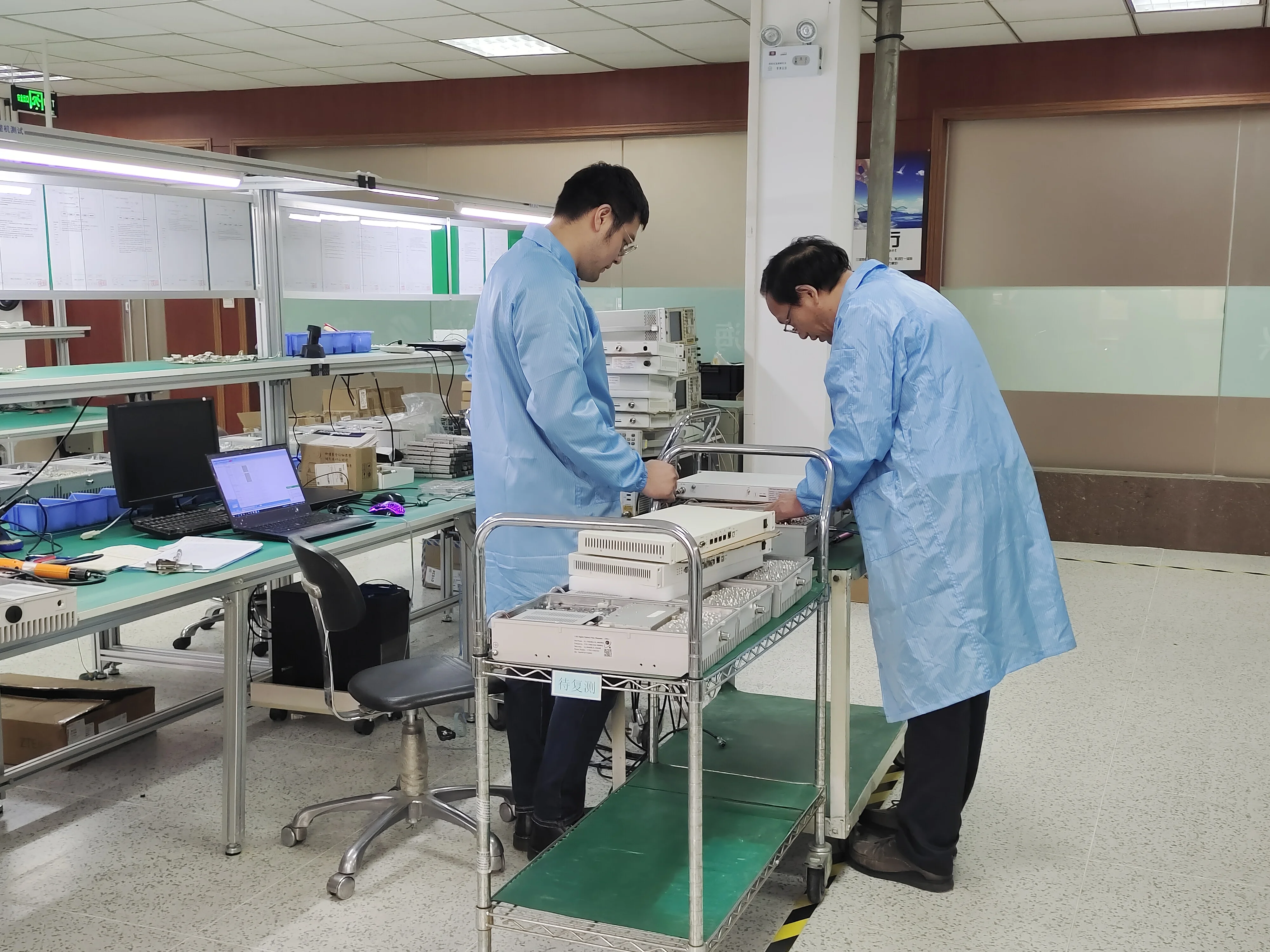

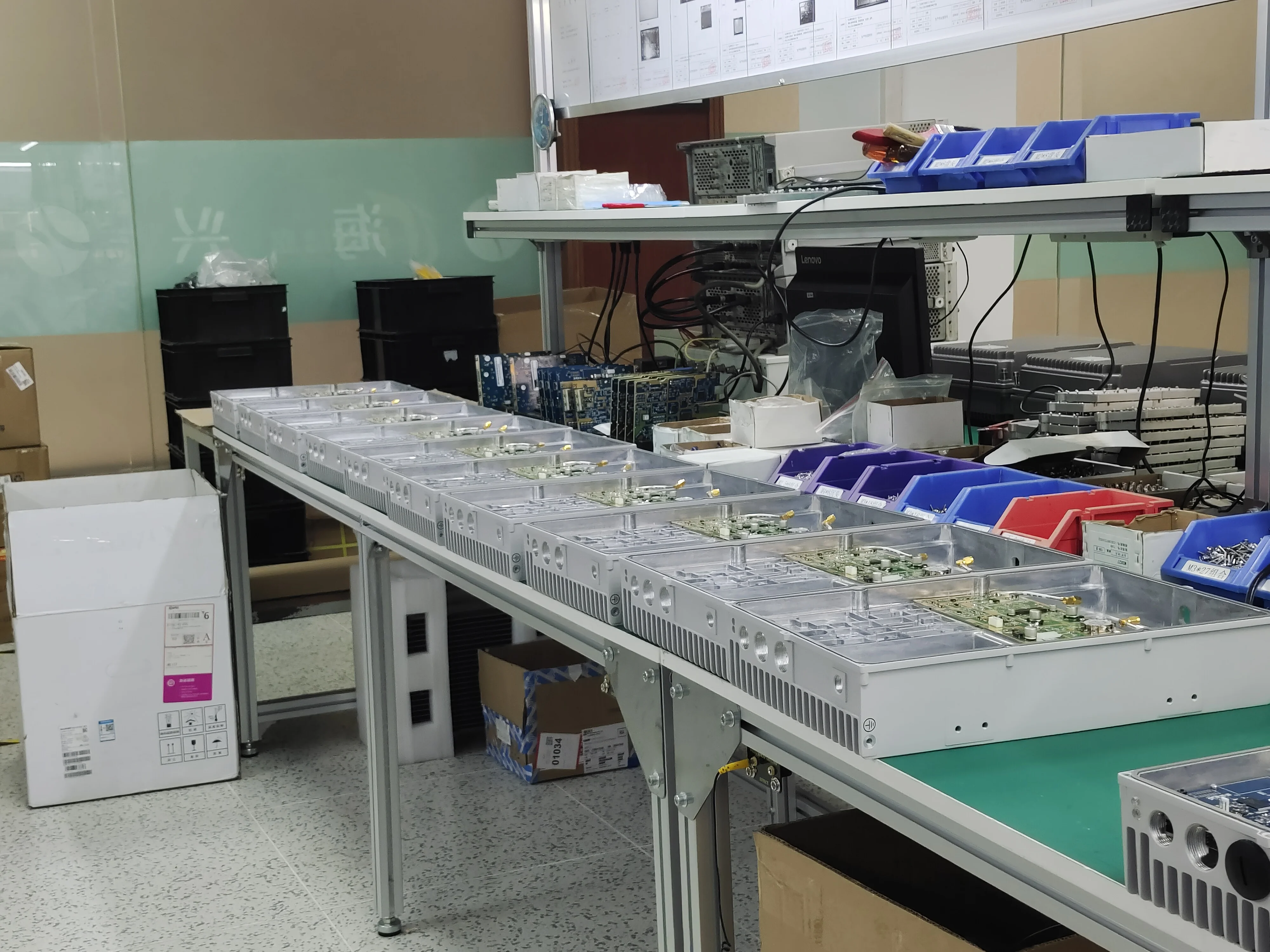

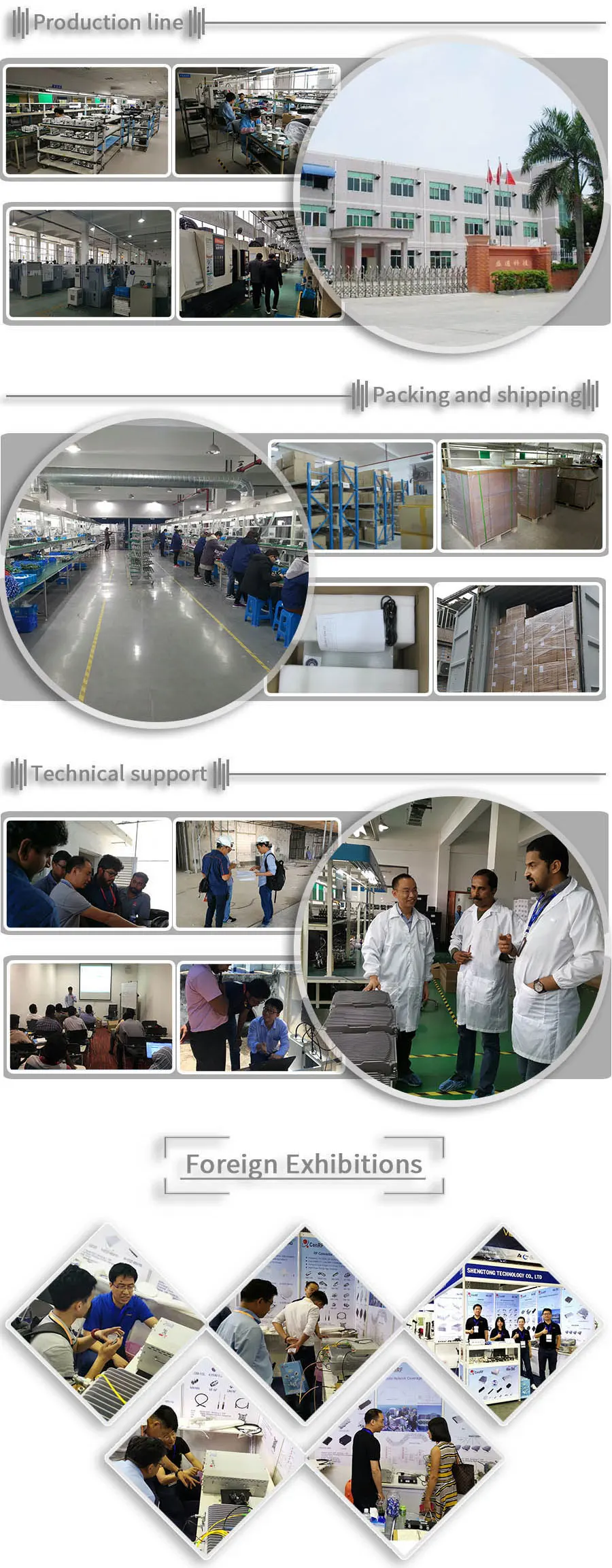

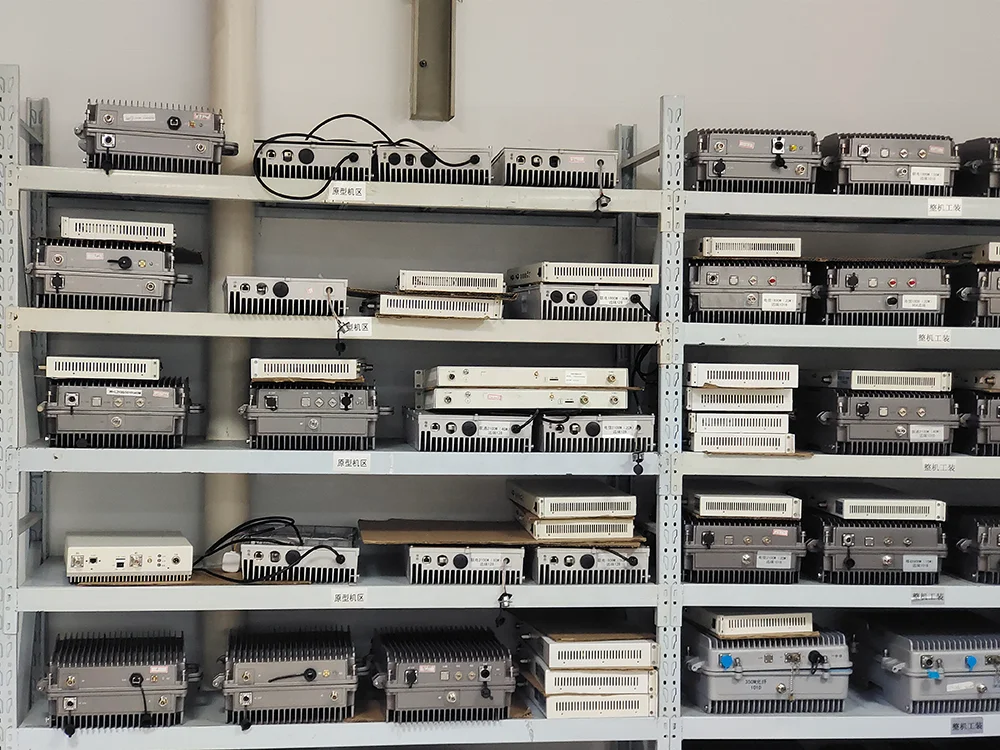

Factory Display
Company Profile
Hangzhou Shengtong Technology Co,. Ltd
Hangzhou Shengtong Technology Co.,ltd , Is A Certified ISO9001-2015 Company Located In Hangzhou Were Founded In 1999.
There Is Well Educated Management Team And Also Experienced Engineers Major In Microwave Technology. It Is Specialize In The Products Including, Comprehensive Mobile Enhancement Solutions, All Kinds Of Repeater, Rf Components, Antenna,Subassembly To Help To Optimize Operators’ Mobile Networks

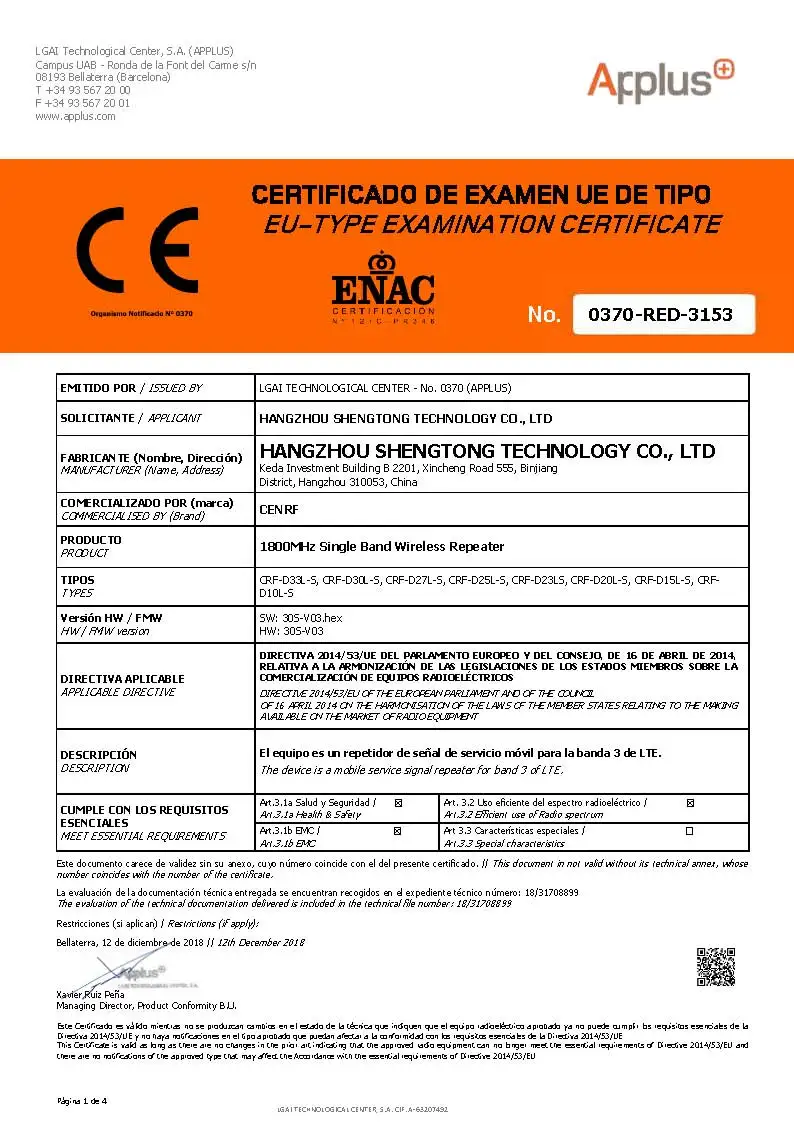

Certifications
Product Categories
About Us
FAQ
Q:What're the main products of CenRF?
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
Q: Can your company provide Technical Support?
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
Q: Do you test the equipment before your delivery?
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
Q: Do you have OEM&ODM service?
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q: Can your company provide CO or Form E certificate?
A: Yes, we can provide it if you need.
A: Yes, we can provide it if you need.
Q：Can your company provide solutions?
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
