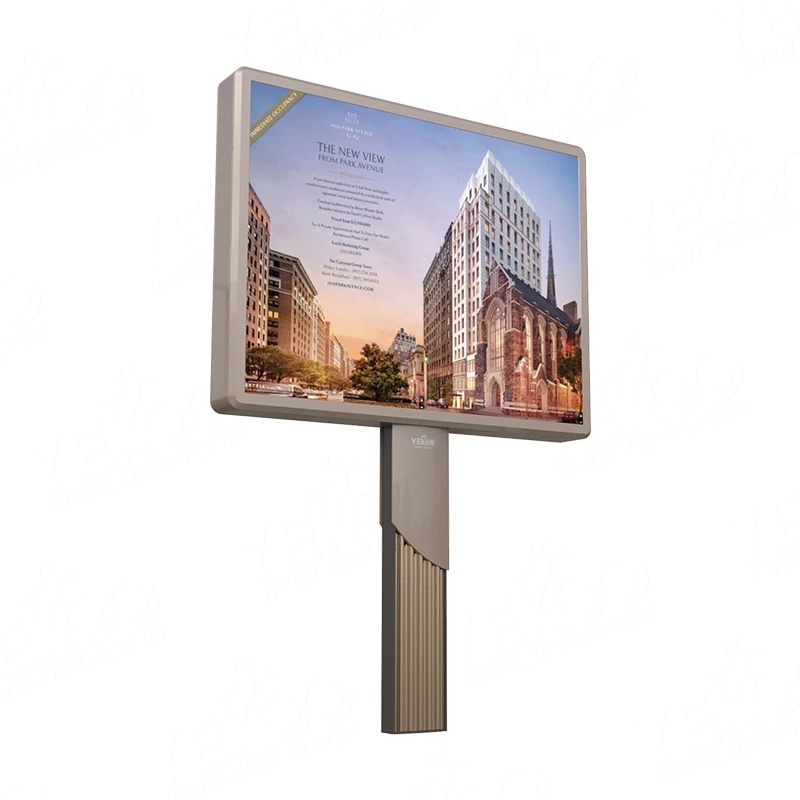

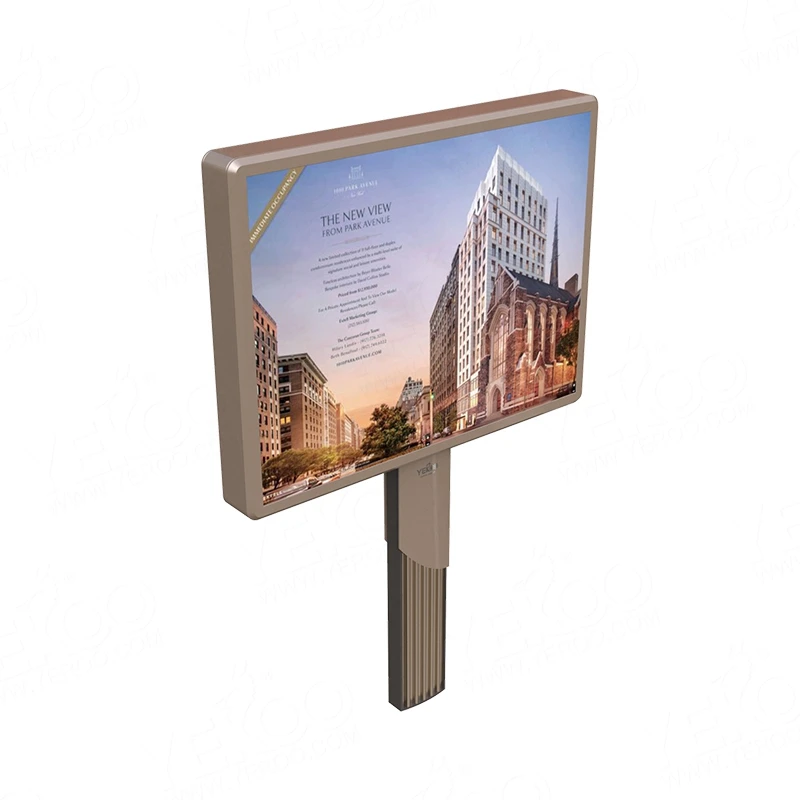

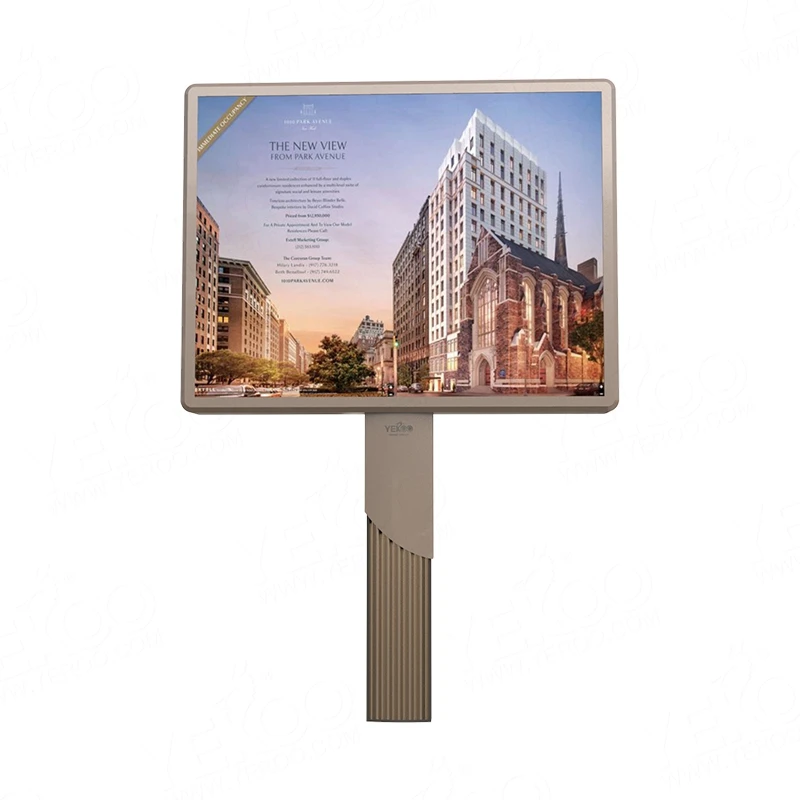

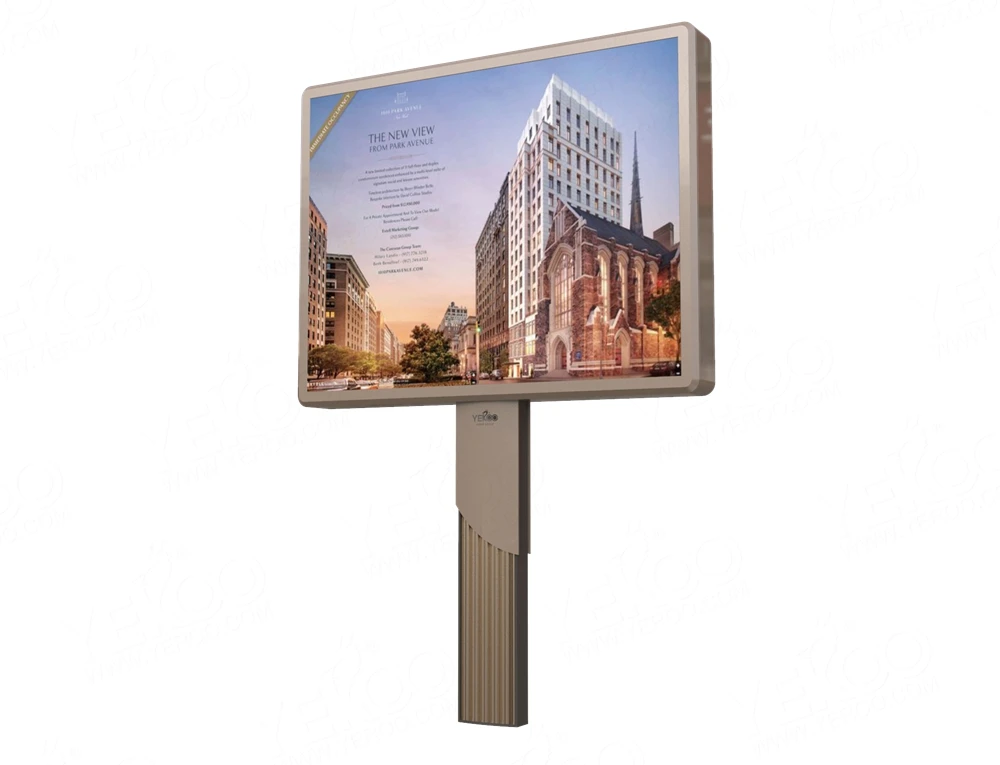

Product name | Outdoor Advertising Waterproof RGB P4 LED Display Screen Big Banner Digital Billboard | ||||

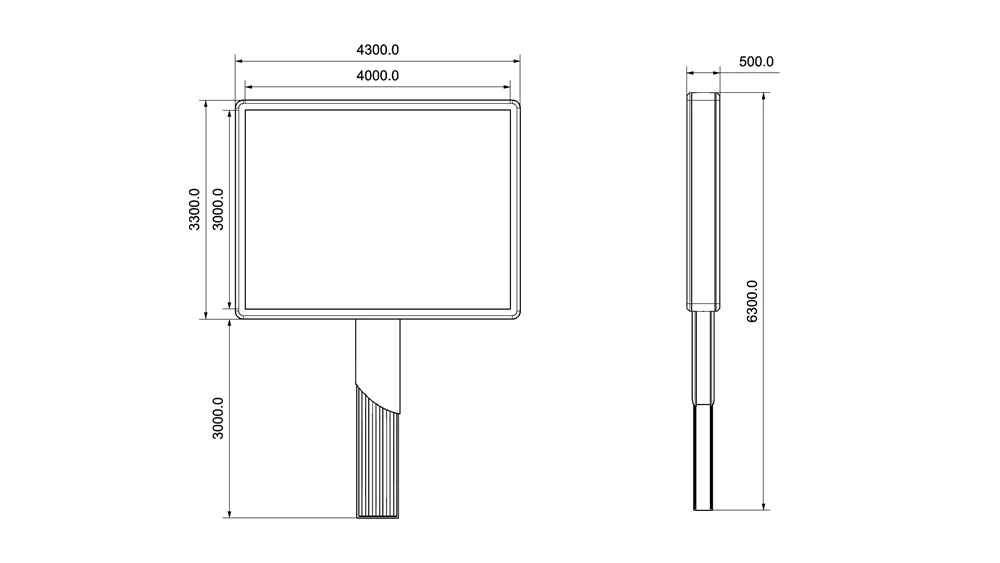

Size | 4000*3000mm | ||||
Structure material | Steel | ||||
Cladding material | Galvanized plate | ||||
LED screen | P4/P6/P8/P10 | ||||
Surface finished | Hot dip galvanized/powder coated/painting | ||||
Packing | Wooden case | ||||
OEM service | Yes | ||||
NO. | Technical project details | Parameter |
1 | Pixel specification | 1R1G1B triple |
2 | SMD | 2727 |
3 | Pixel spacing | 4mm |
4 | Module pixel | 32 x 32 |
5 | Core wavelength | R: 620~625nm, G: 525~527.5nm, B: 462.5~465nm |
6 | Pixel density | 27777/m2 |
7 | Brightness | >7000nit, @white color |
8 | Gray level | 16384 level |
9 | Scan drive mode | 1/4 Scanning, Constant current drive |
10 | Refresh rate | >1920Hz |
11 | View angle | X>140°, Y>140° |
12 | View Distance | 5~60 meters |
13 | Brightness adjustment level | 64 level |
14 | Brightness adjustment method | Chip power flow control or PWM |

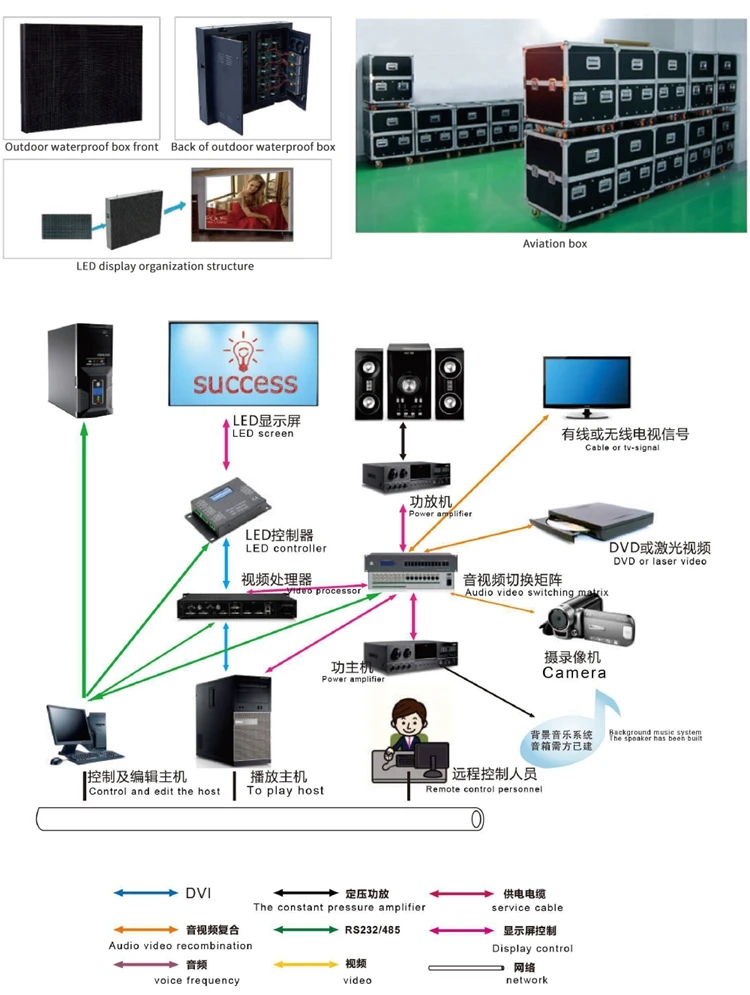

15 | Control system transmission | Host synchronization mapping + main control card + DVI graphics + fiber transmission or RJ45 + DVI / HDMI port |
16 | Multimedia video processor | Support for various media formats |
17 | Voltage | 5V |
18 | Power | 40W |
19 | Lifespan | >100,000 hours |
20 | Shell material | PC |
21 | Module weight | 310g |
22 | Operation temperature | -20℃~+50℃, RH=40~90% |
23 | LED Package manufacturer | Anpuguang/ Guoxing |
24 | Driver chip | Accumulate MBI 5051/5153 |
25 | Safety regulations and certification | CE, UL, CCC, ROHS |
