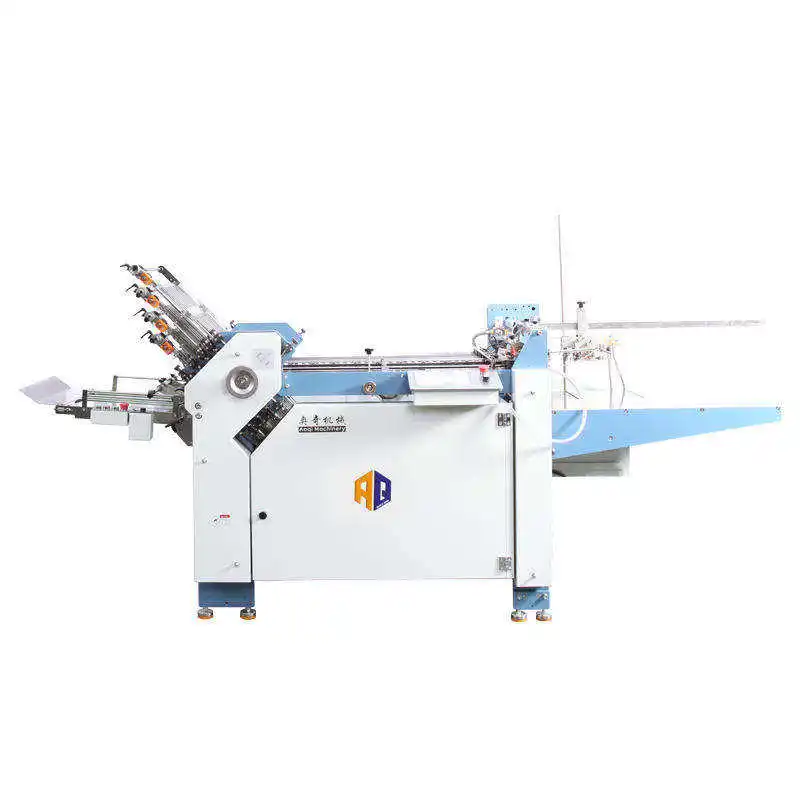

Round Pile Folding Machine with Stainless Steel Helical Gear Design Exclusively for Notebook Newspaper
- Category: >>>
- Supplier: Dongguan Aoqi Packing Machine Co. Ltd.
Share on (1600940715283):
Product Overview
Description
PRODUCT SPECIFICATIONS
Model | 360T/480T | 530TS | 480TS/600TS |
Min.sheet Size | 50*105mm | 70*120mm | 70*120mm |
Max.sheet Size | 360*(750/1000)mm 480*(750/1000)mm | 530*1000mm | 480*1000mm 600*1000mm |
Paper Thickness | 40-250g | 40-200g | 40-200g |
Folding Roller Fastest Speed | 180/MIN | 180/MIN | 180/MIN |
Folding Knife Max.frequency | 500stroke/min | 400stroke/min | 400stroke/min |
Input Power | 380v | 380v | 380v |
Power Consumption | 2.0-3.75kw | 3.1-3.75kw | 3.9-4.75kw |
Net Weight | 500-1500kg | 800-1500kg | 800-1500kg |
Features And Functions
1. Automatic Control Device Of Pile Height
2. High Performance Sheet-separating Feeder
3.Feeding System Adopts Three Holes Sucked Rotor
4.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
5.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
6.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input
7.Indentation, Punching , Slitting
8.Belt Driving Guarantees Smooth Driving And Low Noise
9.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
10.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
11.Adopt Germany Imported Electric Appliances Of Schneider
2. High Performance Sheet-separating Feeder
3.Feeding System Adopts Three Holes Sucked Rotor
4.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
5.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
6.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input
7.Indentation, Punching , Slitting
8.Belt Driving Guarantees Smooth Driving And Low Noise
9.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
10.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
11.Adopt Germany Imported Electric Appliances Of Schneider
PRODUCT SPECIFICATIONS

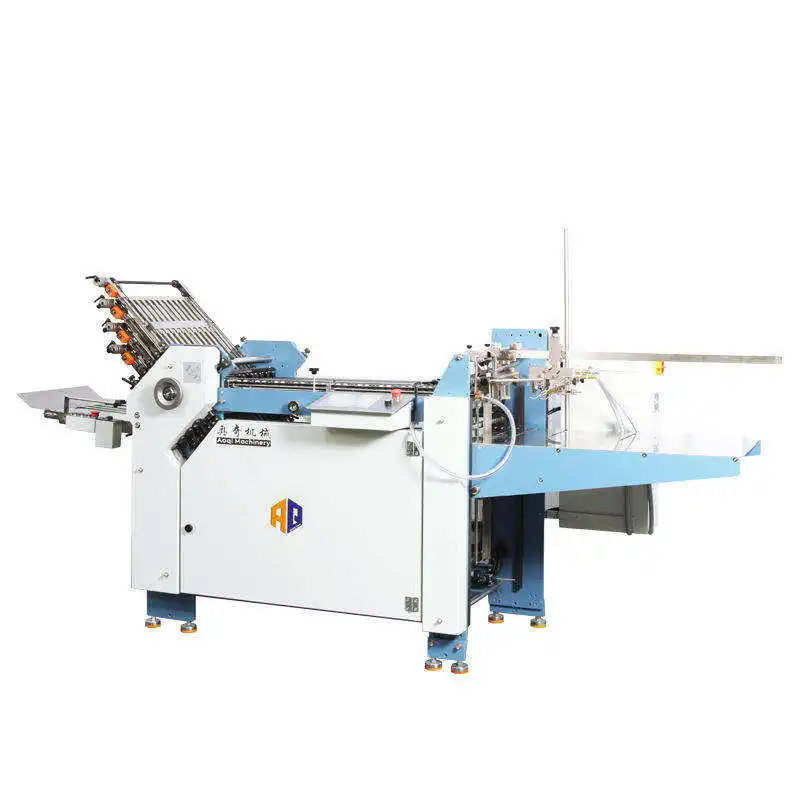

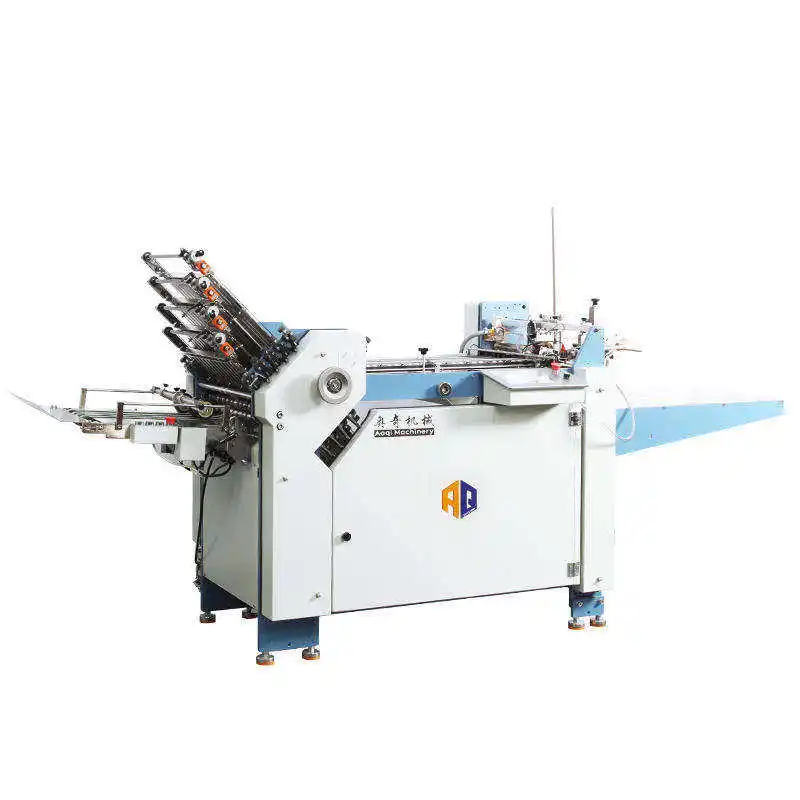

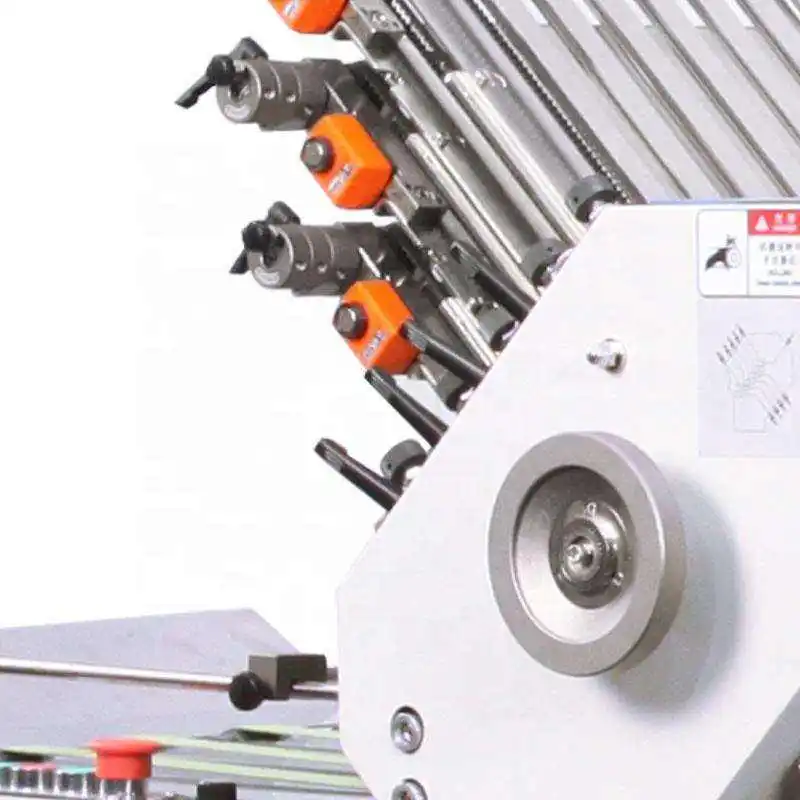

A 3 Paper Folding Machine With 480mm Width With 8 Buckle Plates Organ fold Machine
This folding machine is suitable for the miniature leaflet folding .480T-8K include first station and compressor. The folder can handle maximum 480*1000mm sheets and carry out 8 parallel folds at the most.
Max paper feed size | 480*1000mm |
Min paper feed size | 50*105mm |
Paper thickness range | 30-250g |
Max speed of folding roller | 180m/min |
Power | 380V,3.05KW |
Machine weight | 534KG |
Machine dimensions | 3050*1080*1480mm |
