Product Overview

Description



Product Description


Product Name

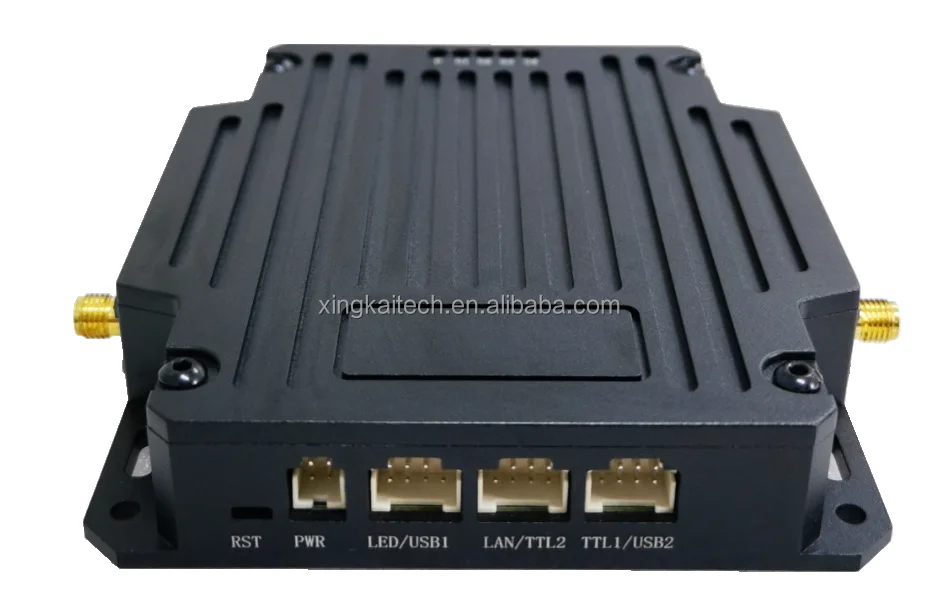

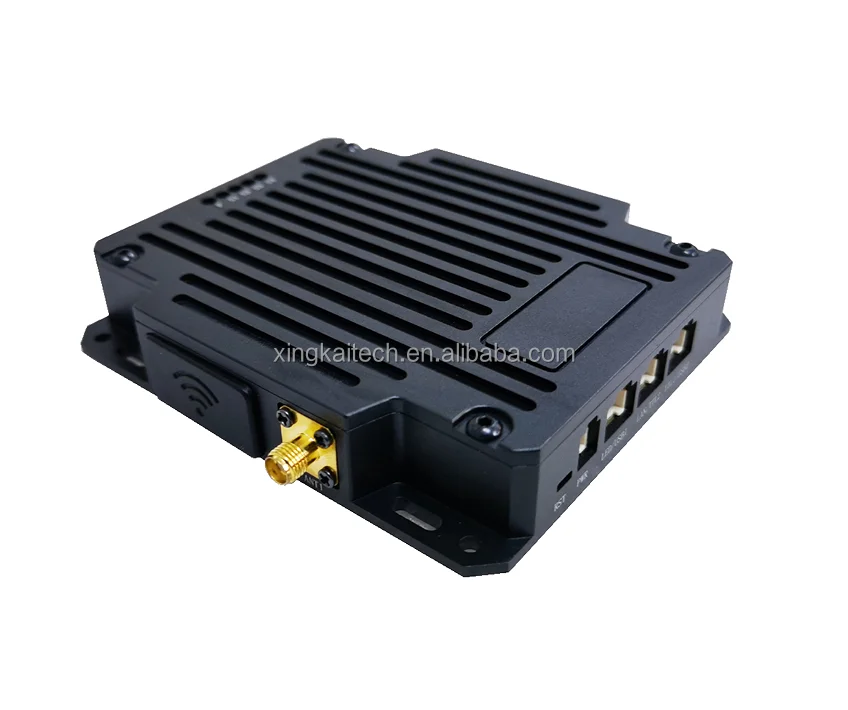

XK-M353
Function
MIMO MESH RADIO for Surveillance
Package
Packed in a professional shipping box

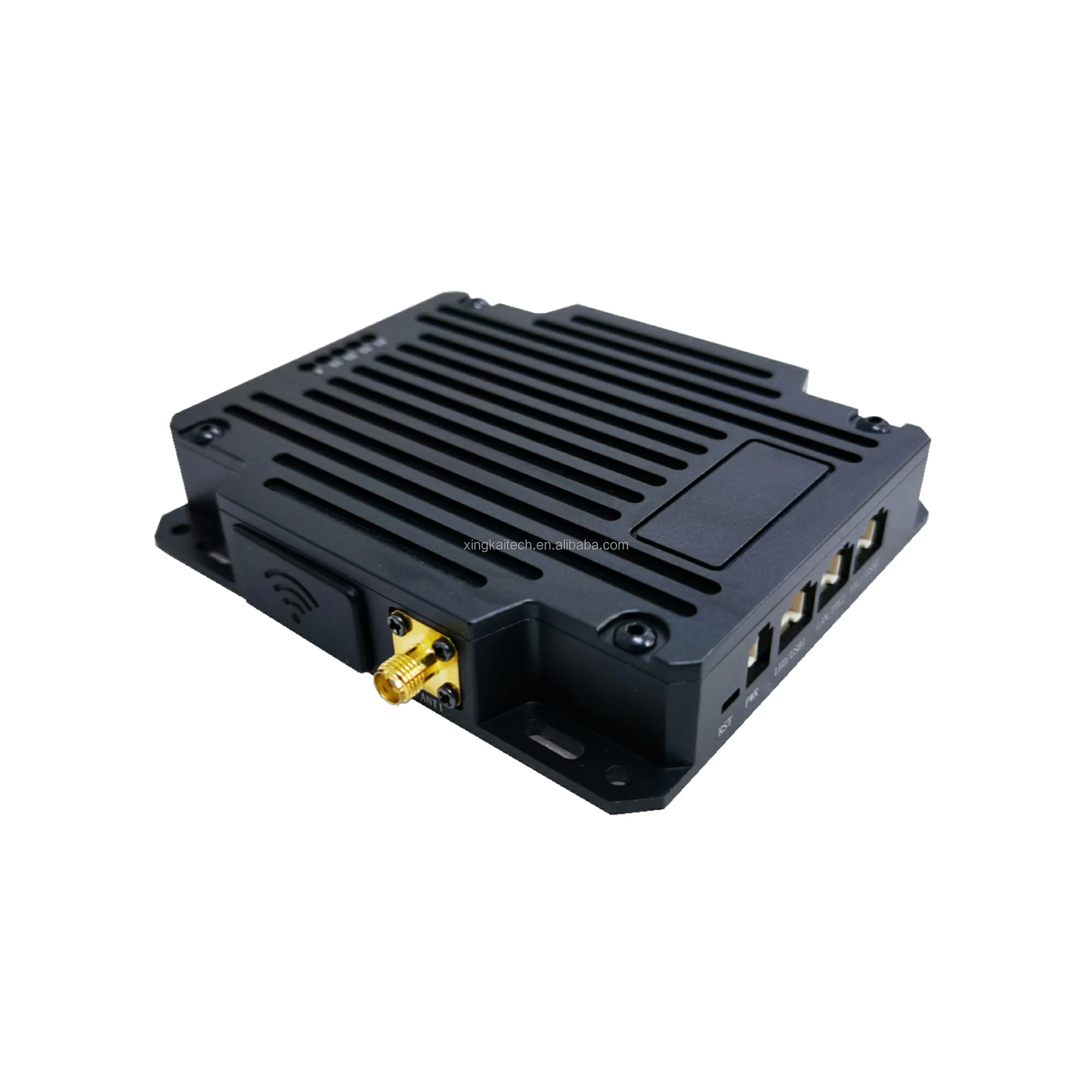

1.   Product performance description

XK-M353 is adopted by a 2*2 MIMO antenna design. The multipath formed by obstacle reflection can be used to realize a more robust
communication capability, integrating a 4W high-efficiency power amplifier within a limited volume.
* Long transmission distance.
* Strong anti-interference.
* Good diffraction.
* Safe and reliable.




2. Features

* MIMO dual-channel ad-hoc network.
* Ultra-wide frequency 350M-3.8GHz (customizable).
* Centralized management platform, supporting GIS topologic maps.
* 120Mbp of maximum speed, wireless networking bandwidth.
* Supporting 2.4G WiFi.
* Supporting HDMI input.



3. Product Specification


Items
Performance
Networking frequency
1400-1485MHz@4W MIMO 2*2
Encryption mode
AES128
Modulation method
BPSK/QPSK/16-QAM/64-QAM
Transmitting power
36dBm
Receiving sensitivity
Up to -102dBm
Transmission delay
1~2ms

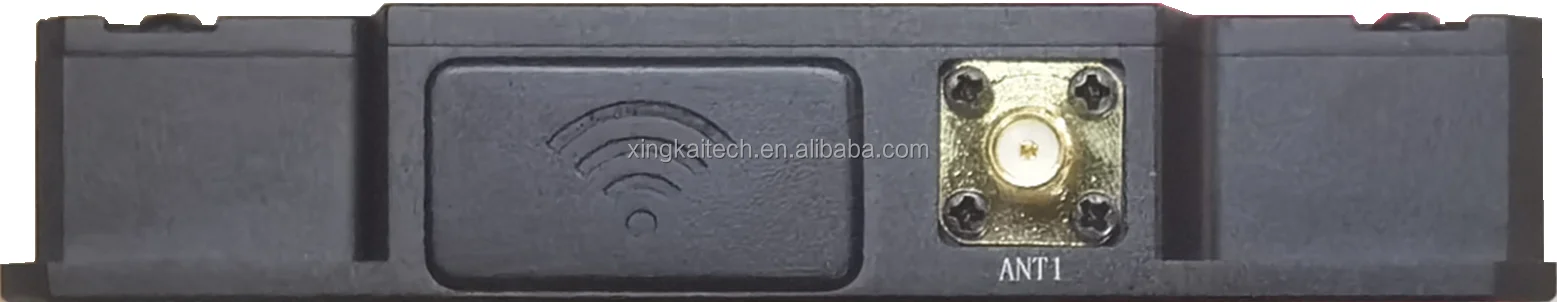

RF interface
MESH N*2,WIFI SMA*2
Channel bandwidth
2M/5M/10M/20M/40M (adjustable)
WiFi hotspot
2.4G
Effective distance
30~50km(Air to ground)
Configuration mode
WEB and MESH management platform
Number of ad-hoc network nodes
No less than 50 nodes
system
MESH ad-hoc network.
Operating Temp.
-30℃ ~ +65℃
Operating Humidity
5% ~ 95%(non-condensing)
Storage Temp.
-45ºC ~ +85ºC
in weight
231g

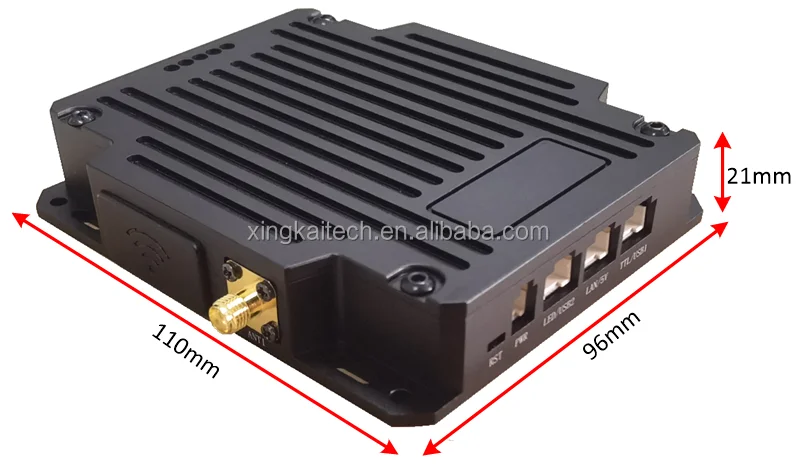

Sizes
110x96x21mm
Overall power consumption
Average power consumption:8W@33dBm;16W@36dBm









4.Related productions




5.Packing&Shipping:

Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong



6.Company Introduction

Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.

Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.

Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.








7.Exhibitions

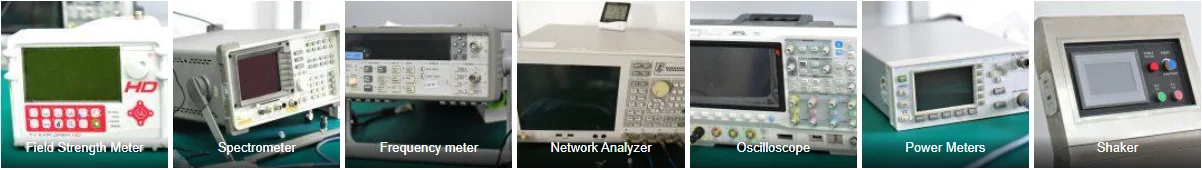

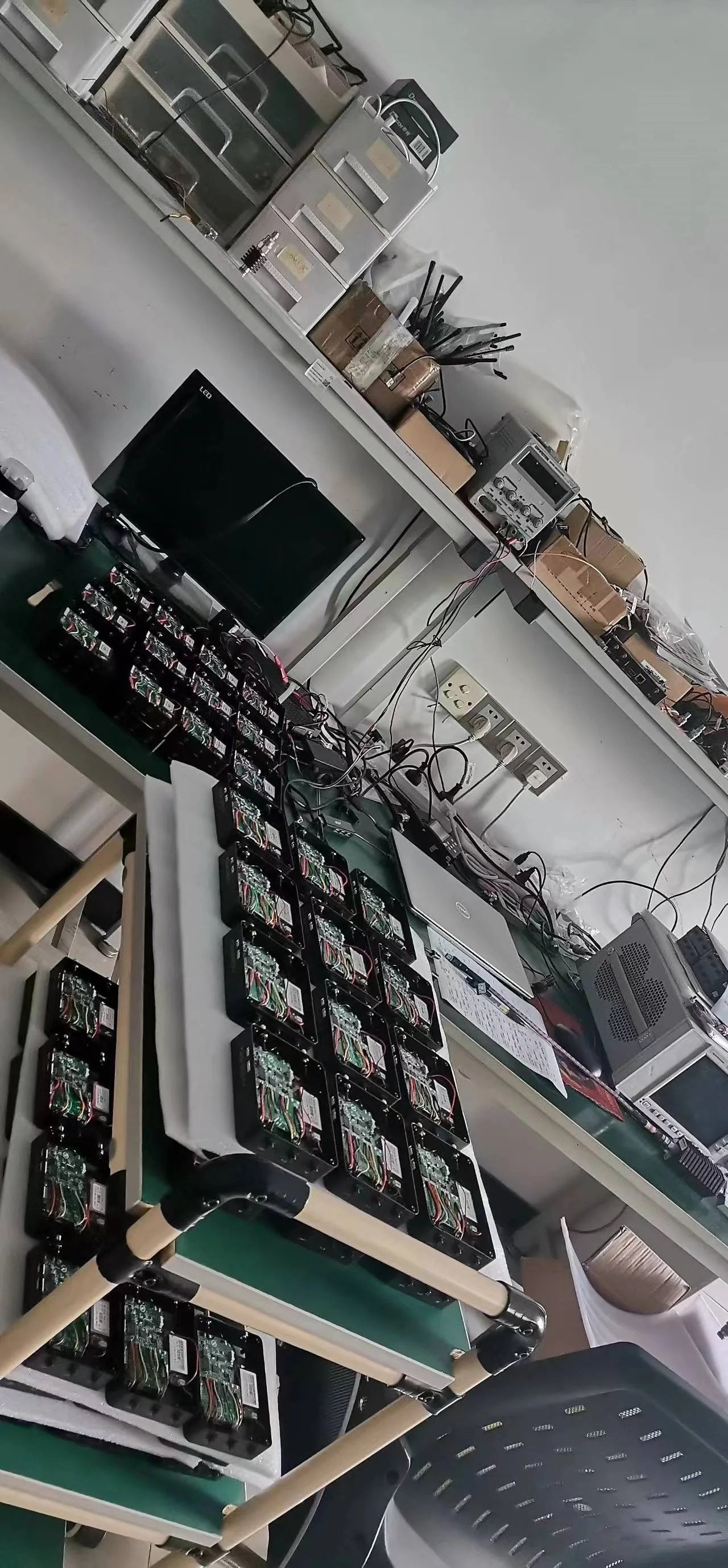

8.Testing Instruments





9.Certifications









10.Cooperative Partners





11.Contact Details
