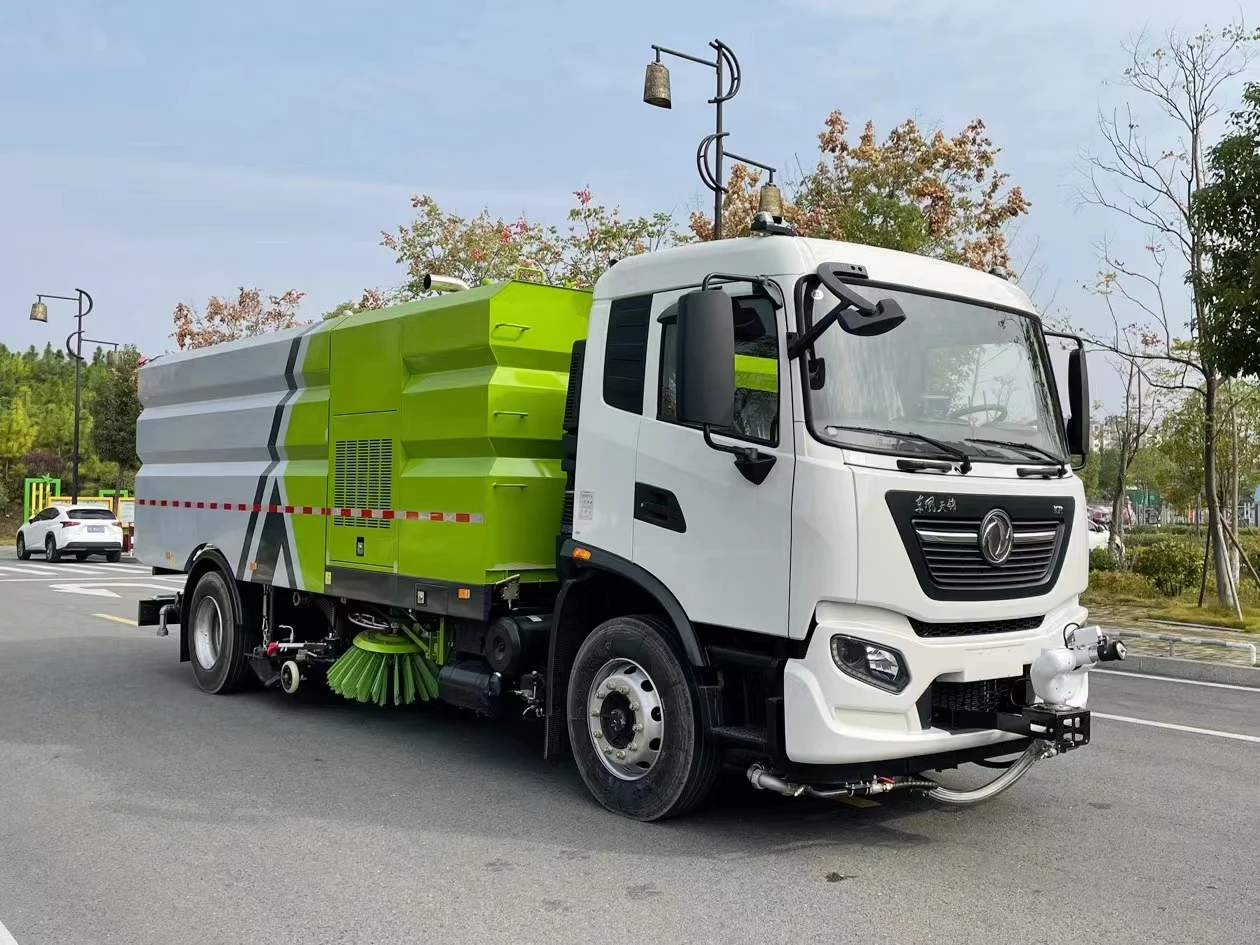

ISUZU 9 ton road washing sweeper truck
- Category: >>>
- Supplier: Hubei Yaohong Automobile Sales Co. Ltd.Hubei Ltd.
Share on (1600940946500):
Product Overview
Description
Product Description
ISUZU 9 ton road washing sweeper truck
ISUZU 9 ton road washing sweeper truck
Specification
item | value |
Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other |
road sweeper Remarks | CLW5180TSLD6 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Wheelbase | 4700mm |
Front/rear suspension | 1400/1830,1430/1800 |
chassis engine | Kang machine 210 horsepower |
Auxiliary engine | Kangji 140 horsepower |
Suction sweeping | Cleaning efficiency ≥95% |
Maximum suction particle size | 120 mm |
Suction sweep width | 2.8-3.2 m |
The maximum cleaning capacity | 70000 m 2/h |
Disc brush overhang size | ≥400 mm |
Drive form | 4X2 4X4 Road Sweeper Truck |
Suction sweeping speed | 3-20 km/h |
Tank Nominal capacity of water tank | 4 m³ Litter bin |
Dustbin tipping angle | ≥46° |
Dustbin rated capacity | 8 m³y word |
Discharge door opening angle | ≥85° |
Hydraulic system | Type open, electric control |
Main components | gear pump, hydraulic motor, hydraulic cylinder, |
Oil temperature | 60 °C |
Sprinkler system main components | Xinxishan electronic diaphragm pump, water filter, nozzle, etc. |
Scanning device type | There are four sweeping plates in the center, driven by hydraulic motors, and the right front can be independently Stand-alone control, with the function of avoidance and recovery. |
Scanning disc diameter | 850 mm |
Sweeping angle Forward tilt: | 4-6 degrees Camber: 4-7 degrees sucker |

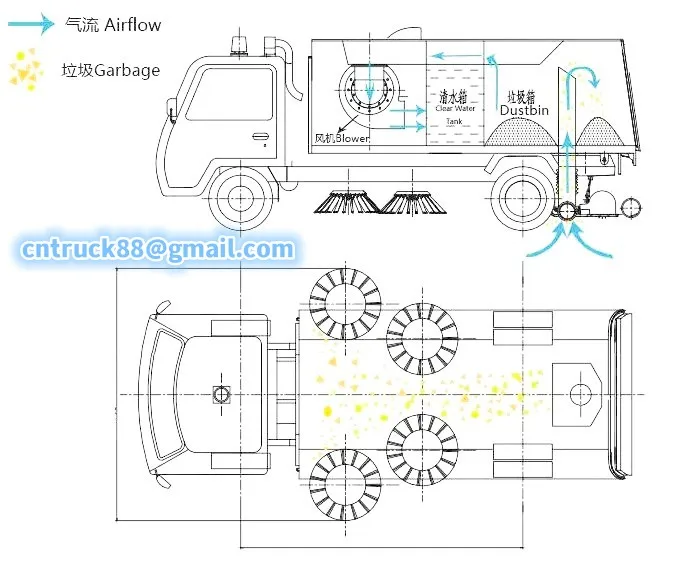

Working principle:
auxiliary engine drives hydraulic pressure
The oil pump, water pump and fan work. hydraulic oil pump

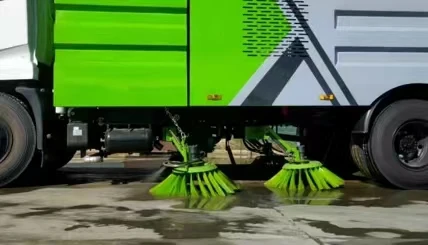

Drive the left and right sweeping discs to expand, lift and rotate,
Driven by the rotation of the sweeping disc, the left and right sweeping brushes
The garbage on the side is swept to the middle, and at the same time, the diaphragm water pump
pressurized clean water from the solution tank through the
The high-pressure pipeline control valve sprays out to achieve dust reduction,
The suction cup uses the negative pressure generated by the fan to suck the garbage into the garbage bin through the air duct for storage.
According to the conditions of the working environment, the full sweep mode and the right vertical sweep can be controlled independently, including "full sweep", "full sweep",
"Right cleaning" and other operation modes can be selected
The oil pump, water pump and fan work. hydraulic oil pump
Drive the left and right sweeping discs to expand, lift and rotate,
Driven by the rotation of the sweeping disc, the left and right sweeping brushes
The garbage on the side is swept to the middle, and at the same time, the diaphragm water pump
pressurized clean water from the solution tank through the
The high-pressure pipeline control valve sprays out to achieve dust reduction,
The suction cup uses the negative pressure generated by the fan to suck the garbage into the garbage bin through the air duct for storage.
According to the conditions of the working environment, the full sweep mode and the right vertical sweep can be controlled independently, including "full sweep", "full sweep",
"Right cleaning" and other operation modes can be selected

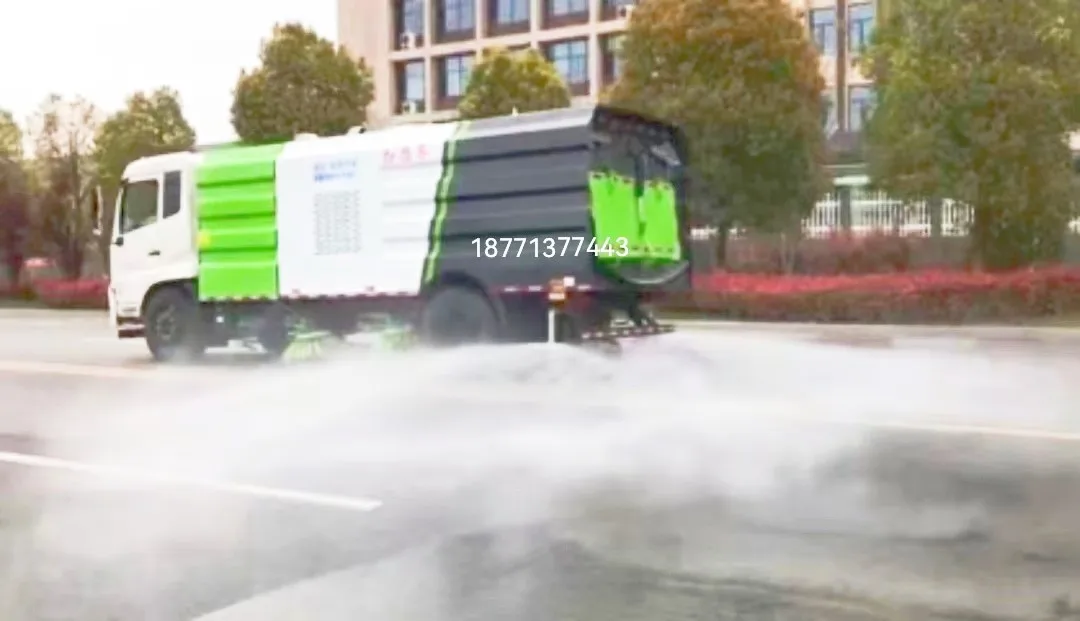

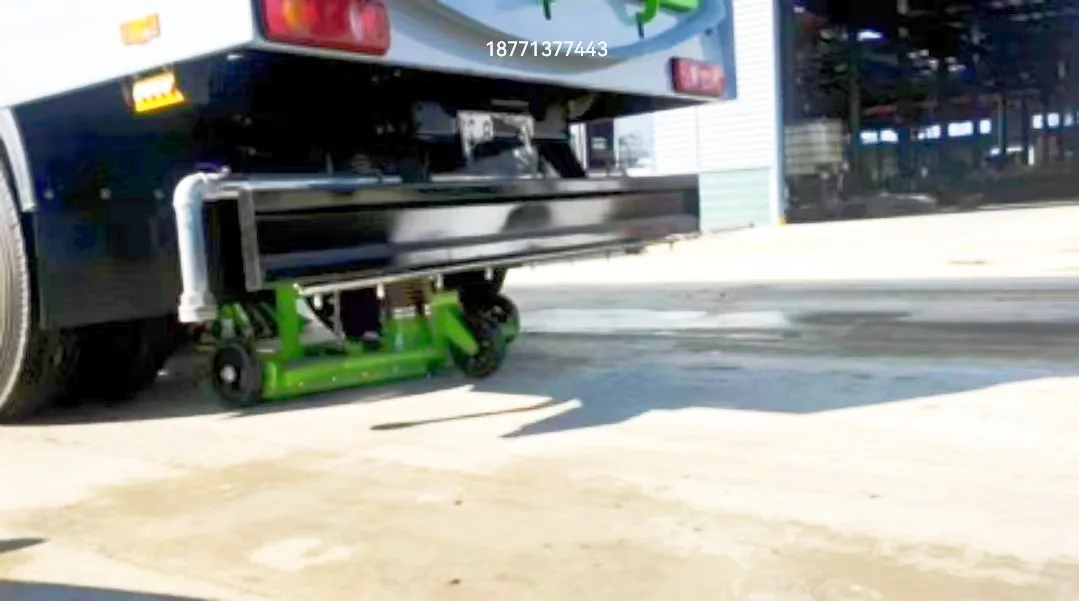

Post-sprinkler to reduce dust: there is a post-sprinkler under the dustbin at the rear of the road sweeper, in order to prevent the vehicle from
The dust raised in the air will cause secondary pollution. You can turn on the sprinkler switch and sprinkle it on the ground, which can effectively reduce the dust in the air.
Floating dust to achieve the purpose of purifying the air. (optional configuration)
The dust raised in the air will cause secondary pollution. You can turn on the sprinkler switch and sprinkle it on the ground, which can effectively reduce the dust in the air.
Floating dust to achieve the purpose of purifying the air. (optional configuration)
Packing & Delivery

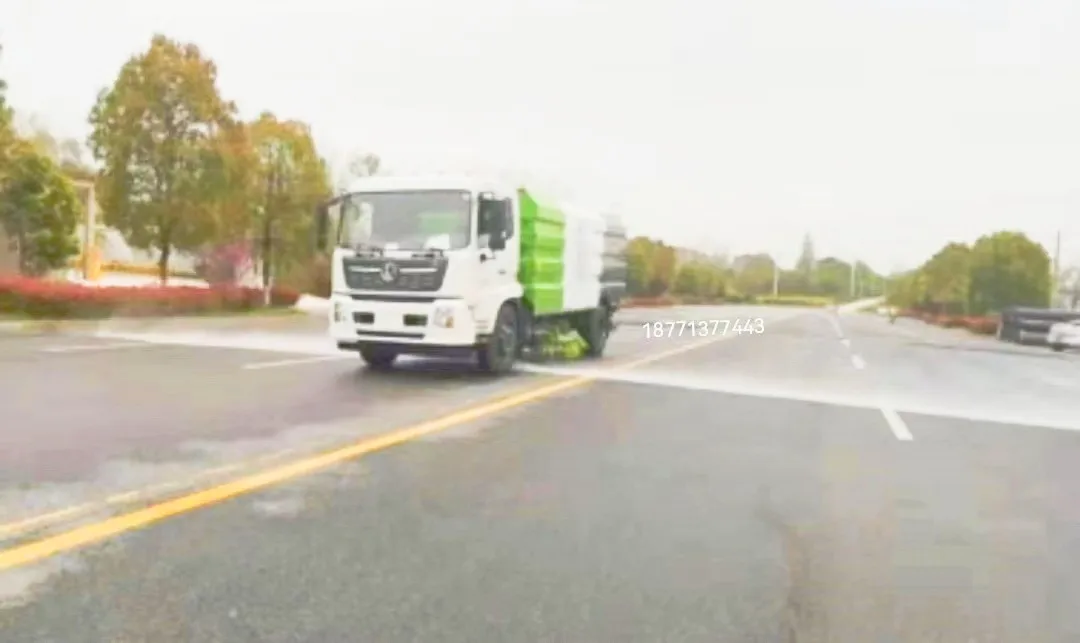

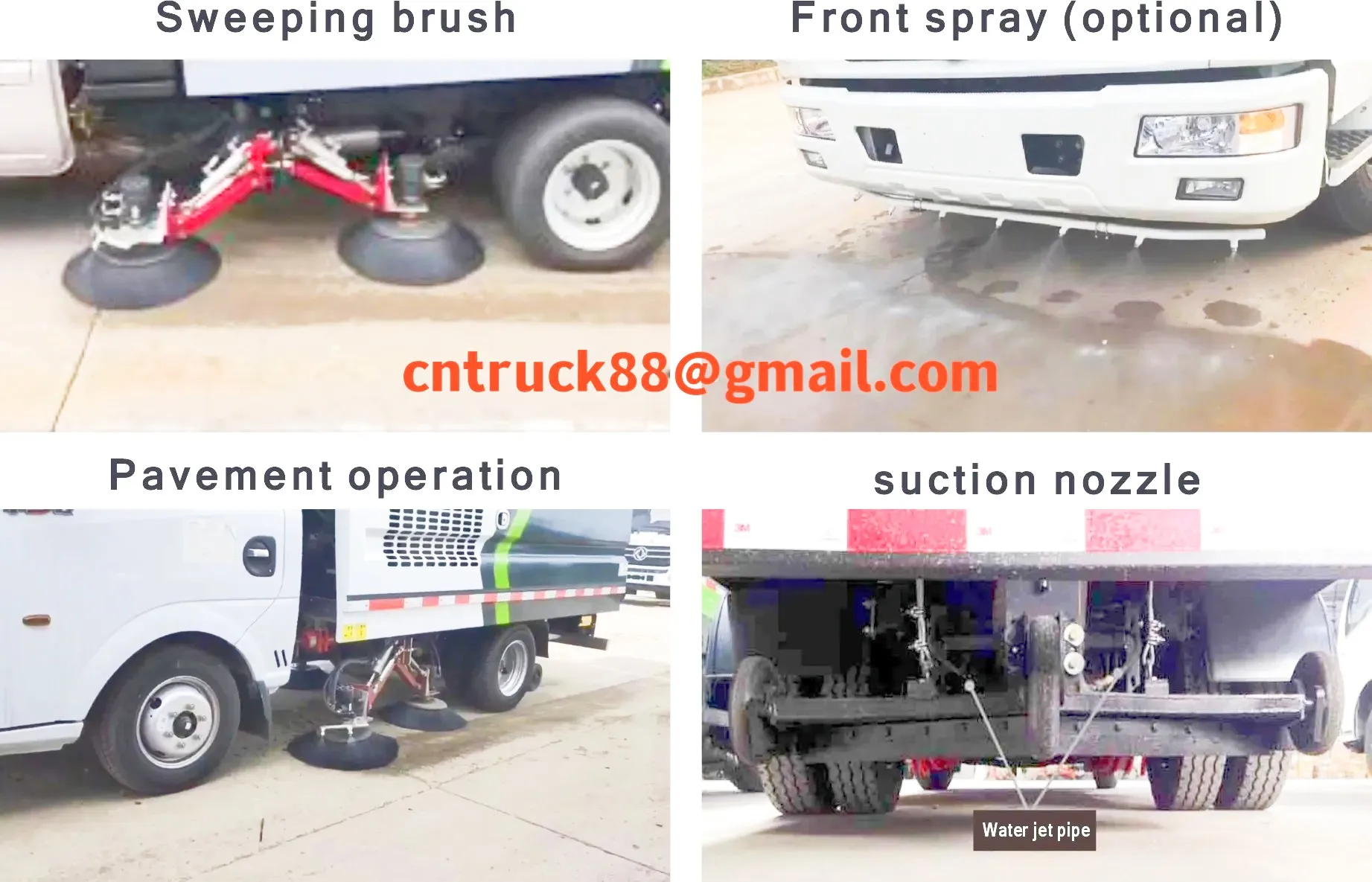

operation, for the sidewalk dust on the road surface, open the left and right
The suction cup of the sweeping disc is raised and lowered, and the high-pressure water on the spray rod of the front sweeping disc sprays water through the water spray pipe, forming a water curtain that can completely reduce dust.
into road cleaning.
The suction cup of the sweeping disc is raised and lowered, and the high-pressure water on the spray rod of the front sweeping disc sprays water through the water spray pipe, forming a water curtain that can completely reduce dust.
into road cleaning.
Drive the sprinkler pump to realize the low-pressure flushing function of the sprinkler. (optional configuration

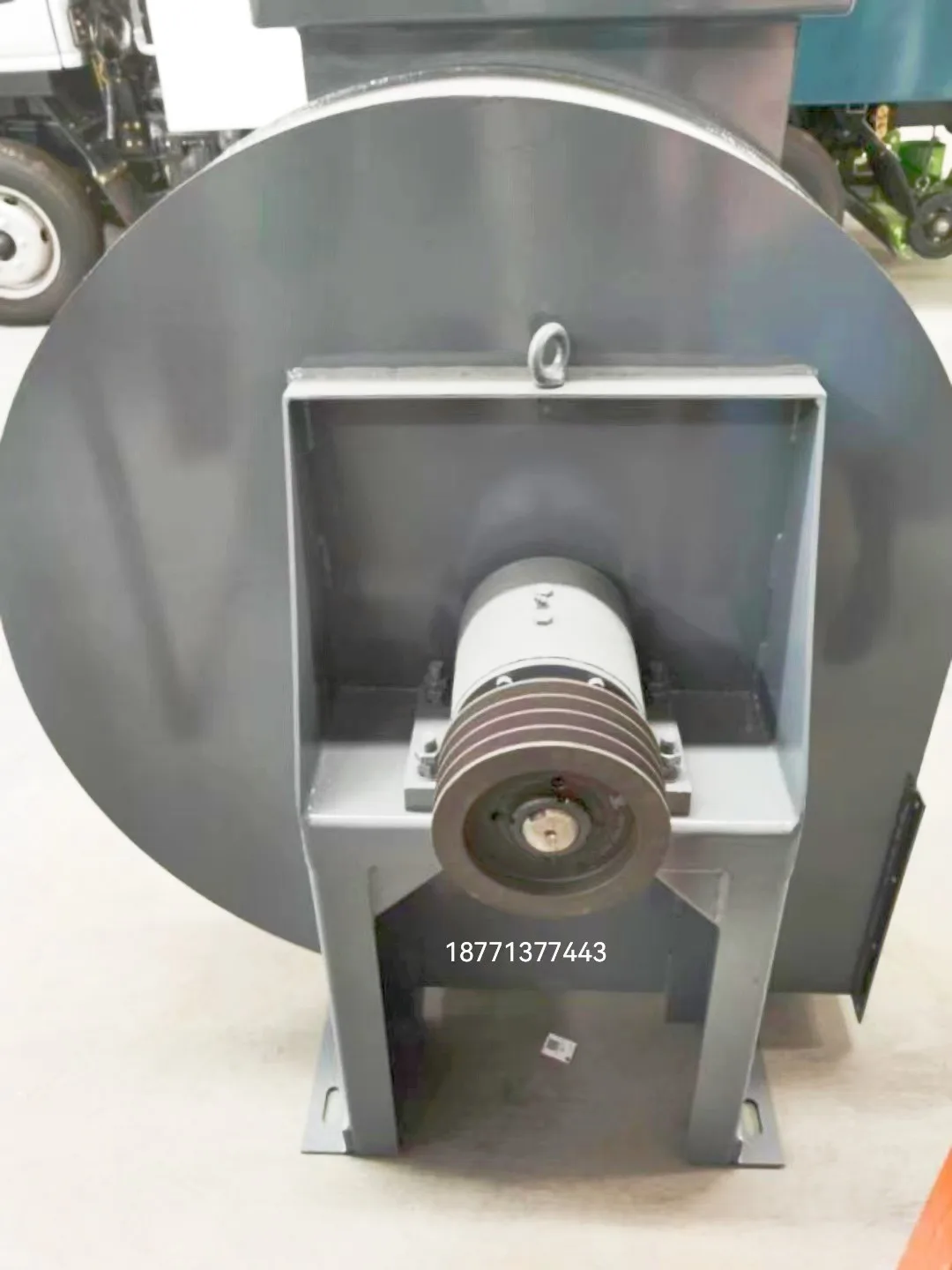

High Efficiency Centrifugal Fan
High-efficiency maintenance-free centrifugal fan, high fan efficiency, long service life, the blade material is made of special steel, its special
Blade shape is extremely resistant to wear
High-efficiency maintenance-free centrifugal fan, high fan efficiency, long service life, the blade material is made of special steel, its special
Blade shape is extremely resistant to wear
Wide range of operations
Dust ranging from tens of microns to 80-100mm stones, bricks, leaves, drinking water bottles and other sundries, one operation
can be removed entirely. Road cleaning width 2600mm, cleaning capacity 30000m
Dust ranging from tens of microns to 80-100mm stones, bricks, leaves, drinking water bottles and other sundries, one operation
can be removed entirely. Road cleaning width 2600mm, cleaning capacity 30000m
Electronic control system: CAN bus electronic control system, cab and tail two sets of controls, easy to drive
The operator can adjust the operation mode when the vehicle is moving and in the working state, which has high safety
The operator can adjust the operation mode when the vehicle is moving and in the working state, which has high safety
China Shacman High Pressure Washing Sweeper Street Road Cleaning Truck Manufacturers, Suppliers, Factory

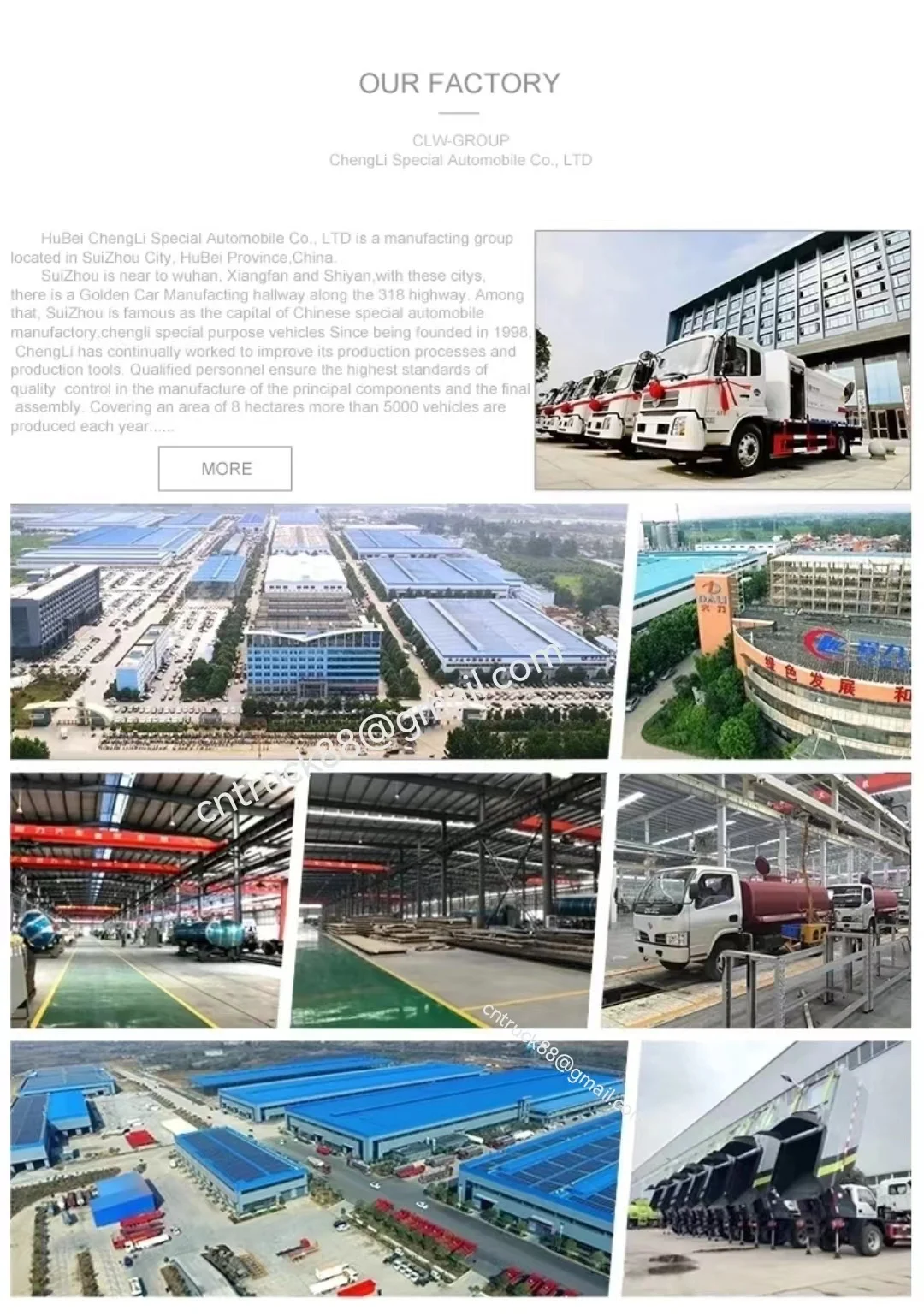

Company Profile
