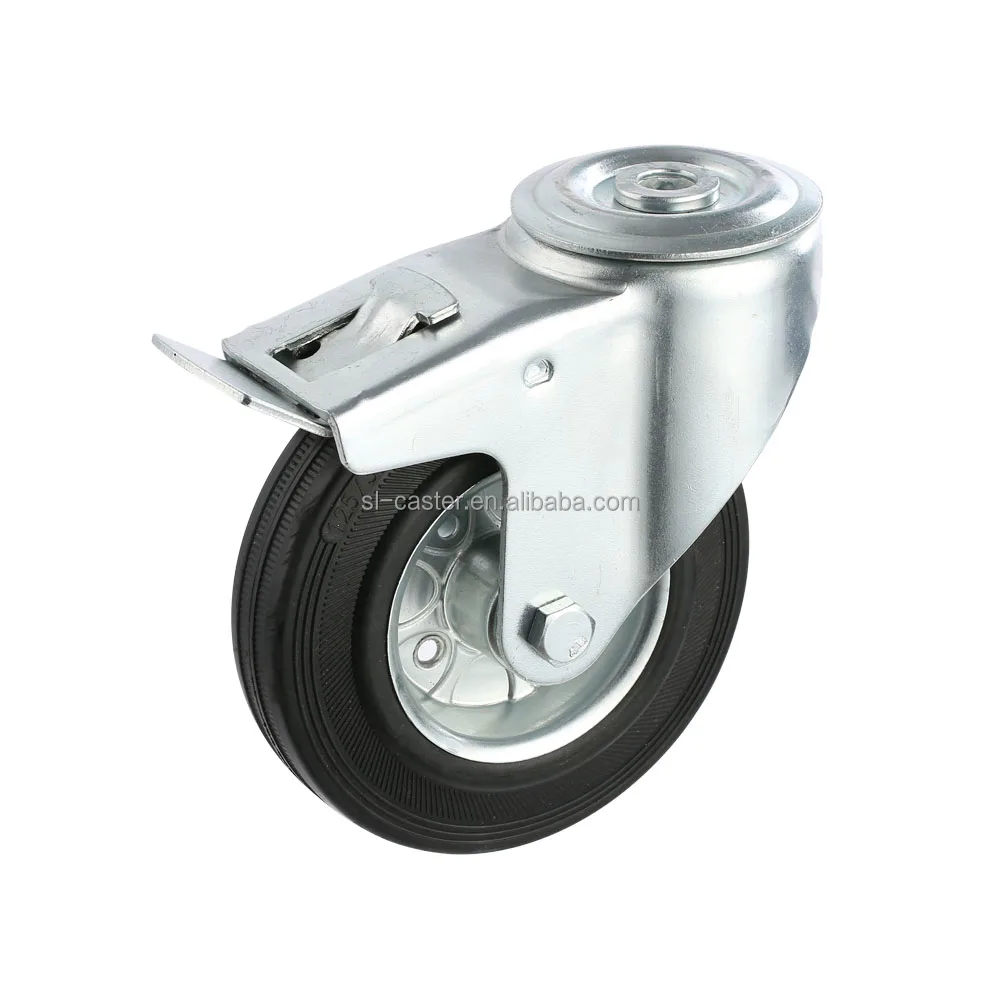

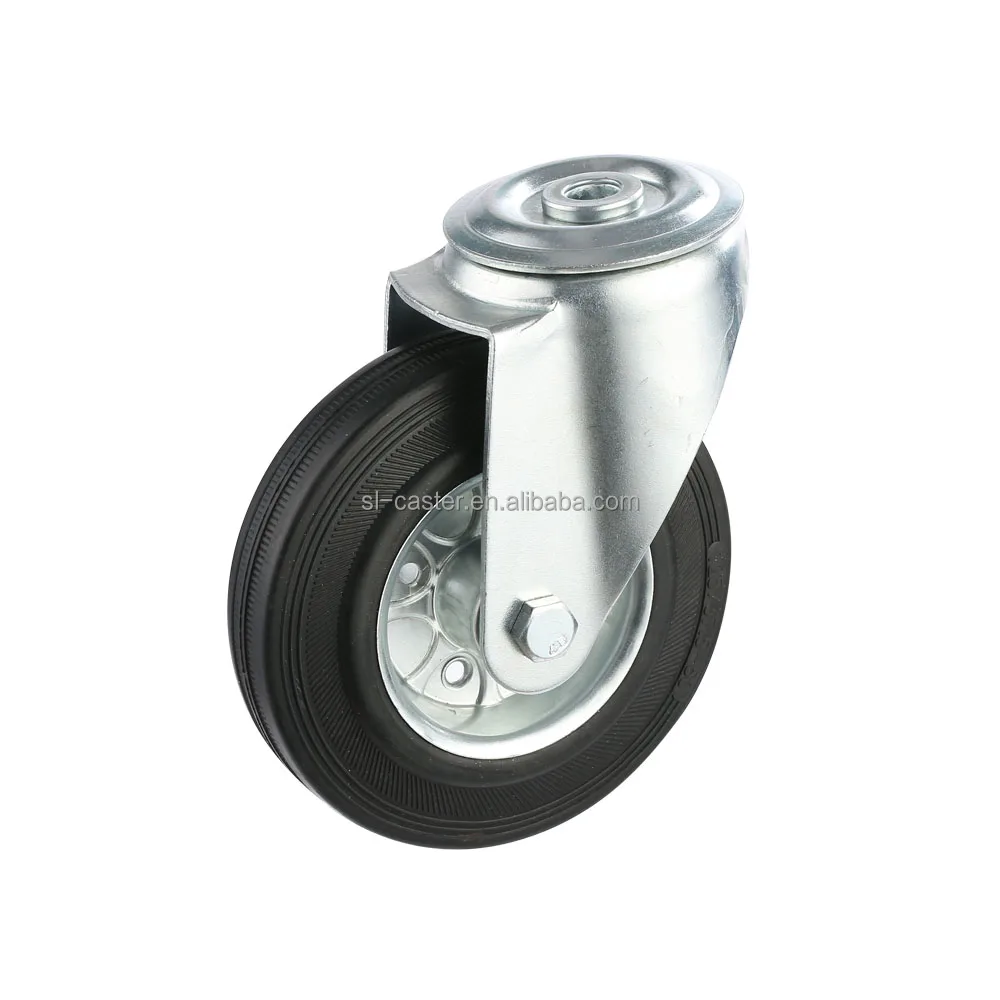

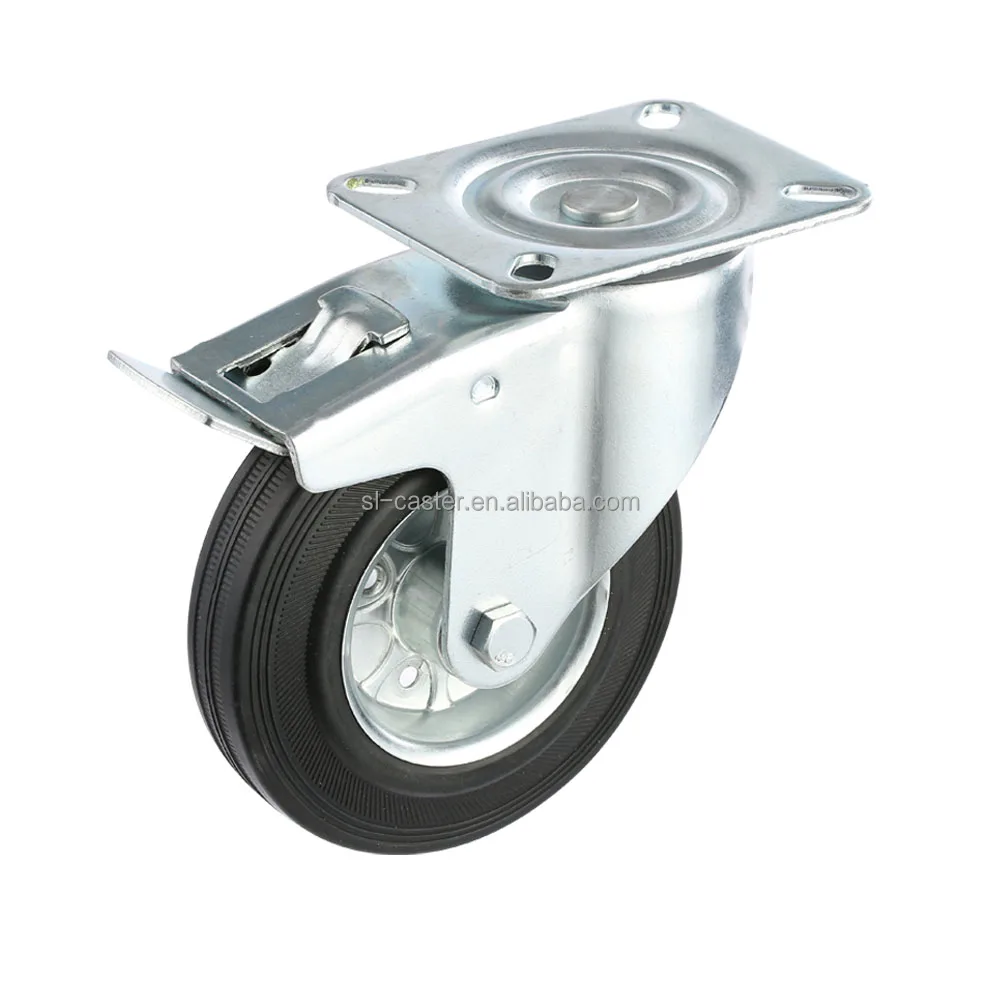

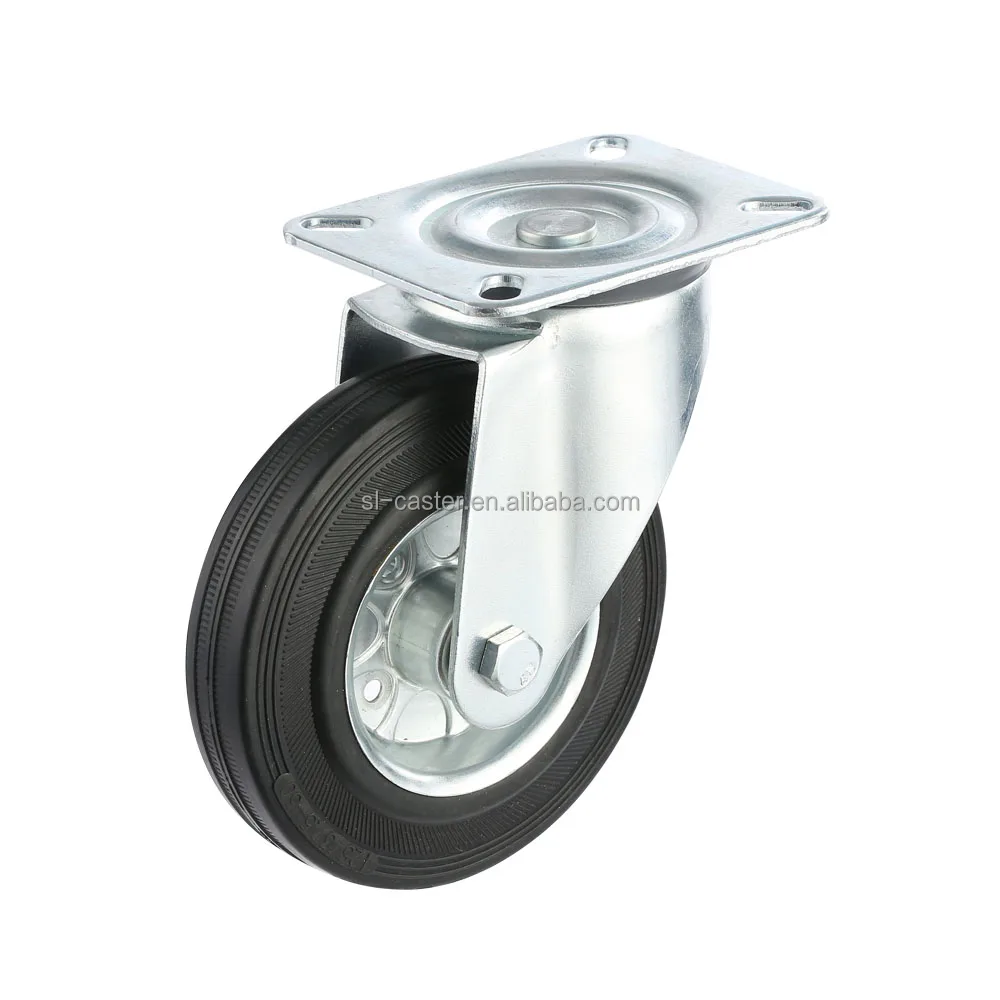

Industrial casters for European type series 3/4/5/6/8 inch black rubber wheel caster 100mm high quality black rubber caster
Brand | Double Rhombus | Series | Industrial Caster |
Model No. | P102-11DA100x30S | Load Capacity(kgs) | 70Kgs |
Wheel diameter(mm) | 100mm | Width of Tread(mm) | 30mm |
Offset(mm) | 37.5mm | Hole size(mm) | 9mm |
Overall height(mm) | 128mm | Size of plate(mm) | 105x82.5x3mm |
Bearing | roller bearing | Bolt hole spacing(mm) | 80x60mm |

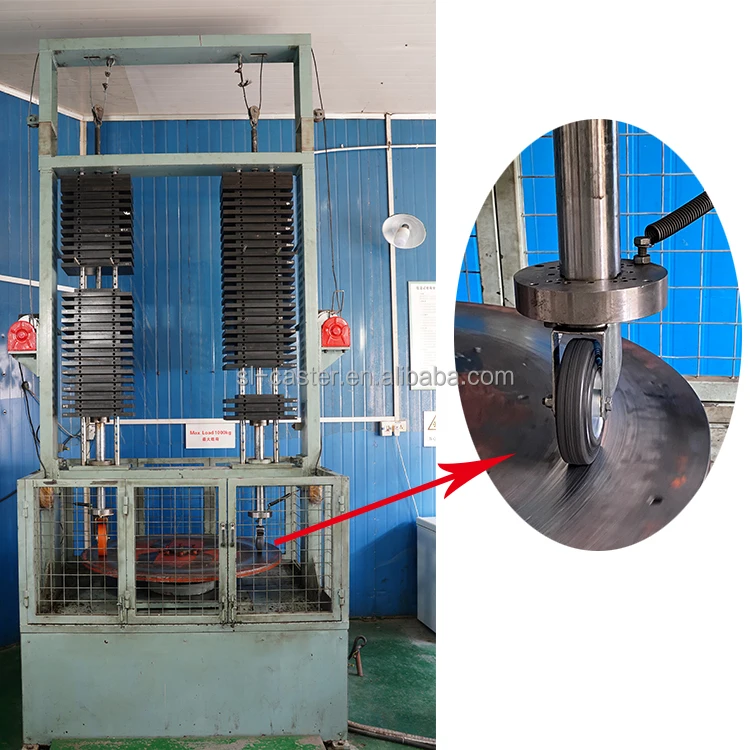

Walking Performance Test
Test standard according to EN12532, the rubber industrial caster sample with 70kg load, 2mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 3.02km, the rubber wheel need to walk total 3.77kms,
after testing, sample no abrasive wear, the wheel is qualified.
after testing, sample no abrasive wear, the wheel is qualified.

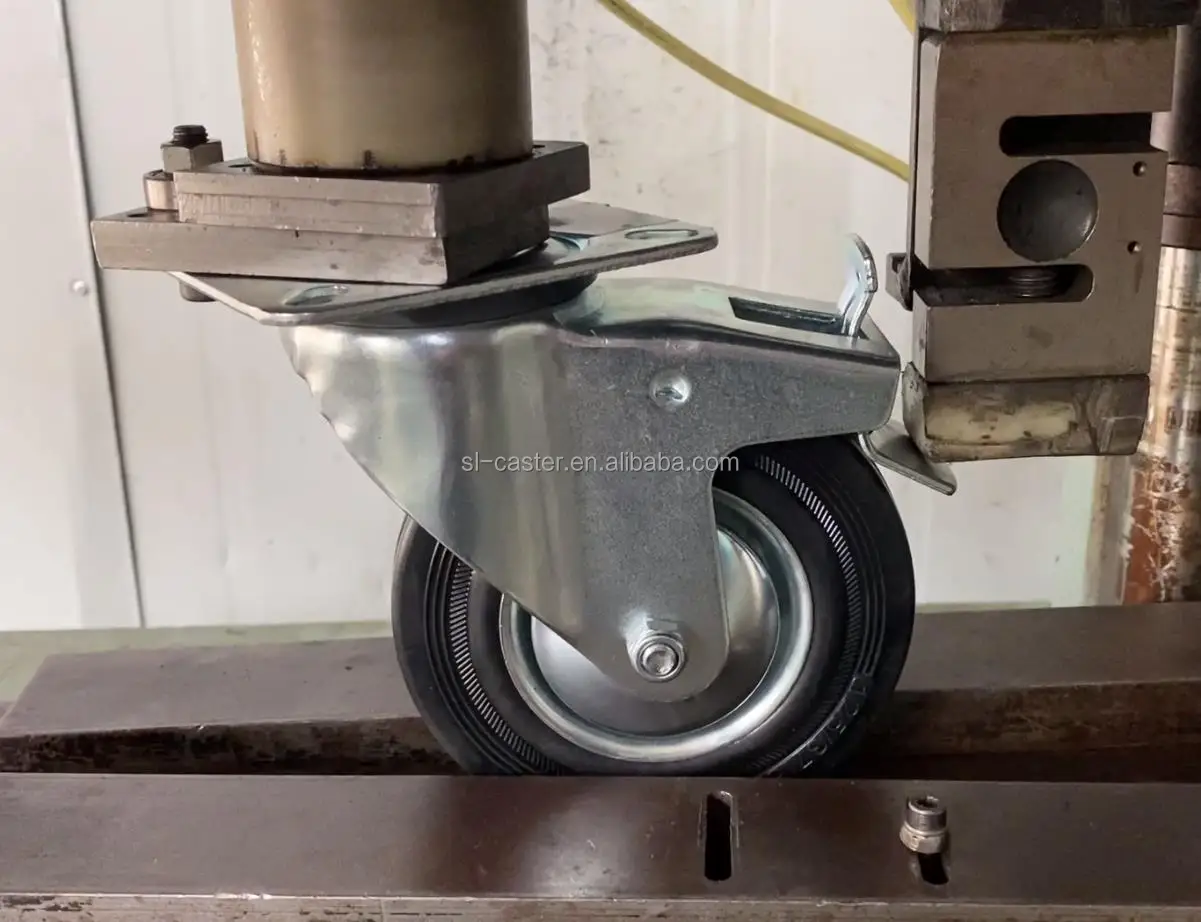

5000 times Brake Fatigue Test
Long service life period
Test standard according to EN12532, the rubber industrial castor Pass 5000 times Fatigue Test for Locking Device.
Up to 5000 brake applications
High cost performance

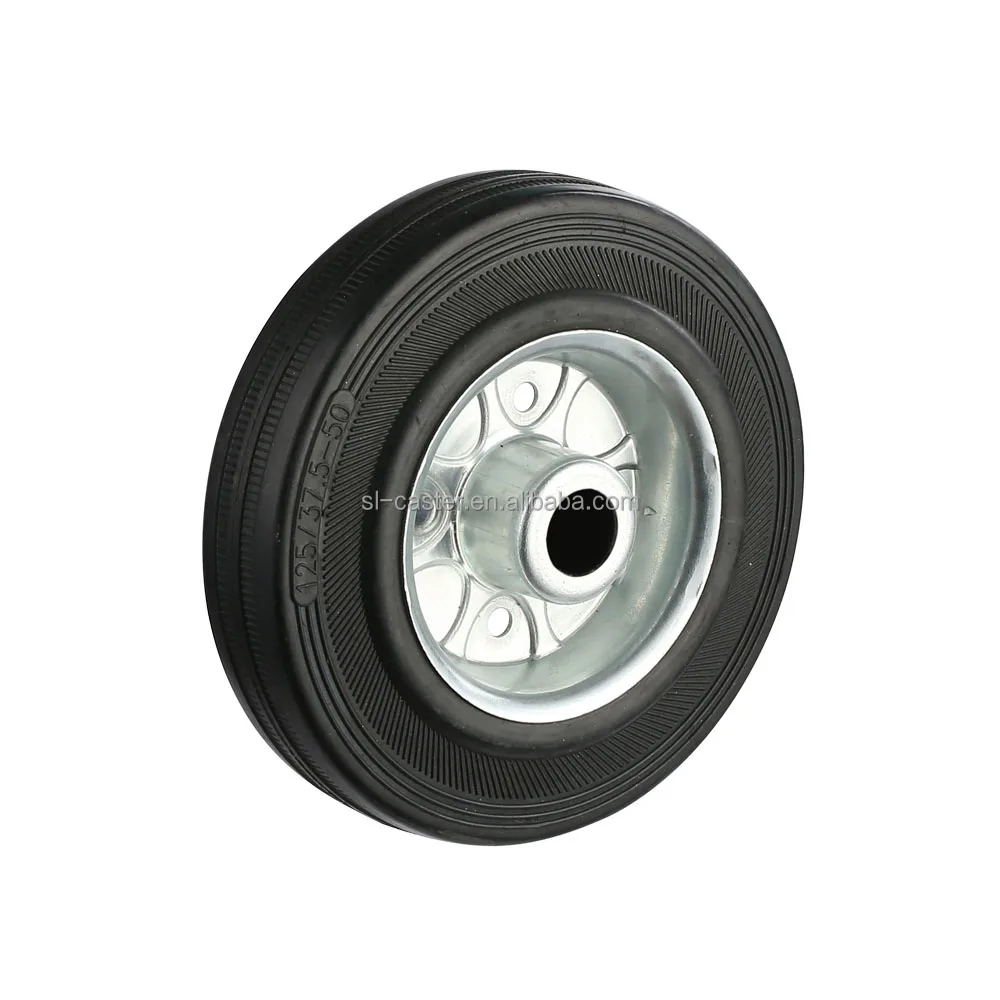

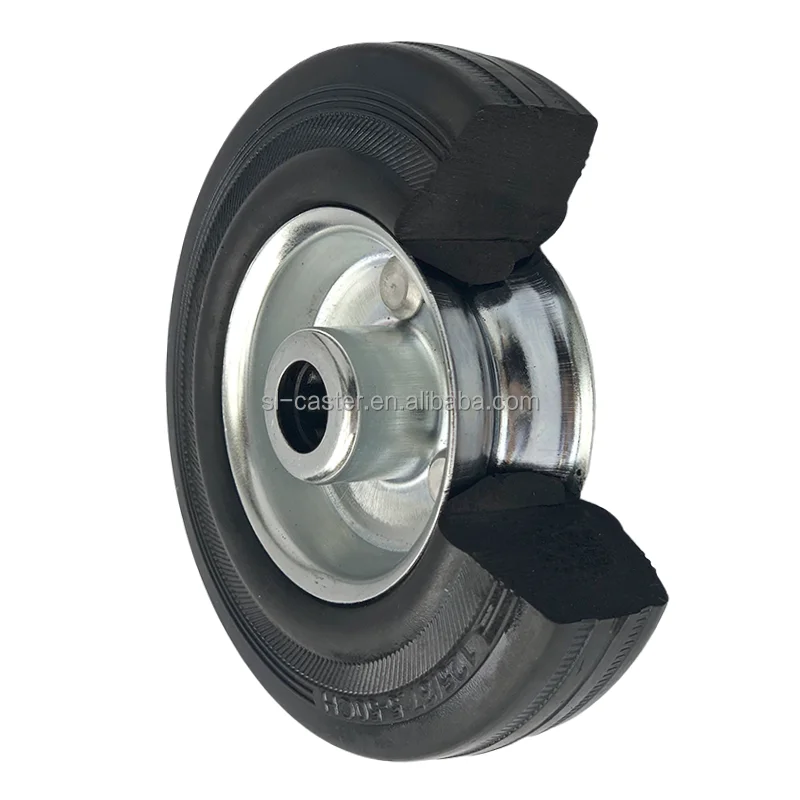

Wear resistant rubber tire with steel core, roller bearing
Running smooth
Running smooth
Thicker rubber layer Environmentally friendly Different standard: PAHS<50mg/kg, Reach，RoHS

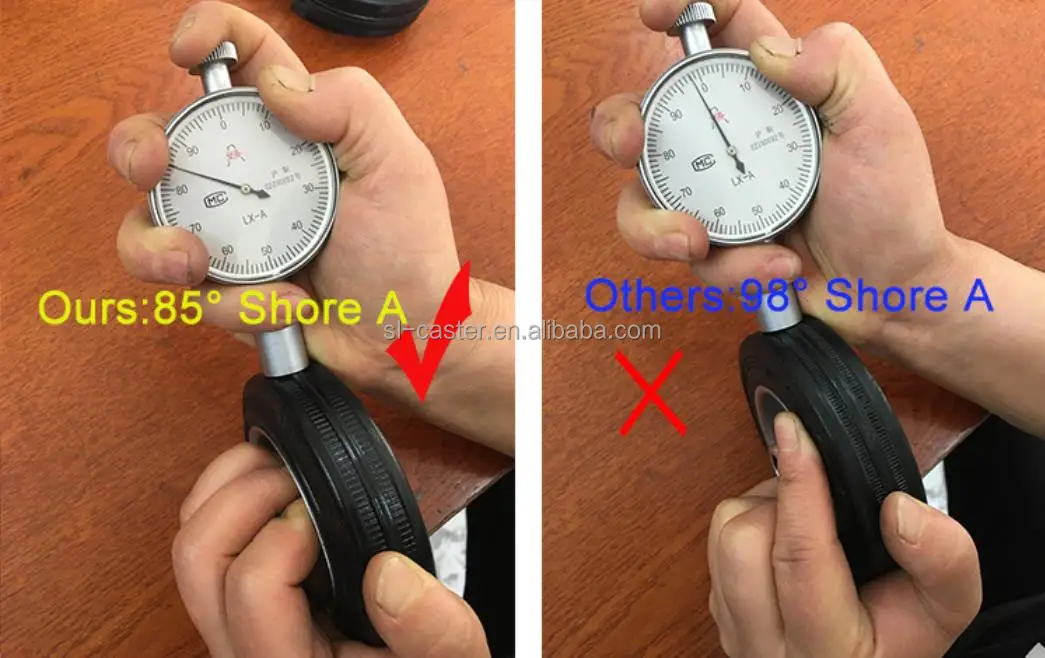

We use more Softer rubber tire
Thickened presed steel housing castor,3-10inch size,60-260kgs load range

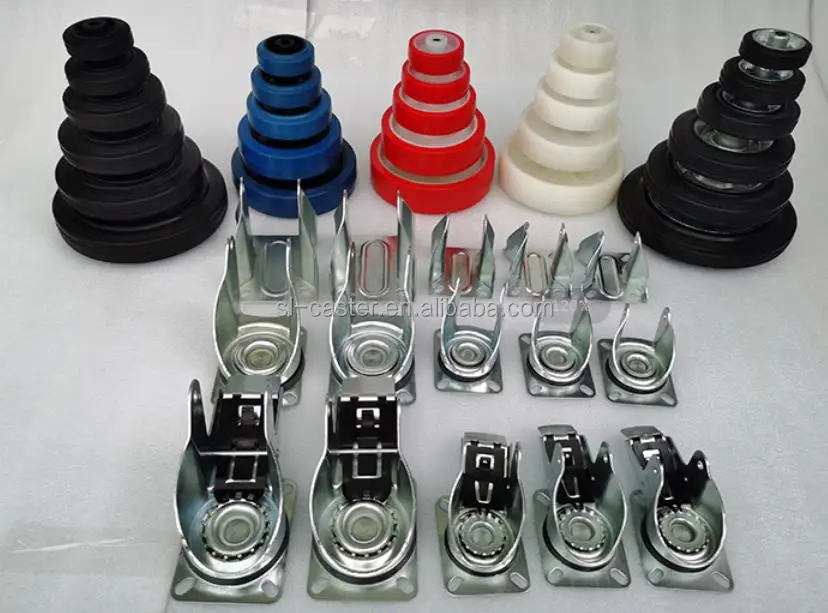

Multiple configurations are optional

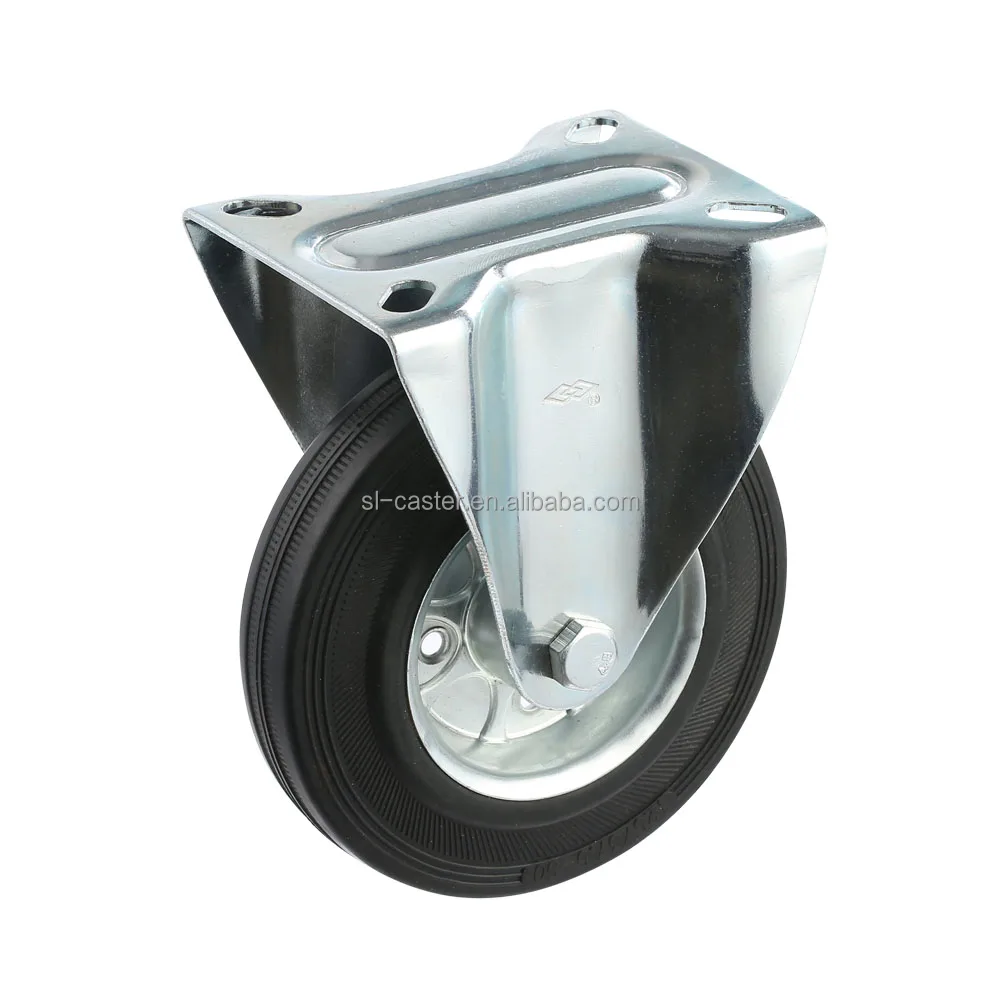

Fork optional: Rigid, swivel, brake, top plate, top bolt hole type, 2/2.5/3/3.5mm fork thickness for different size, wheel material can choose rubber, nylon/PP,Pu,TPR

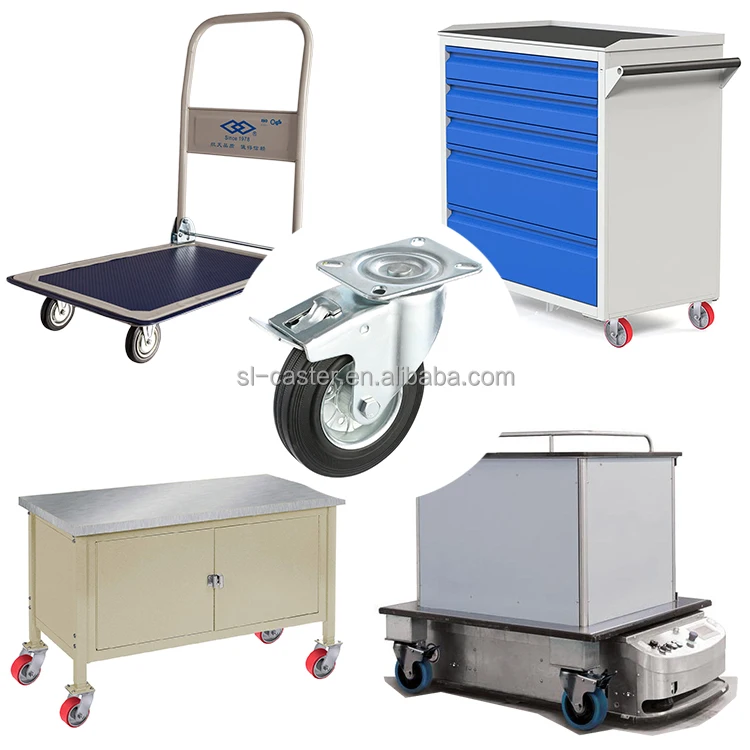

Application-widely use 3-10inch black rubber wheel industrial caster
Hot sales & Recommend Products
Company Profile
Hubei Space Double Rhombus Logistics Technology Co., LTD. is a large-scale professional manufacturer of casters, hand trucks, furniture transporters, airport trolley, airport chair, queue barriers and series of logistics products,The company was founded since 1978, has experienced 40 years.Our company has I S O 9 0 0 1 certification, also has GS, VPA, SGS, REACH, ROHS, PAHS certificate. In 1993, the national Standard Bureau entrusted the corporation to compile the National Standard (GB/T1 4 6 8 7-2 0 11) which is the standard for caster production in China today.
