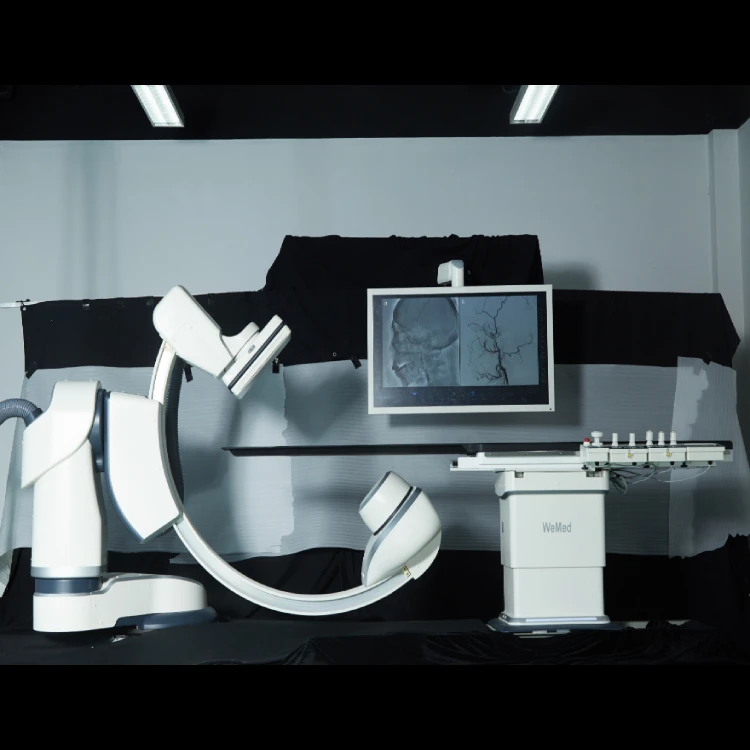

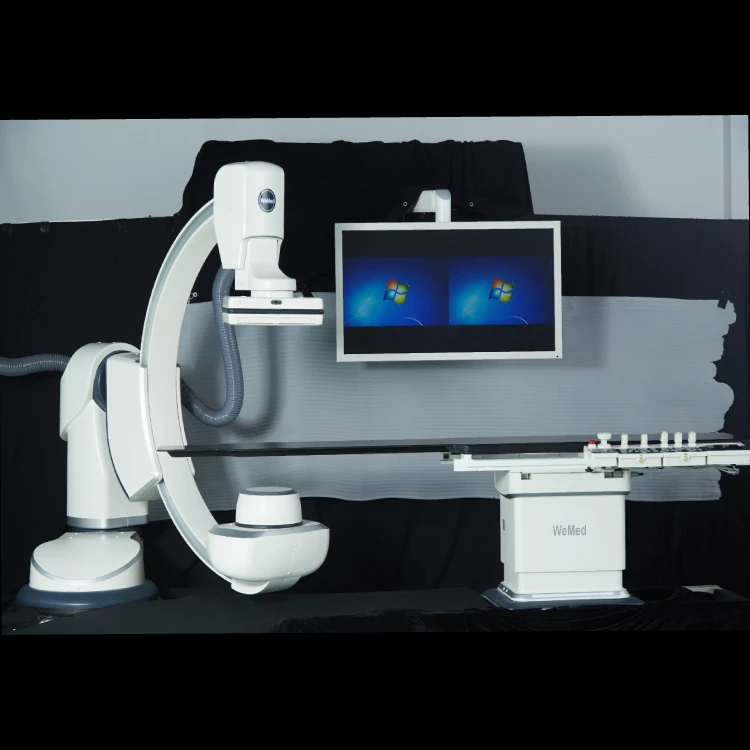

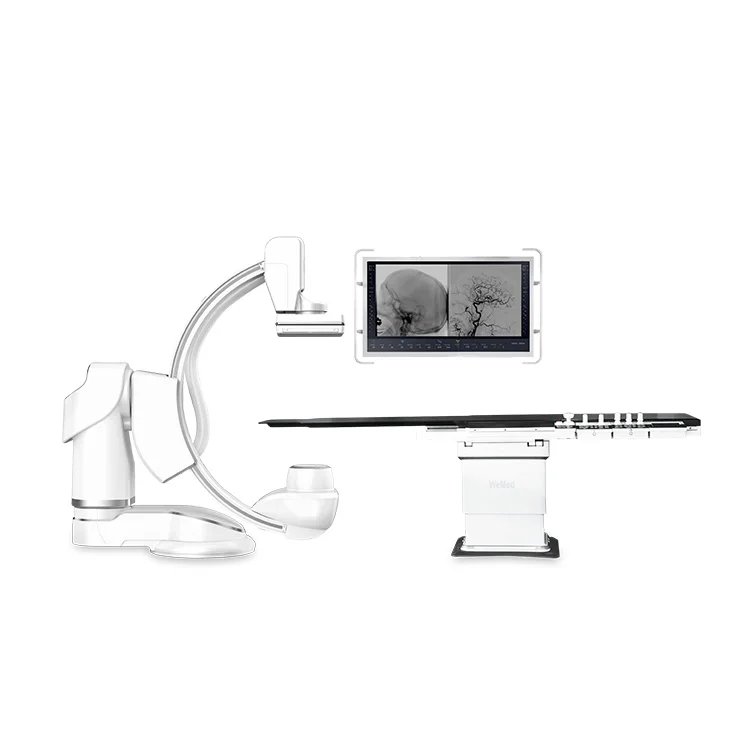

C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube
C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube

C arm x ray machine for neuro cardiac peripherial angiography machine with liquid metal bearing x ray tube

Share on (1600941190140):


Price:

Quantity:


Product Overview

Description





High-voltage generator
Power
100kW
Maximum tube voltage
125KV
X-ray tube unit

Dual focus
Small 0.6mm, large 1.0mm
Advanced technology
Liquid metal bearing technology
Dynamic flat panel detector

Material
A-Si Cesium Iodide
Nominal area
30cm×30cm
Gantry system
The lastest 7-axis gantry design covers small area, projects different surgical spot of patient easily and fully meet the installation requirements of compound intervention operating room
R-axis rotation range
300°
O-axis rotation range
256°
Anti-collision device on tube
Catheterization table

Full caron fiber floating table surface
Length× Width
300cm × 63.5cm
Vertical movement range
140cm
Lateral movement range
36cm
The lowest height
72cm
Image acquisition & Processing system
Acquisition mode: CINE, DSA, rotating DSA/ rotating acquisition, DA acquisition, Fluoroscopy, lower limb stepping DSA acquisition
Post-processing function: Automatic image window width/position adjustment, additional annotations, image selection, zoom, image roaming, road sign image selection, electronic shutter, edge enhancement, image inversion, image rotation and mirroring functions, etc.
Image post-processing system(option)
3D acquisition & reconstruction
CT-like reconstruction
Vascular tissues fluoroscopy function
Image storage and playback
Acquisition sequence automatic playback
DICOM
DICOM storage function;
DICOM print function;






Why Choose Us










1.Who we are?
WeMed Medical is the one who only focus on providing interventional products & surgical treatment solutions in China, which has many years’ experiences in R&D of digital angiography products and industrialization.

2.How we can guaratee quality?
Our products not only meet the IEC60601 series standard, but also pass the ROHS 2.0 test, and we carried out usability test and validity period verification. Each of our products is 100% strictly inspected before delivery.

3. What you can buy from us?
DSA system, surgical C-arm system, and other medical equipments customer needs.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese, Spanish, German, French, Italian
