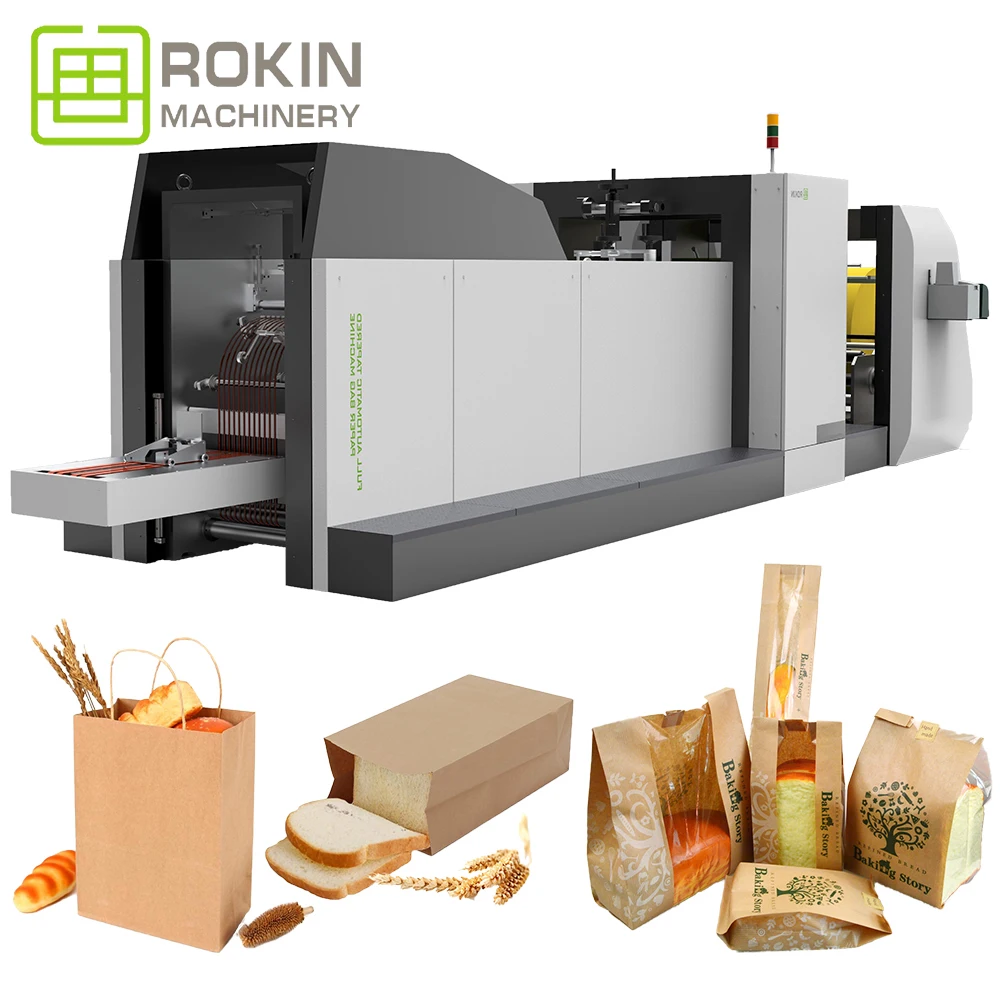

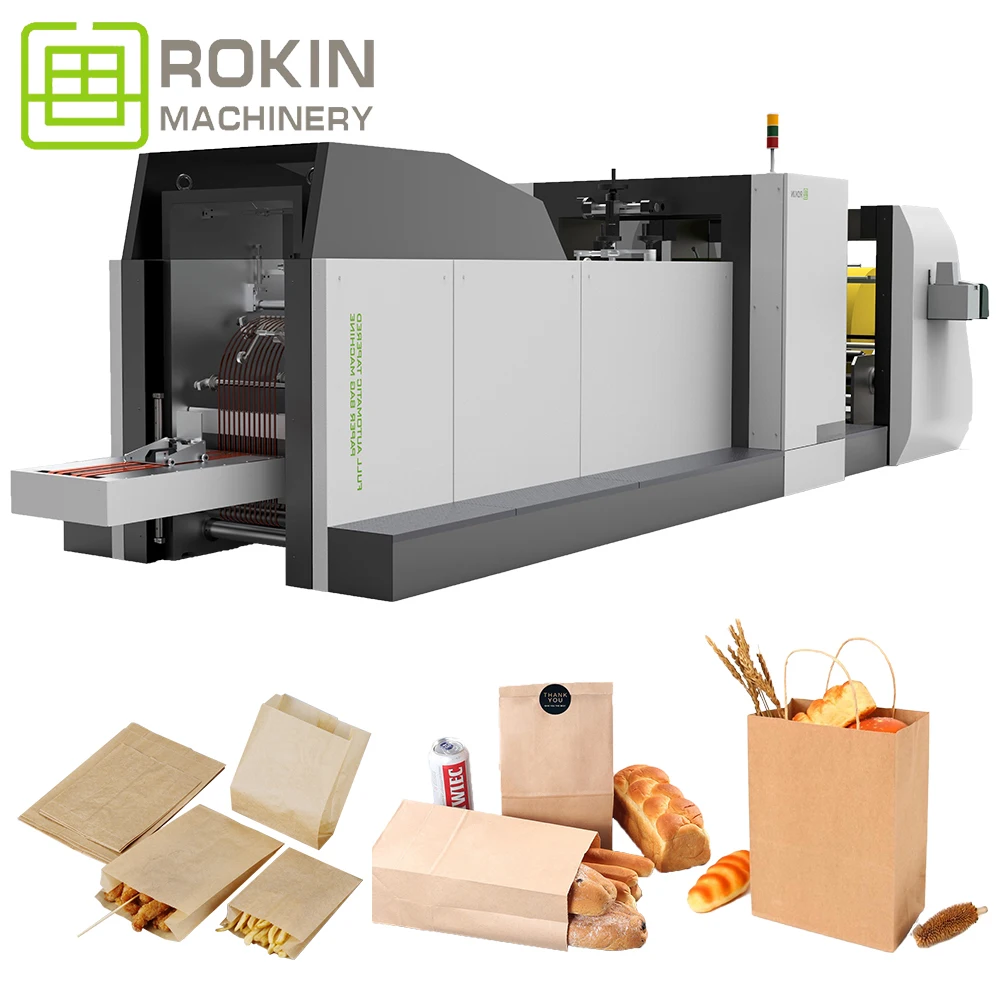

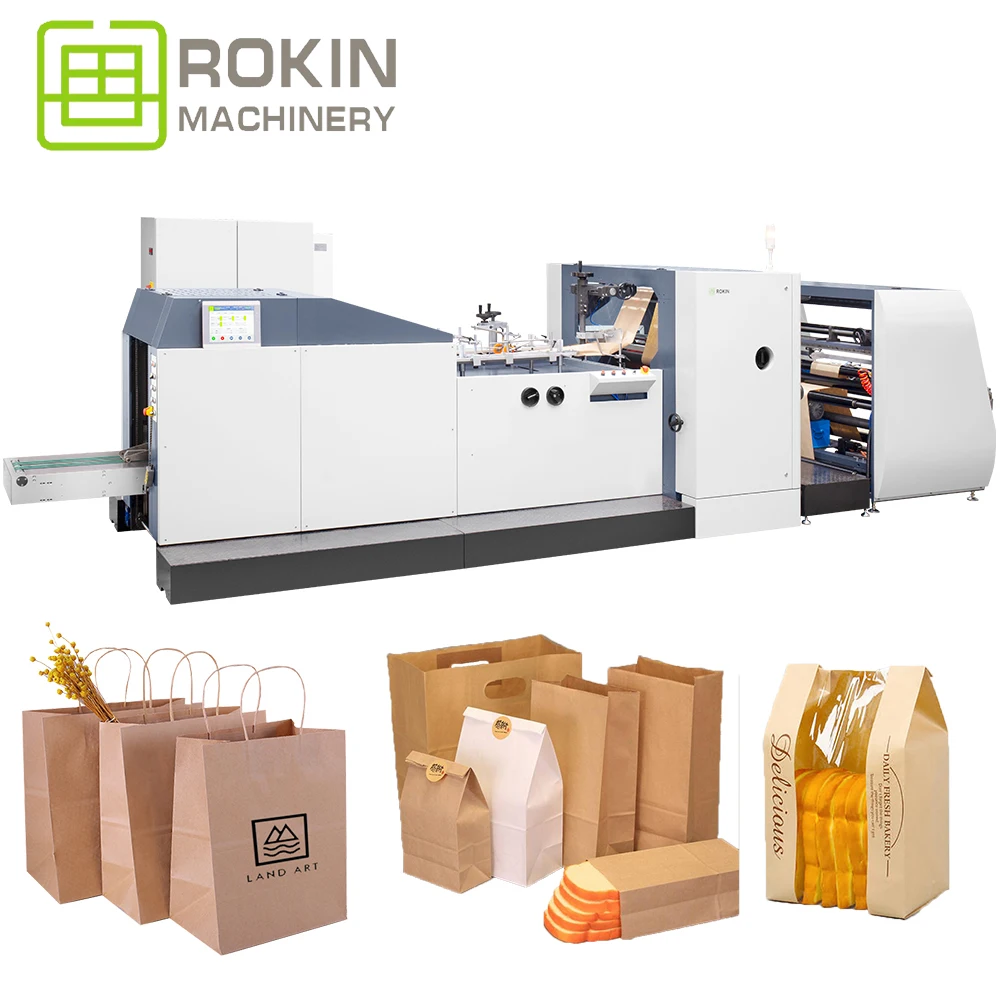

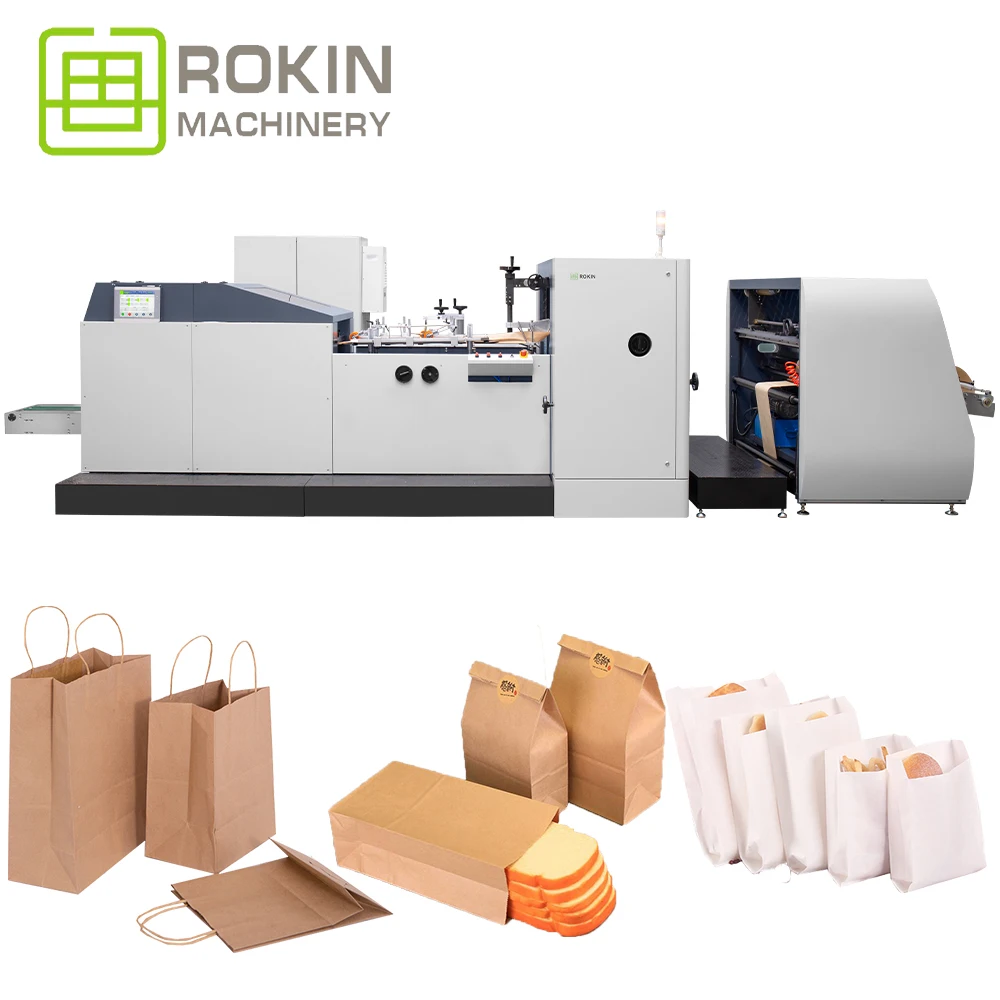

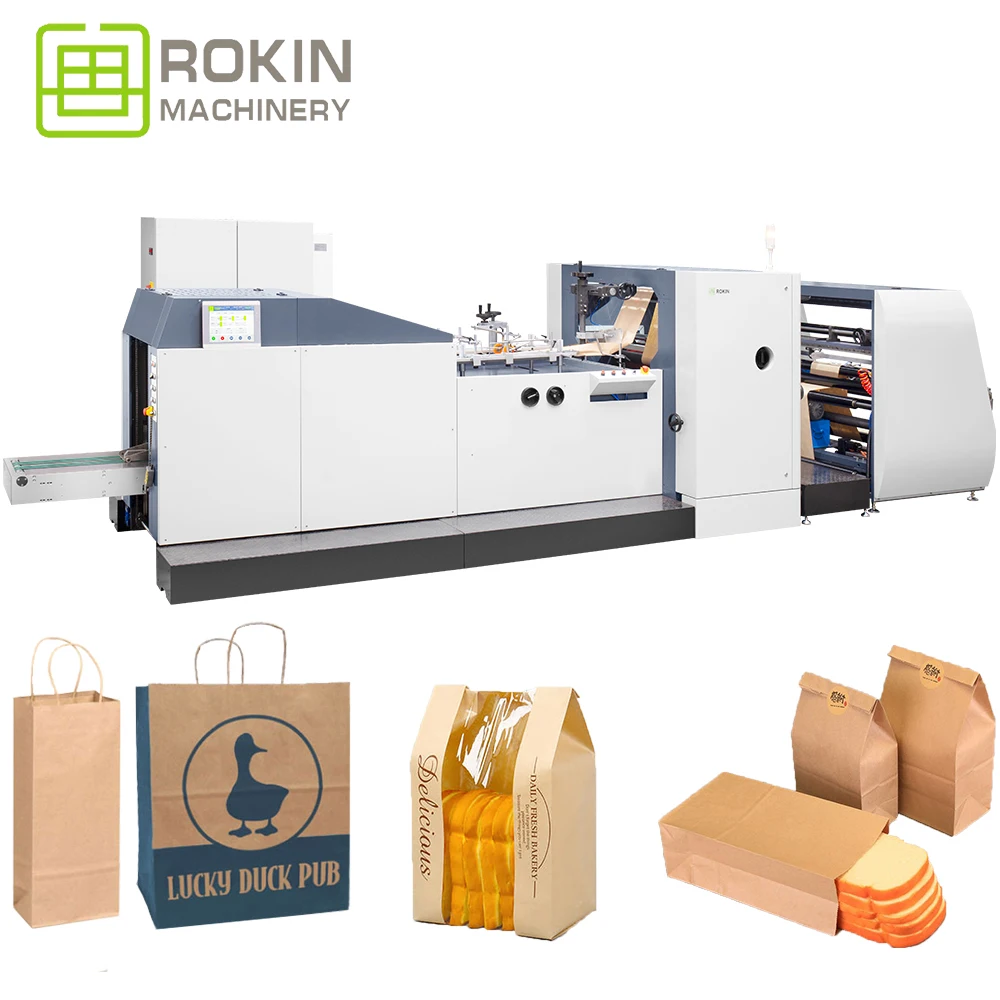

ROKIN BRAND recycling well organized shopping kraft bread paper bag machine with handle
- Category: >>>
- Supplier: Wenzhou Rokin Machinery Co. Ltd.
Share on (1600941198650):
Product Overview
Description
PRODUCTS DESCRIPTION
Paper bag machine series is applied to produce many types of paper bags without handles, such as food paper bag, shopping bags and so on.
SAMPLES
Model | RKJD-250 | RKJD-350 |
Paper bag cutting length | 110-450mm | 155-715mm |
Paper bag length | 105-445mm | 150-710mm |
Paper bag width | 70-250mm | 70-350mm |
Side insert width | 20-120mm | 20-120mm |
Bag mouth height | 15/20mm | 15/20mm |
Paper thickness | 35-80g/m2 | 35-80g/m2 |
Max. Paper bag speed | 50-420pcs/min | 50-700pcs/min |
Paper roll width | 100-760mm | 100-980mm |
Paper roll diameter | Dia1000mm | Dia1000mm |
Inner diameter of the paper roll | Dia 76mm | Dia 76mm |
Power | 10KW | 20KW |
Weight | 4500 KGS | 6500 KGS |
Dimension | L6800*W1600*H1600mm | L7500*W2300*H1800mm |
Product Features:
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor.

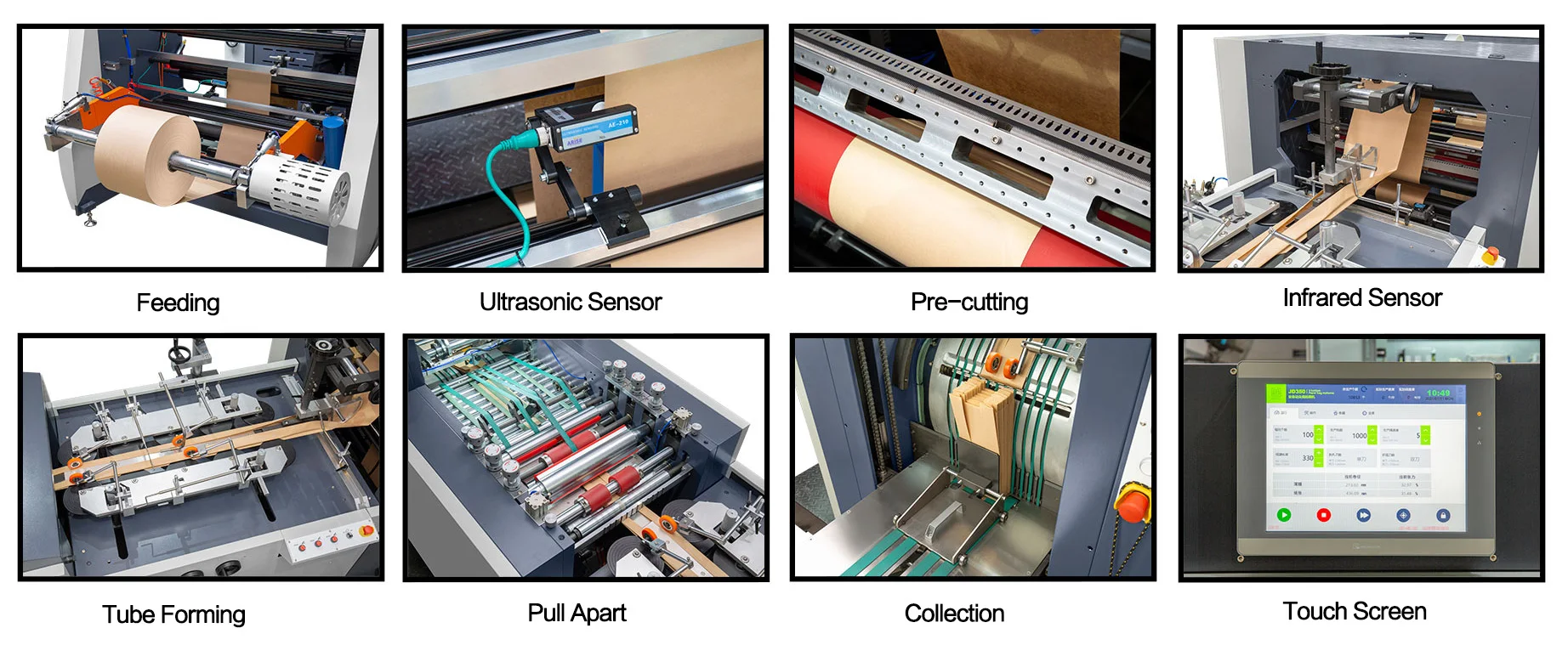

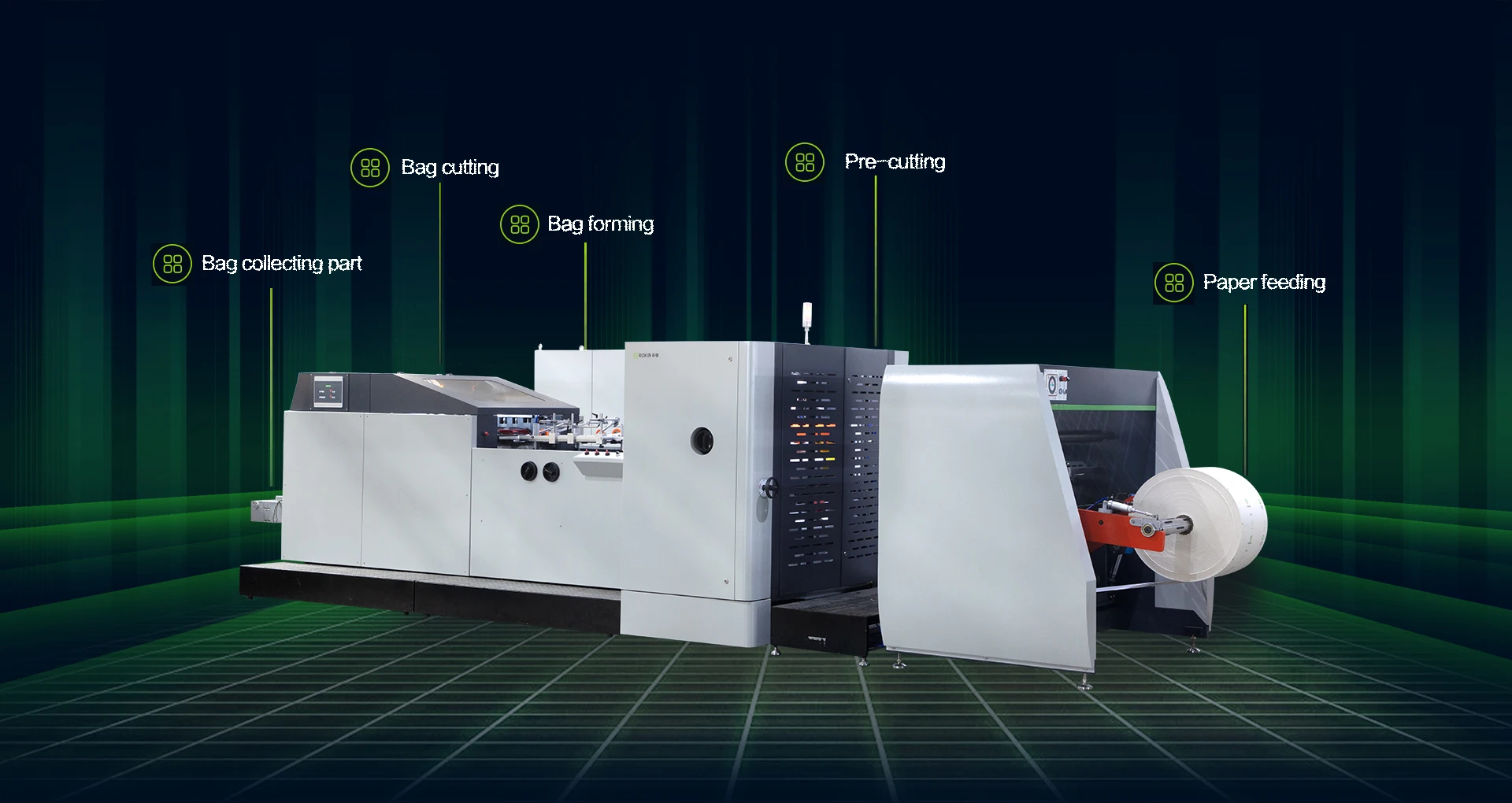

PRODUCT DETIALS

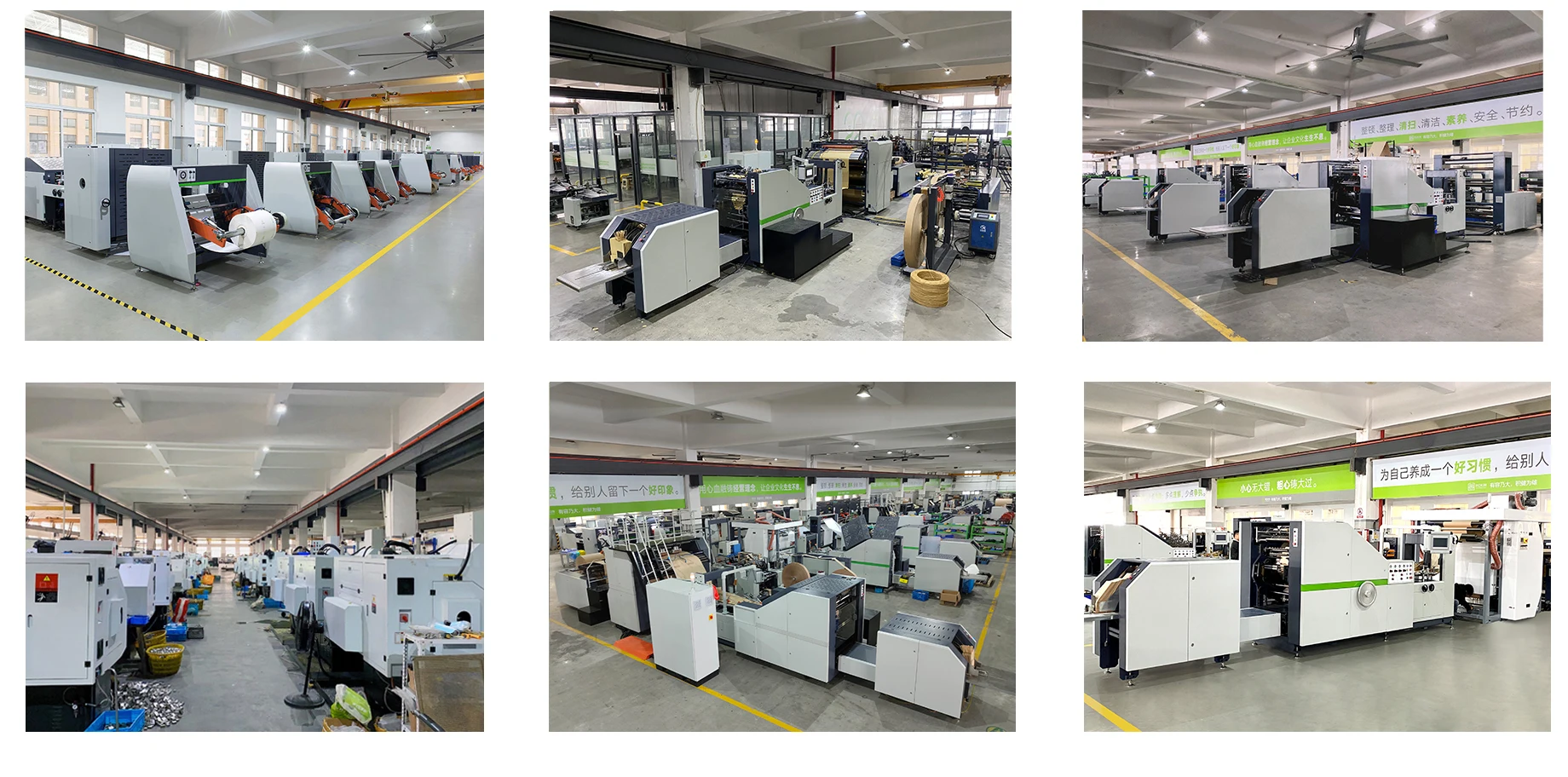

COMPANY PROFILE
Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, square bottom paper bag machine, v bottom paper bag machine,case making machine, cardbord slitting machine and related auxiliary equipment, etc.
