R134a 1000W side hang Air Conditioner for electric cabinet ,air cooler for telecom cabinet and CNC machine
- Category: Air Conditioners >>>
- Supplier: Shanghai,Saigu,Refrigeration,Technology,Co.,Ltd.
Share on:
Product Overview
Description
R134a 1000W side hang Air Conditioner for electric cabinet ,air cooler for telecom cabinet and CNC machine
Product Description
This series product can be used in high ambient temperature environment, even reach in 55℃。With the advanced sign idea in this unit, there are double filter in the air inlet of fan,which can improve the resistance to dust and oil pollution ability. So,It is well suited to steel mills and the textile industry.

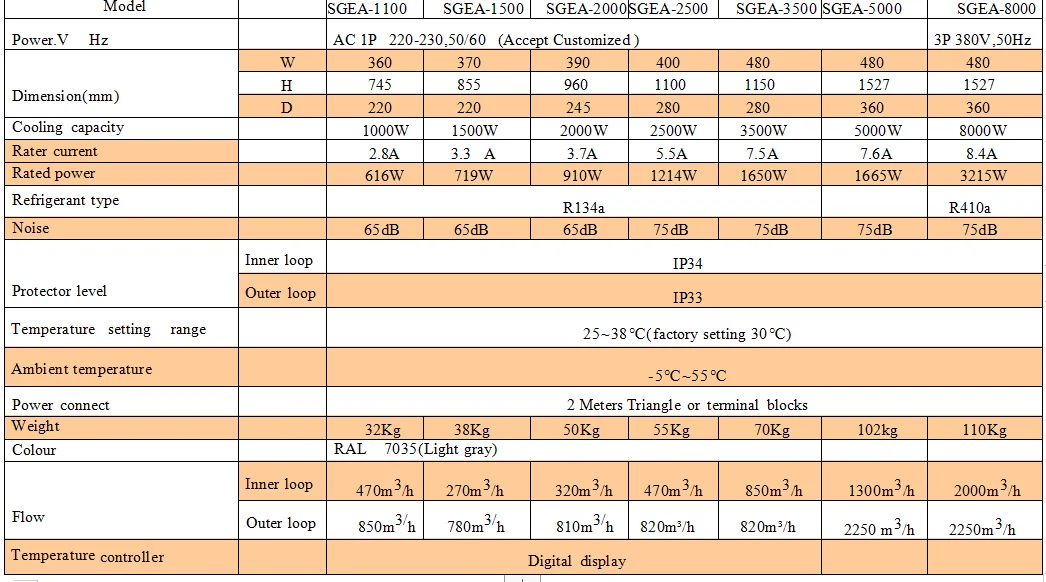

Specification
Model | SGEA-1000 | |||
Power supply V Hz | 1P 220,50 | |||

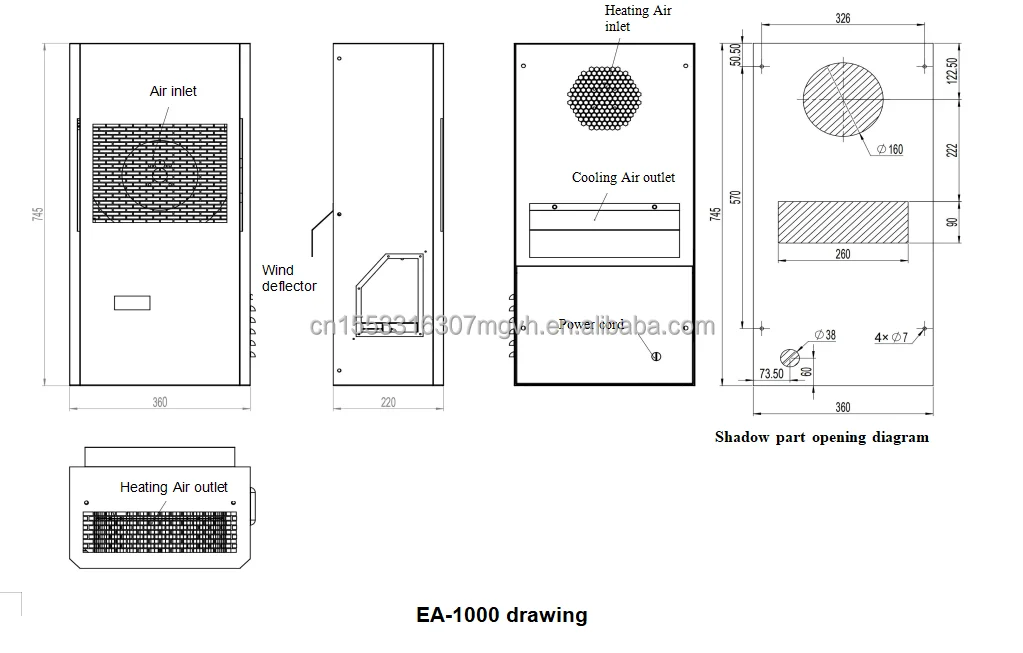

Dimension (mm) | W | 360 | ||
H | 745 | |||
D | 200 | |||
Cooling capacity | 1000W | |||
Running Current | 2.8A | |||
Power | 616W | |||
Refrigerant | R134a | |||
Noise | 65dB | |||
Protection grade | Inner loop | IP34 | ||
Outer loop | IP33 | |||
Allow temperature setting range in cabinet | 25℃～38℃(factory setting30℃) | |||
Ambient temperature range is allowed | -5℃～55℃ | |||
Power connection mode | Triangular plug | |||
Weight | 37 Kg | |||
Color | RAL 7035(light Grey） | |||
Circulating air volume | Inner loop | 470 m³/h | ||
Outer loop | 850 m³/h | |||
Temperature control mode | Digital display temperature controller | |||
Test conditions: dry bulb temperature inside electric cabinet :35℃, wet bulb temperature :26℃, dry bulb temperature outside electric cabinet :35℃ | ||||

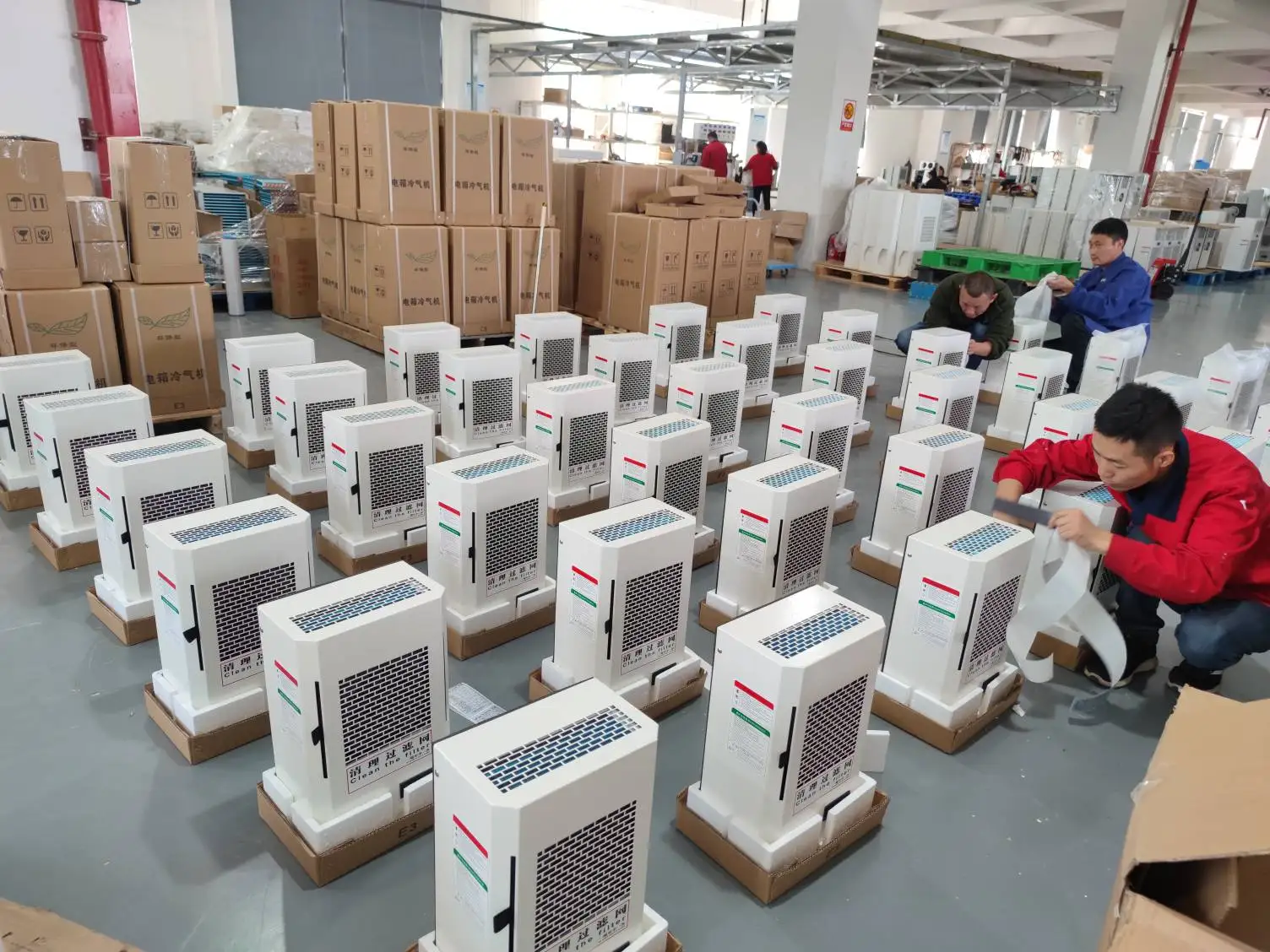

Production Procedure
Paste Thermal insulation cotton
Assembly
Welding
Make the refrigeration system vacummn
Automatic add refrigerant
Connect the wire
Testing
Packing
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipping Method
The products will be shipped via EMS, FedEx, DHL, TNT，Special-line, Container, etc.
Company Profile
Shanghai Saigu Refrigeration Technology Co., Ltd is mainly engaged in industrial cooling equipment research , development and sales.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
Our Advantages
FAQ
Q:How to Determine Correct Model of Cabinet cooler？
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
