Best Price Medical Diagnostic Equipment 12.1 Inch LCD Display Full Digital B/W ultrasound Machine
- Category: >>>
- Supplier: Nanjing Healicom Medical Equipment Co. Ltd.
Share on (1600941629994):
Product Overview
Description
Products Description

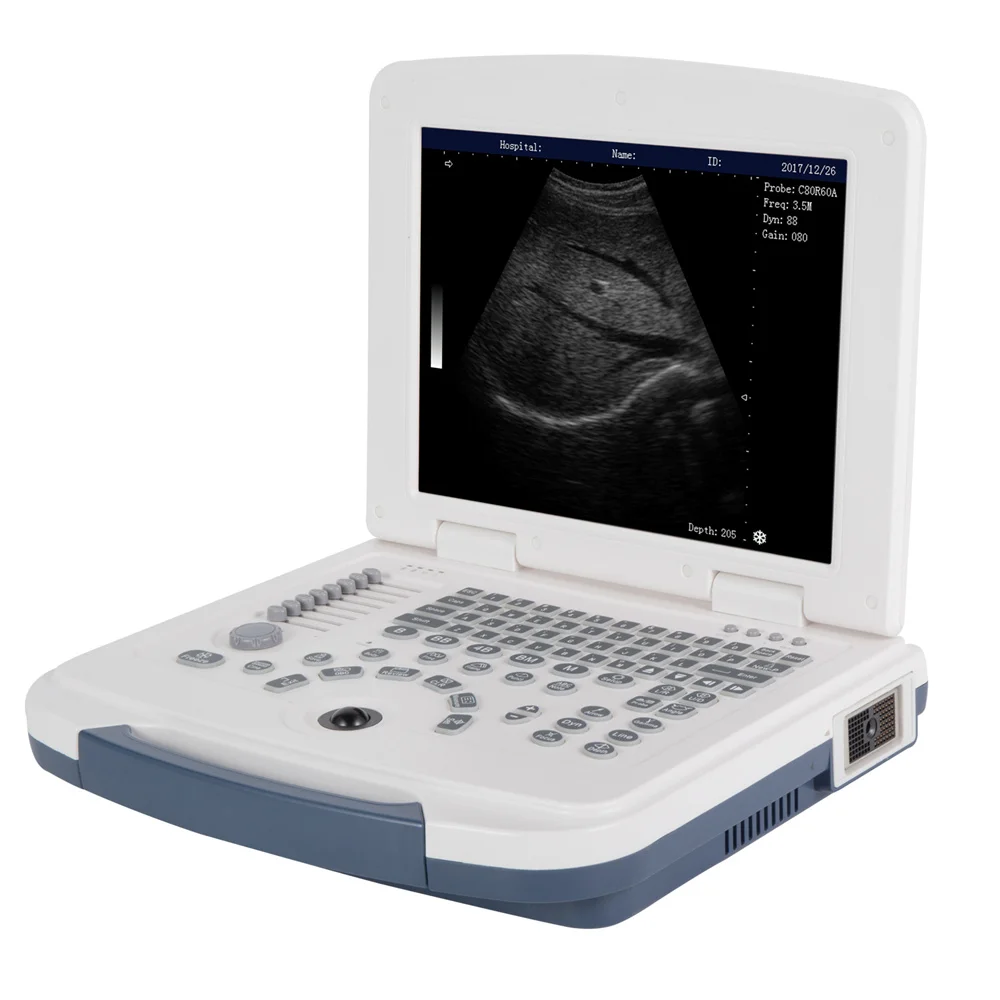

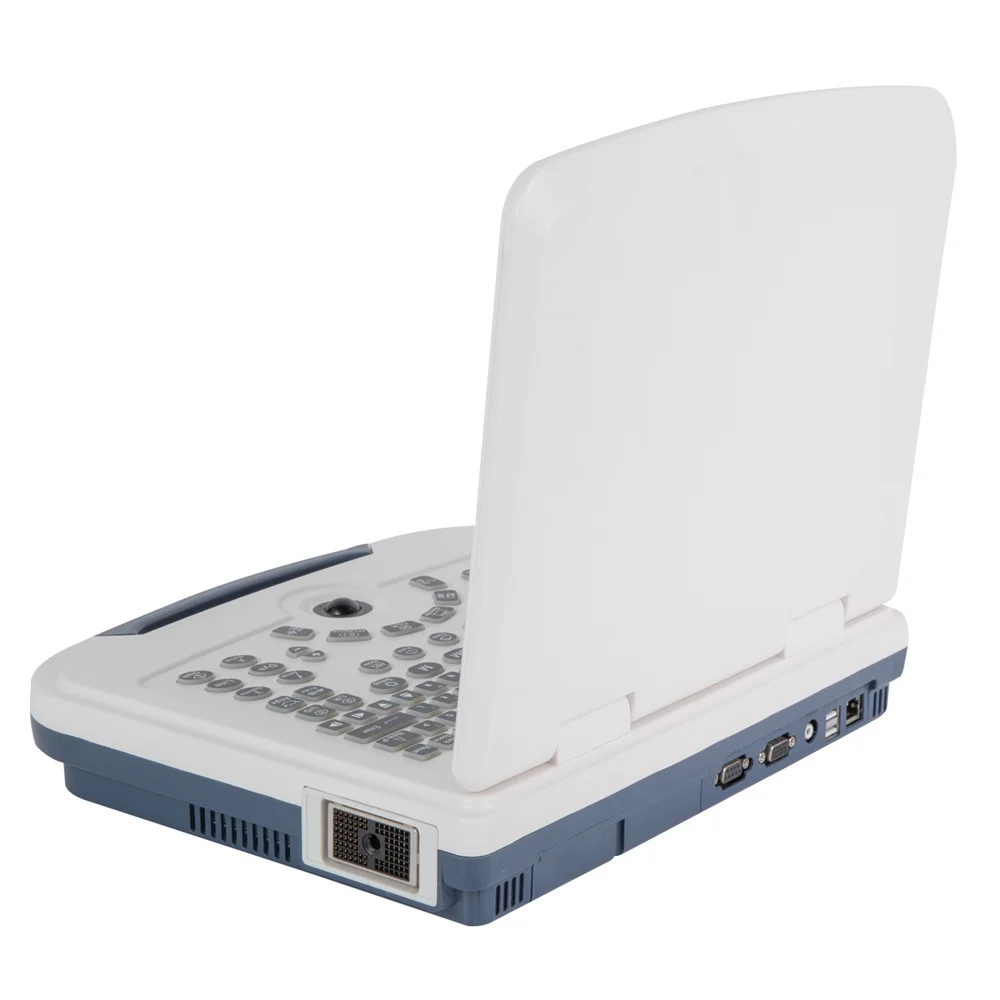

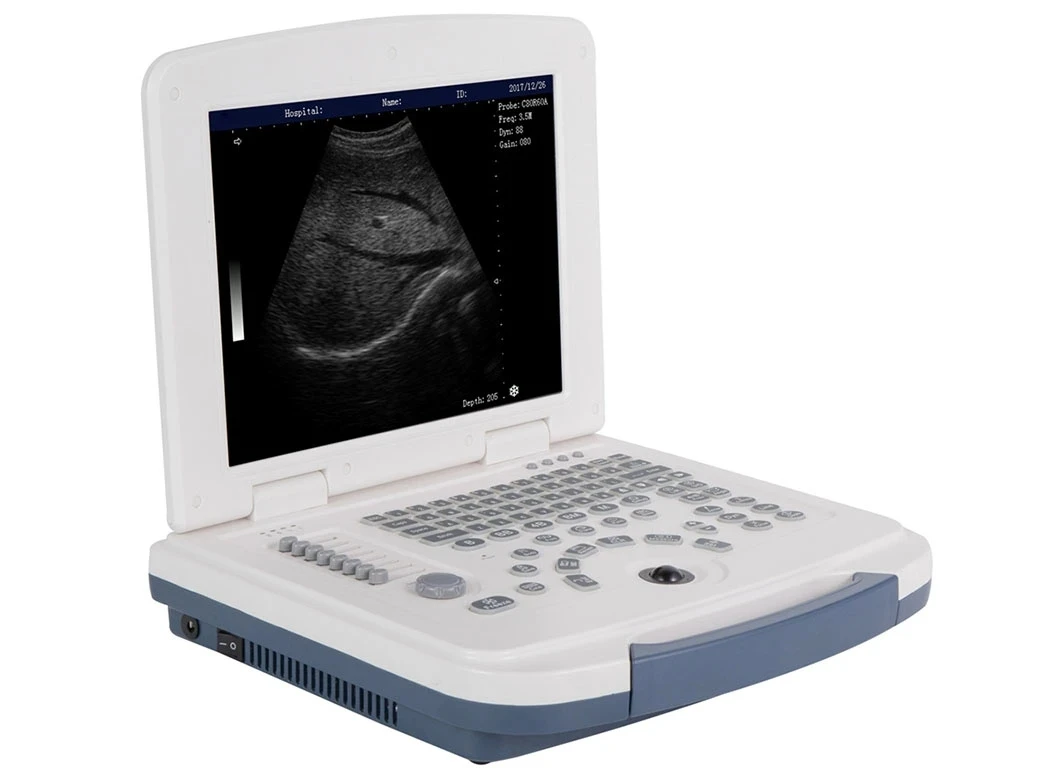

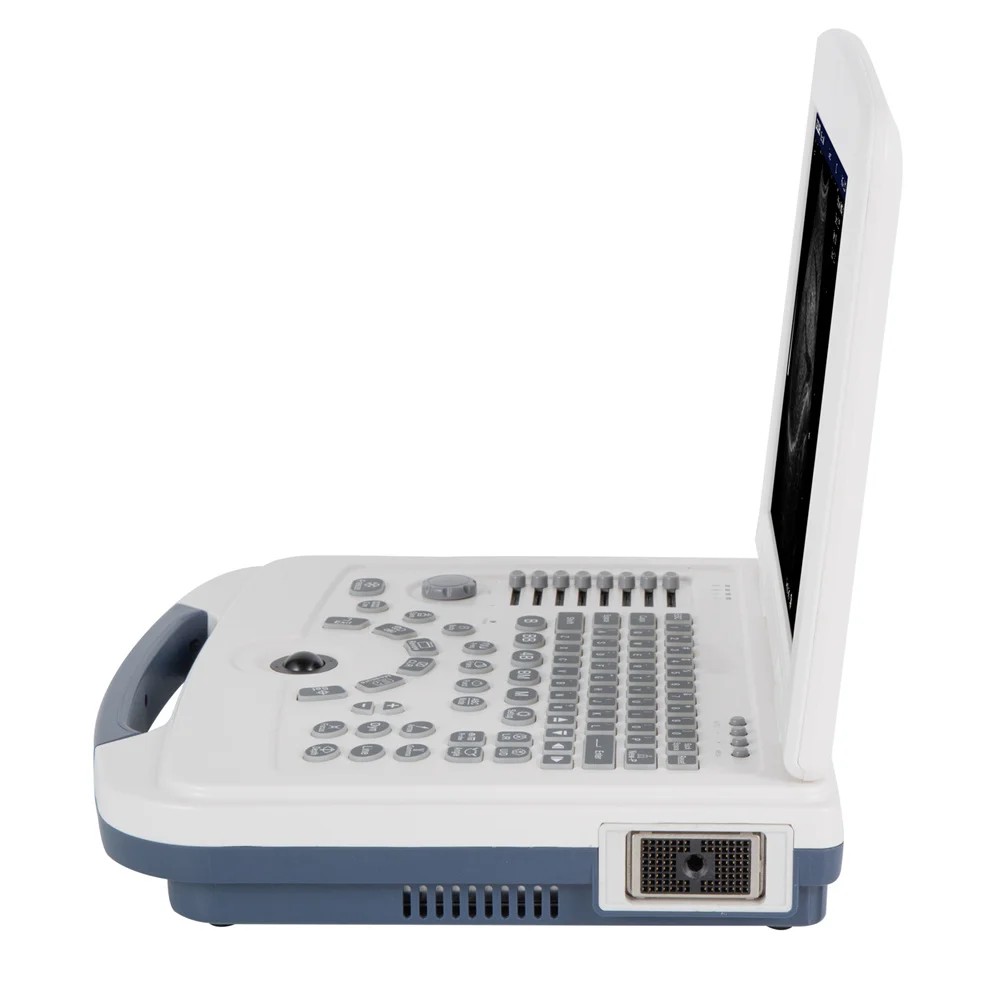

HBW-4 Medical Diagnostic Equipment 12.1 Inch LCD Display Full Digital B/W ultrasound Machine
Features
1. 12.1 inch LCD display
2. 2D image
3. Depth range:126-307mm
4. Built-in rechargeable battery (4-8H)

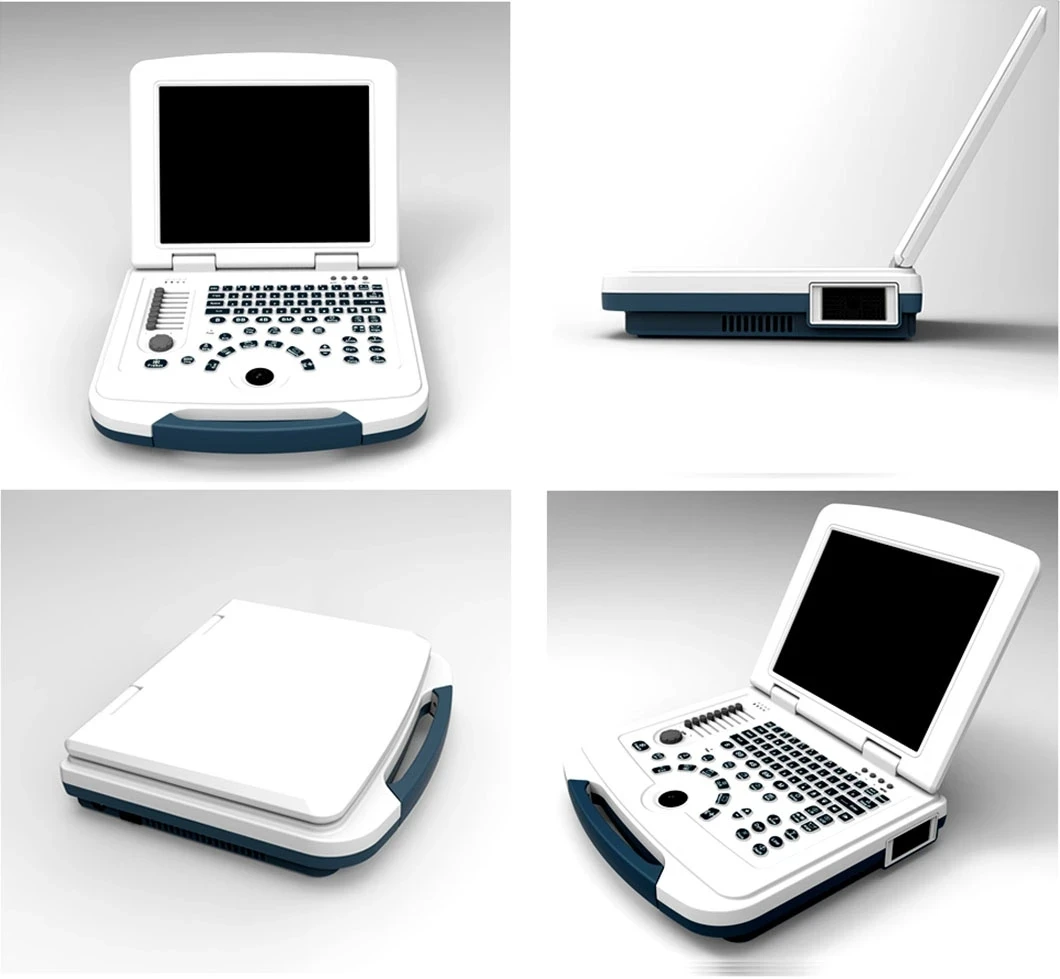

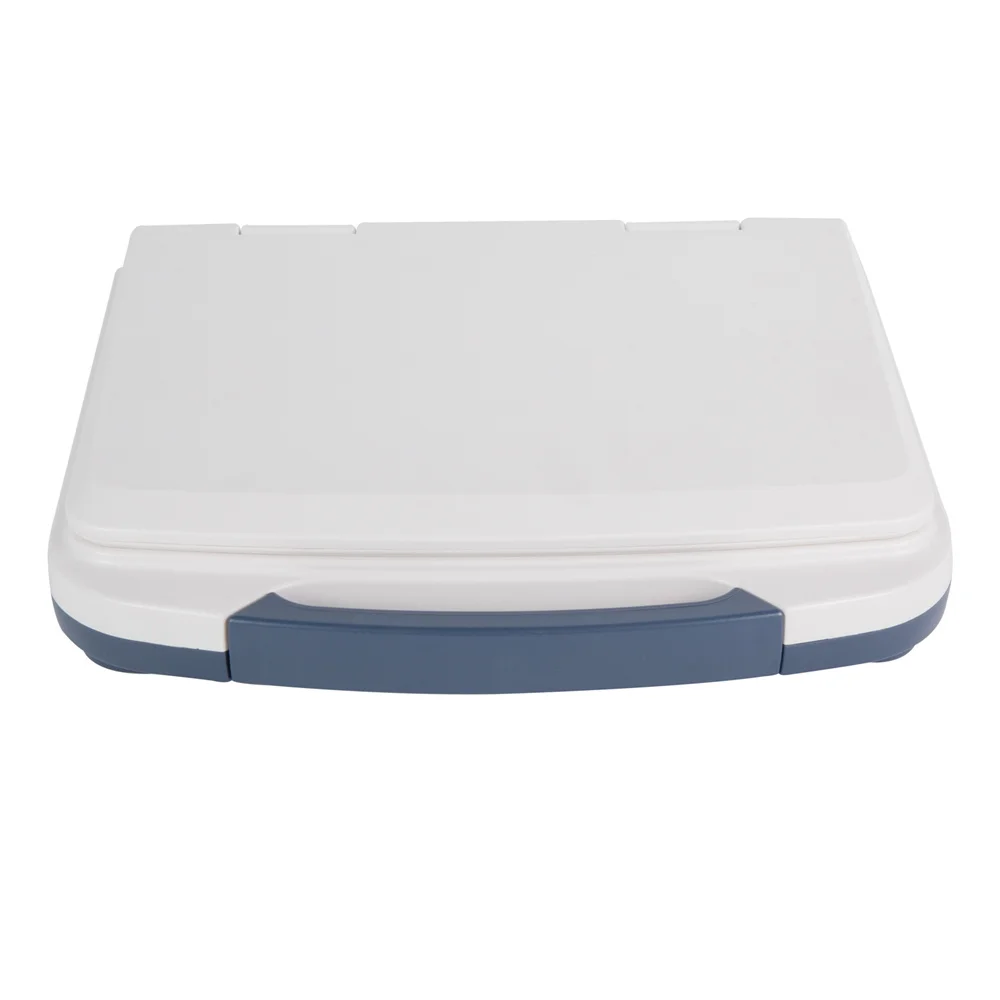

5. Thin and light notebook design
6. Display mode: B, B + B, 4B, B + M, M
7. Full-digital beam imaging technology
First-class digital imaging technology, more clearer image
Application to:
Abdomen, obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on.
Widely used in expert visits, community service visits, 120 emergency center, Large-scale medical examination car, Severe patient, bedside examination of VIP wards etc.
Technical Specifications | ||
Scanning mode | convex / linear | |
Monitor | 12.1 inch high resolution color LED display | |
Display mode | B, B+B, B+M, M, 4B | |
Total Gain | 0-99 | |
Detecting depth | 0-240mm | |
Dynamic range | 0-120dB | |
Filtering | 1-7 | |
Blind Zone | ≤3mm | |
Resolution | lateral≤2mm, axial≤1mm | |
Geometry precision | lateral≤5%, axial≤5% | |
Focus | 4 focuses combination randomly | |
Image storage | 127 | |
Magnification | ×0.8, ×1.0, ×1.20, ×1.50, ×1.80, ×2.0 (6 kinds) | |
Cine loop | 256 frames, realized in automatic successive playback and manual single step forward, backward playback | |
Image processing | up/ down, left / right, black / white conversion, gamma correction, frame correlation, pseudo color processor( need external color display) | |
Measurement | distance, perimeter, area, volume, HR, BPD, CRL, GS, FL, HC, AC, etc. | |

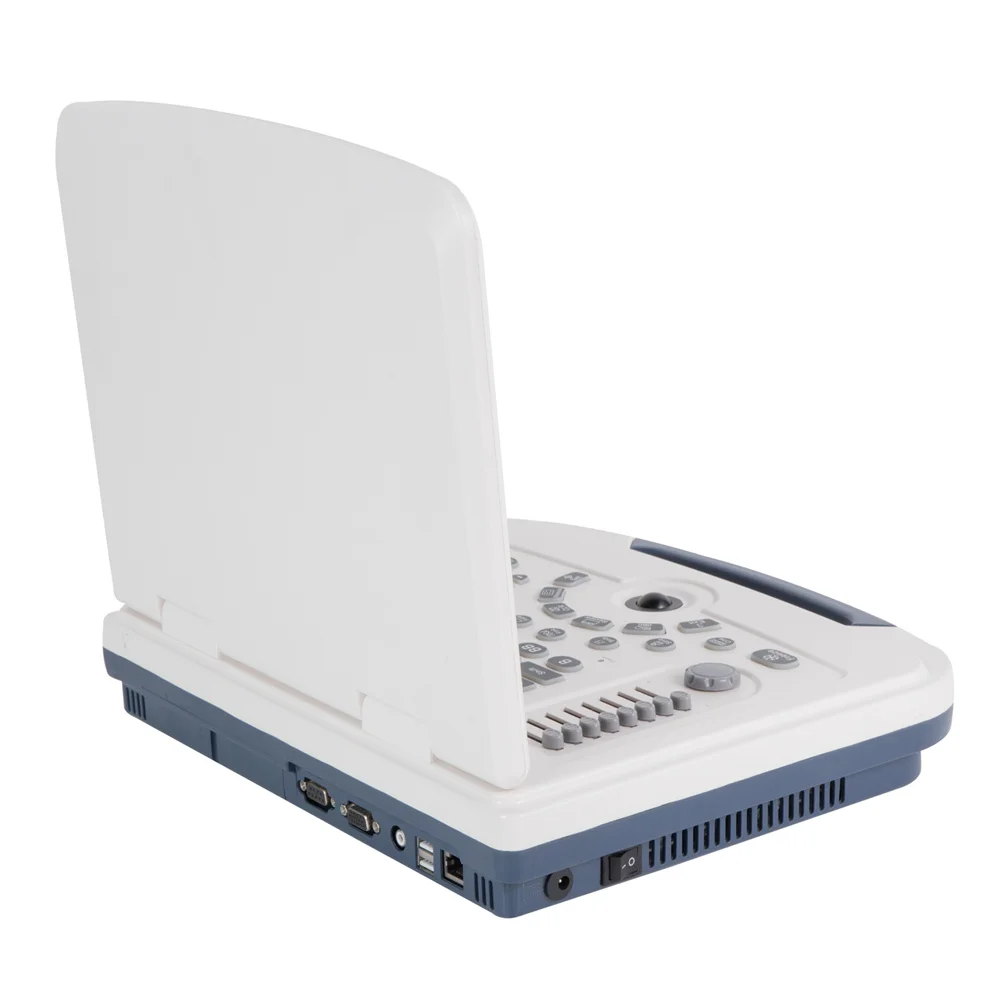

Output interface | PAL-D, SVGA (SVGA color monitor), USB port | |

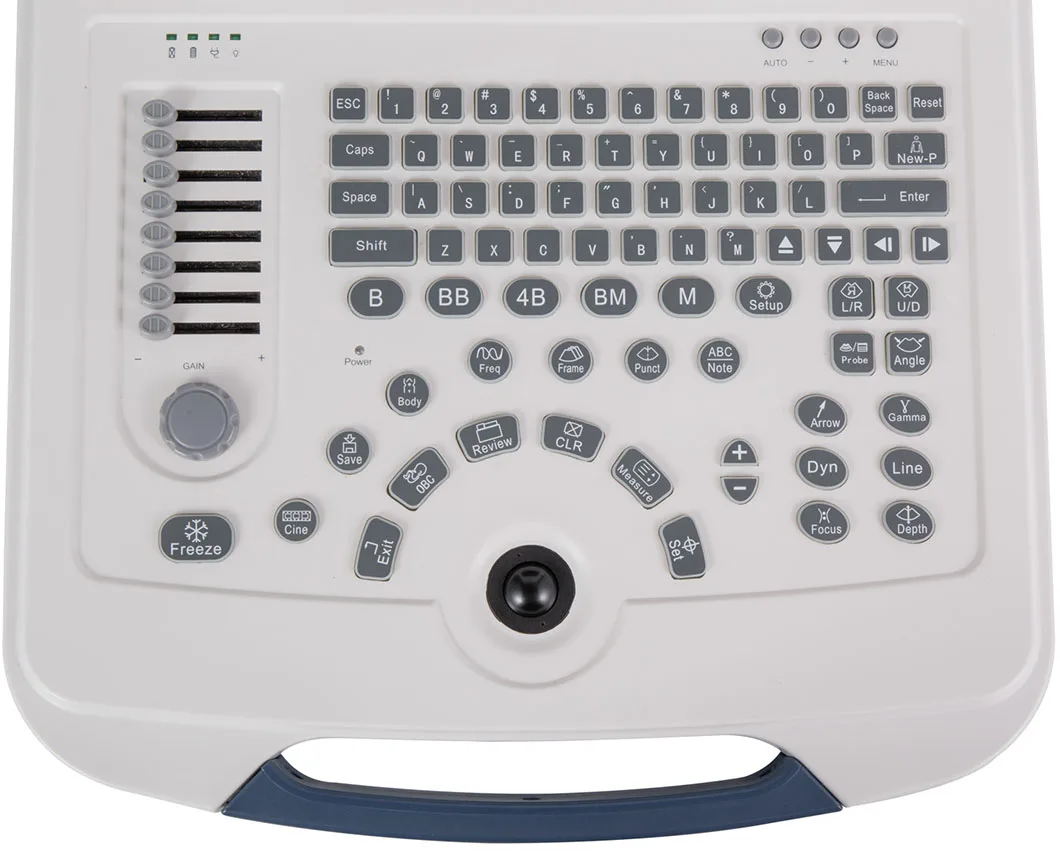

Comprehensive and rich graphic processing functions:
1. Intelligent 8-segment TGC adjustment
2. External USB storage, image upload more convenient
3. Large-capacity movie playback
4. Small size and easy to operate
Probe Optional:
1.Using sound beam sector expansion technology to ensure high speed and quality
2.Cross-fire and receive to eliminate side effects
3.Full-digital technology to Increase resolution and penetration
4. Support Multiple probes
3.5MHz convex probe
3.5MHz micro-convex probe
6.5MHz trans-vaginal probe
7.5MHz linear array probe
7.5MHz trans-rectal probe

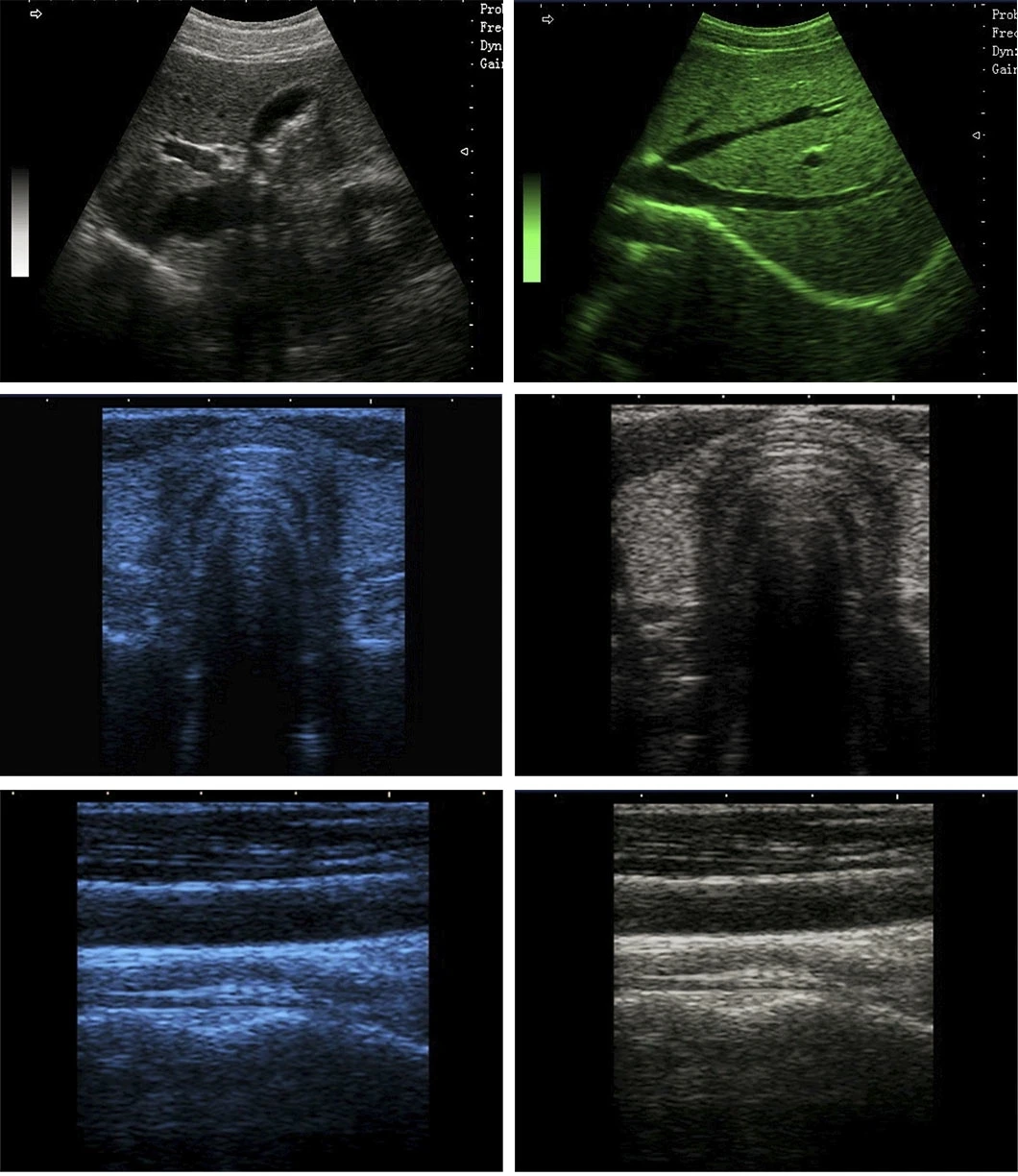

Excellent Image

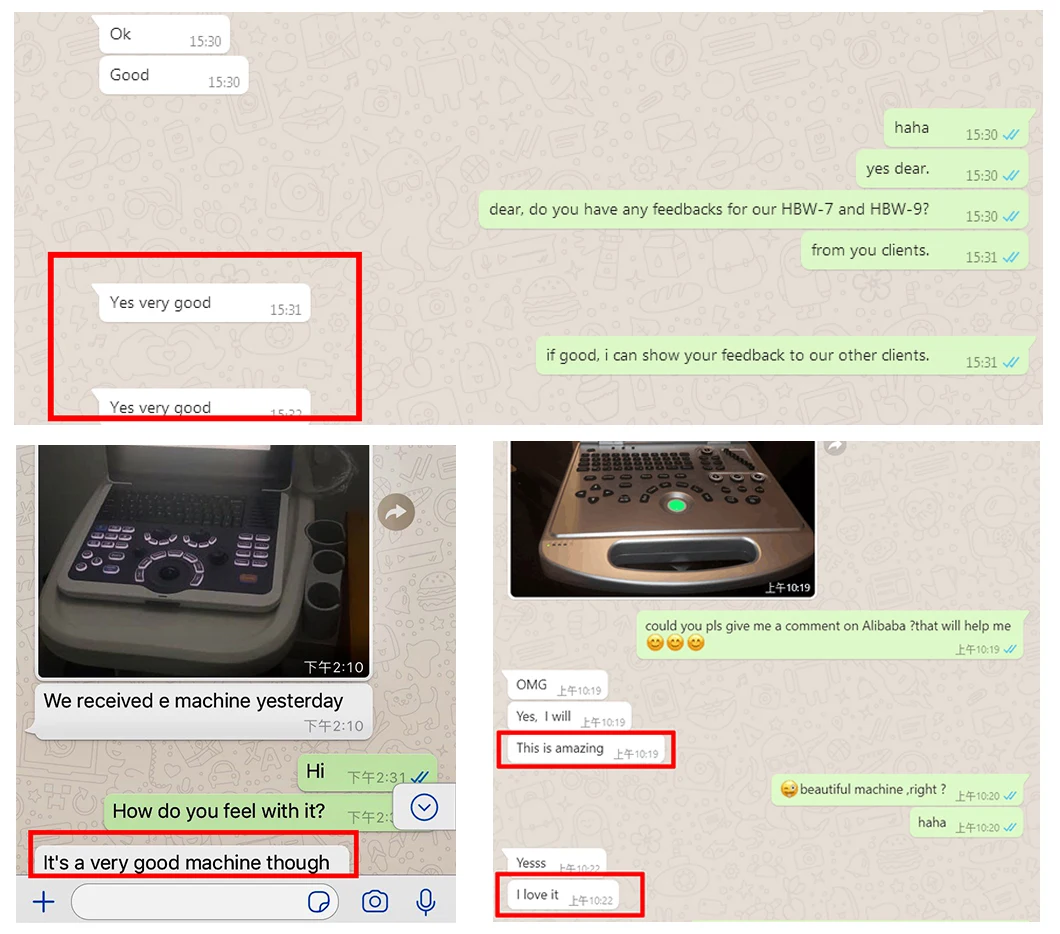

Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
