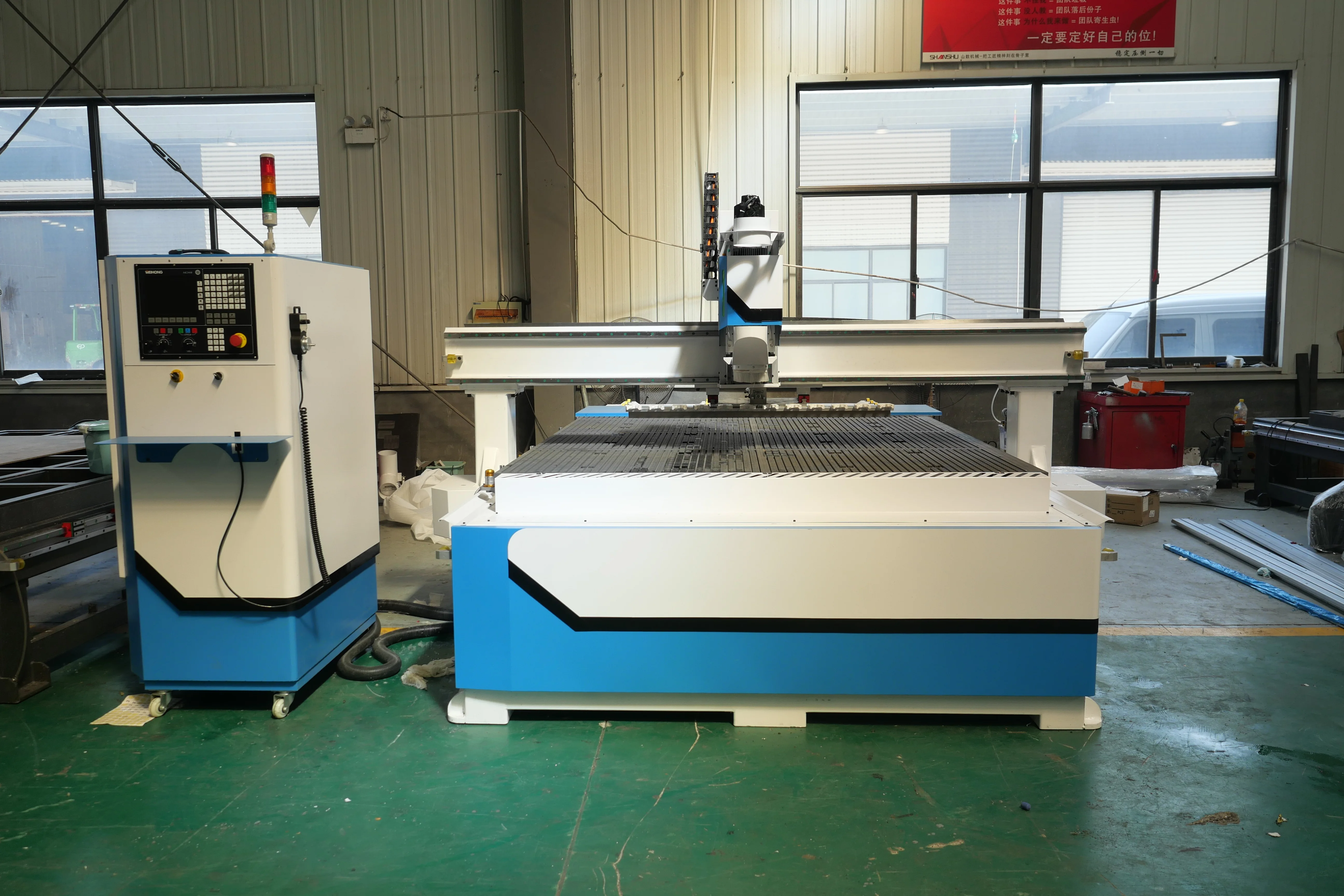

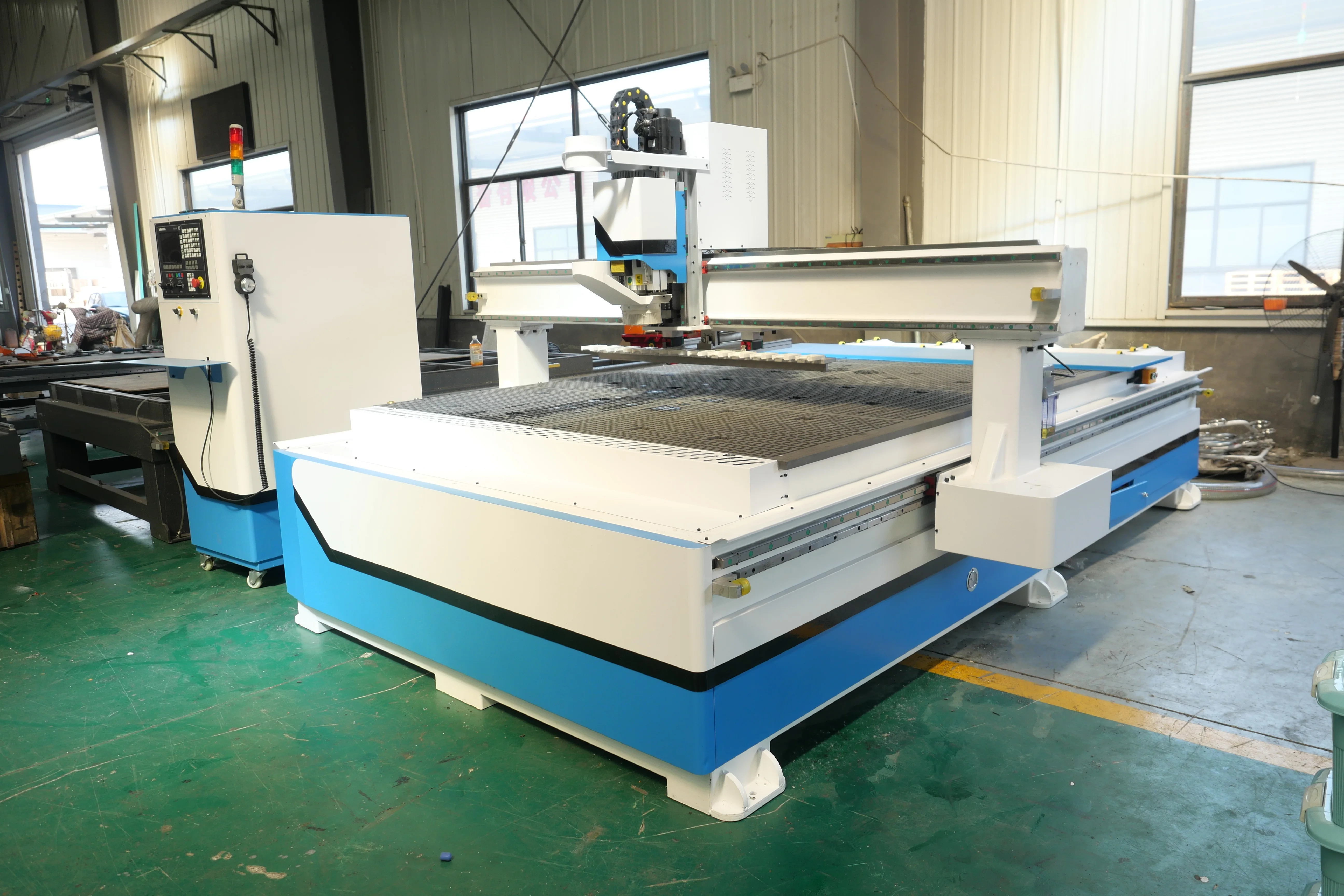

Furniture Making ATC Cnc Router Table Machine 1325 1500X3000 Nesting Woodworking With Tools Changer Router Cnc 2030 Pro Atc
- Category: >>>
- Supplier: Alpha Cnc Co. Ltd.
Share on (1600942095488):
Product Overview
Description
Features
* Top quality 9KW Air cooling Auto-tool changer spindle. * Linear guide rail keep high working precision.
* High power servo motor and driver ensures machine to run with fast speed and low noise.
* With 12 pieces auto-tool changer and auto tool sensor.
* Vacuum table and vortex vacuum pump.
* Taiwan LNC or Syntec ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
* High power servo motor and driver ensures machine to run with fast speed and low noise.
* With 12 pieces auto-tool changer and auto tool sensor.
* Vacuum table and vortex vacuum pump.
* Taiwan LNC or Syntec ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
Application:
Applicable Material:
Wood, MDF, acrylics, plywood, particle board, organic boards, double-color board, PVC board, plastic, artificial stones, artificial marble, bamboos, rubber, aluminum, aluminum composite panels, brass and other materials.
Applicable Industry:
Woodworking industry: panel furniture, chair, wooden door, window, bed, kitchen cabinet, kitchen ware and other furniture; redwood classical and antique furniture, exquisite european furniture, decorative products sculpture.
Artwork &Decoration Industry:
Wood, MDF, acrylics, plywood, particle board, organic boards, double-color board, PVC board, plastic, artificial stones, artificial marble, bamboos, rubber, aluminum, aluminum composite panels, brass and other materials.
Applicable Industry:
Woodworking industry: panel furniture, chair, wooden door, window, bed, kitchen cabinet, kitchen ware and other furniture; redwood classical and antique furniture, exquisite european furniture, decorative products sculpture.
Artwork &Decoration Industry:
wood crafts, gift box, jewelry box and other exquisite art crafts.
Music Industry:
Music Industry:
Musical instruments; Loudspeaker box Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy,chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.
Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, light-box.
Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, light-box.
Stone Industry:
Stone,ink-stone cutting, jade and marble products.
Electronic Industry:
Circuit board; Insulation material.
Main Configuration

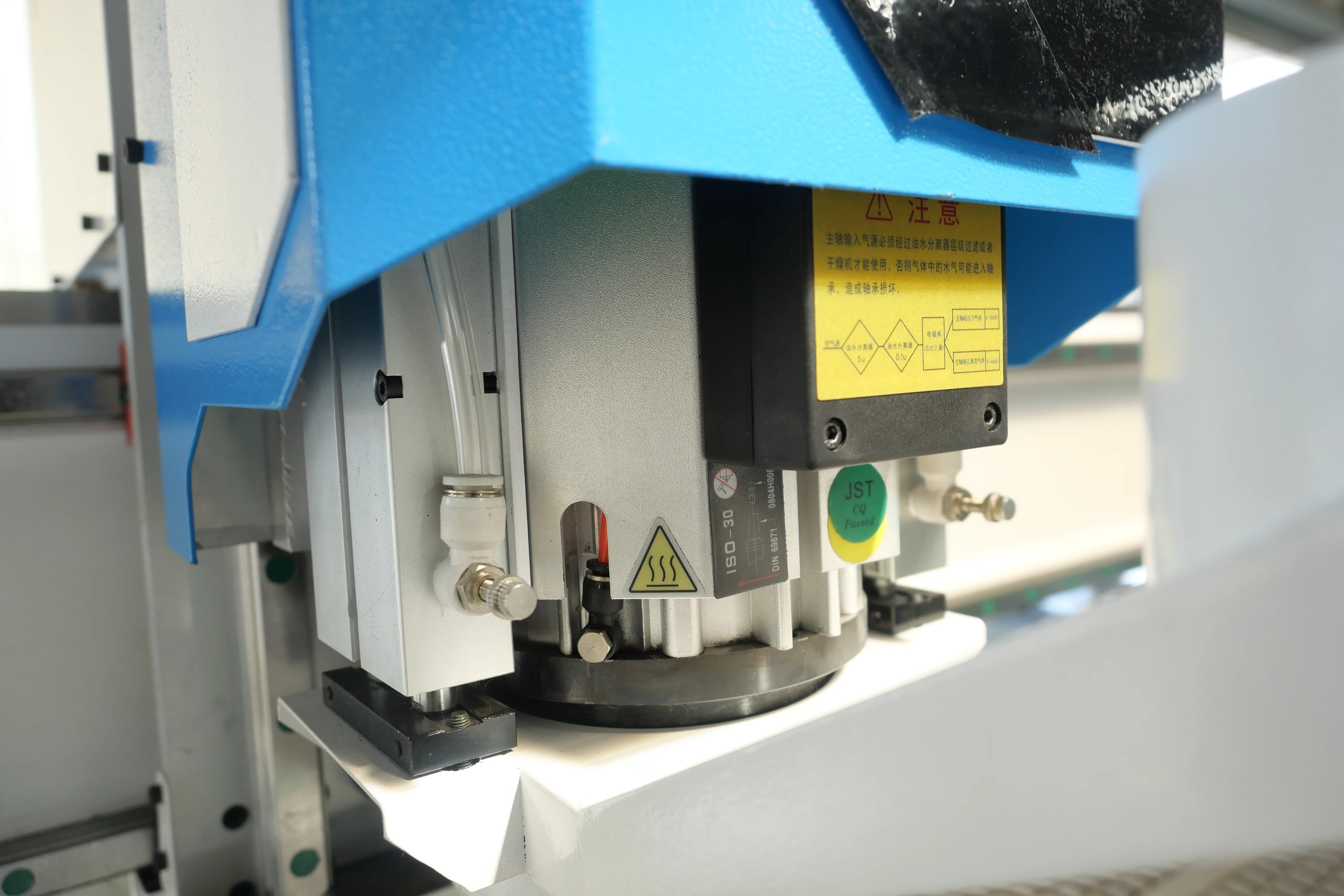

ATC Spindle
9kw (12HP) powerful air cooling atc spindle, 24,000 rpm. Air cooling spindle with perfect cooling effect, long life and high stability.

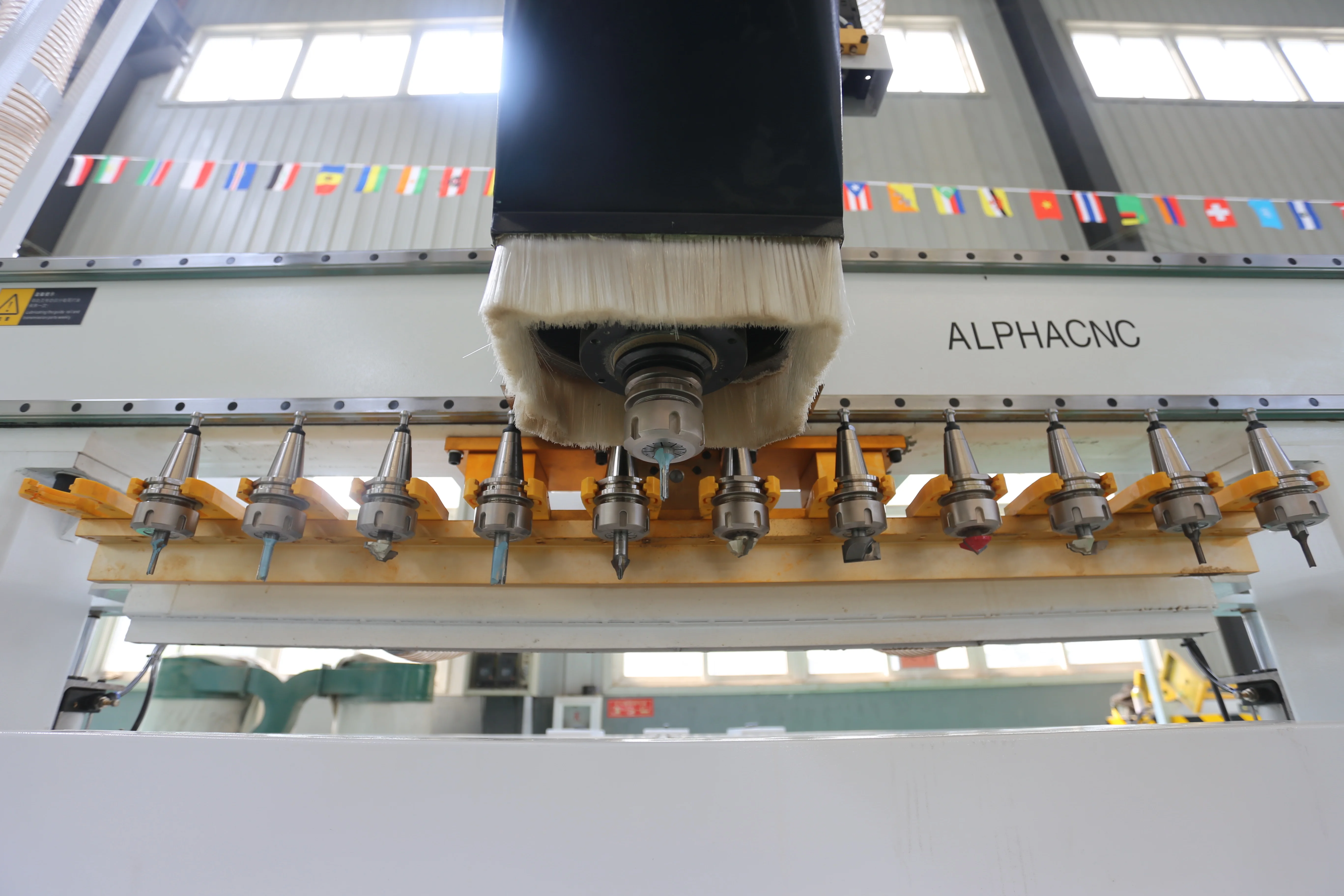

Automatic tool changer
APS-1325 series is a cnc router designed by Alpha for automatic linear changer, eliminating manual tool change. It shortens the tool change time and makes the cnc router more precise.

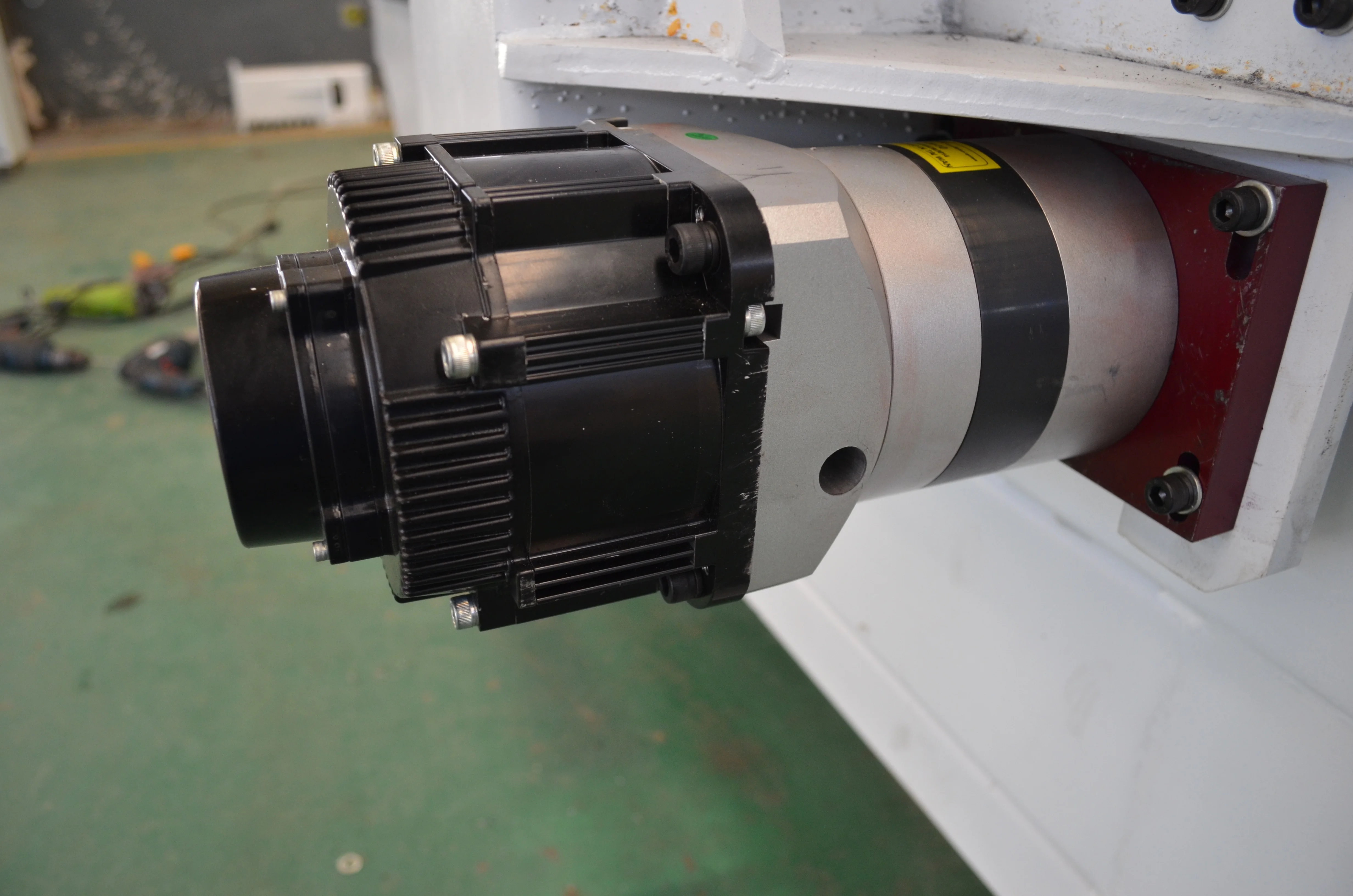

Drive Motor
Top brand servo motor and driving system ensures machine to run with fast speed and low noise.

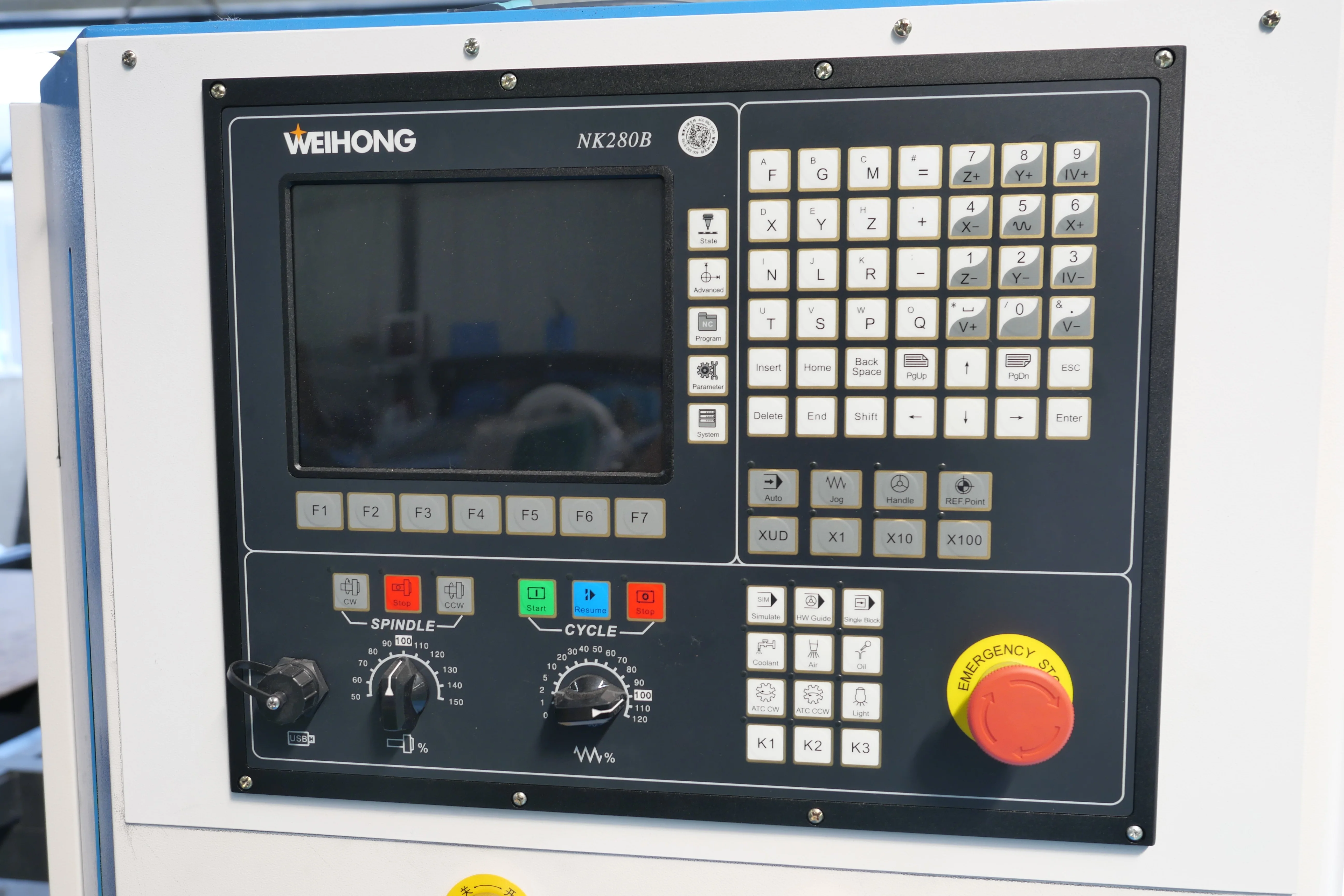

Control system
The control system of APS Series adopts the more advanced Weihong/Syntec/ LNC system, which is widely acclaimed internationally and can perfectly control 3 axis, 4, 5, 6, 8 axis. The system can work online and WiFi links, greatly increasing the intelligence of the device.
Technical Parameters
Name | Specification | ||||||
Model | APS-1325 | APS-1530 | APS-2030 | Customized Model | |||
X,Y,Z Working Area | 1300X2500mm 4x8ft | 1500X3000mm 5x10ft | 2000X3000mm 7x10ft | Customized Size | |||
X,Y,Z,Repositioning Positioning Accuracy | ±0.05mm | ||||||
Machine Bed | Heavy steel welded | ||||||
Gantry | Steel structure gantry design | ||||||
Guide Rail | Taiwan Square Guid Rail on X,Y,Z axis | ||||||
XY Z Transmission | Helical rack and gear on X and Y axis, Ballscrew on Z axis | ||||||
Spindle Motor | 9kw Air cooling ATC spindle | ||||||
Max. Speed | 0-60,000mm/min | ||||||
Max. Working Speed | 0-25,000mm/min | ||||||
Spindle Speed | 0-24,000RPM | ||||||
Working Voltage | AC/380V, 3 phase 50/60Hz or custom voltage | ||||||
Command | G Code, *uoo, *mmg, *plt | ||||||
Inverter | 11KW inverter | ||||||
Control System | Weihong or Taiwan LNC or Syntec | ||||||
Motor | Leadshine 1500w Servo Motor or other brand servo motor | ||||||
Driver | Servo Driver | ||||||
Table | Vacuum table | ||||||
Vacuum Pump | 7.5KW VACUUM Pump | ||||||
Tool Magazine | 12pcs ISO30 tool holder | ||||||
Electricity cabinet | Independent Cabinet | ||||||
Tool sensor | Auto tool sensor | ||||||
Collet | ER32 | ||||||
X,Y Working Delicacy | <0.01mm | ||||||
Software | Vectric Aspire, Ucancam, Artcam,JDpanint, or others | ||||||
Running circumstance | Temperature: 0℃～45℃, Relative humidity: 30%～75% | ||||||
Name | Specification | ||||||
Model | APS-1325 | APS-1530 | APS-2030 | Customized Model | |||
X,Y,Z Working Area | 1300X2500mm 4x8ft | 1500X3000mm 5x10ft | 2000X3000mm 7x10ft | Customized Size | |||
X,Y,Z,Repositioning Positioning Accuracy | ±0.05mm | ||||||
Machine Bed | Heavy steel welded | ||||||
Gantry | Steel structure gantry design | ||||||
Guide Rail | Taiwan Square Guid Rail on X,Y,Z axis | ||||||
XY Z Transmission | Helical rack and gear on X and Y axis, Ballscrew on Z axis | ||||||
Spindle Motor | 9kw Air cooling ATC spindle | ||||||
Max. Speed | 0-60,000mm/min | ||||||
Max. Working Speed | 0-25,000mm/min | ||||||
Spindle Speed | 0-24,000RPM | ||||||
Working Voltage | AC/380V, 3 phase 50/60Hz or custom voltage | ||||||
Command | G Code, *uoo, *mmg, *plt | ||||||
Inverter | 11KW inverter | ||||||
Control System | Weihong or Taiwan LNC or Syntec | ||||||
Motor | Leadshine 1500w Servo Motor or other brand servo motor | ||||||
Driver | Servo Driver | ||||||
Table | Vacuum table | ||||||
Vacuum Pump | 7.5KW VACUUM Pump | ||||||
Tool Magazine | 12pcs ISO30 tool holder | ||||||
Electricity cabinet | Independent Cabinet | ||||||
Tool sensor | Auto tool sensor | ||||||
Collet | ER32 | ||||||
X,Y Working Delicacy | <0.01mm | ||||||
Software | Vectric Aspire, Ucancam, Artcam,JDpanint, or others | ||||||
Running circumstance | Temperature: 0℃～45℃, Relative humidity: 30%～75% | ||||||
Sample and Application
Packing &Delivery
According to the various types of machines you ordered, we specially design packaging solutions for you, allowing you to load more machines in one container and helping you save shipping costs.
We have rich experience in container loading. Whether it is sea transportation or train transportation with strict loading requirements, we have mature packaging and fixing solutions to avoid cargo damage.
We have rich experience in container loading. Whether it is sea transportation or train transportation with strict loading requirements, we have mature packaging and fixing solutions to avoid cargo damage.
Alpha Company has specialized in the OEM/ODM business of CNC Routers and laser machines since 2000. Our extensive product range includes CNC Routers, laser machines, plasma cutting machin
Our company has a robust infrastructure, boasting over 5 production bases that cater to our customers' varying product requirements. With a complete industrial chain, we manage the entire machine production process, from design to machining, sheet metal bending, painting, and installation, ensuring top-quality machines for our clients.
Our team of experts provides professional foreign trade services and holds extensive experience in the industry. We offer one-stop procurement services to our clients, saving them time and costs. Our equipment has been exported successfully to over 140 countries worldwide, including Europe, America, Asia, and Oceania. We take pride in understanding our clients' needs and strive to provide them with high-quality products and services.
Our team of experts provides professional foreign trade services and holds extensive experience in the industry. We offer one-stop procurement services to our clients, saving them time and costs. Our equipment has been exported successfully to over 140 countries worldwide, including Europe, America, Asia, and Oceania. We take pride in understanding our clients' needs and strive to provide them with high-quality products and services.
We look forward to collaborating with you in the future and providing you with the best one-stop procurement service for OEM/ODM of CNC Routers and laser machines.
Company Profile
More CNC Wood Routers
FAQ
Q: Do you accept OEM/ODM?
A: Yes, we can make the machine according to your special requirement.
Q:What’s your MOQ?
A:Our MOQ is 1 set.
Q: Can I be your agents in our country?
A: Yes, please contact us for details.
Q: What's your delivery time?
A: Our delivery time is 20 days for a container.
Q: Do you have a good aftersale service?
A: Yes, our aftersale service is 24*7
Q: I also bought other goods from other supplier , can you help me deliver them together?
A: Yes, we are more than happy to help.
Q: How to contact you?
Here is our contact information.
A: Yes, we can make the machine according to your special requirement.
Q:What’s your MOQ?
A:Our MOQ is 1 set.
Q: Can I be your agents in our country?
A: Yes, please contact us for details.
Q: What's your delivery time?
A: Our delivery time is 20 days for a container.
Q: Do you have a good aftersale service?
A: Yes, our aftersale service is 24*7
Q: I also bought other goods from other supplier , can you help me deliver them together?
A: Yes, we are more than happy to help.
Q: How to contact you?
Here is our contact information.
