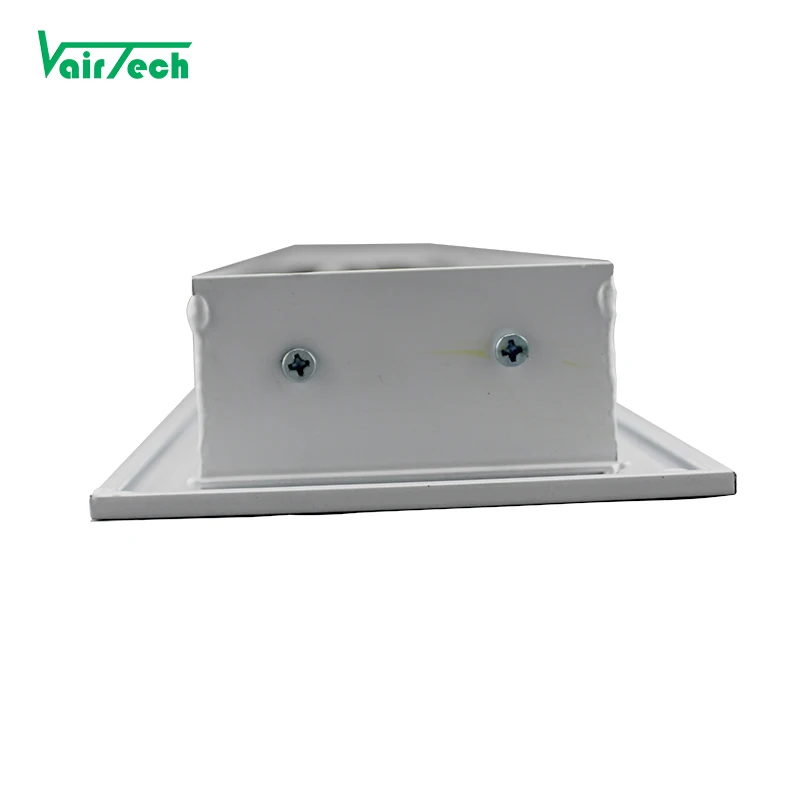

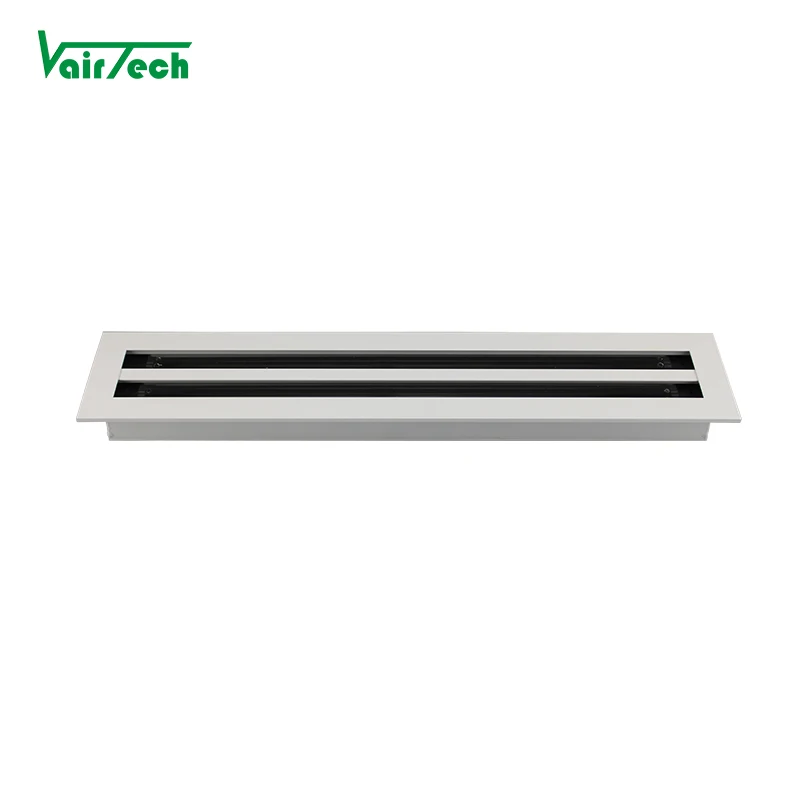

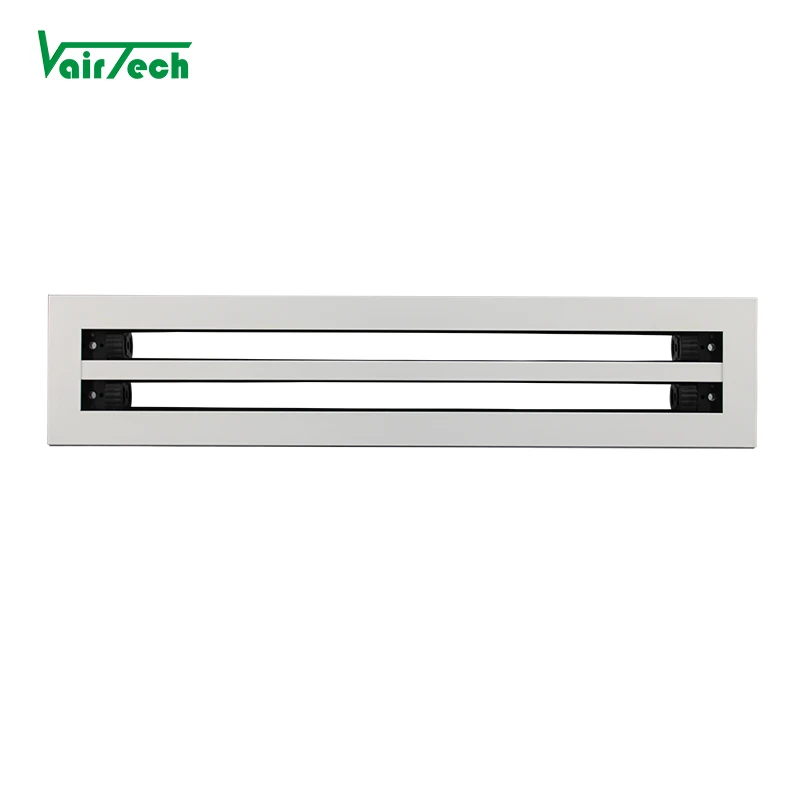

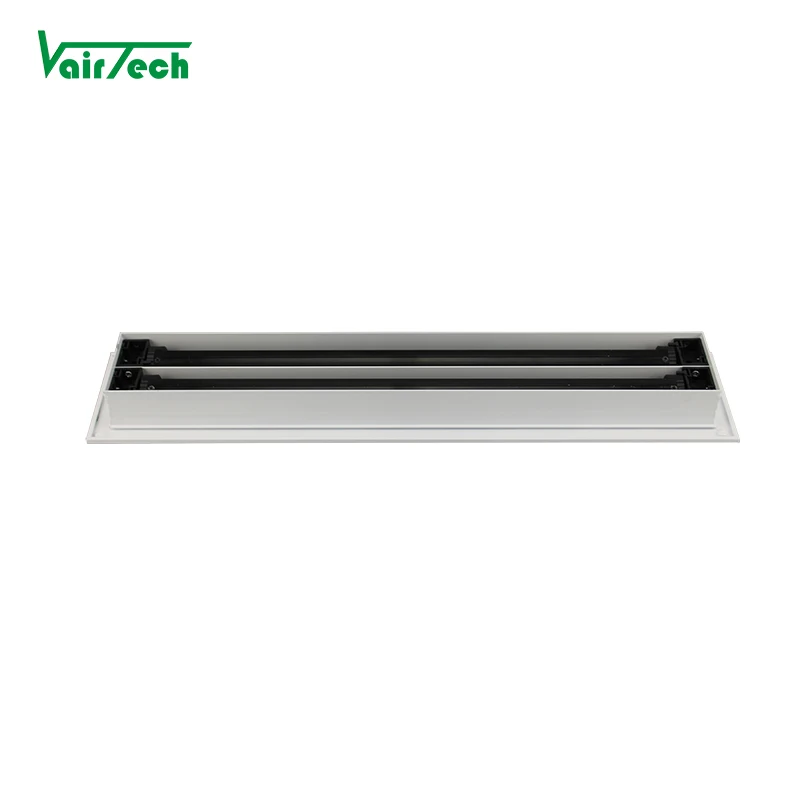

Hvac Ventilation Ceiling Aluminum Ac Vent Cover Register Scroll Adjust Linear Slot Diffuser
- Category: >>>
- Supplier: Foshan Vairtech Ventilation Co. Ltd.
Share on (1600942240197):
Product Overview
Description
Products Description
Name | Scroll Adjust Linear Slot Diffuser |
Material | Aluminum |
Colour | Powder coated white |
Size | Customized |
Brand | Vairtech |

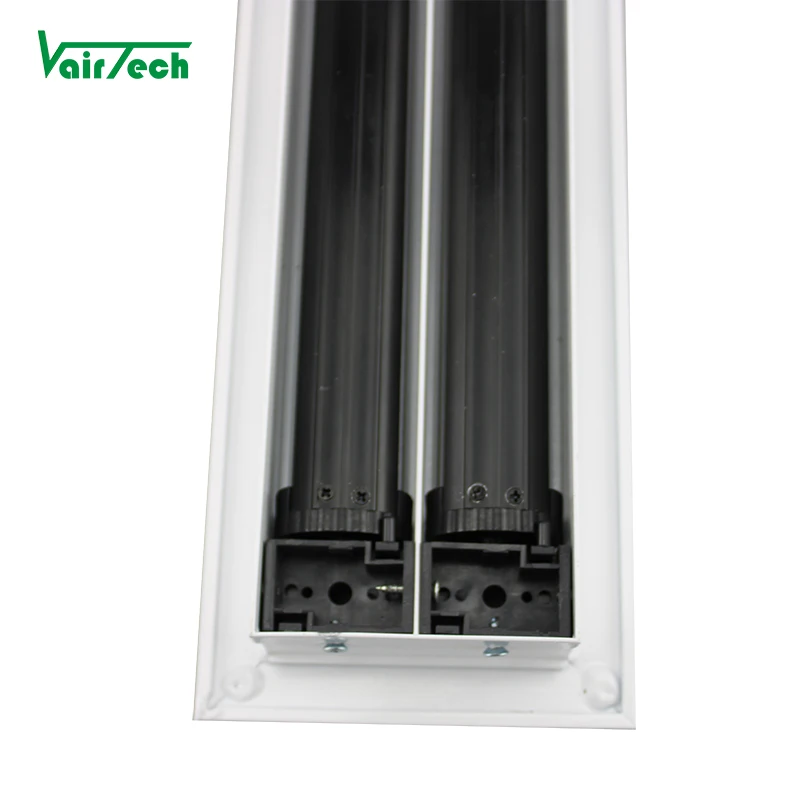

Linear slot diffuser
1.The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

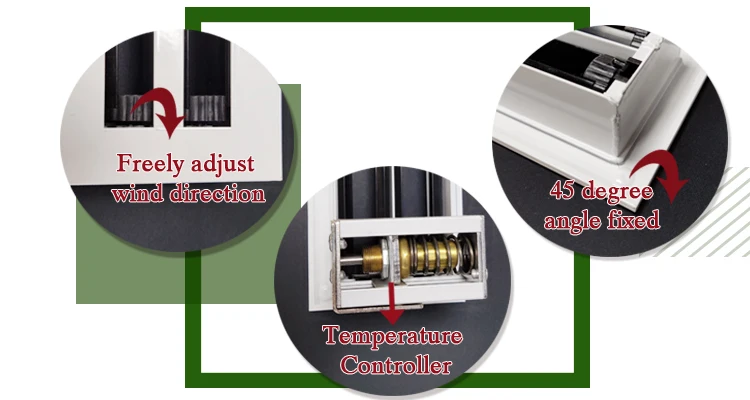

2.Air distribution can be changed vertically or horizontal by means of deflection blades
without changing the air flow rate. The black blades can be fully adjusted from face opening.

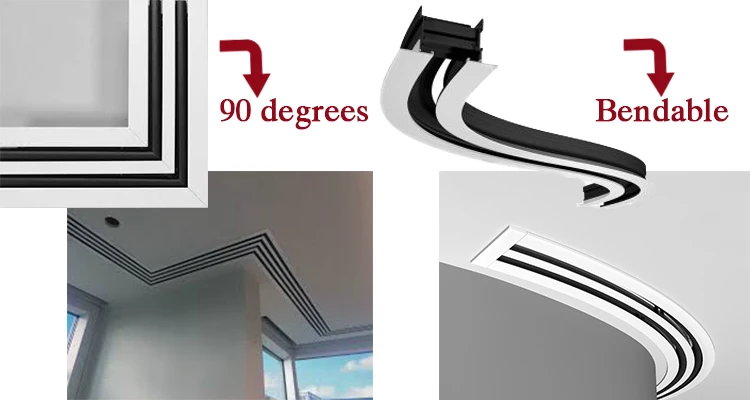

3.Any total length can be available through combining single piece without end by bridge connector.

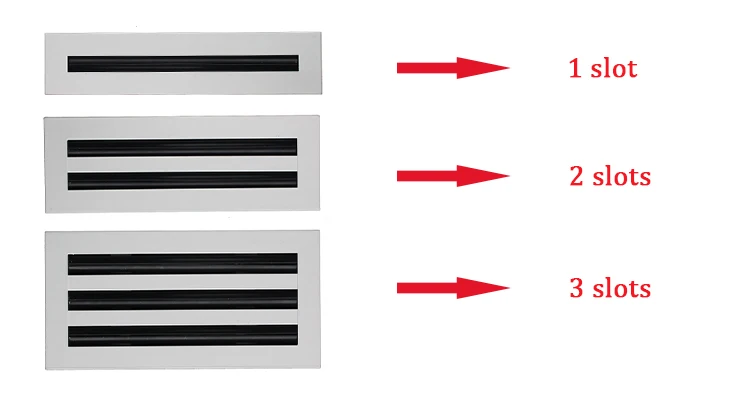

4.You can choose the number of slots.
5.Size: Any size available.Over face size= Neck size +35mm
Item Code | Slots | Neck Size=B(mm) | Face Size=A(mm) | Slot width= W1(mm) |
LS-C | 1 | 35 | 67 | 21 |
LS-C | 2 | 69 | 101 | 21 |
LS-C | 3 | 102 | 134 | 21 |
LS-C | 4 | 136 | 168 | 21 |
LS-C | 5 | 170 | 202 | 21 |
LS-C | 6 | 204 | 236 | 21 |
Construction
1. Frame & blades : High quality extruded aluminum alloy(A6063) profile with 28mm flange.
2. Slot Width: 21mm
3. Length: up to 3 meters available in single piece
1. Frame & blades : High quality extruded aluminum alloy(A6063) profile with 28mm flange.
2. Slot Width: 21mm
3. Length: up to 3 meters available in single piece
Recommend Products
Why Choose Us
Company Profile
Exhibition
Project reference
FAQ
Q1:Can I ask for a slight change in the design of the product according to our project?
A: Yes, we can do that, our factory production is very flexible.
A: Yes, we can do that, our factory production is very flexible.
Q2:Why choose us?
A:We have many years of manufacturing experience and outstanding customization capabilities. We have all the styles you want.
A:We have many years of manufacturing experience and outstanding customization capabilities. We have all the styles you want.
Q3:Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement.
A: Yes, make label according to your exact requirement.
Q4:Are you a manufacturer or trading company?
A:We are professional manufacturer in China.
A:We are professional manufacturer in China.
Q5:Can the product be customized?
A:Of course, we can customize the size and style you want.
A:Of course, we can customize the size and style you want.
Q6:What is your packaging method?
A:There are two ways of packaging:
1.PP bag + bubble bag + 5 layers of cardboard box
2.PP bag + plywood wooden box
A:There are two ways of packaging:
1.PP bag + bubble bag + 5 layers of cardboard box
2.PP bag + plywood wooden box
Q7:How does your factory do regarding quality control?
A:Quality is our culture. We have strict QC quality control system in every process and final inspection.
