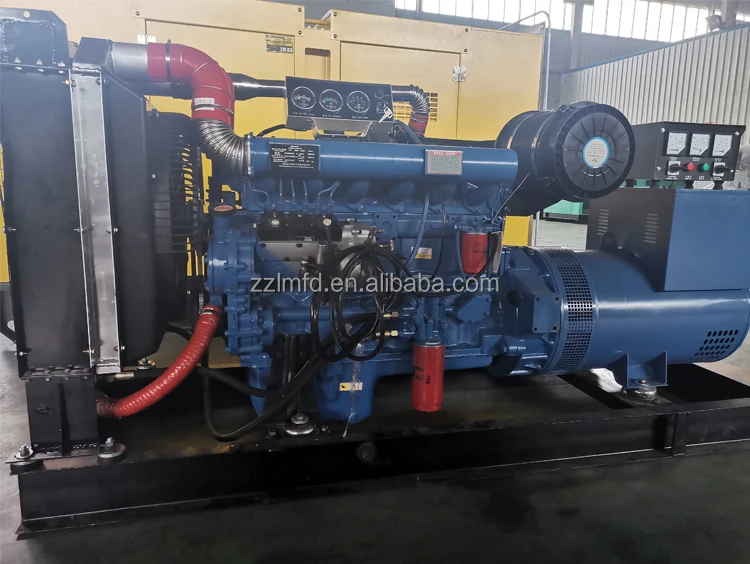

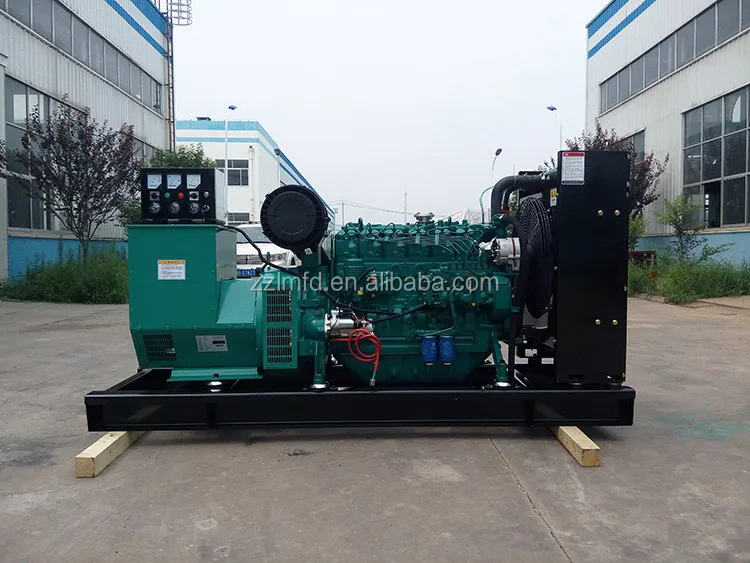

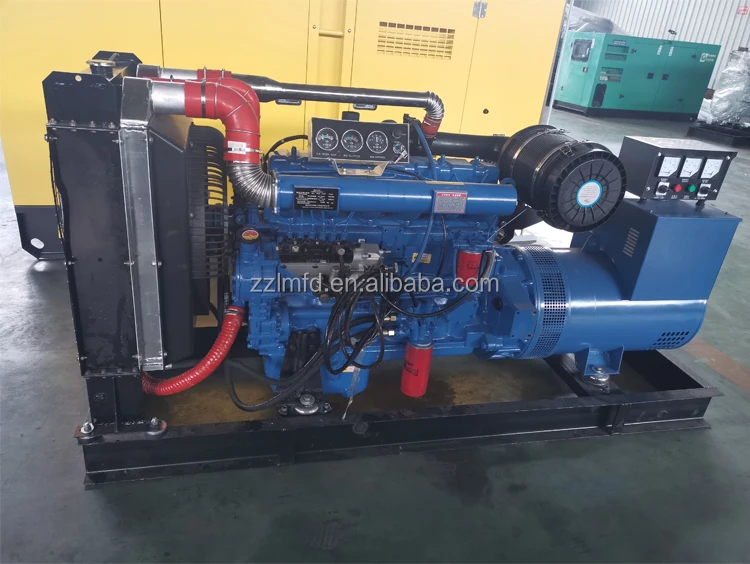

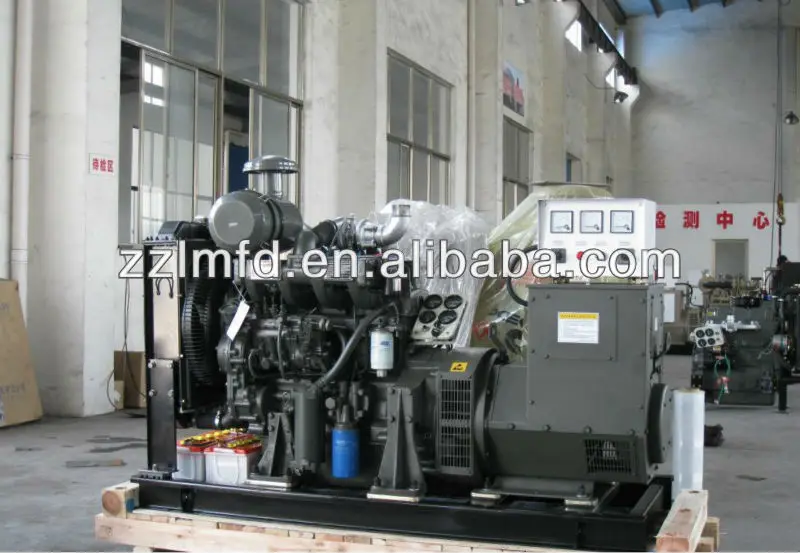

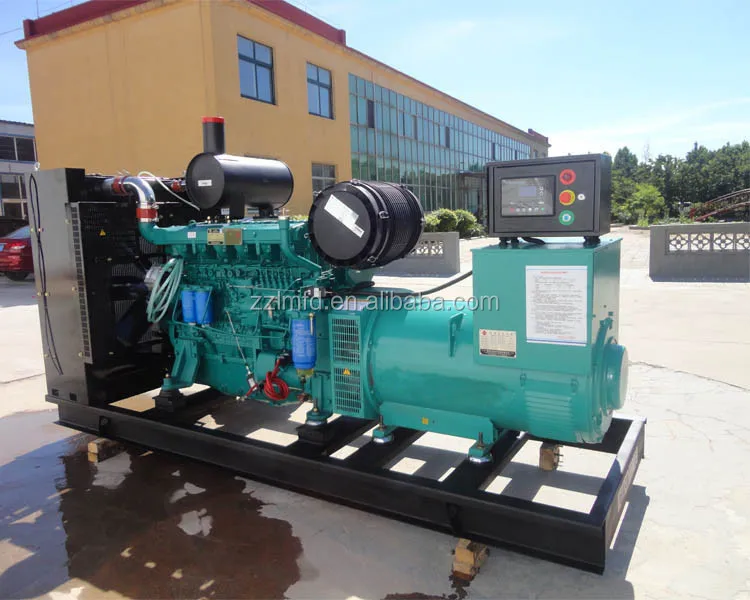

Home use AC 50hz 100kw diesel generator 125 kva generators by Weichai Ricardo R6105ALZD engine for sale
- Category: >>>
- Supplier: Zhengzhou Leiming Power Equipment Manufacturing Co. Ltd.
Share on (1600942307302):
Product Overview
Description
Product Description
AC 50hz 3 phase 100kw diesel generator 125 kva generators by Weichai Ricardo R6105ALZD engine for sale
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Standard configuration
Overall description:
● Engine
● Meet the environmental temperature 40 ℃
water tank radiator,Driving belt cooling
fans, with fan safety shield
● 24 V charging generators
● Generator:Single bearing generator,IP23
Grading Protection, H Insulation degree
● Shock absorber
● Dry air filter,Fuel filter,Oil filter
● Power output circuit breaker
● Standard control panel
● 12 V battery and battery connection cables
● Exhaust pipe,Bellows,Flange,Muffler set
● Documents and Manuals
Optional Accessories | ||||||
♦Auto startup control panel | ||||||
♦Automatic control panel(ATS) | ||||||
♦Split type daily fuel tank;Integrated base fuel tank | ||||||
♦Rainproof enclosure;Soundproof enclosure | ||||||
♦Mobile power station | ||||||
♦Mute power station | ||||||
Unit parameters | ||||||
Power: | 100kw/125kva | |||||
Rated voltage: | 400V/230V | |||||
Rated current: | 180A | |||||
Rated frequency: | 50/60Hz | |||||
The factor of rated power: | 0.8 | |||||
The regulating rate of instantaneous voltage: | ≤±15% | |||||
The regulating rate of steady voltage: | ≤±0.5% | |||||
The waving rate of voltage: | ≤0.5% | |||||
Voltage waveform distortion degree: | ≤5% | |||||
The time of steady voltage: | ≤1.5sec | |||||
The regulating rate of steady frequency: | ≤±2% | |||||
The regulating rate of instantaneous frequency: | ≤±5% | |||||
The time of steady frequency: | ≤3sec | |||||
The waving rate of frequency: | ≤±0.5% | |||||
The waste of fuel with full load: | 218g/kw.h | |||||
Size(mm): | 2400*750*1400mm | |||||
Weight(kg): | 1300KG | |||||
The main parameters of the engine | ||||||
Brand: | Ricardo | |||||
Model: | R6105AZLD | |||||
Standby power: | 110KW | |||||
Type: | four strokes, waste gas turbine boost,direct spurting type | |||||
Cooling way: | water cooling | |||||
With type: | Inline type | |||||
Bore*Trip: | 105*115mm | |||||
Cylinder: | 6 | |||||
Displacement: | 6.75L | |||||
Lubricating Capacity： | 26L | |||||
Speed adjustment way: | Electronic speed governor | |||||
Rotating speed: | 1500/1800rpm/min | |||||
Starting way: | starting with electricity | |||||
The main parameters of the generator | ||||||
Brand: | RAYMING | |||||
Model: | RM-100 | |||||
Type: | brushless (AVR automatic voltage regulating) | |||||
The connecting way of the phase: | three phases four lines | |||||
Insulation degree: | H degree | |||||
TIF: | <50 | |||||
THF: | <2% | |||||
The factor of rated power: | ≤±1% | |||||
Grading Protection: | IP23 | |||||
