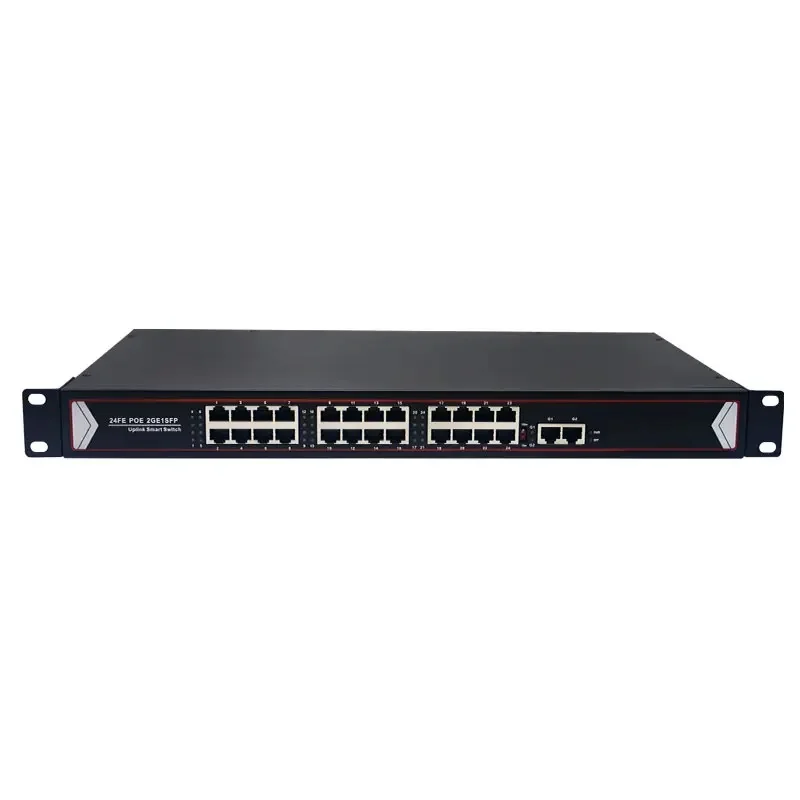

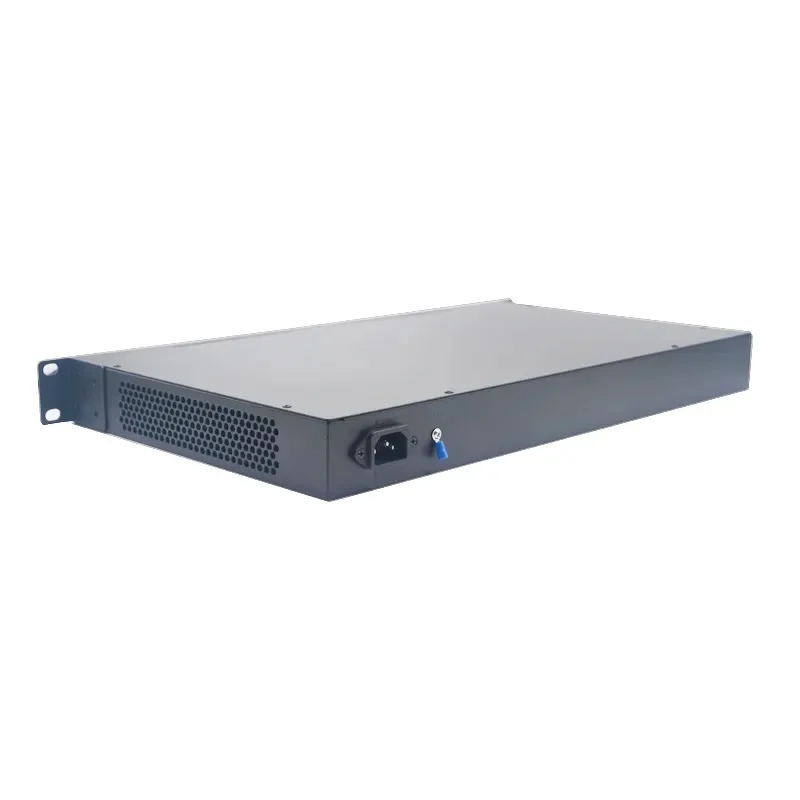

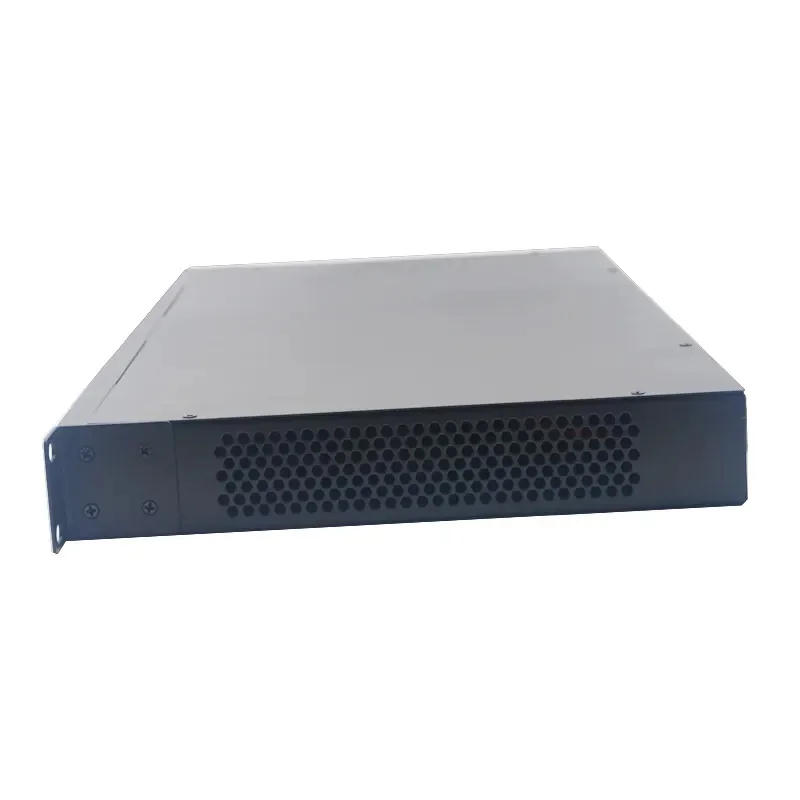

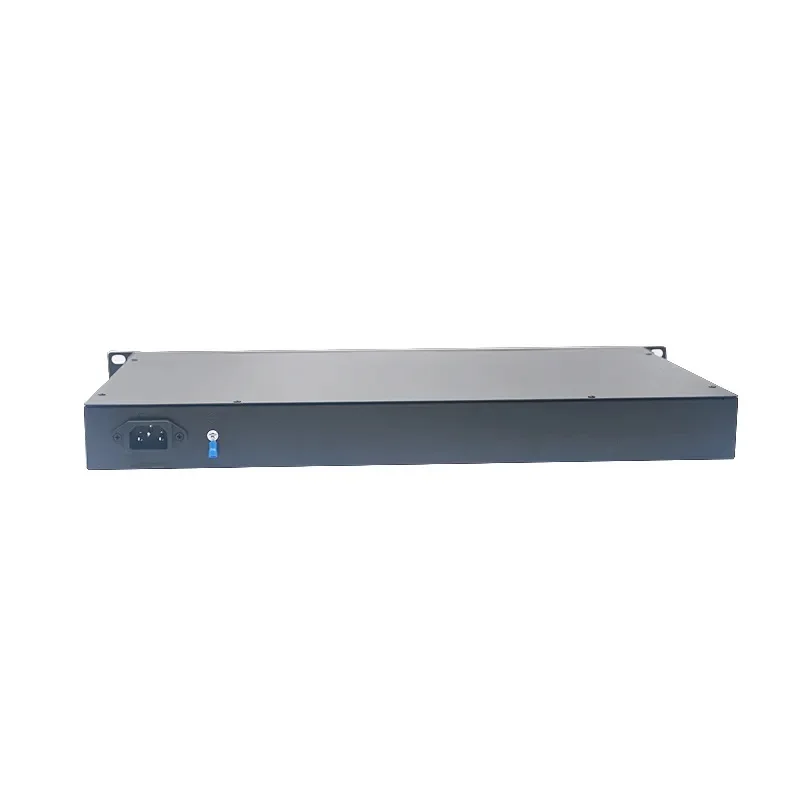

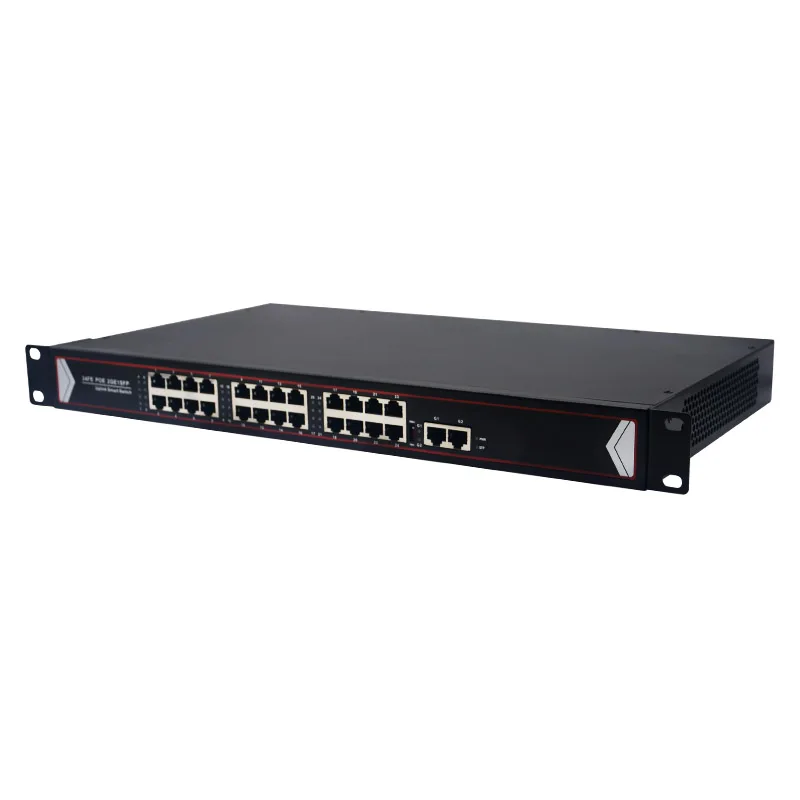

POE switch unmanaged 48V 260W 10/100Mbps 24 port POE and 2 Port Uplink 10/100/1000Mbps Power Over Ethernet
- Category: >>>
- Supplier: Shenzhen Flytoplink Technology Co. Ltd.
Share on (1600942885705):
Product Overview
Description
Product Description
Features
* Supports wireless access points (APs) and network surveillance cameras (surveillance cameras) powered by Category 5 Ethernet cables
* 1~24 ports support standard IEEE802.3af power supply
* 24x 10/100Mbps +2x 10/100/1000Mbps auto-sensing RJ45 ports
* Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards
* Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
* Support automatic port flip (Auto MDI/MDIX)
* Backplane bandwidth: 52G
* Supports lightning protection of uplink ports (the port meets the requirements of secondary lightning protection)
* Maximum PoE power: 260W (all PoE ports, ports 1 to 24)
* Maximum 15.4W per port
* Adopt the switching mechanism of store and forward
* All ports support wire-speed switching, and wire-speed can be achieved within the range of 64-1536 frames
* Low-power dual fans, ultra-quiet, super heat dissipation
* 1U rack type, ultra-quiet design suitable for placing on network cabinets
* Zero configuration feature power supply is automatically supplied to self-adaptive devices
* 1~24 ports support standard IEEE802.3af power supply
* 24x 10/100Mbps +2x 10/100/1000Mbps auto-sensing RJ45 ports
* Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards
* Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
* Support automatic port flip (Auto MDI/MDIX)
* Backplane bandwidth: 52G
* Supports lightning protection of uplink ports (the port meets the requirements of secondary lightning protection)
* Maximum PoE power: 260W (all PoE ports, ports 1 to 24)
* Maximum 15.4W per port
* Adopt the switching mechanism of store and forward
* All ports support wire-speed switching, and wire-speed can be achieved within the range of 64-1536 frames
* Low-power dual fans, ultra-quiet, super heat dissipation
* 1U rack type, ultra-quiet design suitable for placing on network cabinets
* Zero configuration feature power supply is automatically supplied to self-adaptive devices
Specification
Product name | POE Switch 24-port 10/100Mbps +2 Gigabit Ethernet Port |
Model | POE-24FE2GE |
Item | 10/100Mbps 24 POE Ports +2x10/100/1000Mbps LAN |
Product Type | 19inch 1U Rack |
Dimension | 485mm(Length) x265mm(Width) x45mm(Height) |
Gross Weight | 4.5KG/PCS |

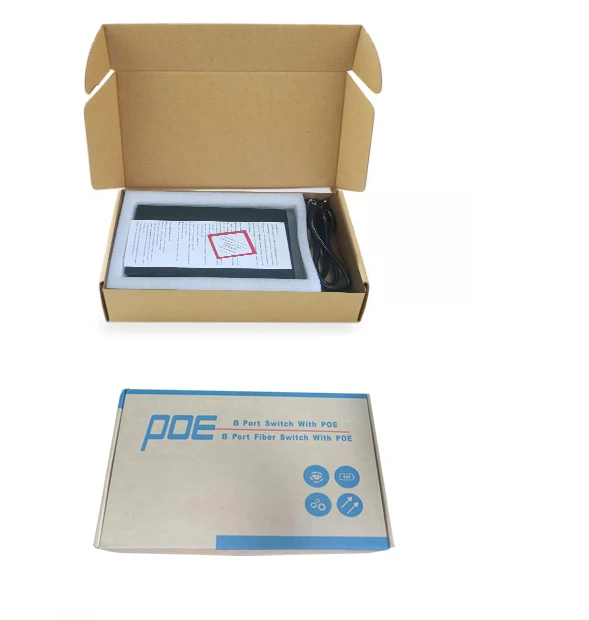

Package | Standard Kraft Paper Box |
