10X Optical Zoom Camera Module 2MP GC2063 GK7205V300 H.265 Zoom Block Camera For CCTV IP PTZ Speed Dome Camera SIP K2063GS 10X
- Category: >>>
- Supplier: Shenzhen Smart Technology Co. Ltd.
Share on (1600943001877):
Product Overview
Description
Product Description

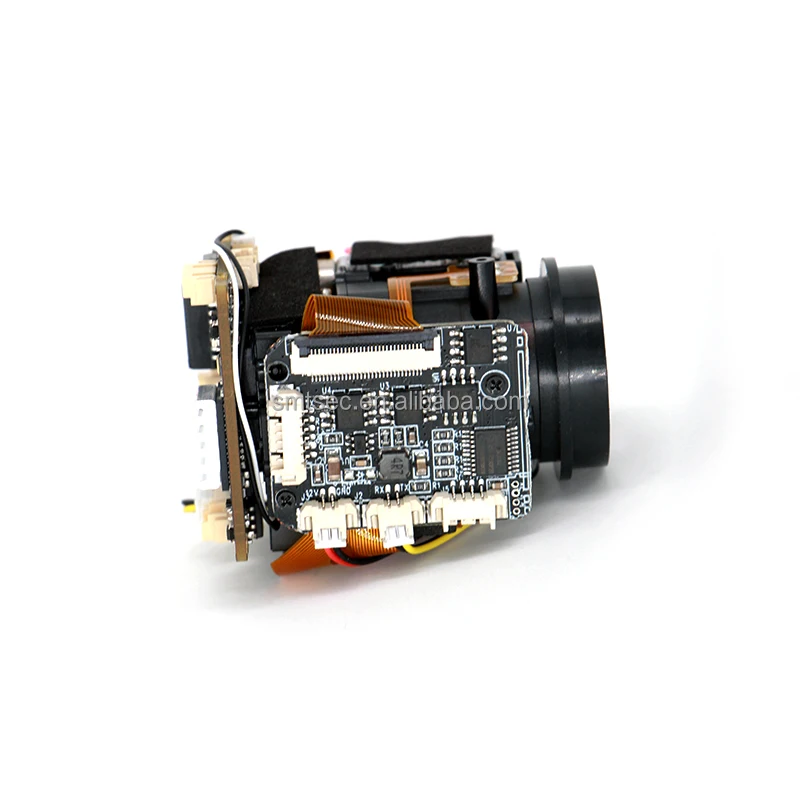

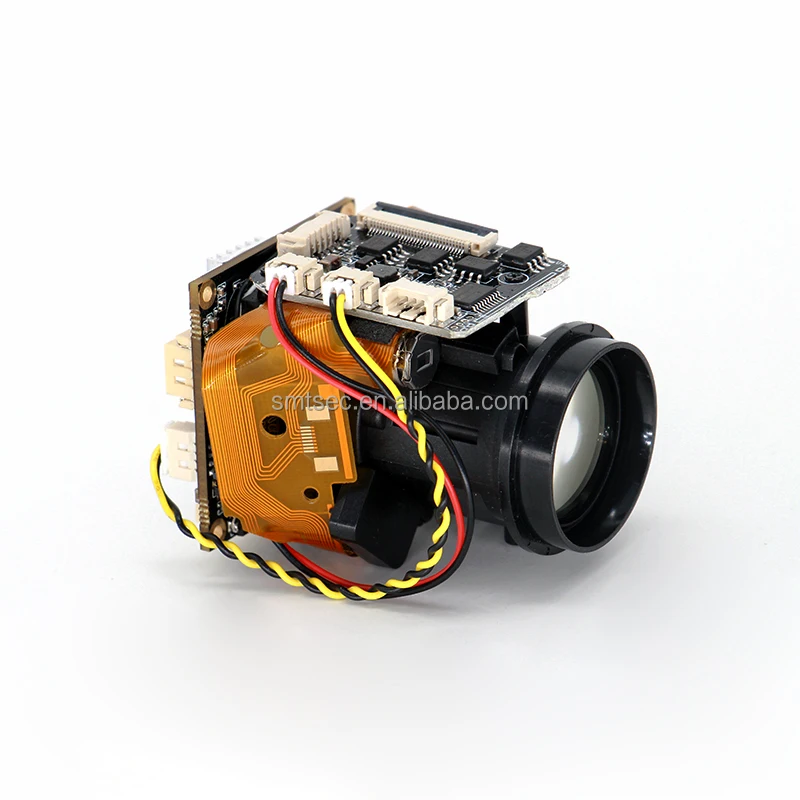

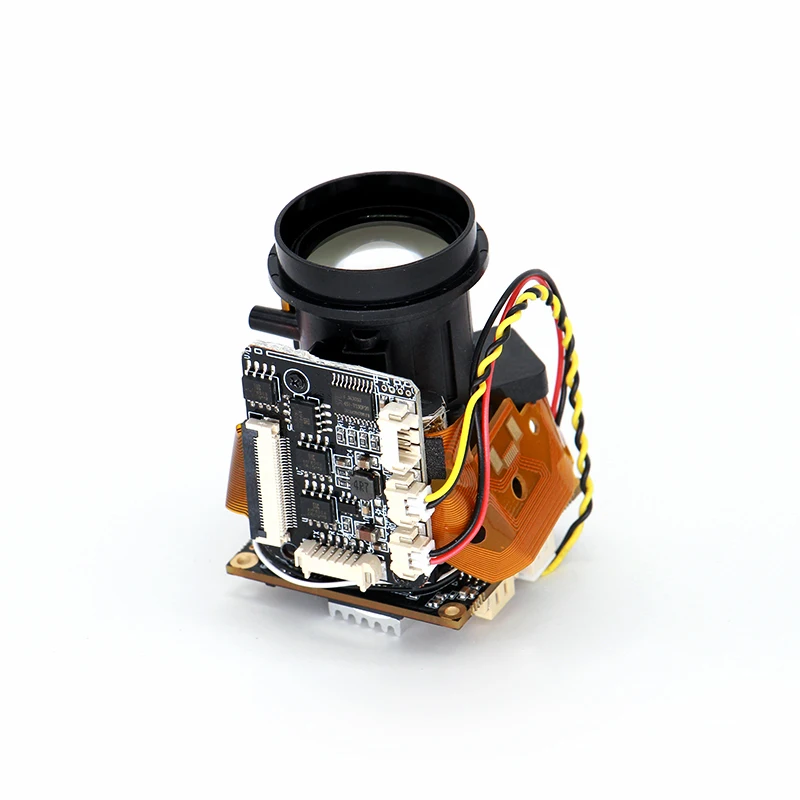

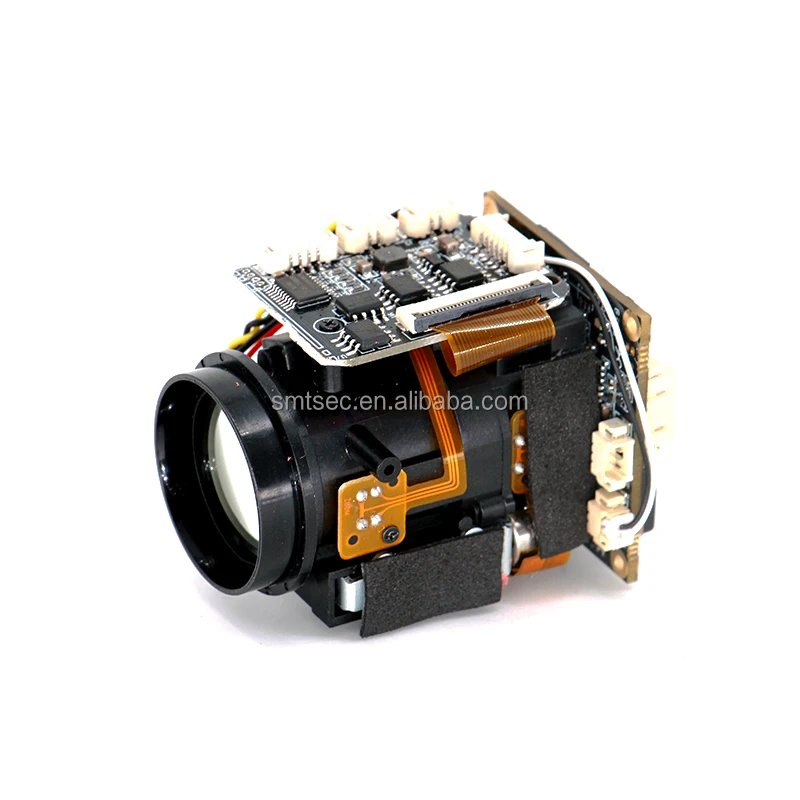

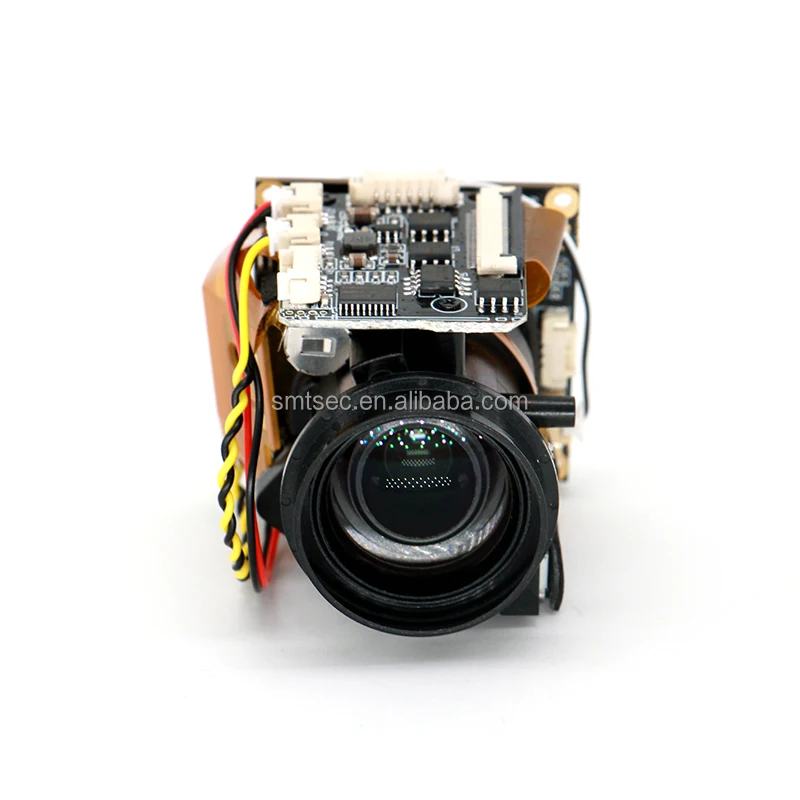

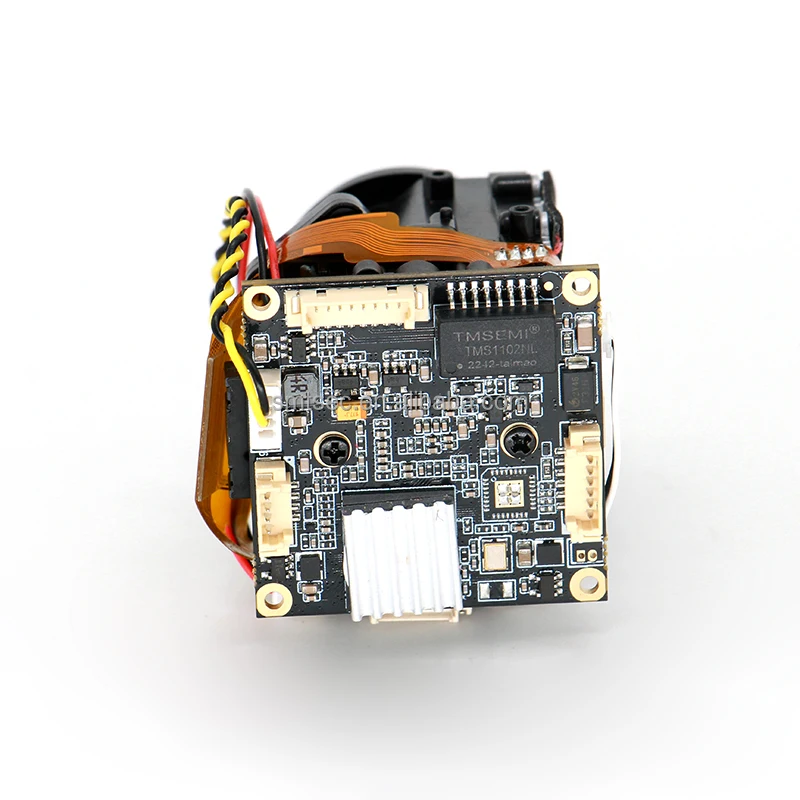

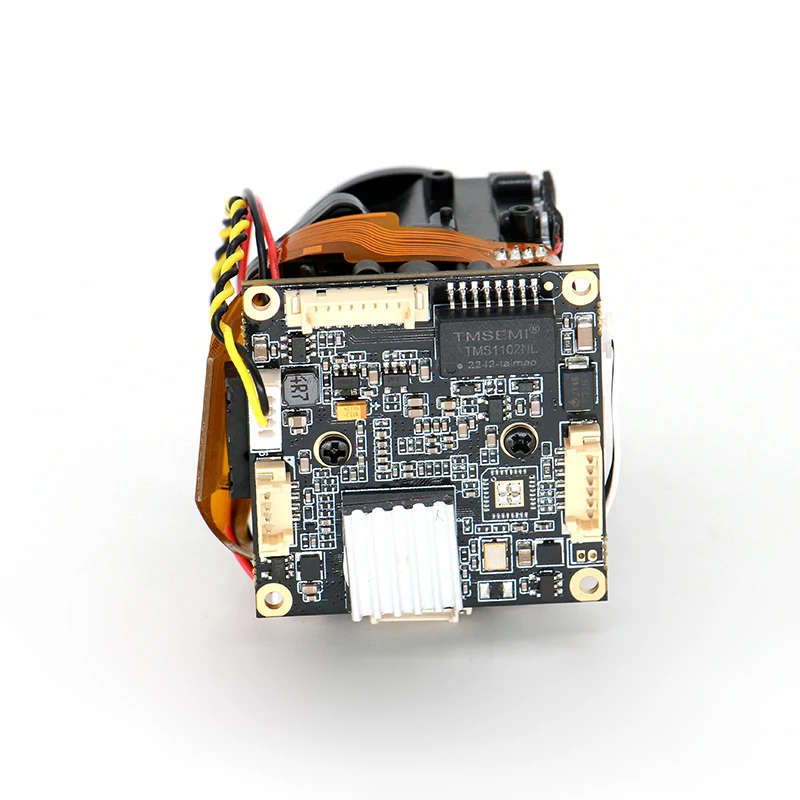

10X Optical Zoom Camera Module 2MP GC2063+GK7205V300 H.265 Zoom Block Camera For CCTV IP PTZ Speed Dome Camera
Model: SIP-K2063GS-10X
> Video resolution: 1920*1080 Video compression standard: H.265/H.264
> DWDR wide dynamic range, excellent wide dynamic performance;
> Support ONVIF protocol, national standard GB28181 protocol;
> Dual stream, users can choose stream and adjust resolution, frame rate, video quality;
> Support digital 3D noise reduction, the image is clearer and smoother;
> Support motion detection, motion detection alarm, email alarm, client alarm;
> Support screen movement detection/screen occlusion, can set 4 occlusion areas
> Support remote real-time monitoring, network user management, network time synchronization;
> Support automatic restart function after power failure/accidental failure;
> Support automatic switching of optical filters to realize day and night monitoring;
> Support character overlay, the overlay position can be adjusted, automatic reverse color display;
> Support Google kernel browser uncontrolled preview
> Lens:10X zoom auto focus lens
> Support mobile phone monitoring and POE power supply (optional);
> Support custom development (algorithm custom porting, functional interface customization, platform protocol docking, etc.)
| Model | SIP-K2063GS-10X |
| Camera Type | H.265 2.0mp Starlight IP Camera Module |
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS GC2063 |
| Effective Pixels | 1920 (H) × 1080 (V) 2.0 M pixels |
| DSP | GK7205V300, Cortex A7 900MHz, 128MB built-in DDR3 |
| Min. Illumination | Color: 0.01Lux F1.2(AGC ON), B/W: 0Lux(IR ON) |
| S/N Ratio | ≥50dB(AGC OFF) |
| Motorized Zoom Lens | Support 10X optical zoom Lens |
| Ir-Cut | Support |
| Day/Night | Color/B&W/Auto |
| Smart IR/white light | Support |
| Light mode | Low Level/High Level/PWM |
| WDR | ≥80dB WDR |
| 3DNR | Support |
| Tonal | Available to set |
| Brightness | Available to set |
| Sharpness | Available to set |
| Contrast | Available to set |
| Saturation | Available to set |
| Gamma | Available to set |
| BLC | Available to set |
| Mirror image | Open/Close |
| Flip | Open/Close |
| HLC | Open/Close |
| Video Format | PAL/NTSC |
| Lens Correction | Open/Close |
| Dehaze | Open/Close |
| Exposure Strategy | Highlight Priority/Low Light Priority/Auto |
| Exposure Mode | Auto / Manual |
| AutoExposure Time | Auto / Manual(1/12s-1/8000s) |
| Slow Shutter | Open/Close |
| Gain Mode | Auto / Manual |
| White Balance Mode | Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable |
| OSD Settings | Code stream information/display week/display time/channel title/watermark overlay |
| OSD Display | Color/size/position adjustable |
| Video/Audio | |
| Video Coding | H.265/H.264 |
| Encoding Scheme | Baseline/Main Profile/High Profile |
| Resolution | Main stream: 1920*1080/1280*960/1280*720 (1-30fps) |
| Sub Stream/Three Streams:D1, VGA, (1-30fps) | |
| Frame Rate | 1-30fps |
| Bit Rate | 32Kbps-16Mbps |
| Bitrate Type | Support VBR/CBR |
| Audio Compression | G.711U/ G.711A/G.726/AAC |
| Audio Input Mode | Mic In/Line In |
| Audio Input Gain | Available To Set |
| Audio Output Gain | Available To Set |
| Echo | Open/Close |
| Network | |
| Data Storage | Video Record, Picture Format |
| Trigger | Manual, automatic (motion detection, alarm, time) |
| Alarm Data Transmission | Websocket, FTP, Browser |
| Network Protocol | HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,UPNP,PPPOE,etc. |
| Transfer Protocol | ONVIF/GB28181/SDK/CGI |
| Number Of Client Visits | Support 6 Users Login At The Same Time |
| Browser | IE/Edge/Chrome/Firefox |
| Network Lost Recording | Supports |
| Motion Detection | Supports 4 Area |
| Hide Detect | Supports 4 Area |

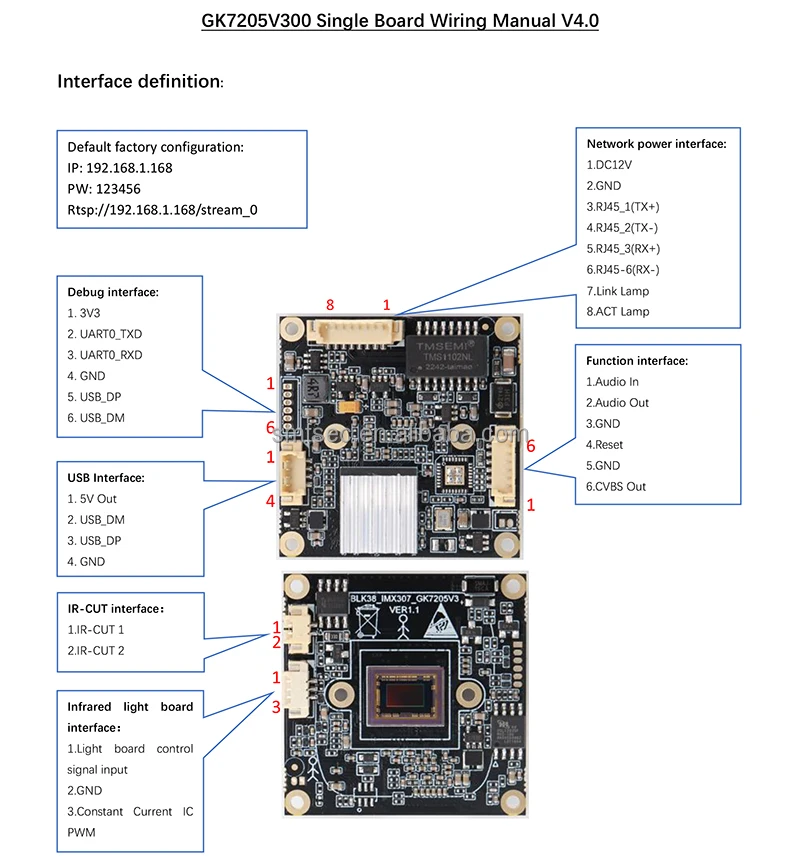

| Interface | |
| Network Interface | 10M/100M Adaptive Ethernet Port |
| Audio Input | 1Ch Audio Input |
| Audio Output | 1Ch Audio Output |
| USB interface | 1 USB2.0 interface (5V power supply), support extended 4G/WiFi function |
| Uart port | 1Ch |
| Reset interface | Support |
| <Optional Function> | <Note: The standard version does not include the following functions, if you need, please consult us> |
| Smart Phone | iPhone,iPad, Android |
| TF storage function | Maximum Support 512G |
| CVBS Output | 1 CH CVBS Output |
| Wifi | Support 802.11bgn |
| 4G Function | Support 4G Cat.1, rate up to 10Mbps |
| POE | IEEE802.3af/at |
| Smart function | Support humanoid detection/area intrusion/flame detection/electric vehicle detection/license plate detection |
| Function customization | Support function customization development, platform protocol docking, algorithm customization transplantation, hardware and software development |
| General | |
| Power Supply | DC12V1A |
| Power Consumption | <1.2W |
| Working Environment | -20°C~+60°C , Less Than 90% Rh |
| Product Size(L/W/H) | 38X38X75mm |
| Net Weight | 0.2Kg |
4 kinds TF Board(Optional)
1. KTF-S
Expansion TF Card,
Support 256G TF Card
Expansion via SDIO interface
Support K series module function expansion
2. KTF-SA
Expansion TF Card,
Support 256G TF Card
Support alarm input/output
Expansion via SDIO interface
Support K series module function expansion
3. KTF-U
Expansion TF Card,
Support 256G TF Card
Support USB*2
Expansion via USB interface
Support K series module function expansion
4. KTF-UW
Expansion TF Card
Support 256G TF Card
Support Wifi
Support USB*2
Expansion via USB interface
Support K series module function expansion
4G Board: K4G
Support 4G
Support 4G Cat.1, rate up to 10Mbps
> Expansion via USB interface
> Support 4G
4G Board
Industrial grade 4G module
Support 4G / 3G / 2G + WiFi wireless access;
4G wireless transmission rate of the largest 150Mbps;
Can support up to 8 users access WiFi hotspots;
Support mobile / Unicom 2G, 3G, 4G; telecommunications 4G;
Precautions:
Default expansion through the network port
Driver support is required if you need to use USB extensions
The POE Module(Optional):
38X38mm PoE module IEEE802.3af/at protocol
POE power: 12W (12V/1A)
POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission
The WiFi Module(Optional):
80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN
> Support SIP-E Series
> IP module USB interface expansion
> Use WIFI function, you can not use USB storage
