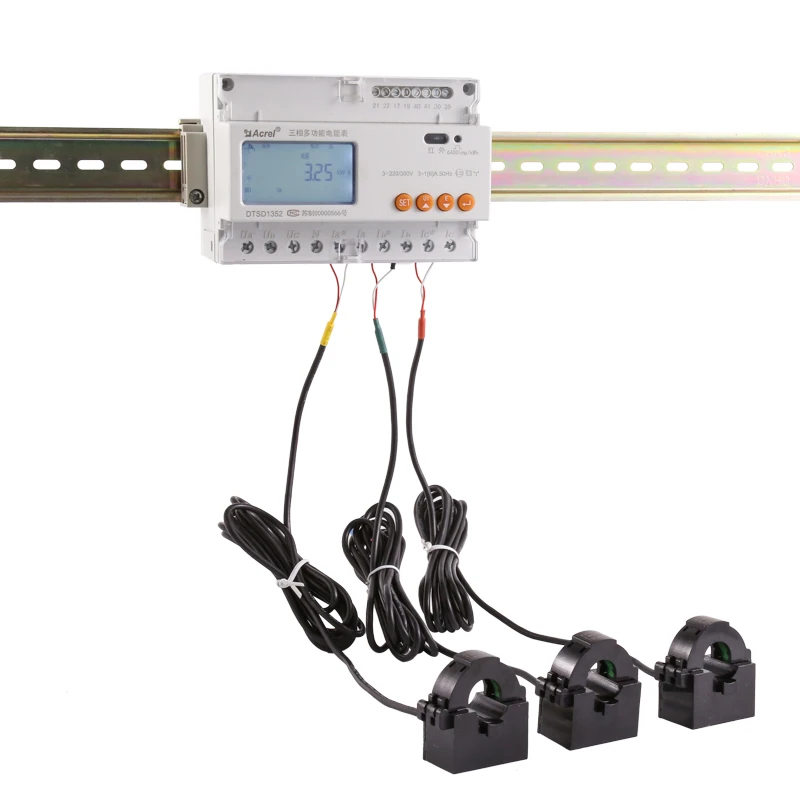

PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352 CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter
PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352-CT Solar Bidirectional 3 phase Energy Meter

PV RS485 Current Monitor Zero Export management Acrel Hot Sell DTSD1352 CT Solar Bidirectional 3 phase Energy Meter

Share on (1600943333564):


Price:$101.50

Quantity:


Product Overview

Description

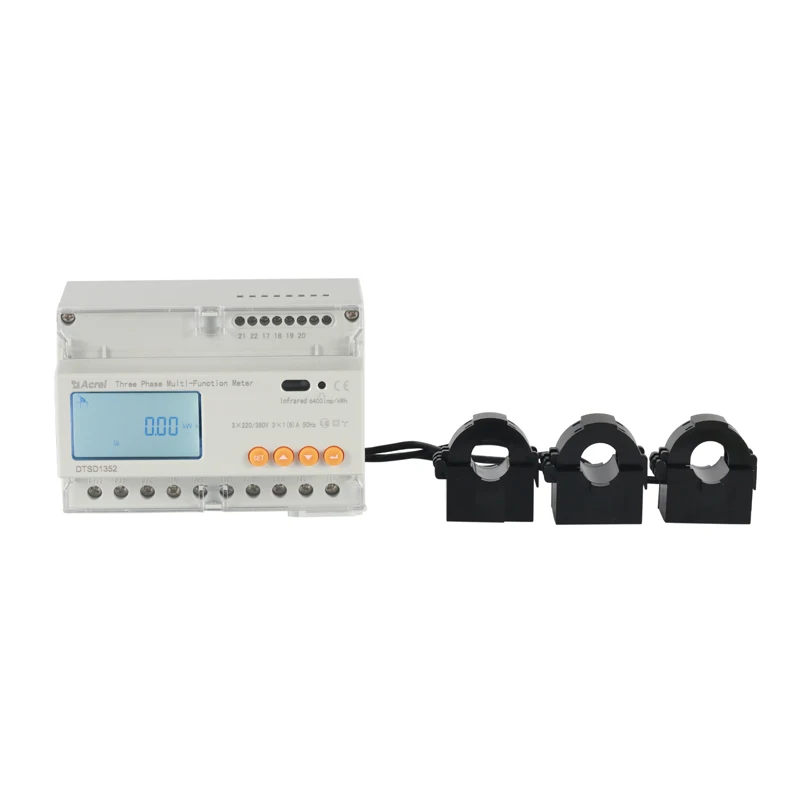

Acrel RS485 Din rail 3 phase energy meter electricity kwh meter with 3 split core CTs 100A input current



















Product Paramenters
























































































Parameter


Value


Accuracy


1.0


Un


3×230/400V


In


3*1(6)A,3*10(100)A


Frequency


50Hz or 60Hz


Voltage supply


normal: 0.9 ~ 1.1Un ; maximal: 0.7 ~ 1.2Un


Starting
current


With CT


0.004Ib


0.002In


Consumption


For voltage


≤5VA / phase


For current


<4VA / phase


Output of pulse


Width of pulse: 80ms±20ms
open-collector photo-coupler pulse


Digital communication


RS485, MODBUS-RTU


Clock error


≤0.5s/d


Environment


normal: -10C ~ +45C,
maximal: -20C ~ +55C,
storage: -40C ~ +70C


Relative humidity


≤95% (without dewing)


Outline (L×W×H)


126×89×74 (mm)


















General




DTSD1352-CT/C three phase electric meter is designed for three phase energy measurement on low voltage system.
The meter meet the related technical requirement of electronic meter in the IEC62053-21,IEC62053-22standards.

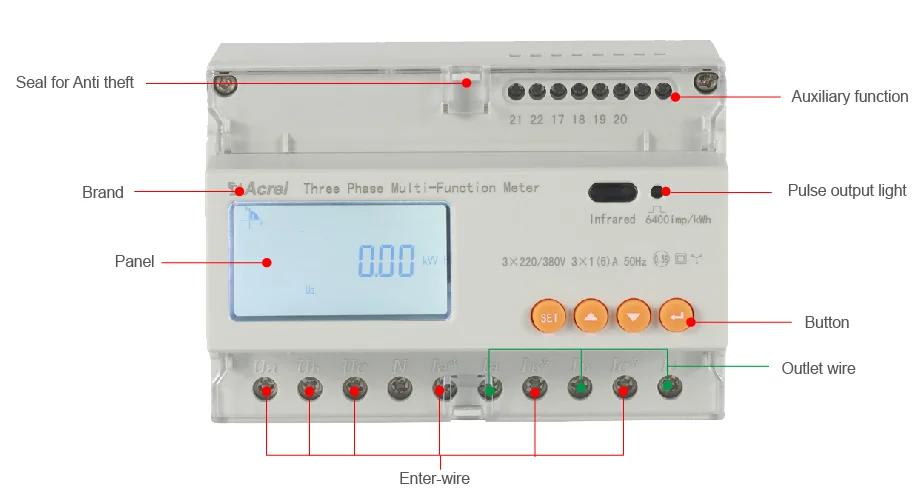

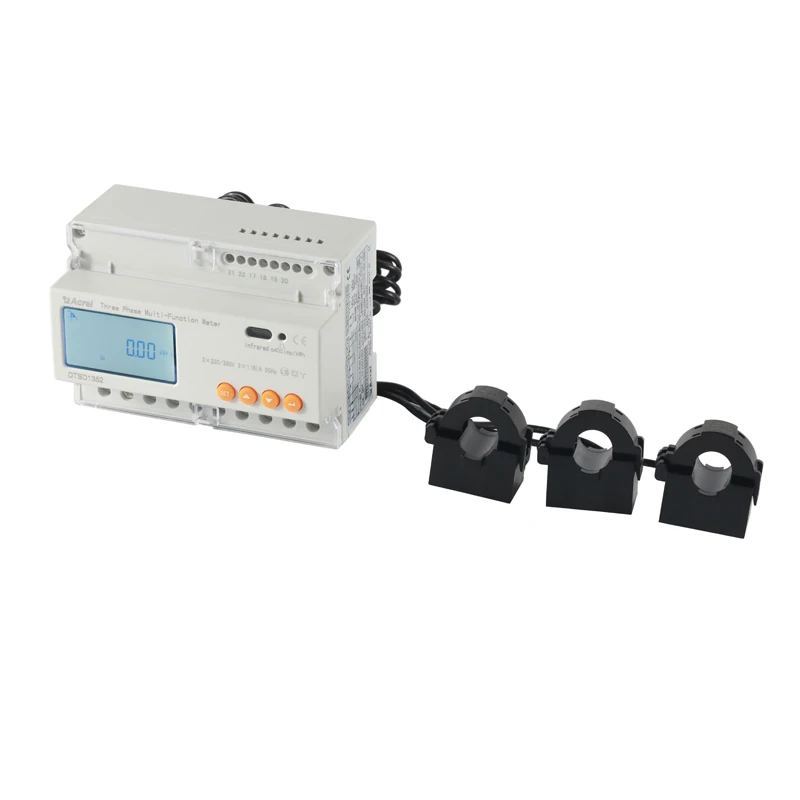

Appearance

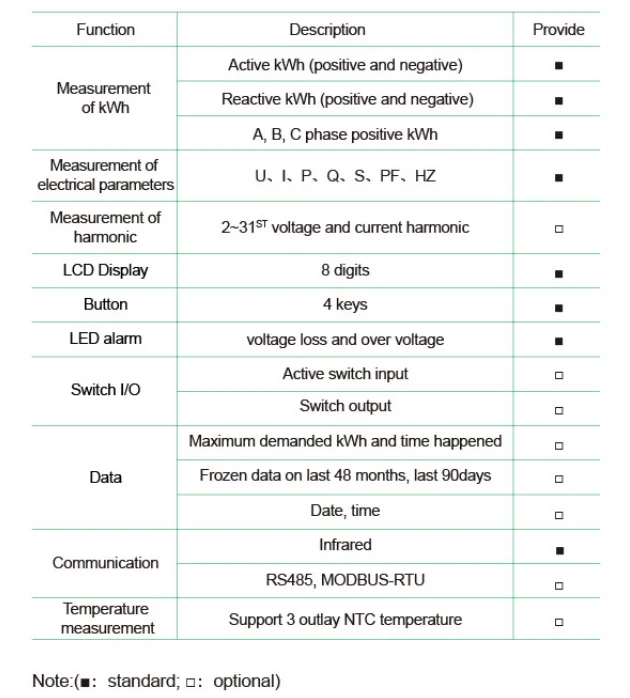

Product Function

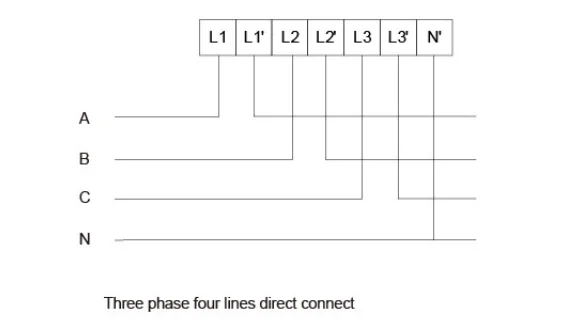

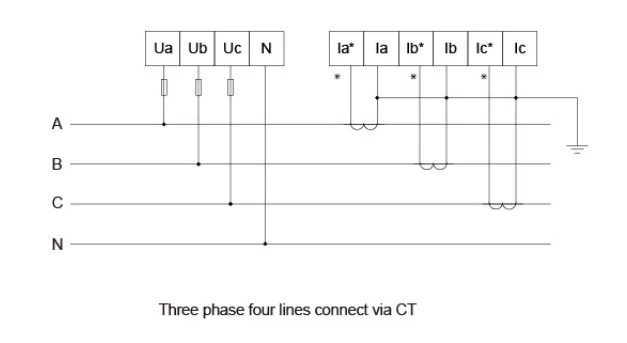

Wiring

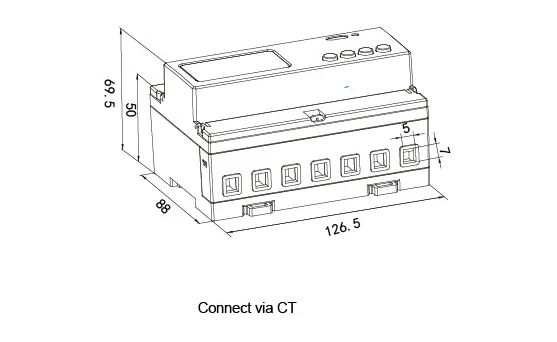

Dimension drawings
