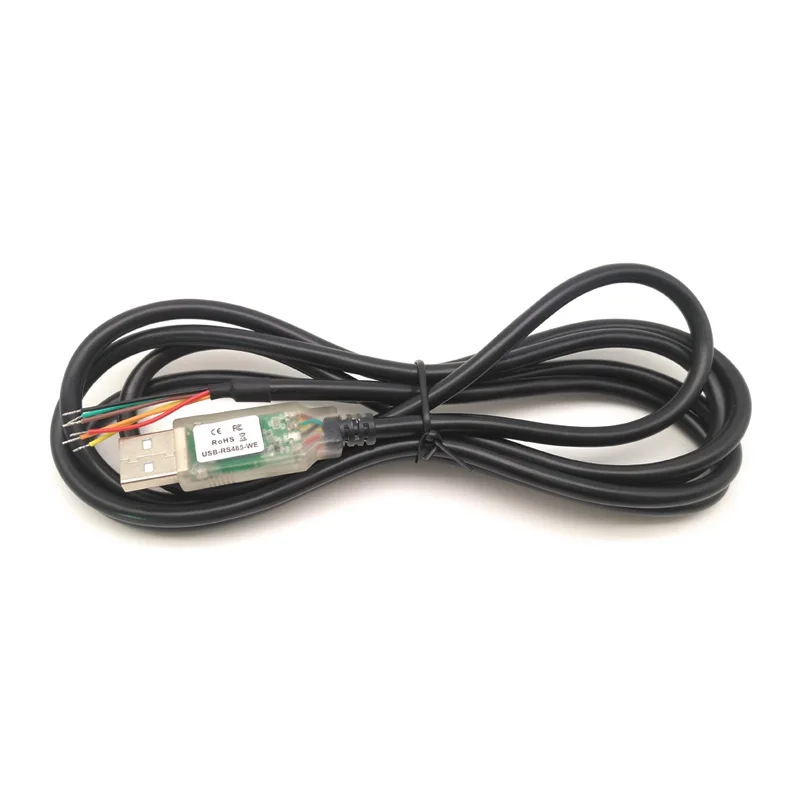

USB to RS485 serial interface cable
- Category: >>>
- Supplier: Shenzhen Bater Technology Co. Ltd.
Share on (1600943401704):
Product Overview
Description
Company Information
Shenzhen Bater Technolgy Co., Ltd. is an experienced exporter of RC products. We specialize in providing RC model quadcopters&Accessories,ESC, Servos and other RC spare parts.
We have extensive experience in foreign trade and our products have been exported to over 30 countries and areas, such as USA,South America ,Europe and Asia.
To supply goods quality products, efficient delivery and reliable after service is our mission.
To build win-win cooperation is our business abjective.
Your satisfaction is our best reward and We will do our best to meet your requirements.
We hope to establish long-term business relationship with RC modelers all over the world.
Welcome to contact us for details.
USB TO RS485 WIRE EN

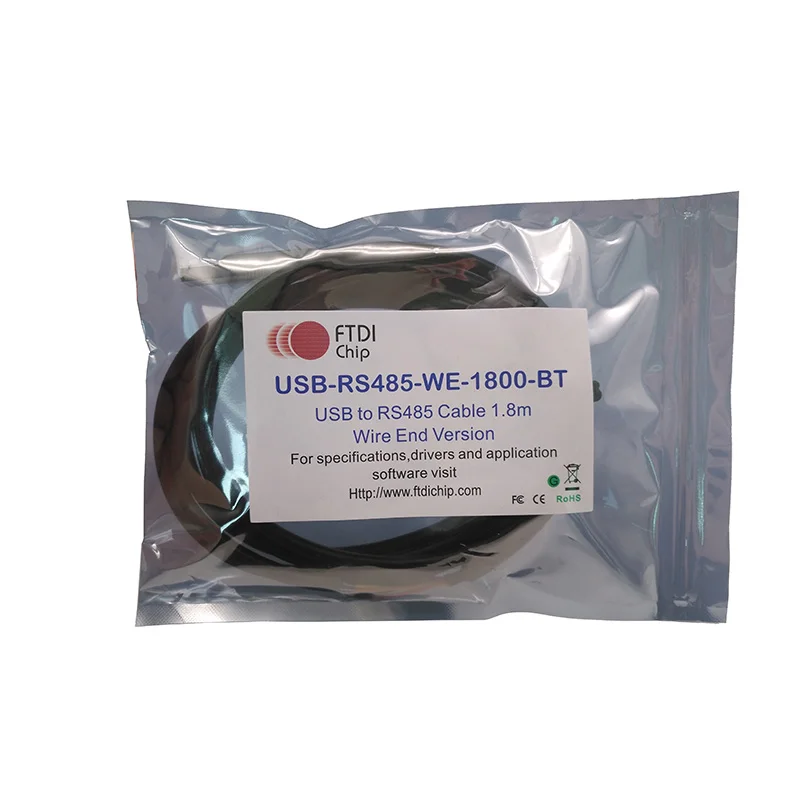

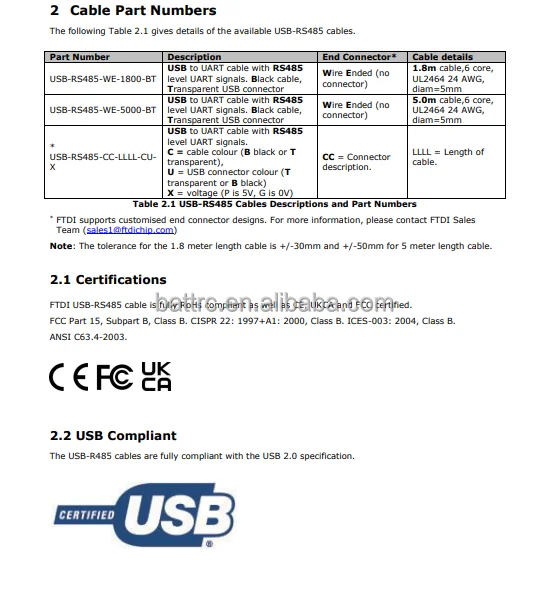

Part No: USB-RS485-WE-1800-BT
USB TO RS485 WIRE END, 1.8M, BLACK, Transparent USB CONNECTOR
USB to RS485 serial interface cable
- Data Rates: 3MBaud
- USB Speed: Full Speed (12Mbps)
- Interfaces: UART
- USB Connector: Type A
- End Connector: Wire ended
- Cable Length: 1.8m
- Cable Details: 6 core, 5mm UL2464 24 AWG
- Packages: N/A
- Channels: 1
- I/O Voltage: RS485
- USB Class: FTDI Drivers
- Virtual Com Port: Yes
- Max Power Output: +5V / 250mA
- FTDI Internal IC: FT232R
- Operating Temperature: -40°C to +85°C

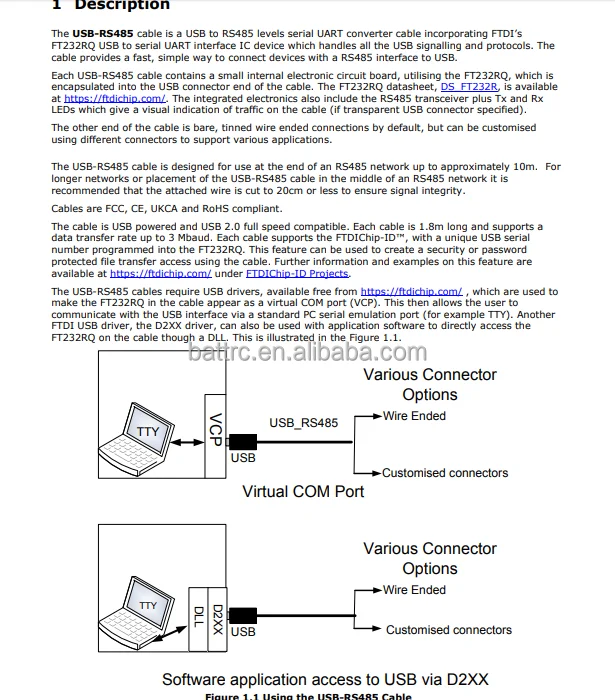

The USB-RS485-WE-1800-BT_0.0 is a 1.8m long USB to RS485 converter cable.

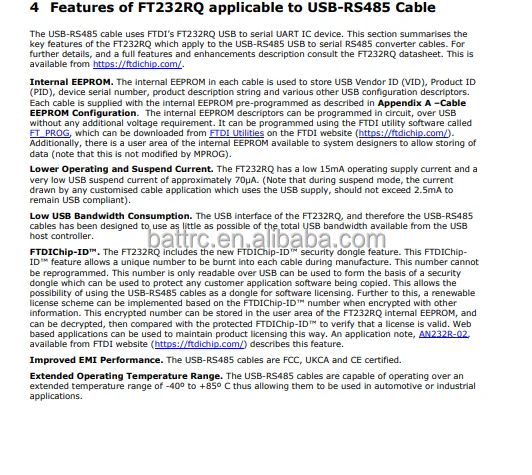

Using the FT232R chip combined with an RS485 level converter, the cable is CE, FCC and UKCA approved product which is one of the simplest USB – RS485 solutions around.

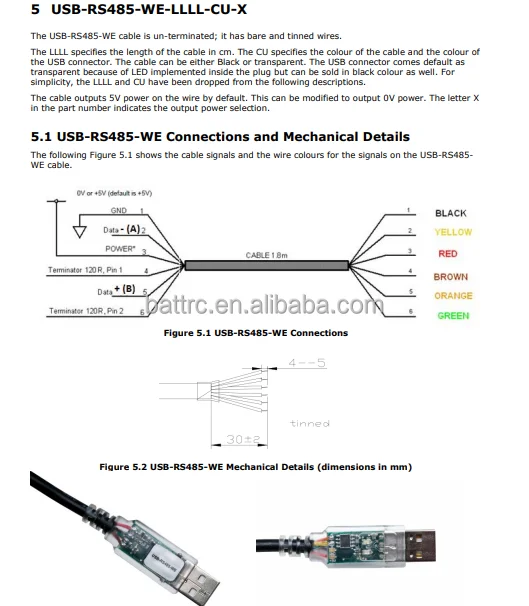

Powered from the USB port, the RS485 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.

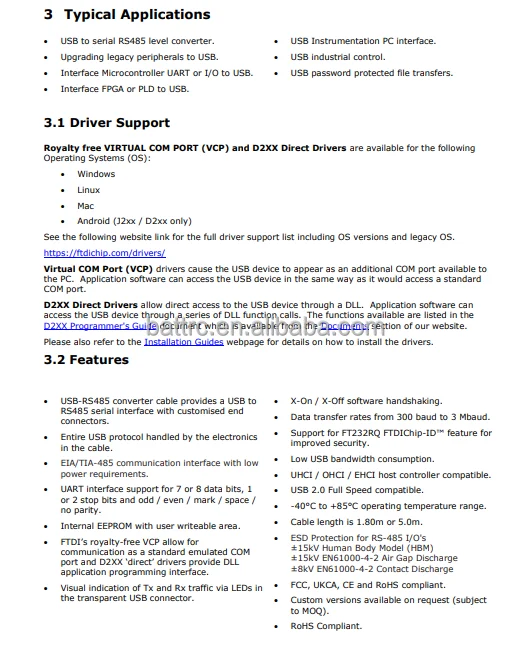

The cable can be used with FTDI’s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS485 units from 300 baud up to 3 MBaud.
Data RX and TX LEDs visible through transparent moulding
cable colour : black
Packaging & Shipping
We also use standard high quality carton box:
Fast Delivery and Shipping cost was very cheap:
1, TOP5 International Forwarding Company from China to Worldwide;
2, Ability to handle cargo from any city in china & consolidation service
3, Professional team guarantee to our customers good services .
4, Provide the cost effective and time effective shipping solution, and the competitive rates .
5.We have ten years experience of Amazon FBA Door to Door DeliveryService with high reputation among the industry.
6.Best service at the most reasonable price is always our company benefit. We believe long term business relationship is built on each transaction's satisfaction
