For hygienic sanitary SS304 SS316L 3A/SMS/DIN/ISO standard Sanitary pressure reducing valve PRV with pressure gauge
- Category: >>>
- Supplier: Wenzhou Yuanyu Mechanical Co. Ltd.
Share on (1600943599543):
Product Overview
Description

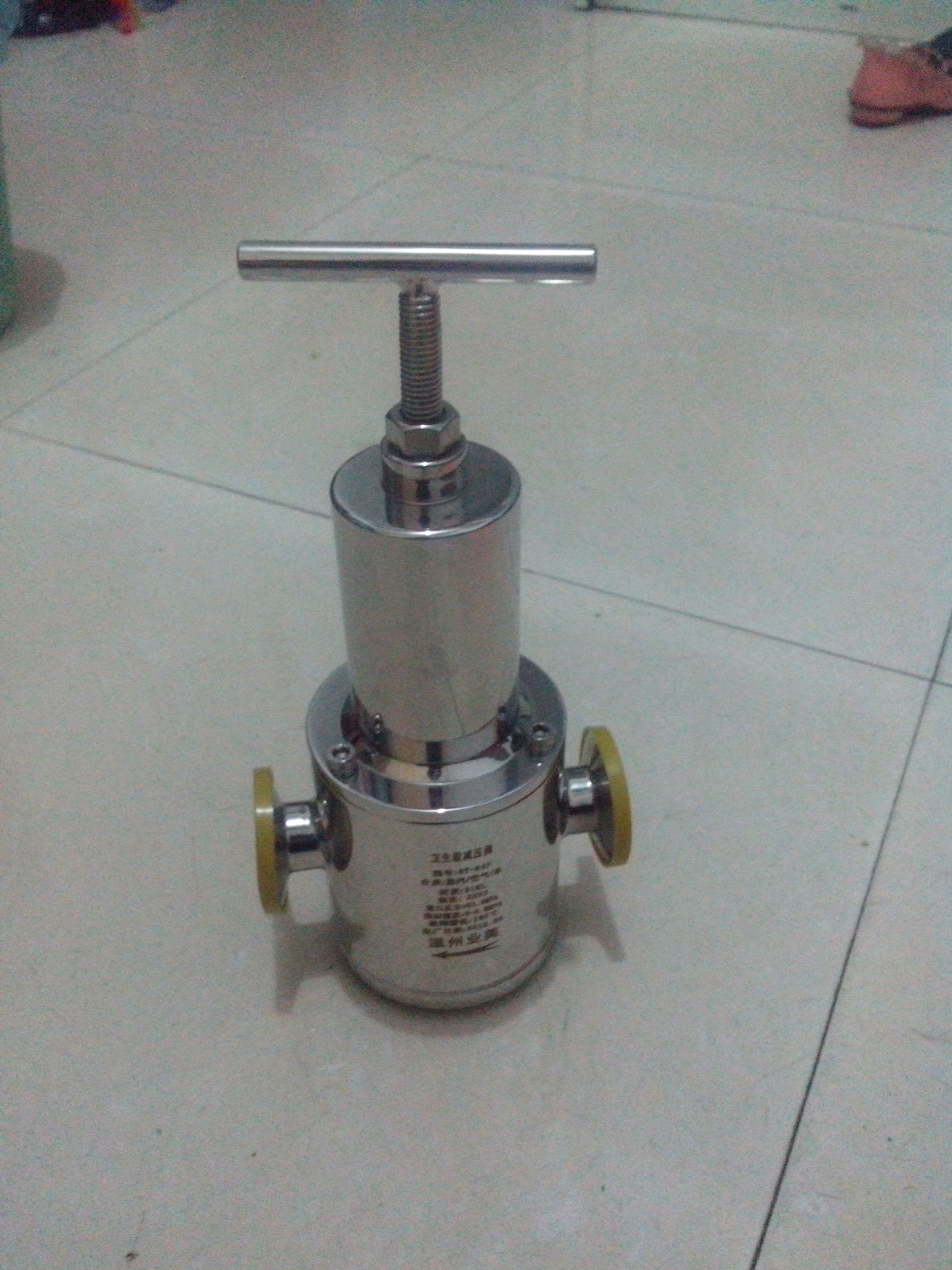

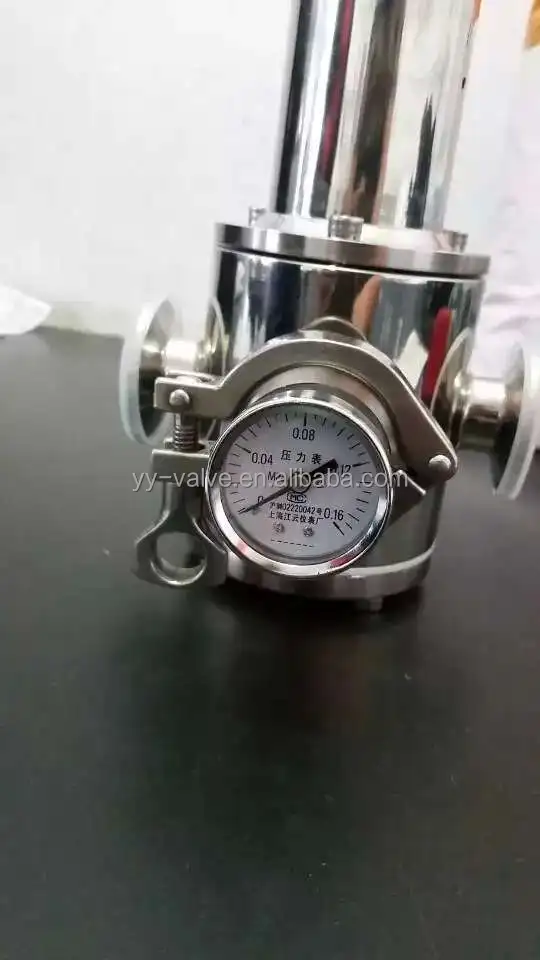

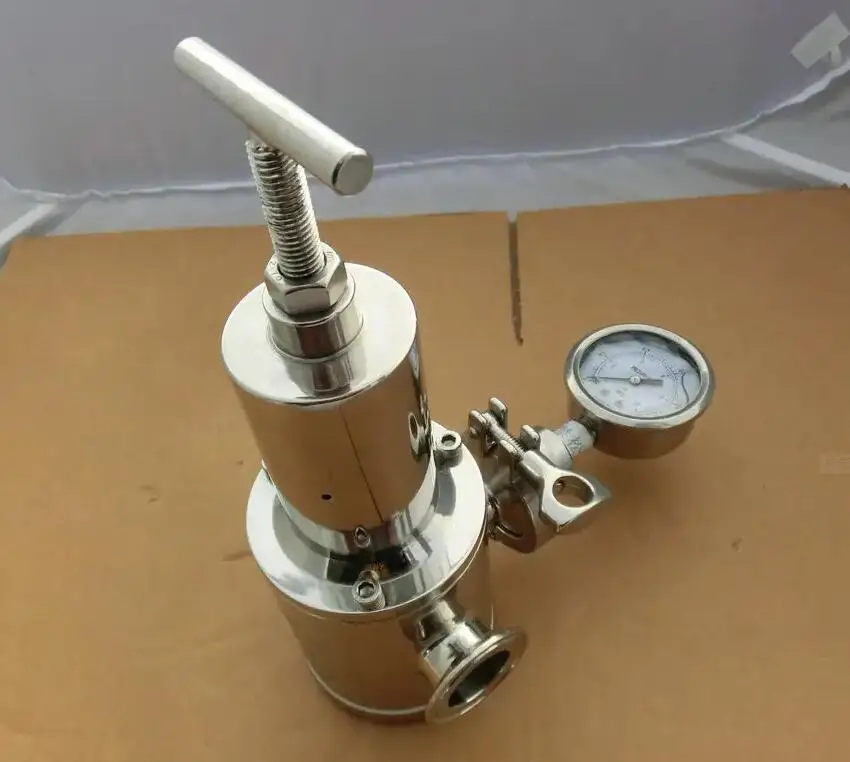

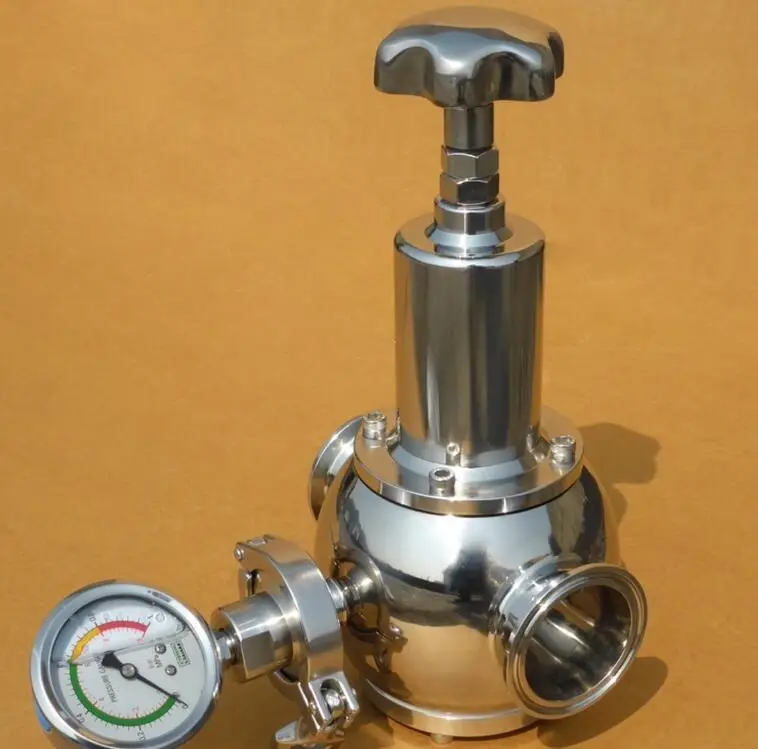

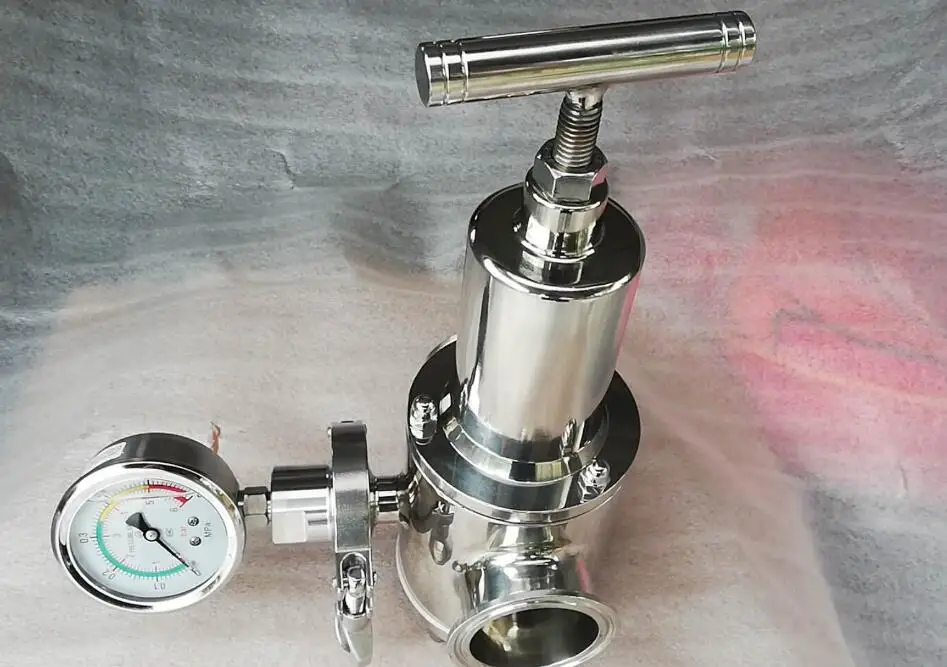

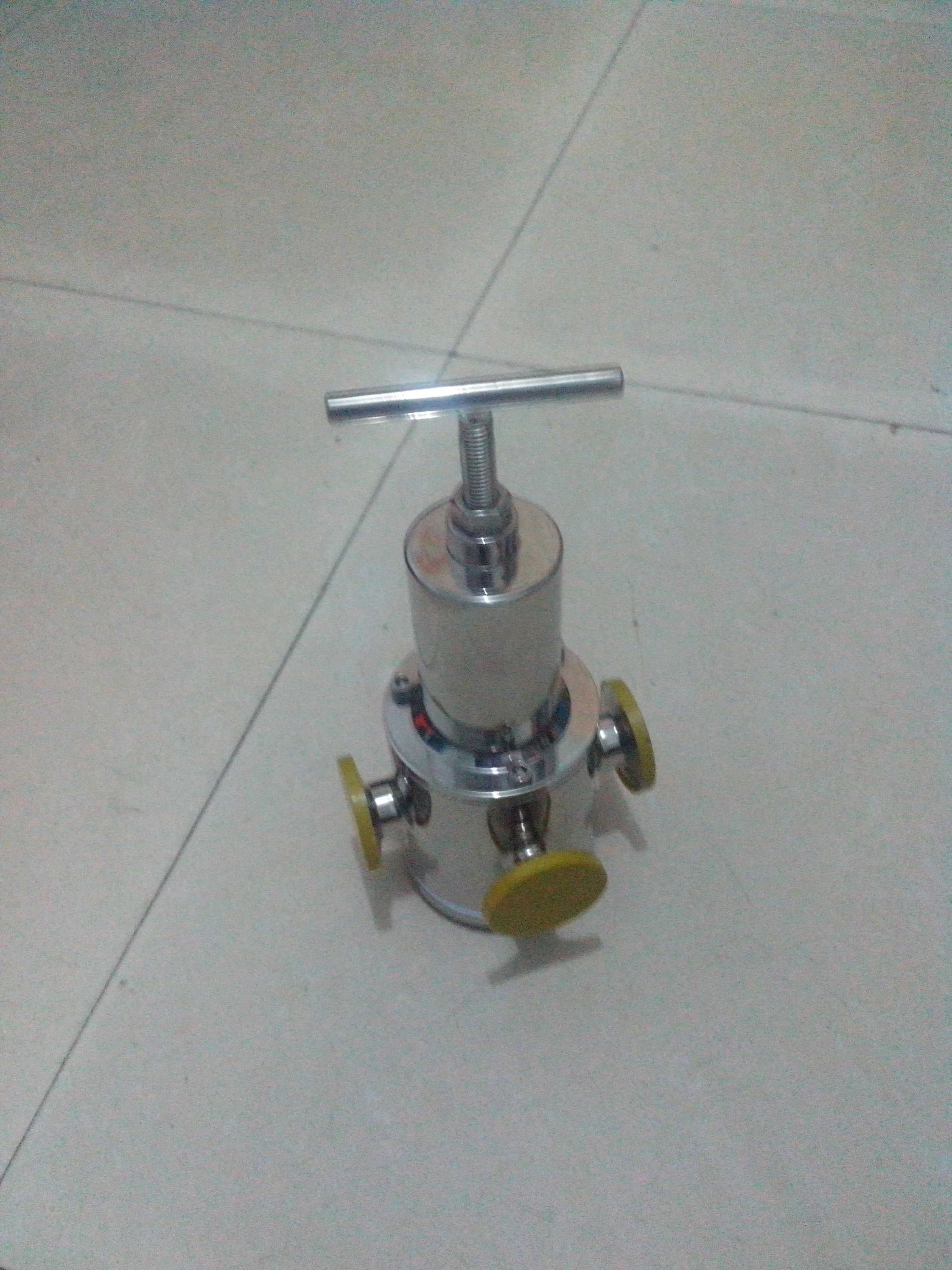

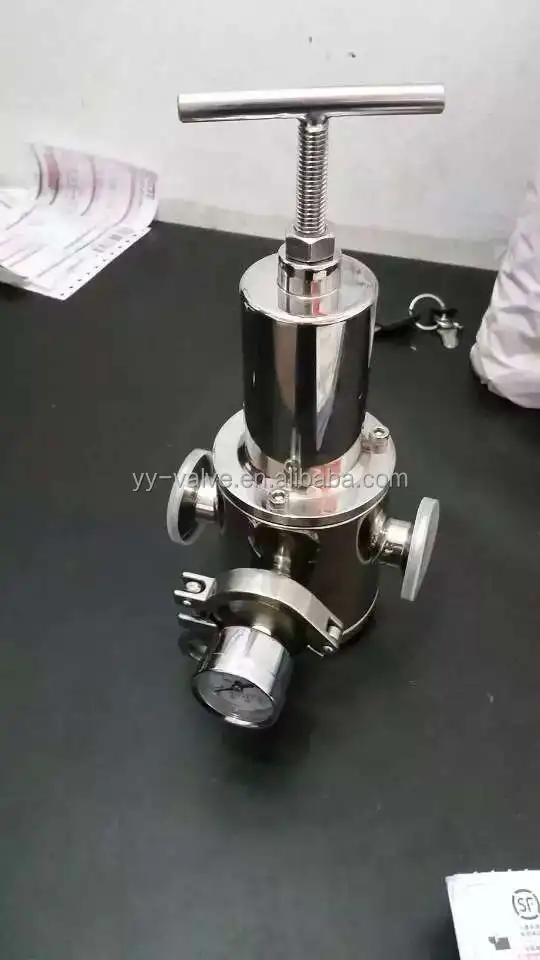

For hygienic sanitary SS304 SS316L 3A/SMS/DIN/ISO standard Sanitary pressure reducing valve PRV with pressure gauge
Application
PRV valve is a series of sanitary valve, it is widely used on wine, dariy products, beverage
,foodstuff industry, pharmacy etc. Achieving the requirement of control and open/close for the pipeline system.
Technical Data | |||
Material | Contact with the product components | 304L/316L(1.4306/1.4404) Forging | Can provide material inspection report |
Material No contact with the product components | 304/202(1.4301/202) Forging | ||
Sealing Material | Standard | EPDM+PTFE | Adopt import sealing materials, with all the seal material the FDA 117.2600 |
Option | VMQ | ||
Pressure | Pressure of Work | 0~10bar | |
Control air pressure | 5~8 bar | ||
Temperature | Working temperature | VMQ:(-50~+180℃) EPDM:(-20~+135℃)FPM:(-30~+230℃) | |
Sterilization temperature | 150℃(MAX20min) | ||
Surface treatment | Inside surface treatment | Ra>=0.4-0.8μm | |
Surface treatment | Ra>=0.8-1.6μm | ||
Connection | The diameter welding | Welding mouth:DIN 11850-2with 11850-1/SMS/3A/ISO Series etc | |
Connection mode: welding, fast loading, union, flange, etc. | |||
Pneumatic control | Pneumatic head and fixed bracket | ||
1. May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves
2. What's the payment term
For small orders, we accept PayPal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
3. Can i have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo.
4. Do you have any MOQ of your products?
We always have stock for valve
5. Do you accept no-standard products?
Sure, as soon as you could provide drawings or detail.
