OEM/ODM data Center Server Network Rack Communication network cabinet 9u 42u server rack data Center equipment
- Category: >>>
- Supplier: Zhejiang Zhiting Information Technology Co. Ltd.
Share on (1600943644680):
Product Overview
Description
Wizard series | ||||||
Function | Item | Configuration | Specifications | |||
Enclosure | Dimensions | Standard 42 inches | 600/800*2000*1200/1400mm(W*H*D) | |||
Cabinet door | Plexiglass door with appearance modeling | Plexiglass door：front and rear door thickness≥1.2mm，side door thickness ≥1.5mm | ||||
Ground connection | Reserved for more than two ground points. | BVR6mm2 | ||||
Shelves | Two pieces per cabinet | 50Kg | ||||
Cable management | Near the rear door | Vertical cable ring | ||||
Cooling system | Air conditioner | Rack-mounted or In row | Determine the air conditioning cooling capacity according to the equipment power | |||
Emergency exhaust | 1 draught fan every enclosure | Air volume239~288CFM | ||||
Drainage | A water supply pipe, a drain pipe, bottom installation | PPR hot melt pipe ，Flooding:DN25，Discharge:DN40 | ||||

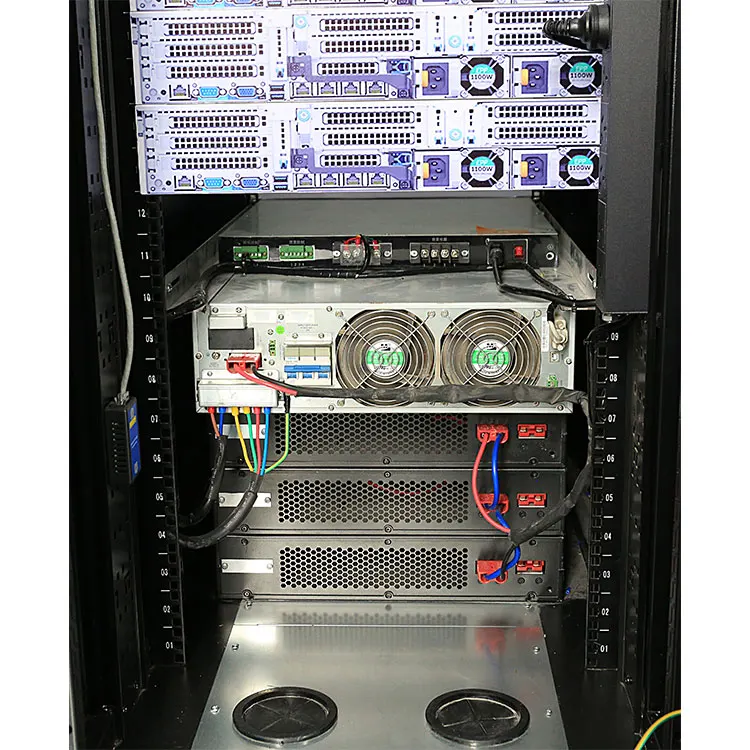

Power system | UPS | 10KVA to 30KVA | Rack-mounted, single-in single-out or three-in single-out, on-line UPS, power selection according to project situation | |||
Power backup | Lead-acid batteries or lithium battery | 7AH, 9AH | ||||
PDM | 32A or 63A input | Specification ：410mm(W)*8U(H)*600mm(D) | ||||
Configuration: electricity circuit, UPS circuit; 19P air switch at most | ||||||
Function: intelligent or non-intelligent | ||||||
Installation: rail installation in rack | ||||||
PDU | IEC/GB | Vertical or horizontal(less than 8 port) installation | ||||

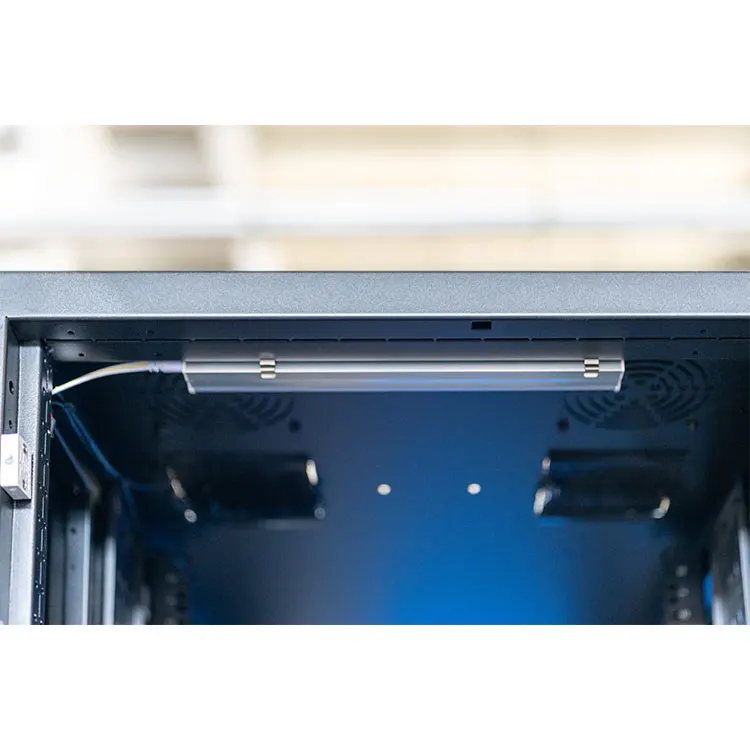

Light | LED | Front and rear door installate work lighting, controled by the door or screen touch | ||||
DC12V power supply, power ≤ 6W | ||||||
Fire suppression | Gas | FM200/Novec1230 | Optional | |||
Alarm system | Local and remote | Local lights sound warning, sent to the monitoring room or the control center | ||||

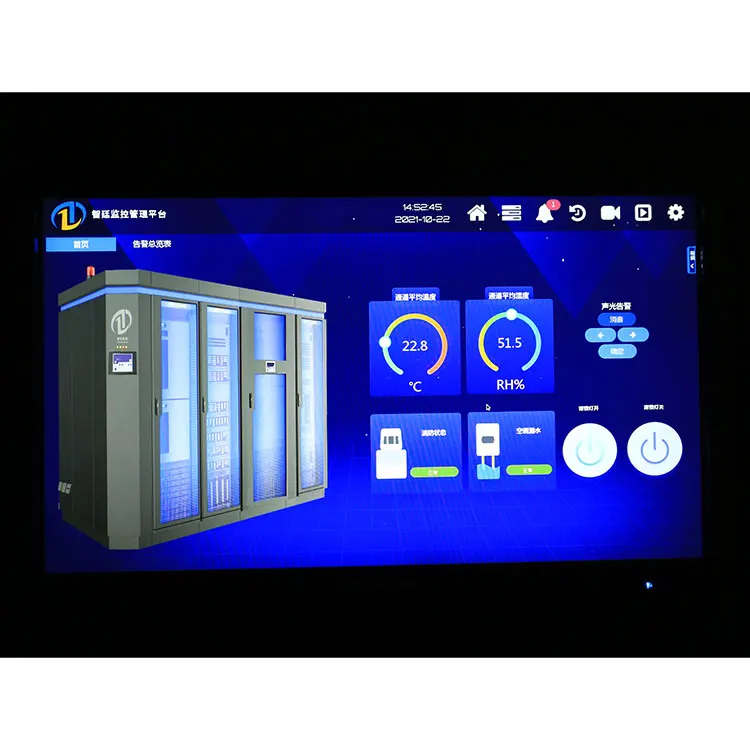

Minitoring system | Display screen | 10 inch touch screen | Optional | |||
Home A/C restart function | Optional | |||||
SMS | Optional | |||||
Remote mobile App | Optional | |||||
Liquid sensor | Optional | |||||
Tem&Hum sensor | Standard configuration | |||||

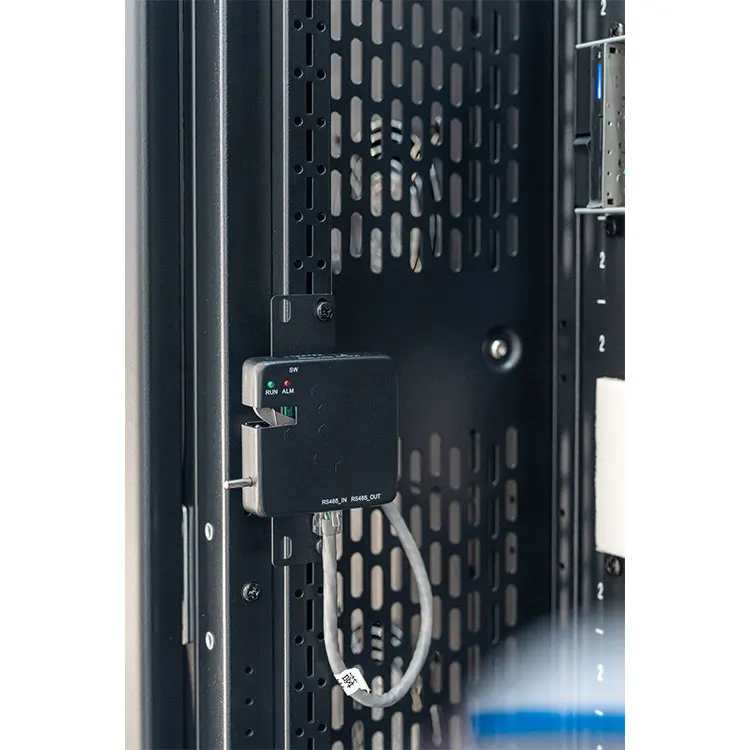

Door magnetic switch | Standard configuration | |||||
Smoke sensor | Standard configuration | |||||
Web monitoring | Standard configuration | |||||
Camera | Optional | |||||
Access control | Fingerprint,swipe or password | Optional | ||||
Package | Dimensions | Per cabinet | 734*2200*1368mm(W*H*D) | |||
Weight | Per cabinet | 150Kg(no battery pack) | ||||
