Micsig Professional Automobile Oscilloscope ATO1004 4 Channels 100MHz 1GSa/S 110Mpts Memory Depth Digital Oscilloscope Tester
- Category: >>>
- Supplier: Shenzhen Xeast Technology Co. Ltd.
Share on (1600943803828):
Product Overview
Description
Product Description
Product Overview

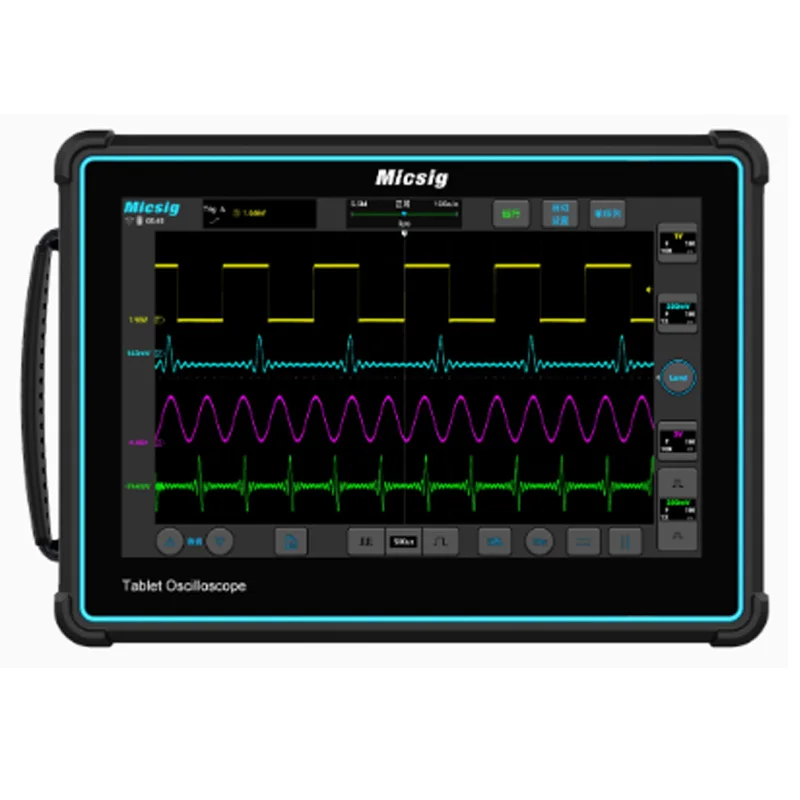

With 10.1-inch high-resolution full touch screen, large built-in battery, and Micsig’s dedicated SigtestUI™ multi-tasking system, the ATO automotive oscilloscope making modern automotive diagnostics much easier than ever before.
ATO series oscilloscope is an oscilloscope dedicated to automotive maintenance and diagnostics. Equipped with professional automotive diagnostic functions, it comes with 2 and 4 channels, max. 300MHz bandwidth, up to 2GSa/s sampling rate and 220Mpts memory depth, delivers most powerful signal capture and analysis capability.
With 10.1-inch high-resolution full touch screen, large built-in battery, and Micsig’s dedicated SigtestUI™ multi-tasking system, the ATO automotive oscilloscope making modern automotive diagnostics much easier than ever before.
Feature
*Professional automotive diagnostic tests
*Deep memory to display all signal details
*Compact portable design, best for field work

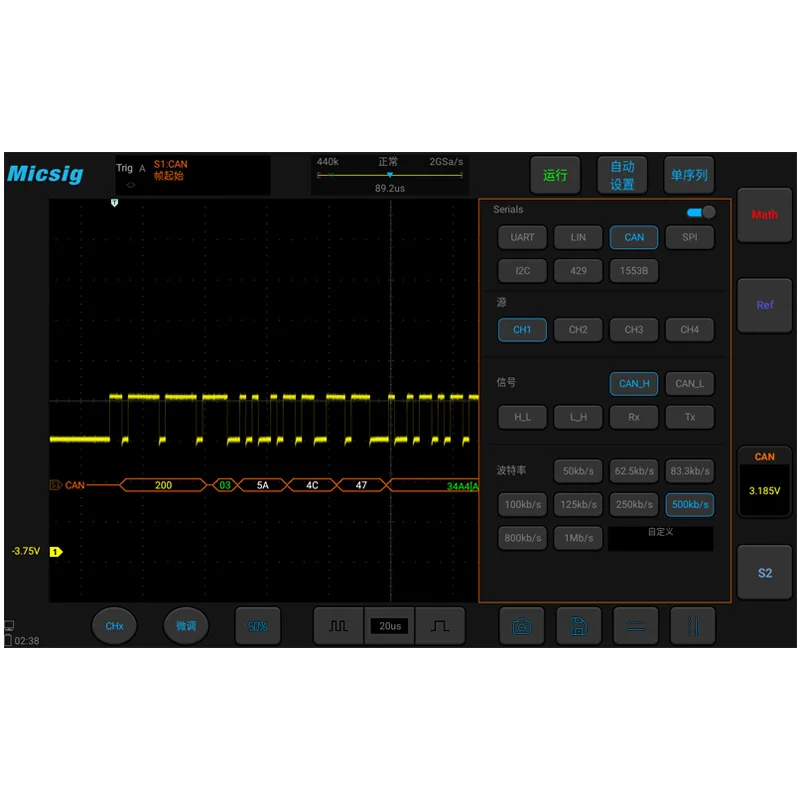

*Comprehensive serial bus trigger & decoding
* Large battery support continual field work

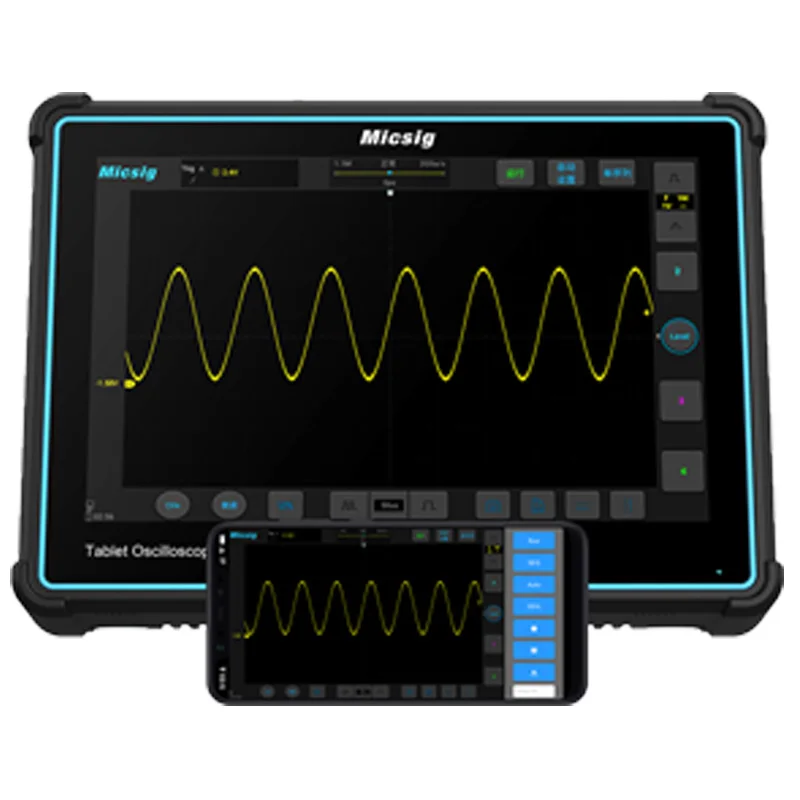

*Support W-Fi, USB, PC and SCPI control
*Android-based OS, 32GB internal storage
*Hardware-based filter to eliminates interferences
*Switchable 1ΜΩ/50Ω input impedance
*Support segmented storage acquisition
Specification
Model | ATO1004 | ATO2002 | ATO2004 | ATO3002 | ATO3004 | ||||
Bandwidth | 100MHz | 200MHz | 200MHz | 300MHz | 300MHz | ||||
Analog channels | 4 | 2 | 4 | 2 | 4 | ||||
Rise time | ≤3.5ns | ≤1.75ns | ≤1.75ns | ≤1.16ns | ≤1.16ns | ||||
Max. Sampling rate | 1GSa/s | 1GSa/s | 2GSa/s | 2GSa/s | 2GSa/s | ||||
Max. Memory depth | 110Mpts | 110Mpts | 220Mpts | 220Mpts | 220Mpts | ||||
Input impedance | 1MΩ | 1MΩ / 50Ω | 1MΩ / 50Ω | ||||||
Support Tests | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN, CAN FD, LIN, Flexray, K line), Combination Tests | ||||||||
Bandwidth Filter | Full bandwidth, Low pass | ||||||||
Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out | ||||||||
Display | Industrial 10.1" TFT-LCD (1280*800) | ||||||||
Size/Net weight | 265*192*50mm / 1.9kg（with battery） | ||||||||
Battery | 7.4V, 7500mAh Li-Ion battery | ||||||||
