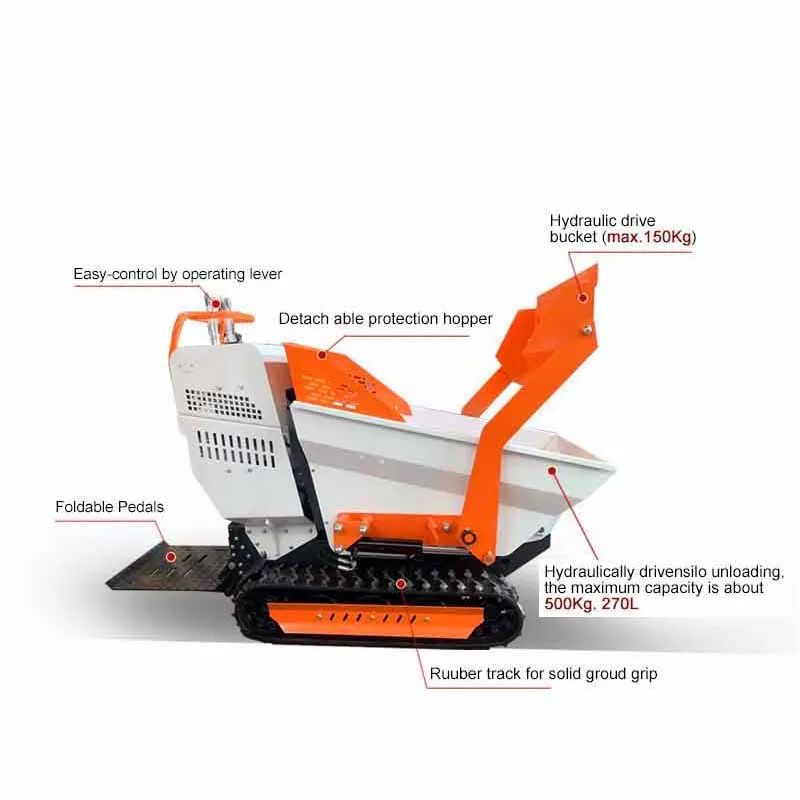

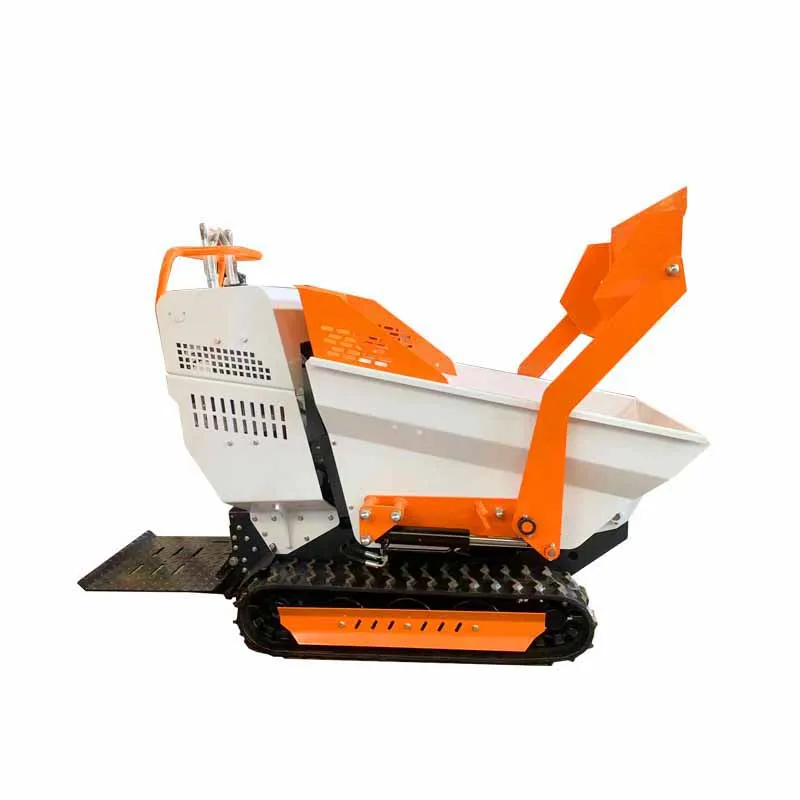

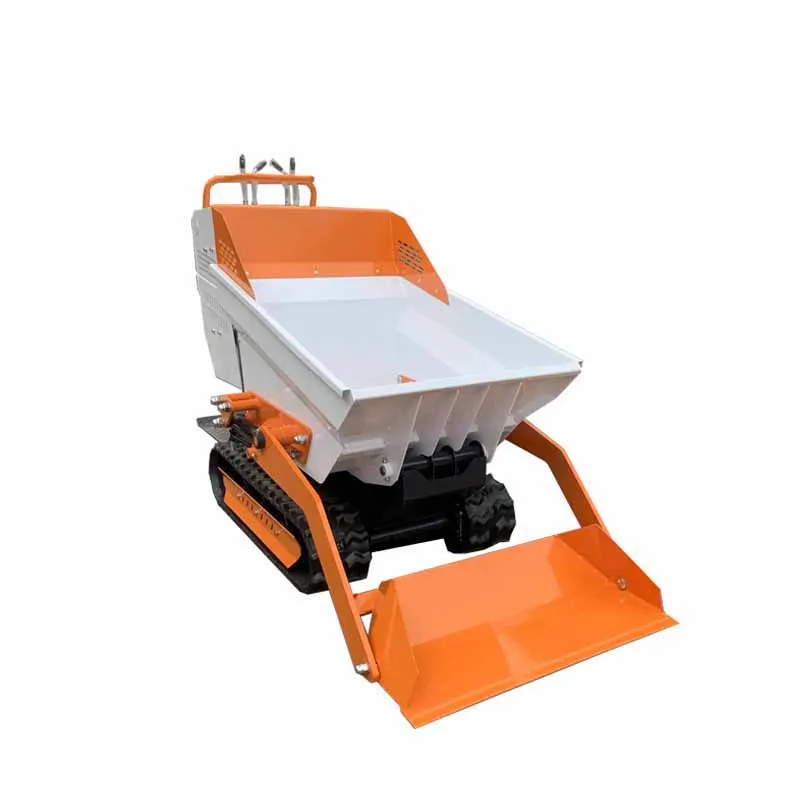

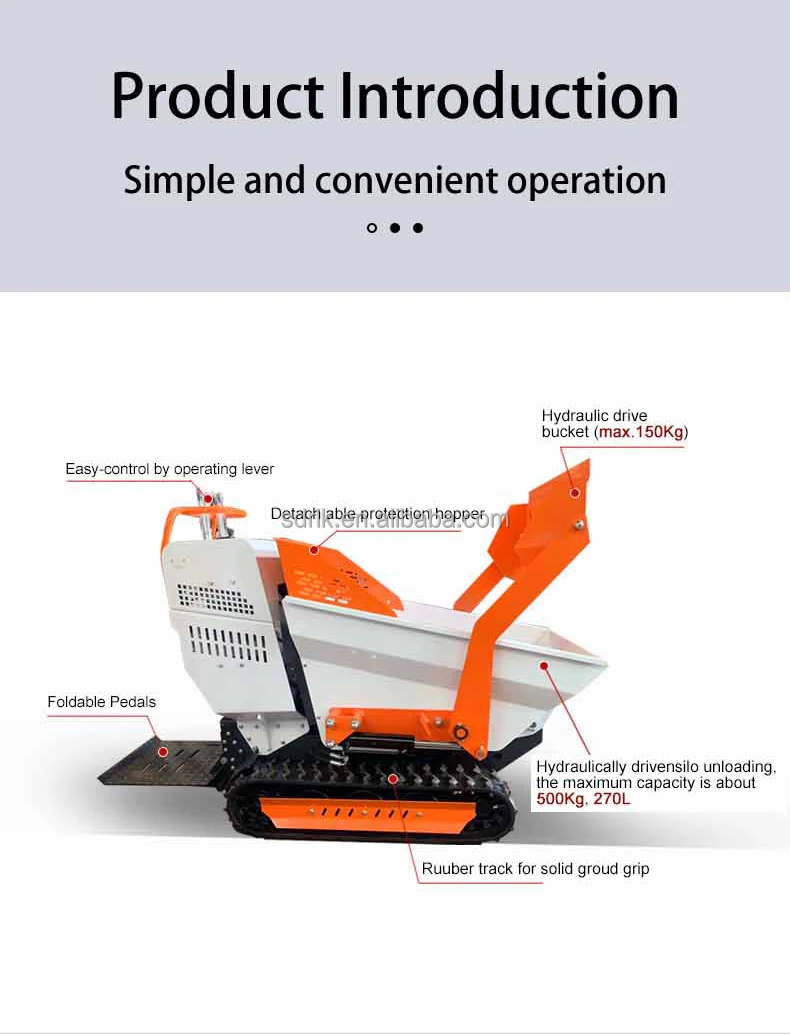

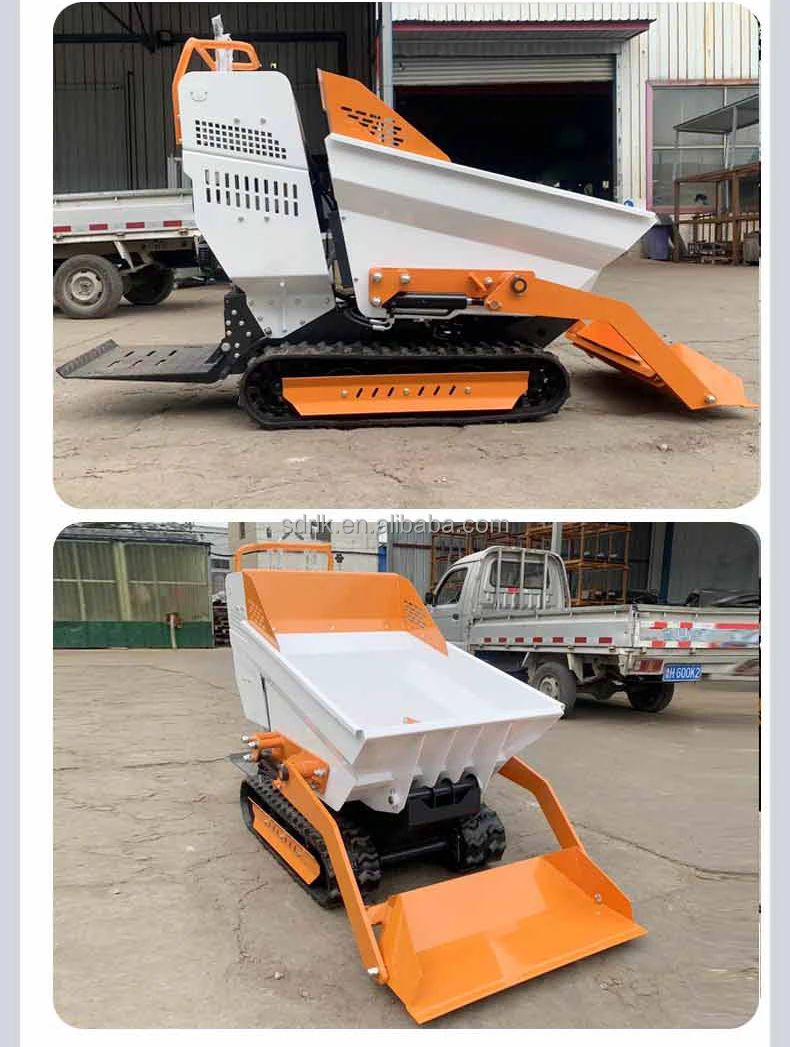

Hydraulic Tracked gasoline Mini Dumper 300 kg/500 kg/1000 kg Skip Loader/dumpers with Loncin engine EPA/Euro 5







This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.














COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE















Specification

















































































































Parameter


Value


Max. Operating Mass


860 kg


Transport Mass


360 kg

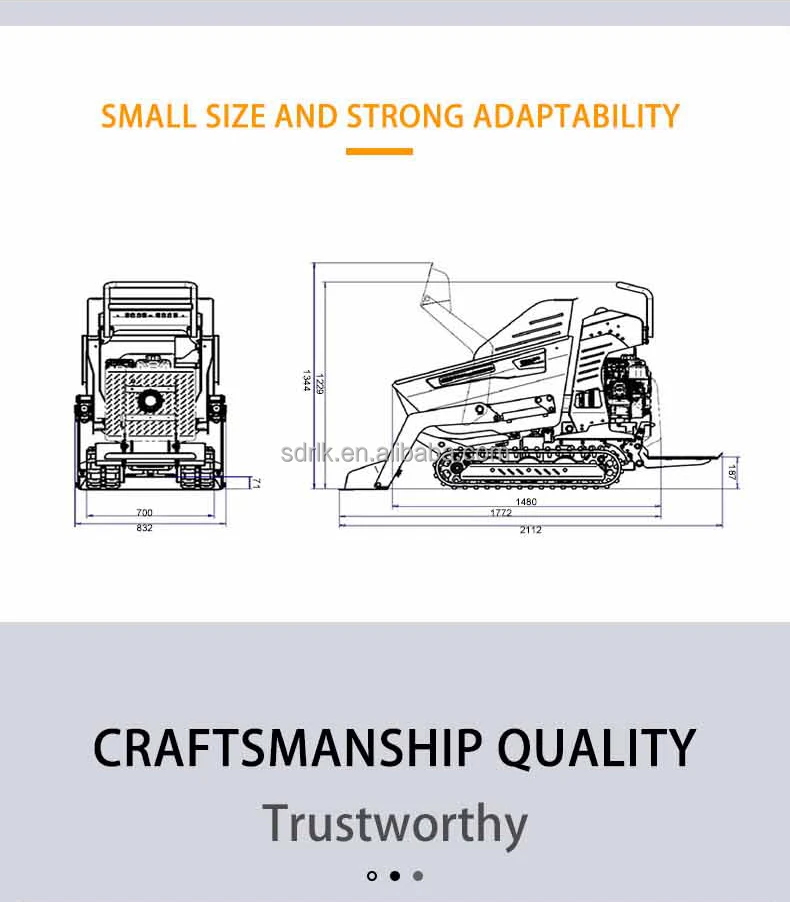

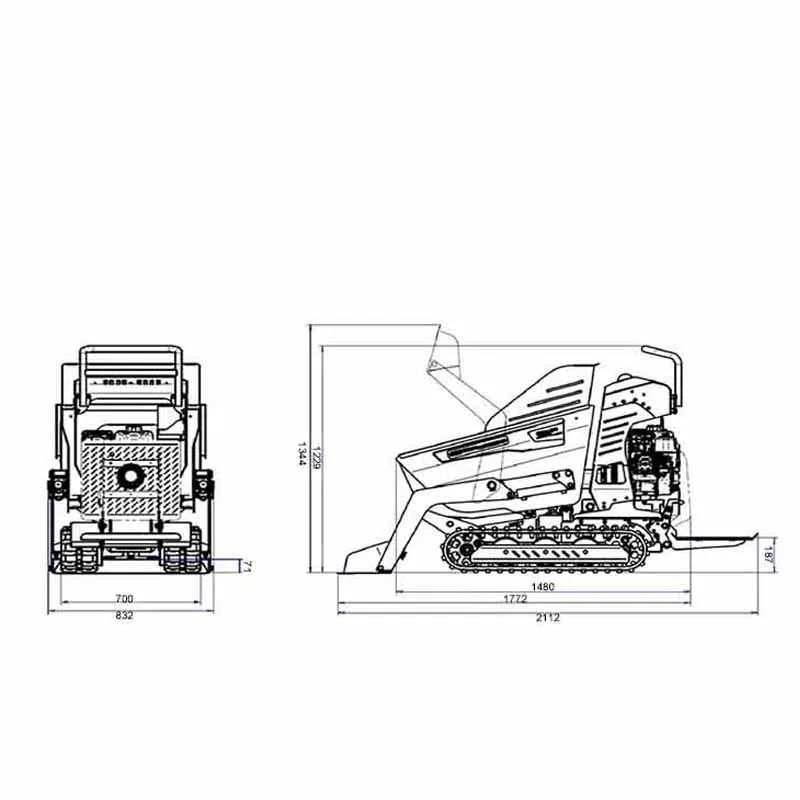

Overall (LxWxH)


2112 x 832 x 1344 mm


Transport Dimensions (LxWxH)


1480 x 832 x 1344 mm


Pump


Tandem gear pump (4cc x2) 3600rpm


Motor


Disc distribution cycloid motor (x2)


Working Pressure


Max. 180 bar


Hydraulic Flow


28.8 L


Motor Torque


645 Nm each at 180 bar


Driving


Hydraulic


Steering


Fully hydraulic / control valve


Forward


3.2 km/h


Reverse


3.2 km/h


Gradeability


15 degrees


Ground Clearance


71 mm

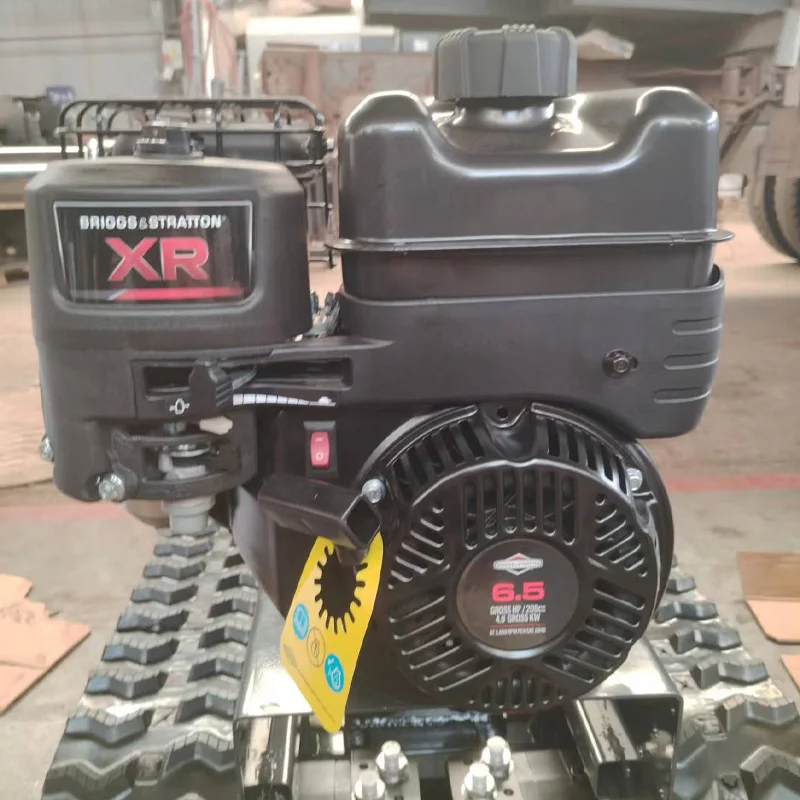

Engine Model


BTIGGS STRATTON XR950


Emission Accordance


EPA


Rated Power


6.5 HP / 3600rpm


Displacement


208 cc


Cylinder x Stroke


68.3 x 55.9 mm


Fuel Tank Volume


3.1 L


Oil Volume


0.6 L


Net Weight


16 Kg


Startup


Reversing & E-starter


Hopper Volume


270 L
