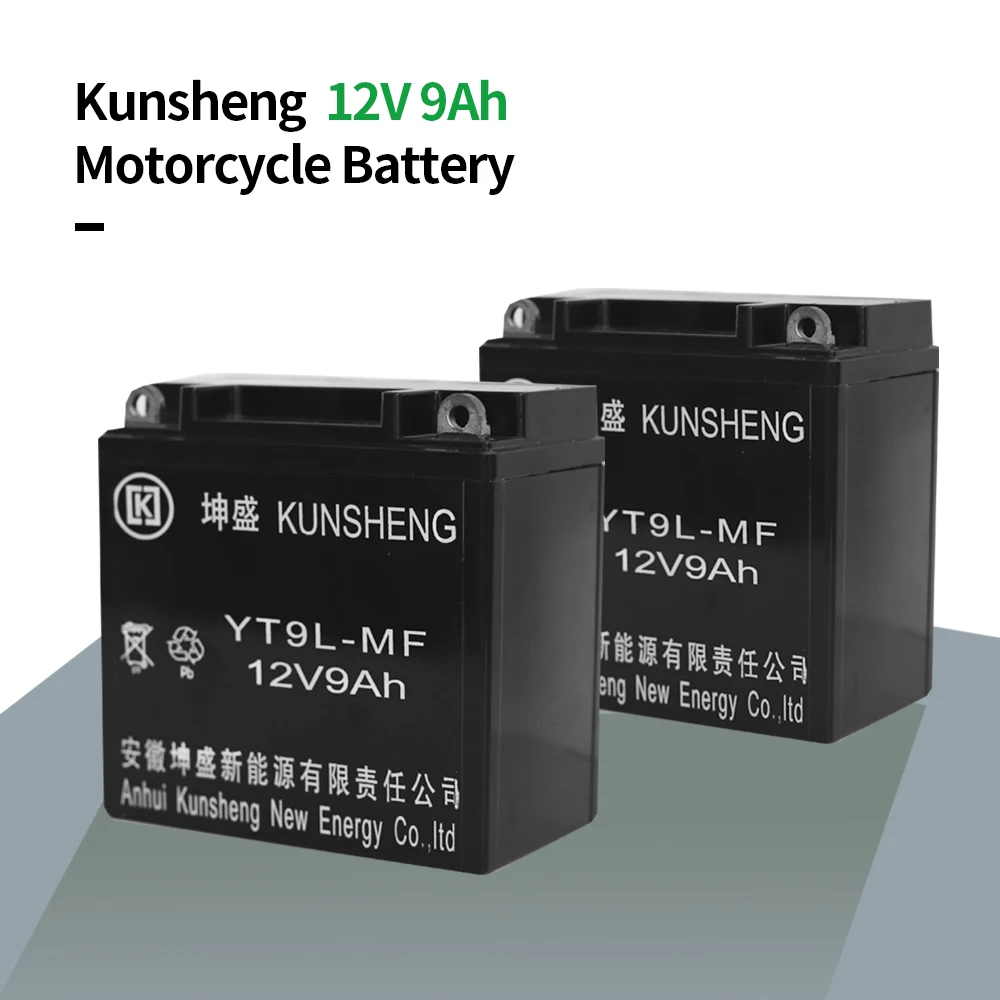

High Quality Agm Battery 12v 9ah Renewable Start Stop Battery Maintenance Free Sealed Lead Acid Battery For Electric Motorcycle
- Category: >>>
- Supplier: Anhui Haoyuan New Energy Technology Co. Ltd.
Share on (1600944134305):
Product Overview
Description
Model No:6-FMD-9AH(12V7AH 20HR) | Nominal Capacity:9AH (20HR) | |||
The battery specification | ||||
Overall dimension | length | 151±1mm | ||
Dimensions | width | 65±1mm | ||
Approx Weight | height | 98±1mm | ||
Terminal (Optional) | Total height | 98±1mm | ||
Refer to the weight | 2.2kg±0.3kg | |||
Manufacture | The battery is composed of separator paper, positive plate, negative plate, electrolyte, battery slot,terminal,safety valve,etc. | |||
performance | ||||
Test temperature | 25℃ | |||
Nominal Capacity | ||||
Discharge hour rate | 20HR | |||
Discharge | 0.4A | |||
Discharge termination voltage | 10.5V/each | |||
Discharge Capacity | 9.1AH | |||
charging | ||||
Charging way | Floating charging mode | Cyclic charging mode | ||
The voltage setting | 13.5-13.8v | 14.5-14.9v | ||
the maximum current | 1.8A | 2.4A | ||
Using temperature range | ||||
state | Discharging | charging | ||
Temperature range | -20℃-50℃ | 0℃-40℃ | ||
