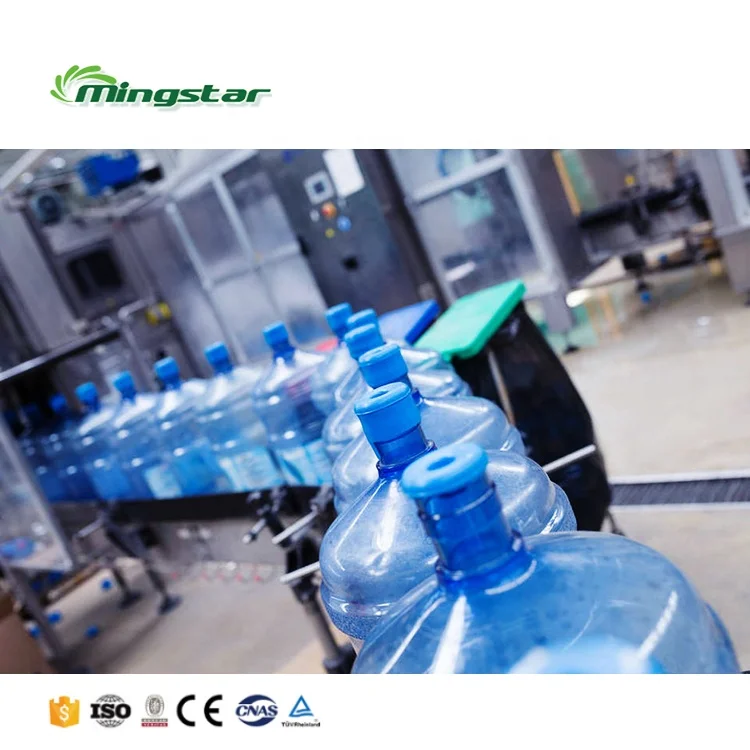

Liquid Packaging Machine Bottling Plants For 5 Gallon Big Barrels With Automatic 20 Liter Water Bottle Production Filling Line
- Category: >>>
- Supplier: Suzhou Mingstar Company Limited
Share on (1600944140069):
Product Overview
Description
Summary

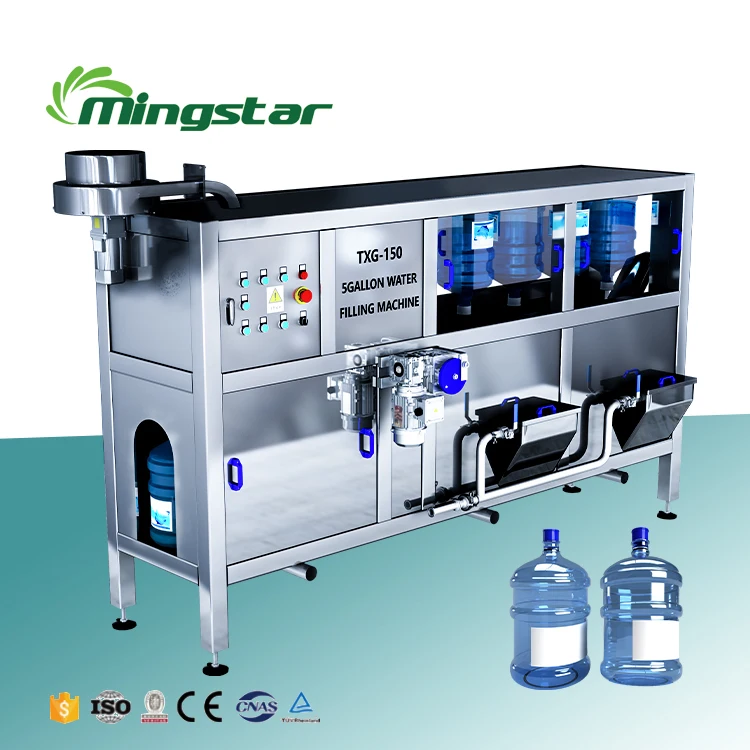

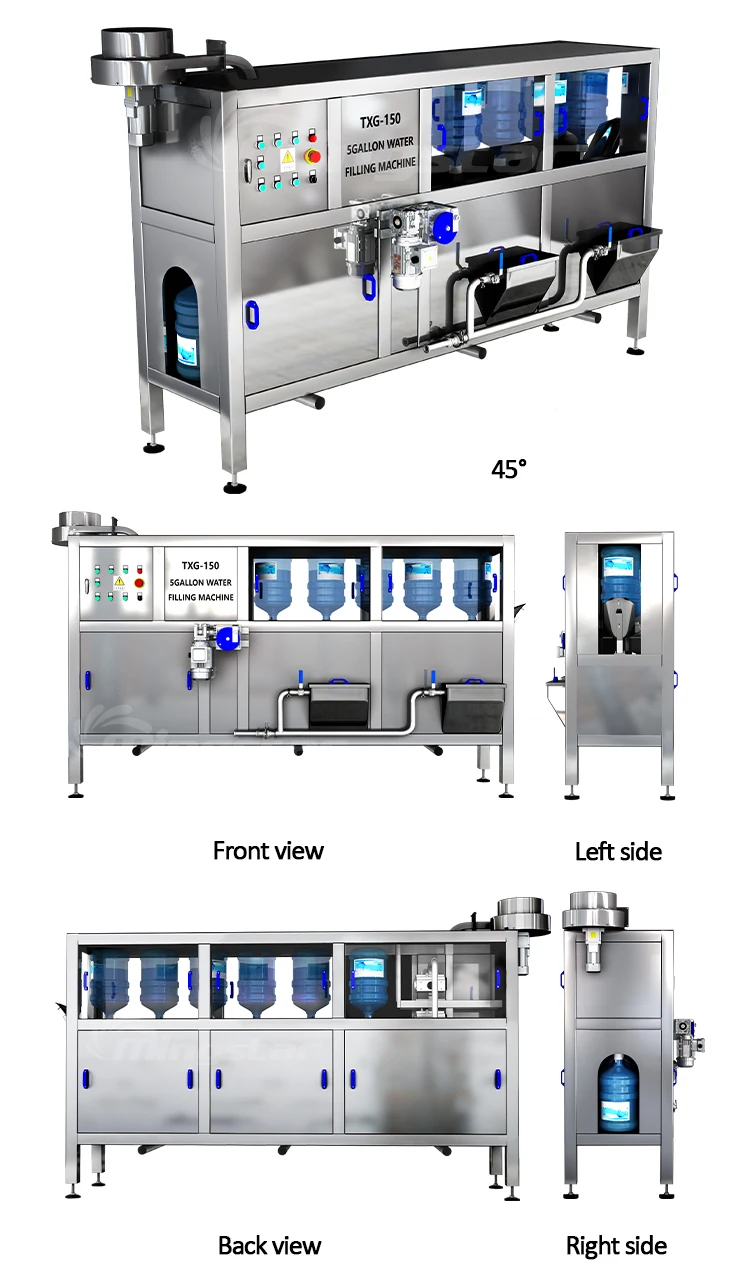

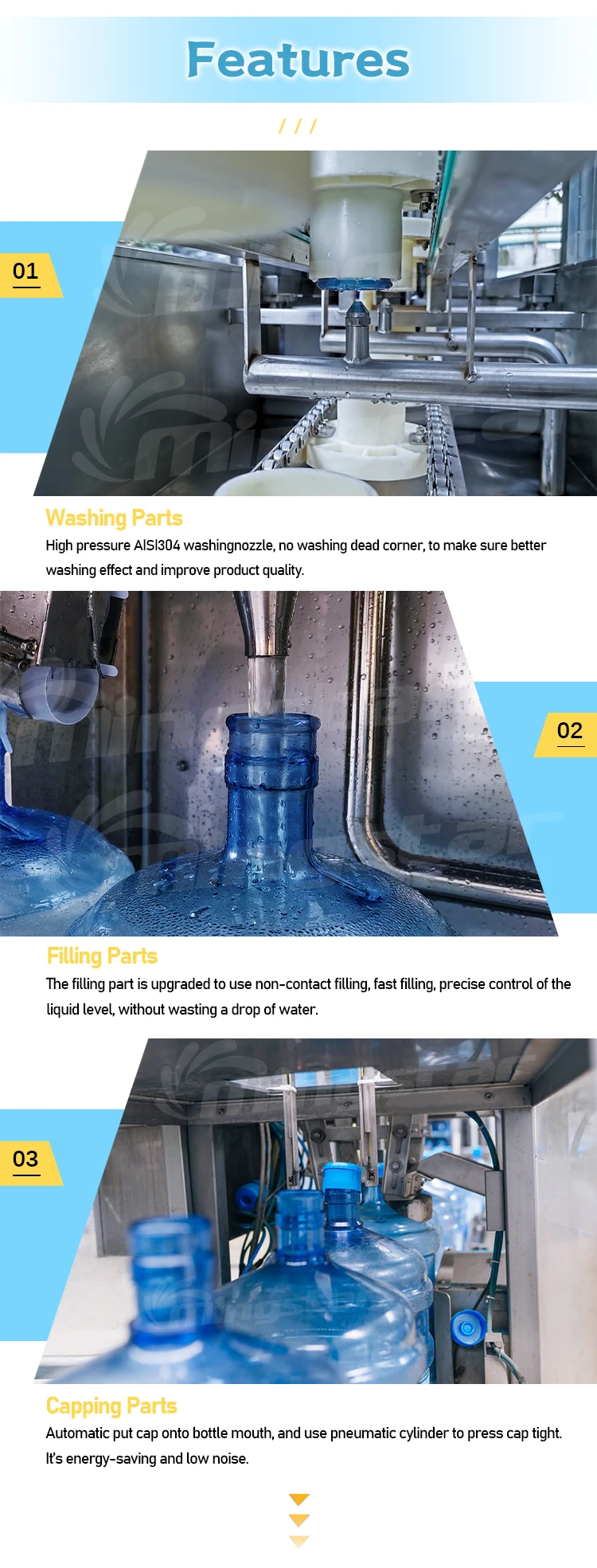

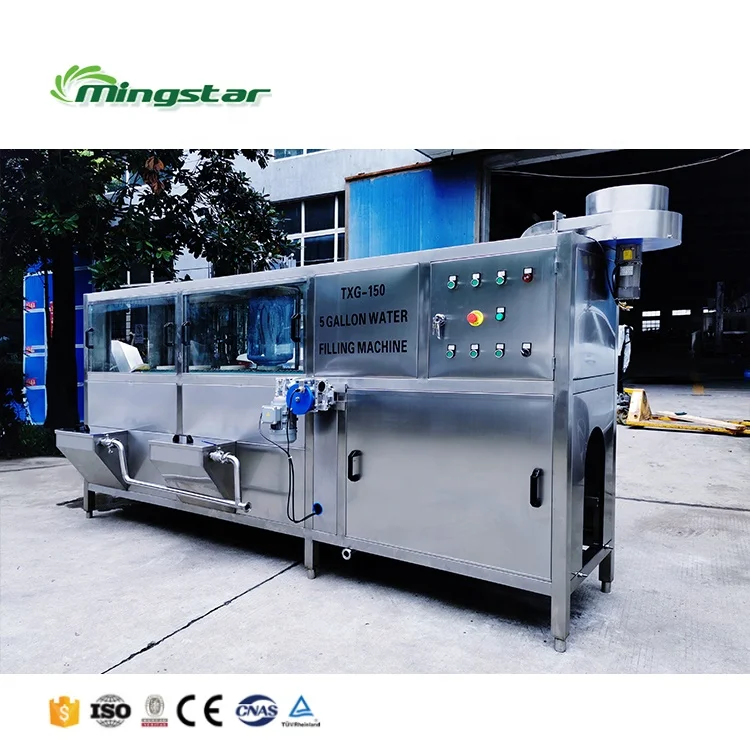

TXG-150 washing, filling, capping machine is the key equipment for drinking barreled water of 3 gallon and 5 gallon production. It is the ideal equipment for mineral water, purified water production. This equipment is automatic one with three functions in it, they are washing, filling and capping. The capping system is drived by cylinder. There are enough caps for one hour usage in cap bin. Washing pressure is indicated, inner washing pressure is more than 0.28 MPA, washing time is longer than 16 seconds, external washing pressure is more than 0.2 Mpa. The main electricity parts adopt SIEMENS, Mitsubishi products. Air powered parts adopt AIRTAC products.
Technical Parameters
The device integrates the bottle cap and cleans the inside and outside of the barrel, and has reliable performance, simple operation and convenient maintenance.
All machines could be customized , we could design design and produce machines according to your request.
Model： | TXG-150B |
Rinsing position number： | 7 |
Rinsing heads： | 5 |
Rinsing conveyor： | Motor driven |
Water tanks： | Inner AISI304 tanks equipped dosing port |
Filling heads： | 1 |
Filling type： | Non-contact filling |
Capping heads： | 1 |
Capping type： | Plastic press-cap |
Suitable bottle： | PET, PC bottle |
Diameter of bottle： | Φ265-Φ273mm |
Height of bottle： | 400-500mm |
weight： | 420Kg |
Material： | AISI 304 Frame, AISI 304 sheet |
Control system： | PLC |
Total power： | 2470W |
Please contact us to confirm the product parameter before payment.
Details Images
Related Products
What we offer?
Consultation Service
Filling Machine Choosing
Filling Machine Customization

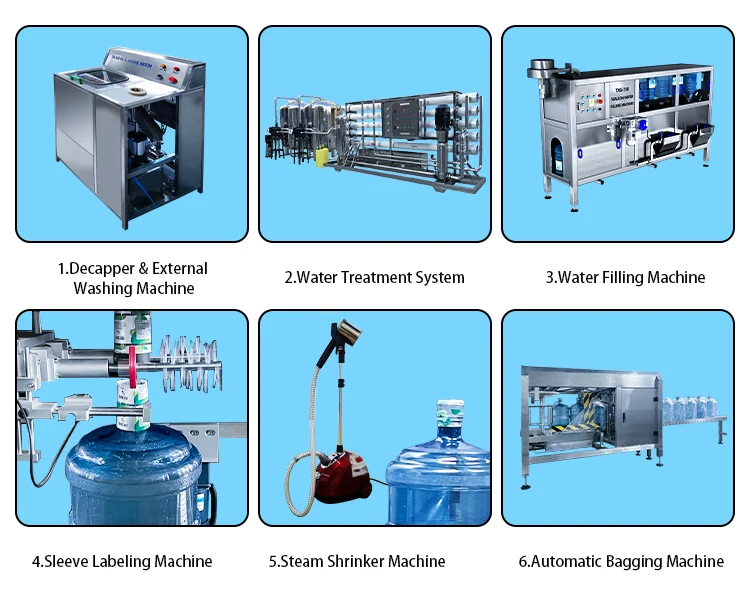

Filling Line Updating Turn-Key Solution
Manufacture & Test Service
Filling Machine Stress Testing
Packing & Logistic Technical Support
SGS Certification
After Sales Service
Installation & Worker Training
Technical Support Online
Annual Diagnosis & Updating
Technical Support Online
Annual Diagnosis & Updating
Optional Value-added Service
Agent Recruitment Programme
Client Guarantee Programme
Customer Development Programme
Client Guarantee Programme
Customer Development Programme

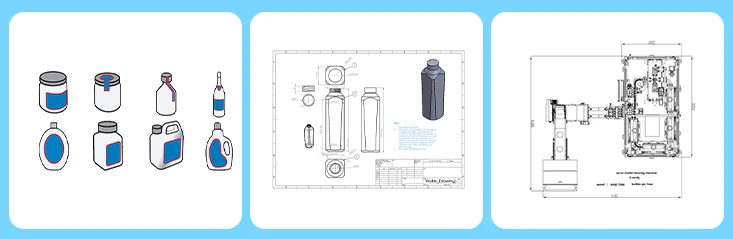

Label Design.
We can provide the label design
according to the bottle size, the
icon style you want.
according to the bottle size, the
icon style you want.
Bottle Design.
Our designers can design bottle
styles according to your
requirement.
styles according to your
requirement.
Machine Layout.
We will design andconfirm the
machine layout according to
your factory sketch.
machine layout according to
your factory sketch.
Partner customers
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.
We have been producing our goods with mature techniques and first-class quality.
With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.
Packing & Delivery
Packing Details : Plastic film and wooden case packaging, double protection
Delivery Details : Delivery within 30 days by sea
Two years warranty after receiving the equipment .
Delivery Details : Delivery within 30 days by sea
Two years warranty after receiving the equipment .
FAQ
Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?
※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing
equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line
for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.
equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line
for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.
Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?
※Two years warranty after receiving the equipment . Free spare parts and technical supports.
※New client guarantee programme offers longer warranty and customized after service.
※Local after service network is under construction.
※Annual engineer visiting for diagnosis and updating service.
※New client guarantee programme offers longer warranty and customized after service.
※Local after service network is under construction.
※Annual engineer visiting for diagnosis and updating service.
Q: Any other questions?
※Send inquiry to Mingstar.
※Chat now through Alibaba APP.
※Call us or reserve a call.
※Chat now through Alibaba APP.
※Call us or reserve a call.
