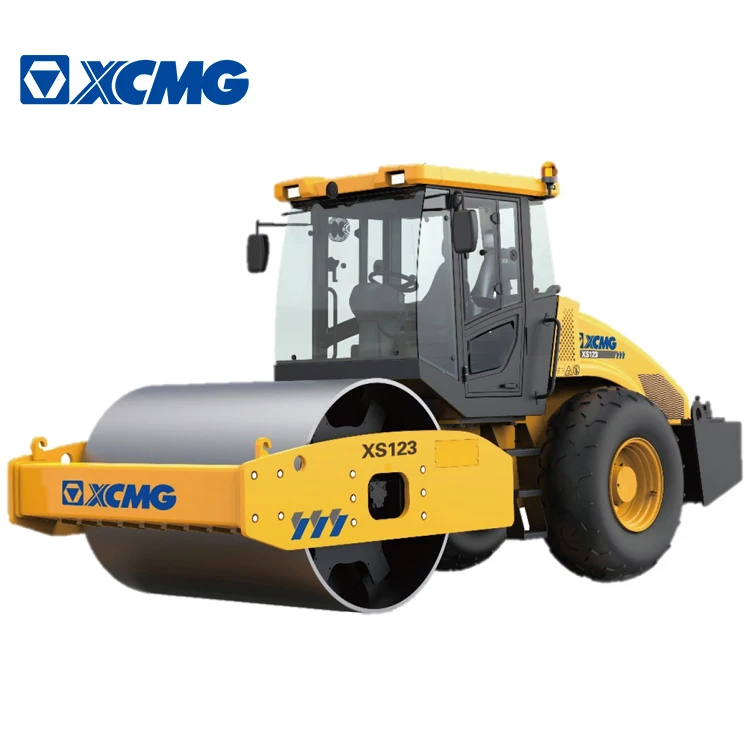

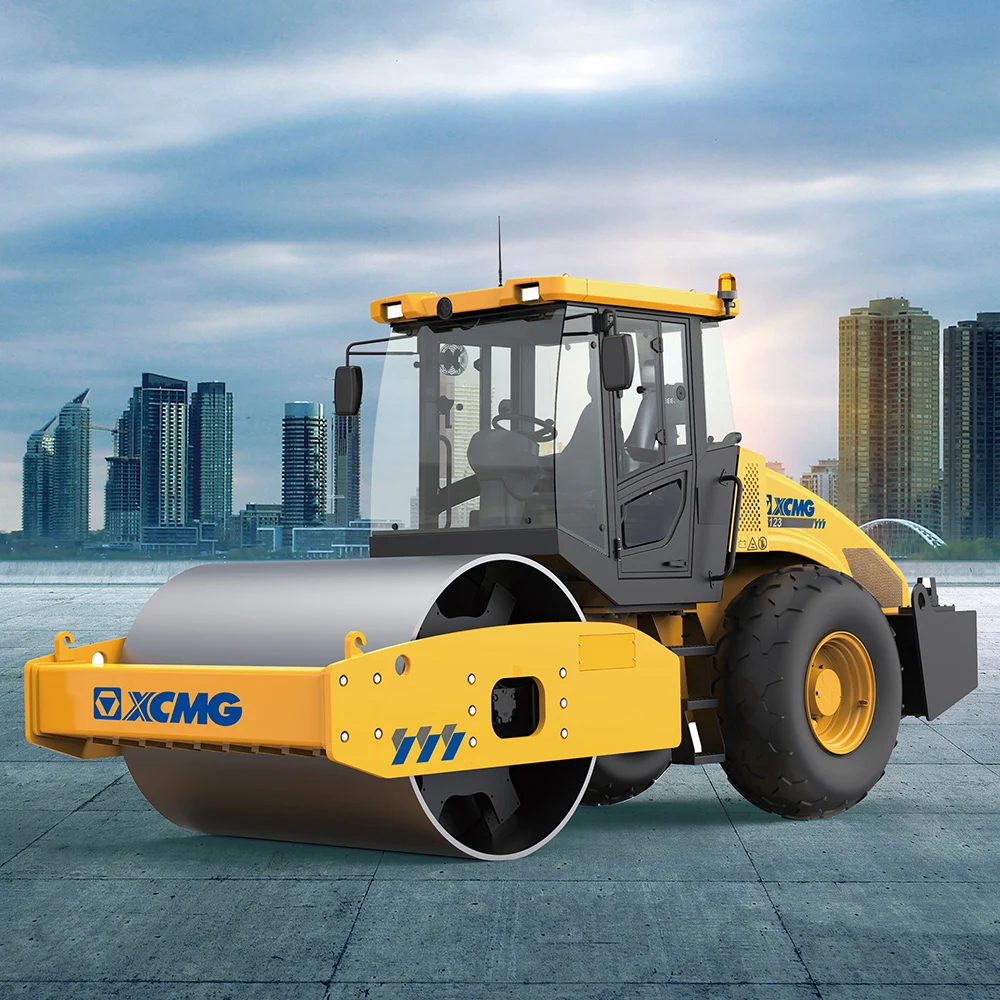

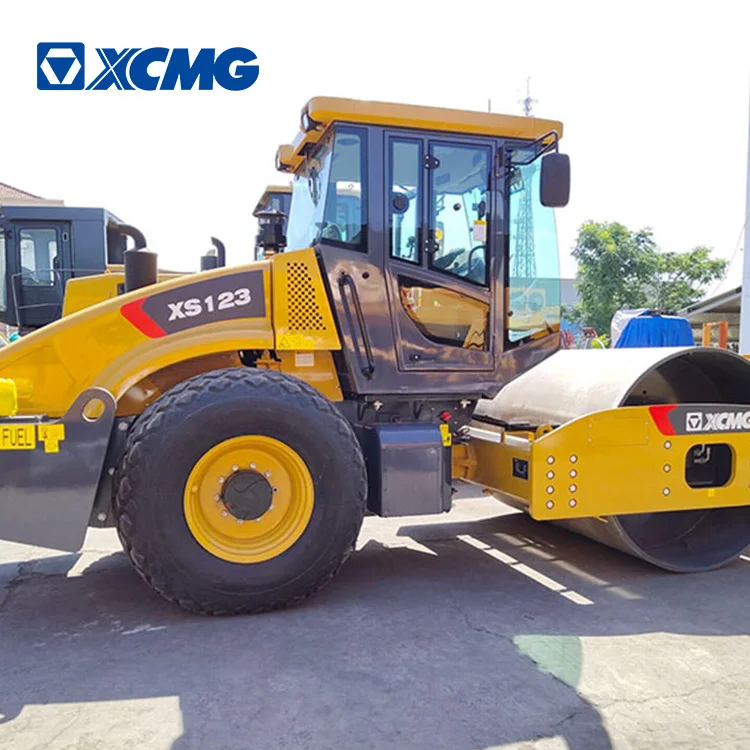

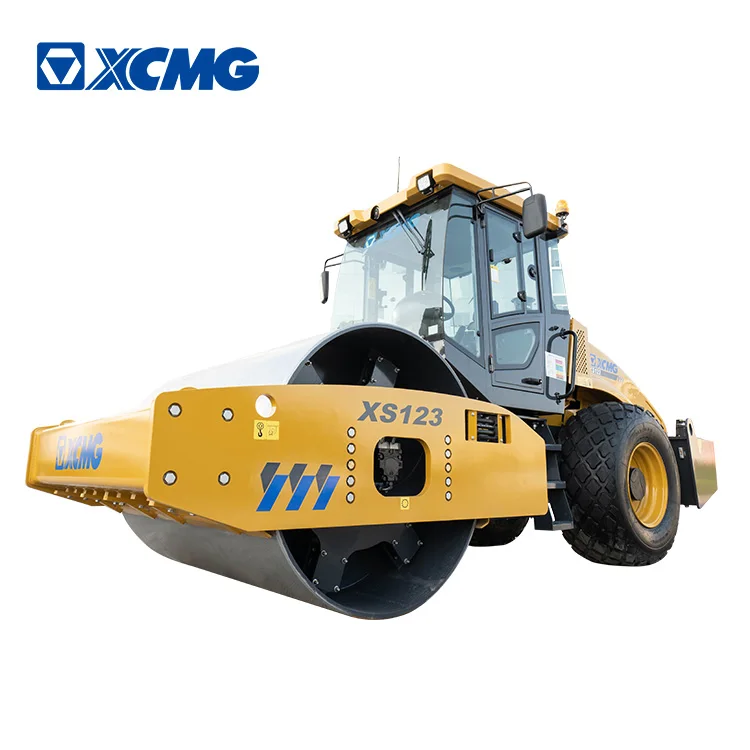

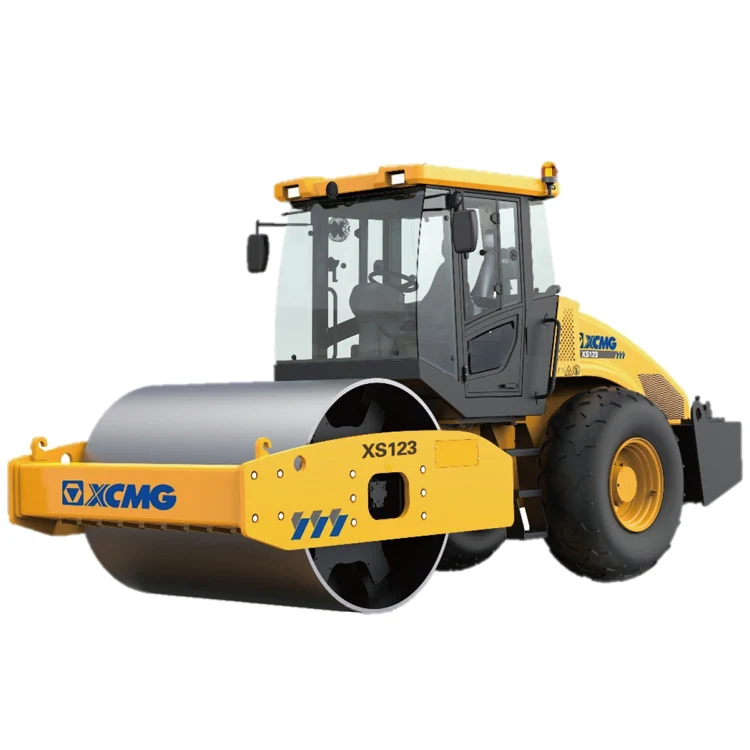

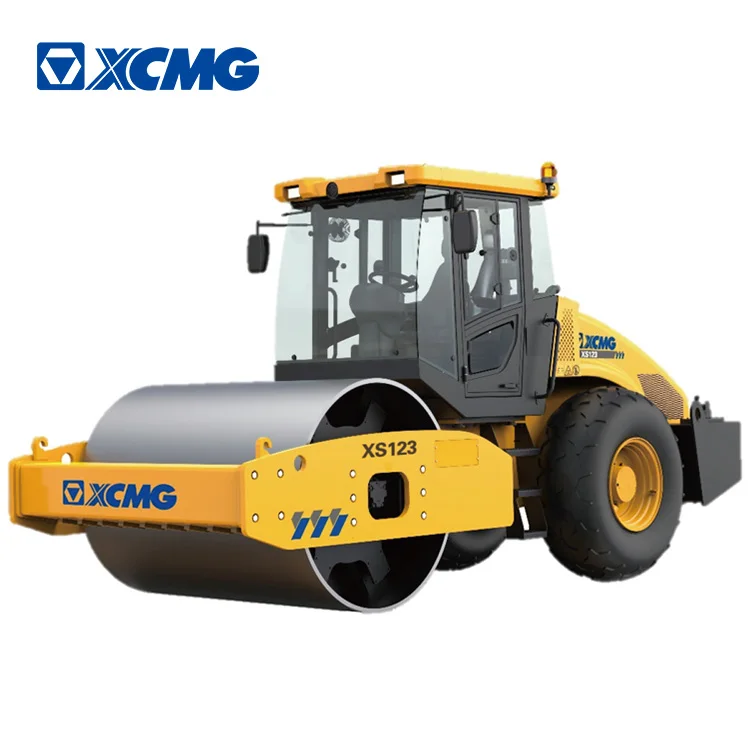

XCMG Official 12 ton Single Drum Vibratory Road Roller XS123 for Sale
- Category: >>>
- Supplier: Xuzhou Construction Machinery Group Co. Ltd.
Share on (1600944243772):
Product Overview
Description
Product Description
Technical Specification
Rated power: 93 kW
Operating weight: 12 t
Static Linear Pressure: 308 N/cm
XCMG 12 ton Single Drum Vibratory Roller
Operating weight: 12 t
Static Linear Pressure: 308 N/cm
XCMG 12 ton Single Drum Vibratory Roller
XS123
Performance Characteristics
Equipped with Cummins electrical control engine, water-cooled, turbocharged with big powerreservation, low oil consumption, small noises. Europe stage ll emission standard. Compliantwith National ll Emission Standard.
Adopt imported closed hydraulic drive system composed of variable displacement pumpand motor to ensure betfer drive performance and gradeability. Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
With imported variable displacement piston pump and constant displacement hydraulic motor.Dual vibrating frequency and amplitude, coupled with optimized match of static linear load andcentrifugal force enable the machine to deliver excellent compaction performance over materials of varied layer thickness.
Braking system is made up with drive axle,wet type brakes at front drum speedreducer, and brake of closed hydraulic system. It owns travelling, parking, andemergency braking functions to ensure driving safety.
Simple in structure, the inner cylindrical vibrating chamber provides high rigidity andstrength. With double frequency and resonance function, large static line and excitingforce, high efficiency, dedicated vibrating bearings are used on the machine to deliverlong service life and high reliability.
With large angle engine hood make the repair part easy accessible.
Adopt imported closed hydraulic drive system composed of variable displacement pumpand motor to ensure betfer drive performance and gradeability. Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
The machine is equipped with imported middle type drive axle with anti-slip differential,which realizes automatic torque allocation according to road condition. It allows theroller to reach max tractions under any working condition.
With imported variable displacement piston pump and constant displacement hydraulic motor.Dual vibrating frequency and amplitude, coupled with optimized match of static linear load andcentrifugal force enable the machine to deliver excellent compaction performance over materials of varied layer thickness.
Braking system is made up with drive axle,wet type brakes at front drum speedreducer, and brake of closed hydraulic system. It owns travelling, parking, andemergency braking functions to ensure driving safety.
Simple in structure, the inner cylindrical vibrating chamber provides high rigidity andstrength. With double frequency and resonance function, large static line and excitingforce, high efficiency, dedicated vibrating bearings are used on the machine to deliverlong service life and high reliability.
With large angle engine hood make the repair part easy accessible.
Specification
Item | XS123 | ||||
Mass | Maximum operating mass | 12000 kg | |||
Front wheel mass distribution | 6700 kg | ||||
Rear wheel mass distribution | 5300 kg | ||||
Engine | Model | 4BTAA3.9-C125 | |||
Rated power | 93 kW | ||||
Rated speed | 2200 r/min | ||||
Compacting Performance | Static linear pressure | 308 N/cm | |||
Vibration frequency | high frequency | 35 Hz | |||
high frequency | 30 Hz | ||||
Nominal amplitude | High (at low frequency) | 1.8 mm | |||
Low (at high frequency) | 0.9 mm | ||||
Exciting force | High (at low frequency) | 280 mm | |||
Low (at high frequency) | 190 mm | ||||
Driving Performance | Speed | Gear l | 0--4.8 km/h | ||
Gear ll | 0--10.4 km/h | ||||
Minimum outer turning radius | 6800 mm | ||||
Theoretical gradeability | 45% | ||||
Steering angle | ±30° | ||||
Oscillation angle | ±10° | ||||
Dimension | Overall dimensions | Length | 5940 mm | ||
Width | 2300 mm | ||||
Height | 3150 mm | ||||
Wheelbase | 3010 mm | ||||
Minimum ground clearance | 417 mm | ||||
Diameter of vibrating drum | 1523 mm | ||||
Width of vibrating drum | 2130 mm | ||||
