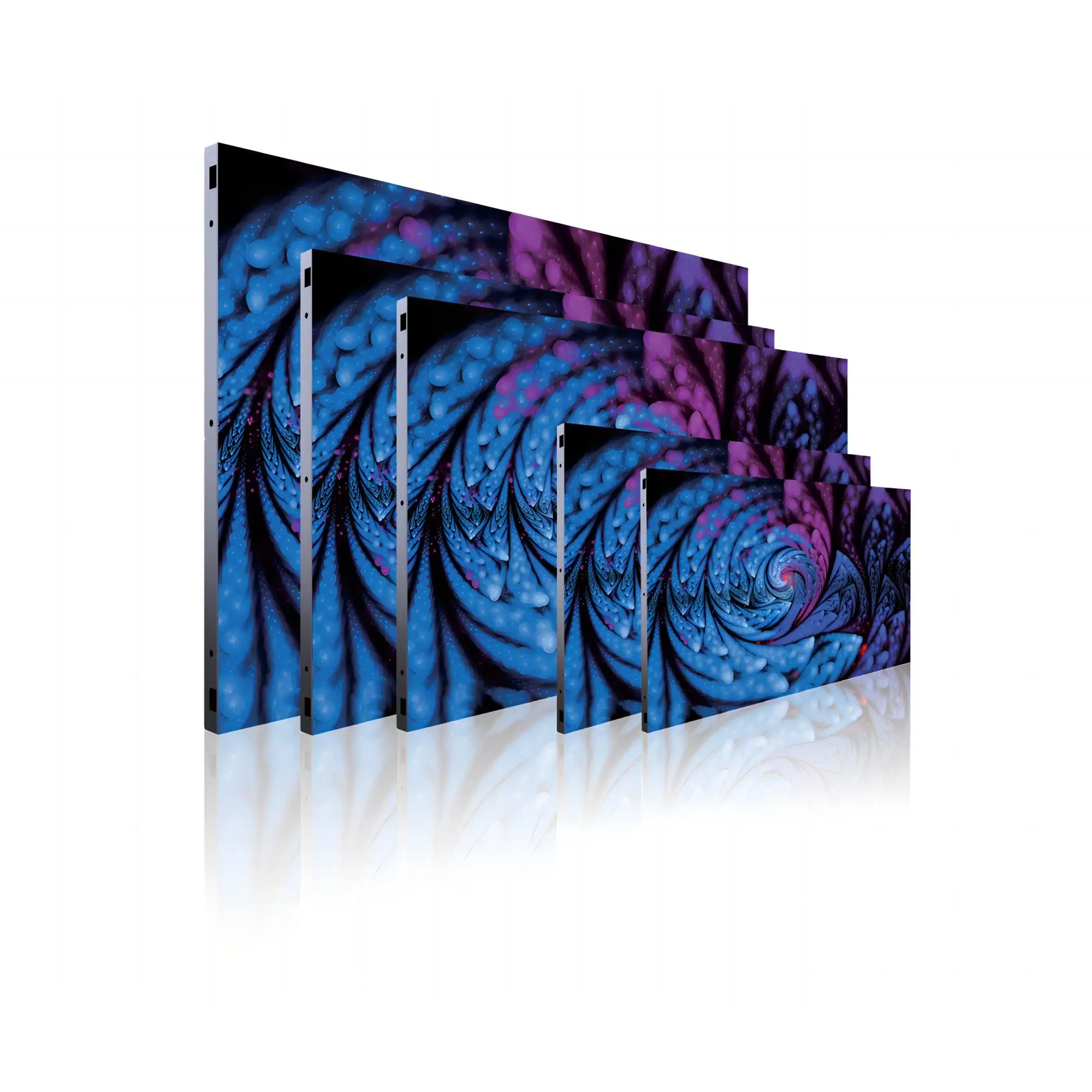

Exhibition Hall Large Performance Large Activity Indoor Giant Screen Shopping Mall Stage No Gap Seamless LED Video Wall
- Category: >>>
- Supplier: Shenzhen Huizhongsheng Technology Co. Ltd.
Share on (1600944287209):
Product Overview
Description
Product Description
1.AT55AA For indoor LED full-color display panel AT series model, single screen display ratio of 16:9 standard 1K resolution.
2.Can fully realize the true seamless splicing.
3.With high brightness and contrast and super wide Angle, can get high quality display effect at every Angle.
4.Occupy small space.
5.Service life of 100000 hours.
6.The product can realize the module, power supply, receiving card positive disassembly, maintenance cost is low.
7.This series of products uses the HDMI standard video source direct plug display.
2.Can fully realize the true seamless splicing.
3.With high brightness and contrast and super wide Angle, can get high quality display effect at every Angle.
4.Occupy small space.
5.Service life of 100000 hours.
6.The product can realize the module, power supply, receiving card positive disassembly, maintenance cost is low.
7.This series of products uses the HDMI standard video source direct plug display.
Specification
Model | AT60AA | ||
Unit | Pixel structure | AET panel | |
Pixel spacing (mm) | 1.39 | ||
Unit Resolution (WH) | 960*540 | ||
Unit size (mm) | 1336（W）*754.2（H）*28.8（D） | ||
Diagonal | 60 Inch | ||
Unit area (m2) | 1.008 | ||
Unit Weight (kg) | ≤20 | ||
Pixel density (point / ㎡) | 514,484 | ||
Screen width and height ratio | 16:9 | ||
Unit flatness (mm) | ≤0.1 | ||
Maintenance mode | Front maintenance | ||
Levels of protection | ≥IP5X | ||
Material | Die-cast aluminum / aluminum-magnesium alloy | ||
Screen seam | Seamless splicing | ||
Compound mode | Any row x any column | ||
Way to install | Cabinet, rack, wall hanging, etc | ||
Attended mode | HDMI standard video source direct plug | ||
Display parameters | Display screen brightness (cd /㎡) | 0-1000 adjustable, factory standard 500 | |
Colour temperature (K) | 500- -10000 is adjustable | ||
Horizontal view angle (°) | ≥160 | ||
Vertical view angle (°) | ≥160 | ||
Center deviation of Luminpoint | <1% | ||
Gliance uniformity | ≥97% | ||
Chromaticity uniformity | ± 0.003 Cx, within the Cy | ||
Maximum contrast | ≥7000:1 | ||
Electrical parameter | Peak power consumption (W/㎡) | ≤500 | |
㎡Average power consumption (W/㎡) | ≤120 | ||
Power supply requirements | 220VAC±15% | ||
Handle reference | Drive way | Common Cathode constant current drive | |
Repetition frequency (Hz) | 30-120 | ||
Refresh rate (Hz) | ≥3840 | ||
Processing Depth (bits) | 14-18 | ||
Brightness control | Manual / automatic | ||
Using parameter | Typical lifetime value (h) | ≥100000 | |
Operating / storage temperature range (℃) | -10—45/-20—60 | ||
Operating / storage humidity range (RH) | 10-90%/10-90% | ||
Packing & Delivery
1pc/box
Company Profile
Shenzhen Hui Zhongsheng Technology Co., Ltd. has established a comprehensive national installation and after- sales service system. The company upholds the principle of customer first, adopts advanced technology, relies on professionally trained and experienced engineers, and strives to provide users with the best installation and after-sales service with a passionate and sincere attitude.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(20.00%),Mid East(10.00%),South America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
OLED transparent display,OLED Curved display,Round display,Square display,Video walls
4. why should you buy from us not from other suppliers?
Shenzhen FYEZON Technology Co., Ltd. is a high-tech enterprise focusing on commercial display products and integrates R&D, production, sales and service, adhering to the concept of "integrity management and quality service",
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(20.00%),Mid East(10.00%),South America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
OLED transparent display,OLED Curved display,Round display,Square display,Video walls
4. why should you buy from us not from other suppliers?
Shenzhen FYEZON Technology Co., Ltd. is a high-tech enterprise focusing on commercial display products and integrates R&D, production, sales and service, adhering to the concept of "integrity management and quality service",
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
