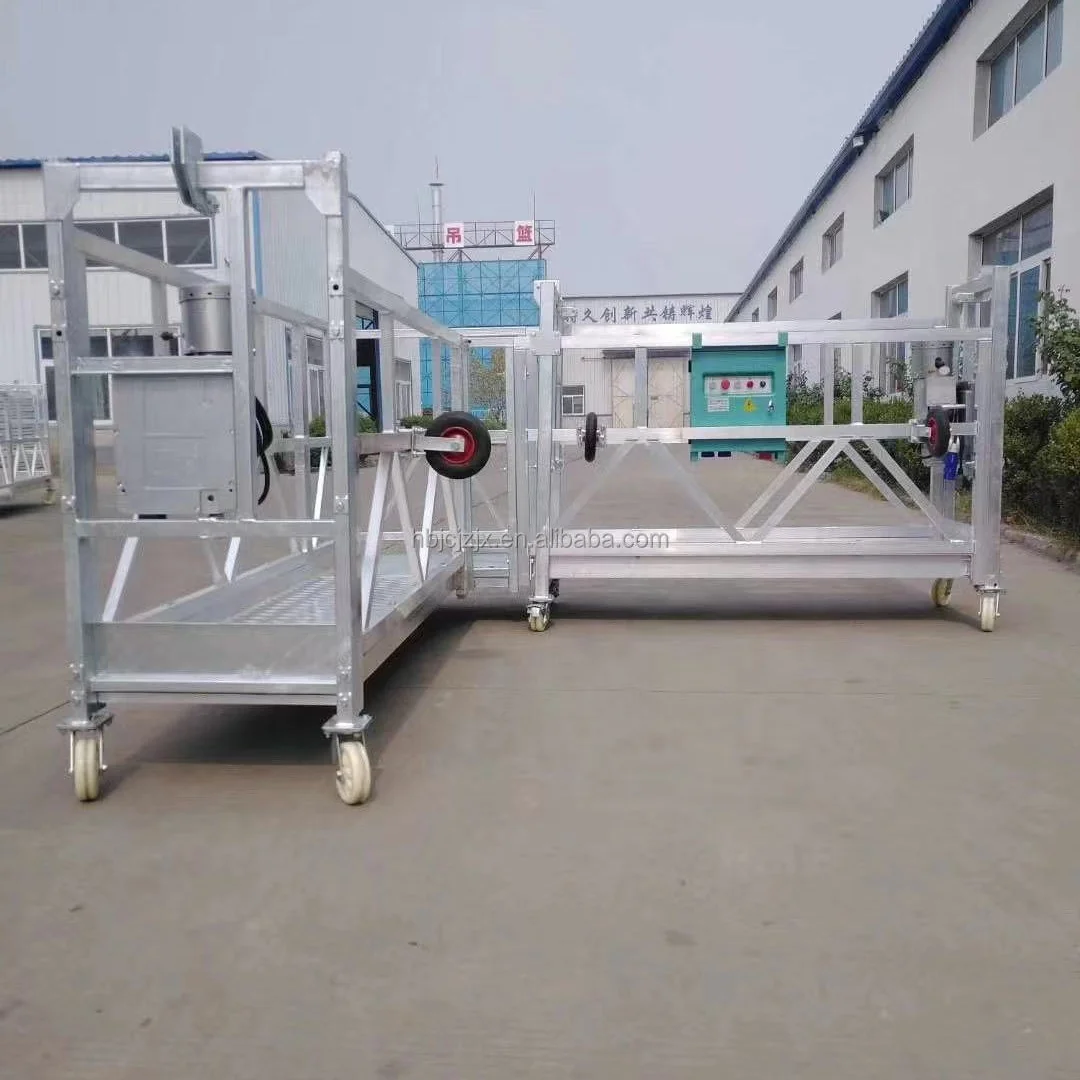

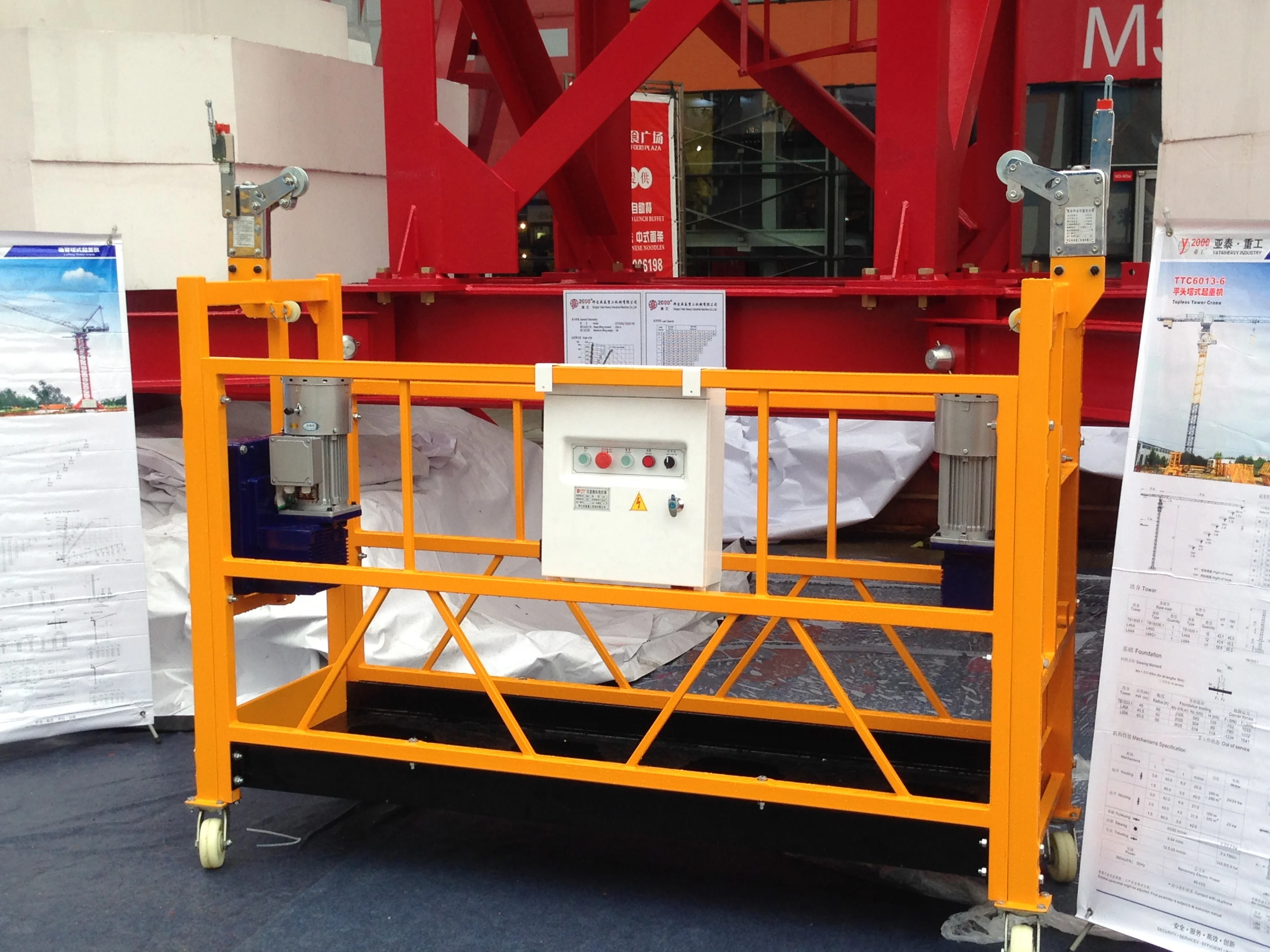

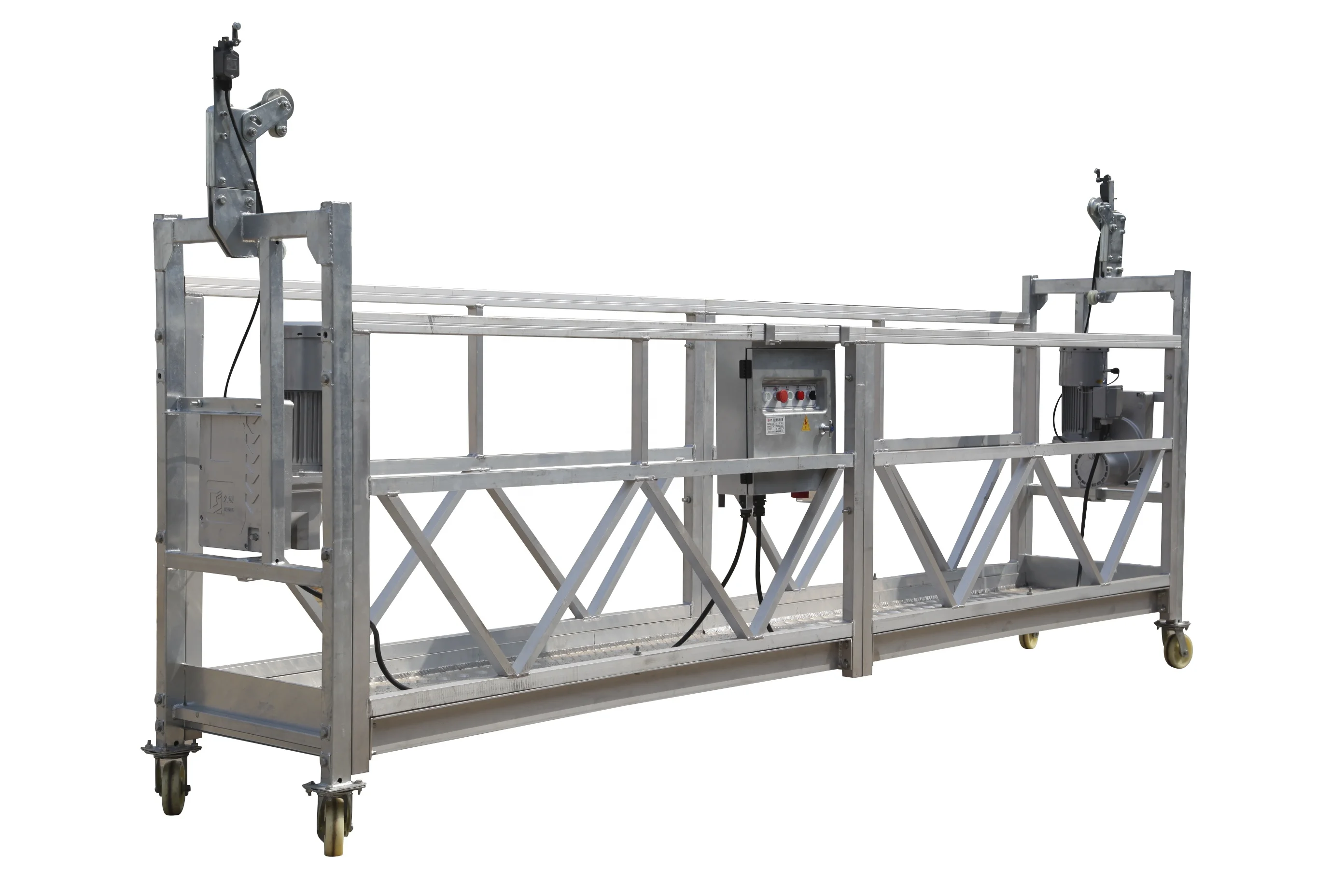

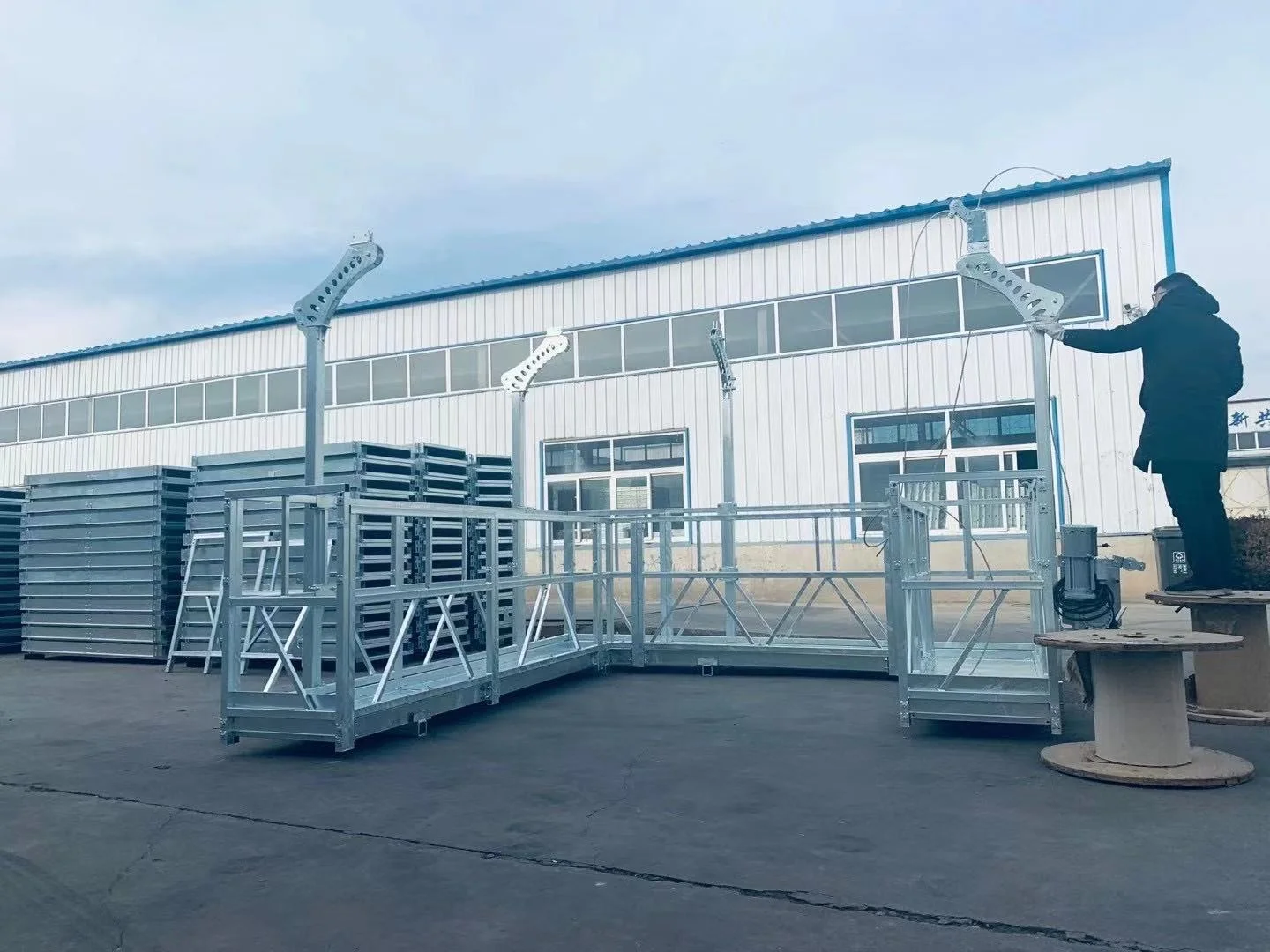

Zlp800 aluminum gondola scaffolding building cleaning equipment
- Category: >>>
- Supplier: Hebei Jiuchuang Construction Machinery Technology Co. Ltd.
Share on (1600944301939):
Product Overview
Description
Product Description
Technical Data Sheet:
Model | ZLP800 |
| Rated load(kg) | 800 |
| Lifting speed(m/min) | 8~10 |
| Voltage(V) | 380 |
| Work platform size(m) | 7.5*1.0*0.7 |
| Suspension weight(kg) | 270 |
| Counterweight(kg) | 1000 |
The Feature of Suspended Platform:
1.The length of platform can be adjusted within 1m-10m.
2.The working height can be adjusted with customers' need.
3.The voltage can be adjusted with customer's requirement.

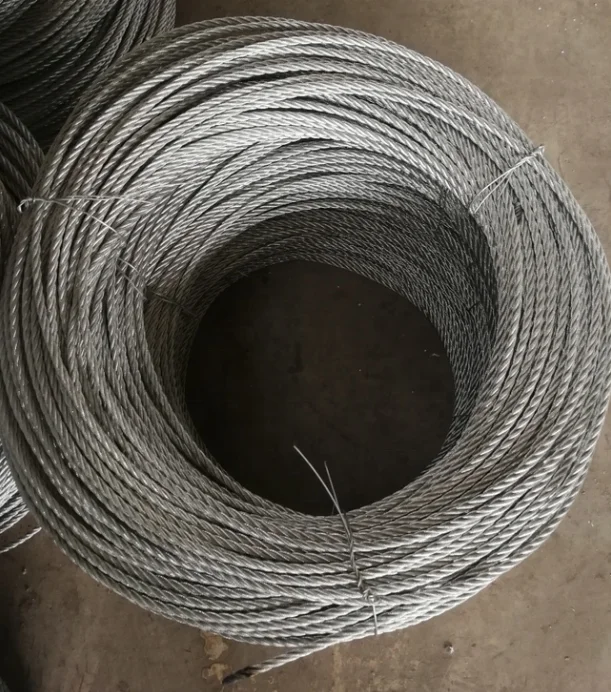

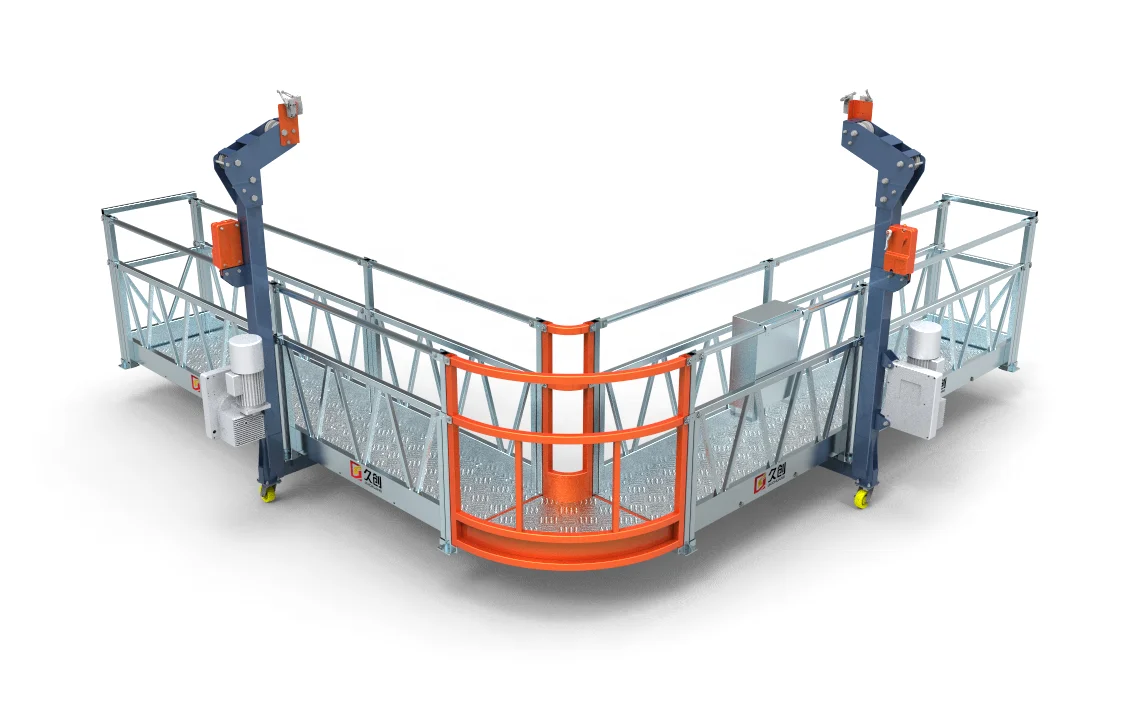

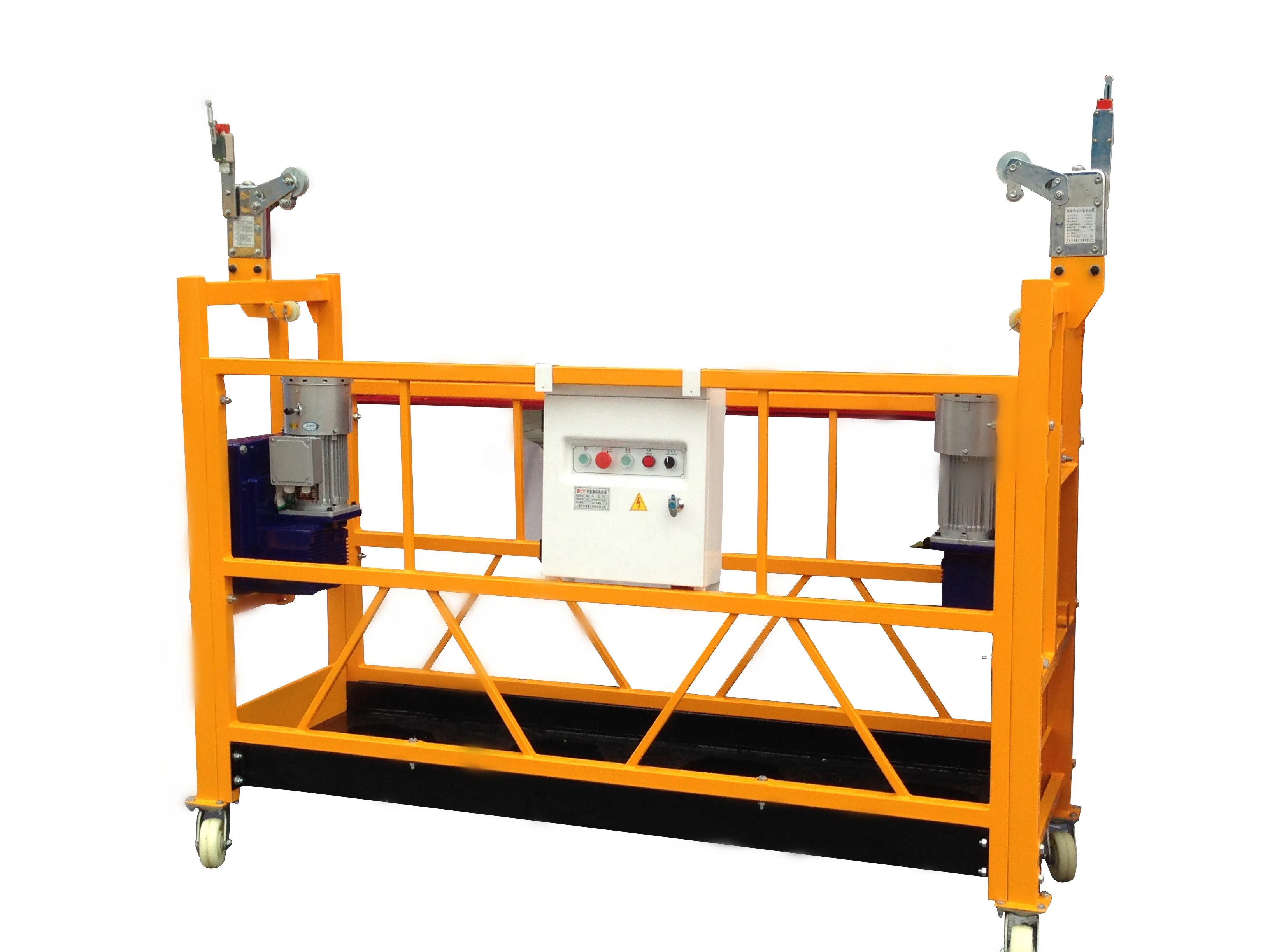

Structure and Composition:The gondola is composed of main parts such as suspension mechanism, suspension platform, hoist, safety lock, working wire rope, safety wire rope, electrical box and electrical control system.
In order to ensure the safety of construction, each high-level suspended platform is equipped with the following safety protection devices:
- Service brake incorporated in the LTD hoist.

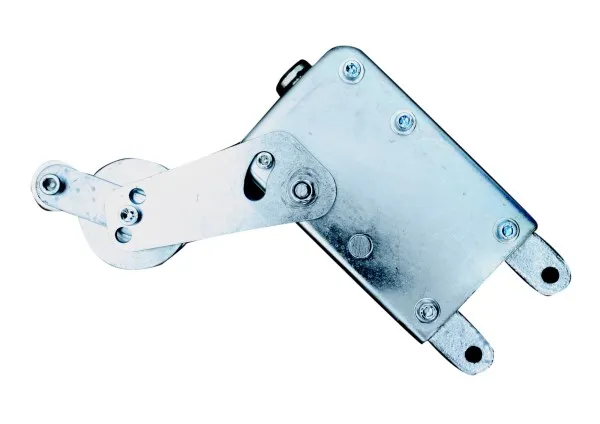

- Two safety devices acting on the wire ropes.
- Set upper limit switch.
- Set with emergency stop button.
- No power descent in case of power failure.
- Phase loss protector.(optional)
- Set load limit protector for hoist.(optional)
Features:
Its structure is reasonable, and compared with other structural hanging baskets, it has the characteristics of convenient heighting, simple operation, safety and reliability, various specifications, low investment and high efficiency.
Working principle:

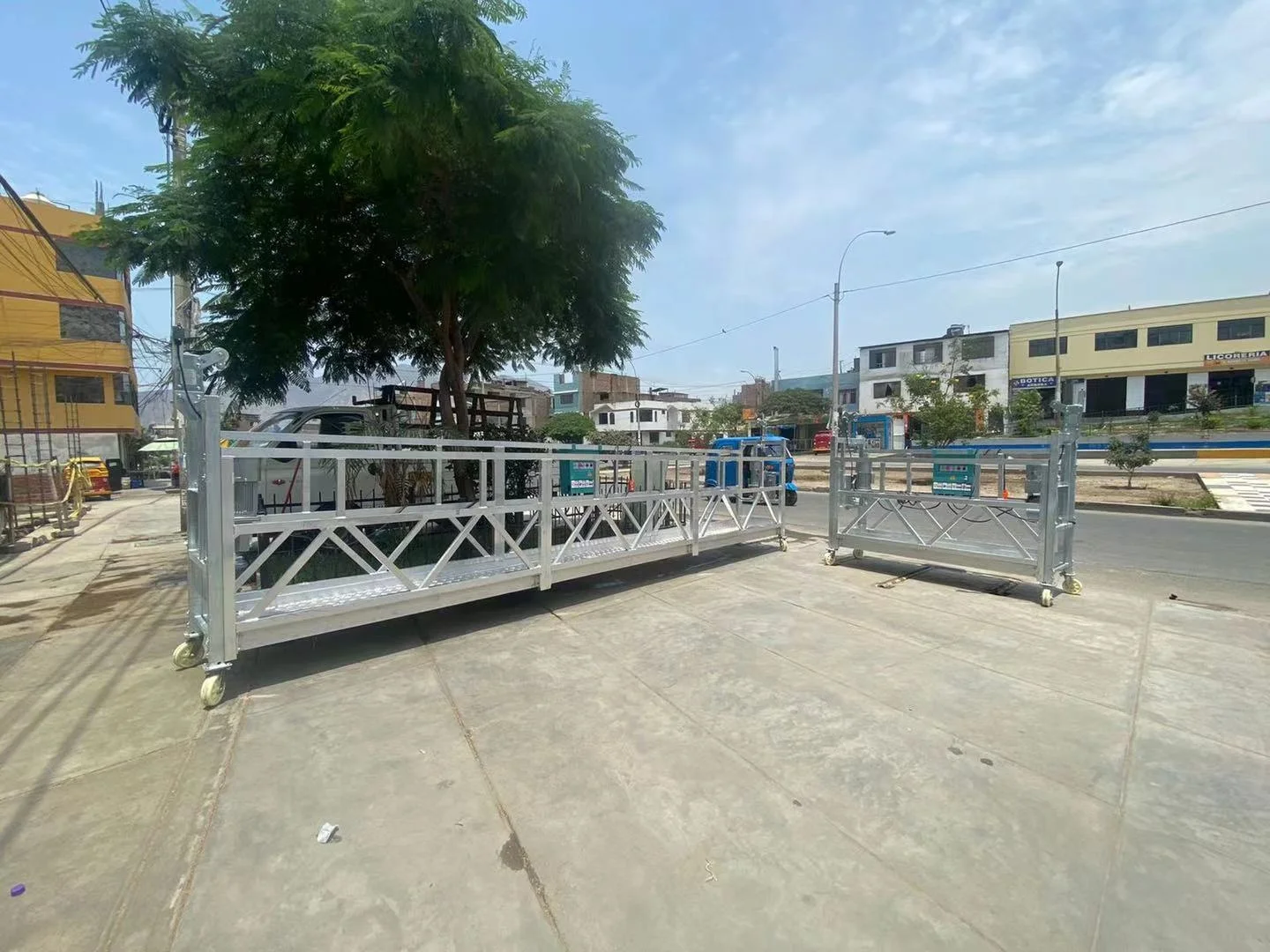

The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:

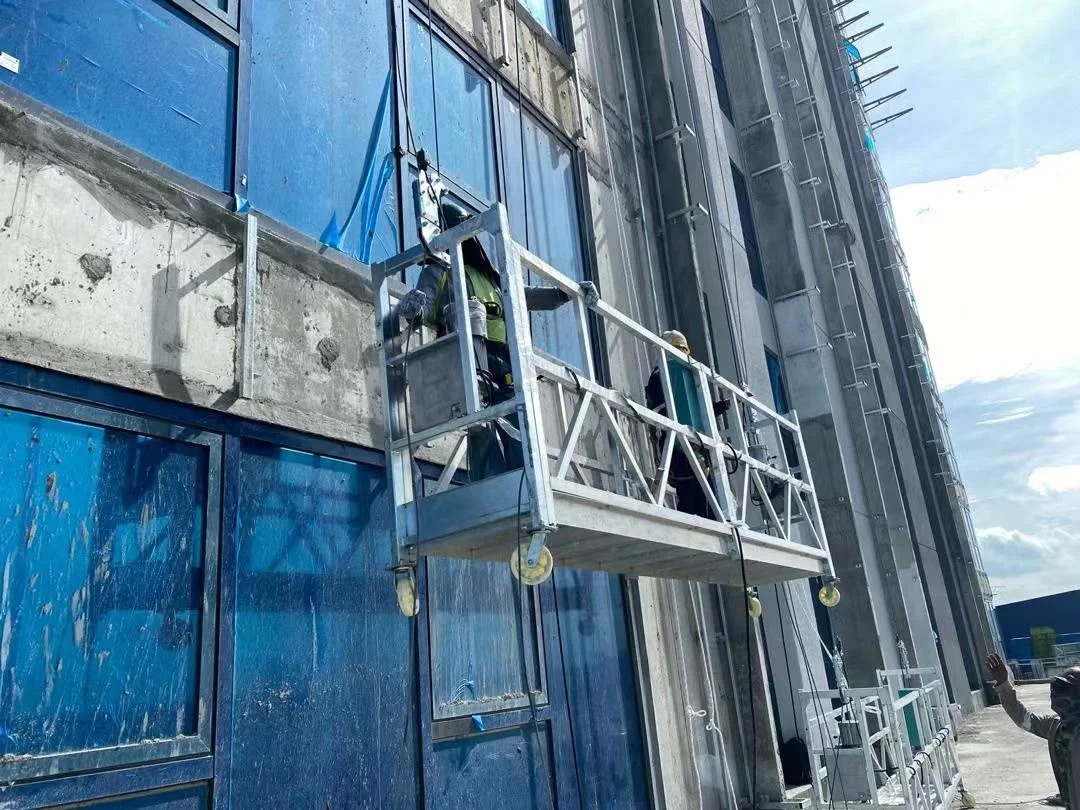

Zlp 800 Suspended Platform belongs to high rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all, JIUCHUANG platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
Packaging & Shipping

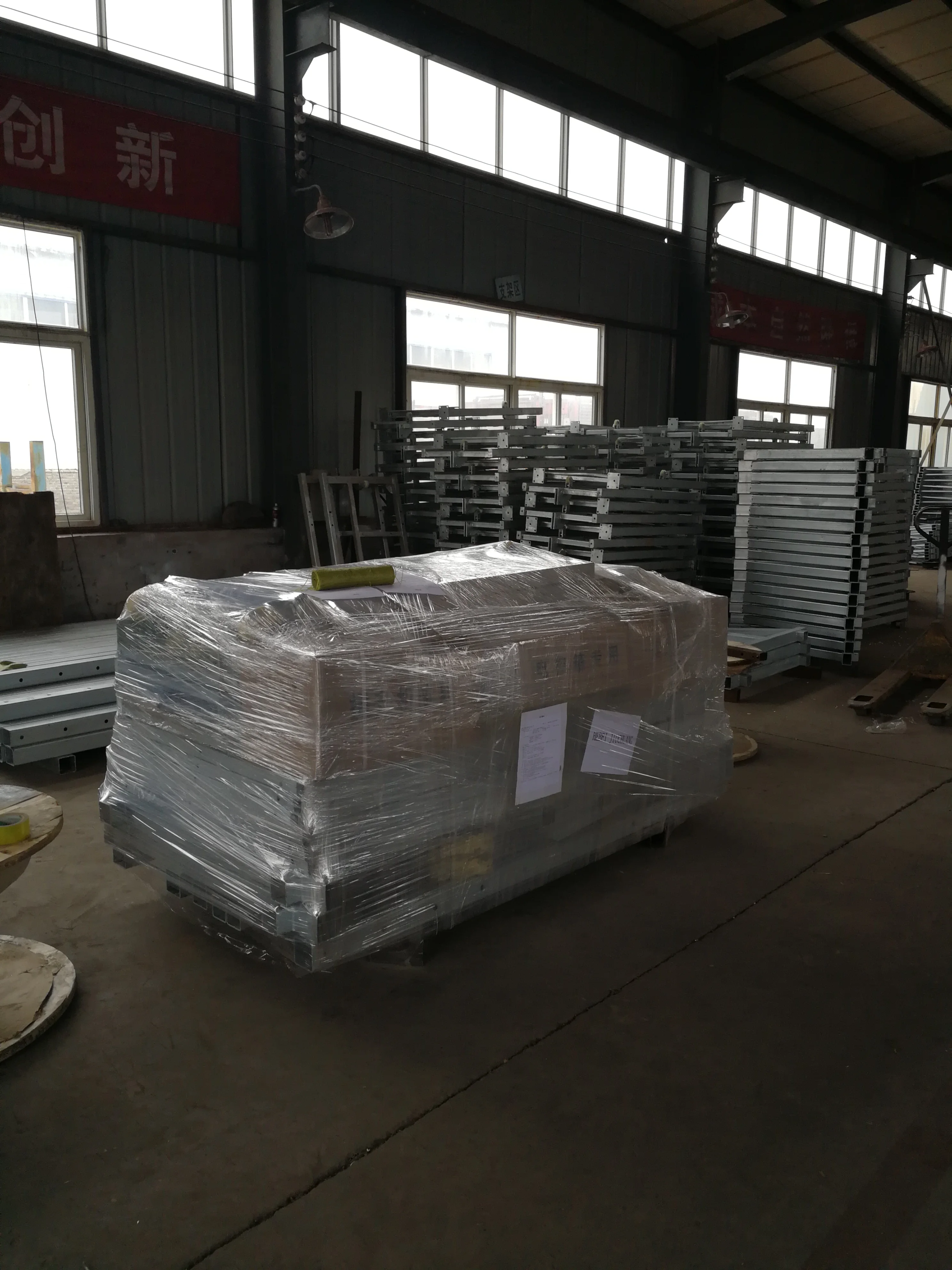

Packaging Details:plastic film packaging
Port:Tianjin port
Lead time:
| Quantity(sets) | 1-3 | 4-10 | >10 |
| Lead time(days) | 7 | 15 | To be negotiated |
Company Information
Company Name:Hebei Jiuchuang Construction Machinery Technology Co.,Ltd.
Introduction:The company specializes in R&D, manufacturing, sales and after-sales service of suspended platform(Gondola). It is based on the "Lasting Innovation,Casting Brand" principle.The suspended platform(Gondola) highlights the characteristics of more safety, higher efficiency, lowest failure, longer life.Jiuchuang brand suspended platform (gondola) are welcomed by domestic and foreign xustomers for its humanizzed design, excellent material selection, strict processing and after-sales guarantee.
Jiuchuang Suspended Platform(gondola) has passed ISO9001 quality system certification, EU CE safety certification, and obtained the product production qualification certificate of CCMA.
Jiuchuang Tech is committed to providing safe, efficient and durable products to make your business successful.
FAQ
Q1:When is the delivery time?
A1:7 days for 1~3 sets, 15 days for 4~10 sets.
Q2:How long is the warranty?
A2:One year.
Q3:What kind of payment method is used?
A3:T/T.
Q4:What are the product features?
A4:Easy to operate, convenient and safe.
Contact Information
![ZPGPR[NUA2(]HW~UC`}I7YW.png](http://sc03.alicdn.com/kf/Hb36e8b683b40417383cb02fc9299d707T/234476209/Hb36e8b683b40417383cb02fc9299d707T.png)
Sincerely welcome friends to visit, negotiate and cooperate!
