Intel H310 8th/9th ATX Industrial master Motherboard X86 Industrial Motherboard Server board large motherboard
- Category: >>>
- Supplier: Shenzhen Evr Tech Co. Ltd.
Share on (1600944386429):
Product Overview
Description
ATX H310 Industrial Motherboard embedded industrial 1151 motherboard with 4*PCI,3*PCIe,6*com 14*USB
Product Description
Features of Our 1592 motherboard
1.Intel H310 chipset,support Intel Coffee Lake processors
2.2*Intel Gbps network Support self-adaptive and WOL function
3.2* DDR4 UDIMM sockets Max support 32G
4.4*SATA,Support AHCI
5.Support 1*PCIE X16, 2*PCIE X4 and 4*PCI
6.1*VGA,1*HDMI,1*DP,6*COM
7.Size:305*244mm
Specification of our 1592 motherboard
Model No.: | 1592 |
version
| 1592-01, no USB3.0 pin,no MINI_PCIE,no MSATA 1592-02, 1 *USB3.0 pin, have MSATA and MINI_PCIE 1592-03, 2 *USB3.0 pin, have MSATA no MINI_PCIE |
CPU | Support Intel coffee Lake -S LGA1151, 8th and 9th I3/I5/I7/I9 Processors |
Chipset | Intel H310 | Maximum power consumption:6W |
Memory | 2*240Pin DDR4 UDIMM sockets Support DDR4 2400/2666MHz (up to 32GB) | Not support ECC |
Display interface | VGA:1*VGA, Maximum resolution:1920*1200@60HZ HDMI:1*HDMI | Maximum resolution: 4096*2160@30HZ DP:1*DP | Maximum resolution: 4096*2304@60HZ support VGA+HDMI ,VGA+DP, HDMI+DP, support Independent dual display |
Storage interface | 4*7Pin SATA support SATA3.0,SATA2.0 and SATA1.0. Support AHCI |
LAN interface | 2*RJ45 Gbps network 1*intel Intel i225-V 1*Intel I219-LM network chip support 10/100/1000Mbps Support self-adaptive and WOL function |
Audio interface | Realtek ALC662 Audio control chip, support dual track and stearo. Post position: Bule: Line_in, Green: Line_out, Pink: Mic_in. 1*2x5Pin FP_AUDIO support Mic-in2 and Line-out2 functions. 1*4 Pin small white amplifier interface |
USB interface | 4*USB3.1( rear I/O) 4*USB3.0 pin reserve 6*USB2.0 (2*rear I/O port,2*2.5pin 2.54mm pin,could extend to 4*USB2.0) Reserve a built-in vertical USB optional with USB pin |
Serial port | 2*DB9 interface (COM1 and COM2) 4*2x5 Pin 2.0mm pin can transfer to DB9 COM1-COM6 are drawn from the IO and all support the RS232 COM1/2 also support RS422/RS485 models |
I/O function | Fintek F81866AD 6 serial ports drawn from SIO 1*two-in-one PS/2 keyboard and mouse interface 1* KM pin interface(reserve) 1*1X4pin CPU fan interface 2*1x4pin SYS FAN interface |
Expansion slots | 1*standard PCIE X16 interface (support PCIE 3.0 specification) 2*standard PCIE X4 interface (actual PCIE X1 resources) 4*standard PCI interfaces (support PCI 2.3 specifications) 1*MSATA interface 1*MINI_PCIE interface (half card), support WIFI/3G/4G function 1*JLPC pin interface, expandable 8 serial ports 1*LPT pin 1*GPIO interface (16-bit programmable digital I/O pin) derived from chipset Note: SATA4 and MSATA alternative Note: MINI_PCIE and USB3_1314 alternative |
Power adaptor | Standard 24+8PIN ATX power supply |
Watchdog | 255-level timer resettable |
BIOS | AMI BIOS |
Support OS | Windows 10 64 bit Windows Server2016 Windows Server2019 LINUX |
Working temperature | -10℃—+60℃ |
Storage temperature | -40℃—+80℃ |
Dampness | 5% to 95% relative humidity without condensation |

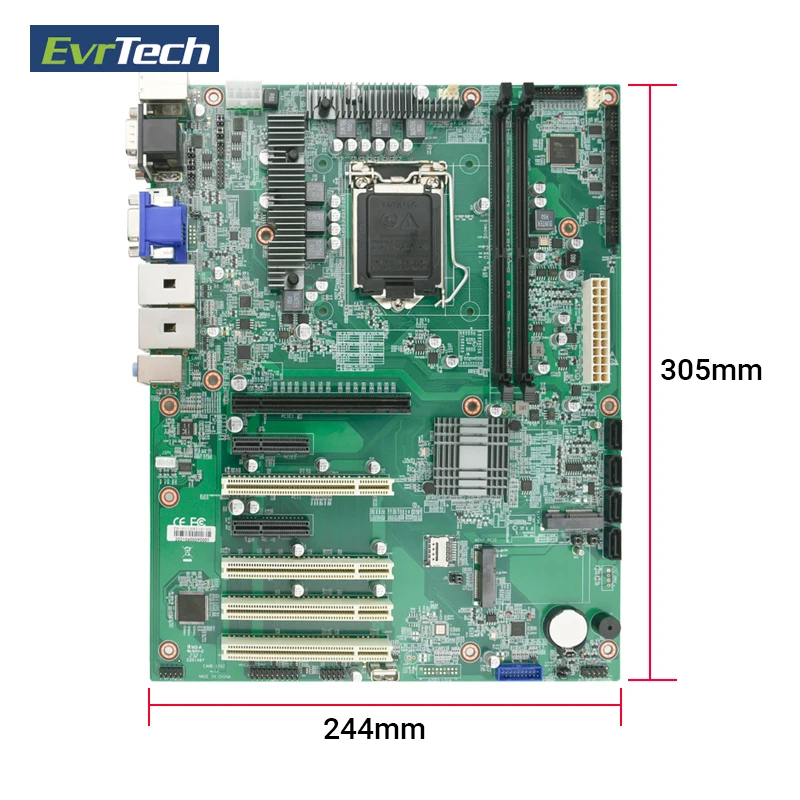

Size | 305mm*244mm |

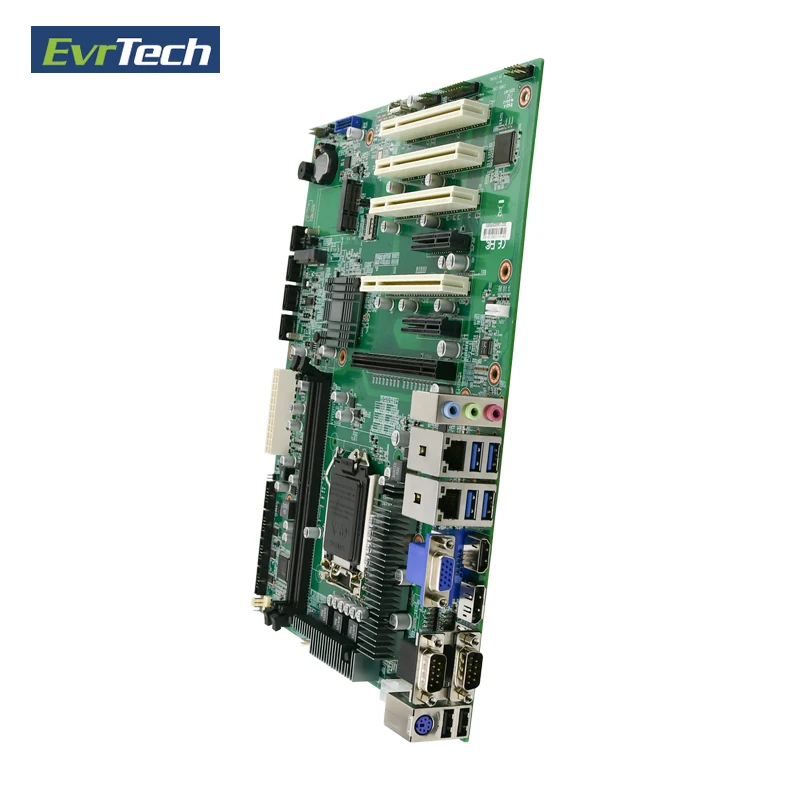

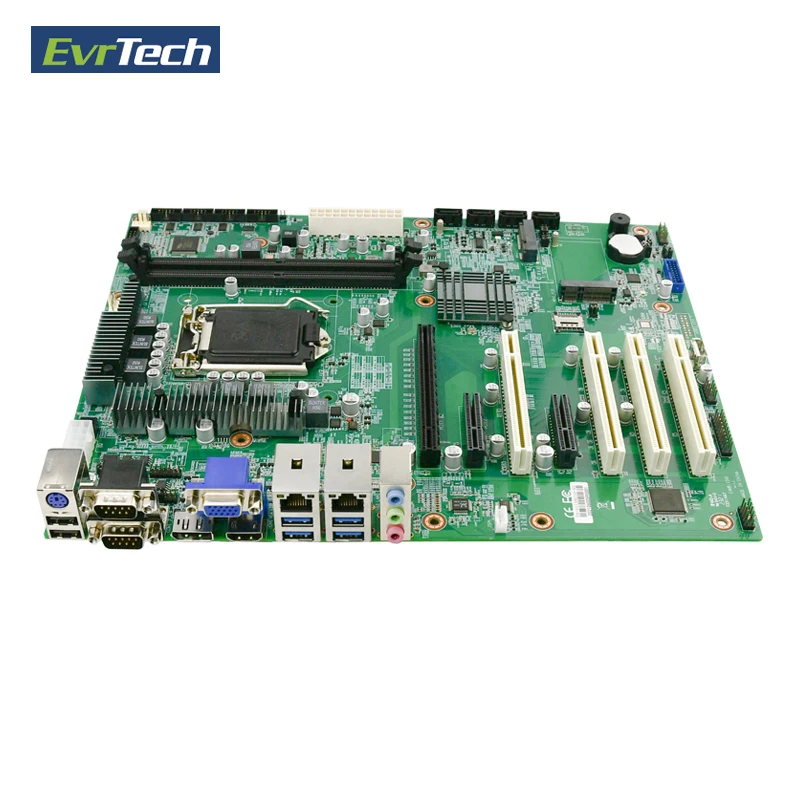

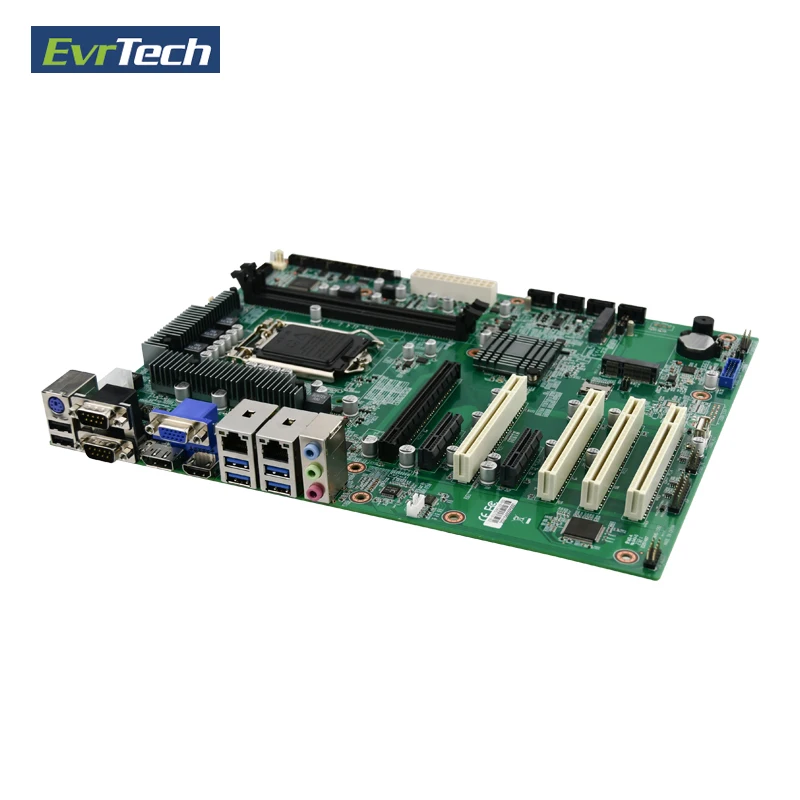

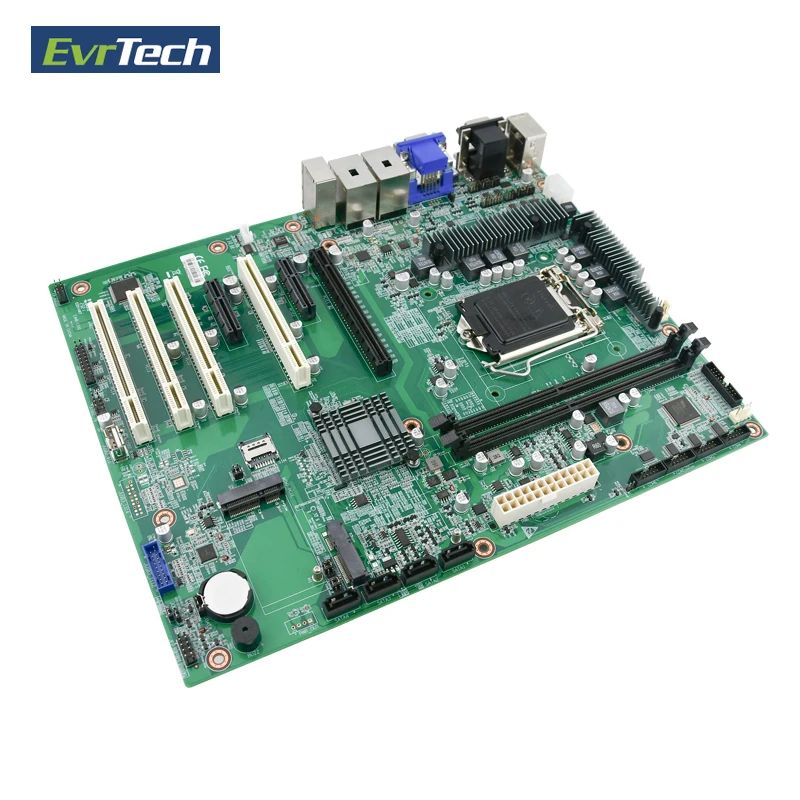

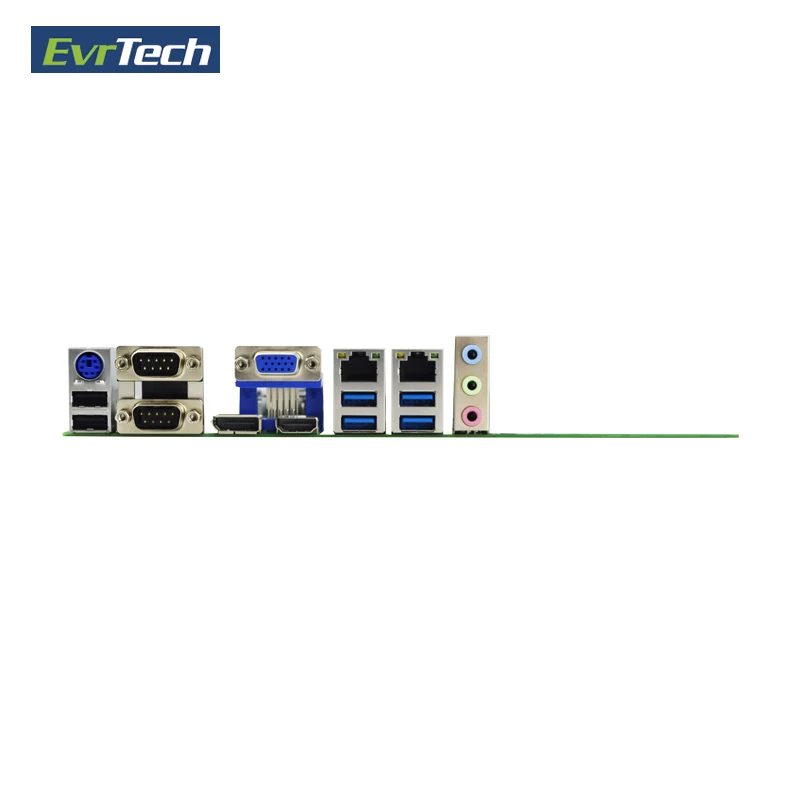

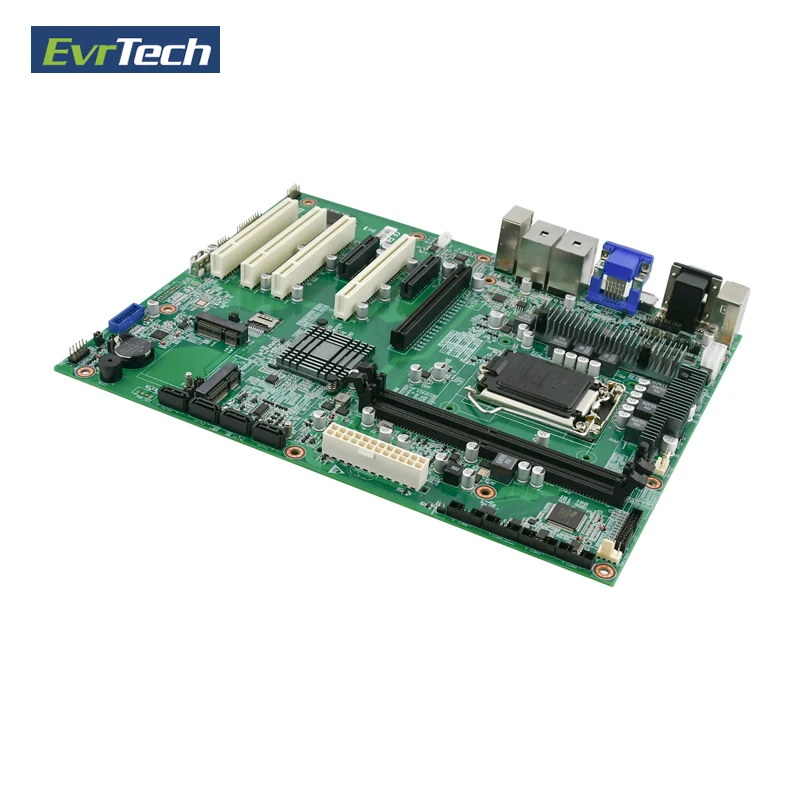

Detailed Images
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box,
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Our Services
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it ,but we will charge for the parts that need to change.
Company Information
FAQ
Q1: Can you put Our brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about
our products. We will try our best to help you.
