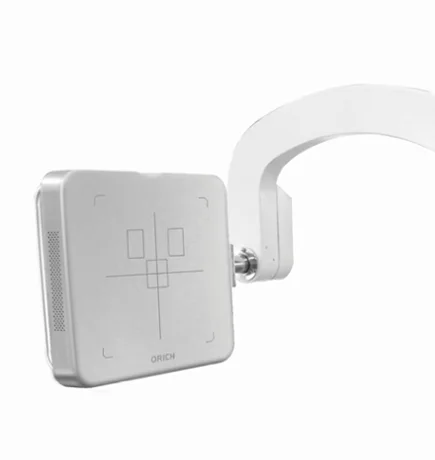

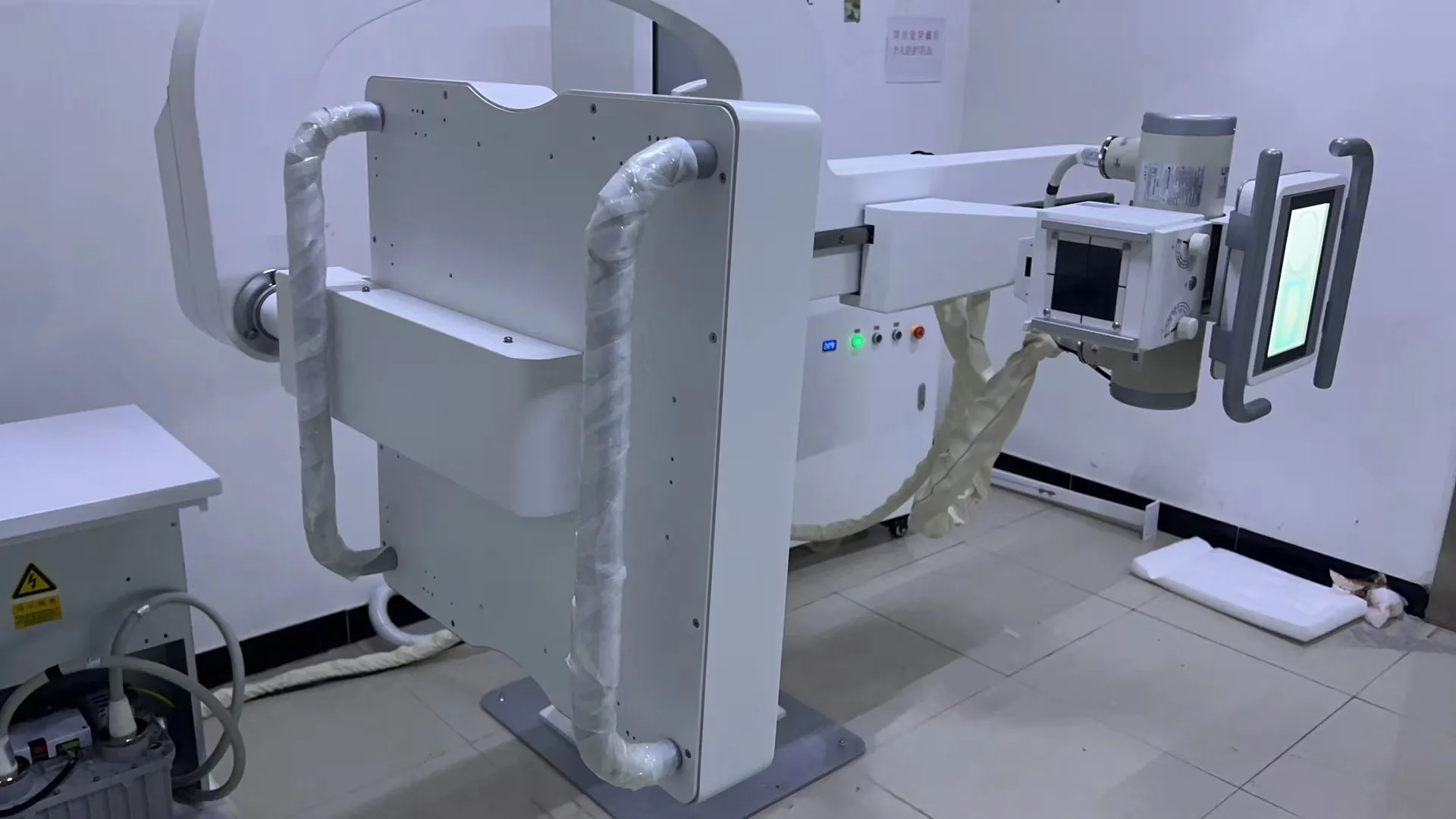

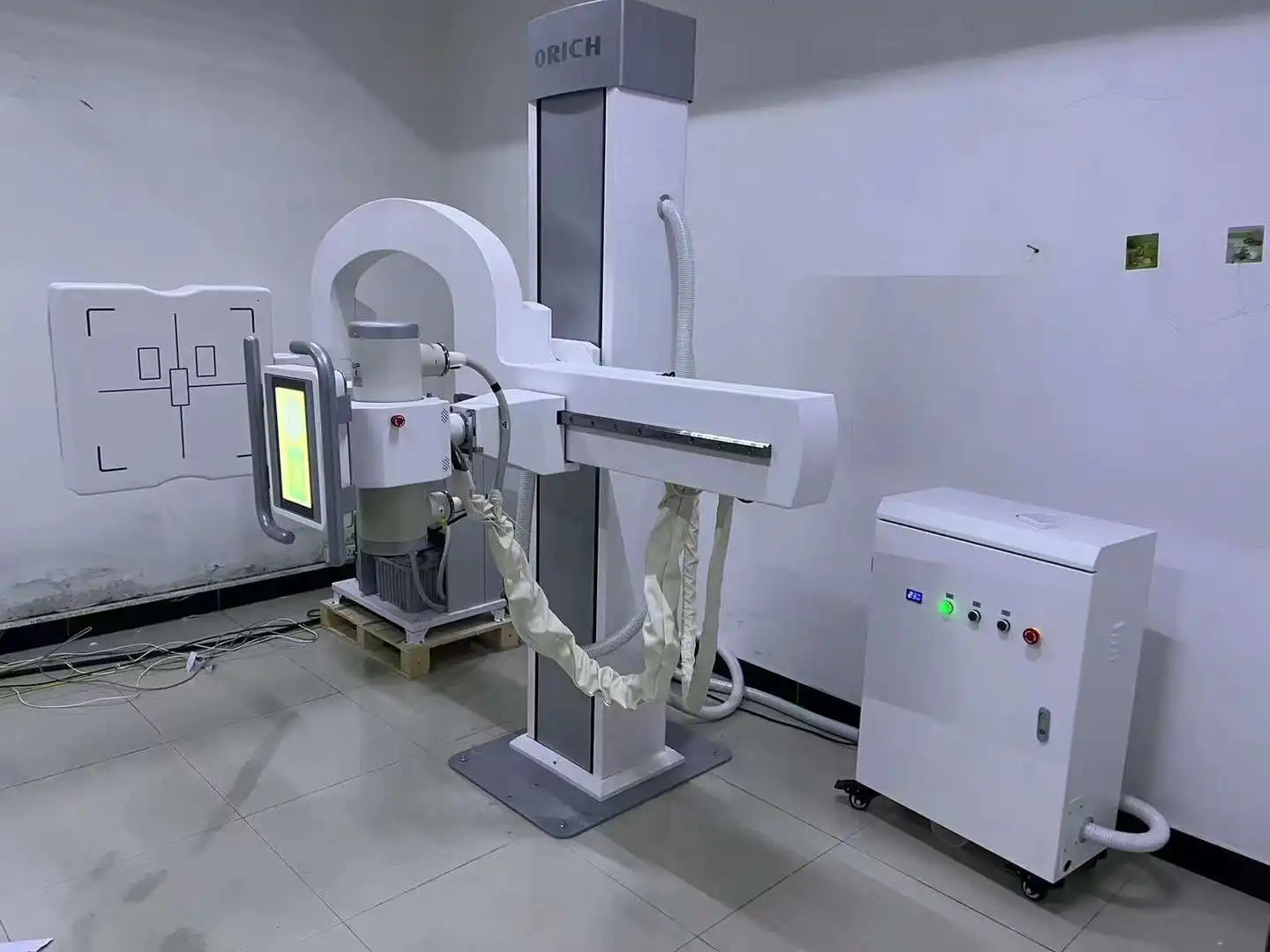

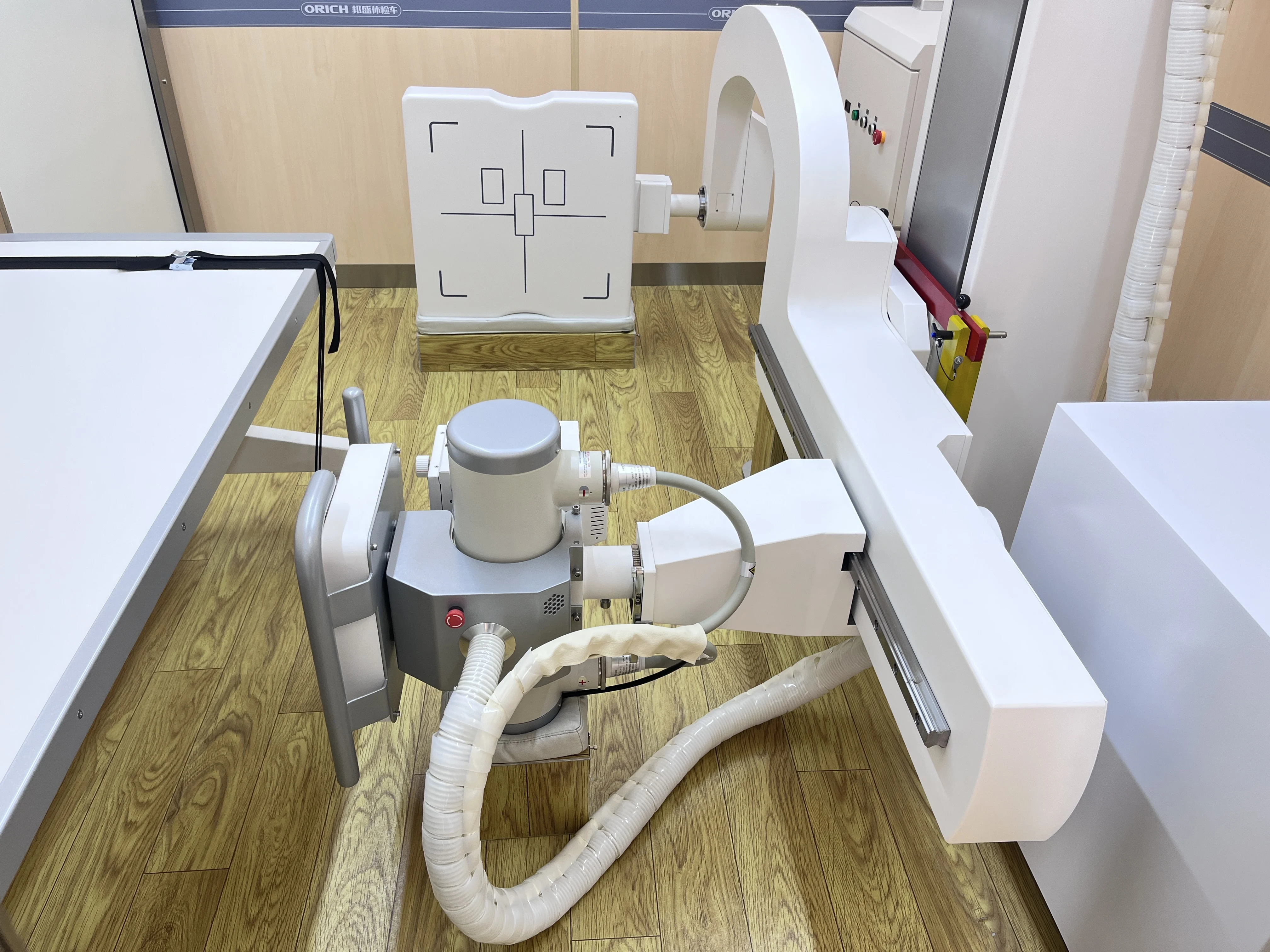

50KW Digital Radiography X ray machine UC arm Medical Radiology Diagnostic X ray Equipment High Frequency Dr X ray System
- Category: >>>
- Supplier: Orich Medical Equipment (Tianjin) Co. Ltd.
Share on (1600944427508):
Product Overview
Description
Specification
item | value |
Place of Origin | Tianjin, China |
Brand Name | ORICH |
Model Number | FS-500DDR |
Power Source | Electricity |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Steel |
Shelf Life | 8 years |
Quality Certification | CCC |
Instrument classification | Class II |
Safety standard | GB9706 YY0505 |
Product name | X-ray direct Digital Radiography System |
Output power | 50KW |
High frequency output | 400kHz |
KVp Range | 40-150KVp |
mA Range | 10-630mA |
Exposure Timer Range | 0.001-6.3s |
APR | 768 |
Options | AEC, DAP |
Input Phase/Voltage | 3 Phase, AC380V±10%, 50/60Hz±1Hz |
Nominal focal spot value | 0.6mm (small focus)/1.2mm (large focus) |
Rotation speed (min-1) | 2700rpm@50Hz, 3200rpm@60Hz |
Maximum tube voltage | 150kV |
Maximum filament current | 370mA (small focus)/760mA (large focus) |
Anode Heat Content | 150kHU (111KJ) |
Max rating (0.1s) (kw) | 20/46kW@ 50Hz |
U-C arm Stand height | 2200mm |
SID Minimum | 1000mm |
SID Maximum | 1800mm |
Flat panel detector active area | 430*439 |
Pixel Pitch | 143μm |
Pixel matrix | 3008*3072 |
A/D Conversion | 14bit |
Limiting resolution | 3.7LP/mm typ |
Product Description
Company Profile
Founded in 2004, ORICH Medical Equipment (Tianjin) Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales and service of medical imaging and mobile medical products. With the mission of "Obtaining excellent images with smaller doses and higher efficiency", ORICH Medical is committed to providing global customers with mobile medical services and holistic medical imaging solutions.
ORICH has gotten the quality system QSR820, ISO9001, ISO13485; is awarded as honorable member of RSNA; qualified supplier of major project for National foreign aid; first recommend medical imaging enterprise to foreign market accepted by Commerce Department; qualified supplier of United Nation; and evaluation and recommendation enterprise by China Medical Equipment Association.
ORICH product has gotten certificates, like CE(EU), GOST(Russia), and CCC certificate, etc.
ORICH Medical has committed itself to the advocating green healthcare, providing HD and micro-radiation products, caring for the health of doctors and patients as well as protecting environment and everyone.
ORICH has gotten the quality system QSR820, ISO9001, ISO13485; is awarded as honorable member of RSNA; qualified supplier of major project for National foreign aid; first recommend medical imaging enterprise to foreign market accepted by Commerce Department; qualified supplier of United Nation; and evaluation and recommendation enterprise by China Medical Equipment Association.
ORICH product has gotten certificates, like CE(EU), GOST(Russia), and CCC certificate, etc.
ORICH Medical has committed itself to the advocating green healthcare, providing HD and micro-radiation products, caring for the health of doctors and patients as well as protecting environment and everyone.
Exhibition
Packing & Delivery
Standard wooden case packing
FAQ
1. who are we?
We are based in Tianjin, China, start from 2004,sell to Mid East(16.67%),Africa(16.67%),Southeast Asia(16.67%),Eastern Europe(16.67%),South America(16.67%),Eastern Asia(12.67%),Oceania(3.98%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Digital x ray machine,Analogue x ray machine,Mobile x ray machine,Fluoroscopy x ray machine,Mobile Hospital
4. why should you buy from us not from other suppliers?
Founded in 2004, ORICH Medical Equipment (Tianjin) Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales and service of medical imaging and mobile medical products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Russian
We are based in Tianjin, China, start from 2004,sell to Mid East(16.67%),Africa(16.67%),Southeast Asia(16.67%),Eastern Europe(16.67%),South America(16.67%),Eastern Asia(12.67%),Oceania(3.98%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Digital x ray machine,Analogue x ray machine,Mobile x ray machine,Fluoroscopy x ray machine,Mobile Hospital
4. why should you buy from us not from other suppliers?
Founded in 2004, ORICH Medical Equipment (Tianjin) Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales and service of medical imaging and mobile medical products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Russian
