2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood
2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood

2 Axis 3 Axis CNC Milling Machine CNC Machining Center for Metal or Wood

Share on (1600944447362):


Price:$9,188.00 - $10,501.00

Quantity:


Product Overview

Description



Poster




Product




Product detail:




Subpanel：It can be selected according to your needs





Item
Unit

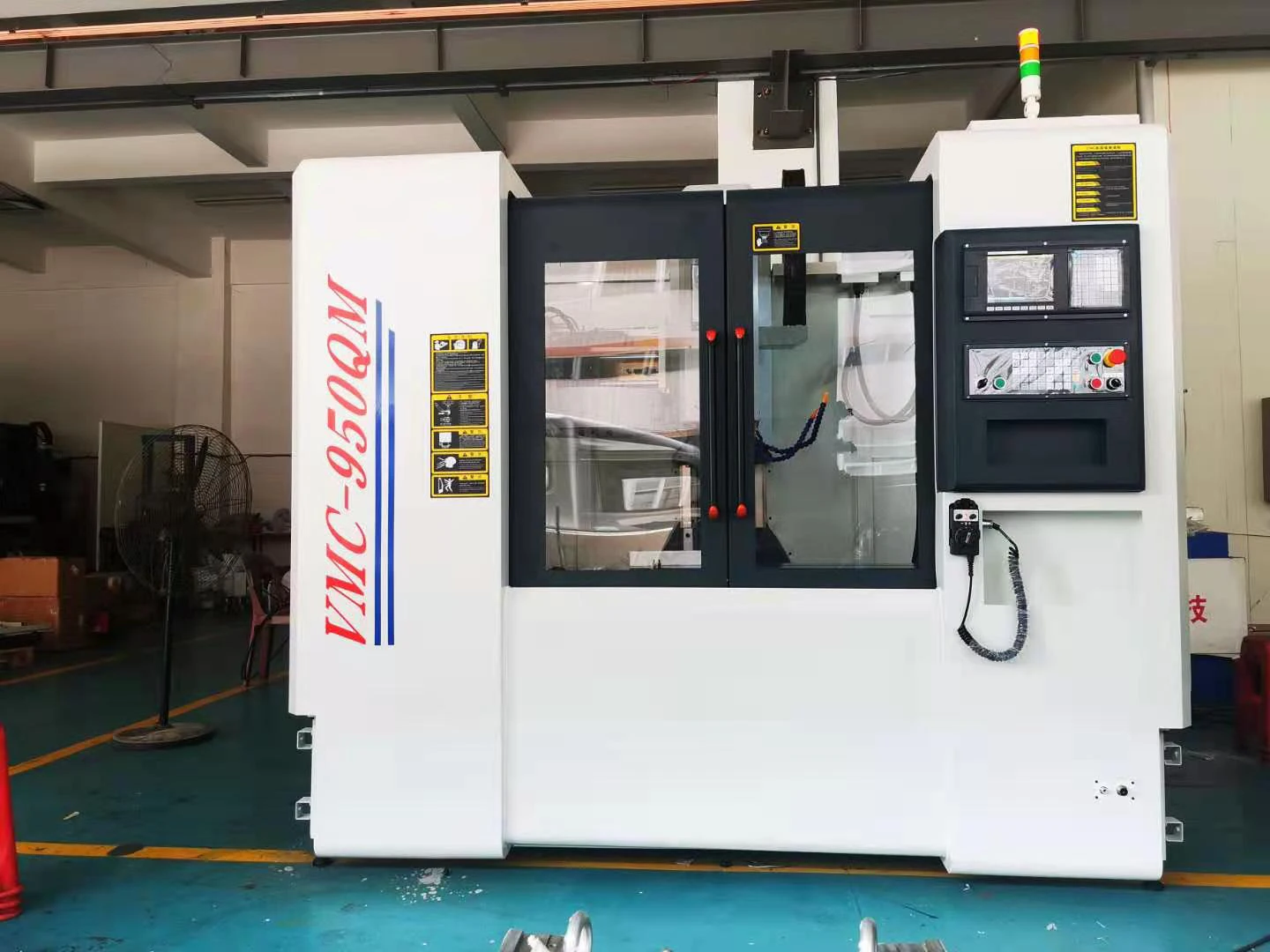

Machine model
CNC-950QM
X axis travel
mm
800
Y axis travel
mm
500
Z axis travel
mm
500
Distance from spindle nose to the worktable
mm
120-620
Distance from spindle center to column guide rail surface
mm
580
X rapid feed G0
mm/min
30000
Y rapid feed G0
mm/min
30000
Z rapid feed G0
mm/min
24000
Cutting speed
mm/min
8000
Work table size
mm
1500*420
The maximum load capacity of working table
KG
350
Table "T" type groove number
pcs
3
Table "T" type groove width
mm
18
Table "T" type groove Spacing
mm
100
Unidirectional positioning accuracy
mm
0.015
Repeat positioning accuracy
mm
0.01
Spindle speed range
rpm/min
20-8000
Feed axis motor power
KW
1.6/2/2.5
Feed motor connection form
Direct installation
Taper of spindle hole
BT40
Tool standard
MSA403 BT40
Rivet standard
MSA403 P40T-1
The spindle of output power
KW
5.5
Cooling box form
independent
Tool magazine type
Umbrella
Tool number
pcs
12
Maximum tool diameter
mm
75
Maximum tool weight
kg
5
Maximum tool length
mm
300
Dimension of machine
mm
2700*1800*2200
Weight of machine
KG
3200
Working environment
0~45℃
20%~80%

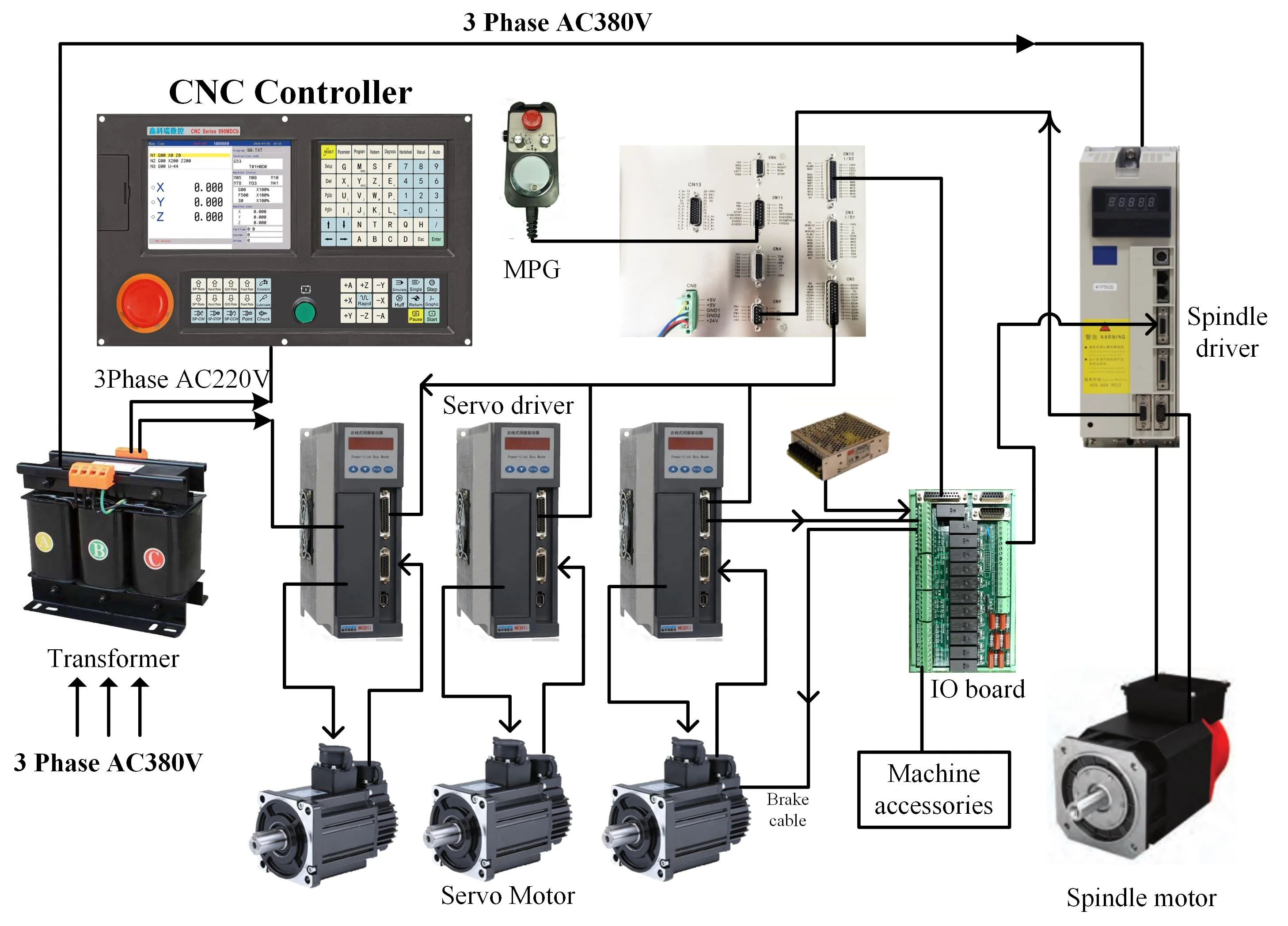

Controller Parameter details
System Function
G code shows
Number of control axis
3~8(X,Y，Z,A,B,C,Xs,Ys)
Locate rapidly:
G00
The smallest programming:
0.001mm
Straight line interpolation
G01
The most programming:
±99999.999mm
Arc interpolation:
G02/03
The highest speed:
60m/min
Thread cut:
G32
Feed speed:
0.001~30m/min
Cycle of cutting cyliner or cone:
G90
Continuous manual:
one axis or multiple axis at the same time
Cycle of cutting end face:
G94
Line interpolation:
Straight line, arc, screw thread interpolation
cycle of cutting thread
G92
Cutter compensation:
Length of the compansation、radius nose of tool compensation
Fixed cycle of tapping
G93
Cutter compensation input:
Try to cut measuring input mode
Cycle of rough cut in excircle
G71
Spindle function:
gear、Double analog control、Rigid tapping
Cycle of rough cut at end face:
G72
Handwheel function:
panel、handheld
Cycle of closed cut
G73
handwheel processing:
The handwheel processing function
Cycle of drill deep hole at end face
G74
Screen protection:
The screen protection function
Cycle of cutting groove with external diameter
G75
Tool rest function:
Row tool rest、Electric too post 99 knife
Cycle of cutting compound thread
G76
Communication function:
RS232、USB interface
Cycle of program
G22,G800
Compensation function:
Tool compansation、Space compensation、Screw pitch compensation、Radius compensation
Local coordinate system:
G52
Edit program:
Metric/Imperial、Straight thread、taper thread and so on
Detect the instruction of skip
G31,G311
Limit position function
soft limit, hard limit
Pole coordinate
G15,G16
thread function
metric and inch format, straight thread, taper thread and so on
Metrical/Imperial programme:
G20,G21
Preread function:
Preread 10,000 short straight lines
Set coordinate, offset
G184,G185
Password protection:
Multilevel password protection
Workpiece coordinate system:
G54~G59
Input/output:
I/O 56*24
Tool radius C
G40,G41,G42
PLC programme:
All open PLC design
Accurate locating/continuous path process:
G60/G64
Acceleration and deceleration control:
Straight line、Index
Constant linear cutting:
G96/G97
Number of encoder:
any setting
Feeding mode:
G98,G99
User macro program:
Have
Backing to start point of program:
G26
Electrical gear function:
Have
Backing to the fixed point:
G25,G61,G60
Subpanel
A type with handwheel; B type with band switch; C type with both A and B, E type
Backing to the datum point:
G28
Application:
VMC, grinding, special machine
Suspend:
G04
Macro Program:
G65,G66,G67
Auxiliary function:
S、M、T


Function advantages




Product features


Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)

Adapt bus modbus technology, ARM + DSP + FPGA technology

USB and RS232 port, DNC function of USB (NEW)

Network remote technology and could diagnose the system online (NEW)

User's storage is 128M and could be infinite number of program (NEW)

Abosolute type of motor (17bits multi circle) controlling technology (NEW)

The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

All closed-loop with grating ruler control and the accuracy is <2um (NEW)

Preread the short line program to satisfy with high speed engraving and cutting (NEW)

Intelligent Man-Machine dialog interface (NEW)


Product applications








NEWKer is the manufacturer
We are a factory, not a trader, so we can provide you with low price but high quality products

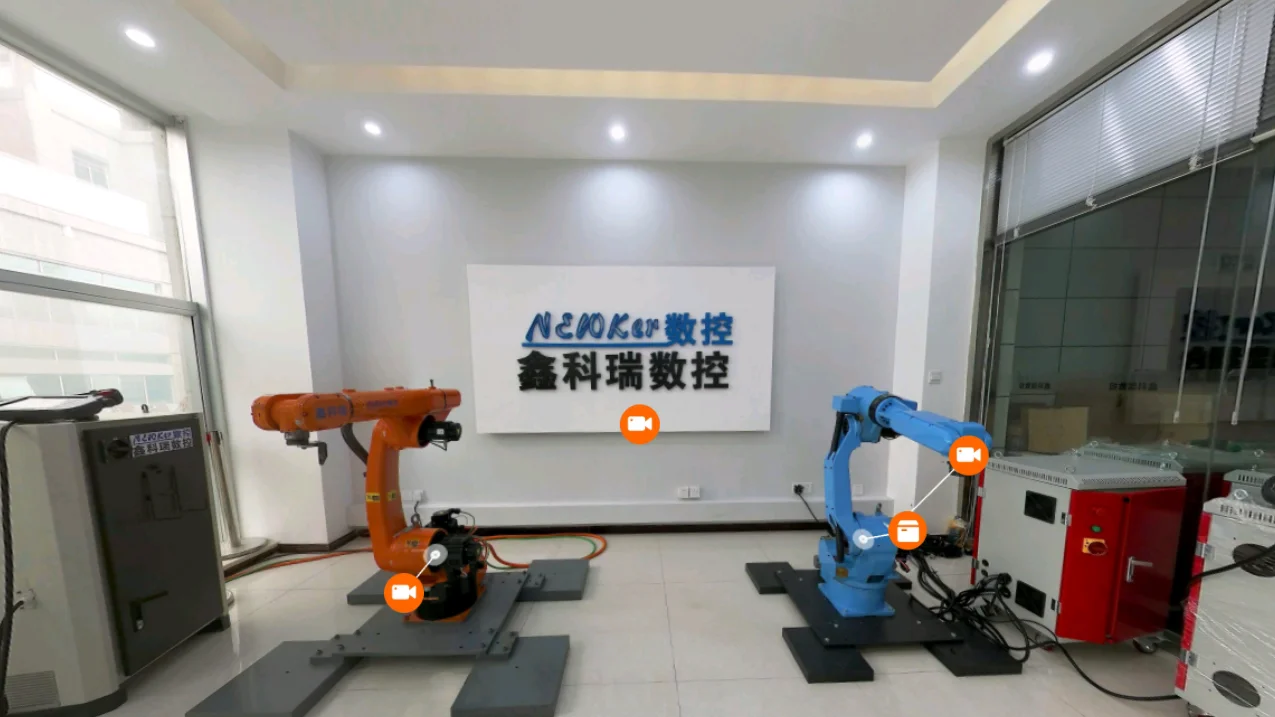

This is our showroom：
