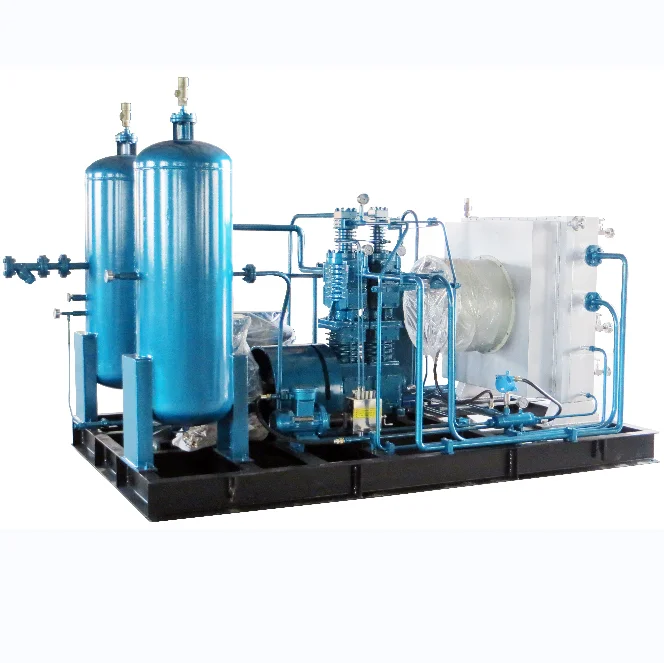

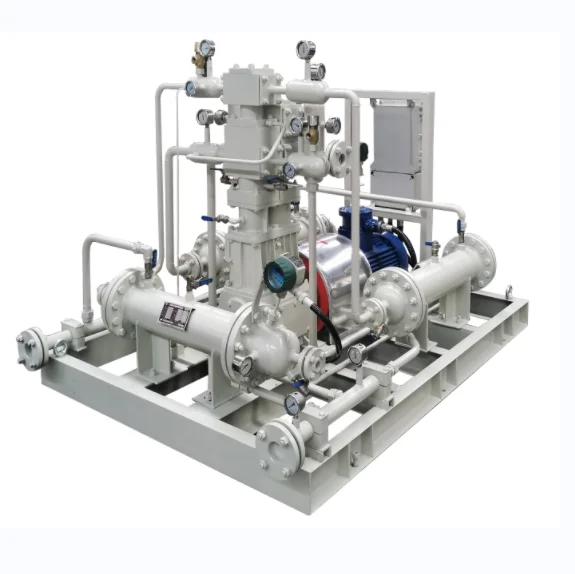

Best-Selling Noiseless Oil-Free Air Compressor CNG Natural Gas for CNG Filling Station
Product Description

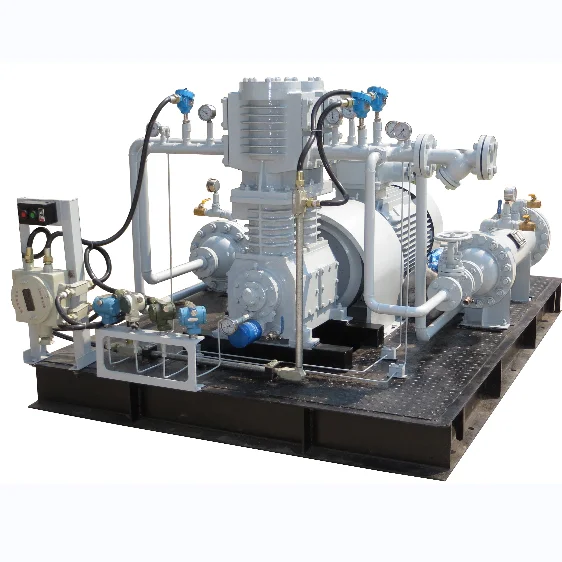

Reciprocating Gas Compressor
Piston compressor is a kind of piston reciprocating motion to make gas pressurization and gas delivery compressor mainly consists of working chamber, transmission parts, body and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, the volume of the working chamber on both sides of the piston changes in turn, the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas.
Reciprocating Gas Compressor are widely used in many industries related to the compression and supply of gas to consumers. Like oil and chemical industry, oil refineries and more. Various technological processes can include corrosive, inert, poisonous and explosive gases, which must be treated to a clean gas without impurities of oil.
Piston compressor is a kind of piston reciprocating motion to make gas pressurization and gas delivery compressor mainly consists of working chamber, transmission parts, body and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, the volume of the working chamber on both sides of the piston changes in turn, the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas.
Reciprocating Gas Compressor are widely used in many industries related to the compression and supply of gas to consumers. Like oil and chemical industry, oil refineries and more. Various technological processes can include corrosive, inert, poisonous and explosive gases, which must be treated to a clean gas without impurities of oil.

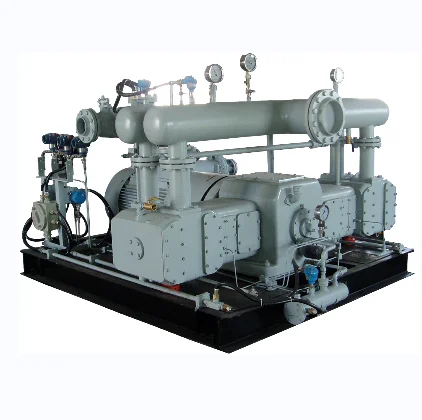

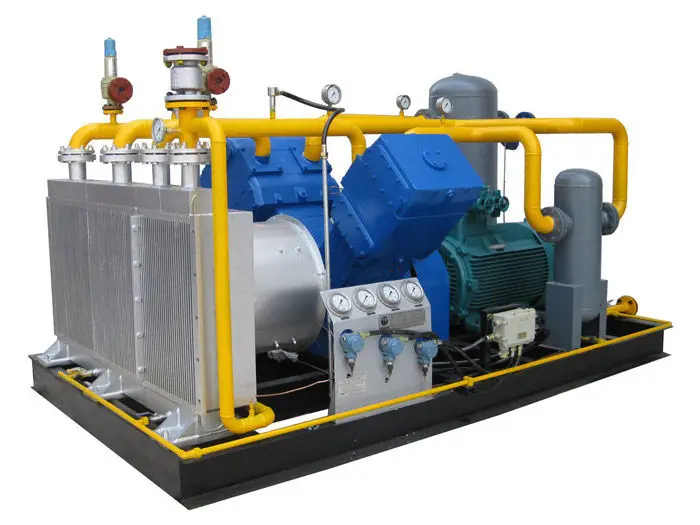

Natural gas compressor
As an important modern energy source, natural gas is widely used in various fields. For different gas sources, the application methods adopted are also different.
Product description
These compressor units, known as Reciprocating Piston Compressors, are primarily utilized for the pressurized transmission of pipeline natural gas, as well as in oil and gas processing plants and other relevant applications.
Features
1. The Reciprocating Piston Compressor offers reliable operation and requires minimal maintenance, ensuring uninterrupted performance.
2. With its flexible load adjustment capability, the compressor can accommodate a wide range of air intake, making it adaptable to various applications.
3. Designed with an overall skid-mounted structure, the compressor operates with low noise levels, making it suitable for installation in urban areas. This not only ensures a peaceful environment but also helps in saving on investment costs.
4. The Siemens PLC control system incorporated in the compressor provides a high degree of automation, allowing for convenient remote control. This advanced technology enhances operational efficiency and ease of use.
These compressor units, known as Reciprocating Piston Compressors, are primarily utilized for the pressurized transmission of pipeline natural gas, as well as in oil and gas processing plants and other relevant applications.
Features
1. The Reciprocating Piston Compressor offers reliable operation and requires minimal maintenance, ensuring uninterrupted performance.
2. With its flexible load adjustment capability, the compressor can accommodate a wide range of air intake, making it adaptable to various applications.
3. Designed with an overall skid-mounted structure, the compressor operates with low noise levels, making it suitable for installation in urban areas. This not only ensures a peaceful environment but also helps in saving on investment costs.
4. The Siemens PLC control system incorporated in the compressor provides a high degree of automation, allowing for convenient remote control. This advanced technology enhances operational efficiency and ease of use.
Specification
No | Model | Gas flow （Nm3/h） | Inlet pressure （Mpa） | Outlet pressure （Mpa） | Power （kw） | Dimensions （mm） |
1 | ZW-0.4/ 2-250 | 60 | 0.2 | 25 | 18.5 | 2800*2200*1600 |
2 | ZW-0.81/ (1~3)-25 | 120 | 0.1~0.3 | 2.5 | 22 | 1000*580*870 |
3 | DW-5.8/0.5-5 | 400~500 | 0.05 | 0.5 | 37 | 2000*1600*1200 |
4 | DW-10/2 | 510 | Atmospheric pressure | 0.2 | 37 | 2000*1600*1200 |
5 | DW-6.0/5 | 300 | Atmospheric pressure | 0.5 | 37 | 2000*1600*1200 |
6 | DW-0.21/(20~30)-250 | 270 | 2~3 | 25 | 45 | 3200*2200*1600 |
7 | ZW-0.16/60-250 | 480 | 6 | 25 | 45 | 3000*2200*1600 |
8 | ZW-0.46 /(5~10)-250 | 200 | 0.5~1.0 | 25 | 45 | 3000*2200*1600 |
9 | DW-1.34/2-250 | 208 | 0.2 | 25 | 55 | 3400*2200*1600 |
10 | DW-0.6/24-85 | 720 | 2.4 | 8.5 | 55 | 2200*1600*1200 |
11 | ZW-2.9/14.2-20 | 220 | 1.42 | 2 | 55 | 2200*1600*1200 |
12 | VW-2.0/(2~4)-25 | 410 | 0.2~0.4 | 2.5 | 55 | 3400*2200*1600 |
13 | DW-0.85/（3~4）-250 | 180 | 0.3~0.4 | 25 | 55 | 2400*1800*1500 |
14 | DW-25-(0.2~0.3)-1.5 | 1620 | 0.02~0.03 | 0.15 | 75 | 2400*1800*1500 |
15 | VW-8.0/0.3-25 | 540 | 0.03 | 2.5 | 90 | 2400*1800*1500 |
16 | DW-6.8/0.05-40 | 200~400 | 0.005 | 4 | 90 | 2400*1800*1500 |
17 | DW-1.2 /6-250 | 420 | 0.6 | 25 | 90 | 3400*2200*1600 |
18 | DW-3.45/3.5-28 | 800 | 0.35 | 2.8 | 90 | 2400*1800*1500 |
19 | DW-8.3/0.6-15 | 660 | 0.06 | 15 | 90 | 2400*1800*1500 |
20 | DW-0.48/40-250 | 900 | 4 | 25 | 110 | 3400*2200*1600 |
21 | DW-2.7/2-200 | 420 | 0.2 | 20 | 110 | 3400*2200*1600 |
22 | VW-3.22/2-250 | 500 | 0.2 | 25 | 132 | 3400*2200*1600 |
23 | DW-6.0/(1~3)-25 | 840 | 0.1~0.3 | 2.5 | 132 | 3400*2200*1300 |
24 | DW-0.92/16-220 | 800 | 1.6 | 22 | 132 | 3400*2200*1600 |
25 | VW-3.5/2.5-250 | 600 | 0.25 | 25 | 160 | 4000*2000*1600 |
26 | DW-6.7/2-25 | 1020 | 0.2 | 2.5 | 160 | 4000*2000*1300 |
27 | DW-3.0/3-250 | 500 | 0.3 | 25 | 160 | 4800*2200*1600 |
28 | DW-30.50/0.05-4.3 | 1620 | 0.005 | 0.43 | 160 | 4800*2200*1300 |
29 | DW-1.1/10-250 | 600 | 1 | 25 | 160 | 4800*2200*1600 |
30 | DW-3.35/(2~3)-250 | 600 | 0.2~0.3 | 25 | 160 | 4800*2200*1600 |
31 | DW-7.7/0.5-150 | 600 | 0.05 | 15 | 160 | 4800*2200*1600 |
32 | VW-2.6/5-250 | 800 | 0.5 | 25 | 185 | 4800*3900*1850 |
33 | DW-0.9/40-250 | 1860 | 4 | 25 | 220 | 5500*3900*1700 |
34 | DW-19.35/(4~6)-12 | 6000 | 0.4~0.6 | 1.2 | 280 | 5500*3900*1700 |
35 | DW-34/1.04-8.5 | 3540 | 0.104 | 0.85 | 315 | 6500*4000*1800 |
36 | DW-7.5/30-48 | 17400 | 3 | 4.8 | 350 | 6800*4000*1800 |

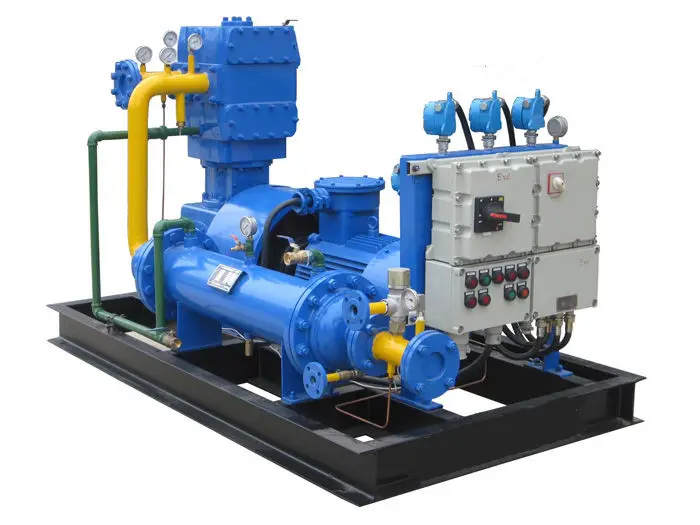

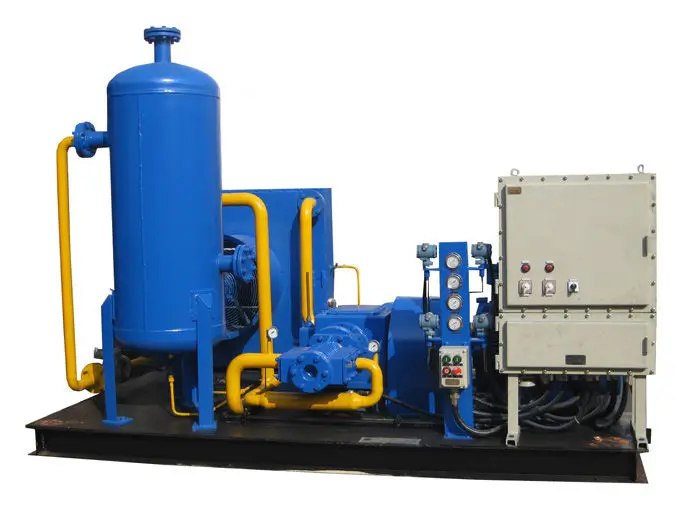

Casing Gas Recovery Compressor
Casing gas refers to the natural gas in the casing when the oil production well is producing oil. If its pressure is high, it will affect the oil production. Originally, it was directly vented. One is to pollute the environment, and the other is to waste energy. Now the use of compressor booster recovery is not only beneficial to oil production and environmental protection, but also a good measure to maximize economic benefits. The main components of its gas are methane, ethane, carbon three, carbon four and other gases, and hydrogen sulfide and water are mixed in it, and the components are relatively mixed. Before entering the compressor, it generally needs to be purified to remove the acrobatics and liquid free water. And then according to the different needs of users to increase to different pressure levels.
1. For direct recovery through the oil pipeline, the pressure needs to be increased to about 15~20 kg, depending on the pressure of the oil pipeline.
2. Press it to about 45 kg and transport it by medium pressure tanker.
3. Press to 250 kg and transport by high pressure tanker.
The latter two methods are suitable for use in gathering and transportation stations. Most of the single wells have a small gas volume and are relatively scattered, which is not conducive to the rapid loading and transportation of tankers.
The casing gas recovery compressor is also suitable for oilfield associated gas, wellhead gas and other similar conditions.
Casing gas refers to the natural gas in the casing when the oil production well is producing oil. If its pressure is high, it will affect the oil production. Originally, it was directly vented. One is to pollute the environment, and the other is to waste energy. Now the use of compressor booster recovery is not only beneficial to oil production and environmental protection, but also a good measure to maximize economic benefits. The main components of its gas are methane, ethane, carbon three, carbon four and other gases, and hydrogen sulfide and water are mixed in it, and the components are relatively mixed. Before entering the compressor, it generally needs to be purified to remove the acrobatics and liquid free water. And then according to the different needs of users to increase to different pressure levels.
1. For direct recovery through the oil pipeline, the pressure needs to be increased to about 15~20 kg, depending on the pressure of the oil pipeline.
2. Press it to about 45 kg and transport it by medium pressure tanker.
3. Press to 250 kg and transport by high pressure tanker.
The latter two methods are suitable for use in gathering and transportation stations. Most of the single wells have a small gas volume and are relatively scattered, which is not conducive to the rapid loading and transportation of tankers.
The casing gas recovery compressor is also suitable for oilfield associated gas, wellhead gas and other similar conditions.

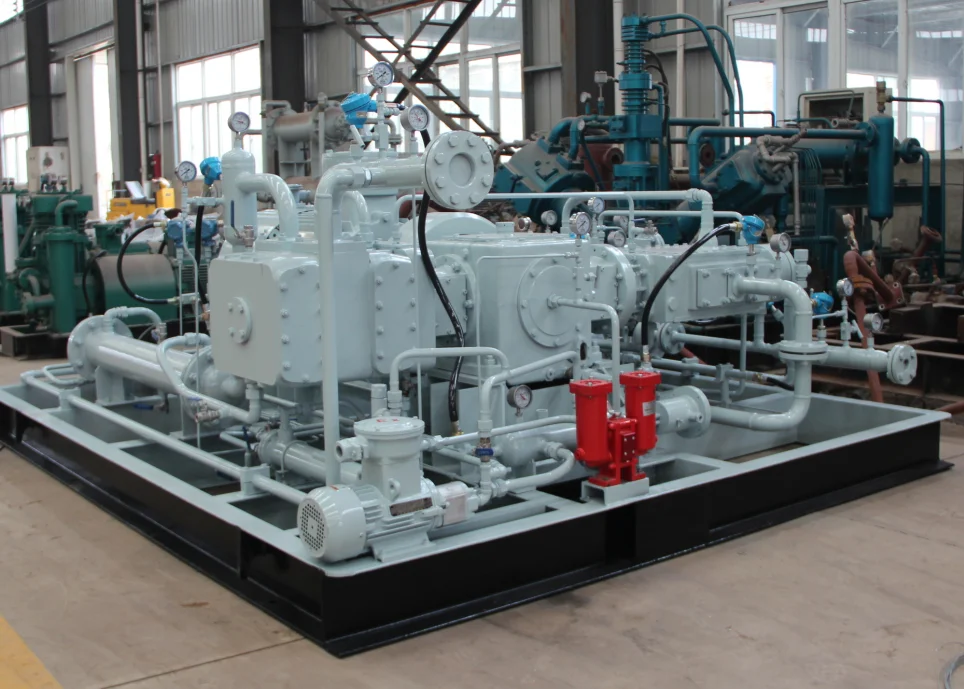

Pipeline natural gas booster
During the use of pipeline natural gas, due to factors such as the distance of the pipeline, pipe diameter, elbow and other factors, certain pipe losses are caused, and it is easy to cause insufficient pressure when using gas. At this time, it is necessary to use booster equipment to increase the pressure of natural gas to meet the requirements of use.
The reference model
Number | Method | Medium | Flow(Nm3/h) | Inlet pressure (MPaG) | Outlet ressure (MPaG) |
1 | ZW-0.2/1-18 | Casing natural gas | 20 | 0.1 | 1.8 |
2 | ZW-0.4/1-18 | Casing natural gas | 40 | 0.1 | 1.8 |
3 | ZW-0.55/1-18 | Casing natural gas | 55 | 0.1 | 1.8 |
4 | ZW-1.0/1-18 | Casing natural gas | 100 | 0.1 | 1.8 |
5 | ZW-0.2/3 | Natural gas | 10 | Normal pressure | 0.3 |
6 | ZW-0.25/0.5-2 | Natural gas | 20 | 0.05 | 0.2 |
7 | ZW-0.25/40-60 | Natural gas | 520 | 4.0 | 6.0 |
8 | ZW-0.3/18-19 | Natural gas | 300 | 1.8 | 1.9 |
9 | ZW-0.5/3 | Natural gas | 25 | Normal pressure | 0.3 |
10 | ZW-0.55/6-120 | Natural gas | 200 | 0.6 | 12.0 |
11 | ZW-0.6/(10-16)-40 | Natural gas | 350~530 | 1.0~1.6 | 4.0 |
12 | ZW-0.6/2-25 | Natural gas | 90 | 0.2 | 2.5 |
13 | ZW-0.65/0.12-0.5 | Natural gas | 35 | 0.012 | 0.05 |
14 | ZW-0.75/5.7 | Natural gas | 40 | Normal pressure | 0.57 |
15 | ZW-0.8/2-210 | Natural gas | 125 | 0.2 | 21.0 |
16 | ZW-0.85/0.8-3 | Natural gas | 80 | 0.08 | 0.3 |
17 | ZW-0.85/1-22 | Natural gas | 85 | 0.1 | 2.2 |
18 | ZW-1.0/(1-2)-25 | Natural gas | 100~150 | 0.1~0.2 | 2.5 |
19 | ZW-1.0/5-15 | Natural gas | 310 | 0.5 | 1.5 |
20 | ZW-1.2/1.5-22 | Natural gas | 150 | 0.15 | 2.2 |
21 | ZW-1.2/20-24 | Natural gas | 1300 | 2.0 | 2.4 |
22 | ZW-1.3/4-25 | Natural gas | 340 | 0.4 | 2.5 |
23 | ZW-1.9/14.5-20 | Natural gas | 1540 | 1.45 | 2.0 |
24 | ZW-2.0/(1-2)-10 | Natural gas | 210~310 | 0.1~0.2 | 1.0 |
25 | ZW-2.0/0.005-3 | Natural gas | 105 | 0.0005 | 0.3 |
26 | ZW-2.5/(1-2)-16 | Natural gas | 260~390 | 0.1~0.2 | 1.6 |
27 | ZW-2.5/1.72-4.5 | Natural gas | 350 | 0.172 | 0.45 |
28 | ZW-2.5/14.5-20 | Natural gas | 2000 | 1.45 | 2.0 |
29 | ZW-2.5/2-10 | Natural gas | 390 | 0.2 | 1.0 |
30 | ZW-3.15/2.9 | Natural gas | 160 | Normal pressure | 0.29 |
31 | ZW-5.5/0.1-1.2 | Natural gas | 315 | 0.01 | 0.12 |
32 | ZW-7/0.5-3 | Natural gas | 550 | 0.05 | 0.3 |
33 | ZW-8.5/0.5-1.5 | Natural gas | 660 | 0.05 | 0.15 |
34 | VW-9.0/7 | Natural gas | 470 | Normal pressure | 0.7 |
35 | VW-7/0.3-45 | Natural gas | 470 | 0.03 | 4.5 |
36 | VW-6/10-16 | Natural gas | 3400 | 1.0 | 1.6 |
37 | VW-6/3-8.5 | Natural gas | 1250 | 0.3 | 0.85 |
38 | VW-5/2-9 | Natural gas | 780 | 0.2 | 0.9 |
39 | VW-5.0/2-42 | Natural gas | 780 | 0.2 | 4.2 |
40 | VW-4/1-20 | Natural gas | 415 | 0.1 | 2.0 |
41 | VW-4/5-16 | Natural gas | 1250 | 0.5 | 1.6 |
42 | VW-4.2/3-35 | Natural gas | 880 | 0.3 | 3.5 |
43 | VW-3/1-45 | Natural gas | 310 | 0.1 | 4.5 |
44 | VW-3.8/2-42 | Natural gas | 600 | 0.2 | 4.2 |
45 | VW-20/2-5 | Natural gas | 3100 | 0.2 | 0.5 |
46 | VW-2/1-42 | Natural gas | 210 | 0.1 | 4.2 |
47 | VW-2.5/0.5-18 | Natural gas | 195 | 0.05 | 1.8 |
48 | VW-2.5/2-40 | Natural gas | 390 | 0.2 | 4.0 |
49 | VW-2.4/0.04-14 | Natural gas | 130 | 0.004 | 1.4 |
50 | VW-15/0.5-3 | Natural gas | 200 | 0.05 | 0.3 |
51 | VW-14/3-4 | Natural gas | 2900 | 0.3 | 0.4 |
52 | VW-14.5/0.5-2 | Natural gas | 1100 | 0.05 | 0.2 |
53 | VW-10/2-6.5 | Natural gas | 1500 | 0.2 | 0.65 |
54 | VW-1.9/15-24 | Natural gas | 1550 | 1.5 | 2.4 |
55 | VW/7/0.3-45 | Natural gas | 470 | 0.03 | 4.5 |
56 | VW/-15/1 | Natural gas | 800 | Normal pressure | 0.1 |
57 | DW-7/4 | Natural gas | 350 | Normal pressure | 0.4 |
58 | DW-4/0.2-12 | Natural gas | 250 | 0.02 | 1.2 |
59 | DW-10/1-45 | Natural gas | 1050 | 0.1 | 4.5 |
Packing & Delivery
Company Profile
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.
This series of oil-free compressor is one of the first products produced by our factory in China. The product has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance. This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light weight, low noise, good sealing performance, easy installation, simple operation, etc.
This series of oil-free compressor is one of the first products produced by our factory in China. The product has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance. This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light weight, low noise, good sealing performance, easy installation, simple operation, etc.
Recommend Products
Certifications
PACKAGING&SHIPPING
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
