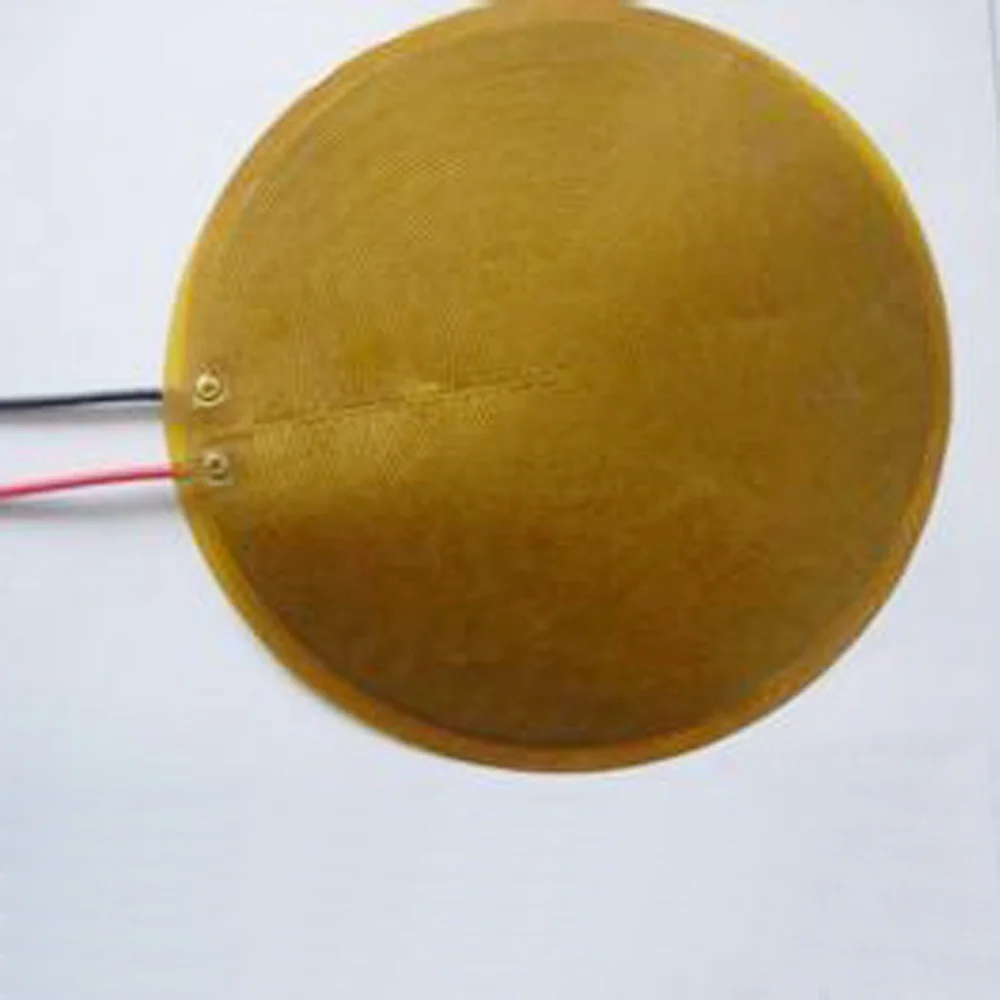

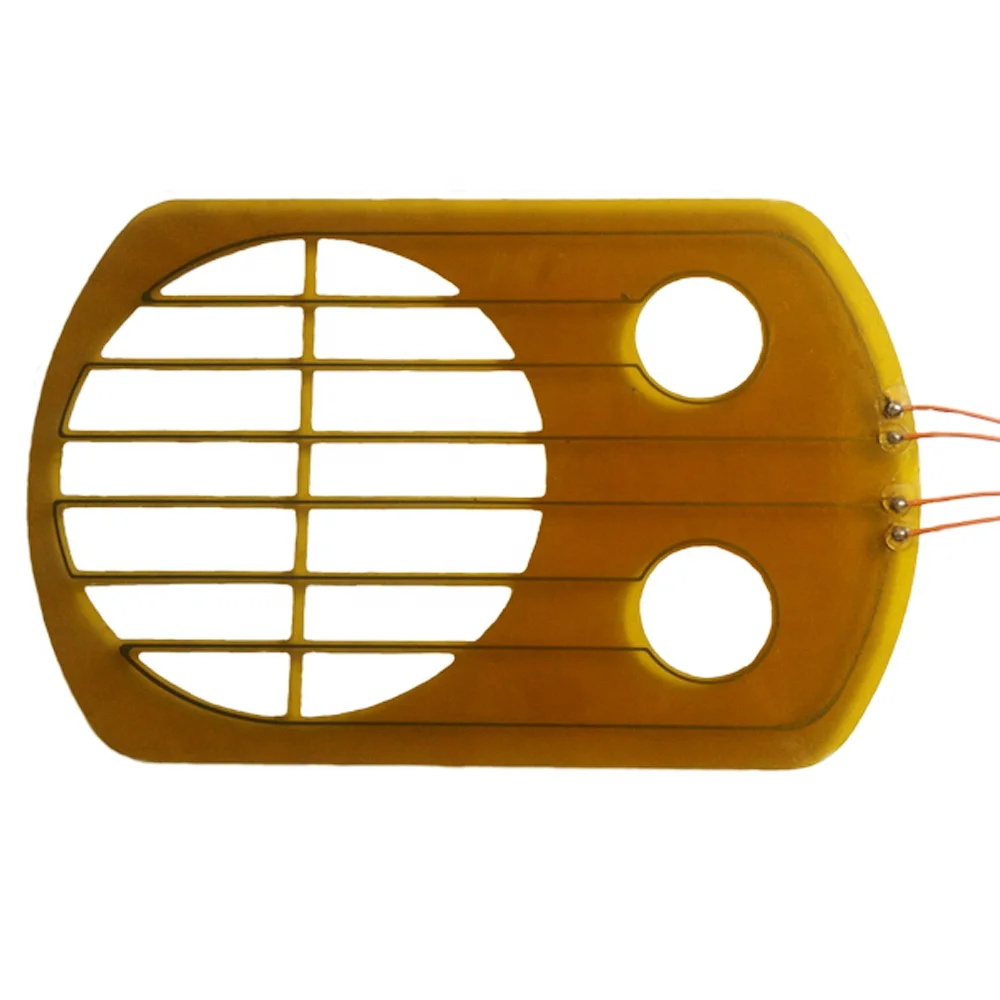

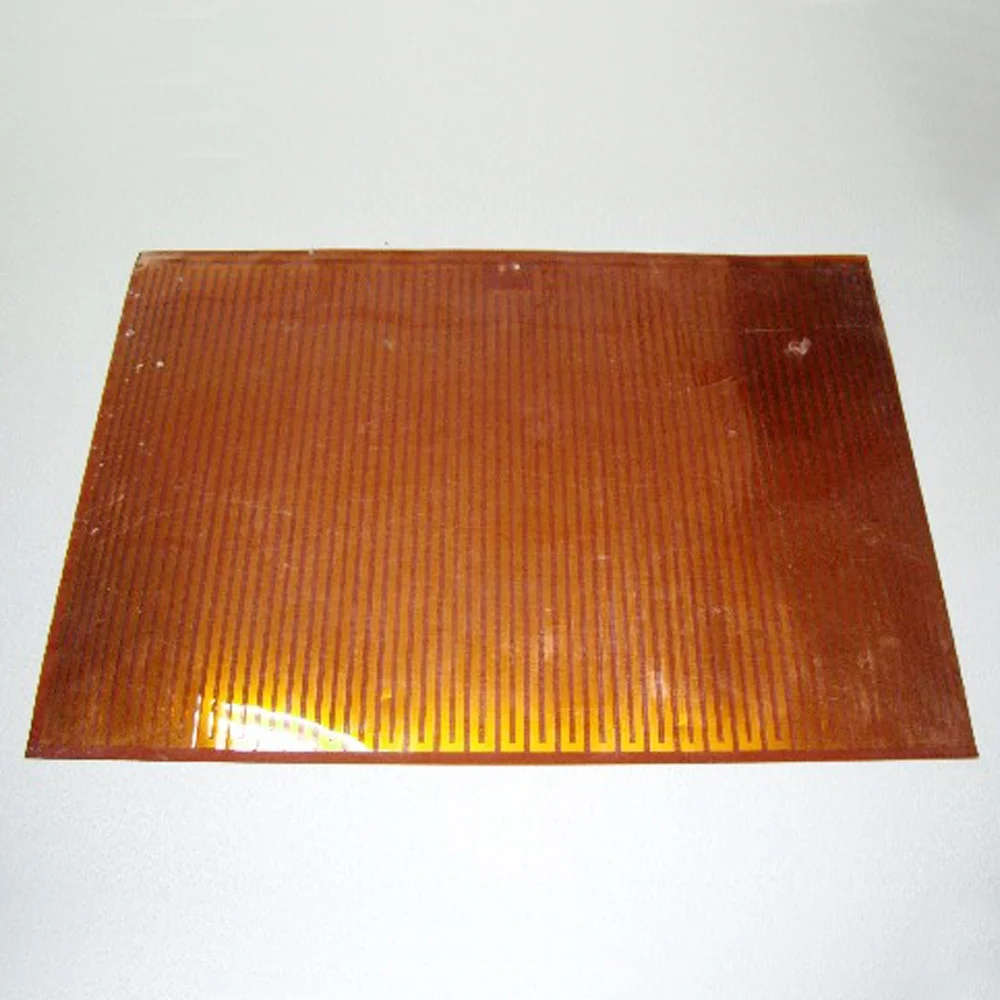

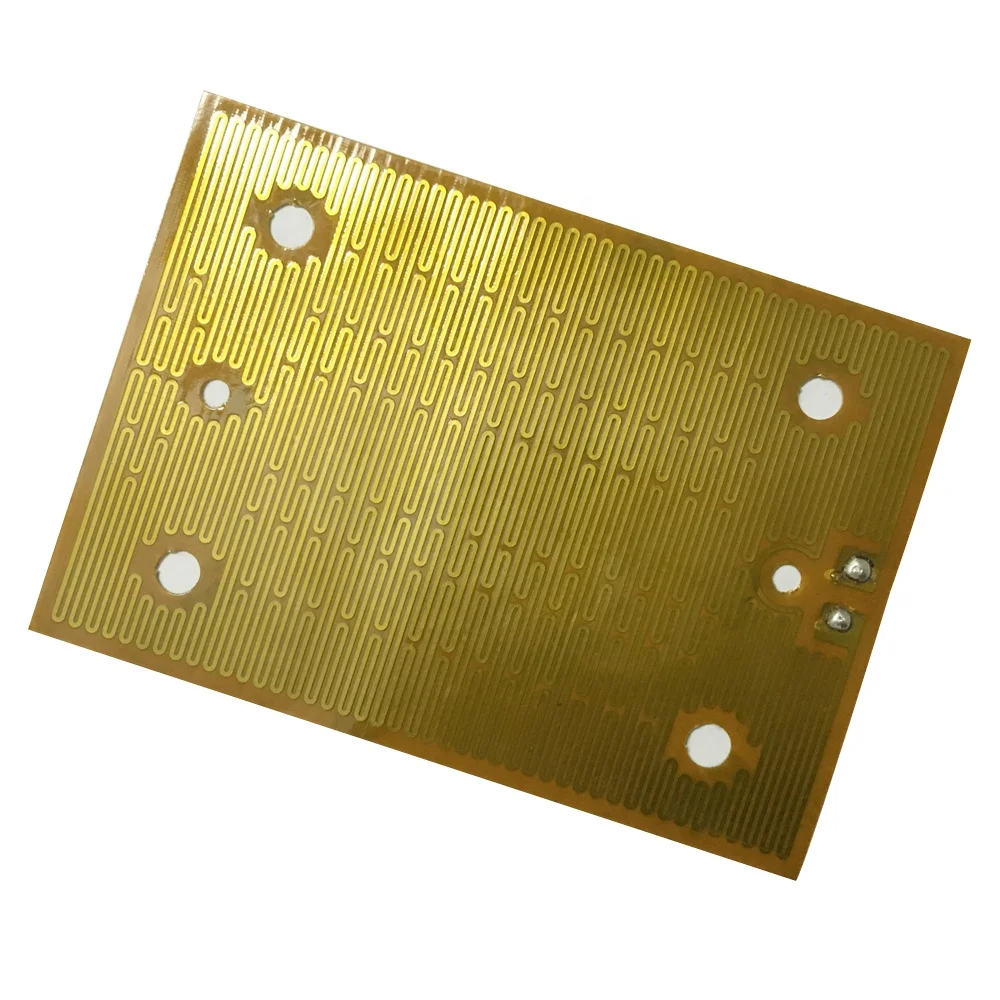

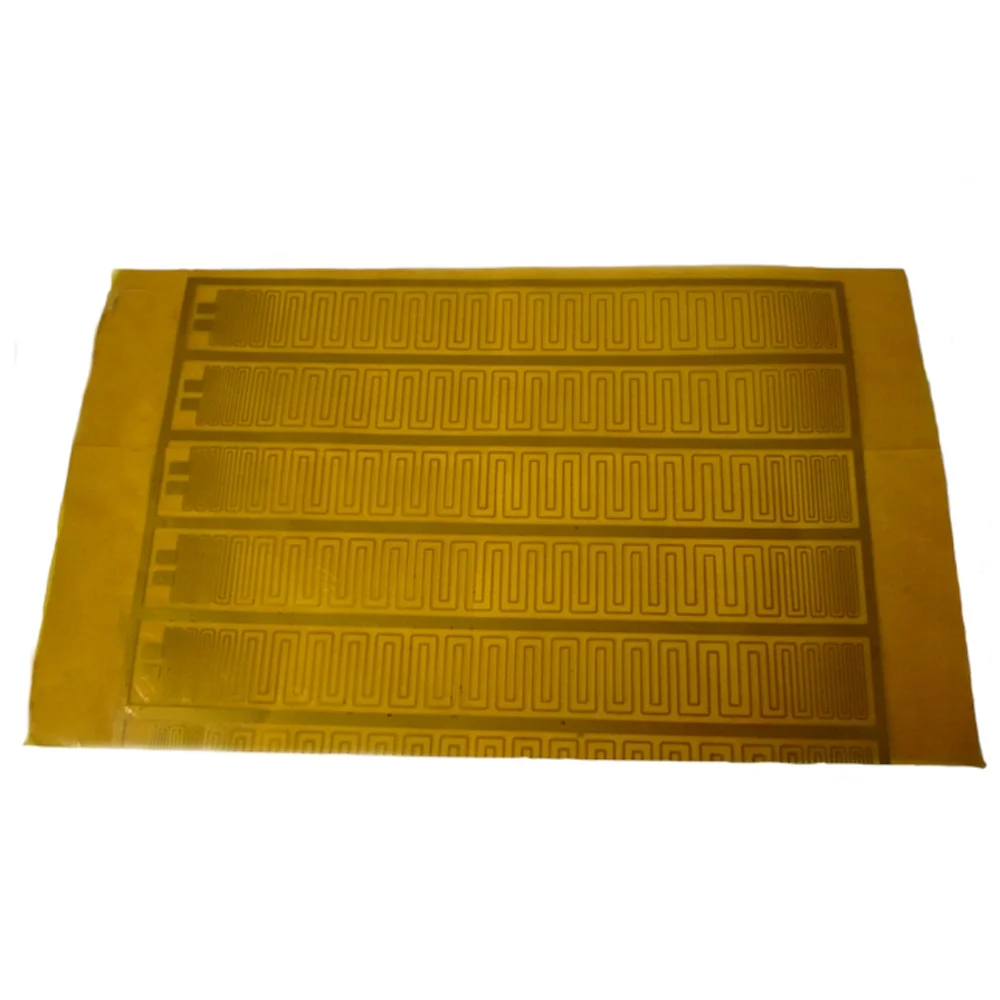

110v 220v 300mm flexible polyimide heating film for aluminum plate
- Category: >>>
- Supplier: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.
Share on (1600944616819):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
110v 220v 300mm flexible polyimide heating film for aluminum plate in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Product Name | 110v 220v 300mm flexible polyimide heating film for aluminum plate |
Watt Density | 1.1-6.5w/cm2 |
Voltage | 1.5 v~400 v or customized |
Power Density Range | 0.03w/cm2~2.5w/cm2 (0.19w/inch2~16.13w/inch2) |
Using Temperature Range | -60~200°C (-140~392°F) |
Width Range | 10mm~500mm (0.39"~19.68") |
Length Range | 10mm~1800mm (0.39"~70.86") |
Thickness Range | Standard:0.126~0.266mm (0.005"~0.01") |
Lead Wire | PTFE, kapton or silicone insulated leads |
\t\t\t\t\t\t\t\t\tPhoto Shows \t\t\t\t\t\t\t
Polyimide Film Heater With Various Type and Available Now:
1.With Power Adapter
2.With Temperature Control Box
3.With Digital Temperature Control
4.With Thermostat
5.With Thermistors
6.With USB Connector
7.With XLR Connector
8.Battery Powered
Application
1.Medical Instruments Heating Application;
2.Car Oil sump heating, rearview mirror defrosting heating elements;
3.Drying of Chinese herbs, agricultural products and seafoods;
4.Military fields: missiles, ships, tanks, radar antennas or radar snow removal, defrosting heating elements;
5.Semiconductor processing equipment;
6.Computer peripherals such as laser printers;
7.Thermal transfer equipment;
8.Heating the power battery of electric car;
9.Home Kitchen Application, etc.
