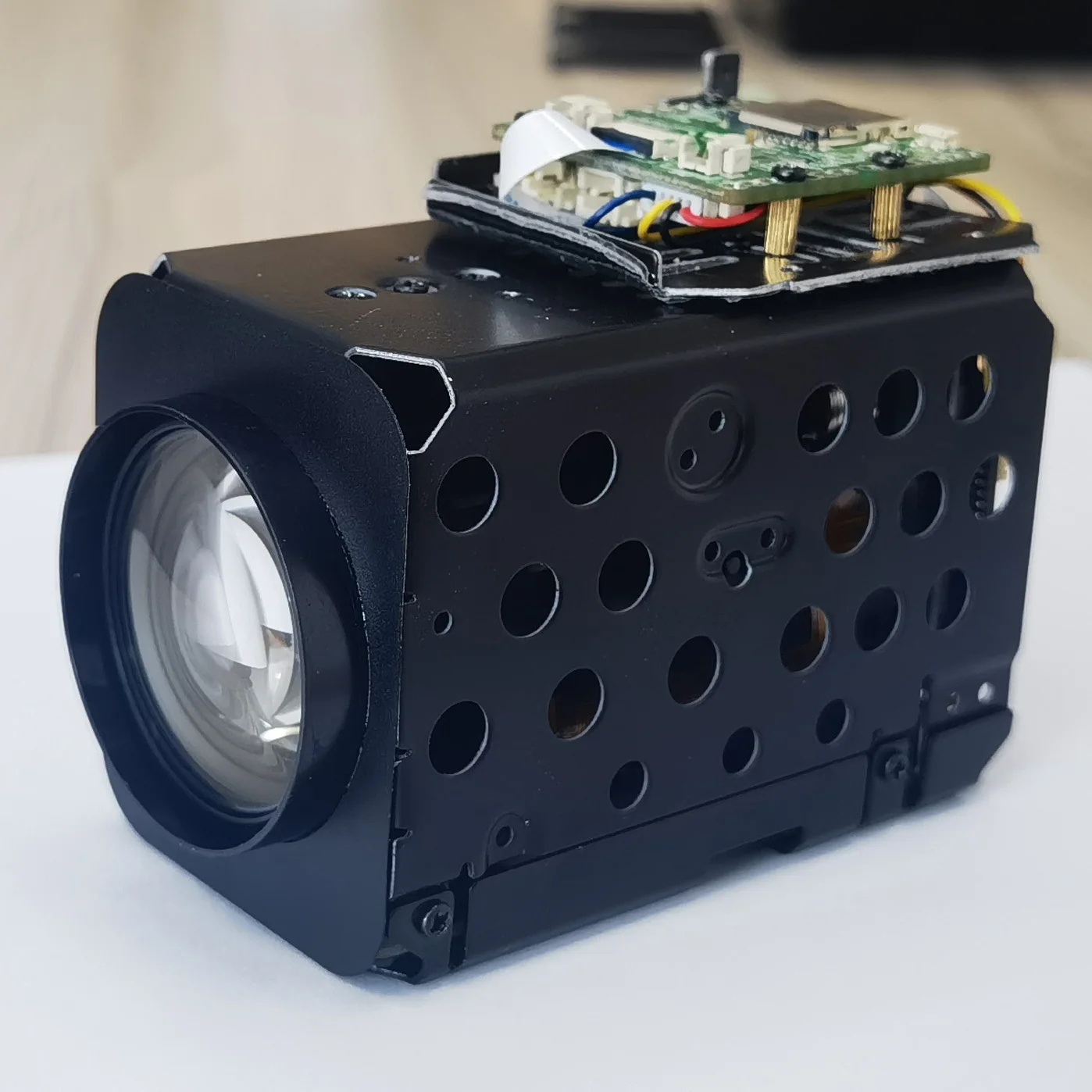

Camhi 4K 8MP IMX415 WIFI Wireless 360X Optical Zoom IP Camera Module Auto IRIS P2P On vif Tf Card Slot Max 256g
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (1600944618077):
Product Overview
Description
4K 8MP IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard onvif protocol, and support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
High sensitivity, high signal-to-noise CMOS image sensor
Using the MSTAR338Q processing chip+SONY IMX415 CMOS
The highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)
H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring
Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.
Support humanoid recognition,Support car shape recognition recording, and alarm
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,etc.
Support ONVIF protocol,
Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending E-Mail
Support alarm picture upload FTP server
Support alarm sound outputs
Support timing capture pictures to FTP server
Support static IP, also support dynamic IP (DHCP)
Support P2P plug and play
Support IE, Google, Firefox browser
Supports up to 6 users to browse at the same time (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping

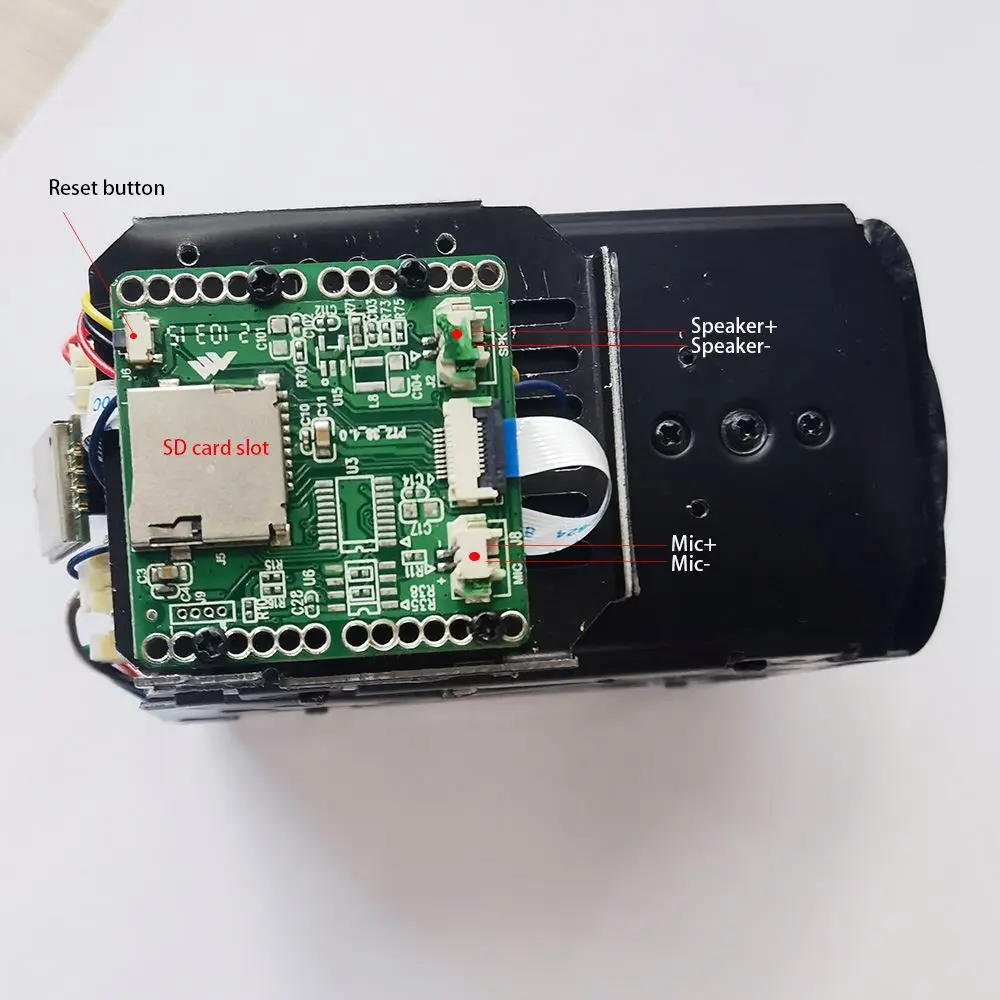

Support Micro SD card function, support up to 256GB Micro SD card

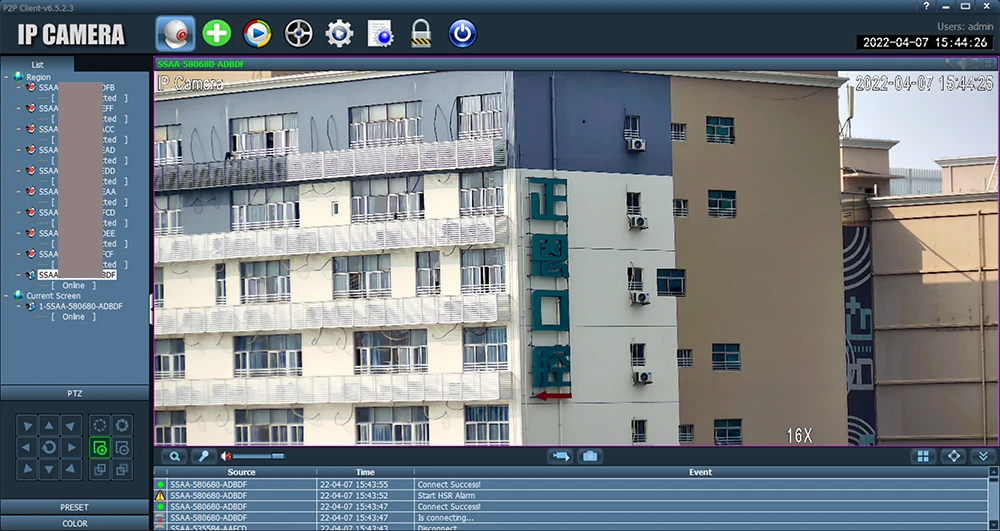

Support PC client to download SD card video

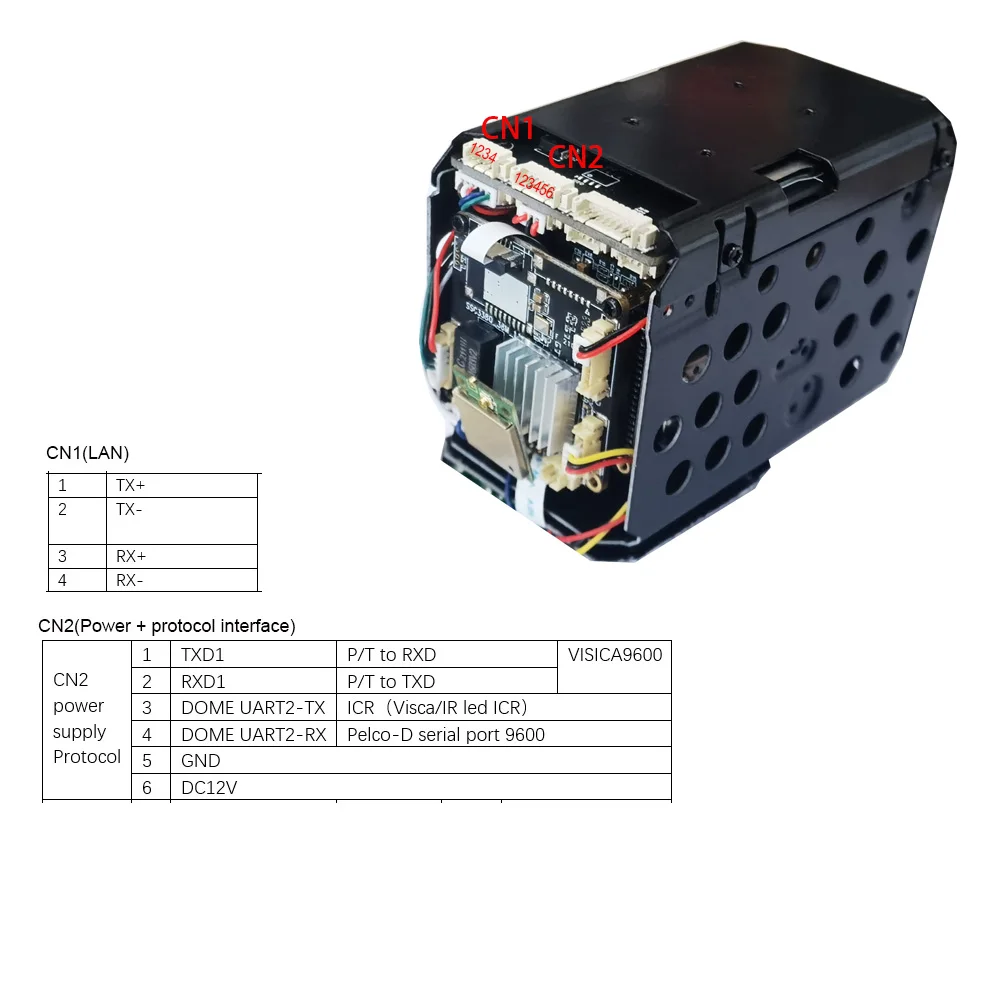

Model:JH45-30-360 | |
Operating system | embedded LINUX |
Main processor | MSTAR338Q |
Image Sensor | SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard | |
Compression standard | Video compression algorithm only supports H.265 |
Audio compression algorithm | G.711 |
Compressed transport stream | 32Kbps-6144Kbps, can be customized, |
Images | |
Maximum image size | 8MP (3840*2160) |
Sharpness Special function | First stream:4K 8MP (3840*2160),Only this one first stream |
Second stream:1280*720,640*352 | |
Video frame rate | 8mp 20fps when wired connection, 8MP 15fps when wifi connection |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function | |
Storage function | Supports up to 256G Micro SD card storage and supports scheduled video storage |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,onvif |
Smart Function | Support Humanoid and car shape recognition.And support recognition sensitivity adjustment |

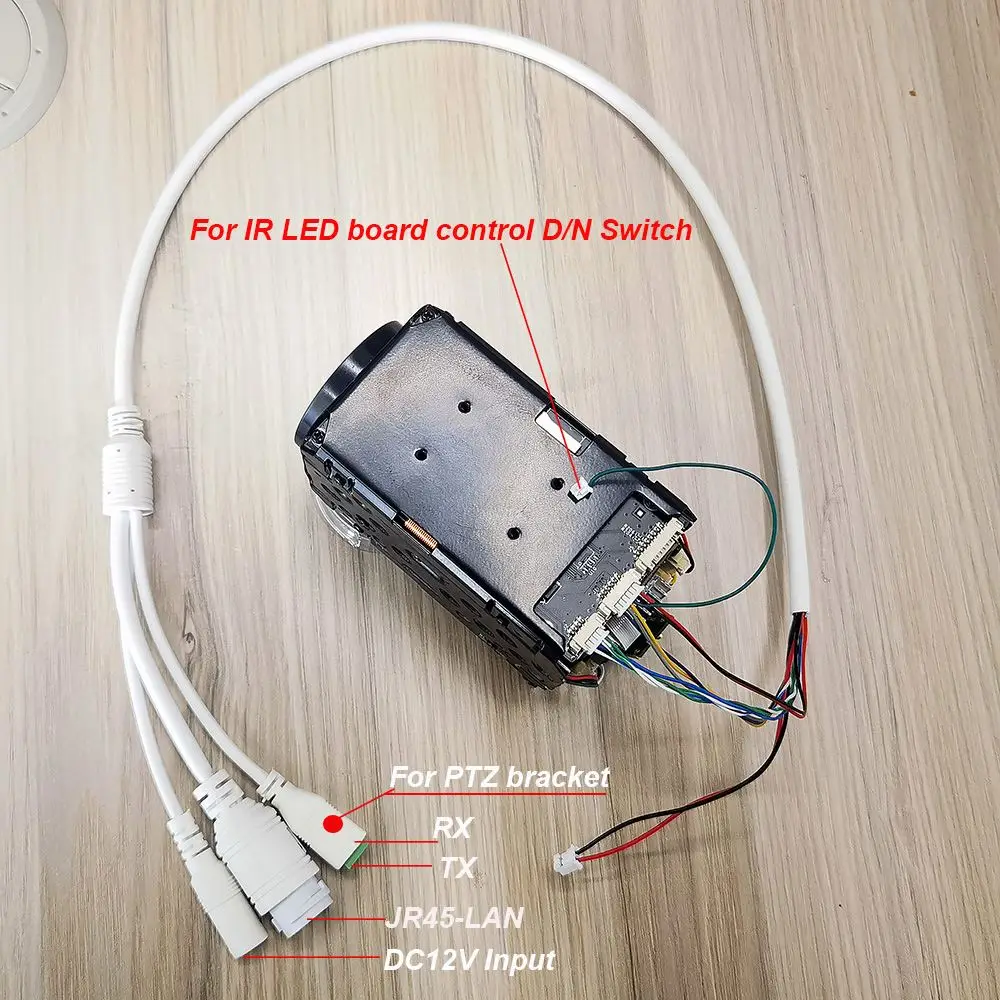

Interface | |
Audio input | support External MIC |
Audio output | External speaker |

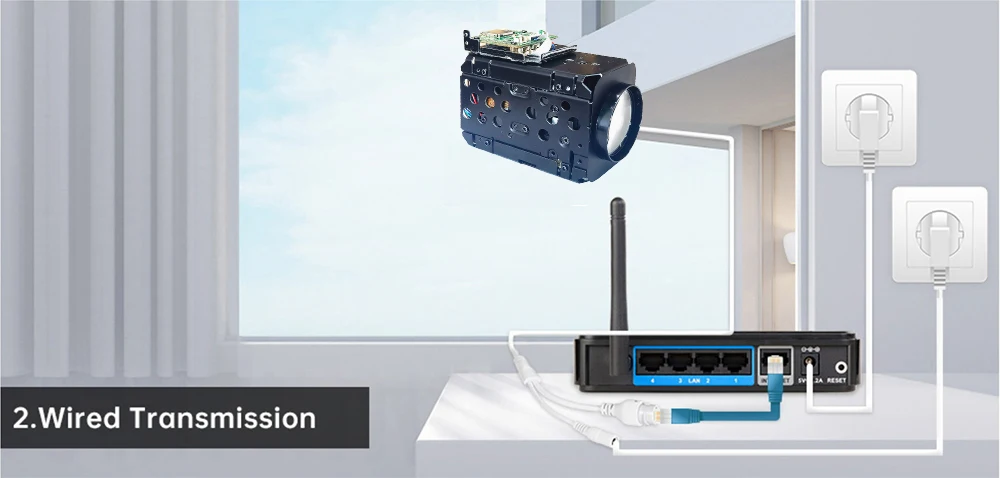

LAN interface | RJ45 10Base-T/100Base-TX, |
| |
Day/Night | support |

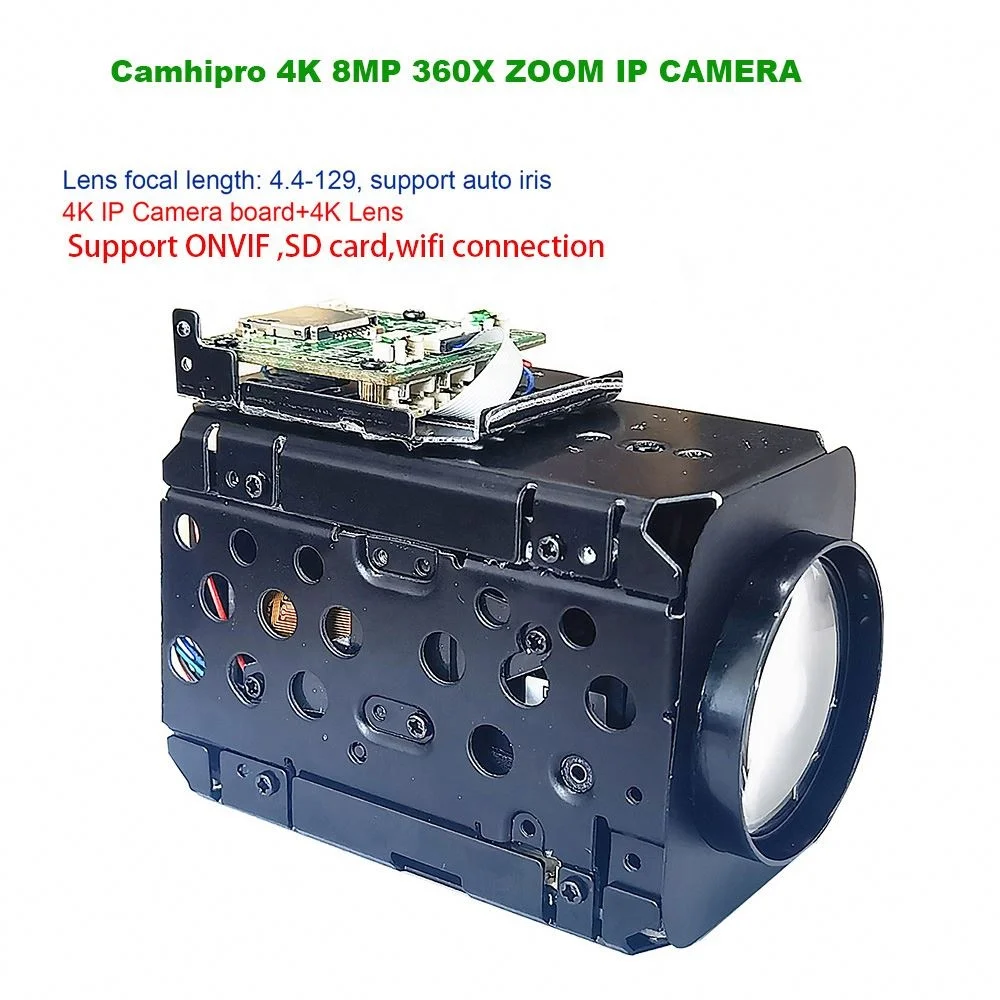

LEN | 36x zoom,4.4-129mm and 10x digital zoom |
waterproof level | indoor |

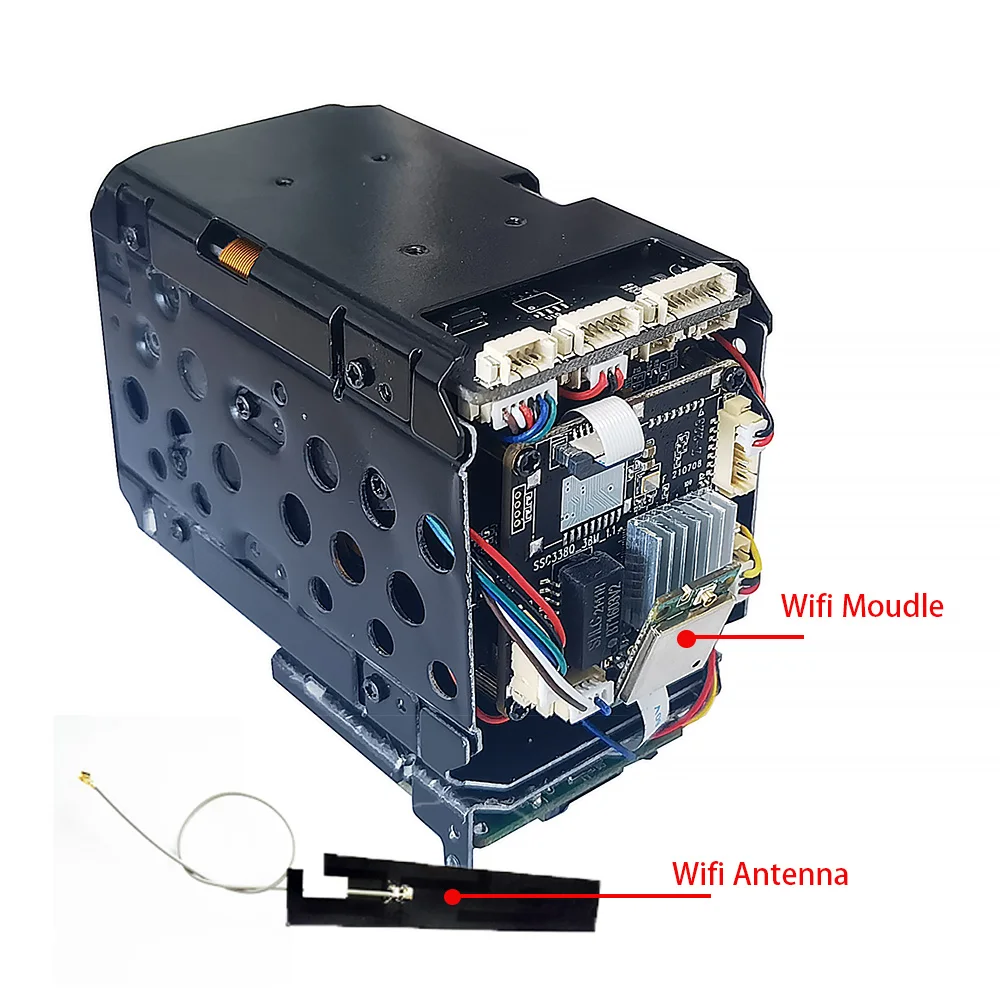

WIFI | WIFI/802.11b/g/n wireless |
Working temperature | -40 to +85 Celsius |
power | DC12V 1A |
Working Humidity | -10-95% |
About RTSP:
First stream: RTSP://ip/11
Second stream:rtsp://ip/12
Package list
1x 360x zoom 4K IP Camera
1x 12V power adapter
1x connection cable
