LED Digital Monitor Intelligent Temperature Controller Switchgear Thermal Monitoring

 FEATURES of intelligent monitoring device for switchgear:

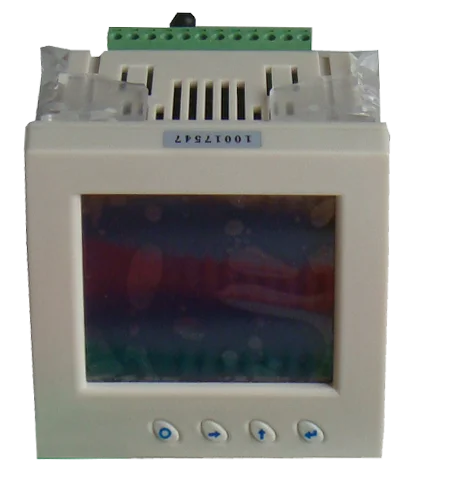

1.Base Monitoring Unit:

Process the transmitted data from the data receiver units, displays the current values, and alarm status. Pre-defined high or low temperature conditions trigger the red alarm indicators and the alarm sounds to notify you of the situation in real-time.

2.Data receiver unit:

Receive the data form wireless sensing unit, and transmit via RS485 to base monitor unit, each receiver and connect 12 wireless monitor points, use multiple data receivers can monitor temperature in a particular space or device.

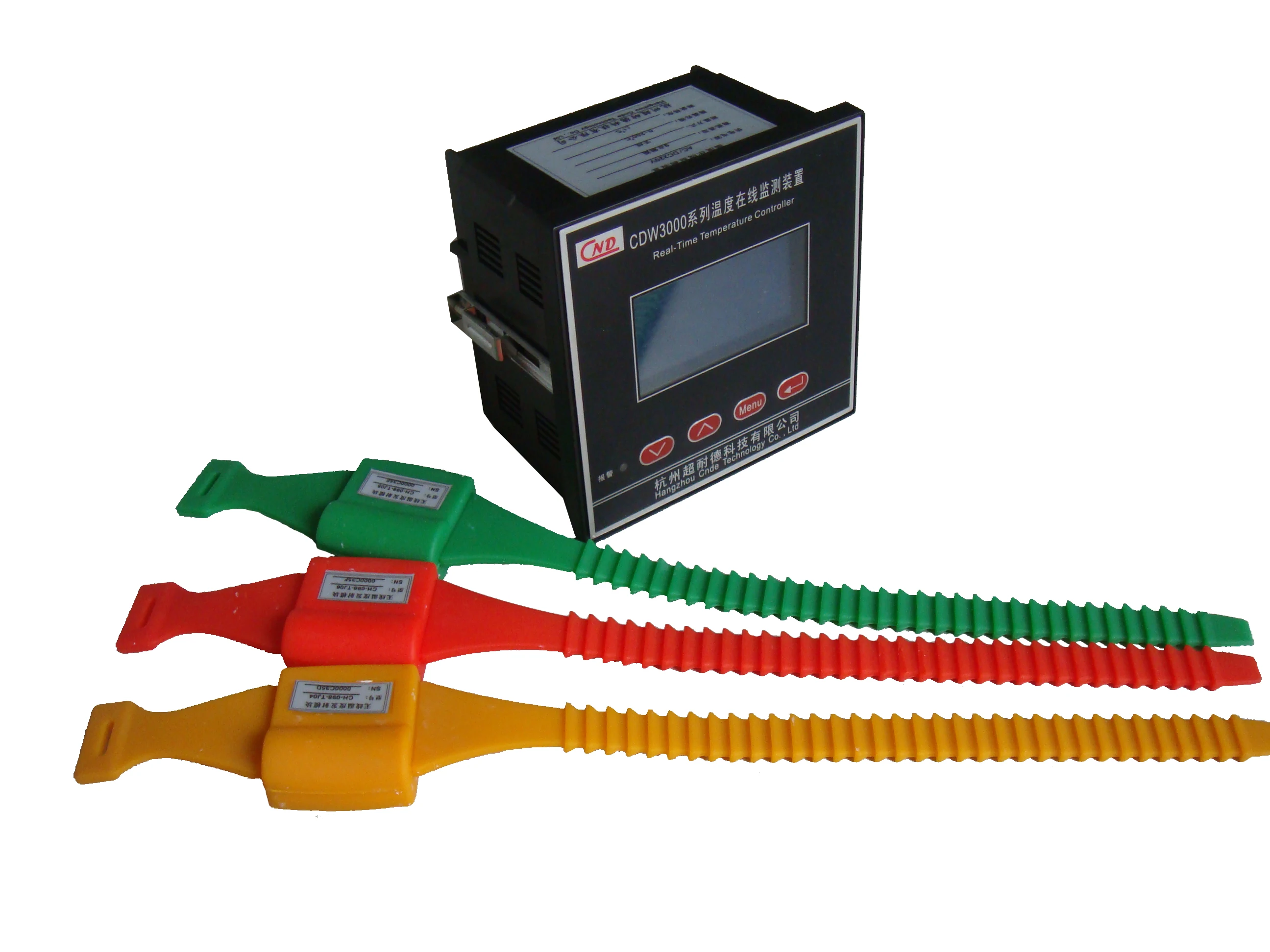

3. Wireless Remote Sensing Unit:

Measures the temperature and humidity value and transmits the data wirelessly to the local receiver unit and operates with button batteries (included), which can be installed and replaced very easily by the end user. Battery life is 3-5 year*.

4.Monitor Software*: (Optional)

 Log temperature & humidity data on your PC and produce the reports to you. Reports include: Temperature curve, Data record, Real-time data, Alarm setting.

 SPECIFICATIONS of switchgear monitoring equipment:

 1.- Power Supply:

AC / DC 80-270V, 45-65Hz

 DC 20-60V (Optional)

Maximum power consumption 6W

 2.- Wireless Remote Sensing Unit

 Standard type 3-12*

3.- Temperature monitor range

From 0°C ~ 99 °C

4.- Wireless communication frequency

315MHZ or 433MHZ

5.- Transmit power

Less than 10mw

6.- Distance of the receiver and monitor

Up to 80m (260 foot)

7.- Battery life

3-5 years (Every fifteen minutes to send a data)

8.- Work environment

Temperature: -10℃~ +60℃

Humidity: RH 20%~95%(No condensation)

9.- Protection

Panel: IP40

10.- Storage Conditions

Temperature: -25℃~+70℃

Humidity: RH 20%~95%

12.- Dimensions of the temperature monitoring meter (L × W × H)
