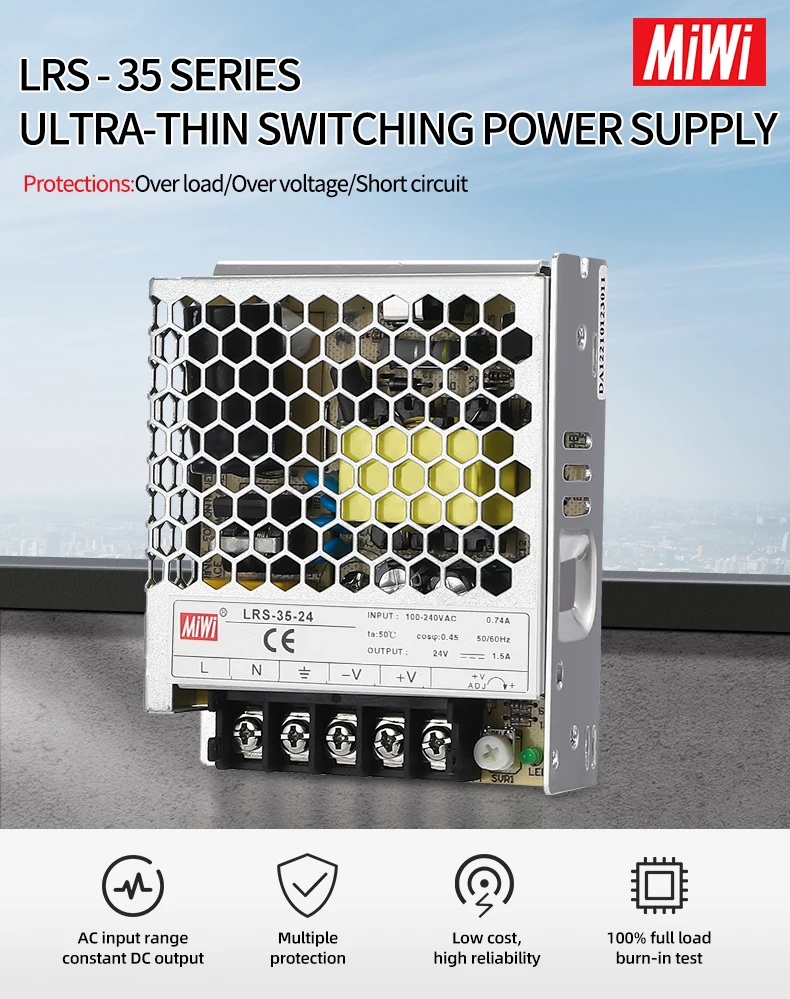

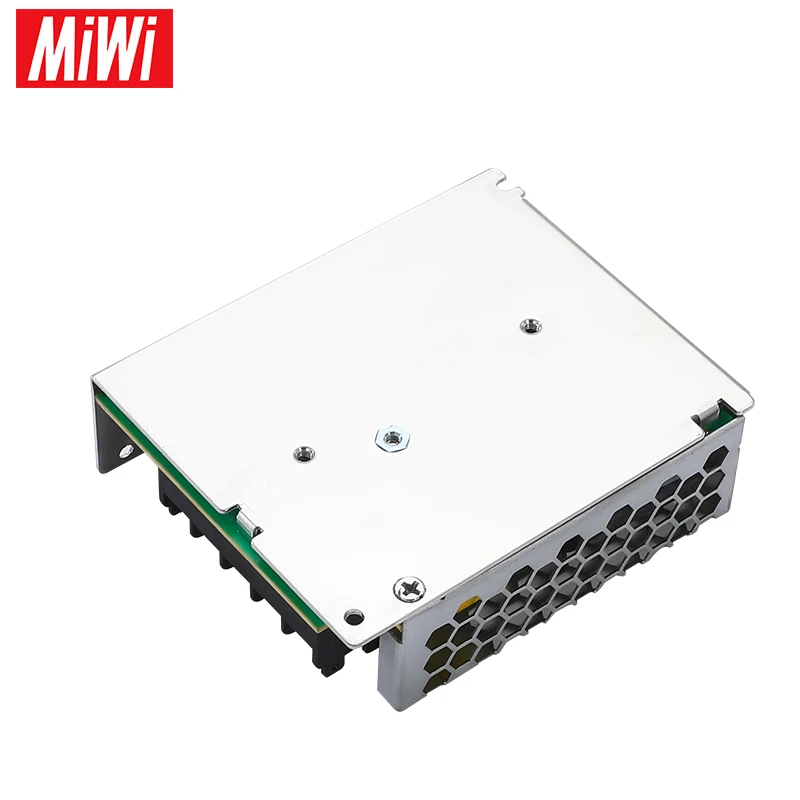

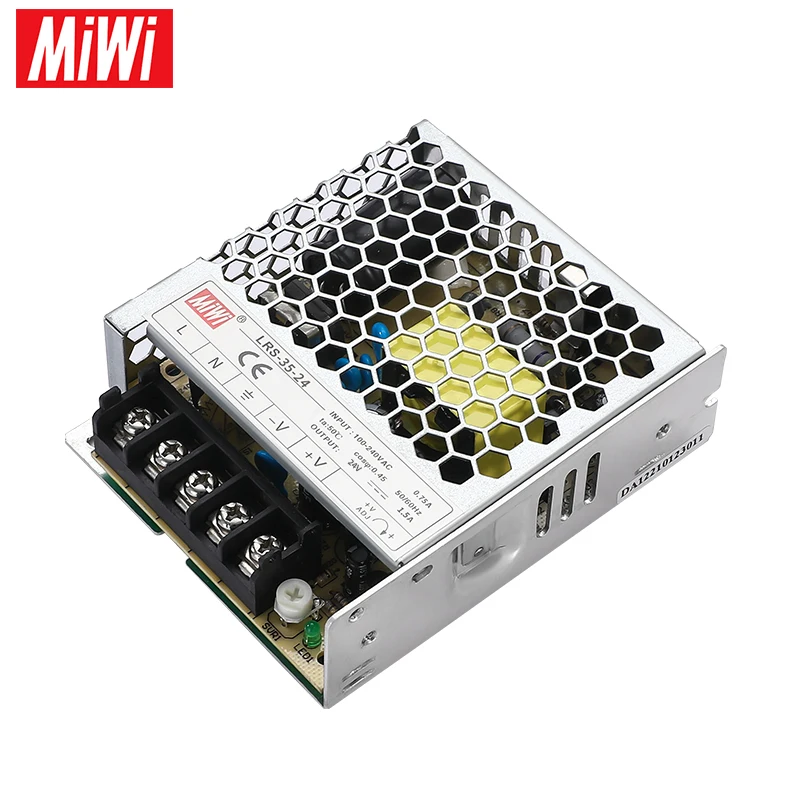

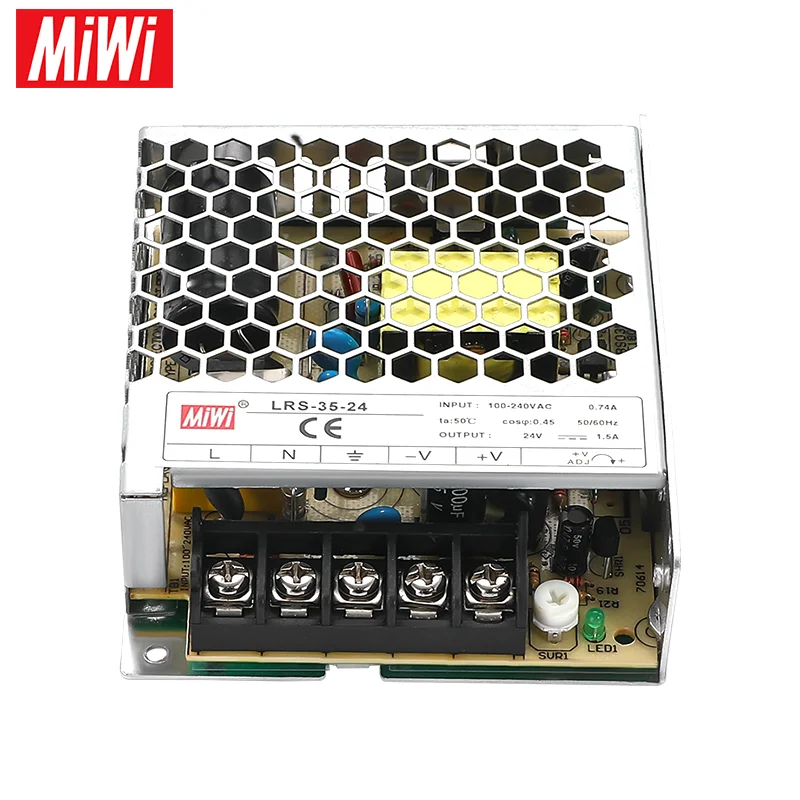

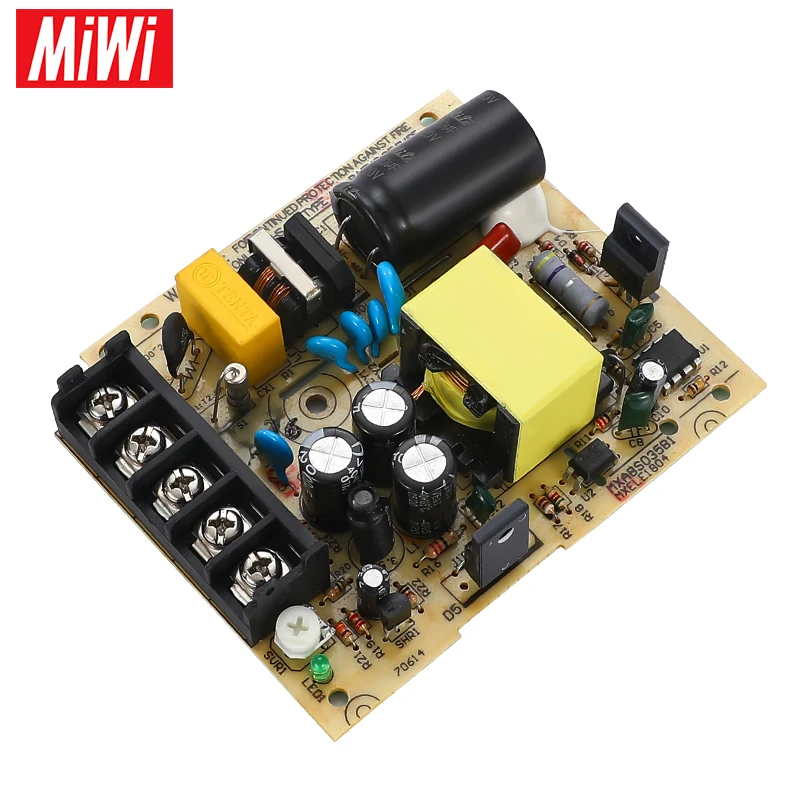

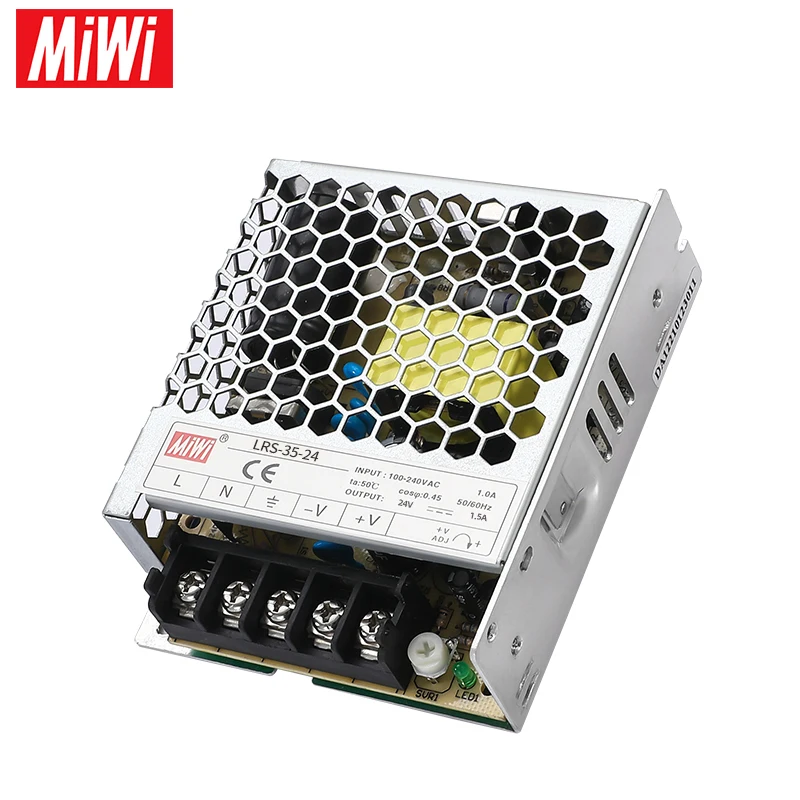

MIWI LRS 35 24 Yueqing Manufacturer LRS 35W slim Power Supply 24VDC 1.5A for CCTV
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (1600944622173):
Product Overview
Description
You are here:Home>>Single Output Series>>
Product Description
| Model | LRS-35-5 | LRS-35-12 | LRS-35-24 | LRS-35-36 | LRS-35-48 | |
| Output | DC voltage | 5V | 12V | 24V | 36V | 48V |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Rated current | 7A | 3A | 1.5A | 1A | 0.8A | |
| Rated power | 35W | 36W | 36W | 36W | 38.4W | |
| Ripple&noise | 80mvp-p | 120mvp-p | 120mvp-p | 200mvp-p | 200mvp-p | |
DCvoltage ADJ.range | ±10% | |||||
Line Regulation | ±0.5% | |||||
Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Setup,rise time Note.5 | 100ms,30ms/230VAC 2000ms,30ms/115VAC at full load | |||||
| Hold up time(Typ.) | 30ms/VAC,12mms/115VAC at full load | |||||
| Input | Voltage range&Frequency range | 88~264VAC 120~373VDC ,47-63Hz | ||||
| AC current | 0.7A/115VAC, 0.42A/230VAC | |||||
| Efficiency | 82% | 86% | 88% | 88% | 89% | |
| Inrush current | cold start current 45A/230VAC | |||||
| Leakage current | < 0.75mA/240VAC | |||||
| Protection | Overload | ≥110~130% rated output power,Protection type:Hiccup mode,recovers automatically after fault condition is removed | ||||
| Over voltage | ≥115~145% rated output power,Protection type:Shut dow O/P Voltage,recovers automatically after restart | |||||
| Environment | Working temp,humidity | -30°C~+7°C, 20%~90%RH | ||||
Storagetemp, humidity | -40°C~+85°C, 10%~95%RH | |||||
| Safety | Withstand voltage | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC | ||||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC | |||||
| Fitstandard | Safety standard | CE | ||||

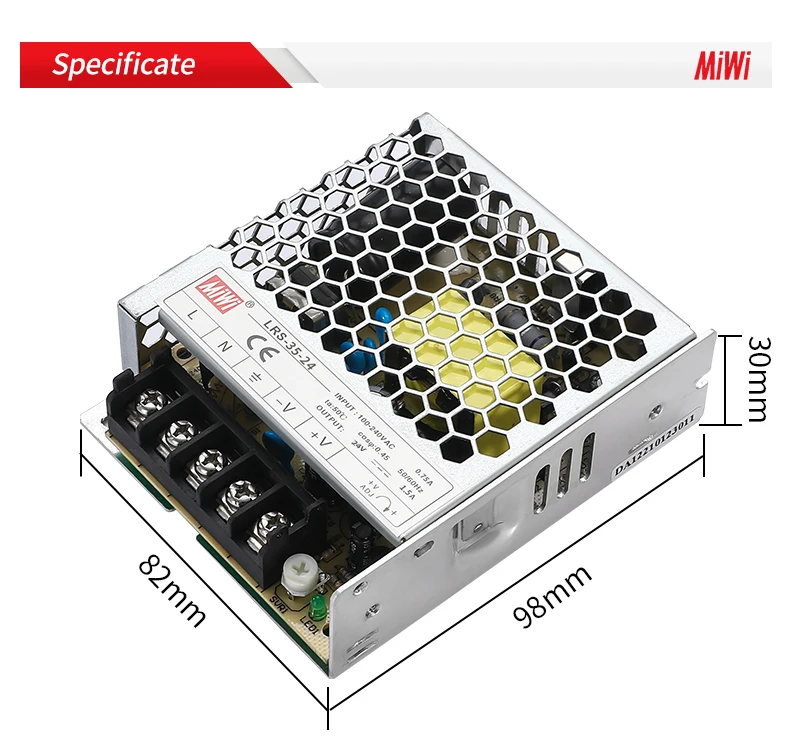

| Others | Dimension | 98*85*30mm (L*W*H) | ||||
| Net Weight/Gross Weight | 230g/246g | |||||
>>>Click to get the latest price & catalogue<<<
Application
Main Product
Trade Assurance
About Us
Packaging & Shipping
Packaging Details: Standard corrugated carton or customized as you requested.
Delivery Detail: 1~25 days depend on your quantity.
FAQ
Yueqing Mingwei Electric Co., Ltd.
We sincerely welcome more friends to cooperate with us.
Q1:Are you a factory or trading company ?
A1:We are the real manufacturer which focus on power supply & push button switch since 2002,but not the trading factory for different kind of product.
Q2: What's your Lead time?
A2:The delivery time is 1~25 days which depend on detail item and quantity.
Q3: What kind of payment term do you accpet?
A3:T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.
Q4: What’s your warranty terms?
A4: We offer 2 years warranty time .
Q5: Do you accept OEM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor.
