DWIN Industrial Grade Android11 System RK3566 Quad Core 7 Inch 1280*800 LCD Display Capacitive Touch Screen HMI Module Tablet
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1600944630225):

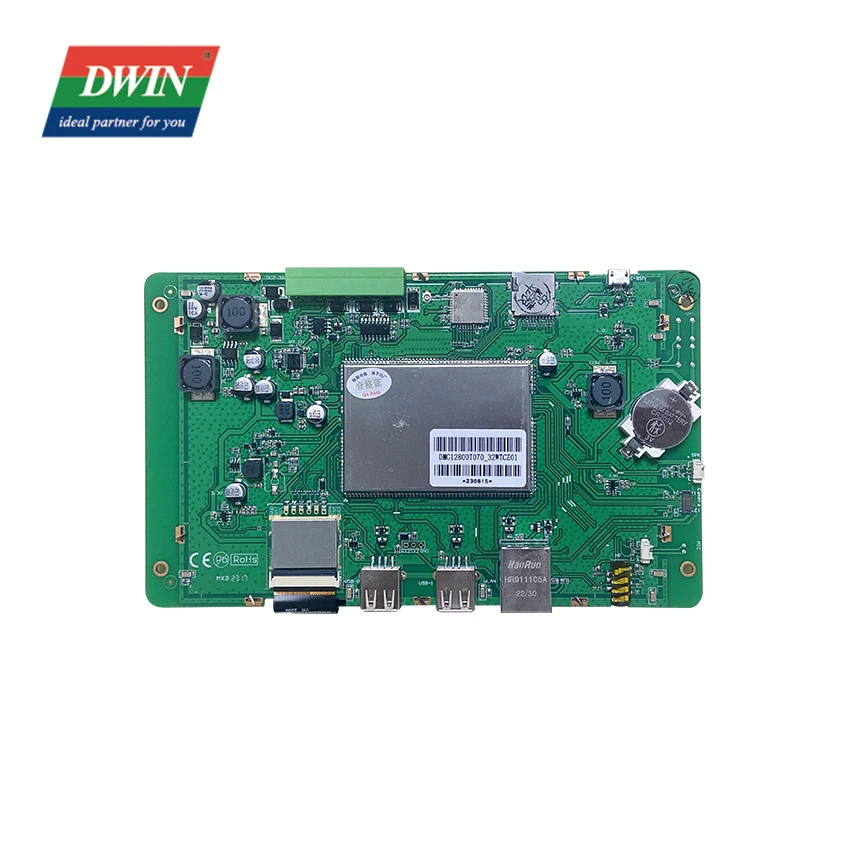

Product Overview
Description
Features
*** Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.
*** 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, Capacitive Touch.
*** Compatible with WIFI, bluetooth, microphone, camera and other rich peripherals.
*** Available for USB and SD card updates.
*** Available for downloading Android general apps to realize functions such as WiFi ,wired internet , browsing, music and video playback, data copy, etc.
*** Available for RS232 and RS485 port to connect and communicate with external devices.
*** 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, Capacitive Touch.
*** Compatible with WIFI, bluetooth, microphone, camera and other rich peripherals.
*** Available for USB and SD card updates.
*** Available for downloading Android general apps to realize functions such as WiFi ,wired internet , browsing, music and video playback, data copy, etc.
*** Available for RS232 and RS485 port to connect and communicate with external devices.
*** This model do not support using Google Play Store, if you need the Google Play Store version, please refer to the following models: DMG12800C070_32WTCZ03/DMG12800T070_32WTCZ01/DMG10600C101_32WTCZ01
Search in the store or click this link directly: https://dwin-tech.en.alibaba.com/search/product?SearchText=google
Search in the store or click this link directly: https://dwin-tech.en.alibaba.com/search/product?SearchText=google

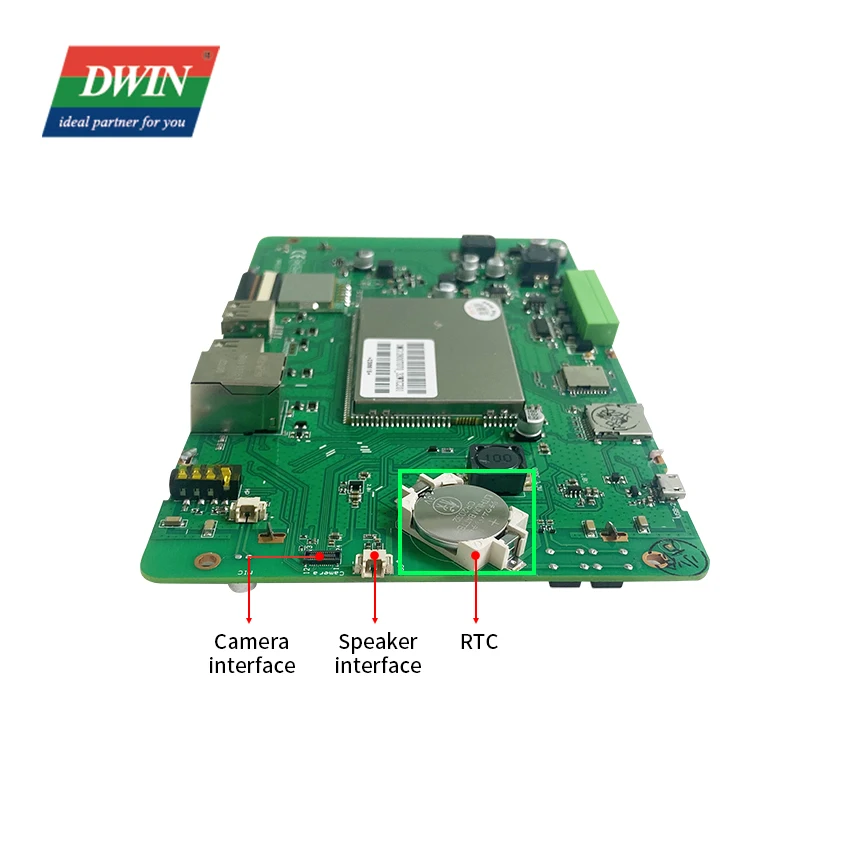

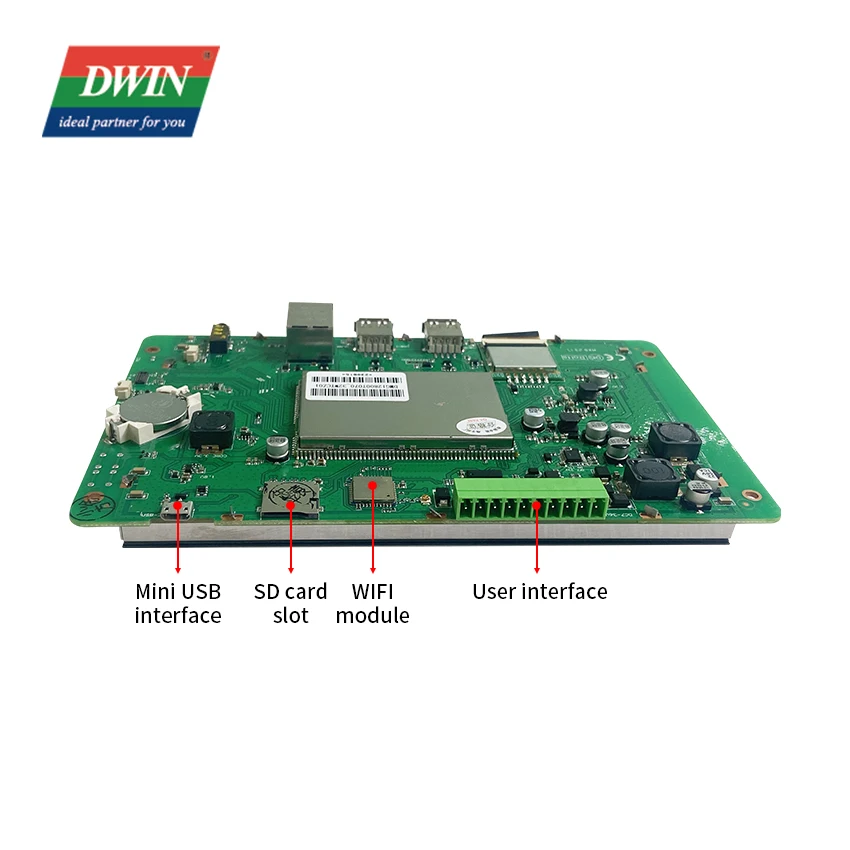

Master Control Parameters | Air discharge±8KV; Contact discharge±6KV | |
Properties | Parameters | |
Motherboard Level | Industrial | |
CPU | RK3566, Cortex-A55, quad-core | |
OS | Android 11 | |
FLASH | 8Gbytes EMMC | |
RAM | 2Gbytes LPDDR4 | |
Display Parameters | Air discharge±8KV; Contact discharge±6KV | |||
Properties | Parameters | Description | ||
Color | 16.7M (16777216) colors | 24 bit color 8R8G8B | ||
Panel Type | IPS | IPS process, TFT LCM with wide viewing angle | ||
Viewing Angle | 85/85/85/85 (L/R/U/D) | Best View: symmetrical | ||
Active Area (A.A.) | 149.76mm (W)*93.60mm (H) | 1280*800 Pixel | ||
Visible Area (V.A.) | 150.76mm (W)*94.60mm (H) | 1280*800 Pixel | ||
Resolution | 1280*800 Pixel | Available for 0°/90°/180°/270°rotated display | ||
Backlight | LED | ≥20000H(time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) | ||
Brightness | 250nit | 100 levels adjustment(It's not recommend to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.) | ||
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | ||||
Voltage & Current | Air discharge±8KV; Contact discharge±6KV | |||||||||
Properties | Conditions | Min | Typ | Max | Unit | |||||
Power Voltage | - | 7.0 | 12.0 | 36.0 | V | |||||
Operation Current | VCC = +12V, Backlight on | - | 310 | - | mA | |||||
VCC = +12V, Backlight off | - | 140 | - | mA | ||||||
Recommended power supply: 12V 0.5A DC | ||||||||||
Reliability Test | Air discharge±8KV; Contact discharge±6KV | |||||||||
Properties | Conditions | Min | Typ | Max | Unit | |||||
Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ | |||||
Storage Temperature | - | -30 | 25 | 80 | ℃ | |||||
Working Humidity | 25℃ | 10% | 60% | 90% | RH | |||||
Protective Paint | Yes | |||||||||
ESD | Air discharge±8KV; Contact discharge±6KV | |||||||||
EFT | Group pulse interference ±2KV | |||||||||
Peripherals and Interfaces | Air discharge±8KV; Contact discharge±6KV | |||
Properties | Parameters | Description | ||
COM | 2-way RS232 | UART5 & UART9 | ||
1-way RS485 | UART8 | |||
1-way TTL/COMS | UART0(Debug interface) | |||
USB Interface | 3-way | HOST*2, OTG*1 | ||
Headphone Interface | 1-way | 3.5mm spacing interface | ||
Speaker Interface | 1-way | 2Pin_1.25mm interface | ||
Microphone Interface | 1-way | 2Pin_1.25mm interface | ||
Camera Interface | 1-way | USB, Not supported by Mipi | ||
SD Card Slot | 1-way | Drawer type card slot(Max 64G) | ||
Ethernet Interface | 1-way | 10/100Mbps | ||
WIFI Module | 1-way | IEEE 802.11Bb/g/n,2.4G, Bluetooth | ||
RTC | 1-way | Button cell for power supply. Accuracy: ±20ppm @25℃ | ||
Interface | Air discharge±8KV; Contact discharge±6KV | |||||||||
Properties | Conditions | Min | Typ | Max | Unit | |||||
Baud Rate | User Set | 2400 | 115200 | 230440 | bps | |||||
Output Voltage (TXD) | Output 1 | - | -5.0 | - | V | |||||
Output 0 | - | 5.0 | - | V | ||||||
Input Voltage (RXD) | Input 1 | - | -5.0 | - | V | |||||
Input 0 | - | 5.0 | - | V | ||||||
Baud Rate | User Set | 2400 | 115200 | 921600 | bps | |||||
(V_AB) | Output 1 | 2.5 | 5.0 | - | V | |||||
Output 0 | - | -5.0 | -2.5 | V | ||||||
(V_AB) | Input 1 | 0 | 2.5 | - | V | |||||
Input 0 | - | -2.5 | -0.2 | V | ||||||
Interface | Support TTL/COMS,RS232 or RS485 level | |||||||||
Socket | 10Pin_3.81mm Socket | |||||||||

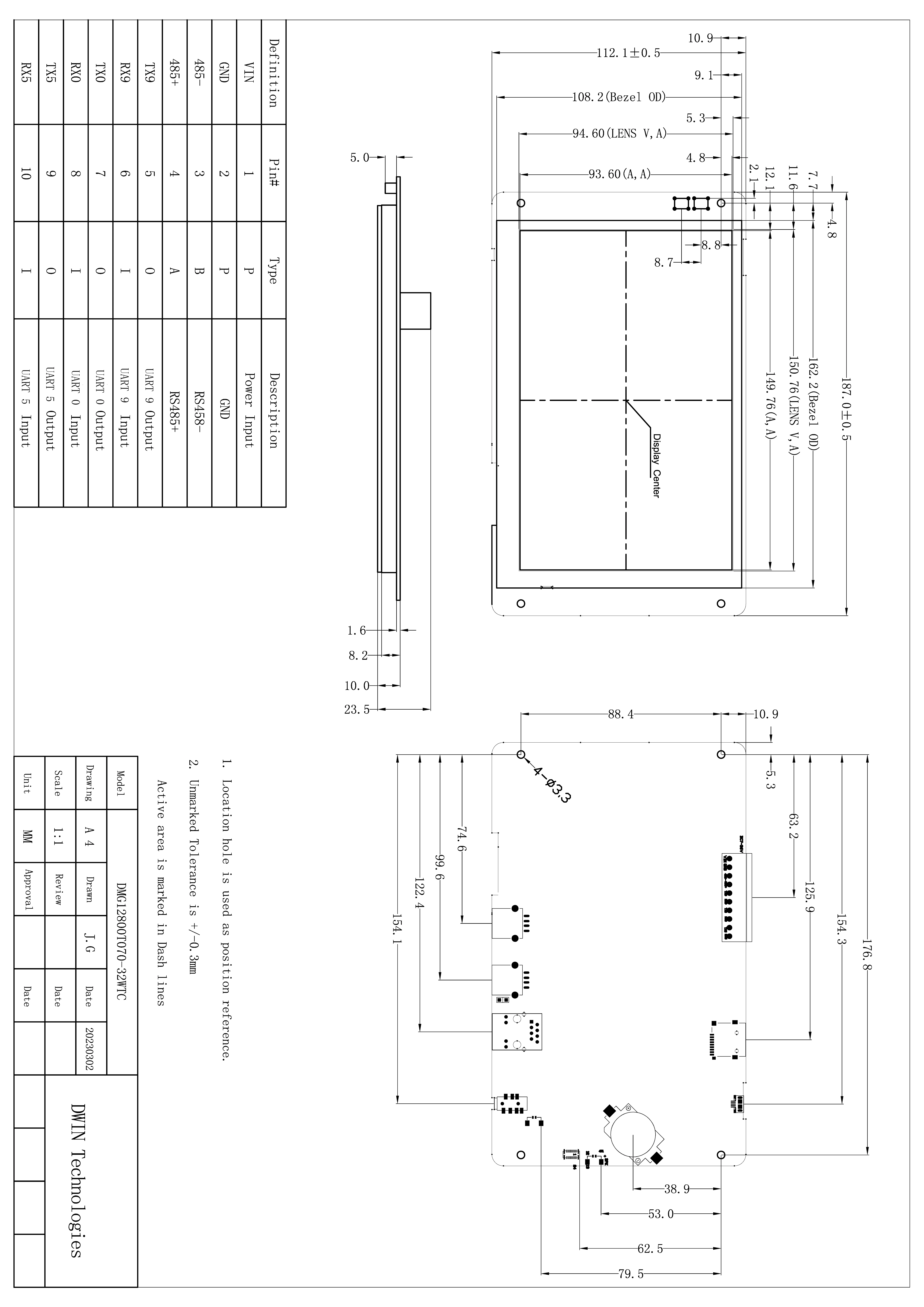

Dimension | ||||||||

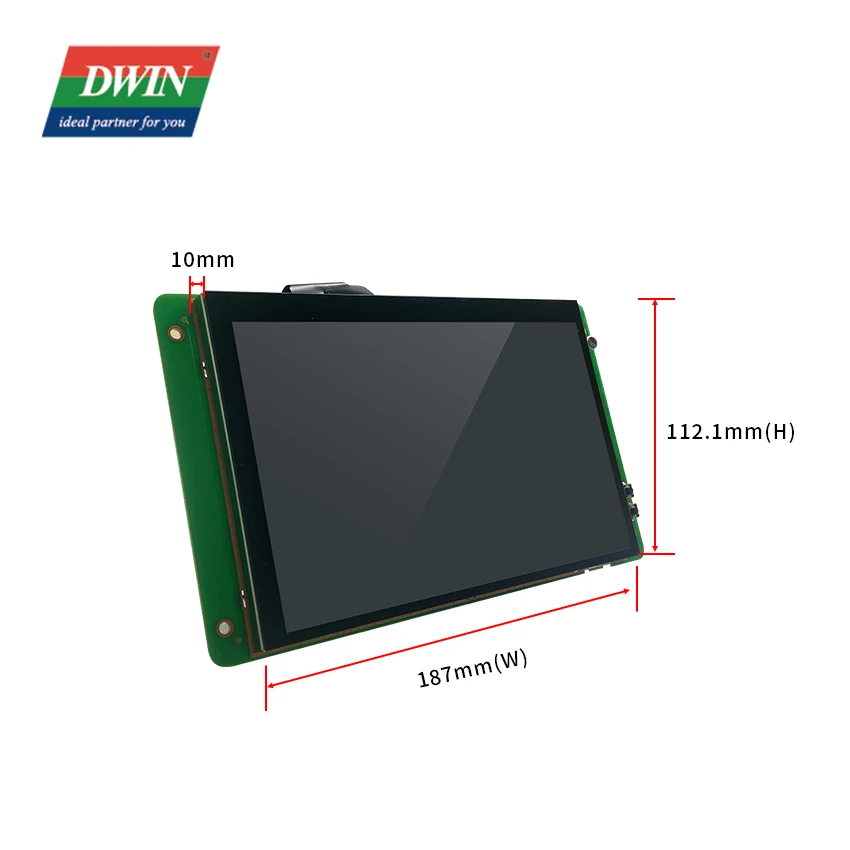

Dimension | 187.0(W)*112.1(H)*23.5(T)mm | |||||||
Net Weight | 310g | |||||||
Packing Capacity | ||||||||
Model | Size | Layer | Quantity/Layer | Quantity(Pcs) | ||||
Carton1: | 220mm(L)*160mm(W)*47mm (H) | - | - | - | ||||
Carton2: | 250mm(L)*200mm(W)*80mm (H) | 2 | 1 | 2 | ||||
Carton3: | 320mm(L)*270mm(W)*80mm (H) | 2 | 2 | 4 | ||||
Carton4: | 450mm(L)*350mm(W)*300mm(H) | 1 | 20 | 20 | ||||
Carton5: | 600mm(L)*450mm(W)*300mm(H) | 1 | 34 | 34 | ||||
