Original High Quality Pick and Place Machine JM-20 For JUKI Smd Mounting Machine For SMT Production Line

whatsapp:+8613728632793,skype:Joaquin Xie,wechat:Joaquin15



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



JM-20 For JUKI Smd Mounting Machine Specification:

Modle Name			JM-20
			L-size	XL-size
Board Size	Single Clamp		410×360mm	410×560mm
	Double Clamp		800×360mm	800×560mm
PCB Weight			max.4kg
Component Height			Max.50mm
Component Size	Laser		0603~50 X 50mm (LNC120)
	Vision*1	54mm	3mm~50 X 50mm
		27mm	1005~24 X 24mm
Insertion Speed (Insertion components)	Vacuum*2		0.6sec/part*1*3*4
	grip		0.8sec/part*2*3*4
Placement Speed(SMT)	Chip (Optimal)		15,500 CPH*3*4
	IC		4,200CPH*3*4
Placement Accuracy(SMT)	Laser		±0.05mm(3σ)
	Vision*1		±0.04mm
Feeder Capacity			80 pcs (8mm tape)
Power Supply			3-Phase AC200~415V
Apparent Power			Max .2.0KVA
Operation Air Preasure			0.5±0.5Mpa
Air Consumption			50L/min
Mass(Kg)			Approx. 1,750Kg	Approx. 1,985Kg
Equipment Size (W×D×H)6			1,500x1,657x1,550mm	1,500x1,892x1,550mm

Feature 1 | Fast Insertion Best in class speed. Significant speed increase over previous generation. Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.

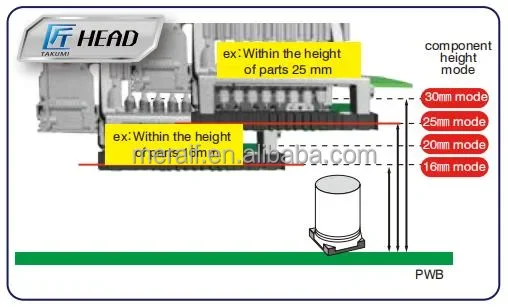

Feature 2 | New "Takumi head" with multiple recognition heights The new "Takumi head" has 8 nozzles and is equiped with a height adjusting laser to optimize speed. This head can handle a wide range of components while maintianing the maximum speed.



Feature 3 | Component Feeding

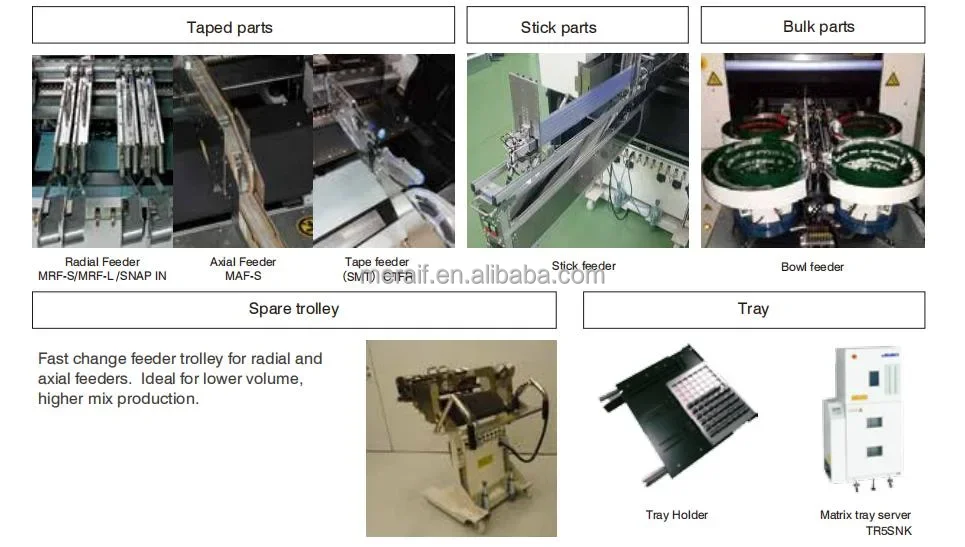

 Feeders are available for many different supply methods including tape, stick, tray, and bulk. Custom designed feeders are also available.

Feature 4 | Line control using JaNets software
 The JaNets software allows centralized programming and control of the entire line. Management data is available to monitor productivity and quality.



For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

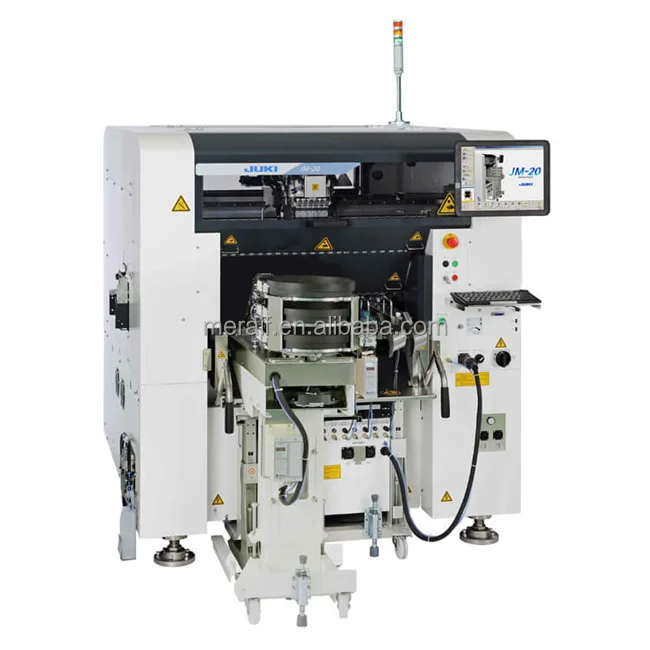

JM-20 Smd Mounting Machine picture show
