Drink chilling tank water cooled Industrial 40~380HP water cooled screw chilling equipment for carbonated soft drink beer
- Category: >>>
- Supplier: Zhangjiagang City Bottling Machinery Co. Ltd.
Share on (1600944647291):
Product Overview
Description
Products Description

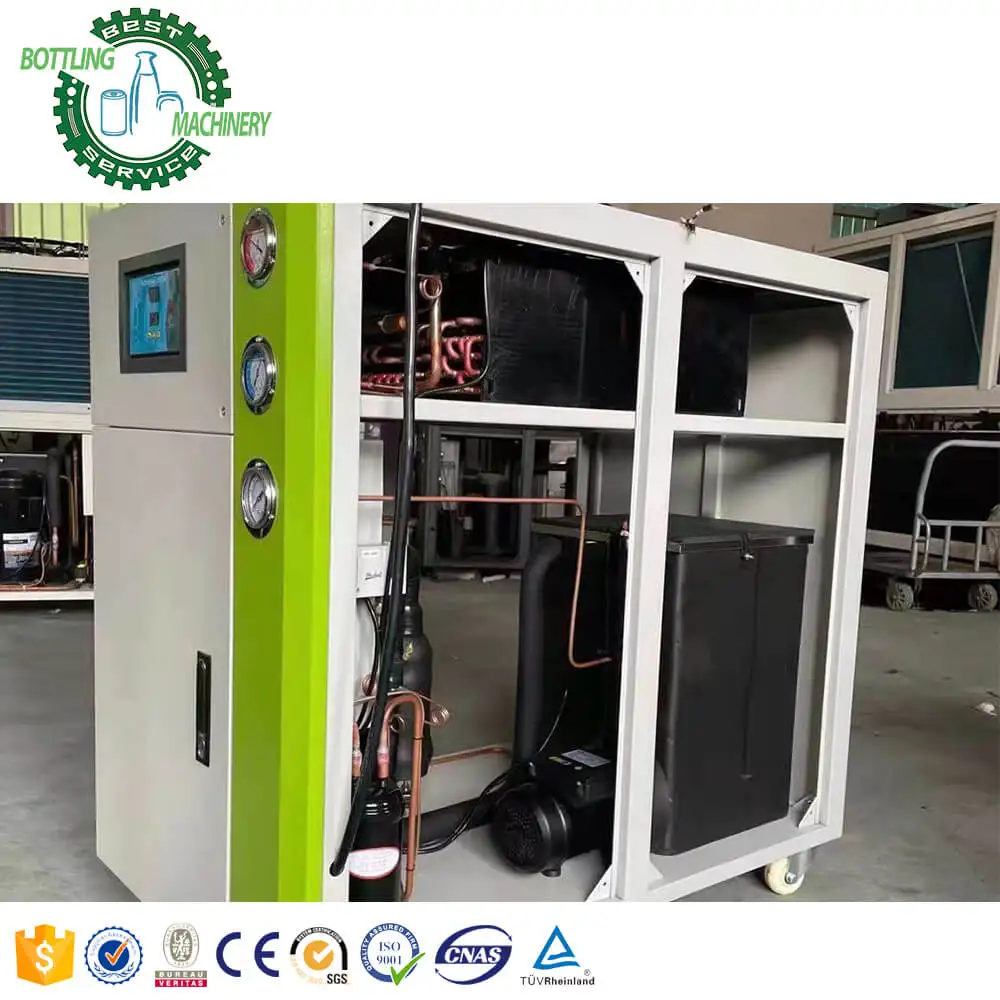

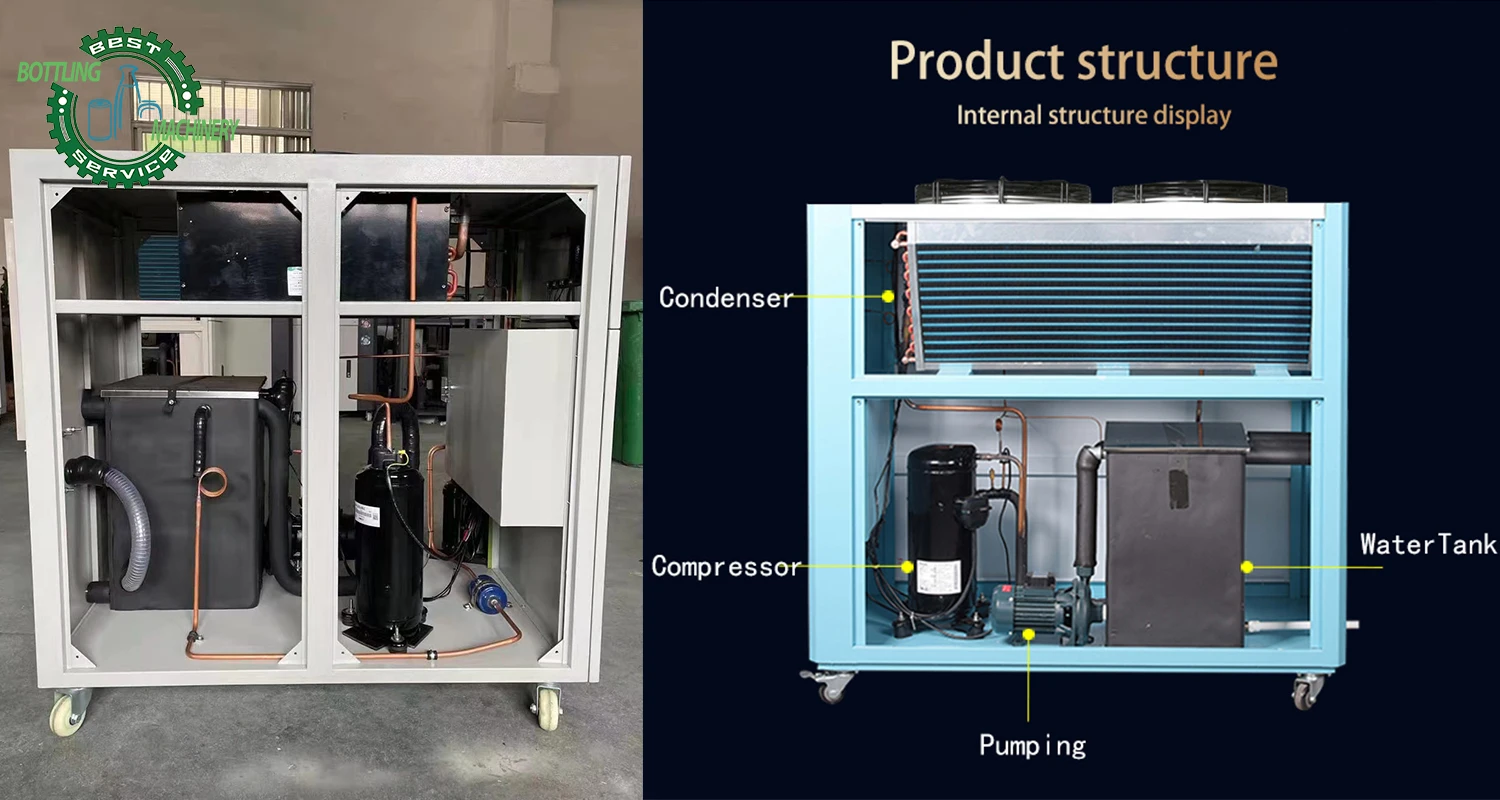

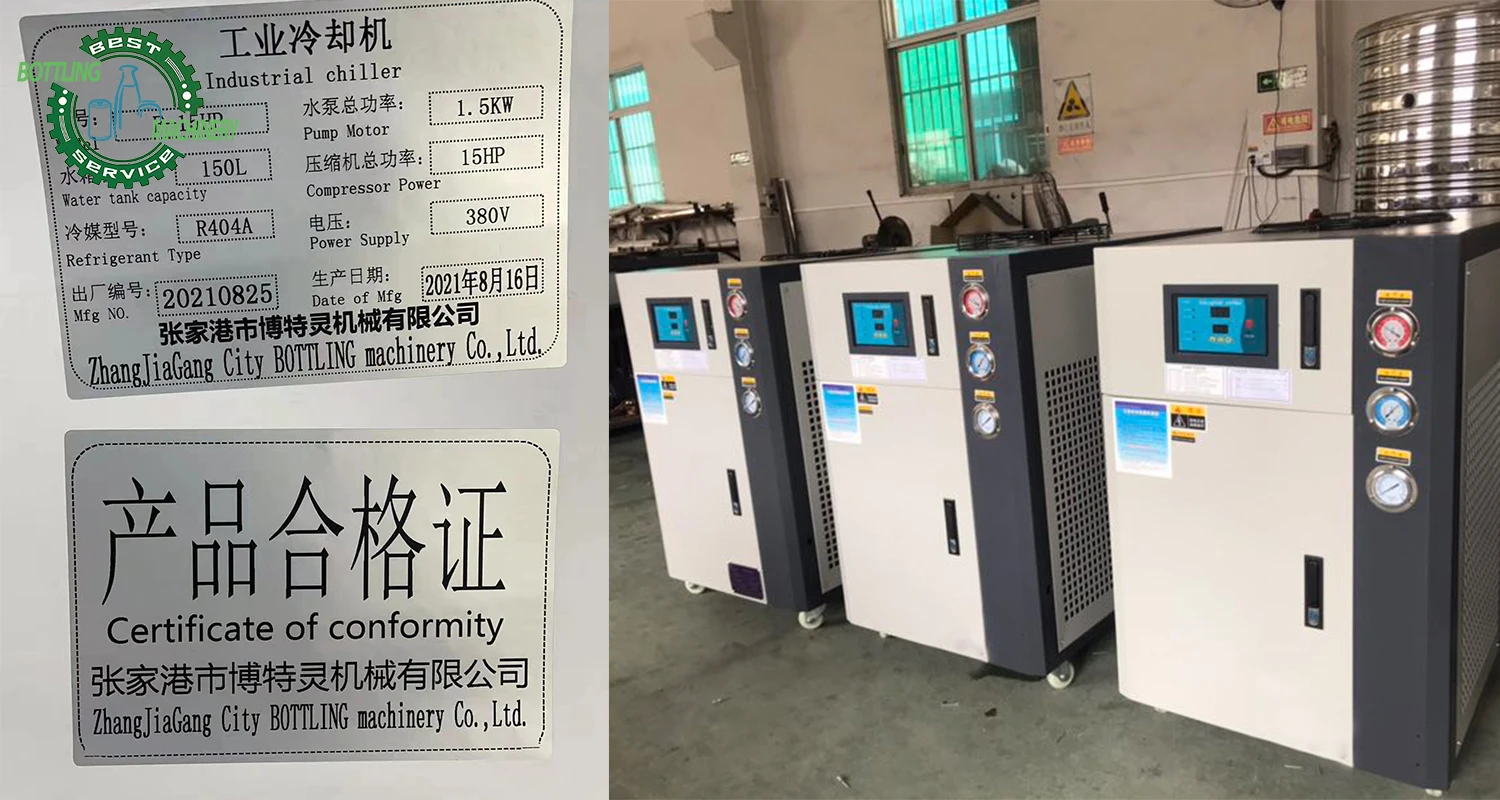

Water chiller:
Technical features:
1, The unit compressor adopts the international famous brand fully enclosed scroll type industrial refrigeration compressor, which is the most advanced form in the world and has a lifetime maintenance free.
2, The evaporator of the unit adopts high efficiency shell and tube heat exchanger, and the internal heat exchange copper tube adopts internal thread red copper tube. The condenser adopts high efficiency red copper tube and hydrophilic aluminum warping plate. All imported plate processing, with high pressure class, high heat exchange efficiency, free maintenance, long service life and other advantages.
3, The unit adopts the control system developed by US, which is simple to operate and accurate to control.
4, The unit is designed and manufactured as a whole, equipped with standard high-efficiency centrifugal pipe centrifugal pump and 304 stainless steel cold storage tank.
5, The unit adopts the international advanced fully enclosed scroll type industrial refrigeration compressor. The compression efficiency, heat exchange efficiency of the compressor and the heat exchanger have been significantly improved to ensure the high efficiency of the unit.
6, The unit adopts the unit energy saving control program independently developed by US to ensure that the unit can automatically adjust the unit operating condition according to the set working conditions to ensure stable operation and energy saving to the maximum extent.
7, The unit has no special installation requirements and can be directly placed in a well-ventilated outdoor place without additional cooling tower, water pump and water tank. The units below 8P are equipped with casters for easy operation and movement.
8,The evaporator of low-temperature brine unit is processed with imported high-efficiency preservative materials rather than ordinary materials, which ensures the service life under the premise of not affecting the heat exchange efficiency, effectively avoiding the evaporator perforation caused by the corrosion of the refrigerant and permanent damage of the unit.
9, In order to adapt to the different temperature requirements of industrial cooling and freezing, different series of scroll industrial special compressors are adopted, and the frozen water outlet temperature ranges from 15℃ ~ -35℃. Excellent technology ensures stable operation under the limit conditions.
1, The unit compressor adopts the international famous brand fully enclosed scroll type industrial refrigeration compressor, which is the most advanced form in the world and has a lifetime maintenance free.
2, The evaporator of the unit adopts high efficiency shell and tube heat exchanger, and the internal heat exchange copper tube adopts internal thread red copper tube. The condenser adopts high efficiency red copper tube and hydrophilic aluminum warping plate. All imported plate processing, with high pressure class, high heat exchange efficiency, free maintenance, long service life and other advantages.
3, The unit adopts the control system developed by US, which is simple to operate and accurate to control.
4, The unit is designed and manufactured as a whole, equipped with standard high-efficiency centrifugal pipe centrifugal pump and 304 stainless steel cold storage tank.
5, The unit adopts the international advanced fully enclosed scroll type industrial refrigeration compressor. The compression efficiency, heat exchange efficiency of the compressor and the heat exchanger have been significantly improved to ensure the high efficiency of the unit.
6, The unit adopts the unit energy saving control program independently developed by US to ensure that the unit can automatically adjust the unit operating condition according to the set working conditions to ensure stable operation and energy saving to the maximum extent.
7, The unit has no special installation requirements and can be directly placed in a well-ventilated outdoor place without additional cooling tower, water pump and water tank. The units below 8P are equipped with casters for easy operation and movement.
8,The evaporator of low-temperature brine unit is processed with imported high-efficiency preservative materials rather than ordinary materials, which ensures the service life under the premise of not affecting the heat exchange efficiency, effectively avoiding the evaporator perforation caused by the corrosion of the refrigerant and permanent damage of the unit.
9, In order to adapt to the different temperature requirements of industrial cooling and freezing, different series of scroll industrial special compressors are adopted, and the frozen water outlet temperature ranges from 15℃ ~ -35℃. Excellent technology ensures stable operation under the limit conditions.
Model | PA-15.1c | PA-20.2c | PA-40.2c | PA-60.2c | ||||
Unit features | Cooling capacity | kW | 26.2 | 37 | 70.6 | 104.8 | ||
×104 kcal/h | 2.25 | 3.18 | 6.08 | 9.08 | ||||
TR | 7.4 | 10.5 | 20.1 | 29.8 | ||||
Machine power | KW | 13.6 | 17.4 | 38 | 57.7 | |||
Operate electricity | A | 24 | 31 | 70 | 102 | |||
Compressor | Qty | Set | 1 | 2 | 2 | 2 | ||
Input power | kW | 11.4 | 14.4 | 30.5 | 45.6 | |||
Running current | A | 20.3 | 25.6 | 54.3 | 81.2 | |||
Refrigerating fluid | / | R404a | R22 | R410a | R410a | |||
Freeze water | Water connections | / | DN40 | DN40 | DN65 | DN80 | ||
Water flow | L/min | 75 | 106 | 202 | 350 | |||
Condensation fan | Single Input power | KW | 0.55 | 0.75 | 0.75 | 1.1 | ||
Single incoming current | A | 1.42 | 1.94 | 1.94 | 2.8 | |||
Qty | Set | 2 | 2 | 6 | 6 | |||
Freeze water pump | Input power | KW | 1.1 | 1.5 | 3 | 5.5 | ||
Lift | mH2O | 25 | 24 | 30 | 30 | |||
Stainless steel water tank volume | / | L | 250 | 270 | 400 | 500 | ||
Dimension | Length （mm） | 1850 | 2000 | 2500 | 2900 | |||
Width （mm） | 915 | 970 | 1600 | 1680 | ||||
Height （mm） | 1678 | 1796 | 2107 | 2400 | ||||
Total weight | KG | 600 | 830 | 1250 | 1560 | |||

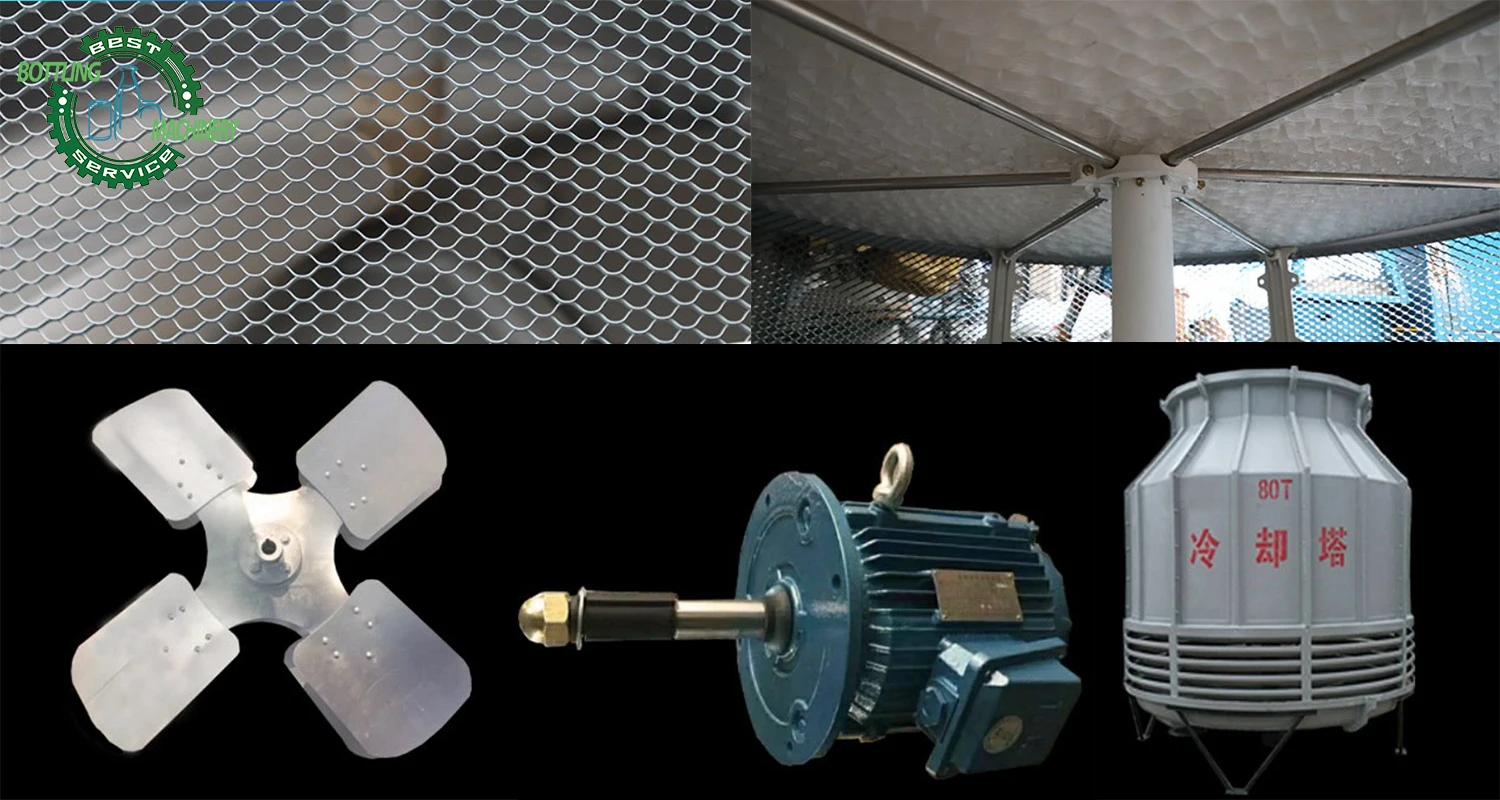

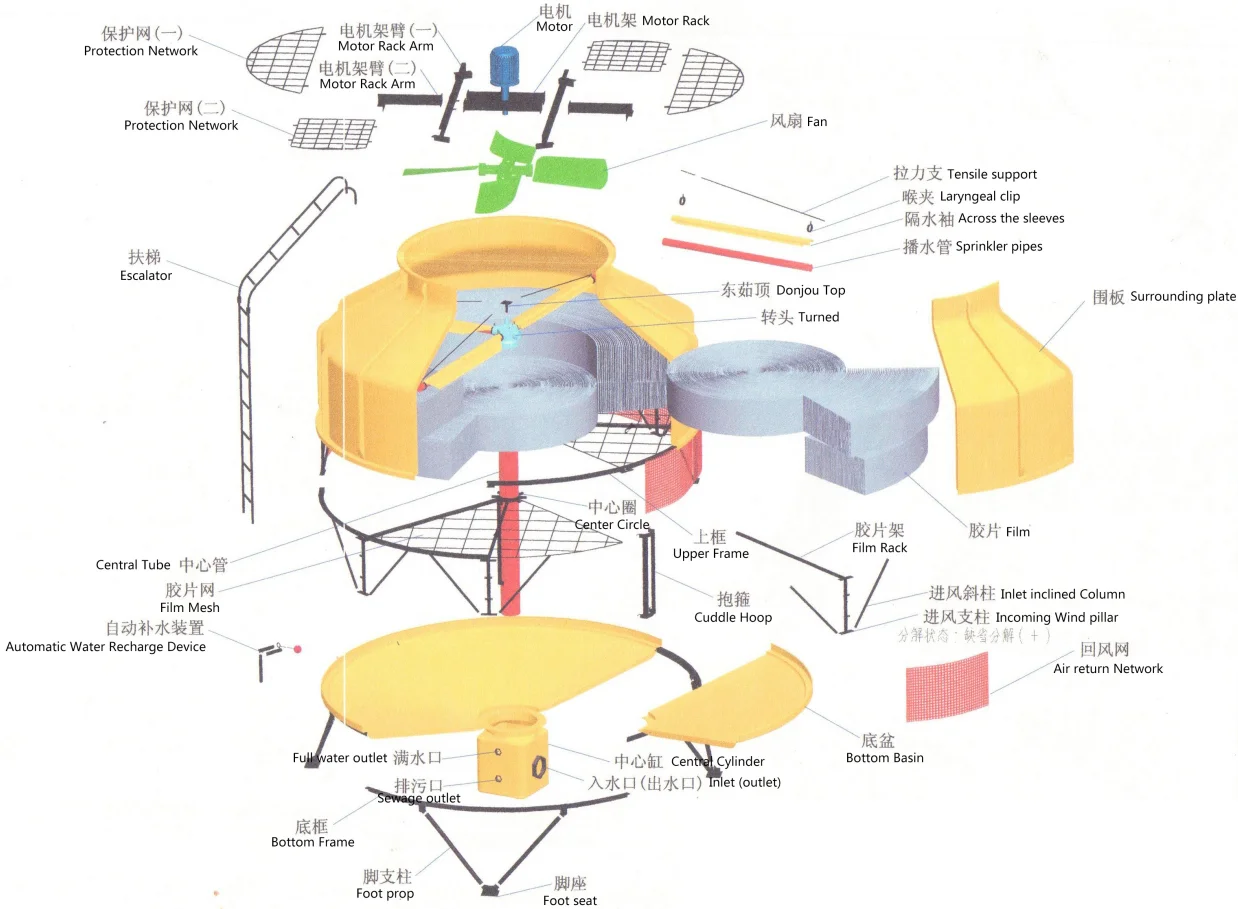

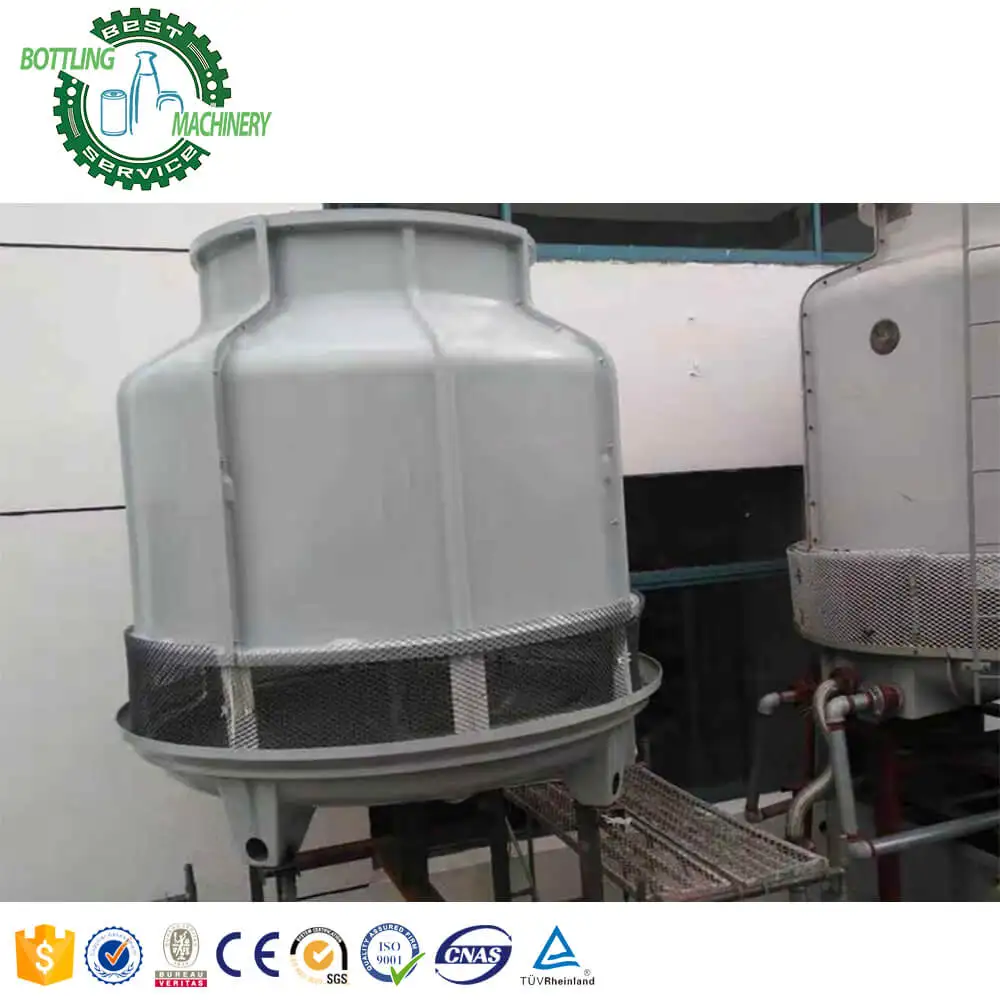

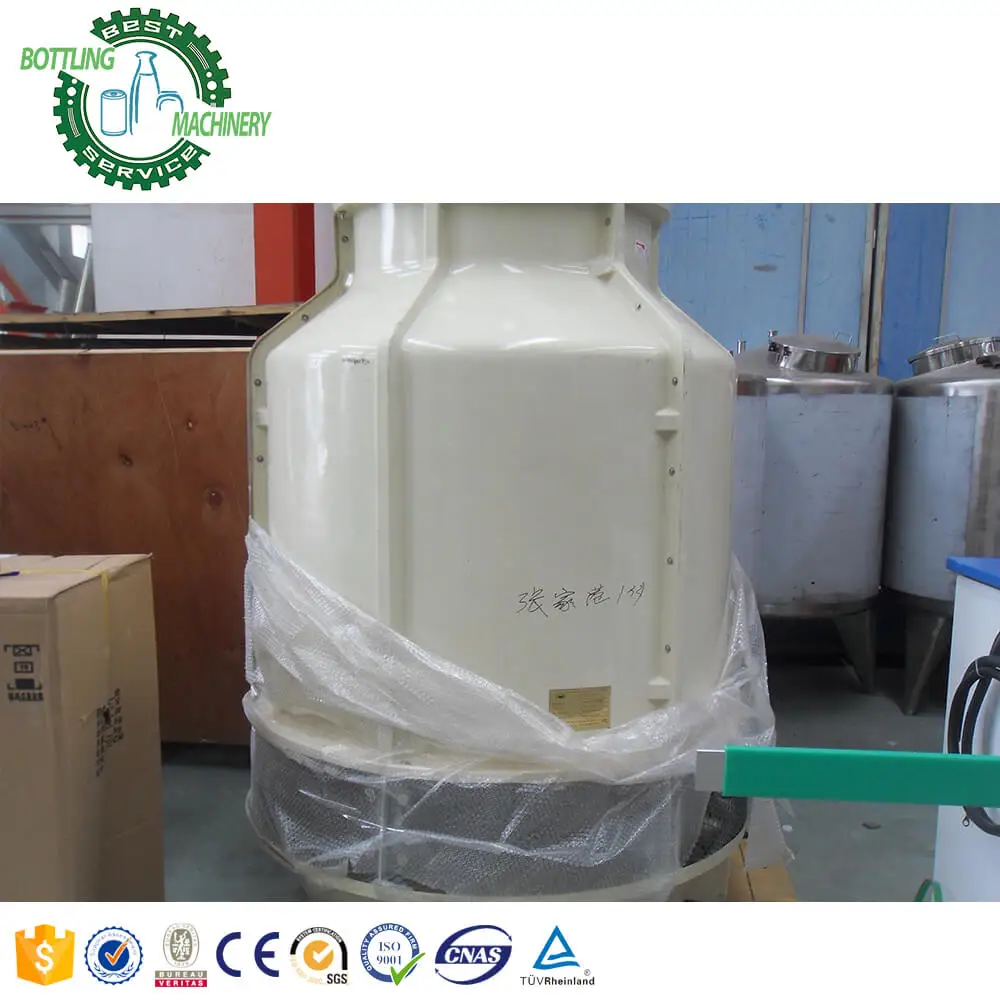

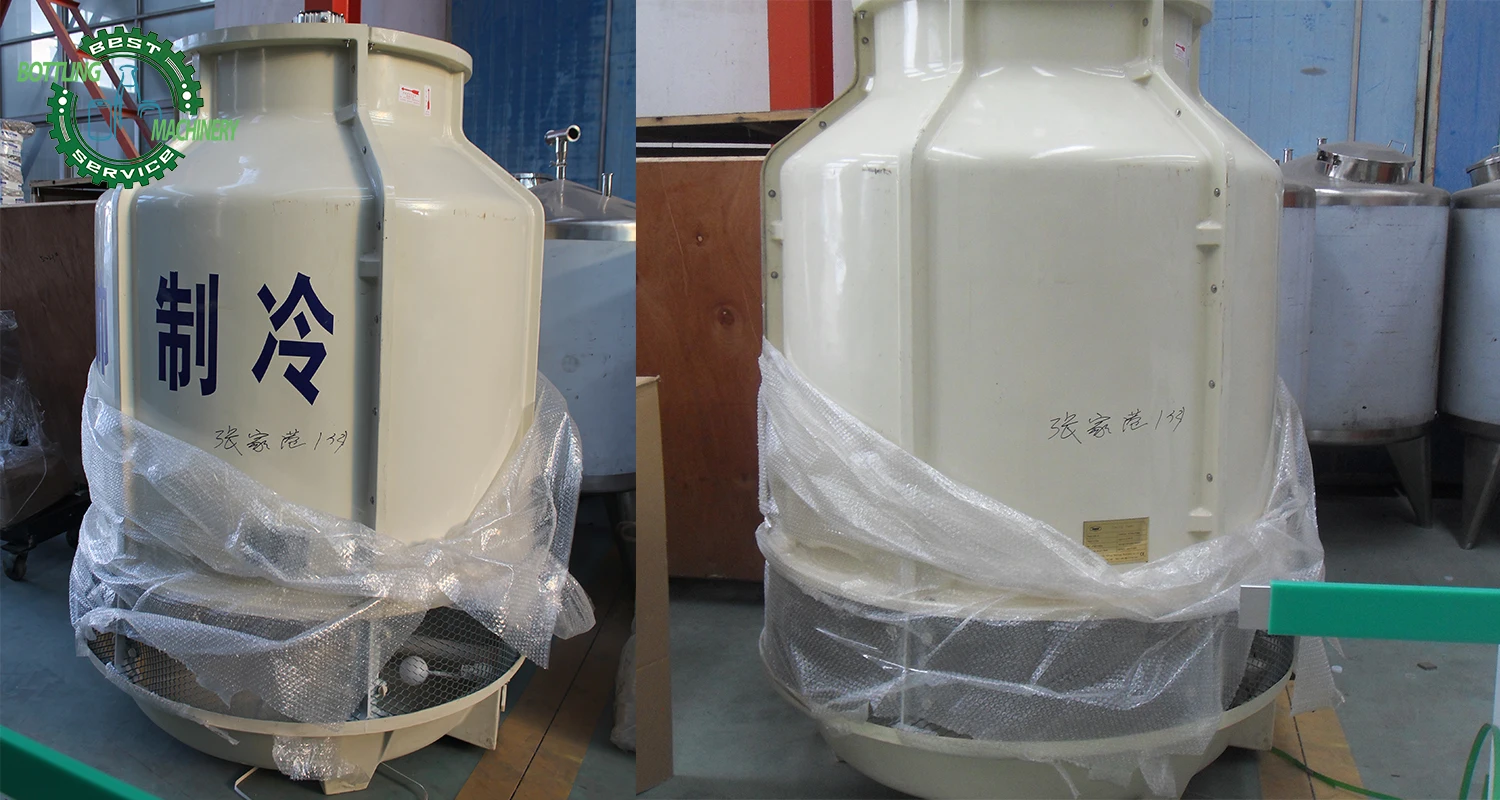

Cooling tower:
A cooling tower is a device that uses the contact between water and air to dissipate waste heat generated in industry or in refrigeration and air conditioning through evaporation. The basic principle of its work is: after the dry (low enthalpy) air is drawn by the fan, it enters the cooling tower from the air inlet network; the high temperature water molecules with large saturated steam partial pressure flow to the low pressure air, and the damp heat (high Enthalpy) water is sprinkled into the tower by a self-seeding system. When water droplets contact air, on the one hand, due to the direct heat transfer between air and water, on the other hand, due to the pressure difference between the surface of water vapor and air, evaporation occurs under the action of pressure, and the heat in the water is taken away and evaporates. Heat transfer, so as to achieve the purpose of cooling down.
Advantages
Low-noise control principle
Lowering noise from the sound source.The special power machine is filled closed automatic cooling type low-noise cooling tower.Such kind of machine is good at water-proof performance, low in noise.
1.Low-speed fan to avoid excessive mist into the air.
2.FRP body contains stable materials resisting ultraviolet radiation with a long service life.
3.Filled with round counterflow model film.
4.Rotating pipe distributing model.
5.The structure contains rust-removing and high-strength galvanized steel which can bear corrosion and can be easily assembled.
6.Different types(standard,low-noise,high-temperature and industrial type) to meet your needs.
Low-noise control principle
Lowering noise from the sound source.The special power machine is filled closed automatic cooling type low-noise cooling tower.Such kind of machine is good at water-proof performance, low in noise.
1.Low-speed fan to avoid excessive mist into the air.
2.FRP body contains stable materials resisting ultraviolet radiation with a long service life.
3.Filled with round counterflow model film.
4.Rotating pipe distributing model.
5.The structure contains rust-removing and high-strength galvanized steel which can bear corrosion and can be easily assembled.
6.Different types(standard,low-noise,high-temperature and industrial type) to meet your needs.
Main Features
1, Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2, Most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.
1, Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2, Most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

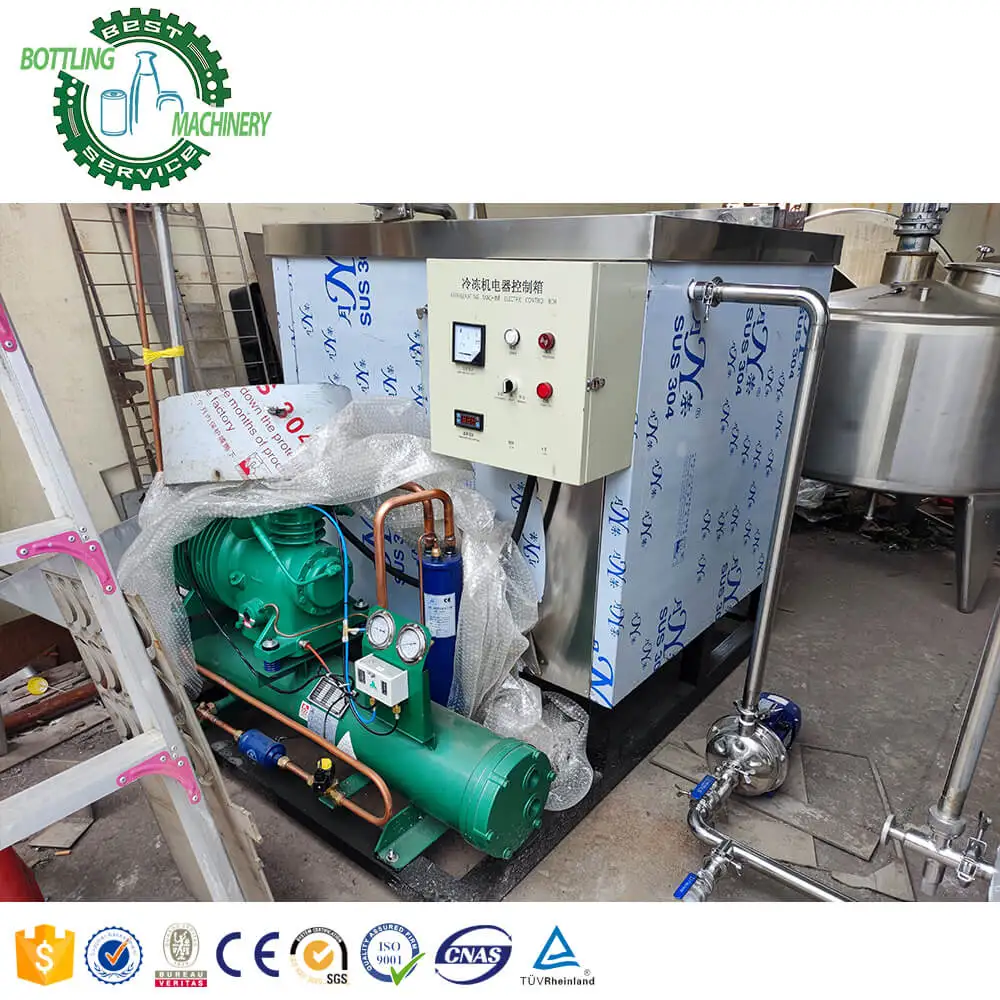

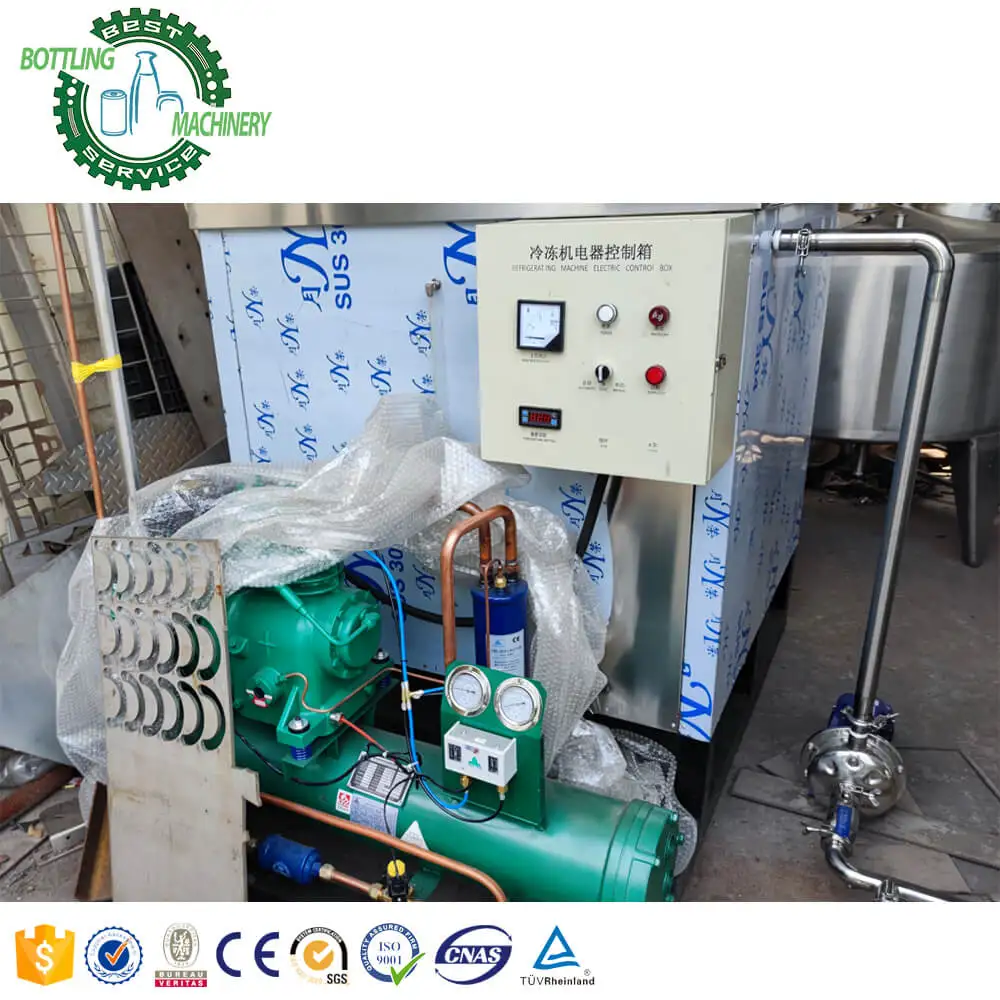

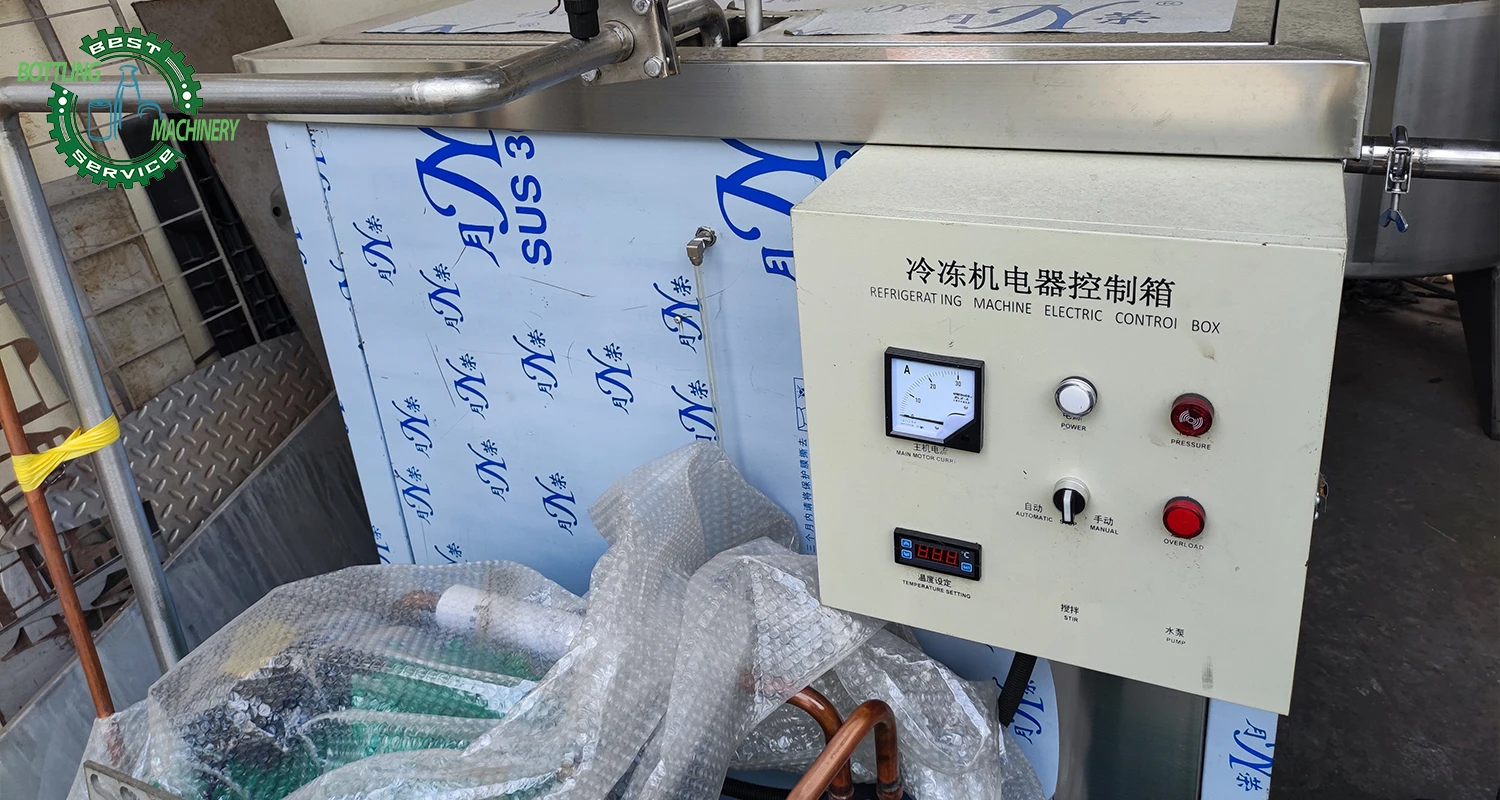

Refrigerator with water cooling tank:

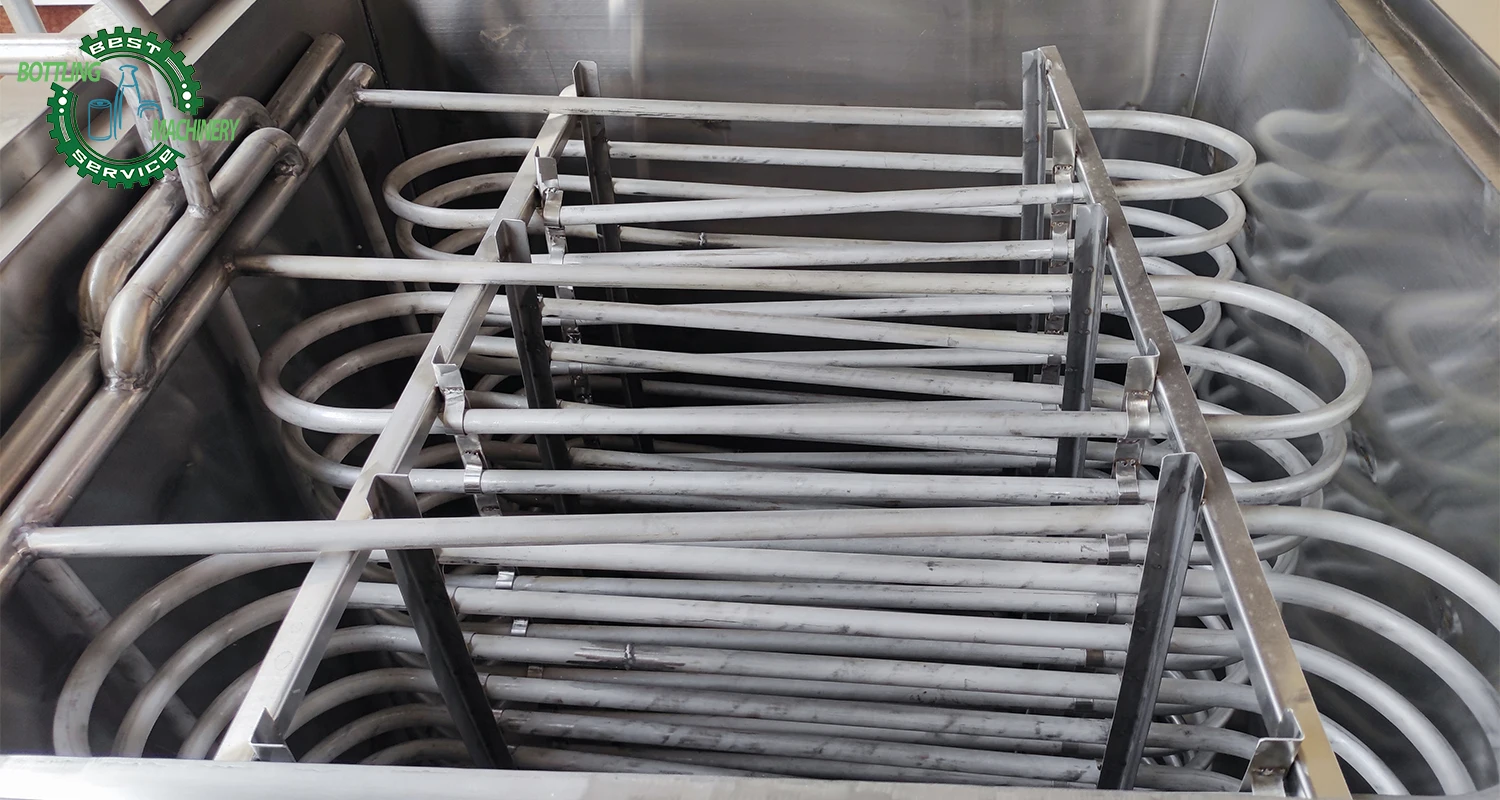

The cooling tank is composed of 2 parts: tank part and chilling compressor device part; the tank is made of SUS304 cover and lot of SUS304 coil tubes to put into the tank. When the chilling compressor start to work, the compressor will generate chilling water, the chilling water is passing inside of the tubes, there is liquid outside the tubes and inside the tank. By heat exchange purpose,the heat from the liquid in tank will be brought away about chilling water inside tubes, then the liquid temp will be lower down. The tank and and the chilling device will be controlled together at control cabinet on the tank.
Characters:
1. The machine is by Powder Coating and anti-corrosion treatment
2. Control panel is by humanization design, is easy for control, only need to connect inlet/outlet pipe and power, the machine can start automatically (the machine can start/stop automatically according to temp setting.)
3.The machine is with high-low pressure protector; electricity leakage protector, Default Phase protector, anti phase protector, overload protector; compressor motor overheat protector, anti ice protector
4. Most modern volute type compressor, electrical and refrigerating parts are all by brand parts
2. Control panel is by humanization design, is easy for control, only need to connect inlet/outlet pipe and power, the machine can start automatically (the machine can start/stop automatically according to temp setting.)
3.The machine is with high-low pressure protector; electricity leakage protector, Default Phase protector, anti phase protector, overload protector; compressor motor overheat protector, anti ice protector
4. Most modern volute type compressor, electrical and refrigerating parts are all by brand parts
company profile
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case.
2. The delivery date of this machine is within 10-25 days after payment.
2. The delivery date of this machine is within 10-25 days after payment.
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
Sachet water packing line
