Ultrasonic lace sewing machine for mask
US $500.00-$900.00
Double motor cotton braiding hydraulic slipper press mesh dress crystal beads fabric lace machine
- Category: >>>
- Supplier: Changzhou Cedi Technology Co. Ltd.
Share on (1600944663612):
Product Overview
Description
Product Overview
AH-100-2Q
Lace clothing, ribbon, decoration products, handkerchief, tablecloth,curtain, bedspread, pillowcase, quilt cover, tent, raincoat,disposable operating coat and hat, disposable mask, non-woven fabric cloth and So on
FEATURES AT A GLANCE
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting, SO smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting, sealing and embossing to make production in one time.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Source power | 220V±5V 50/60HZ 6A |
2 | Input power | 1500-2500W |
3 | Output frequency | 18KHZ |
4 | Working speed | 0-20m/min |
5 | Roller size | Width:0-100mm Diameter:50-60mm |
6 | Dimension（L*W*H) | 1200*600*1200mm |
7 | Net weight | 105KG |
8 | Working temperature | ≤25℃ |

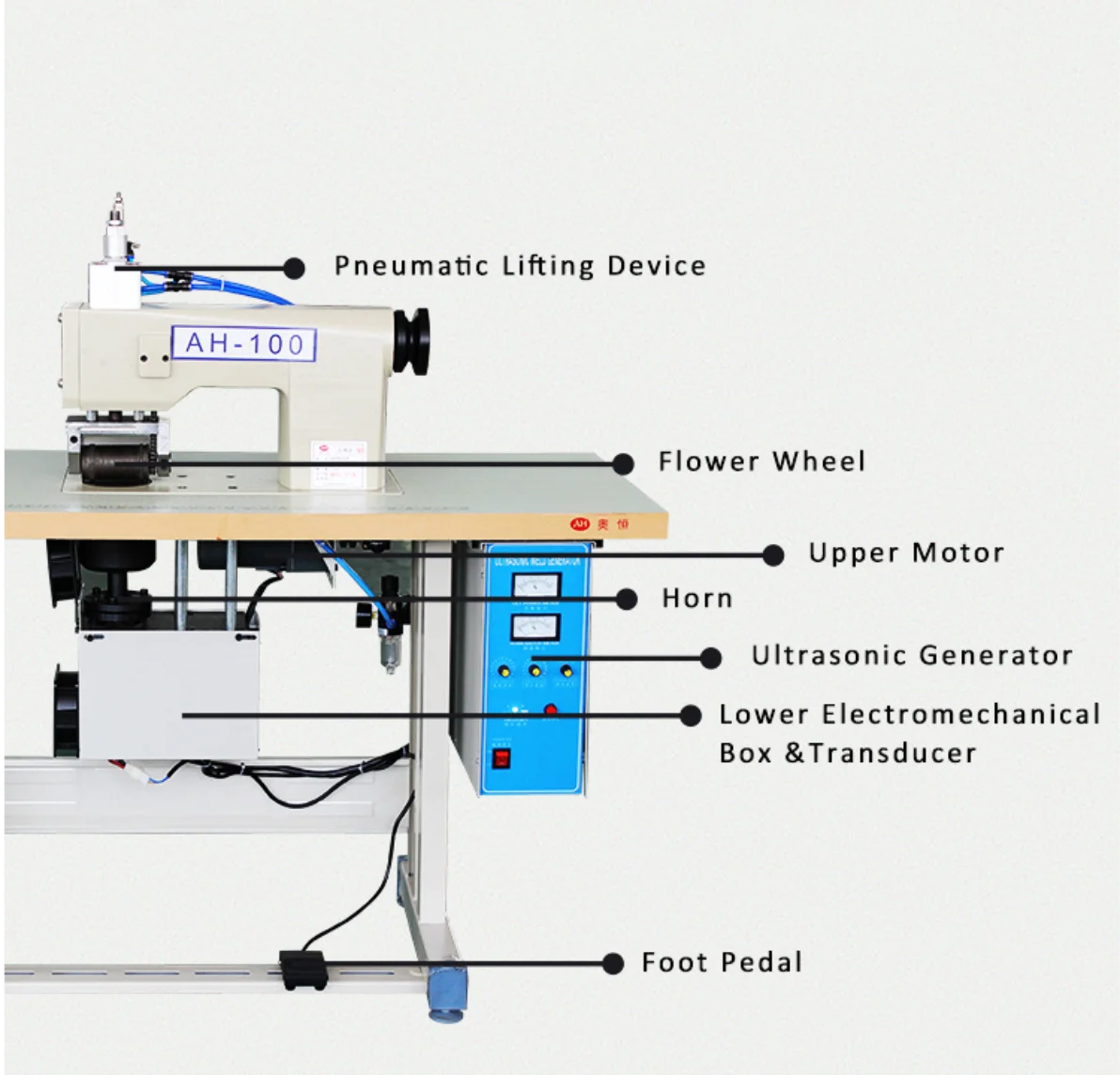

1.New type PC inelectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Double motor speed regulation system;
5. Pneumatic roller lifting system;
6. Double-barreled framework and heavy support board Characteristics

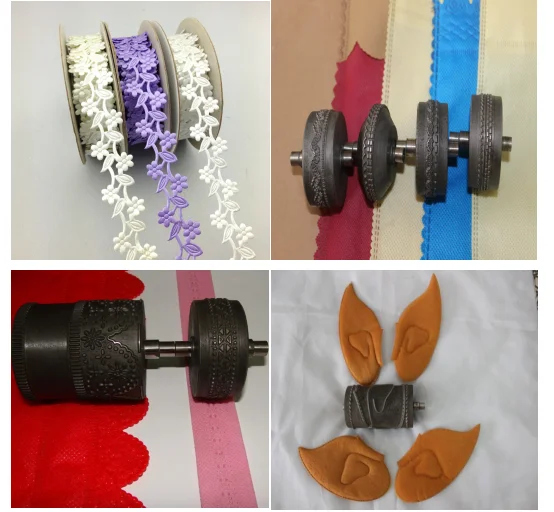

Finished product display
