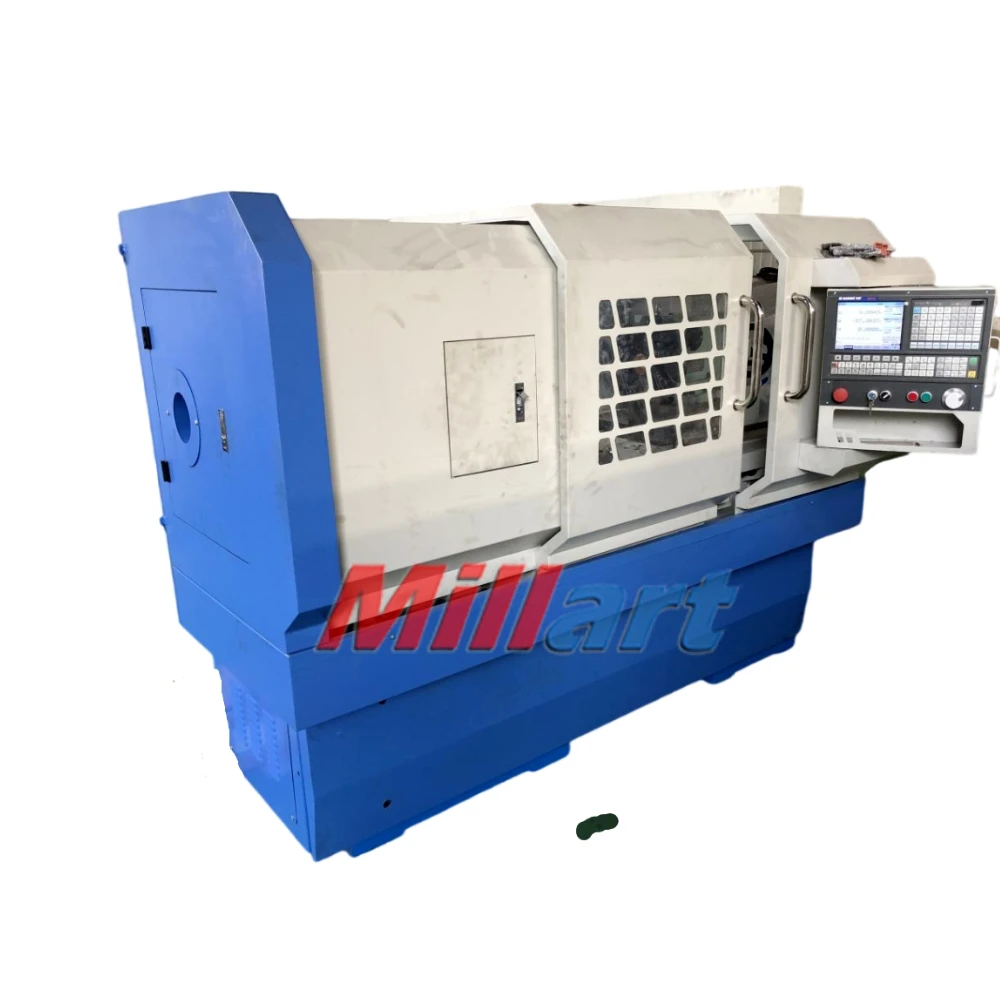

CK360 CNC Lathe Machine Price/Flat Bed CNC Turning Lathe Machine Center/CNC Lathe Center Machine with GSK SIEMENS FANUC
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600944664668):
Product Overview
Description
Product Description
Feature
1.Independent spindle , high precision ,lower noise , saving energy and protect environment
2. High speed and precision bearing, spindle smooth finish good. High precision ball screw
3.High stability one- piece machine bed, higher rigidity cast iron.
4.High frequency quenching rail, hardness and high wear resistance. Frequency conversion, stepless speed regulation. Integrated automatic lubrication
2. High speed and precision bearing, spindle smooth finish good. High precision ball screw
3.High stability one- piece machine bed, higher rigidity cast iron.
4.High frequency quenching rail, hardness and high wear resistance. Frequency conversion, stepless speed regulation. Integrated automatic lubrication
Product Details
SPECIFICATION | CK360 | ||
CAPACITY | Max.swing over bed | 360mm | |
Max.swing over cross slide | 200mm | ||
Center Distance | 750mm | ||
Bed Width | 330mm | ||
HEADSTOCK | Spindle bore | 52mm | |
Spindle nose | ISO-A2-5 | ||
Spindle taper | MT5 | ||
Spindle speed steps | Variable | ||
Spindle speed | 150-2500rpm | ||
CARRIAGE | X/Z axis rapid travel speed | 4/6 m/min | |
Max.travel of X/Z axis | 186/525mm | ||
Number of tool post | 4/6 | ||
Max.size of toolshank | 20*20mm | ||
ACCURACY | Positioning accuracy | 0.01mm | |
Re-positioning accuracy | 0.005mm | ||
The smallest unit | 0.001mm | ||
TAILSTOCK | Dia.of tailstock sleeve | 65mm | |
Taper of tailstock sleeve | MT4 | ||
Max.travel of tailstock | 120mm | ||
MOTOR | Main drive motor | 4KW | |
Coolant pump motor | 90W | ||
PACKING(L*W*H) | 200*150*190cm | ||
N.W/G.W | 1400/1650kgs | ||
STANDARD ACCESSORIES

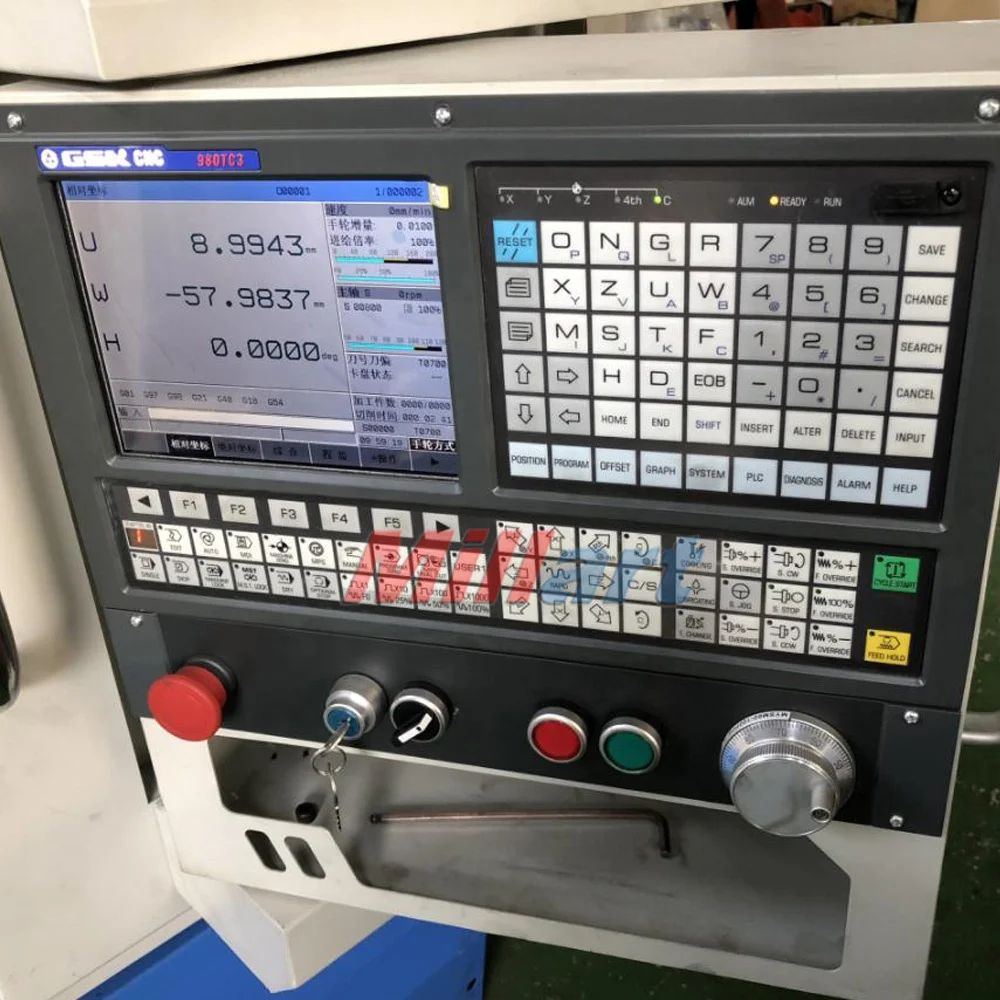

GSK928TDL Controller system
3-jaw chuck
4-station electrical toolpost
Work lamp
Coolant system
Dead centre(MT3)
Live centre(MT3)
Centre sleeve(MT4/3)
Oil gun
One whole set spanner
OPTIONAL ACCESSORIES
GSK928TDL Controller system
Siemens 808D controller system
Solid Hydraulic chuck-
Hollow hydraulic chuck
Live center
