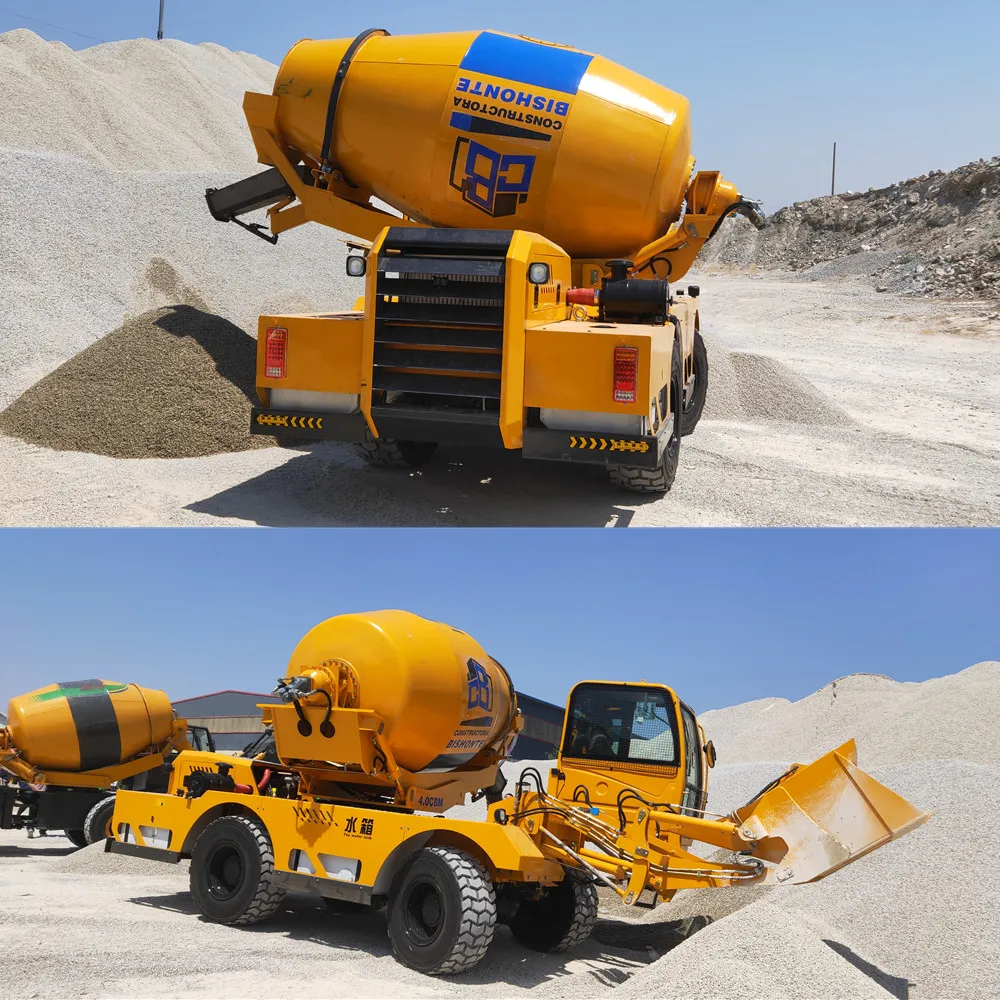

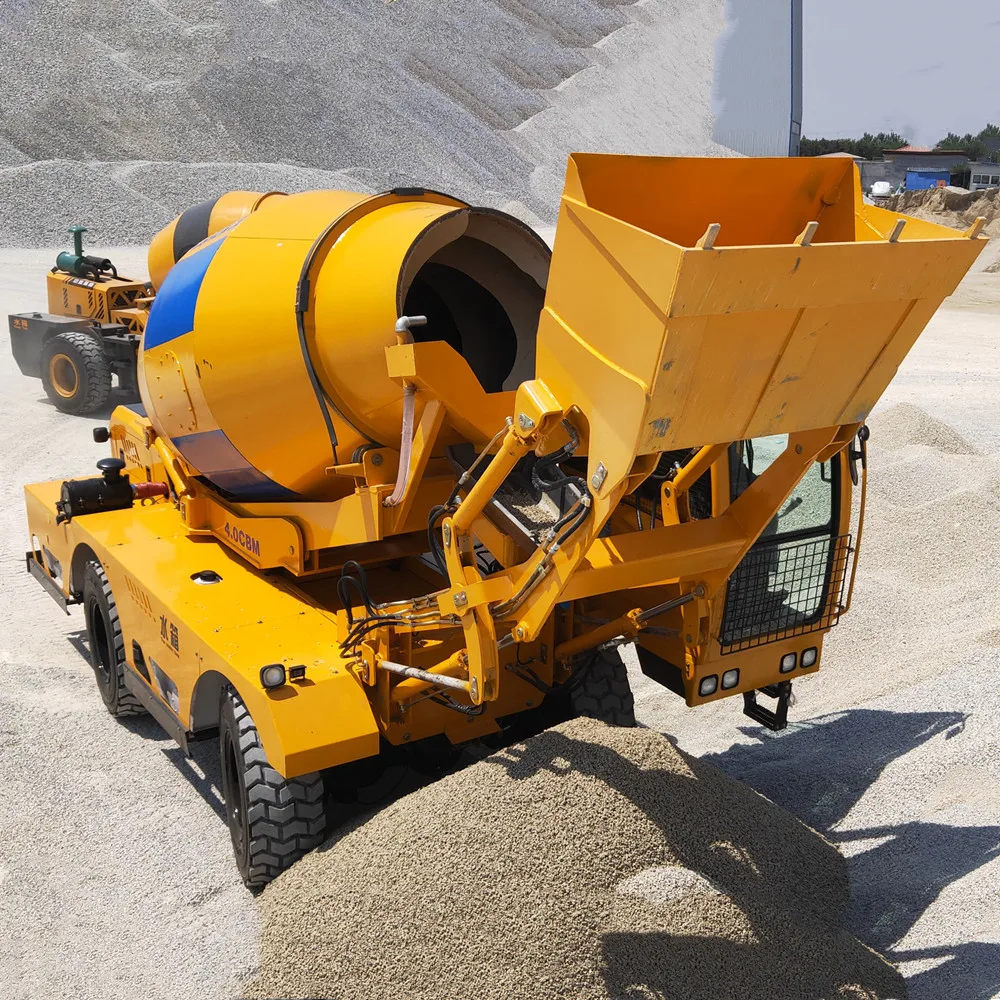

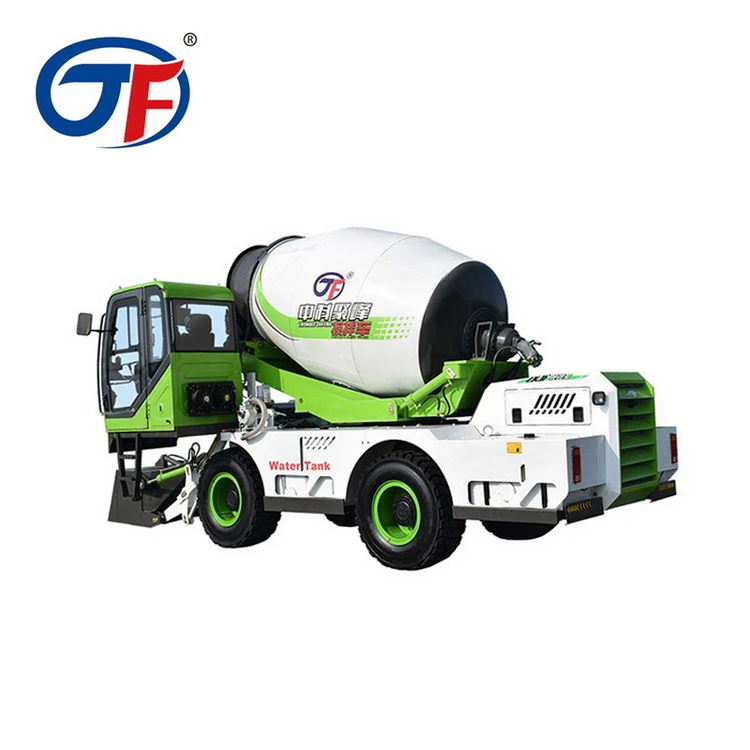

Shandong concrete mixer truck construction sites 4.0 Cbm self loading mixer truck
- Category: >>>
- Supplier: Laizhou Jufeng Machinery Co. Ltd.
Share on (1600944667277):
Product Overview
Description
Product Description
PRODUCT APPLICATION FOR CMT4000R

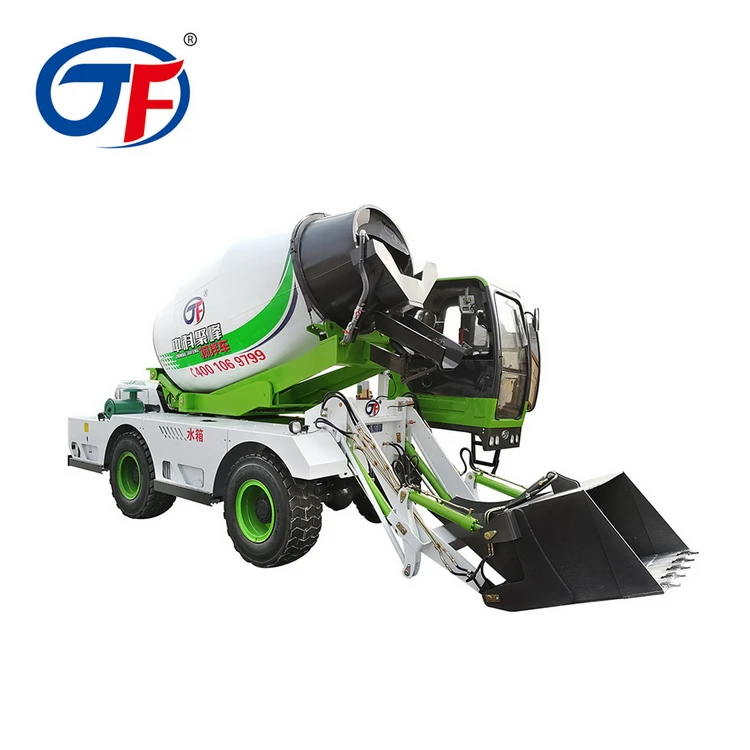

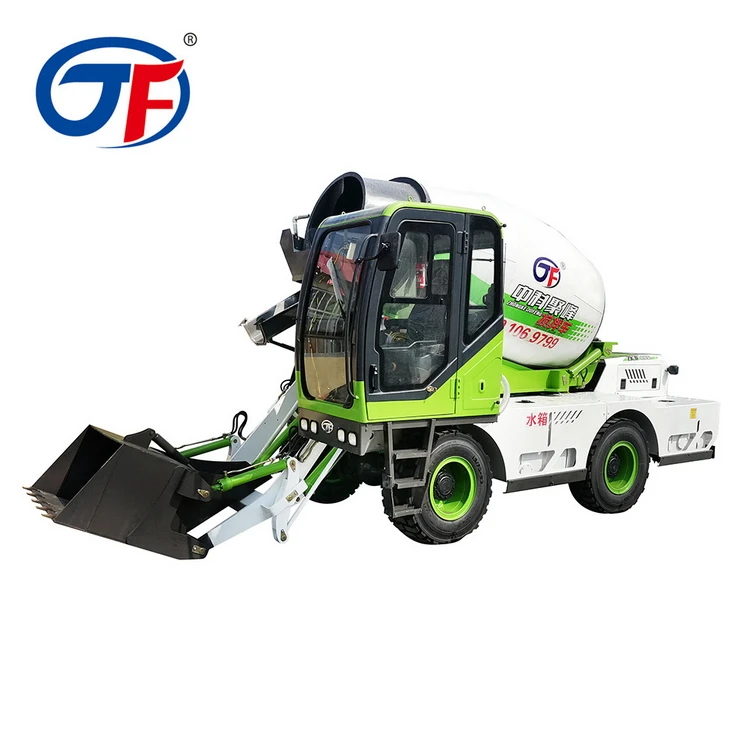

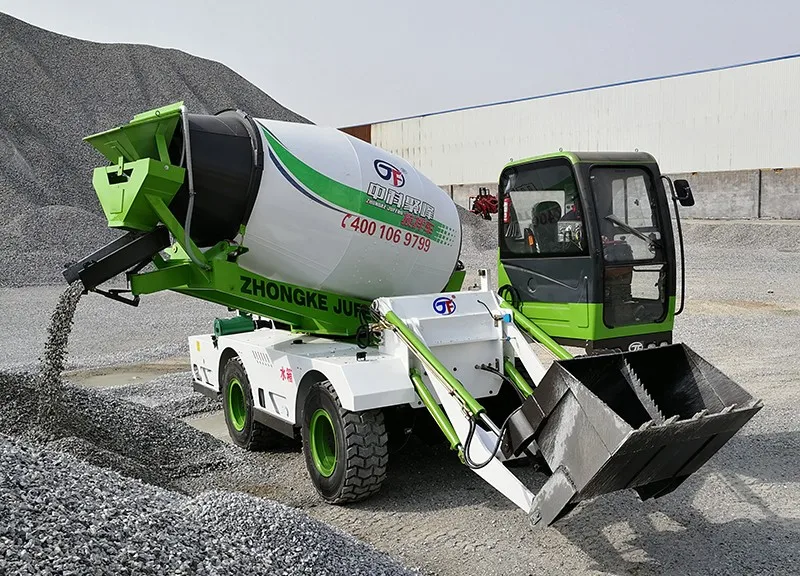

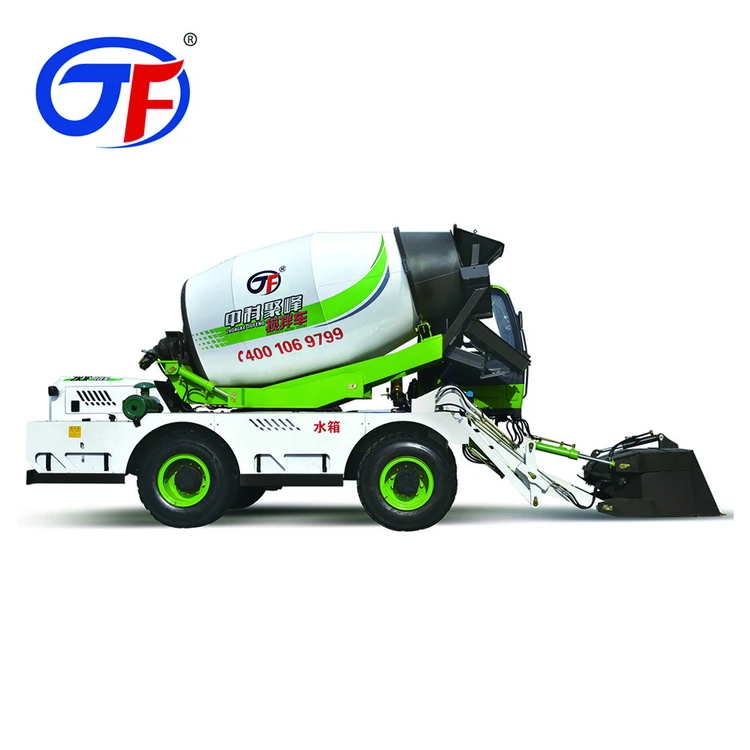

SELF LOADING CONCRETE MIXER TRUCK CMT4000R Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering , the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 290° for high discharge over
2 m on the four sides of the vehicle.
The the Geometric Volume of Mixing Drum is 6.1 m³. Concrete output is 4 m³ per Batch.The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 128m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
Specifications for CMT3500RW self loading concrete mixer truck | ||||||||
Mixing Drum | Mixing Volume | 4000 L | ||||||
Geometric Volume | 6100 L | |||||||
Concrete Output | 4000 L/ batch , 4 Batches/ hr | |||||||
Inclination Angle | 16° | |||||||
Max. Slewing Angle | 290° | |||||||
Rotating Speed | 0~21 rpm | |||||||
Body /Bottom Thickness | 5 mm/8 mm(Q345B) | |||||||
Overall Size | Φ1920x3206 mm | |||||||
Chute | Max. Slewing Angle | 180° | ||||||
Tilting Method | Mechanically | |||||||
Length | 650mm +1500 mm (2 Sections) | |||||||
Engine | Brand | YUCHAI ( Cummins Optional) | ||||||
Model | YCD4J22G | |||||||
Rated Power/Speed | 116HP /2400 rpm | |||||||
Max.Torque/ Speed | 390 N.m/2800 rpm | |||||||
Bore x Stroke | 105 mm x125 mm | |||||||
Displacement | 4.33 L | |||||||
4-Cylinder,In-line, Turbo Charged, Water-cooled | ||||||||
Emission Standard | Euro II | |||||||
Reducer Model | HJ80-43 | |||||||
Hydraulic Pump Displacement | 80/40 mL/r | |||||||
Hydraulic Motor Displacement | 63cm3/rev | |||||||
Water Tank Volume | 2 x330 L | |||||||
Water Supply Mode | Self-contained, Hydraulic Driven water pump | |||||||
Chassis | Structure | Articulated Structure | ||||||
Drive Type | 4 X 4 X 4 | |||||||
Transmission | 2 Forward +2 Reverse Shift (Low+ High Speed) | |||||||
Torque converter | YJ280( Split Type) | |||||||
Gearbox Mode | Counter Shaft, Power-shift | |||||||
Wheelbase | 2400 mm | |||||||
Tread | 1820 mm | |||||||
Loading Shovel Capacity | 600 L | |||||||
Brake Type | Air Brake | |||||||
Tyre Size | 16/70-20 | |||||||
Vehicle | Drum and Shovel Control | By Joystick | ||||||
Driver's Cab | Air-conditioner Inside | |||||||
Max. Drive Speed | 30km/h | |||||||
Grade Ability | 30% | |||||||
Mini Turning Radius | 4000 mm | |||||||
Max. Payload | 9,500 kg | |||||||
Operating Weight | 8,500 kg | |||||||

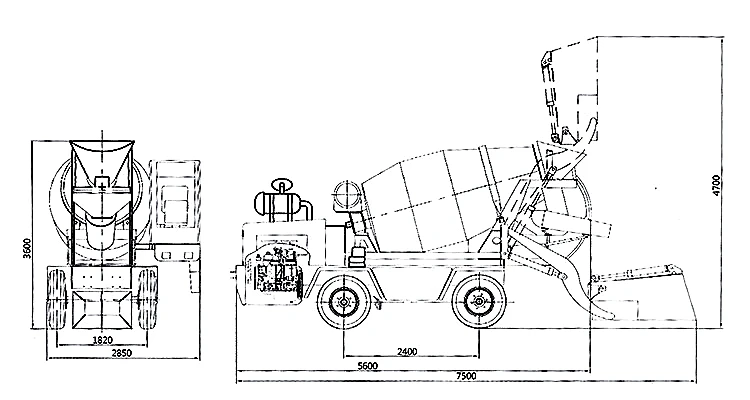

Overall Size | 7500 x 2850x 3600 mm | |||||||
MAIN FEATURES
1) China TOP Brand YUCHAI Diesel Engine as standard Power,
Cummins Engine is Optional
2) The Integrated Structure Chassis and Four Wheel Steering
3) The mixing unit could slew hydraulically up to 290°
4) Centralized Lubricating System for Easy Maintenance
5) Closed Circuit Hydraulic Rotation System
6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside
Cummins Engine is Optional
2) The Integrated Structure Chassis and Four Wheel Steering
3) The mixing unit could slew hydraulically up to 290°
4) Centralized Lubricating System for Easy Maintenance
5) Closed Circuit Hydraulic Rotation System
6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside
Main Features

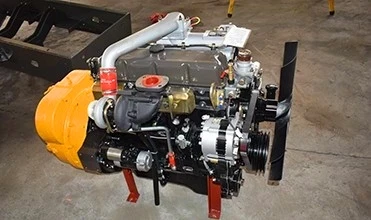

CHINA TOP BRAND YUCHAI DIESEL ENGINE AS STANDARD POWER, CUMMINS ENGINE IS OPTIONAL
The CMT4000R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel Engine. The
YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption. The CUMMINS (130 HP)
Engine is availabe upon request.
The CMT4000R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel Engine. The
YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption. The CUMMINS (130 HP)
Engine is availabe upon request.

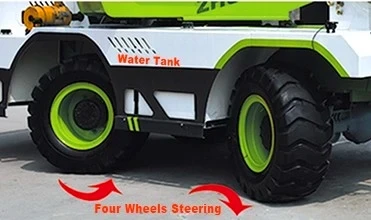

INTEGRATED STRUCTURE CHASSIS
and Four Wheel Steering
and Four Wheel Steering
The Chassis of this machine is kind of integrated structure, which is much more robust and stronger than that with articulated
chassis.
The Drive Type of this mixer is Four Wheel Drive plus Four Wheel Steering (4x4x4), which makes the turning radius much more
smaller than normal type. The Turning Radius is only 4 M.
chassis.
The Drive Type of this mixer is Four Wheel Drive plus Four Wheel Steering (4x4x4), which makes the turning radius much more
smaller than normal type. The Turning Radius is only 4 M.

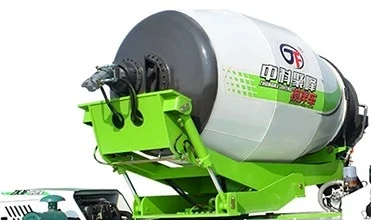

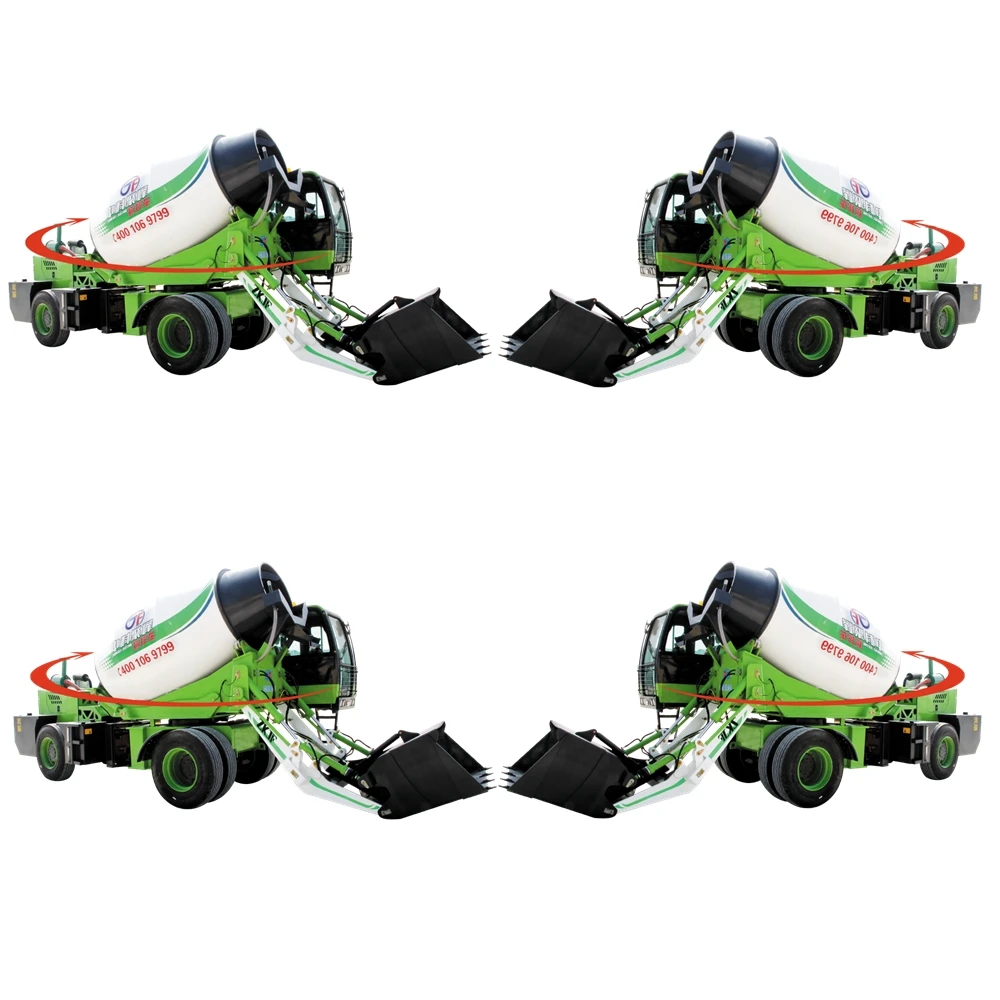

MIXING DRUM COULD SLEWHYDRAULICALLY UP TO 290°
The mixing Drum could slew hydraulically up to 290° for high discharge over 2 m on the four sides of the vehicle. The Bottom
Hydraulic Lifting Mechanism could make material discharging more smooth and thorough. One set of 1.2 m chute is standard
equipment. The extra prolonged chute is availabe upon request.
Hydraulic Lifting Mechanism could make material discharging more smooth and thorough. One set of 1.2 m chute is standard
equipment. The extra prolonged chute is availabe upon request.

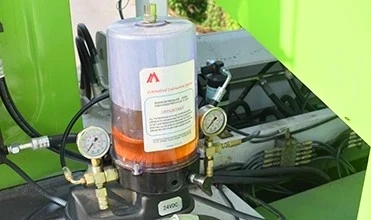

CENTRALIZED LUBRICATING SYSTEM
The centralized lubricating system get rid of the shortcoming of manual grease adding operation, and it could deliver lubricating
grease to those luricating points in fixed time and fixed quantity, which could ensure the friction points run durably and prolong
the service time of machine.

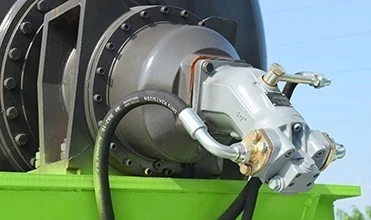

The Mixing Drum is rotated by means of planetary reducer and USA Brand Sunny hydraulic motor in closed circuit.

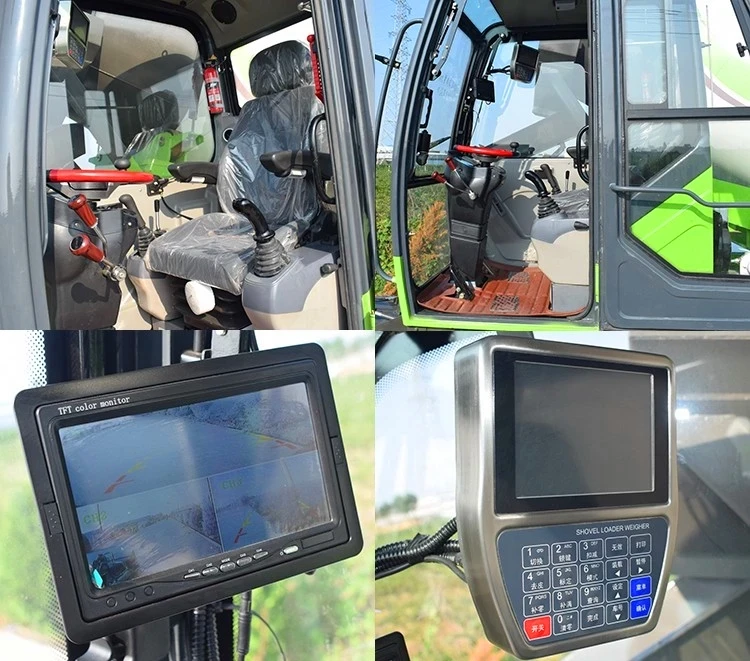

EXCAVATOR STYLE SPACIOUS DRIVER'S CAB
Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab. The anatomic seat is with function of flexible suspension and height adjustment .The electronic weighing system is available here. The Load cells are acting on the drum and technical data are displayed on the shovel loader weigher inside the cab.Two sets of joystick control system are situated on the two sides of driver's seat. The panoramic color monitor is near the steeri ng wheel. The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety . Fire Extinguisher ,Safety Hammer and Air Conditionerare also equipped inside the cab.
Packing & Delivery
Packaging | ||
Size | 11x2.3 x2.5 mm | |
Weight | 8500 kg | |
Nude Packing. 1 Set Per 40 HQ. The mixing drum and driver's cabin have to be dismantled and put on the floor of container. | ||
